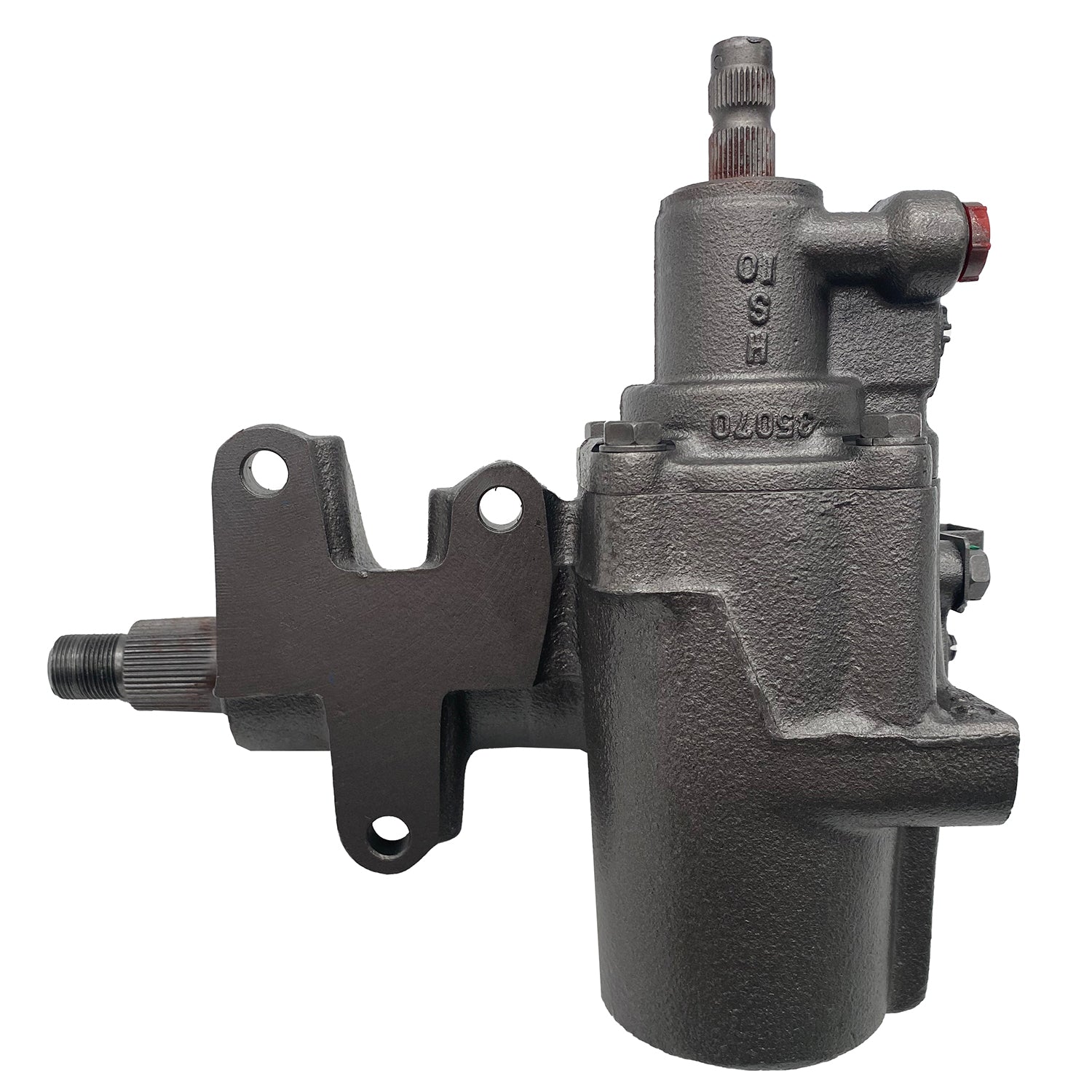

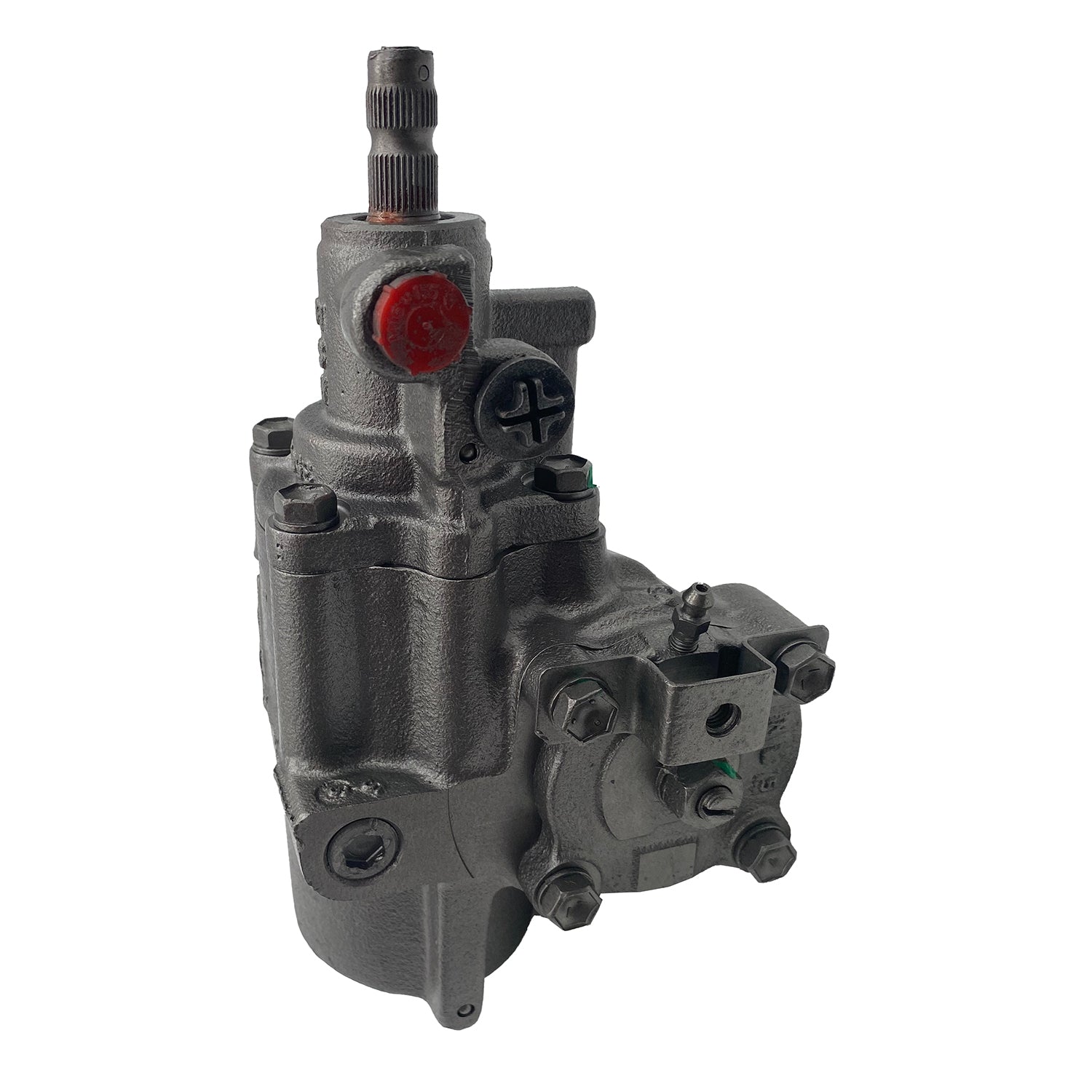

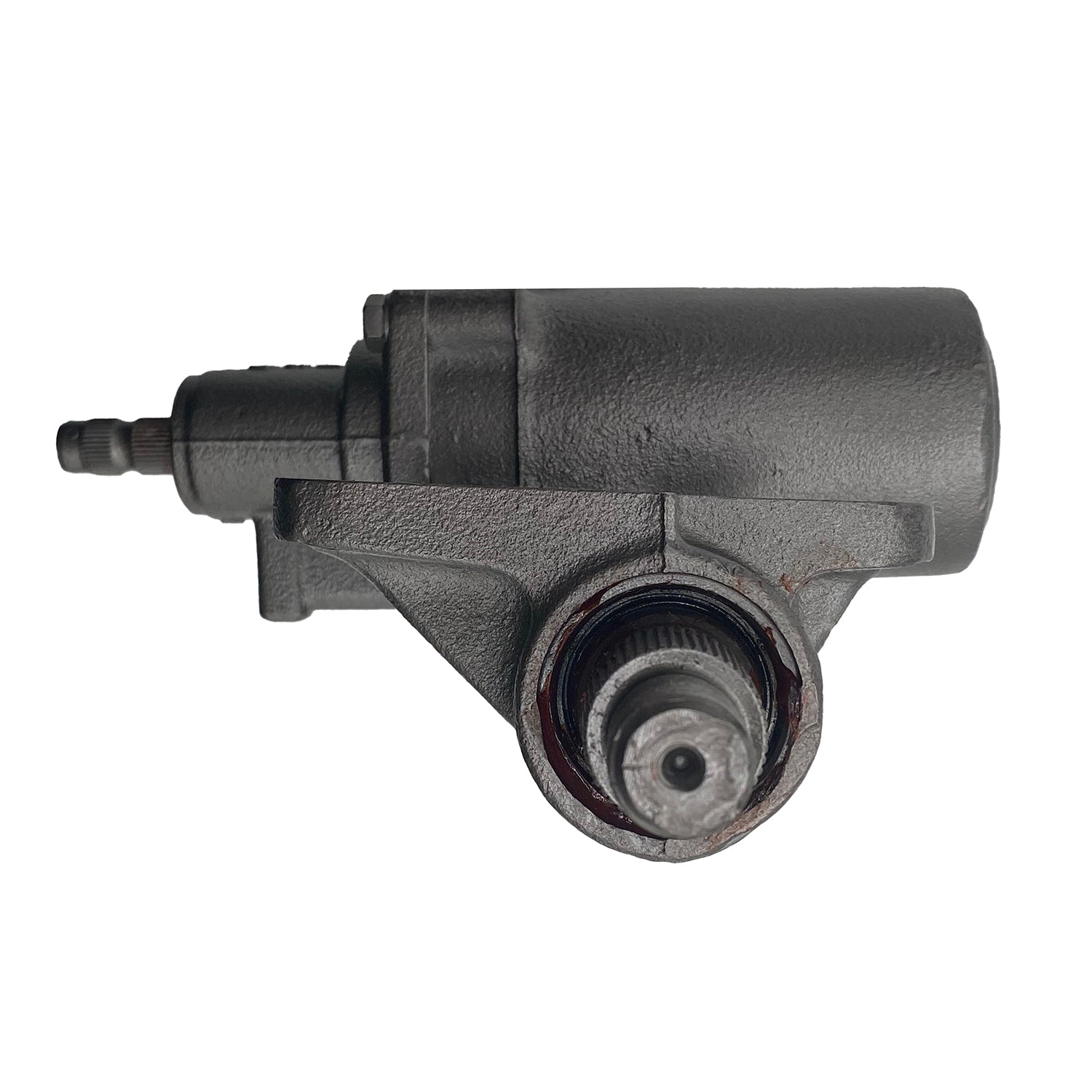

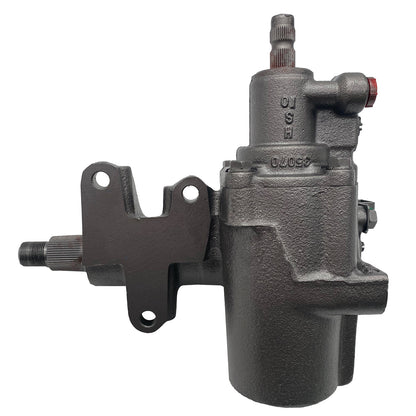

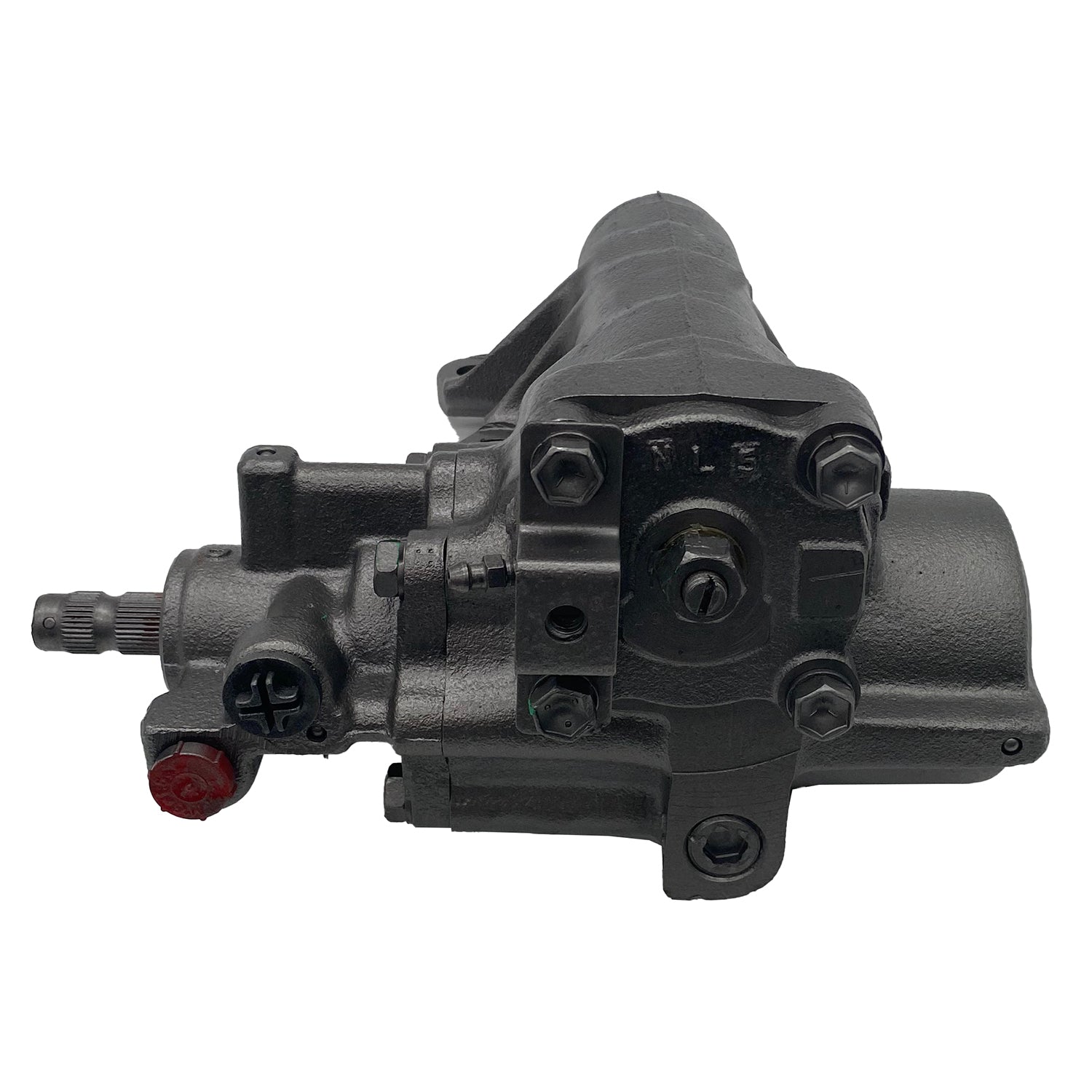

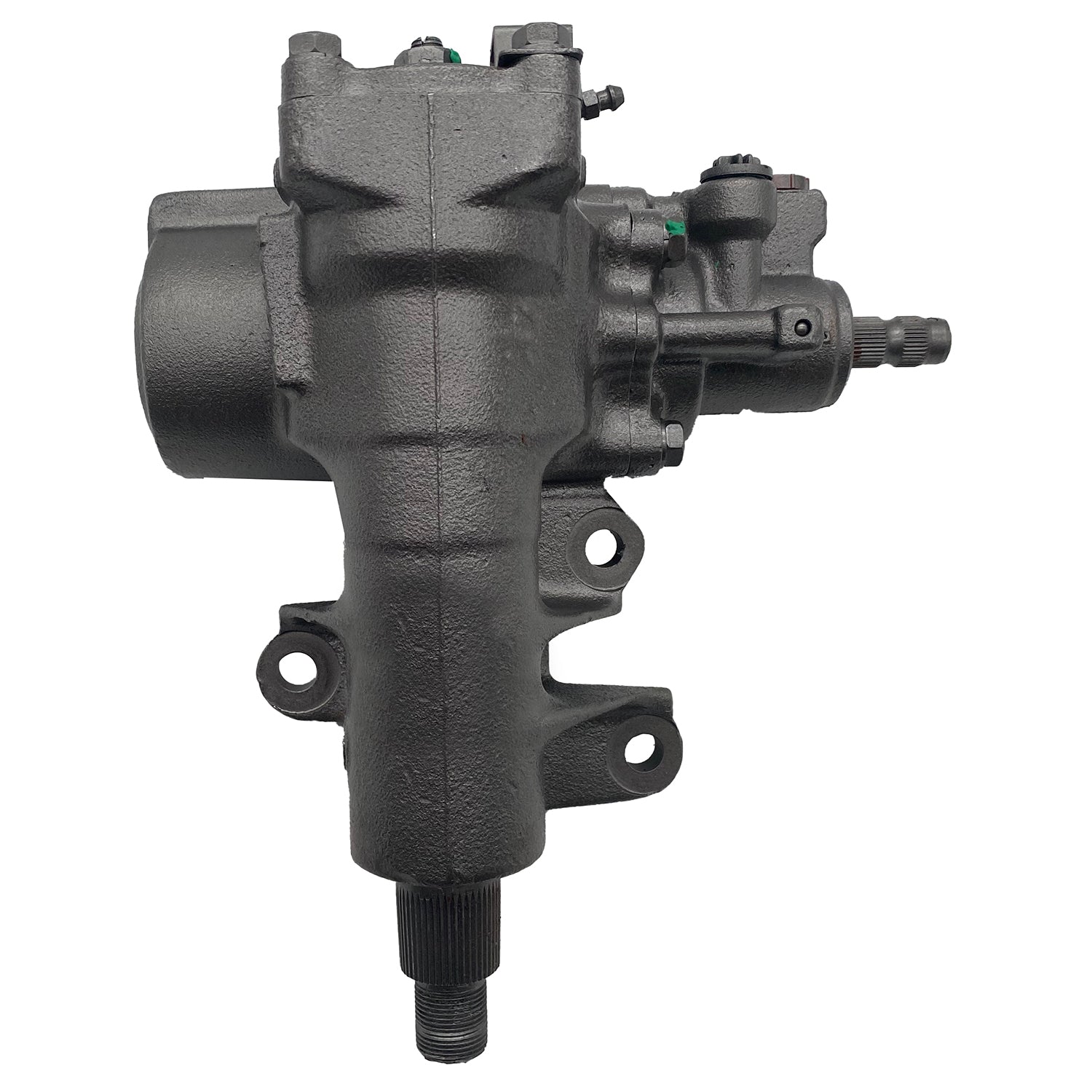

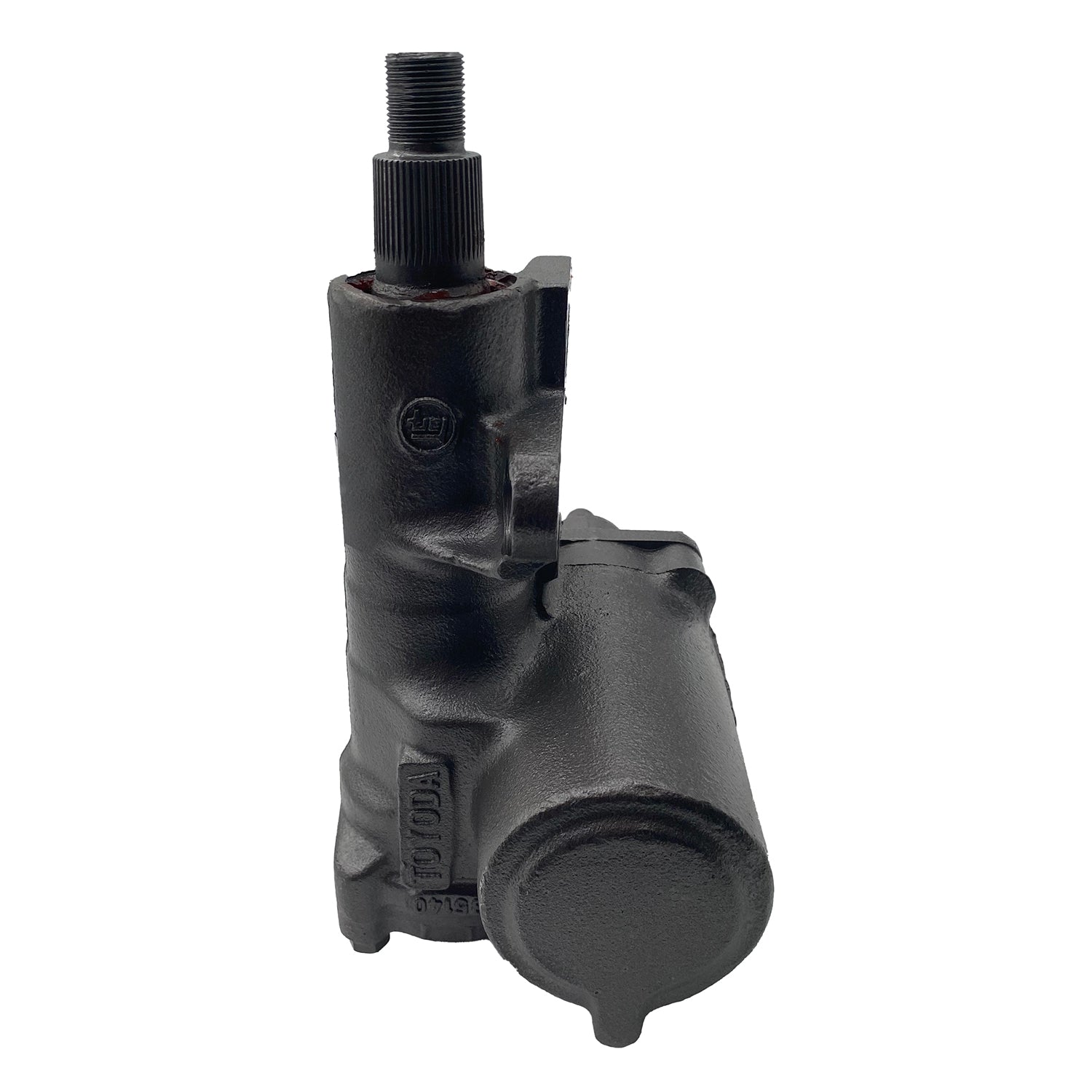

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9896M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9896M


MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type Seat
Input Shaft Diameter 0.69 IN
Input Shaft Diameter 17.4 MM
Steering Input Shaft Spline Quantity 36
Input Shaft Type Splined, Grooved
Number of Mounting Holes 3
Output Shaft Diameter 1.42 IN
Output Shaft Diameter 36.07 MM
Pitman Arm Included No
Pressure Port Thread Size M16 x 1.5
Pump Rotation Standard
Return Port Thread Size M17 x 1.5
Total Turns Lock To Lock 4.0 to 4.3

Application Info: Toyota Pickup (1988-1991), Toyota 4Runner (1988-1991) ***W/4WD***

Interchange: Toyota - 44110-35190

BBB Cross-Reference: 511-0104

Cardone Cross-Reference: 27-8473
