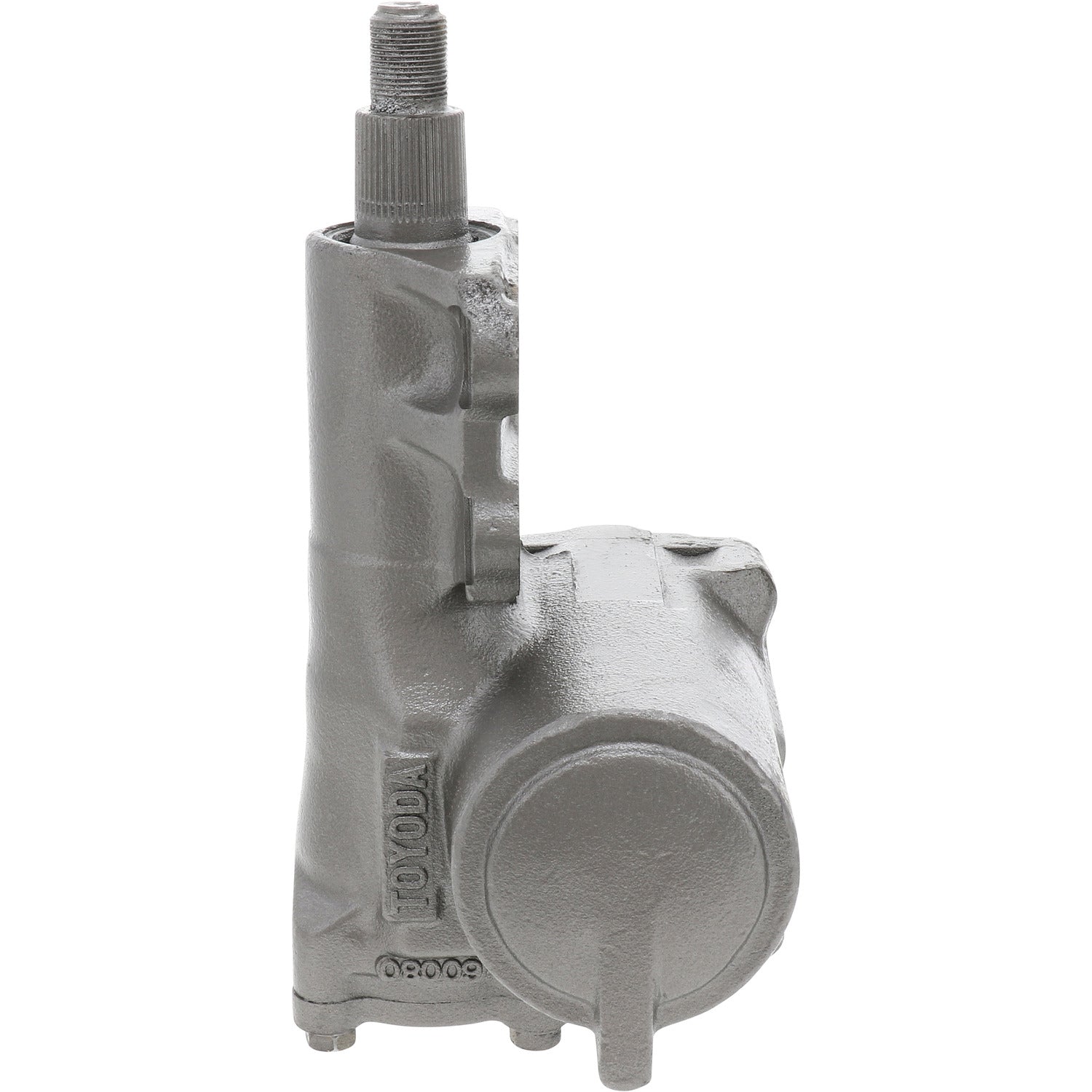

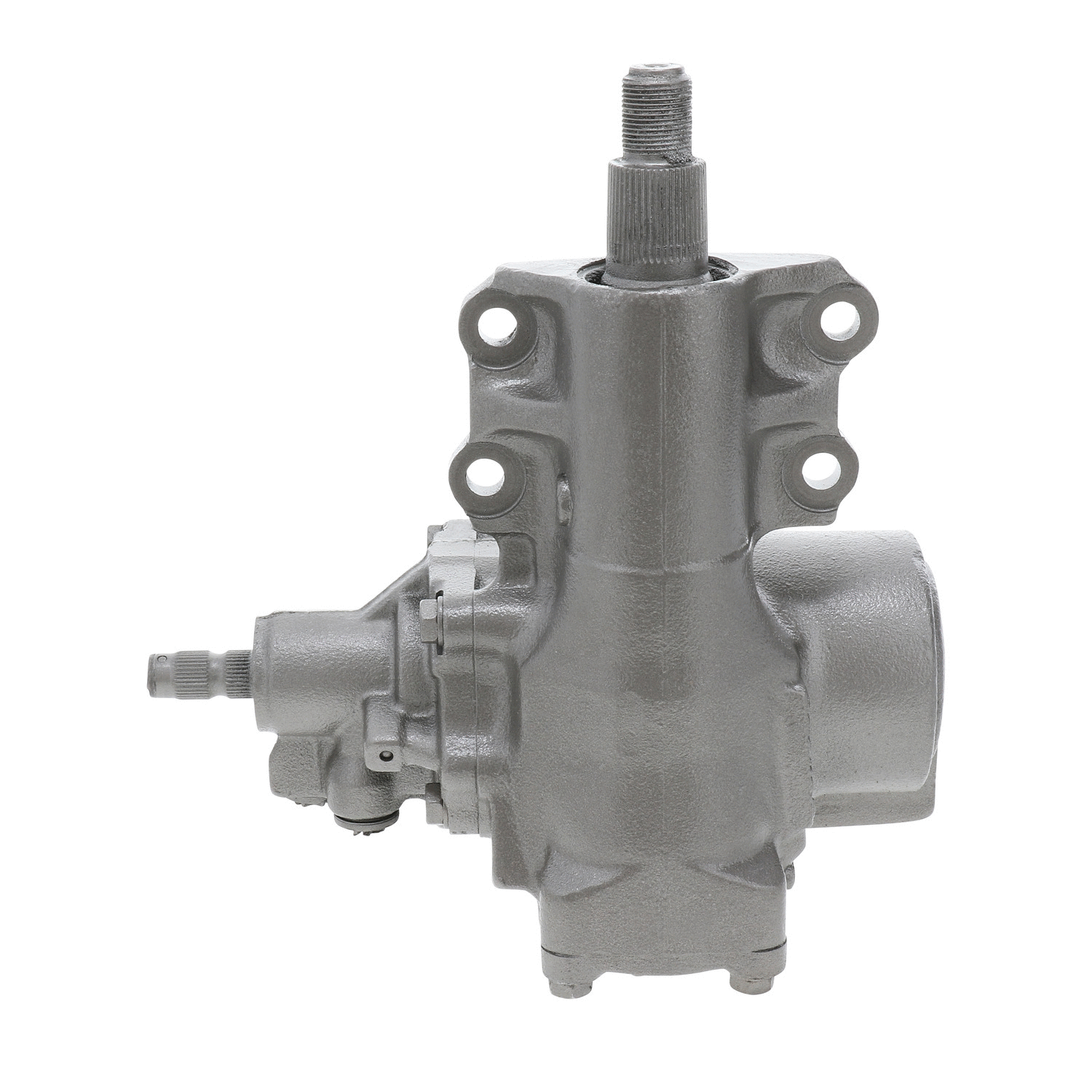

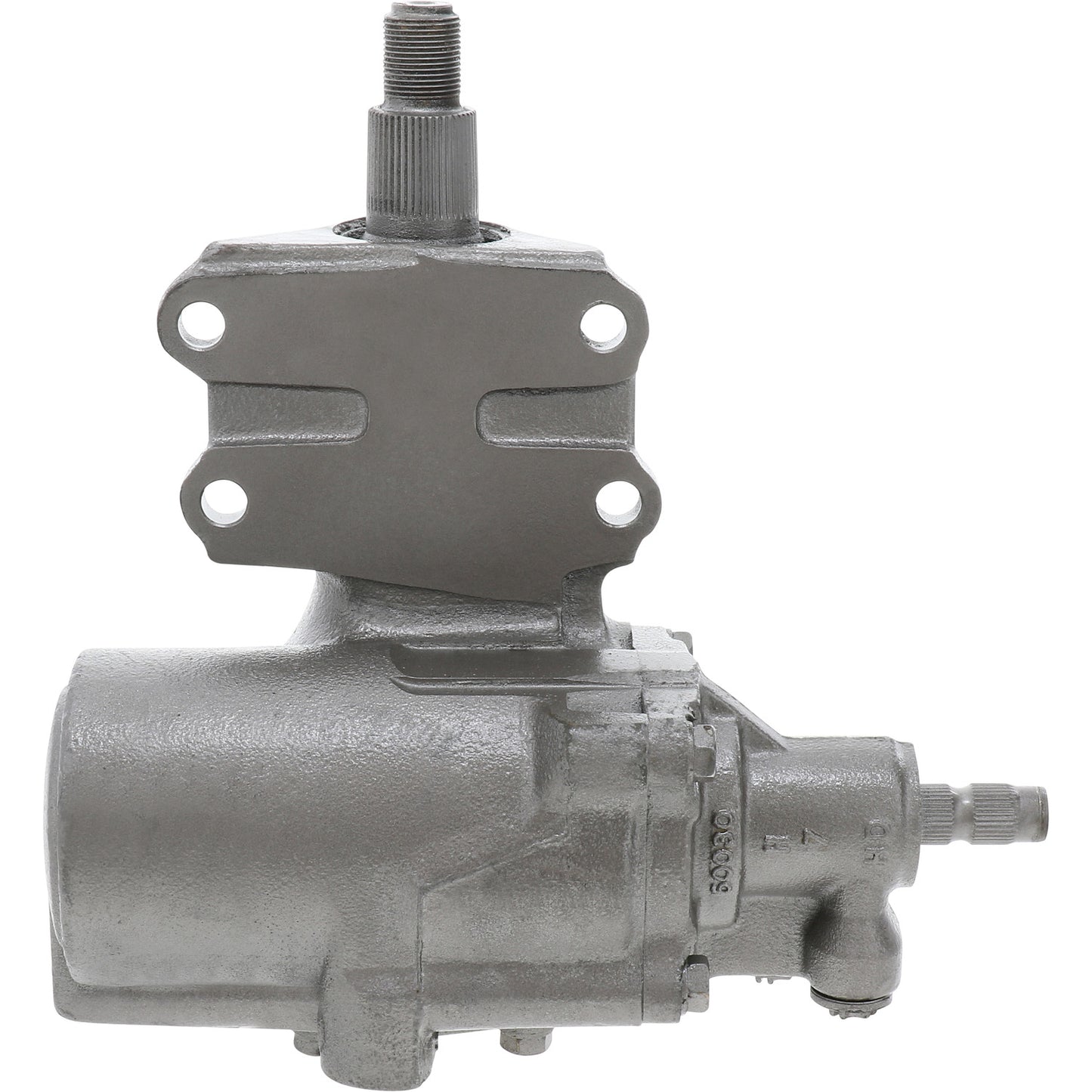

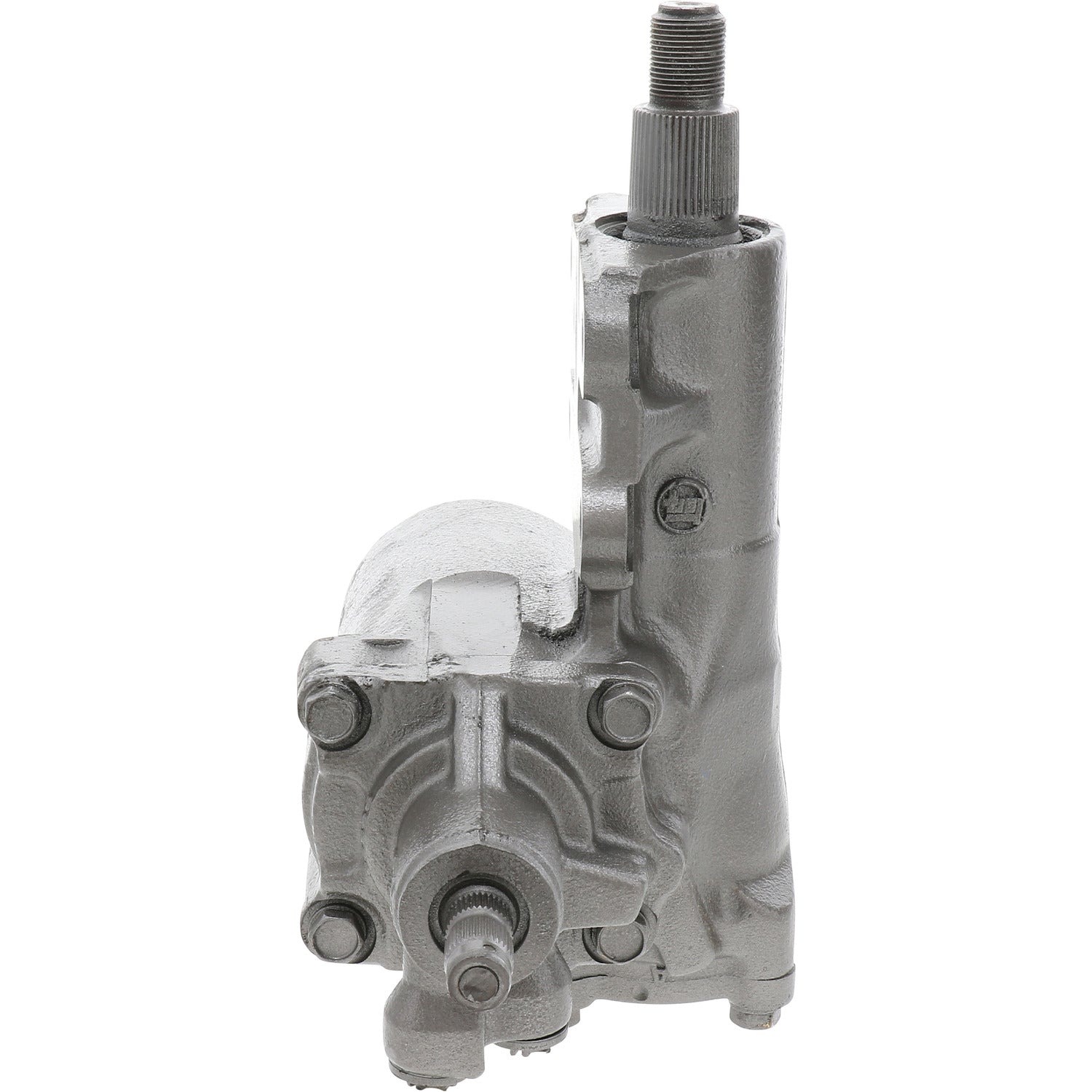

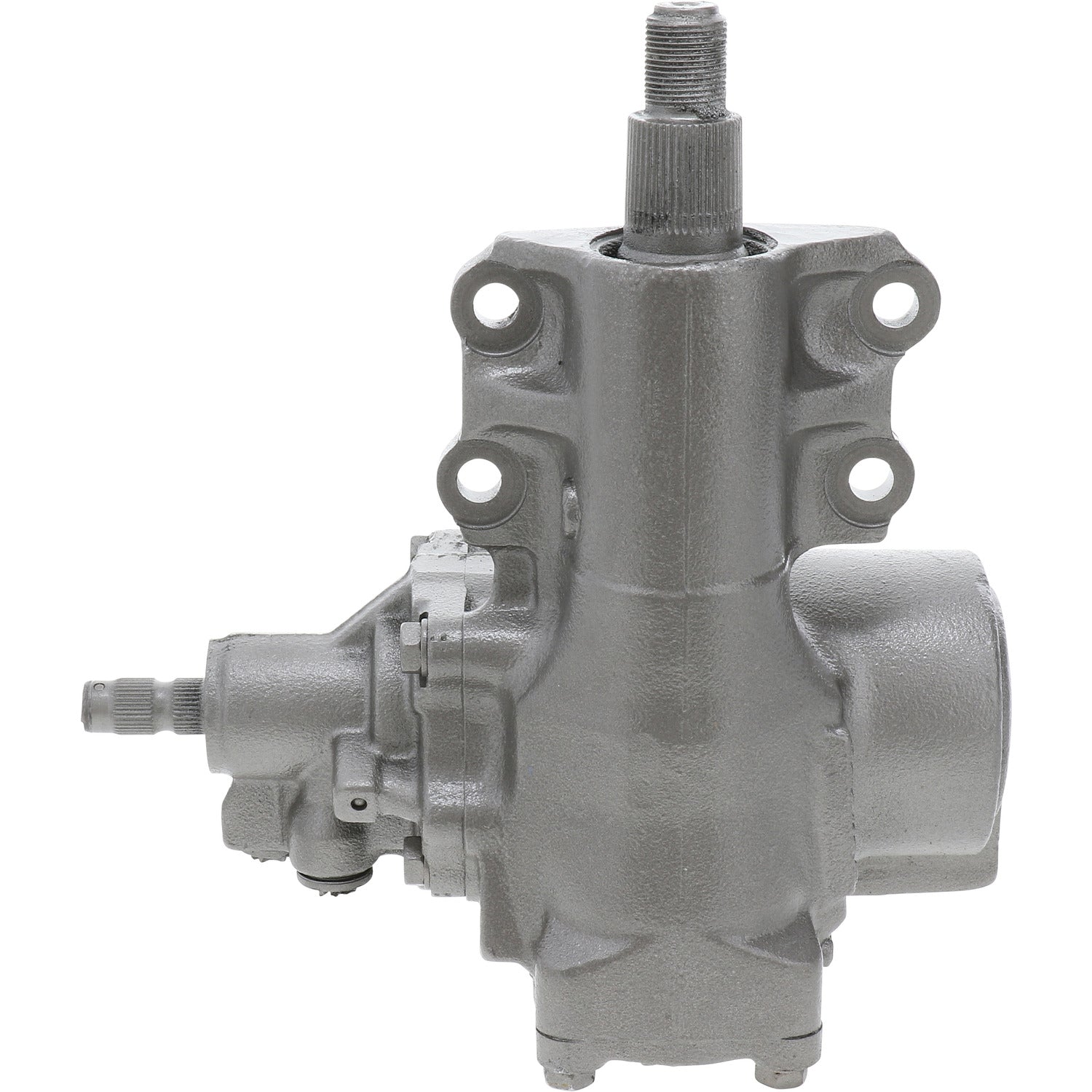

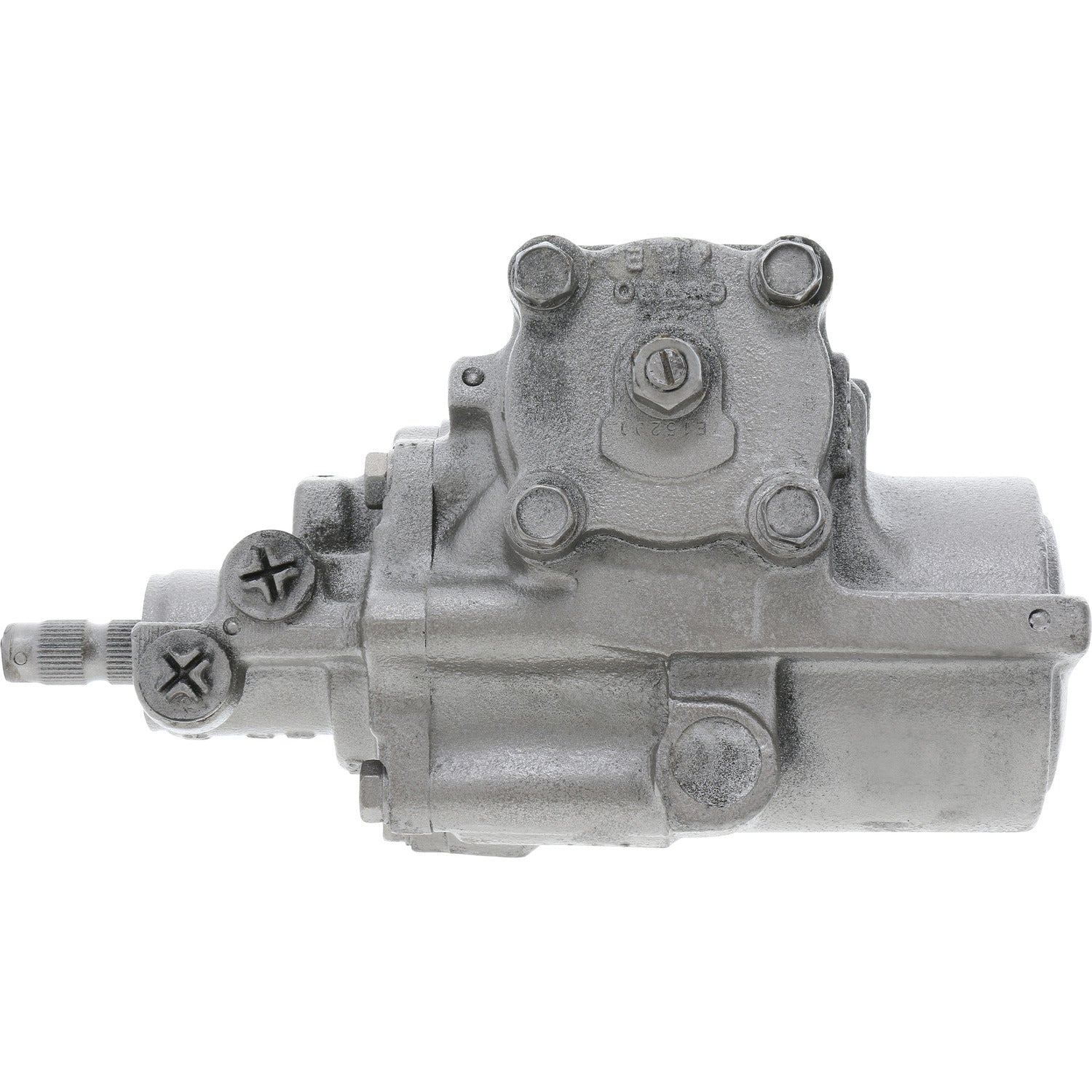

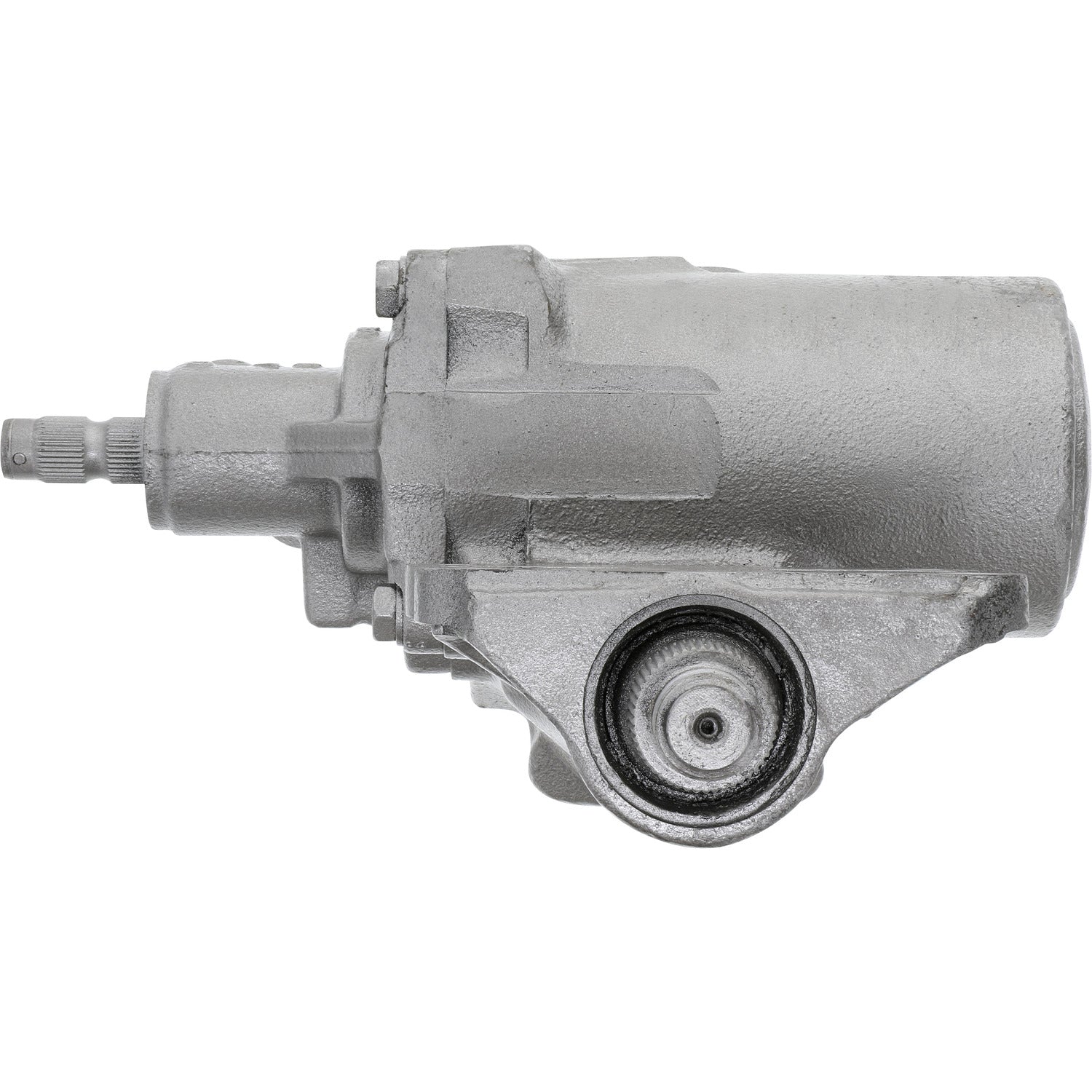

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9881M

SKU:9881M

MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type	Seat
Input Shaft Diameter	0.69	IN
Input Shaft Diameter	17.4	MM
Steering Input Shaft Spline Quantity	36
Input Shaft Type	Splined, Grooved
Number of Mounting Holes	4
Output Shaft Diameter	1.42	IN
Output Shaft Diameter	36.07	MM
Pitman Arm Included	No
Pressure Port Thread Size	M16 x 1.5
Pump Rotation	Reverse
Return Port Thread Size	M17 x 1.5
Total Turns Lock To Lock	4.0 to 4.3
