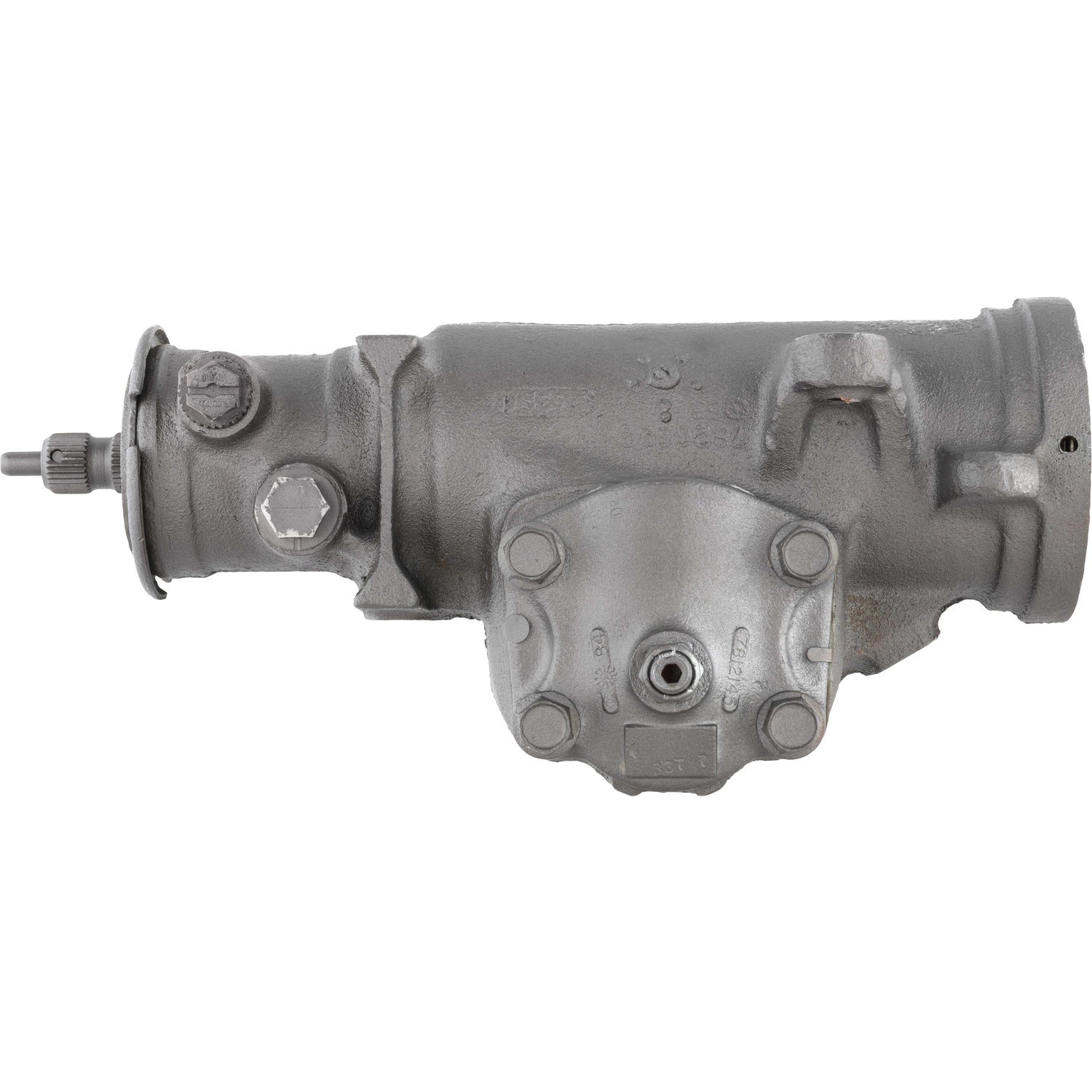

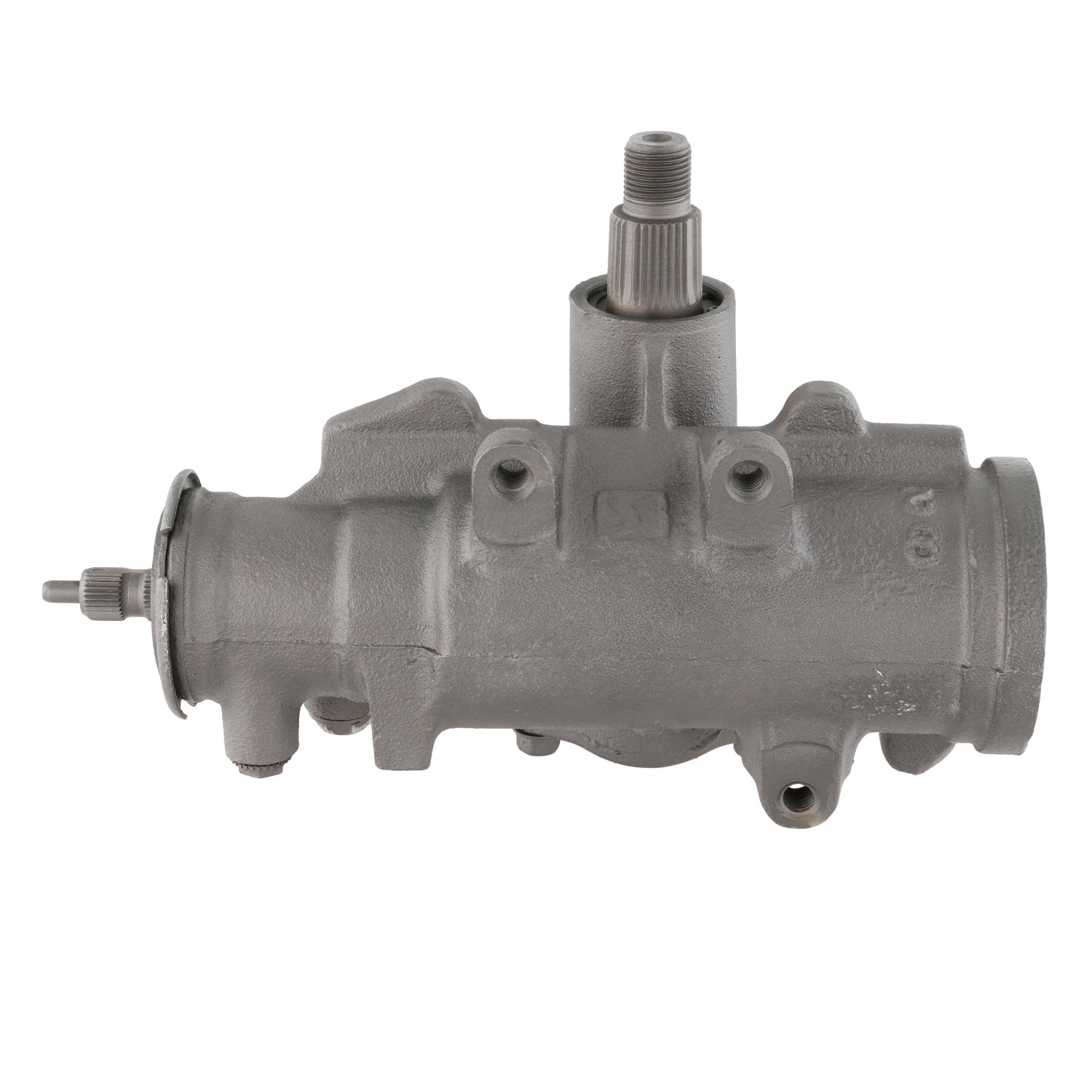

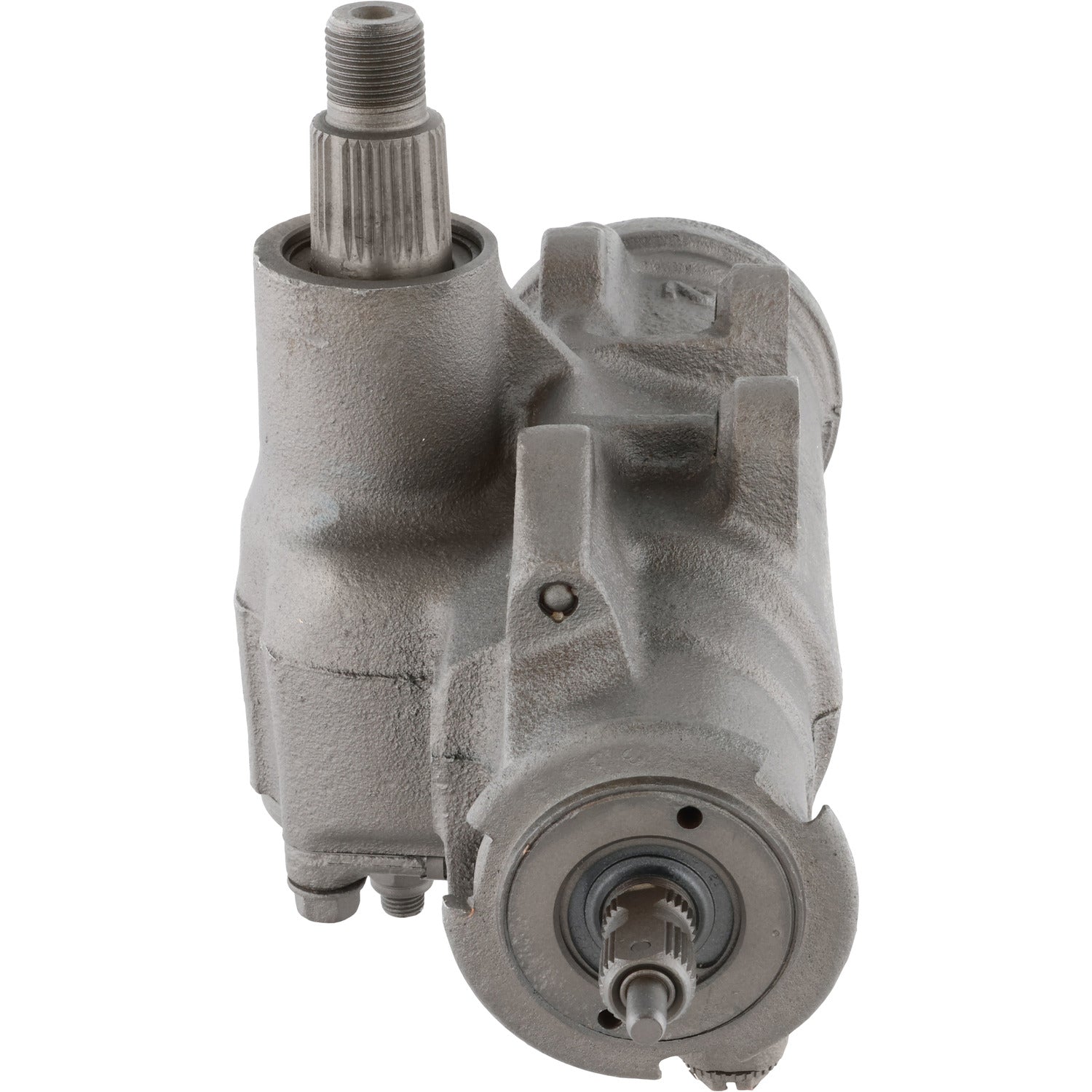

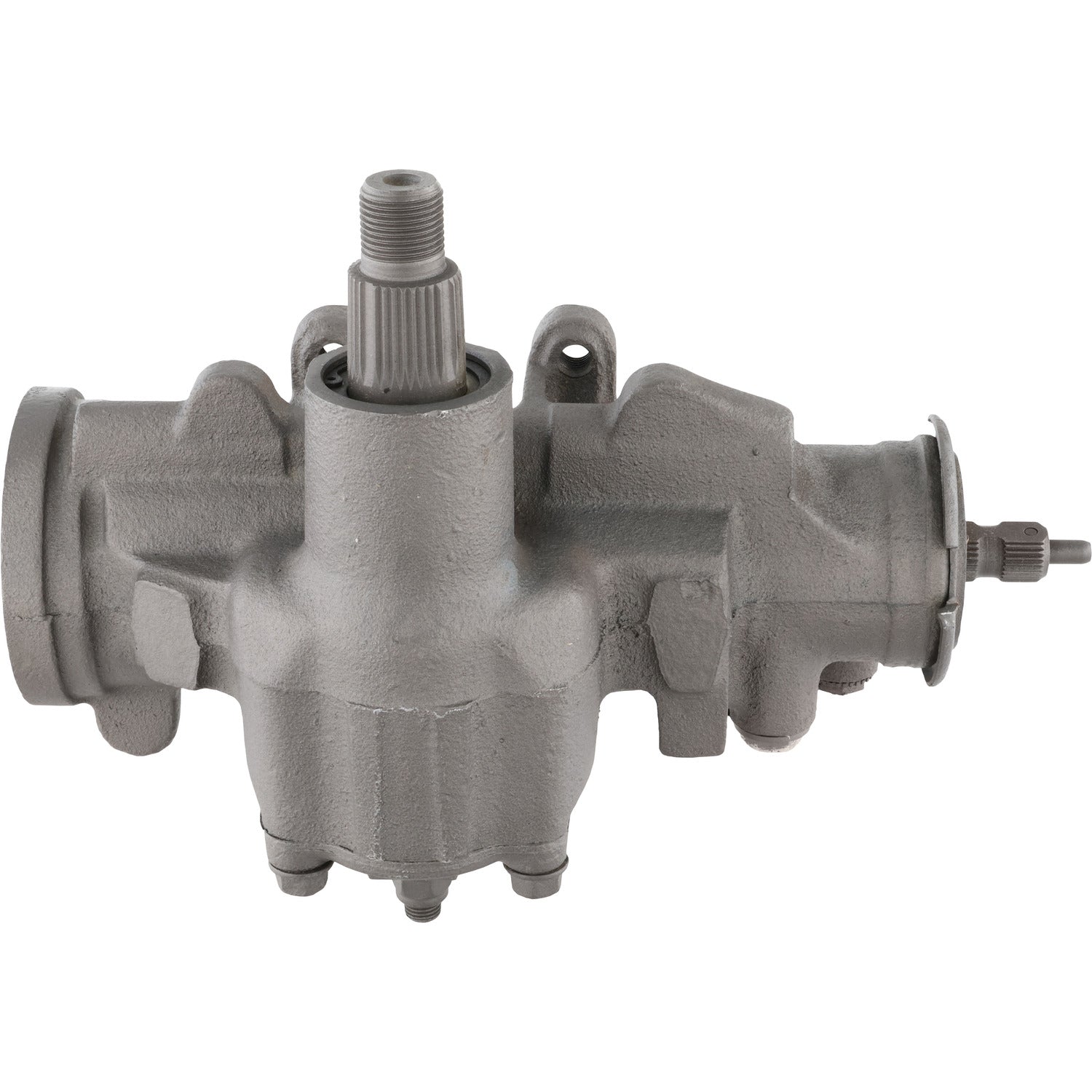

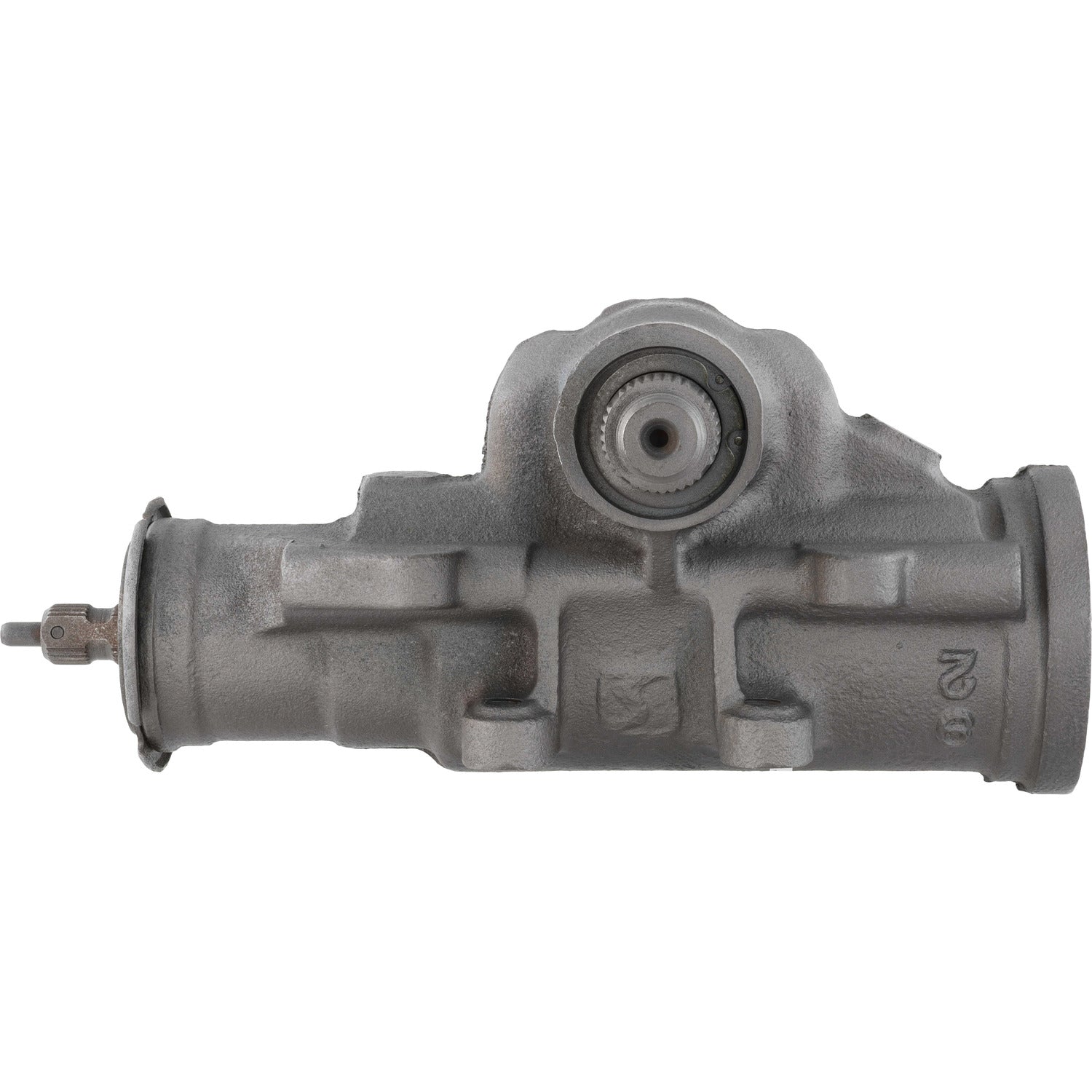

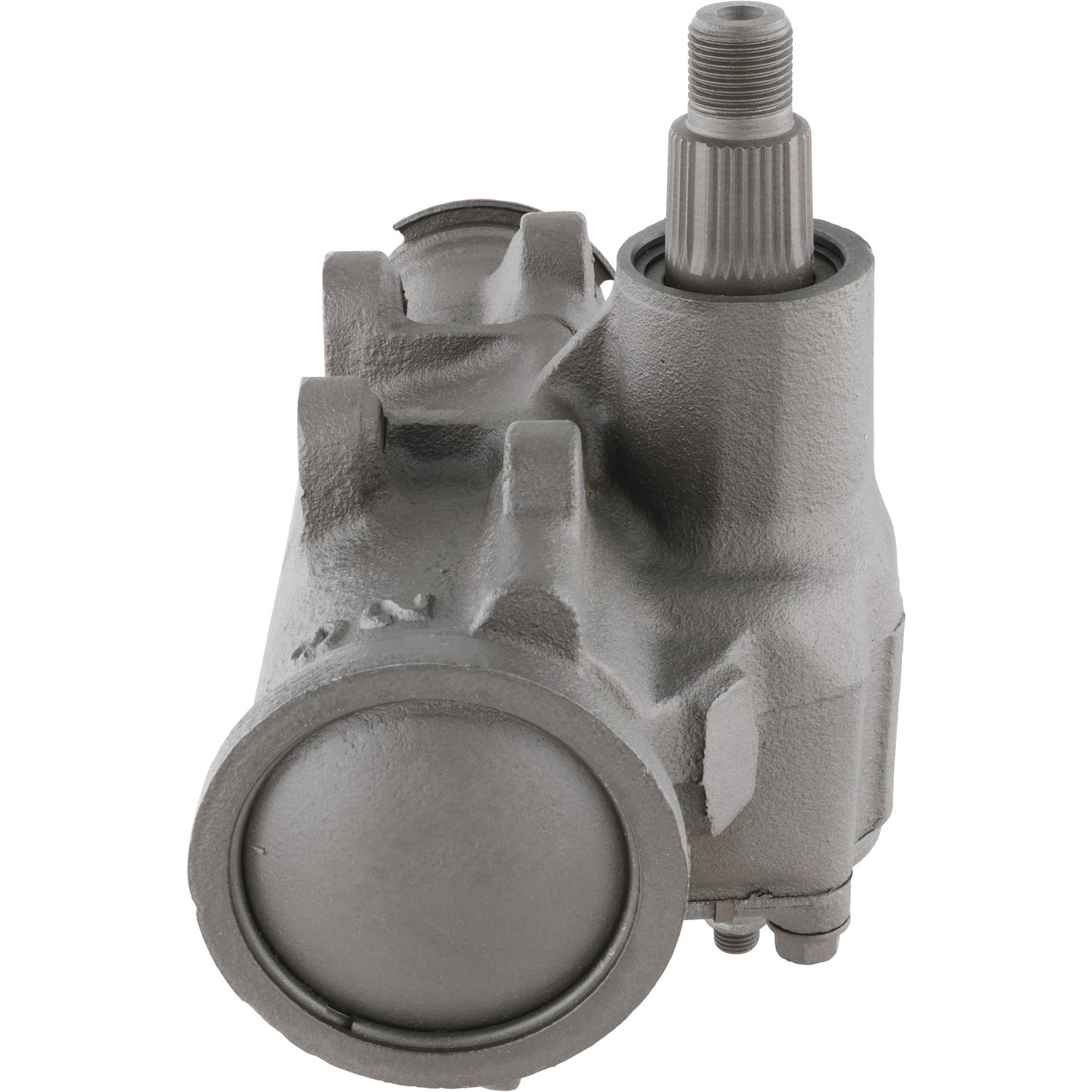

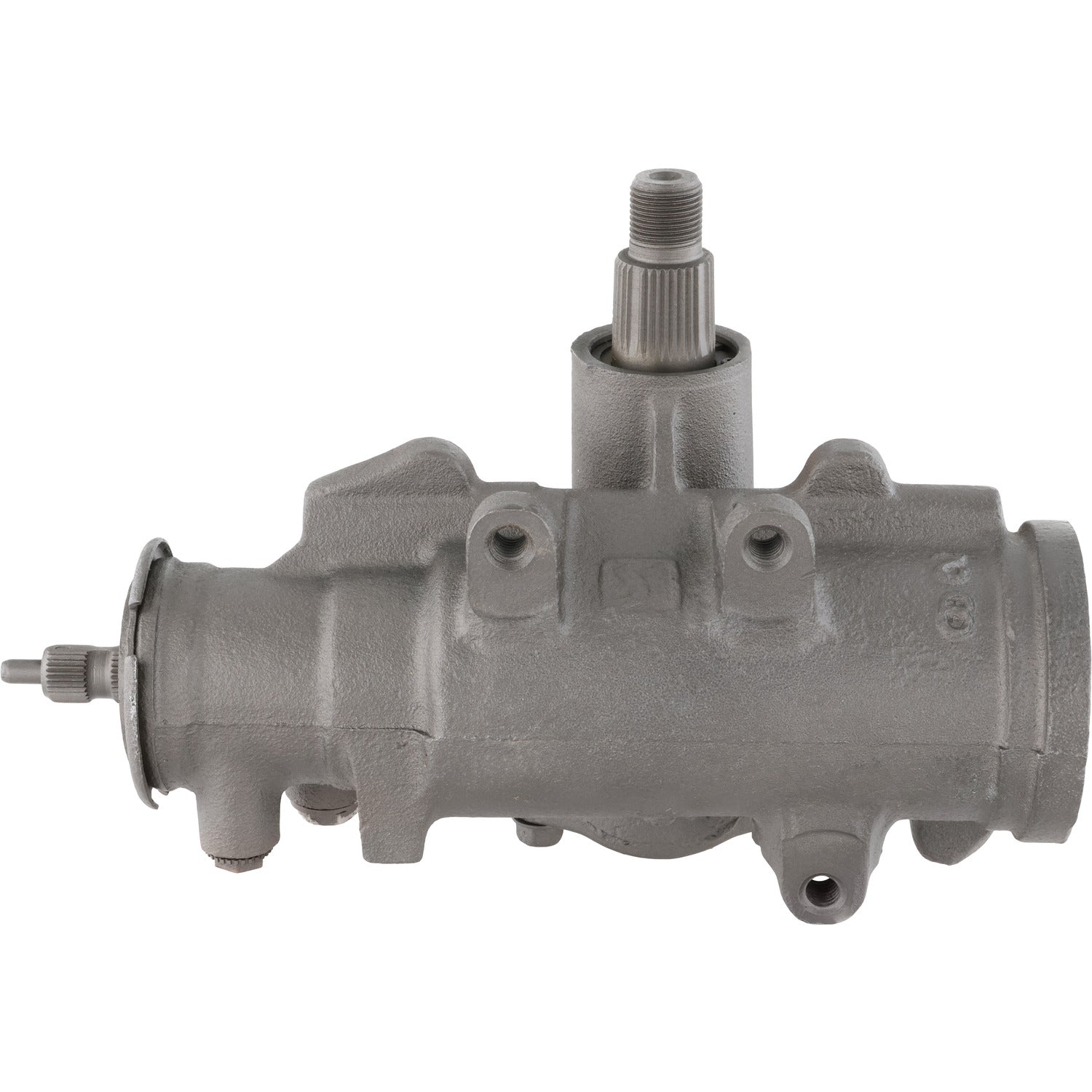

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9855M
Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9855M
SKU:9855M
MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.
| Hose Port Type | Seat | |
| Input Shaft Diameter | 0.73 | IN |
| Input Shaft Diameter | 18.42 | MM |
| Steering Input Shaft Spline Quantity | 25 | |
| Input Shaft Type | Splined, Single Flat | |
| Number of Mounting Holes | 3 | |
| Output Shaft Diameter | 1.25 | IN |
| Output Shaft Diameter | 31.75 | MM |
| Pitman Arm Included | No | |
| Pressure Port Thread Size | 11/16 x 18 | |
| Pump Rotation | Standard | |
| Return Port Thread Size | 5/8 X 18 | |
| Total Turns Lock To Lock | 3.2 or 4.1 |
Application Info: Chevrolet Impala (1975-1979), Cadillac Seville (1977-1979), Chevrolet Monza (1976-1979), Chevrolet Monte Carlo (1977-1979), Pontiac Firebird (1977-1979), Chevrolet Nova (1977-1979), Chevrolet Vega (1976-1977)
Interchange: General Motors - 07826863
BBB Cross-Reference: 503-0105
Cardone Cross-Reference: 27-6507
