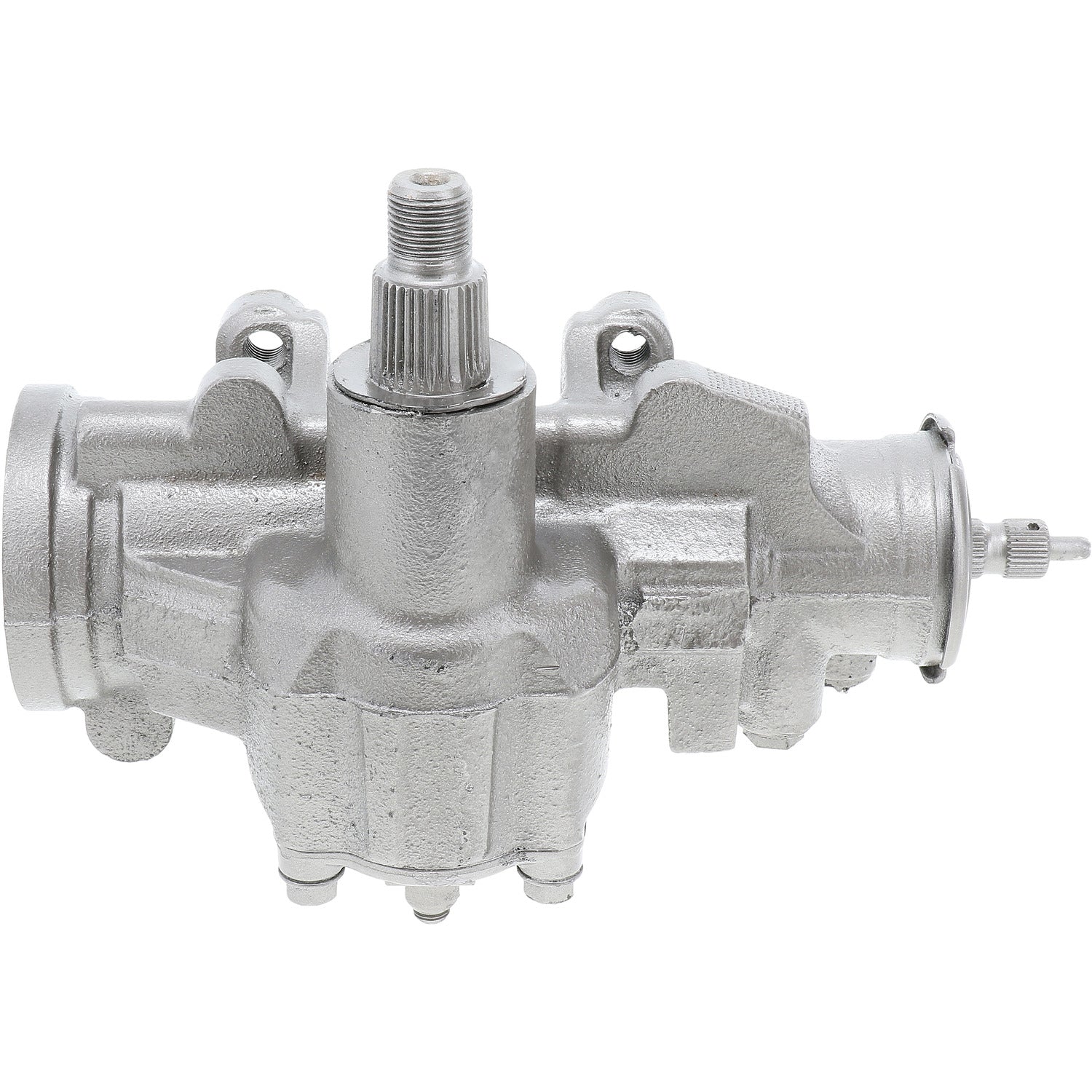

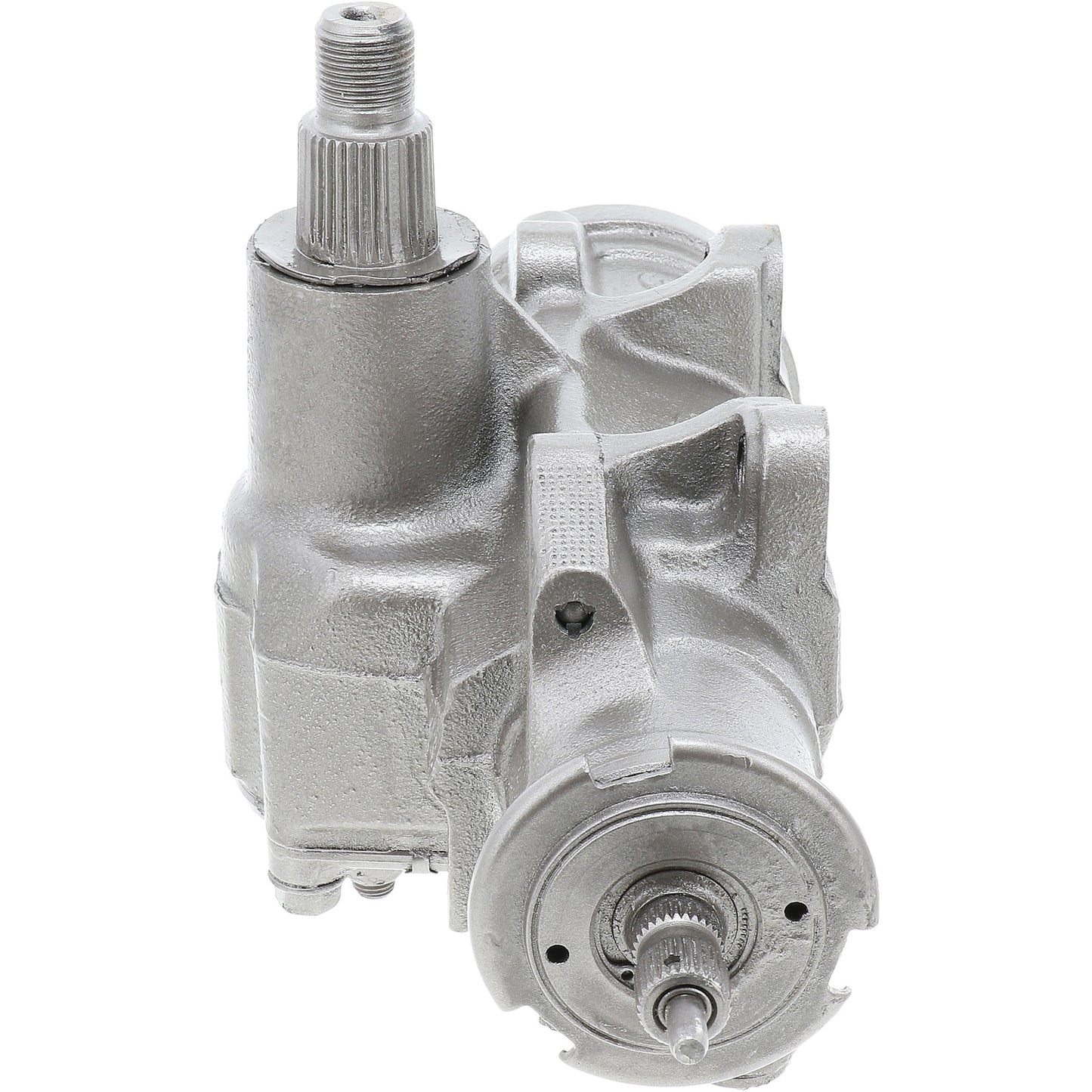

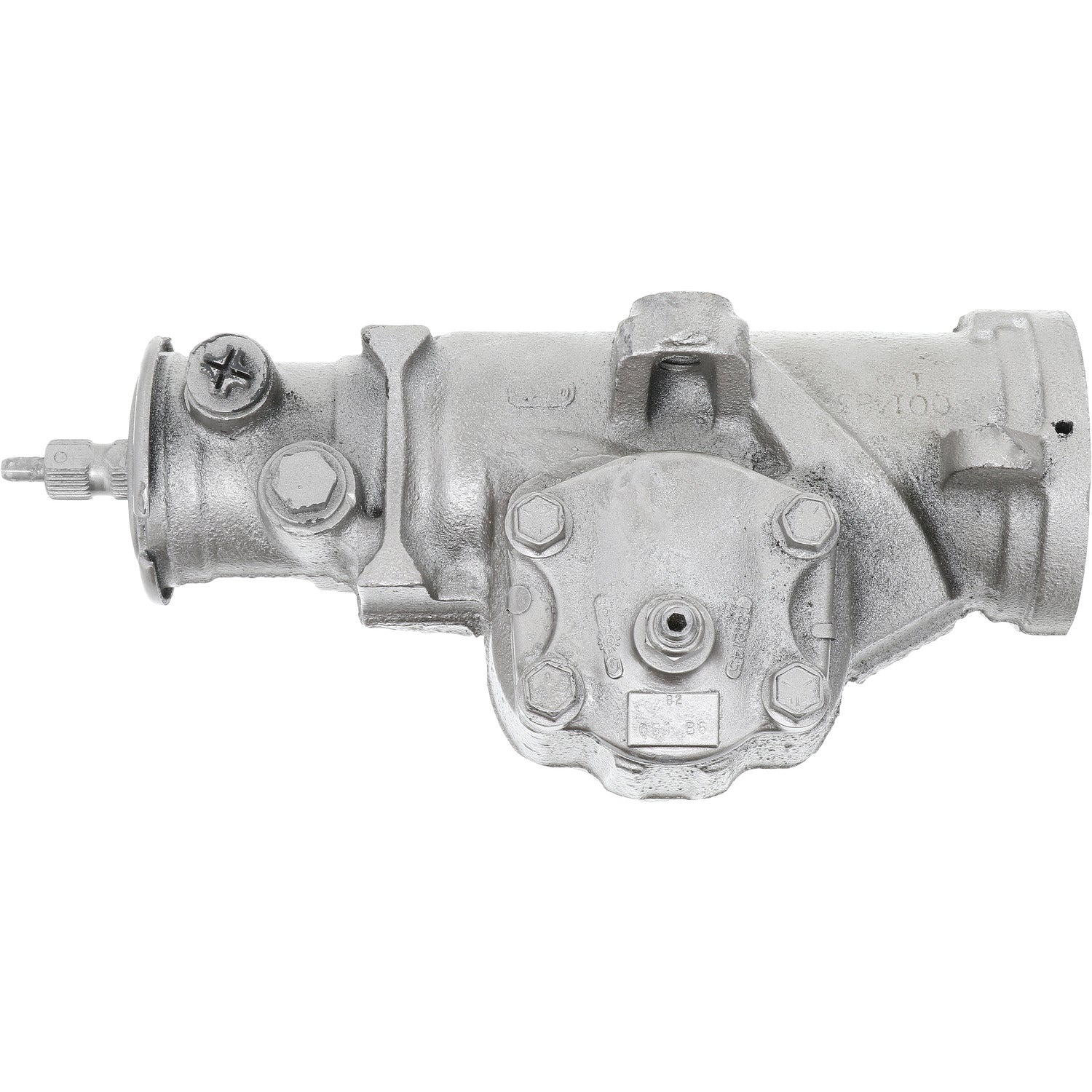

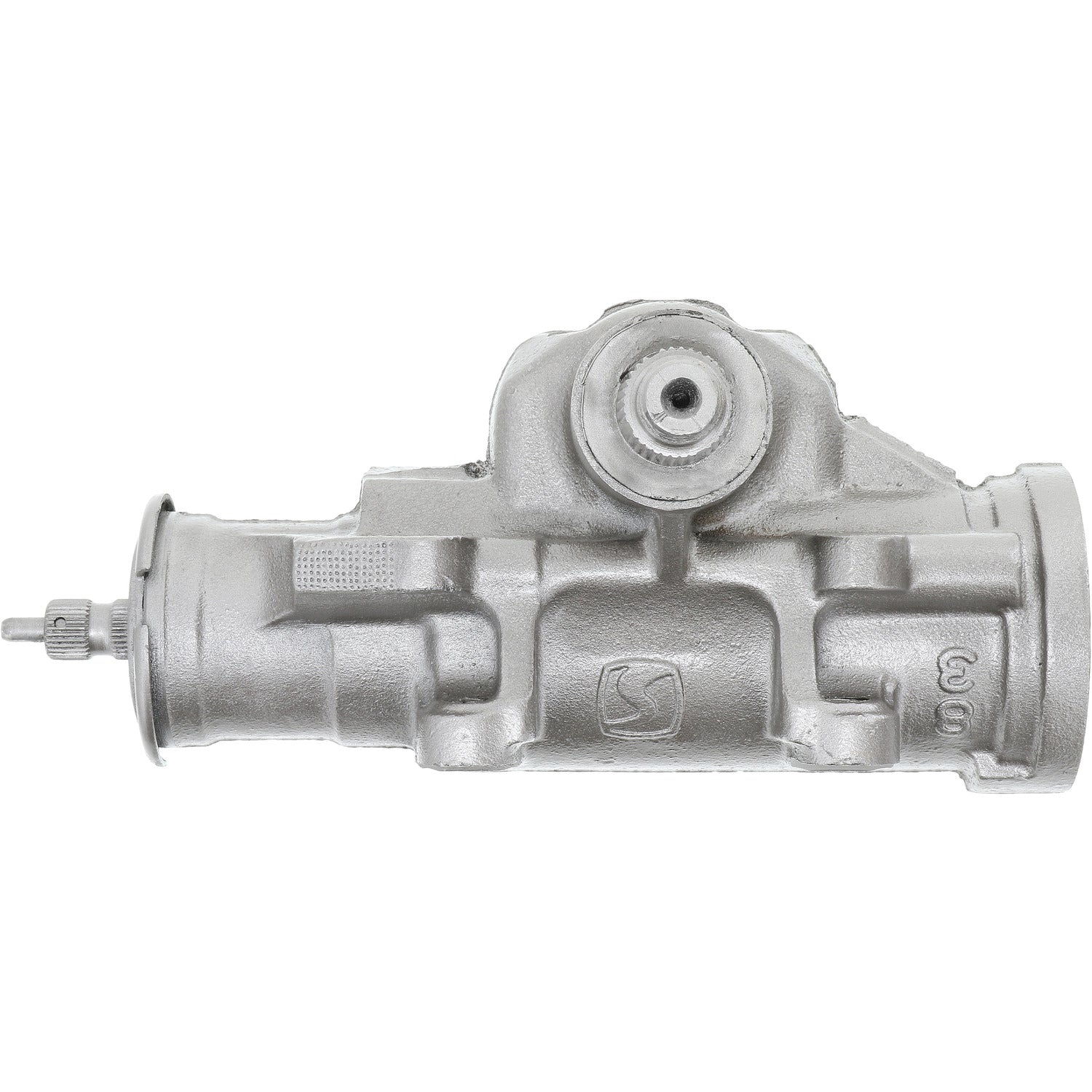

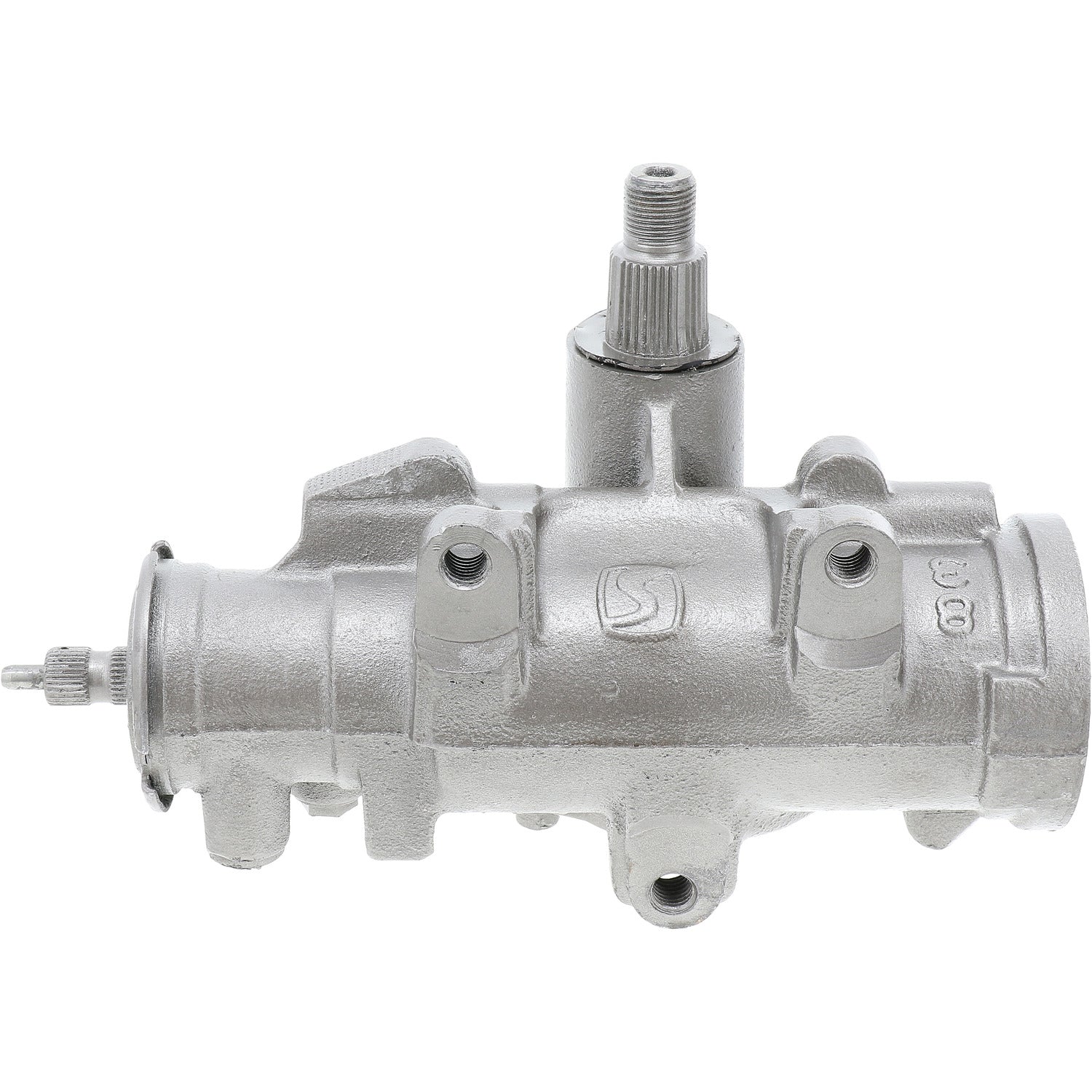

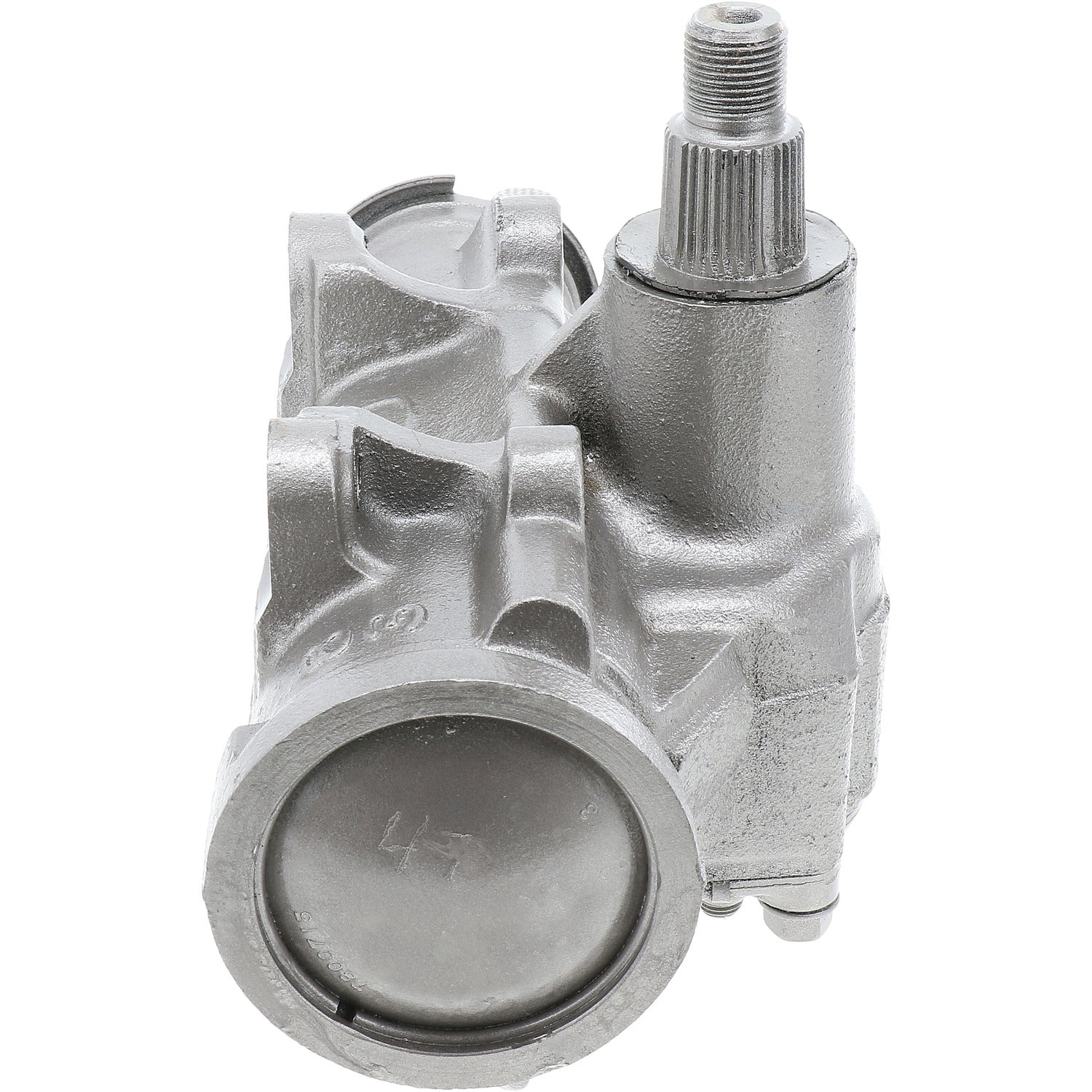

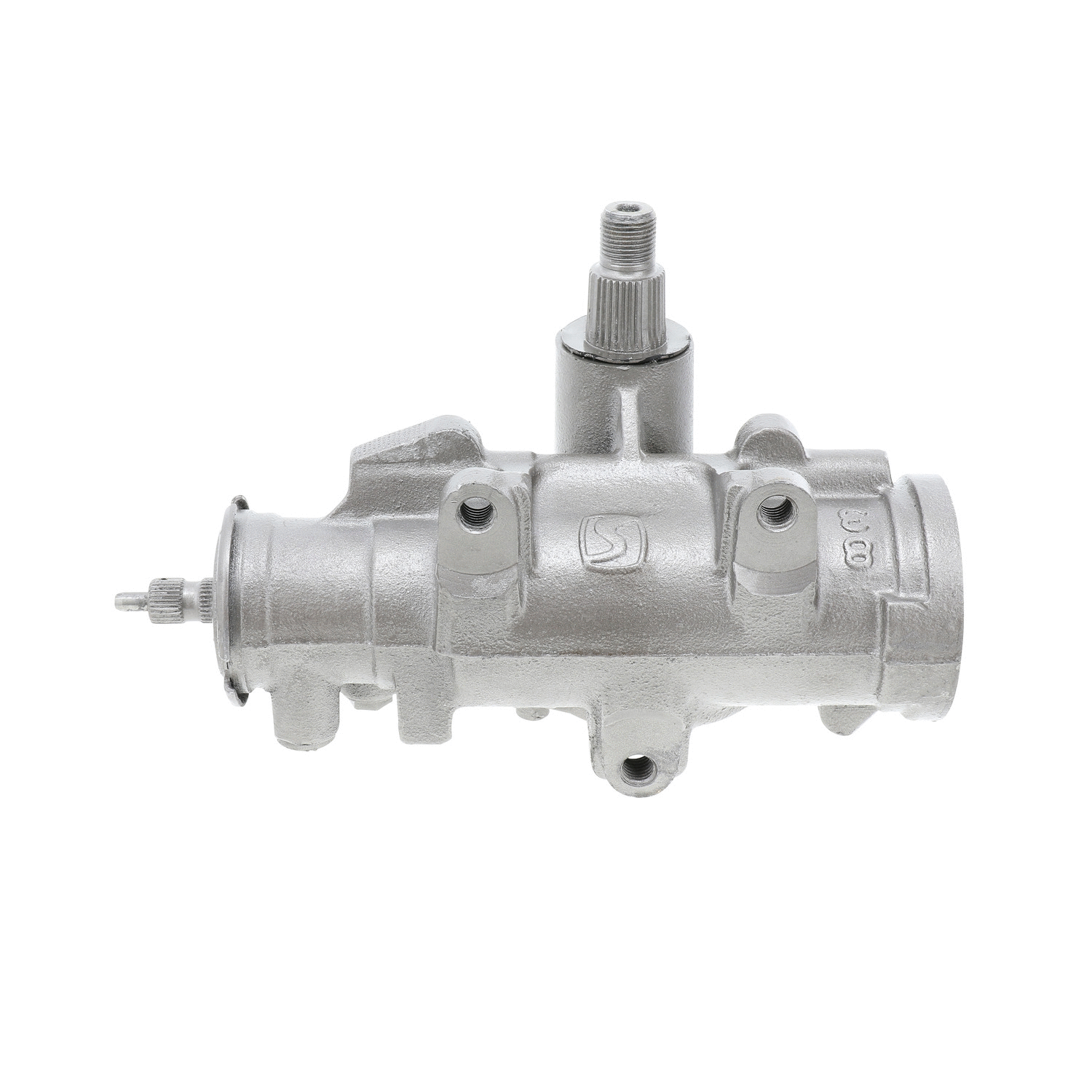

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9847M
Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9847M
SKU:9847M
MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.73 | IN |
| Input Shaft Diameter | 18.42 | MM |
| Steering Input Shaft Spline Quantity | 25 | |
| Input Shaft Type | Splined, Single Flat | |
| Number of Mounting Holes | 3 | |
| Output Shaft Diameter | 1.25 | IN |
| Output Shaft Diameter | 31.75 | MM |
| Pitman Arm Included | No | |
| Pressure Port Thread Size | M18 x 1.5 | |
| Pump Rotation | Standard | |
| Return Port Thread Size | M16 x 1.5 | |
| Total Turns Lock To Lock | 3.25 |
Application Info: 1992-1994 Chevrolet Blazer; 1992-1998 Chevrolet C2500 Suburban (Drive: RWD / Qualifier: with 7200 (lb) Gross Vehicle Weight (GVW)); 1988-1999 Chevrolet K1500 (Body: Extended Cab Pickup & Drive: 4WD / Qualifier: Except RPO Code ZQ8 Sport Suspension); 1992-1994 Chevrolet K1500 Suburban Silverado (Liter: 5.7 & Cylinder: 8 & Block: V & Drive: 4WD); 1988-1995 Chevrolet K2500 (Qualifier: with 7200 (lb) Gross Vehicle Weight (GVW)); 1992-1995 Chevrolet K2500 Suburban (Qualifier: with 7200 (lb) Gross Vehicle Weight (GVW)); 1988-1999 GMC C1500 (Liter: 5.0 & Cylinder: 8 & Block: V / Qualifier: Except RPO Code ZQ8 Sport Suspension); 1995-1999 GMC C1500 Suburban (Liter: 6.5 & Drive: RWD / Qualifier: Except RPO Code ZQ8 Sport Suspension); 1988-1999 GMC K1500 (Drive: 4WD / Qualifier: Except RPO Code ZQ8 Sport Suspension); 1992-1996 GMC K1500 Suburban (Drive: 4WD / Qualifier: Except RPO Code ZQ8 Sport Suspension); 1988-1995 GMC K2500 (Qualifier: with 7200 (lb) Gross Vehicle Weight (GVW)); 1992-1995 GMC K2500 Suburban (Qualifier: with 7200 (lb) Gross Vehicle Weight (GVW)); 1992-1994 GMC Jimmy; 1992-1996 GMC Yukon
Interchange: General Motors - 26036036
BBB Cross-Reference: 503-0129
Cardone Cross-Reference: 27-7540
