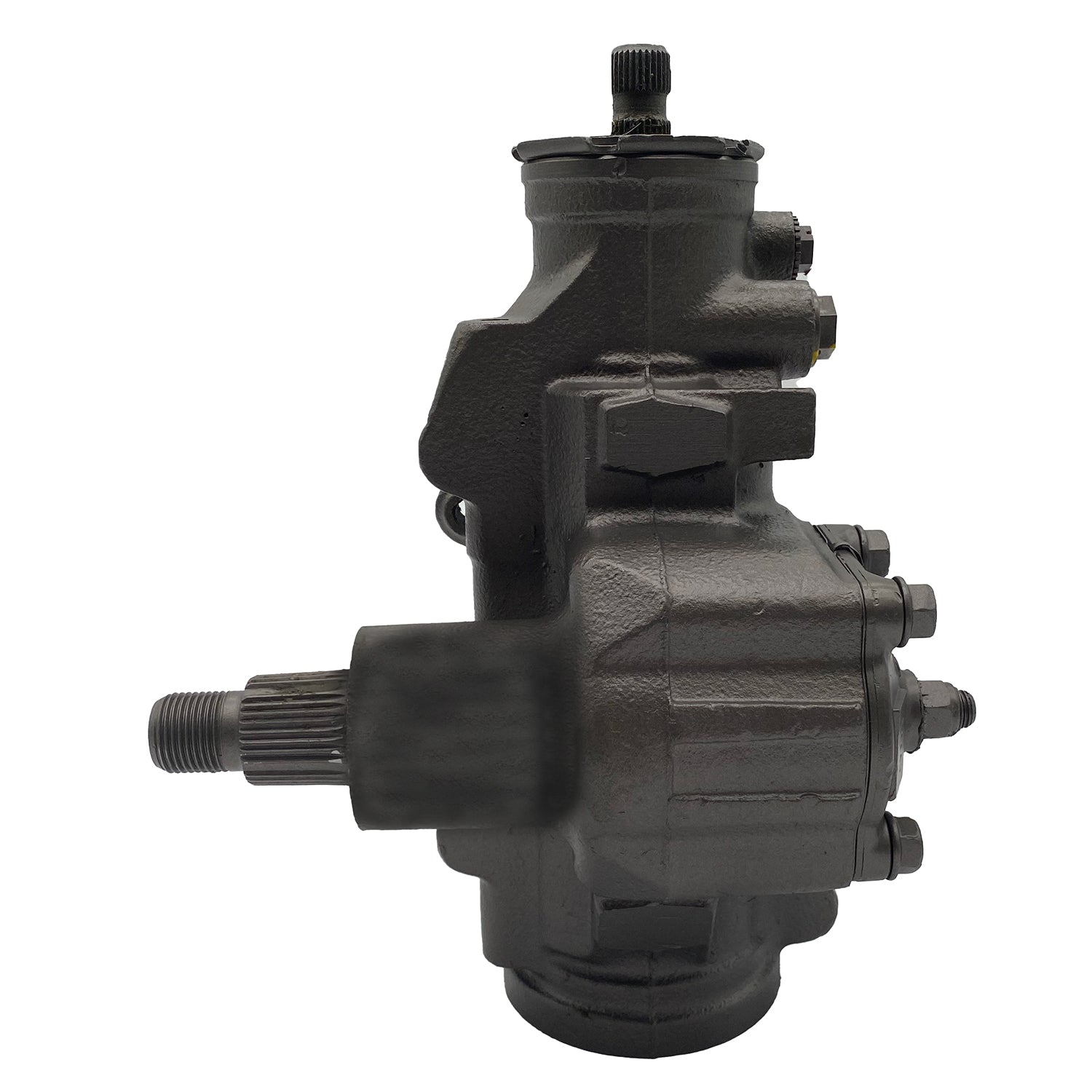

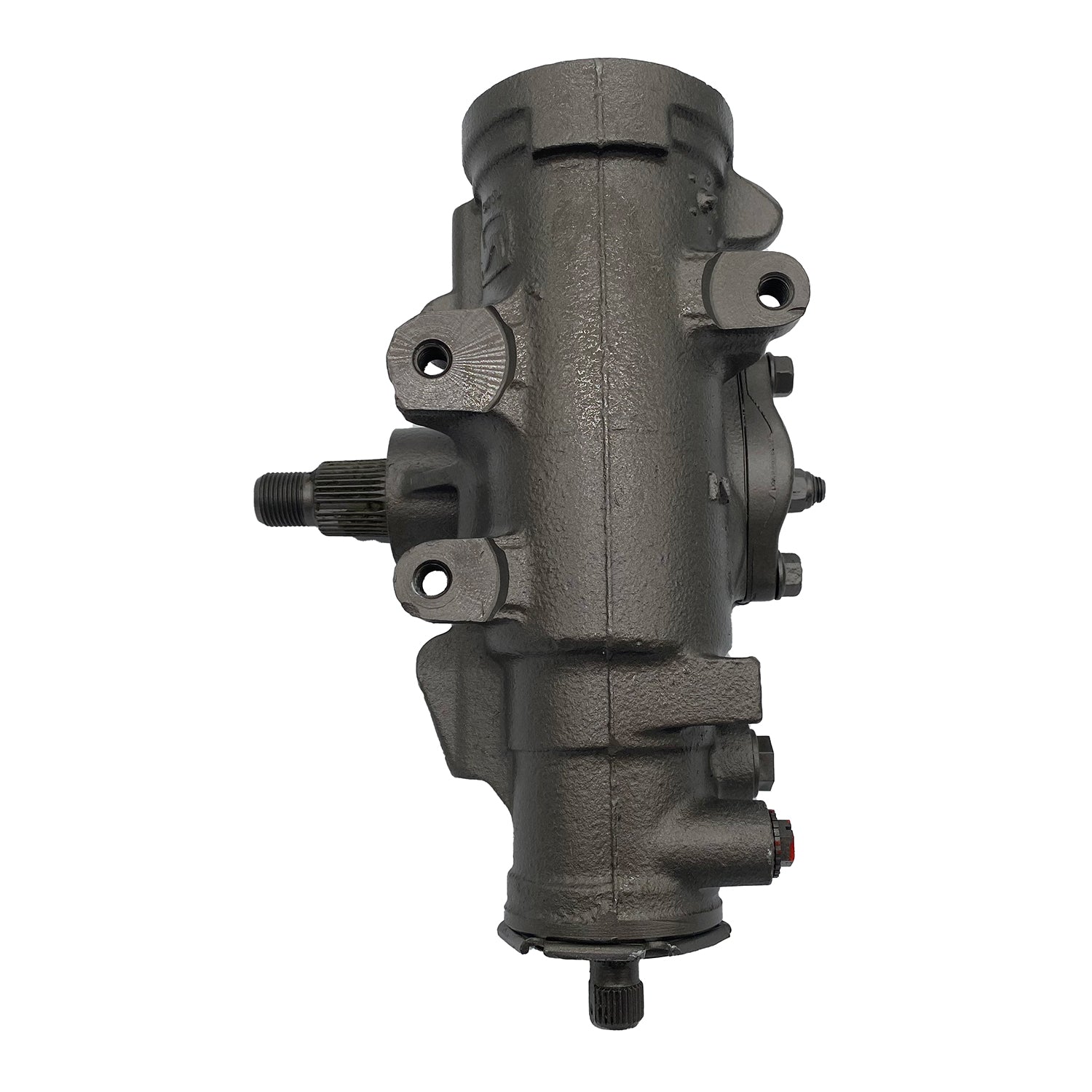

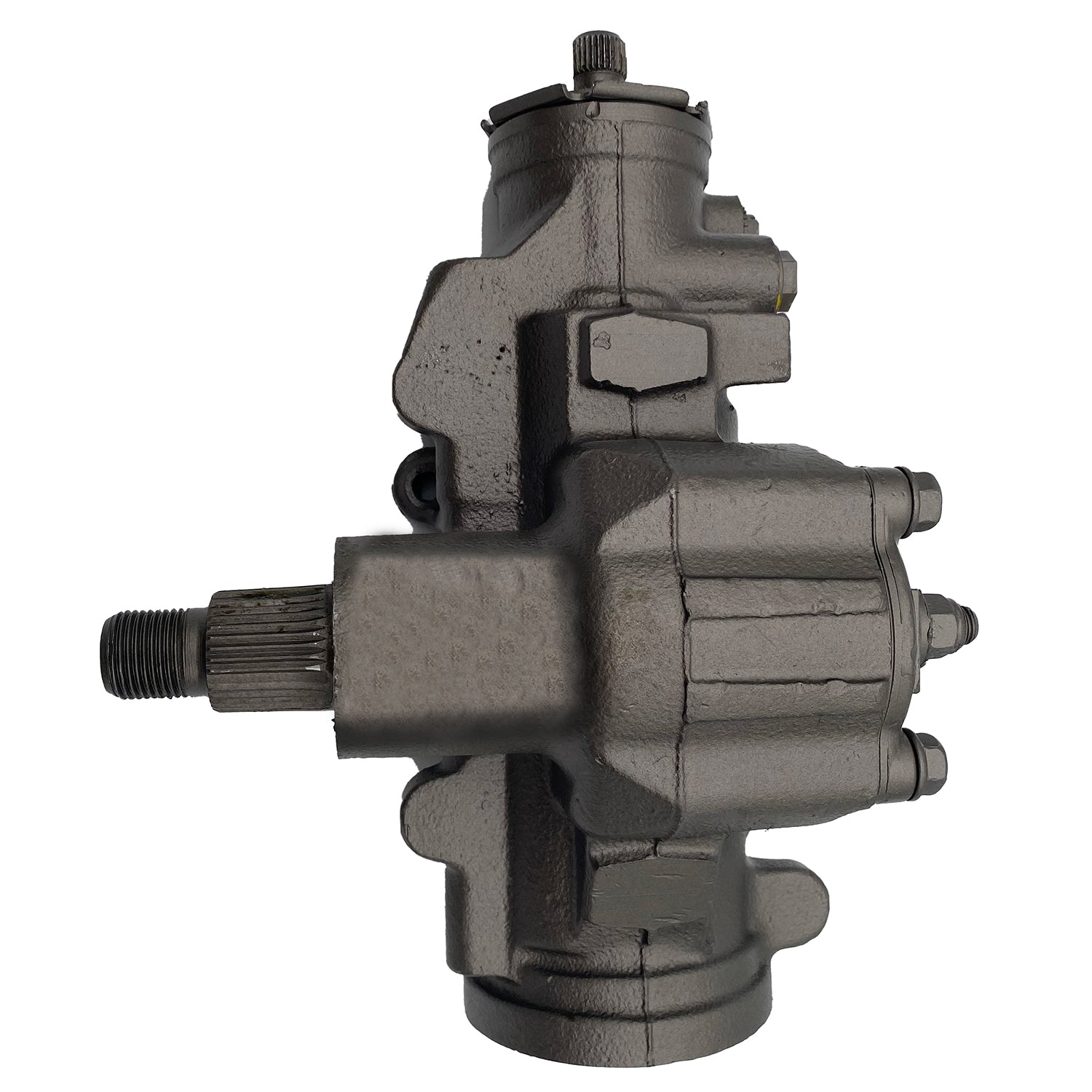

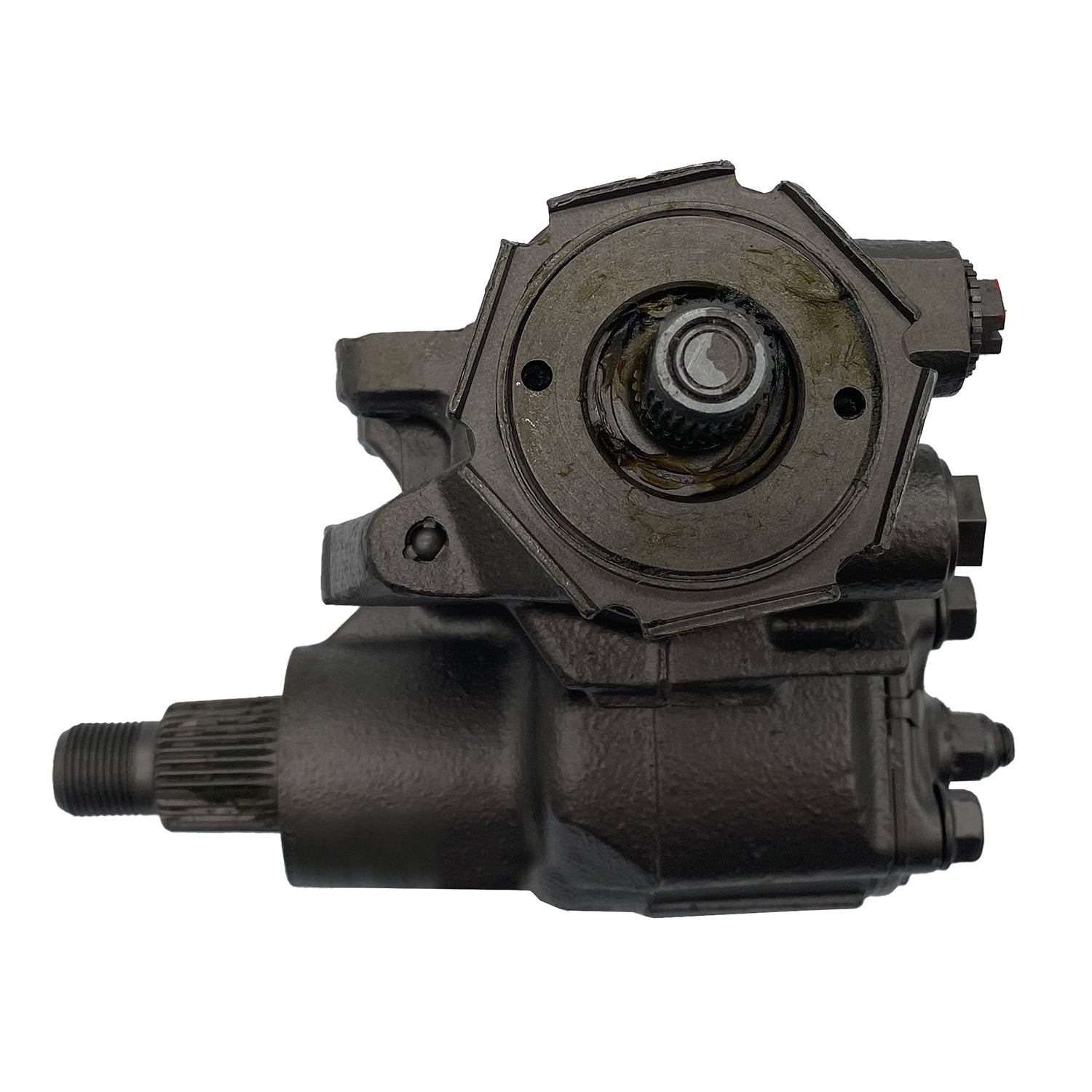

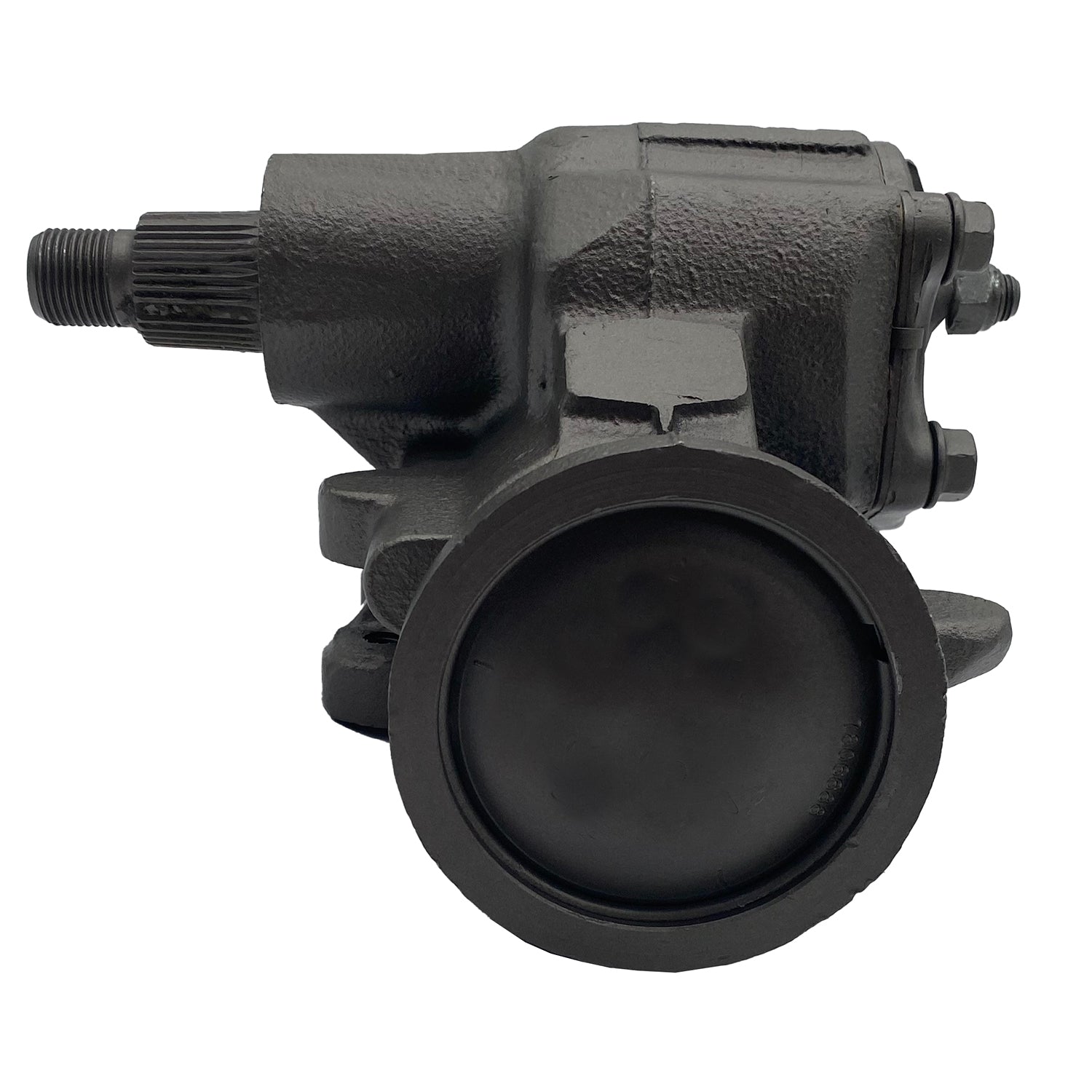

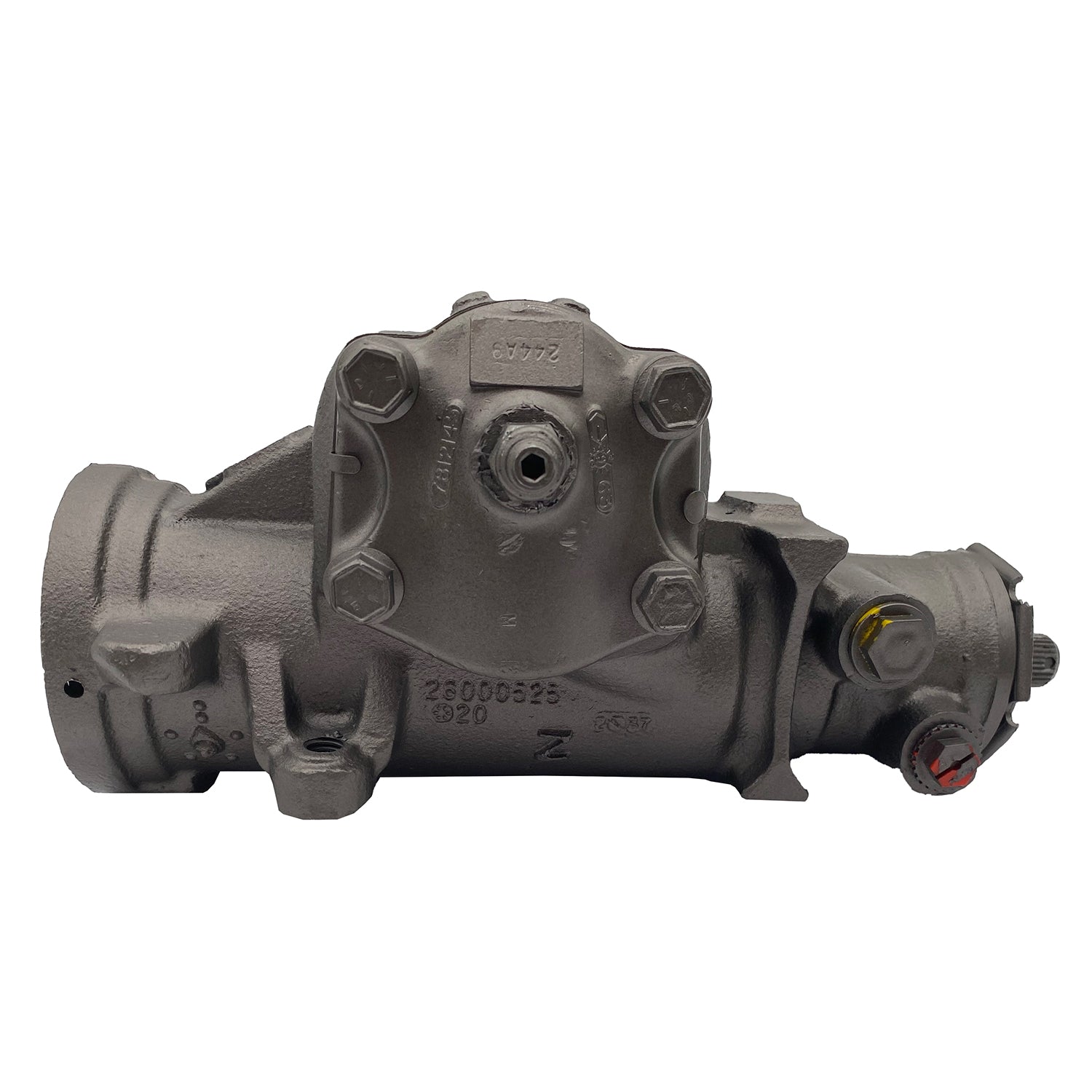

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9833M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9833M

SKU:9833M

MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Steering Input Shaft Spline Quantity 25
Input Shaft Type Splined, Single Flat
Number of Mounting Holes 3
Output Shaft Diameter 1.25 IN
Output Shaft Diameter 31.75 MM
Pitman Arm Included No
Pressure Port Thread Size M18 x 1.5
Pump Rotation Reverse
Return Port Thread Size M16 x 1.5
Total Turns Lock To Lock 2.6



Application Info: GMC Safari (1985-1994), Chevrolet Astro (1985-1994) ***W/RWD***

Interchange: General Motors - 26087044

BBB Cross-Reference: 503-0138

Cardone Cross-Reference: 27-7558

Instructions - 1
