MAVAL

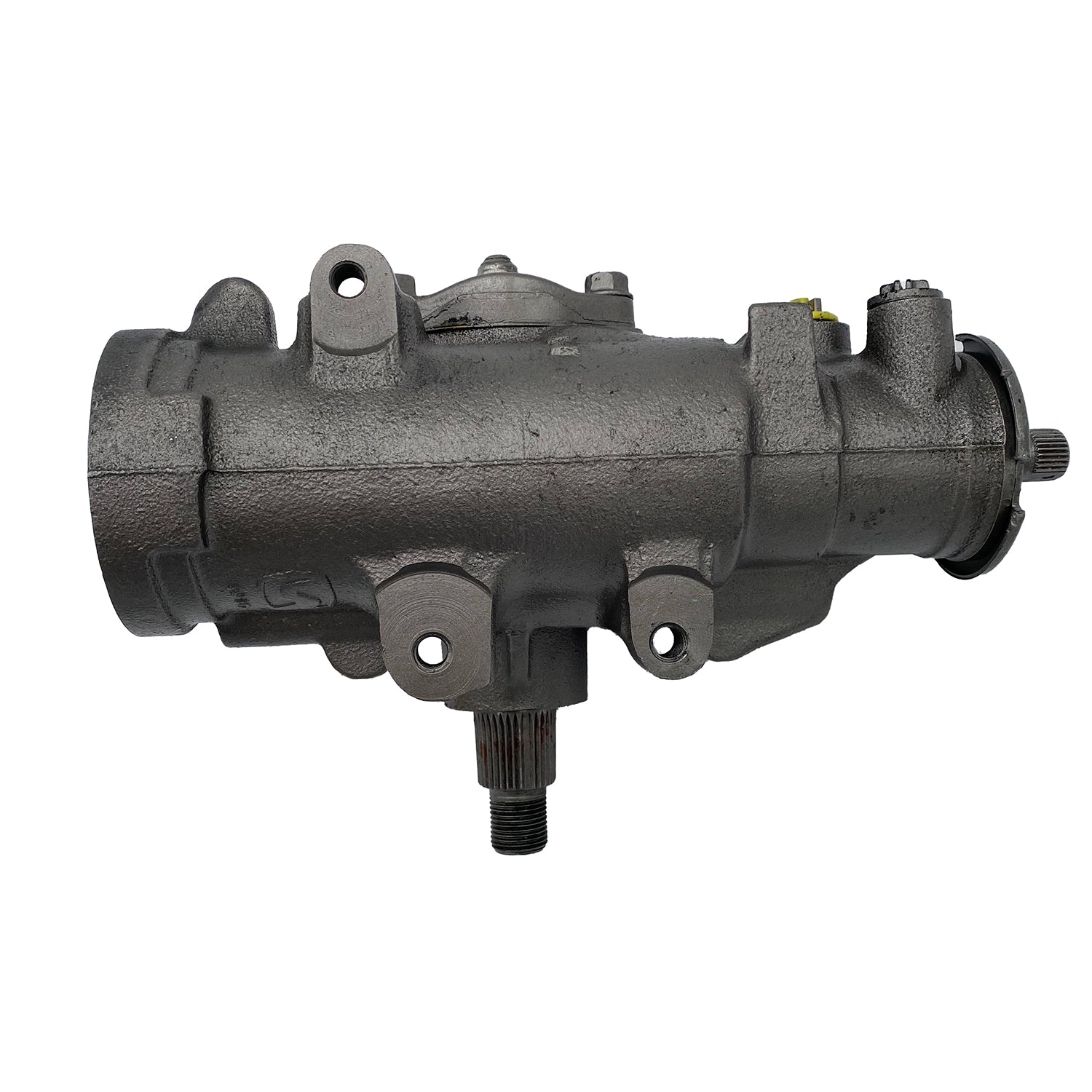

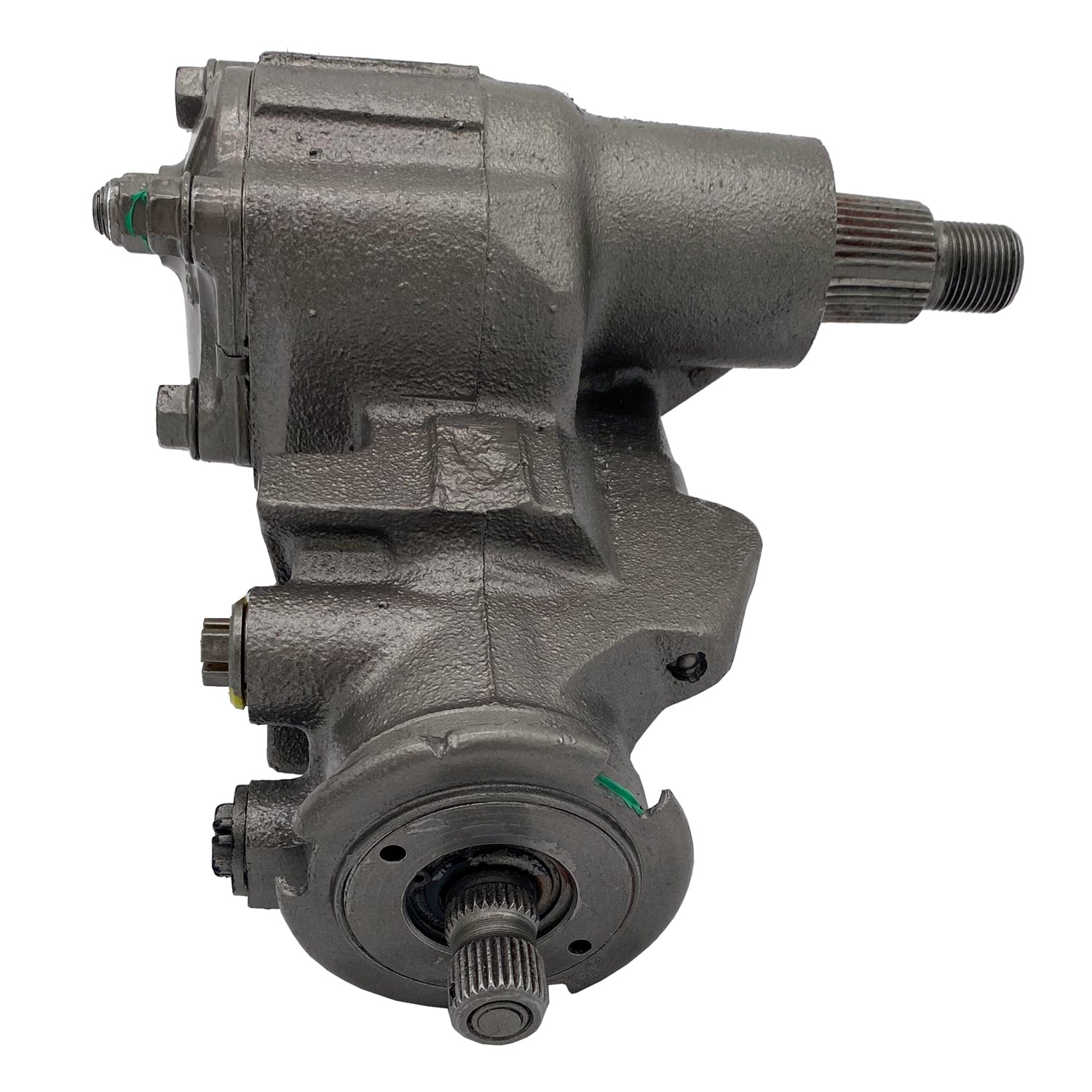

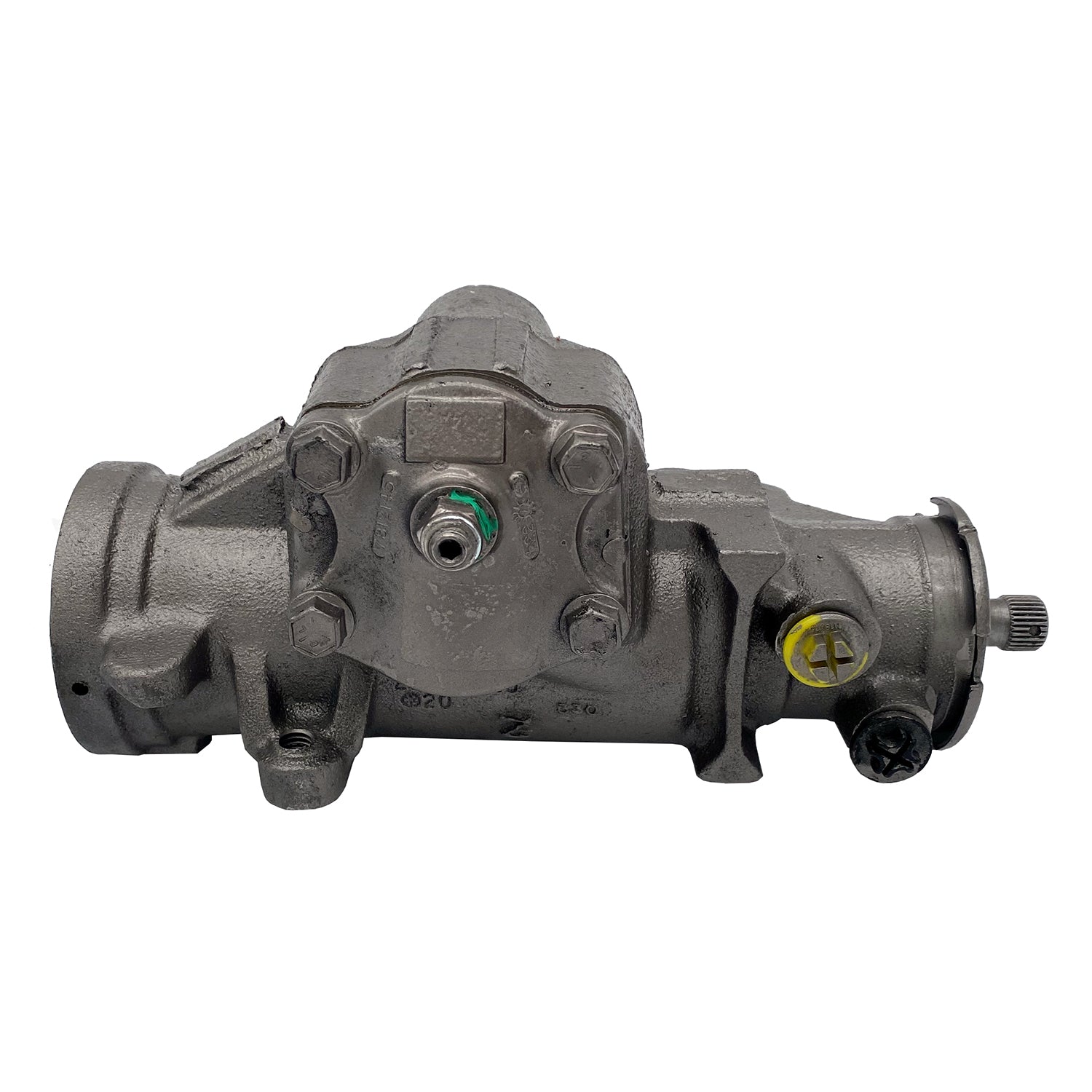

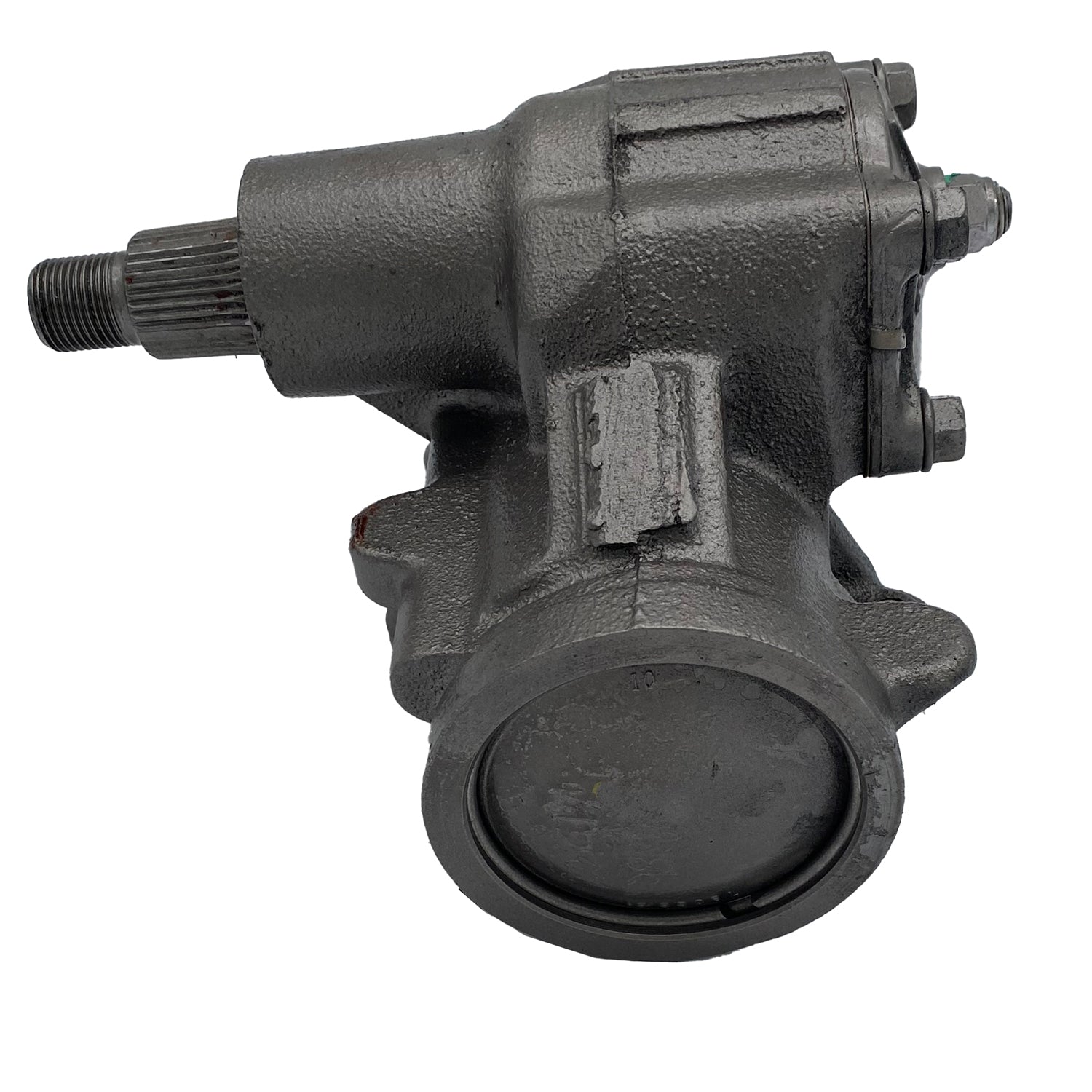

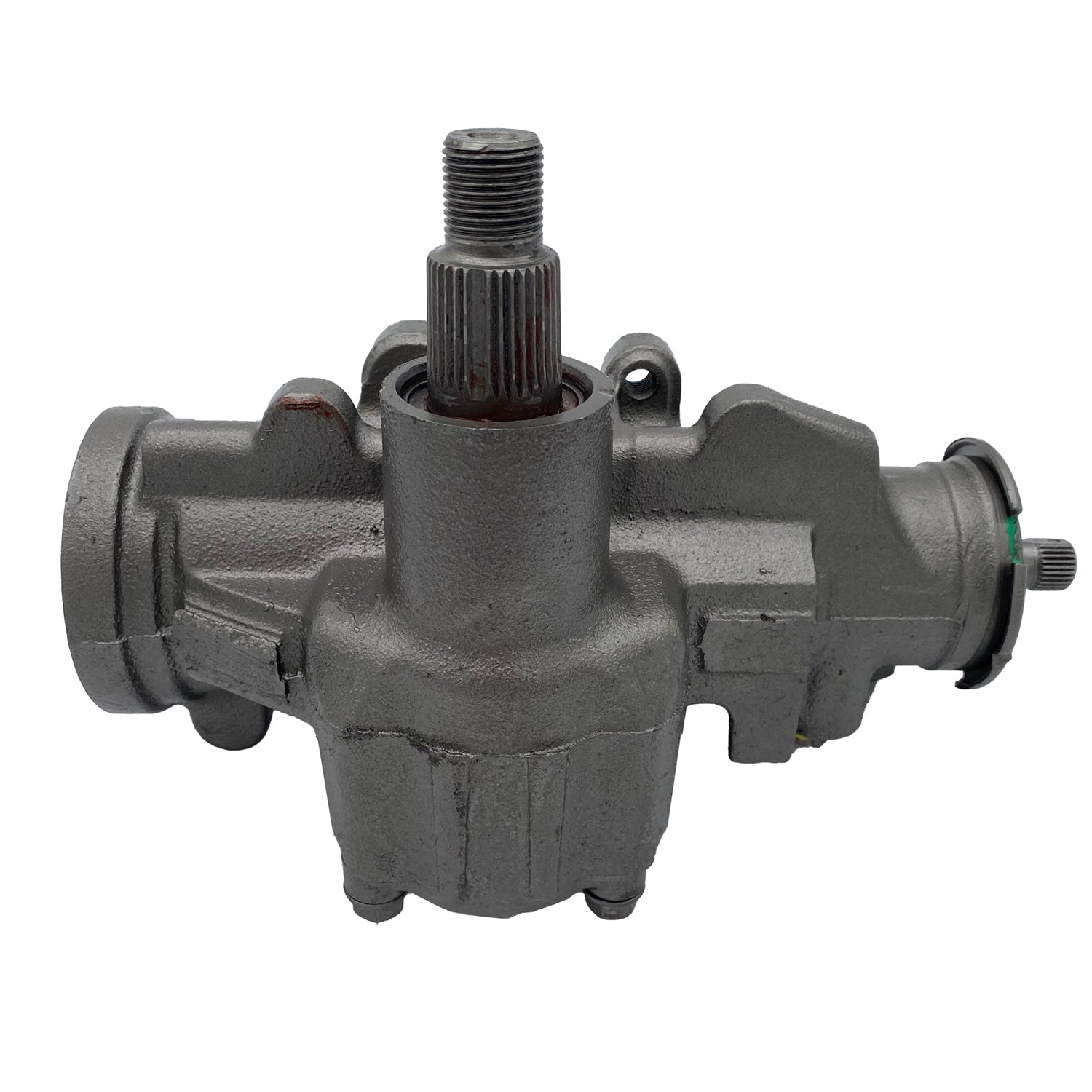

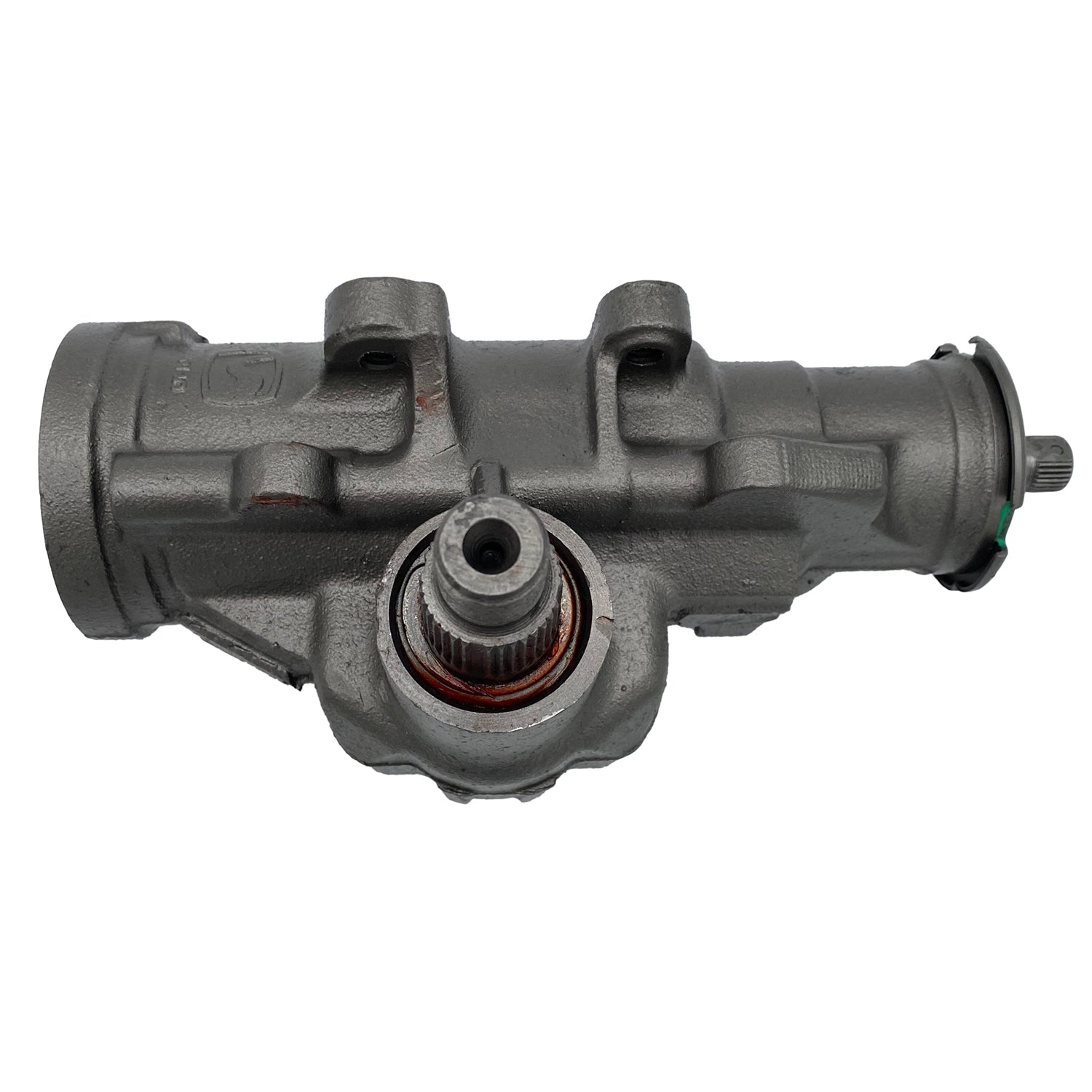

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9826M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9826M

SKU:9826M

MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Steering Input Shaft Spline Quantity 25
Input Shaft Type Splined, Single Flat
Number of Mounting Holes 3
Output Shaft Diameter 1.25 IN
Output Shaft Diameter 31.75 MM
Pitman Arm Included No
Pressure Port Thread Size M18 x 1.5
Pump Rotation Standard
Return Port Thread Size M16 x 1.5
Total Turns Lock To Lock 3.0 to 3.5



Application Info: GMC S15 (1982-1990), Chevrolet S10 Blazer (1983-1994), Jeep Grand Cherokee (1993-1998), Jeep Cherokee (1984-1996), Chevrolet S10 (1982-1996), Jeep Wagoneer (1984-1990), GMC Sonoma (1991-1996), GMC S15 Jimmy (1983-1991), Oldsmobile Bravada (1991-1994), Jeep Comanche (1986-1992)

Interchange: General Motors - 26017270

BBB Cross-Reference: 502-0122

Cardone Cross-Reference: 27-7582

Instructions - 1               Instructions - 2
