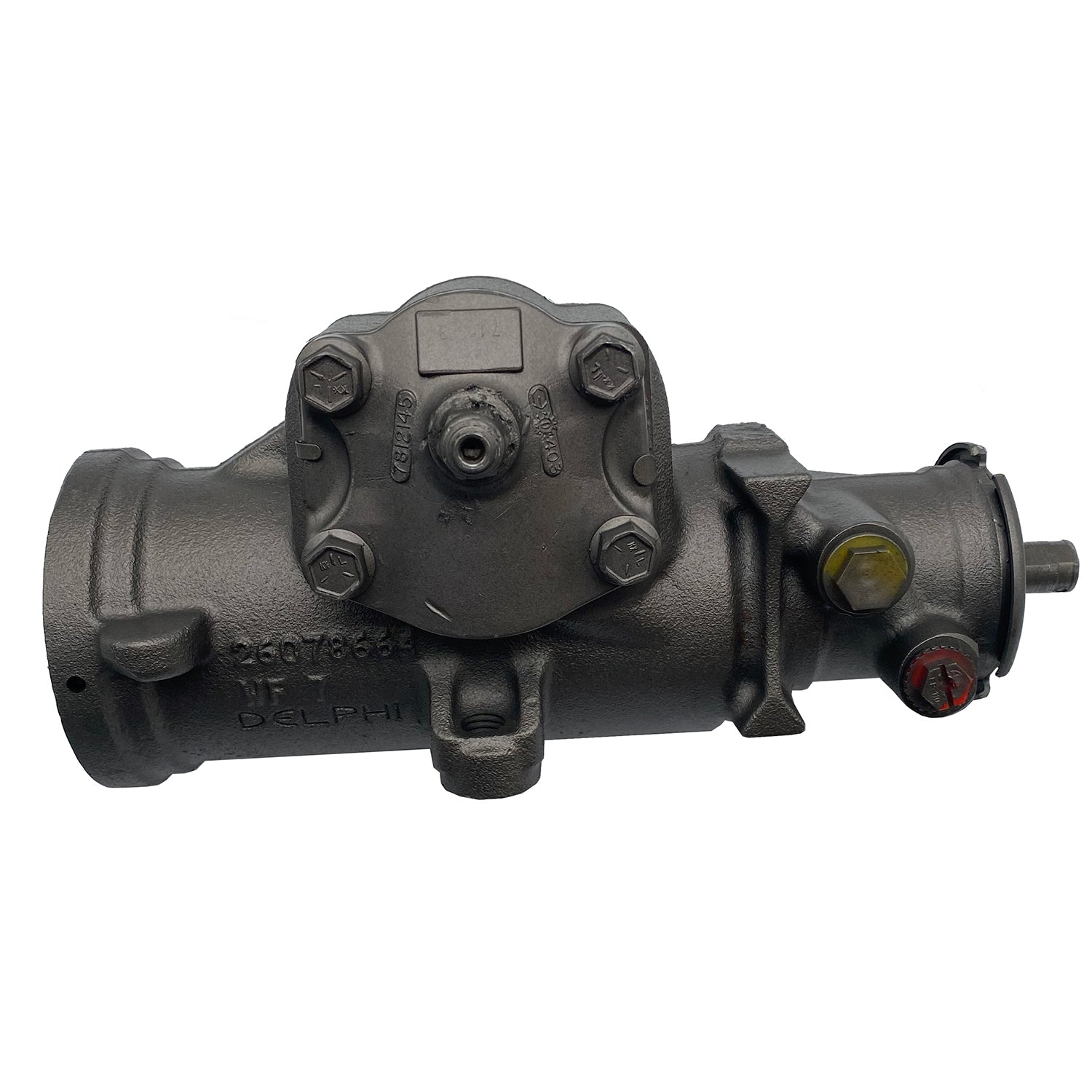

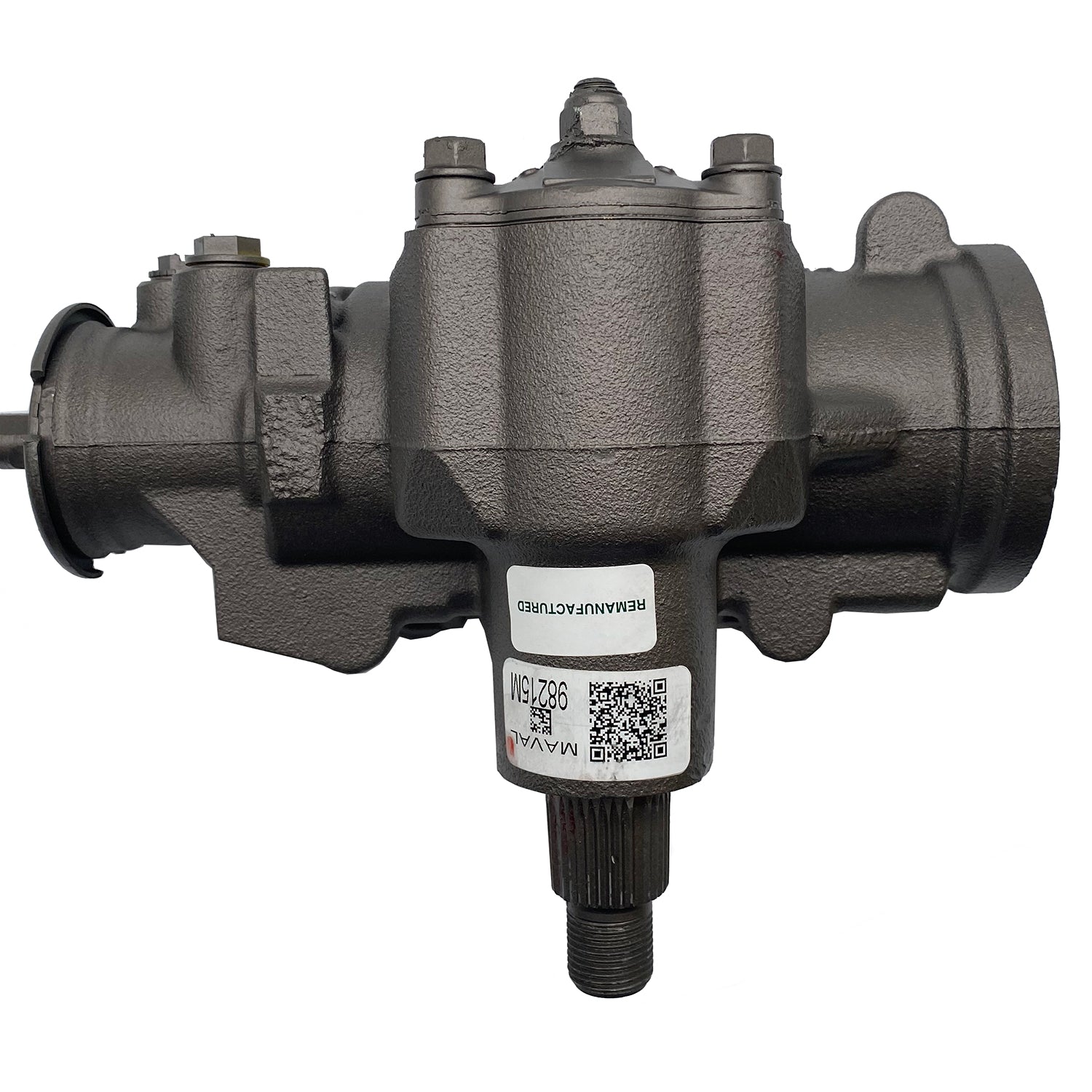

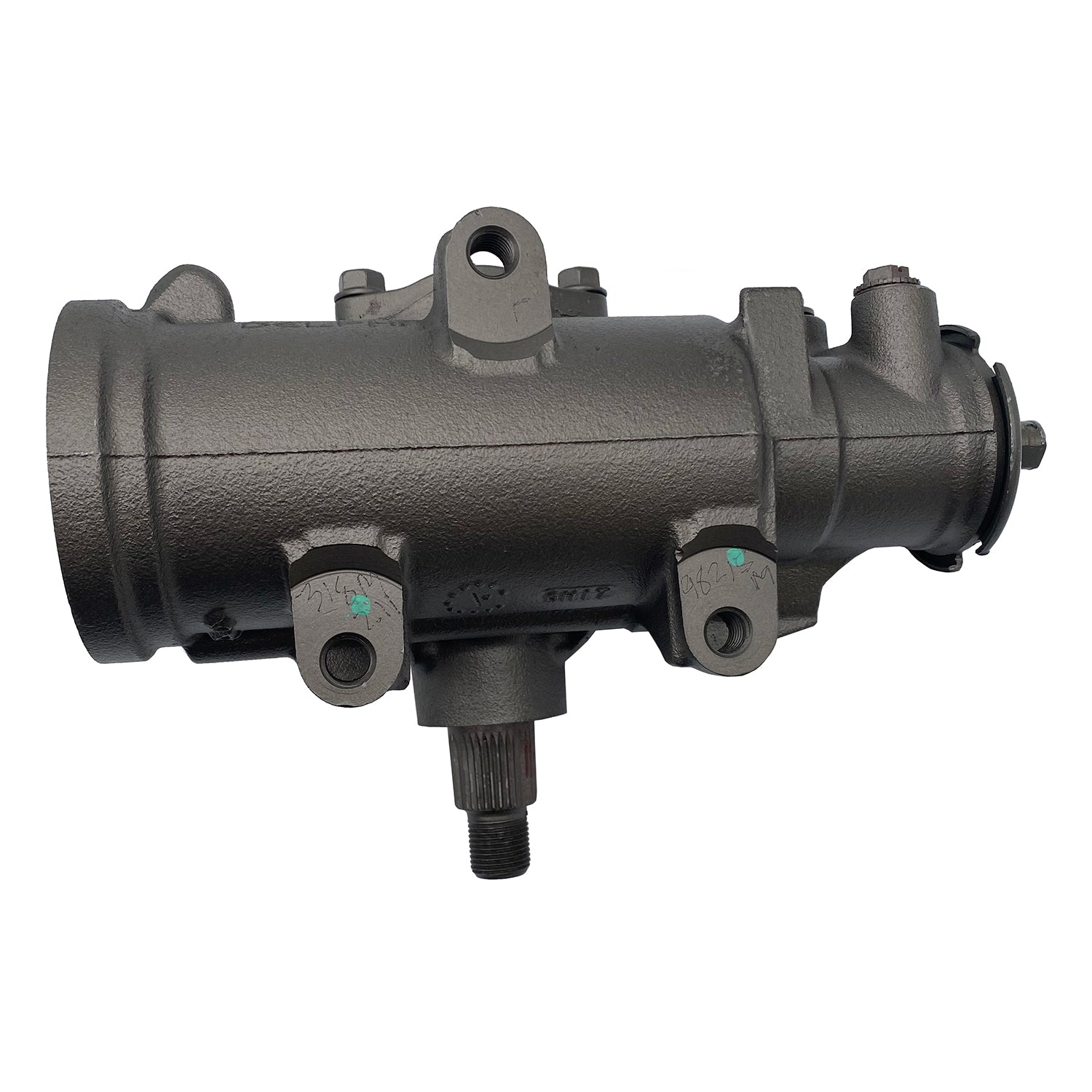

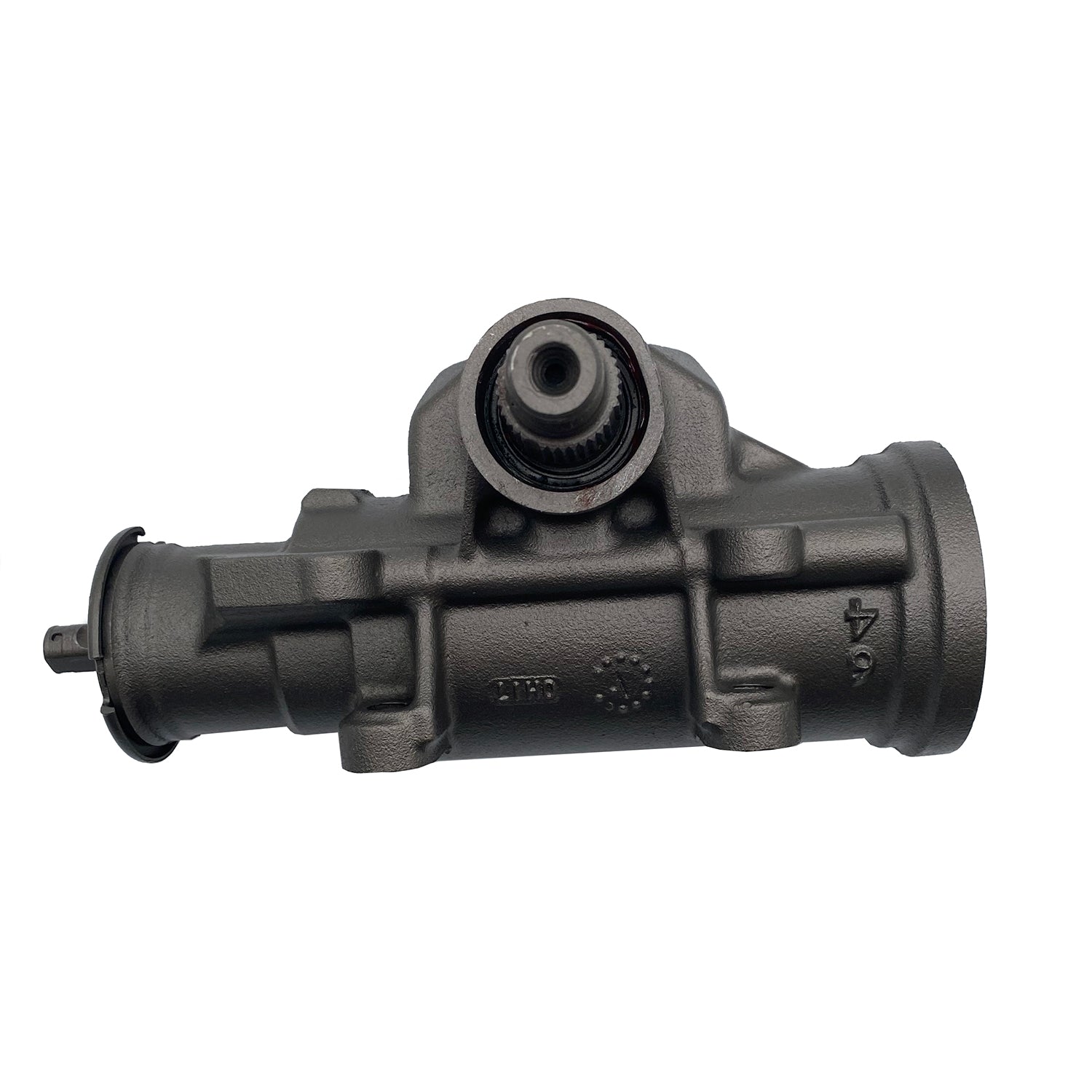

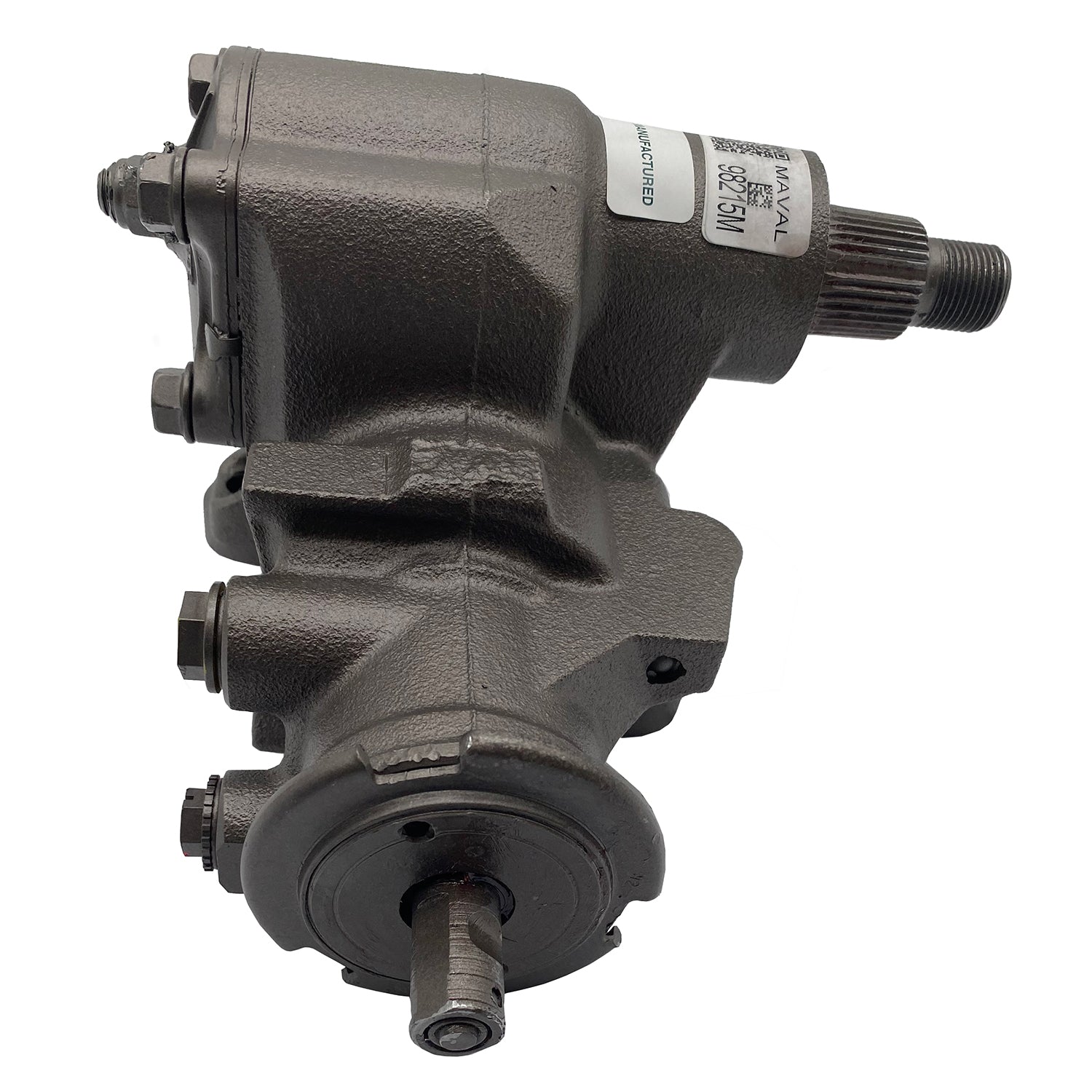

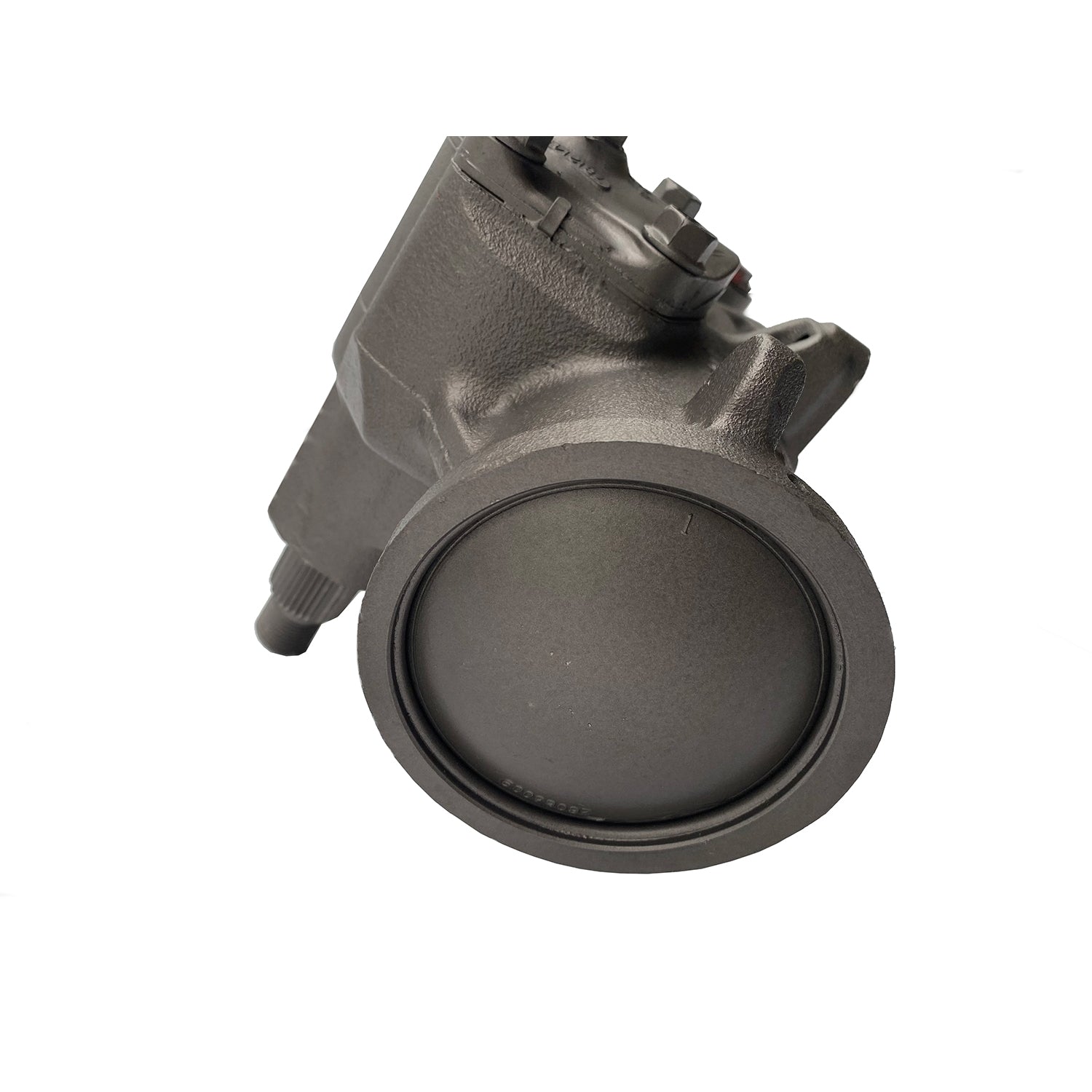

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98215M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98215M

SKU:98215M

MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type O-Ring
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.76 MM
Input Shaft Type Double Flat
Mounting Hole Quantity 3
Output Shaft Diameter 1.25 IN
Output Shaft Diameter 31.75 MM
Port ID Size 0
Pressure Port Thread Size M18 x 1.5
Return Port ID Size 0
Return Port Thread Size M16 x 1.5
Total Turns Lock To Lock 3.3



Application Info: GMC Yukon (2001-2002), GMC Yukon XL 1500 (2001-2002), Chevrolet Tahoe (2001-2002) ***W/4WD***

Interchange: General Motors - 15772600

BBB Cross-Reference: 503-0157

Cardone Cross-Reference: 27-7594
