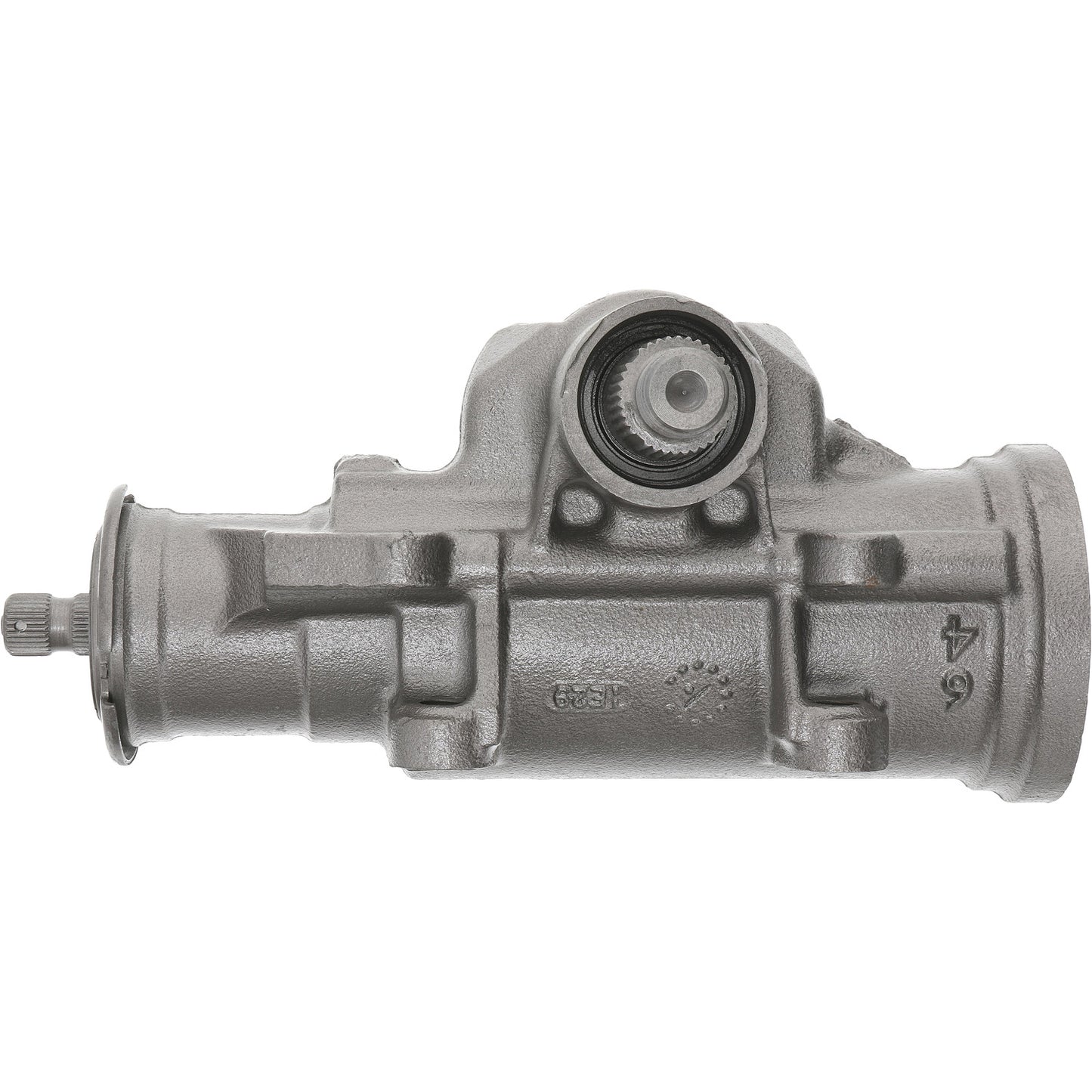

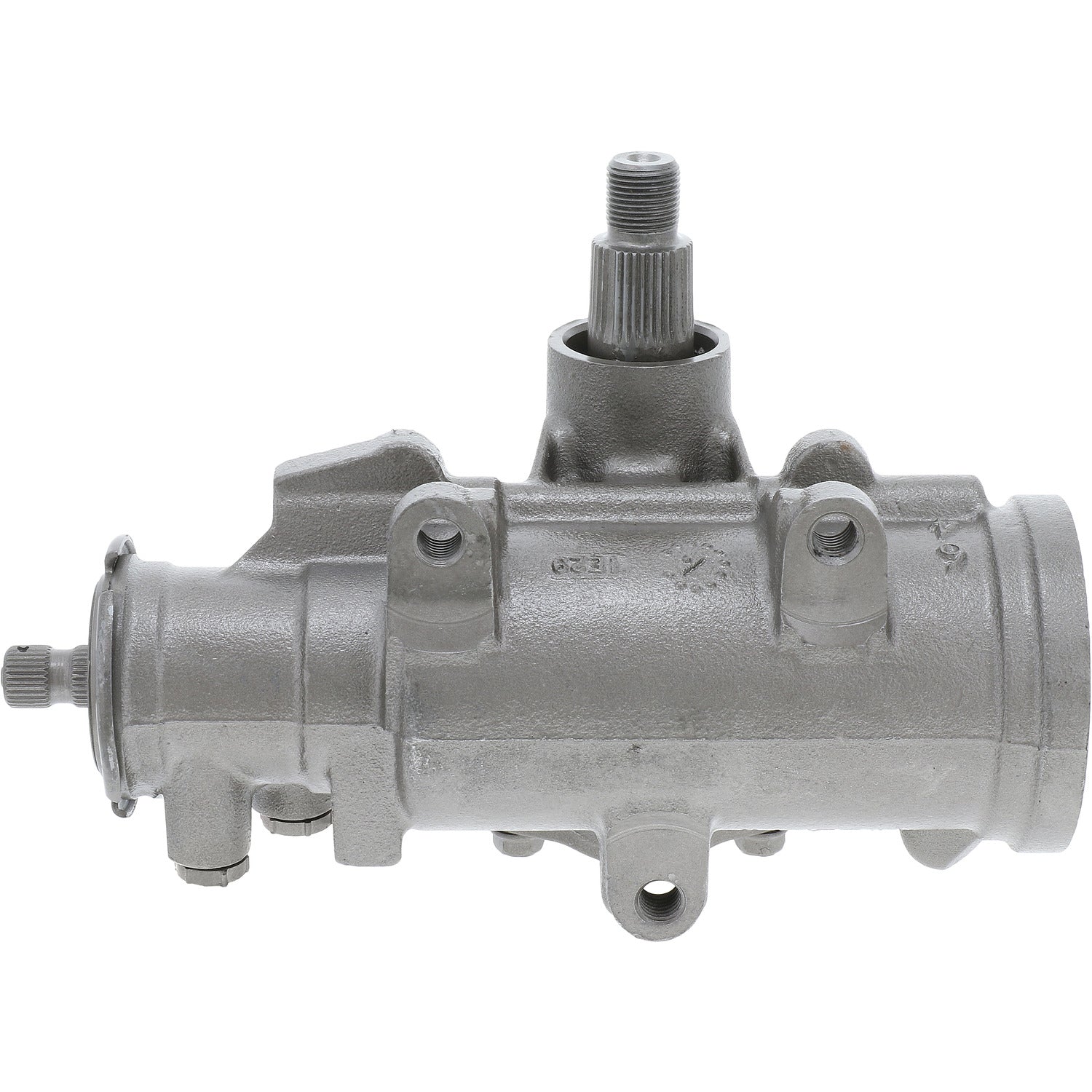

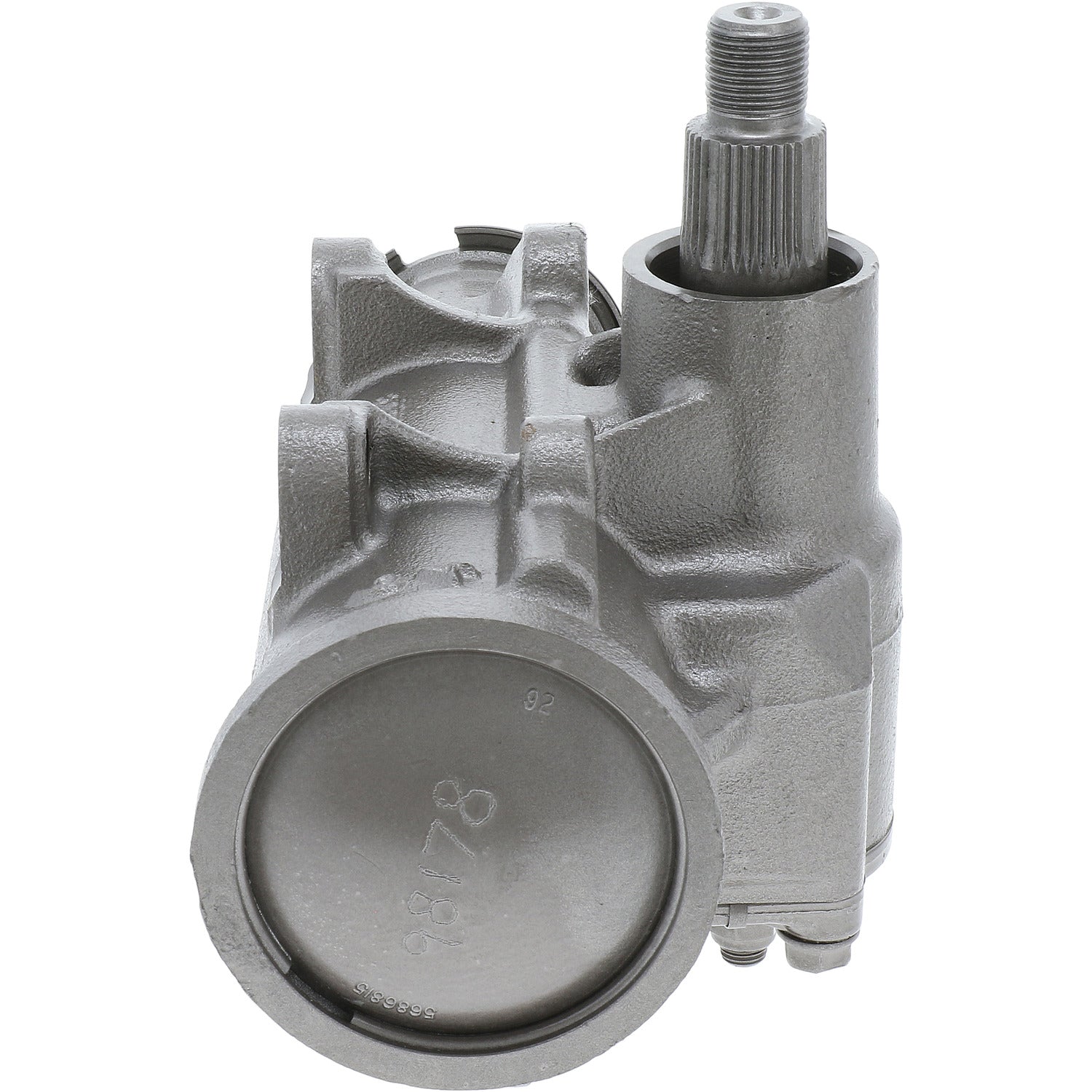

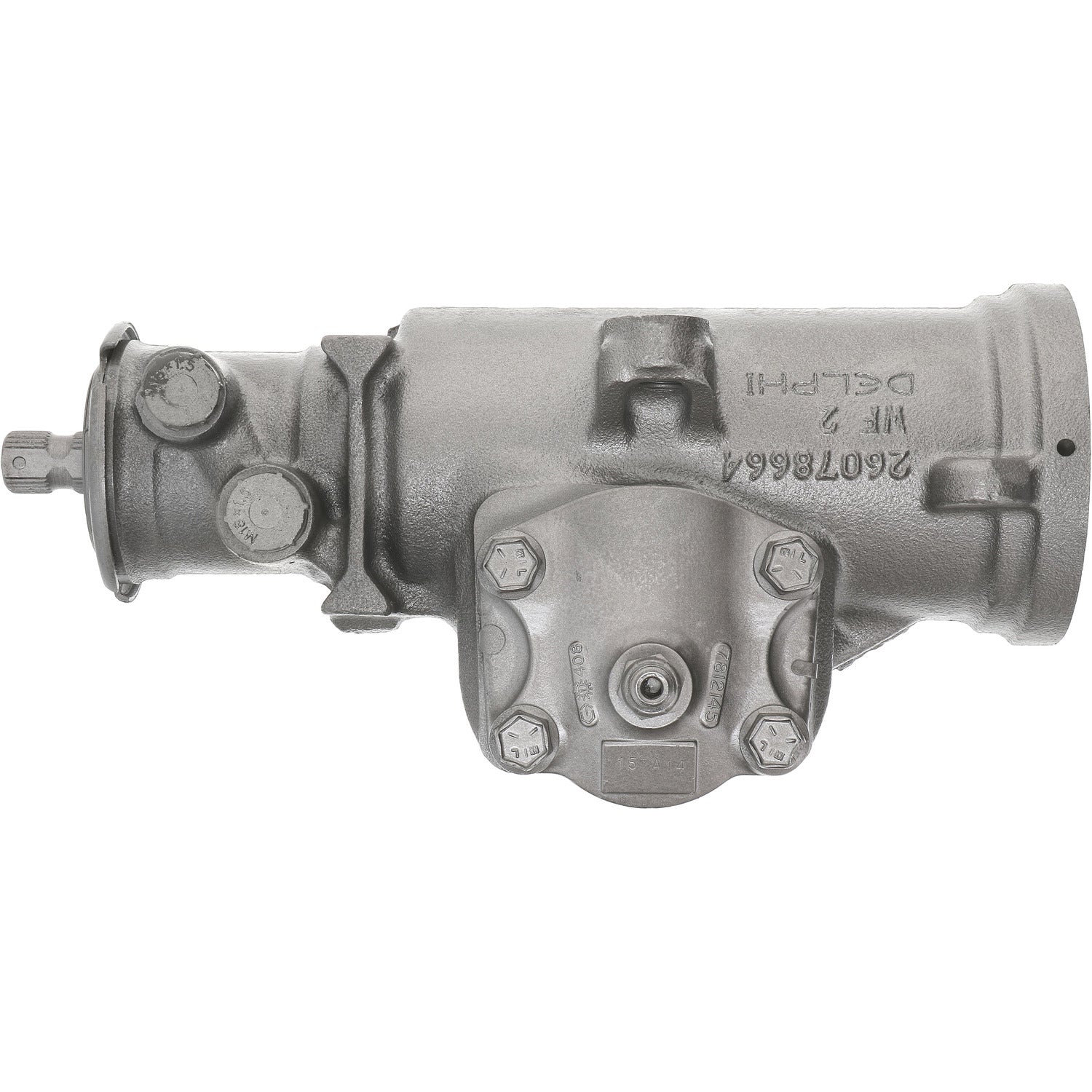

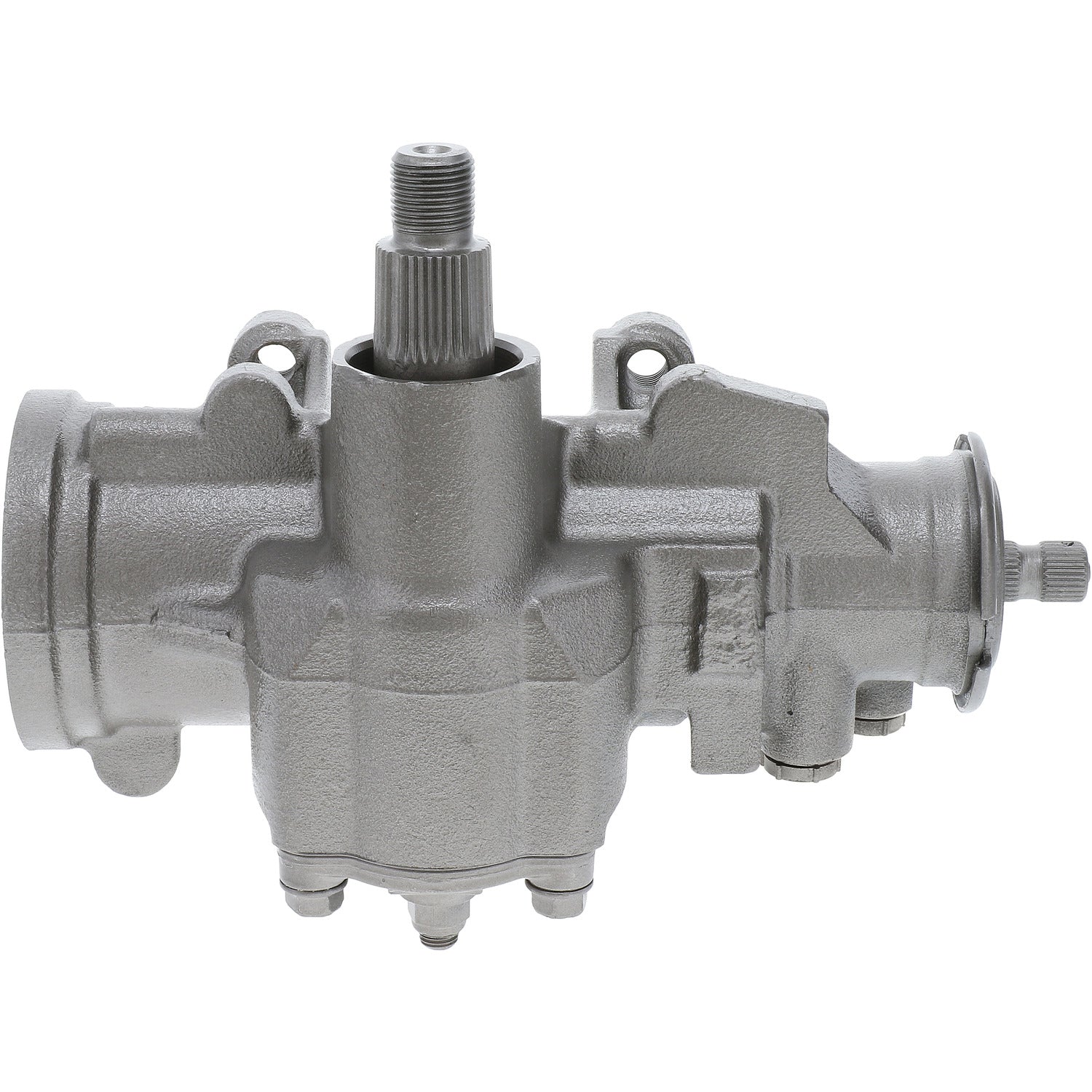

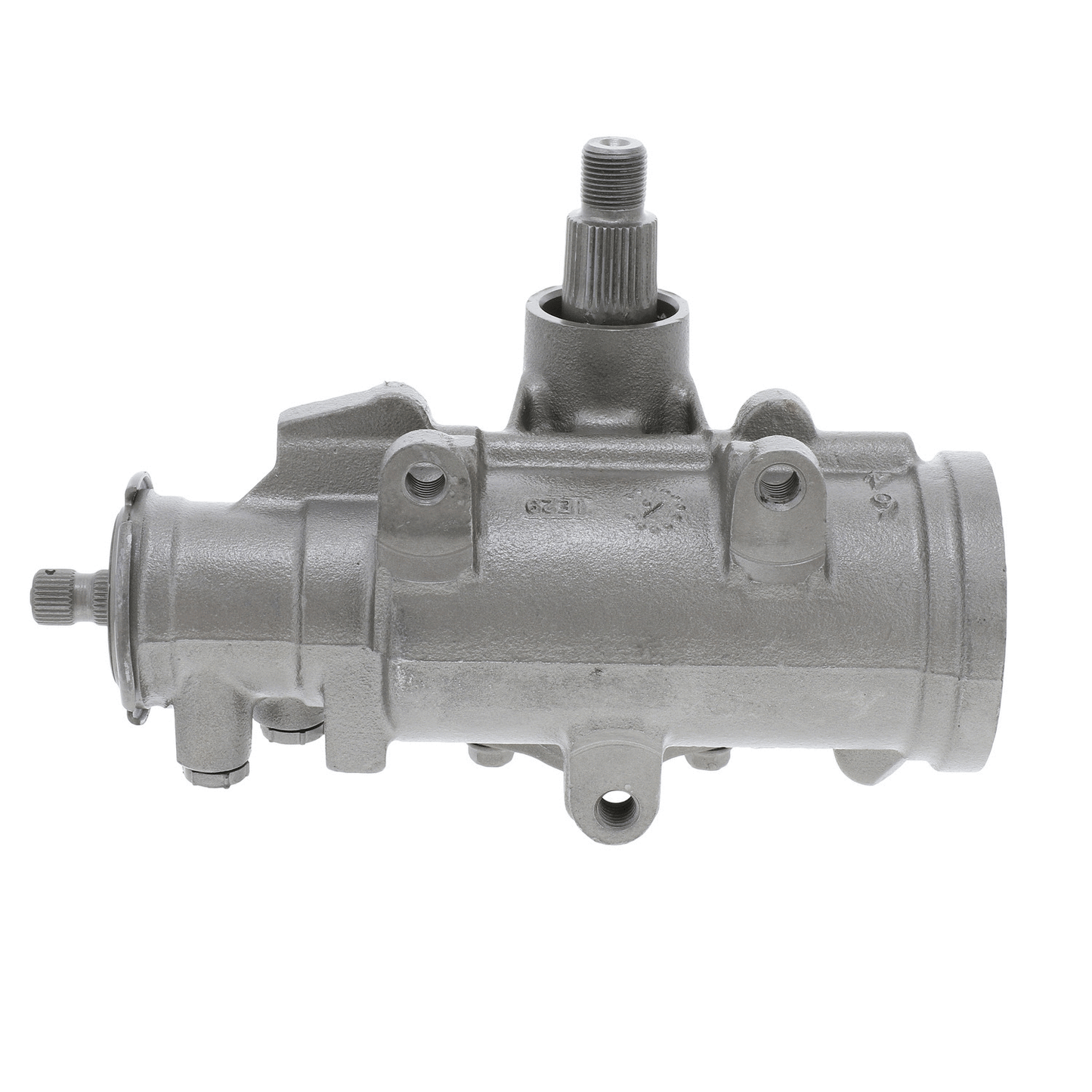

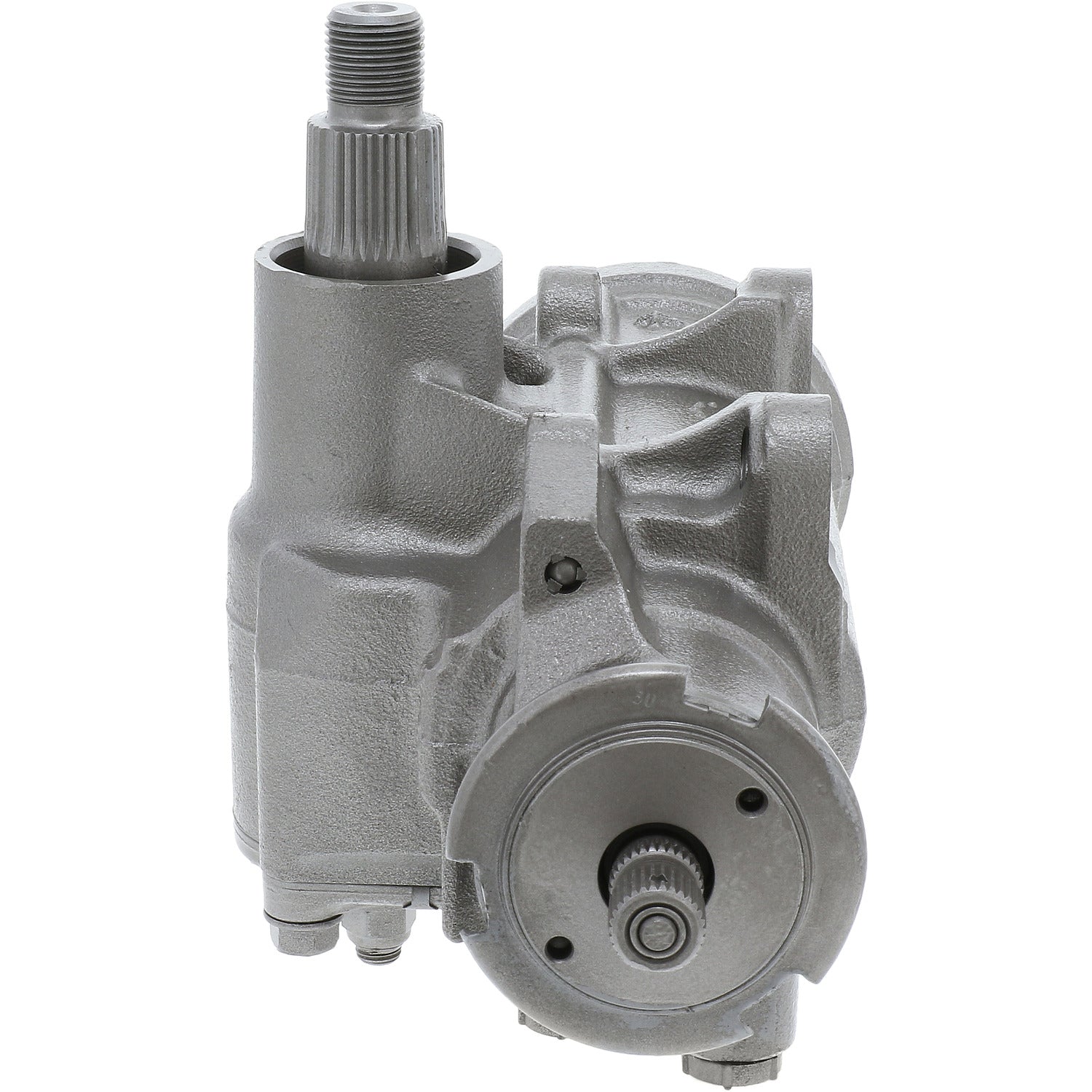

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98178M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98178M


MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Steering Input Shaft Spline Quantity 25
Input Shaft Type Splined, Single Flat
Mounting Hole Quantity 3
Output Shaft Diameter 1.25 IN
Output Shaft Diameter 31.75 MM
Pressure Port Thread Size M18 x 1.5
Pump Rotation Standard
Return Port ID Size 0
Return Port Thread Size M16 x 1.5
Total Turns Lock To Lock 4.1

Application Info: Dodge Ram 2500 (1997-02), Ram 3500 (1997-02), Ram 4000 (1997-02) ***All 4WD Models, RWD W/Standard Cab ONLY***

Interchange: Chrysler - 52113500AC/AF

BBB Cross-Reference: 502-0123

Cardone Cross-Reference: 27-7585

Instructions - 1               Instructions - 2
