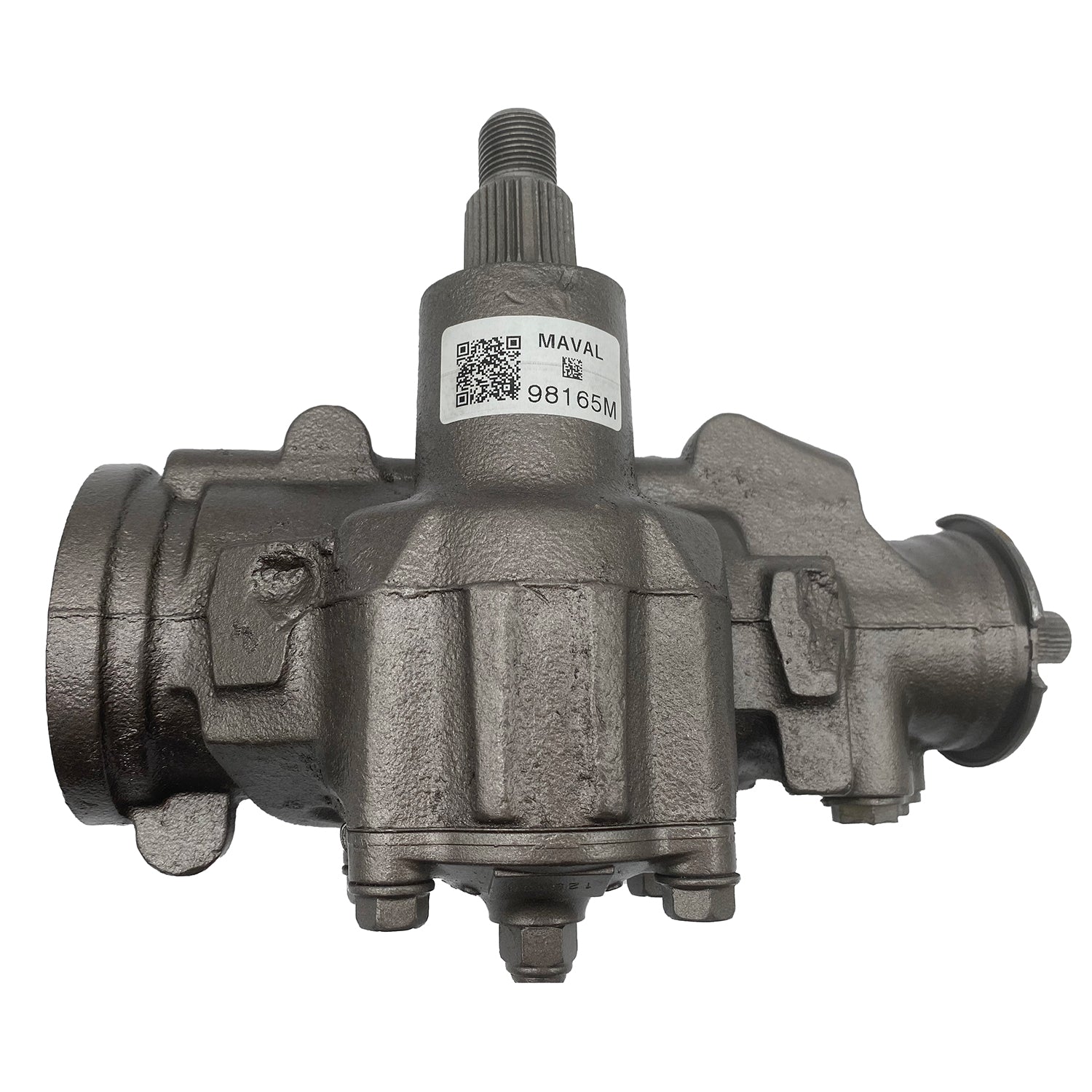

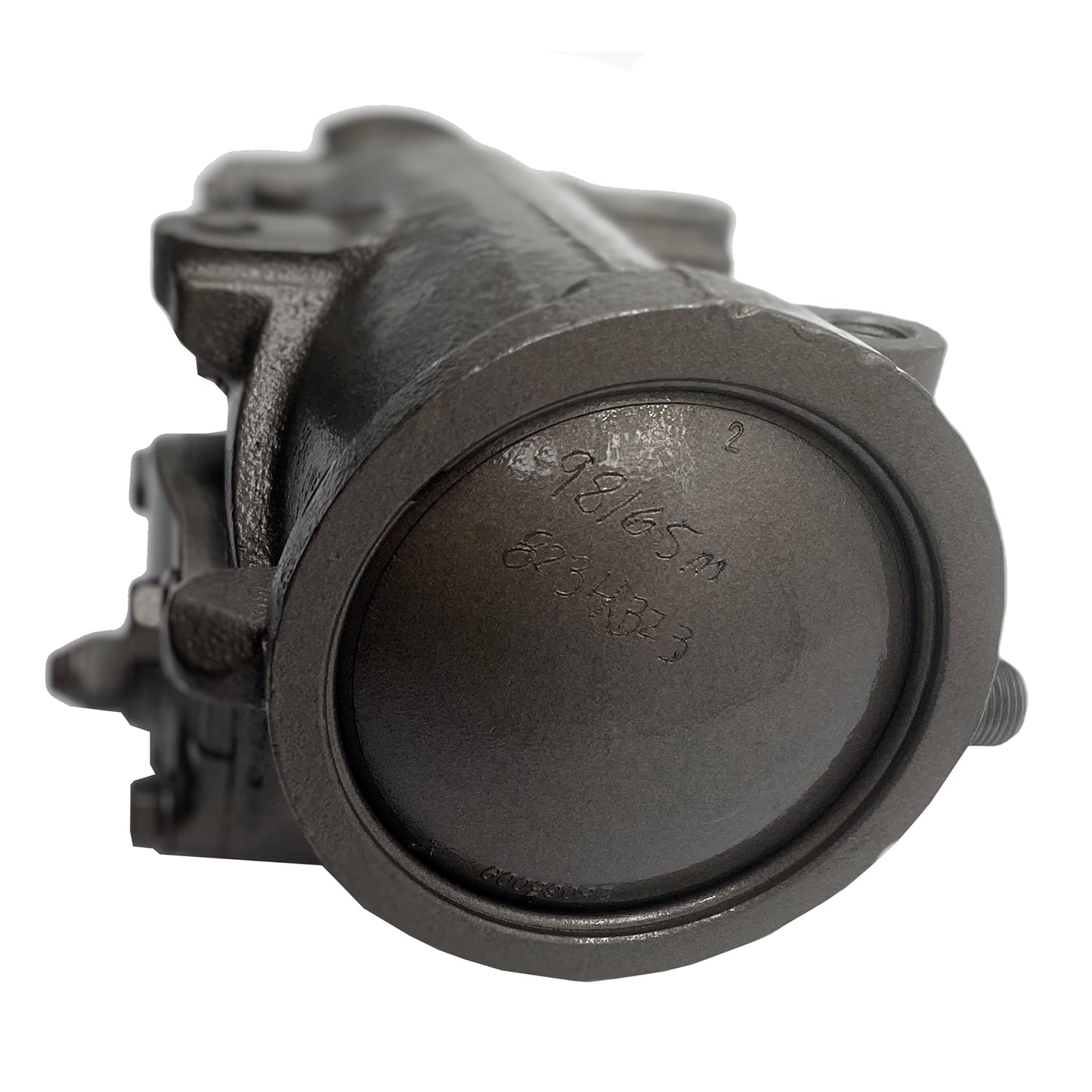

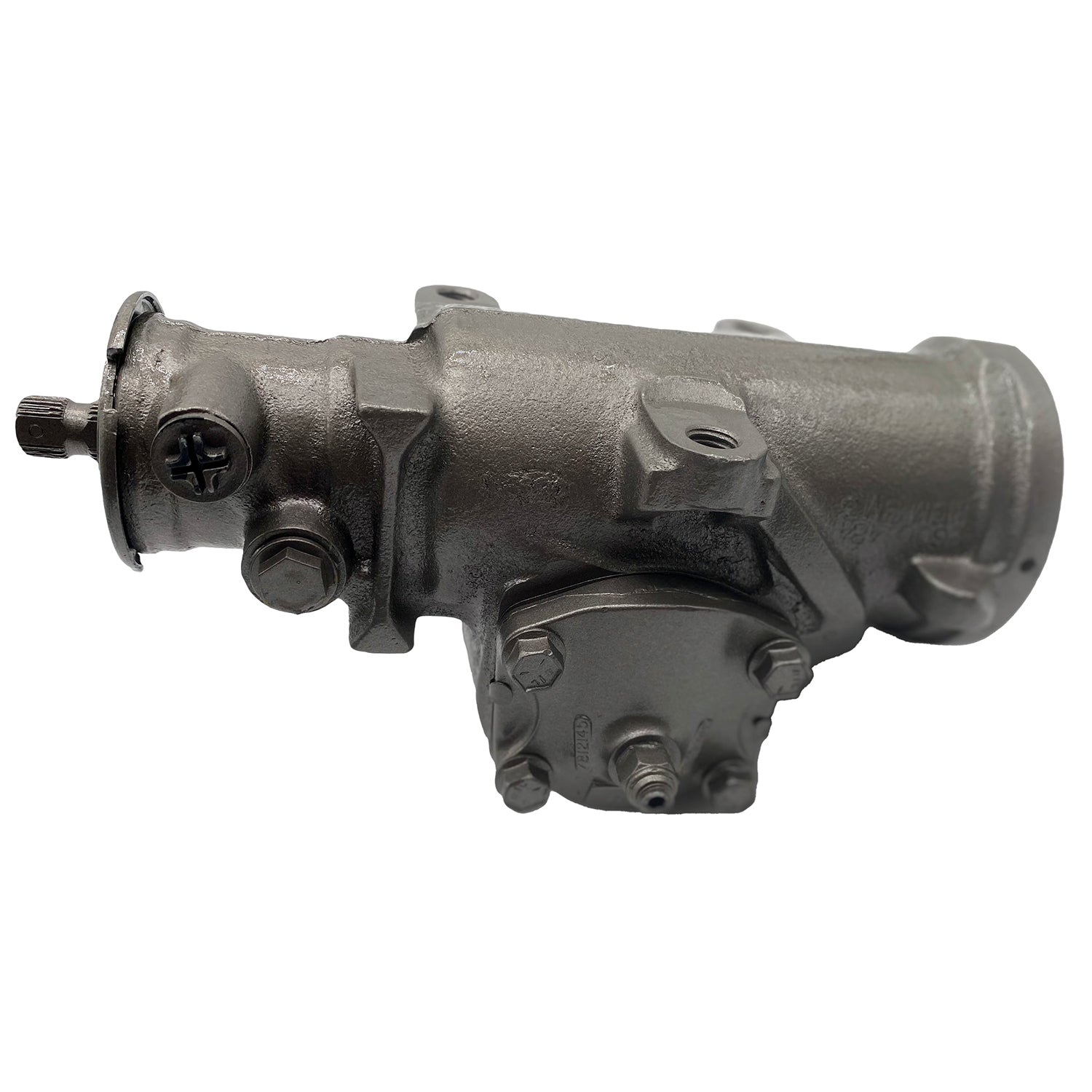

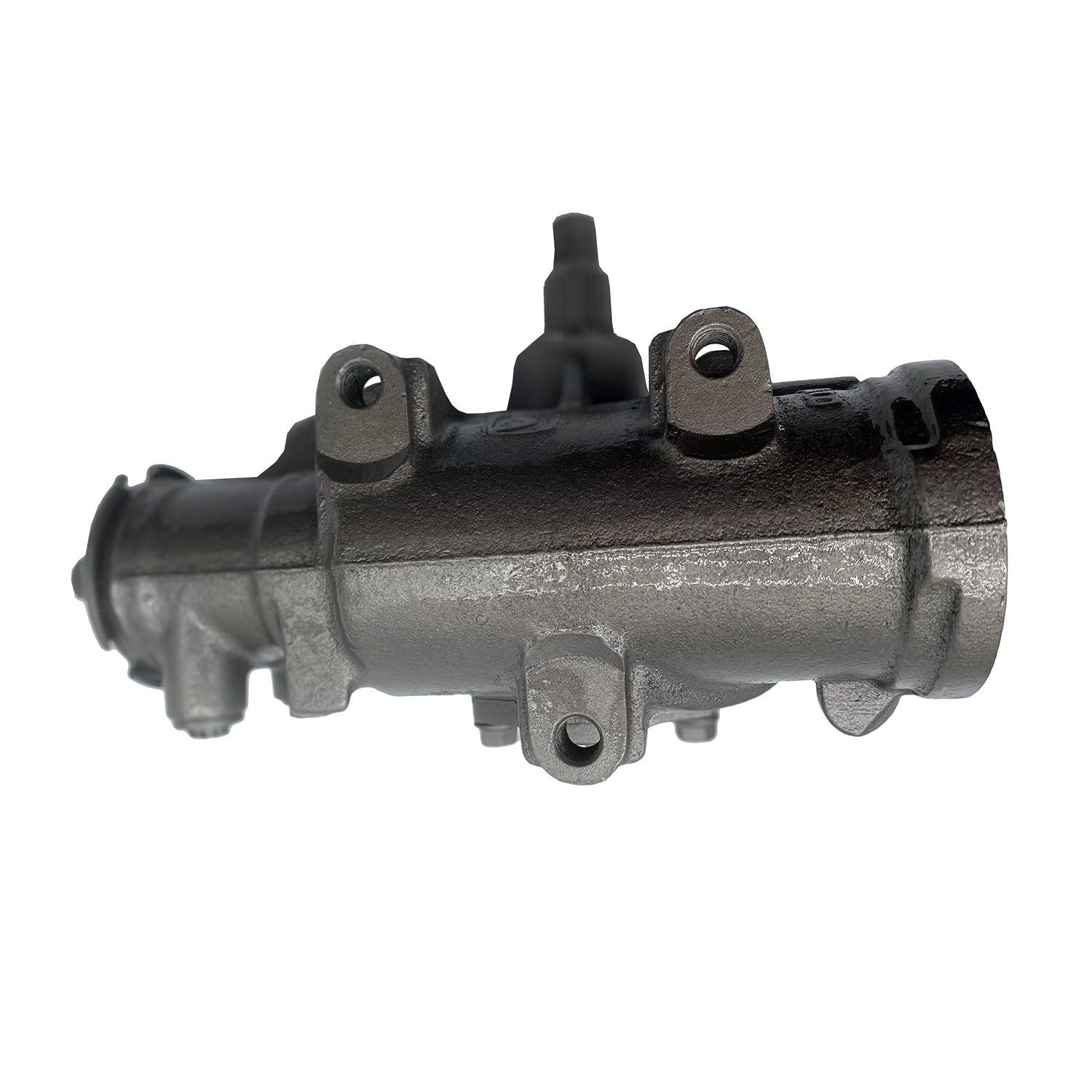

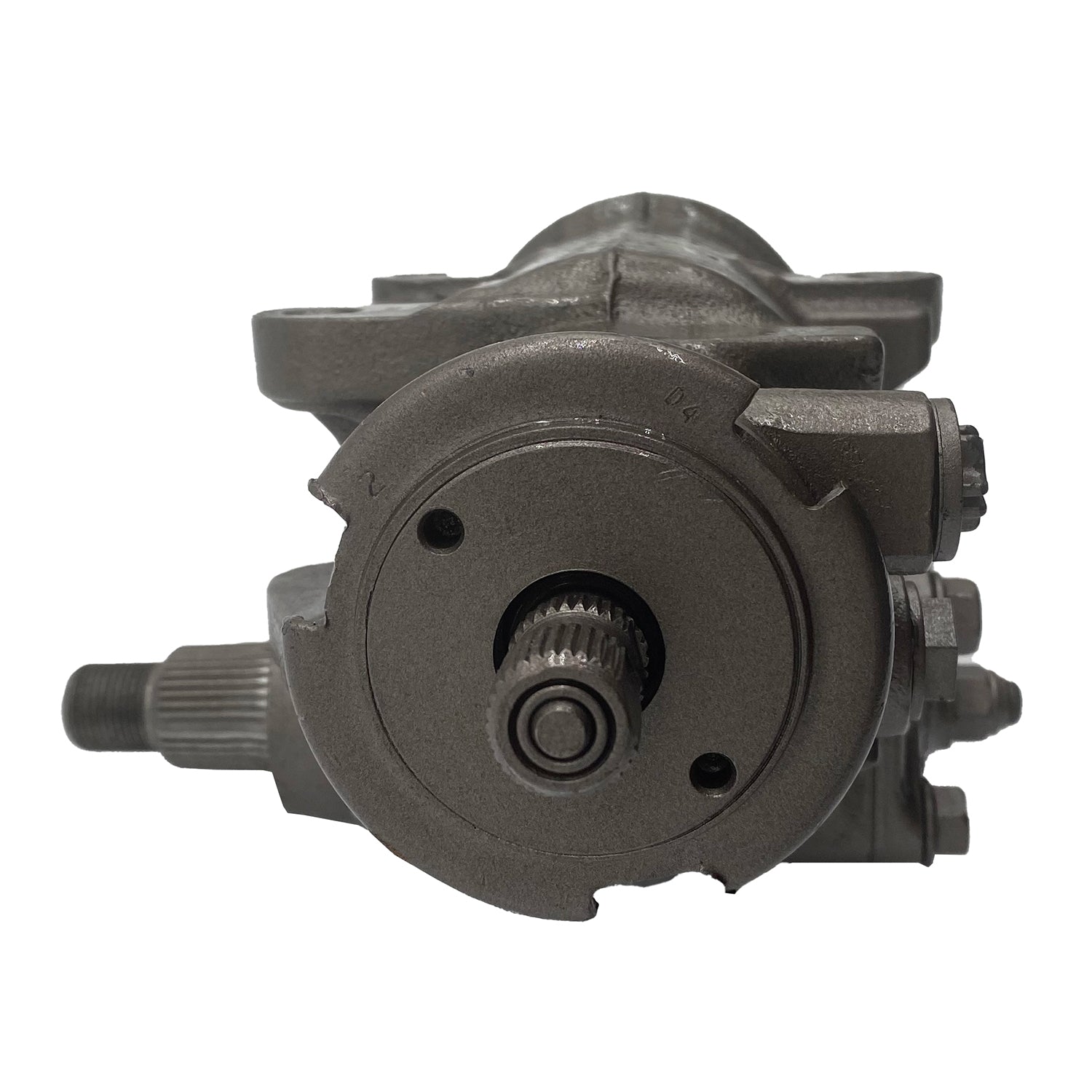

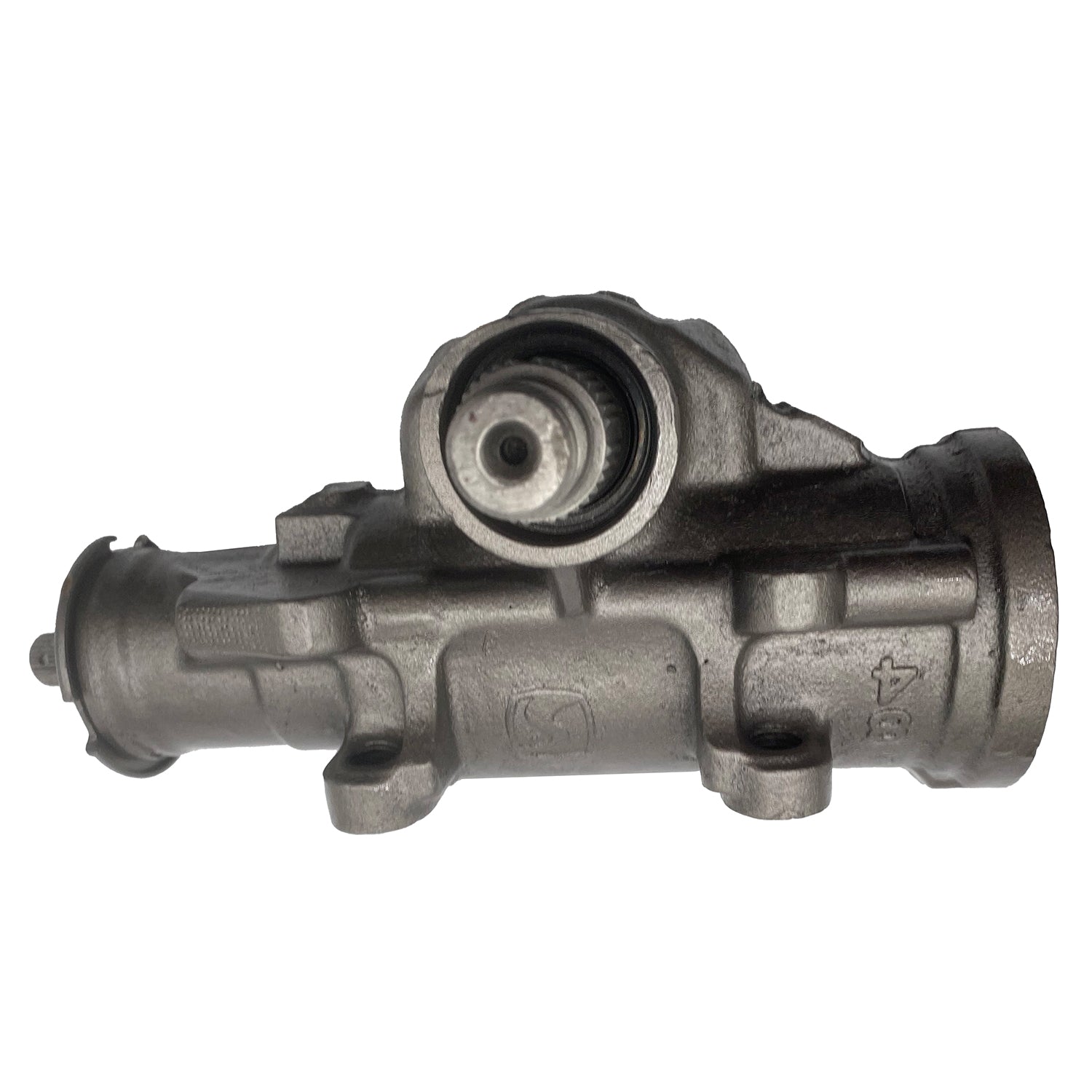

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98165M
Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98165M
SKU:98165M
MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.73 | IN |
| Input Shaft Diameter | 18.42 | MM |
| Steering Input Shaft Spline Quantity | 35 | |
| Input Shaft Type | Splined, Single Flat | |
| Mounting Hole Quantity | 3 | |
| Output Shaft Diameter | 1.25 | IN |
| Output Shaft Diameter | 31.75 | MM |
| Pressure Port Thread Size | M18 x 1.5 | |
| Pump Rotation | Standard | |
| Return Port ID Size | 0 | |
| Return Port Thread Size | M16 x 1.5 | |
| Total Turns Lock To Lock | 3.2 |
Application Info: Dodge Ram 1500 (1997-1999), GMC C3500 (1991-1997), Chevrolet C3500 (1991-1997), Dodge Ram 2500 (1997-1998) Standard Cab Pickup; With 15,000 lb. GVW; With production code JW
Interchange: Chrysler - 26056662
BBB Cross-Reference: 503-0146
Cardone Cross-Reference: 27-7571
