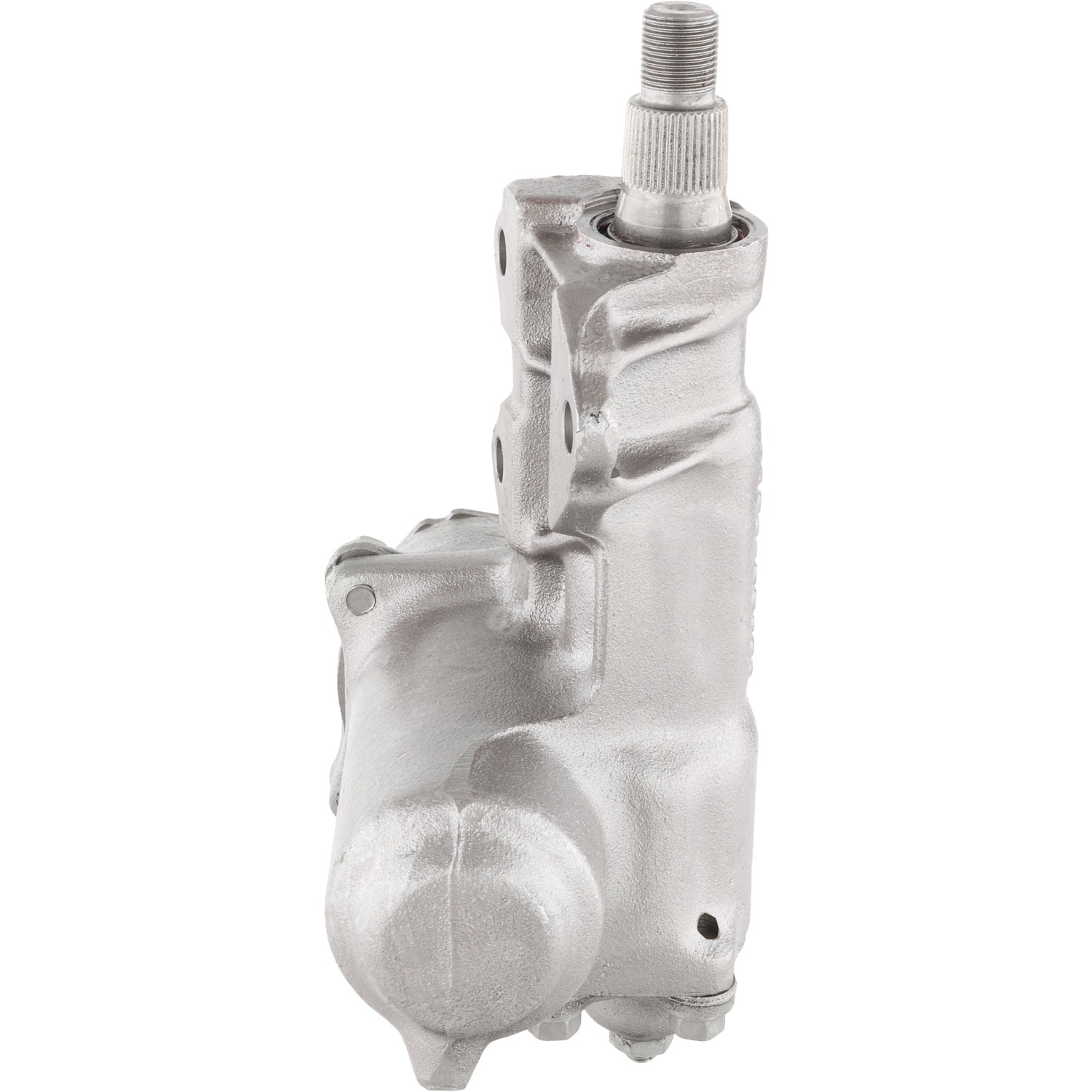

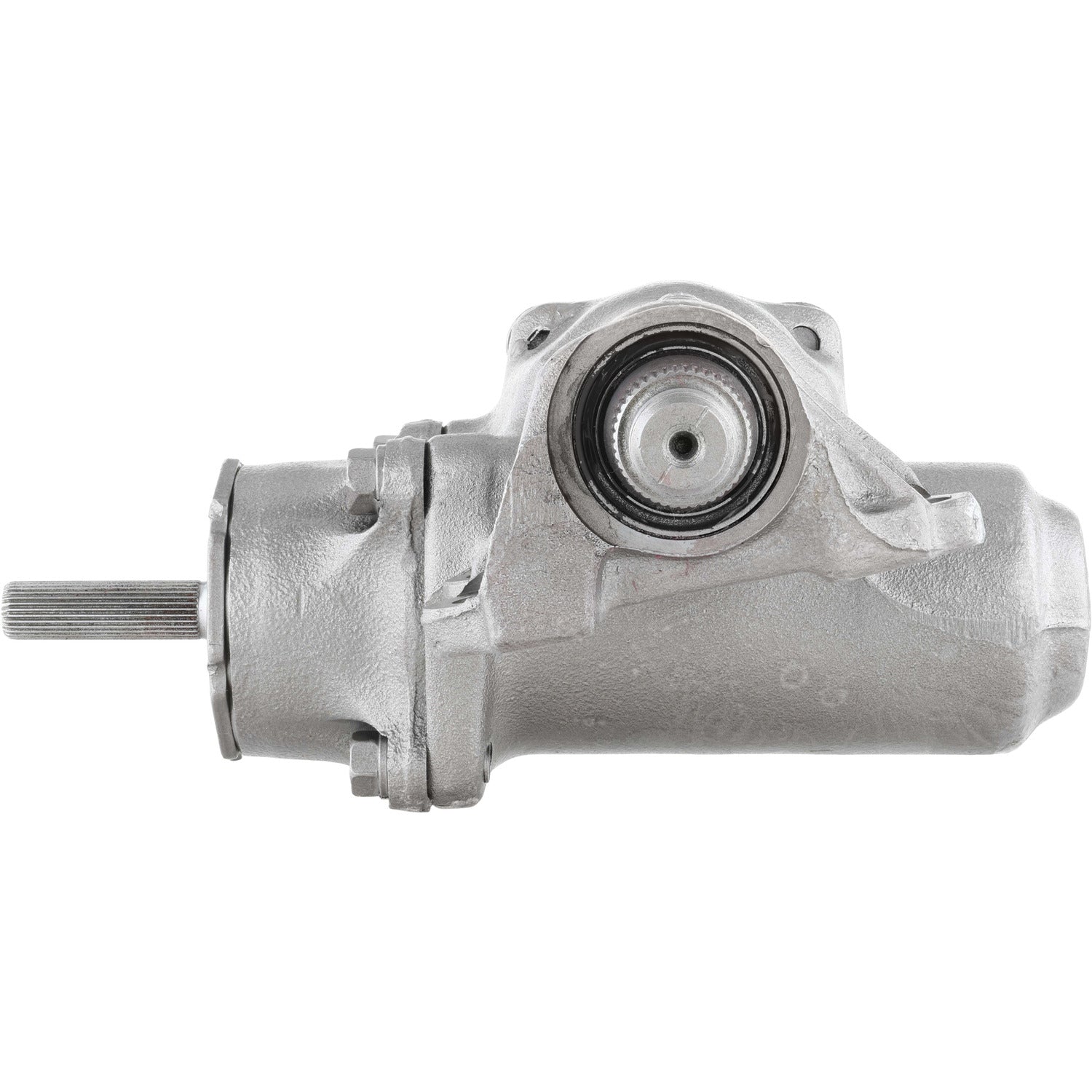

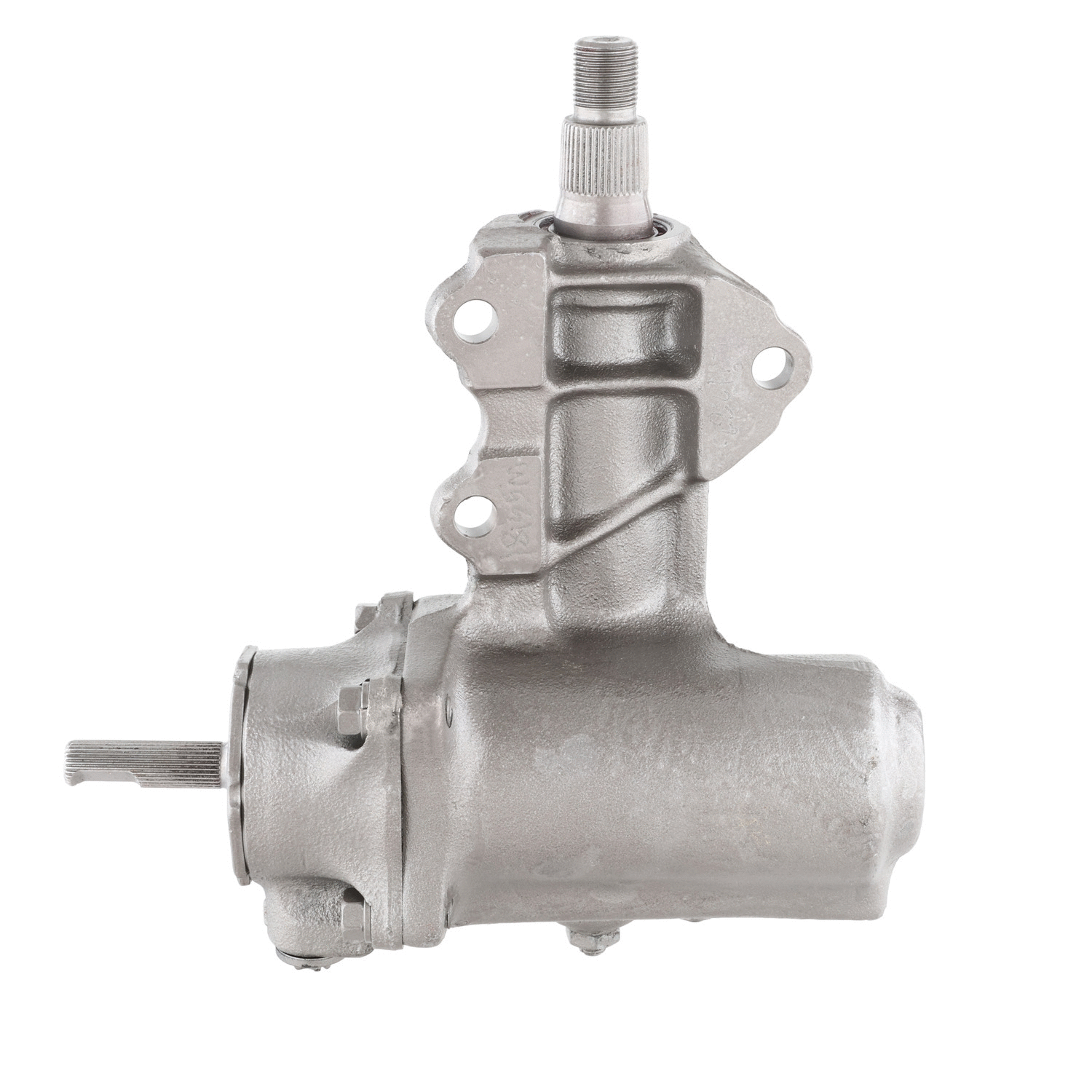

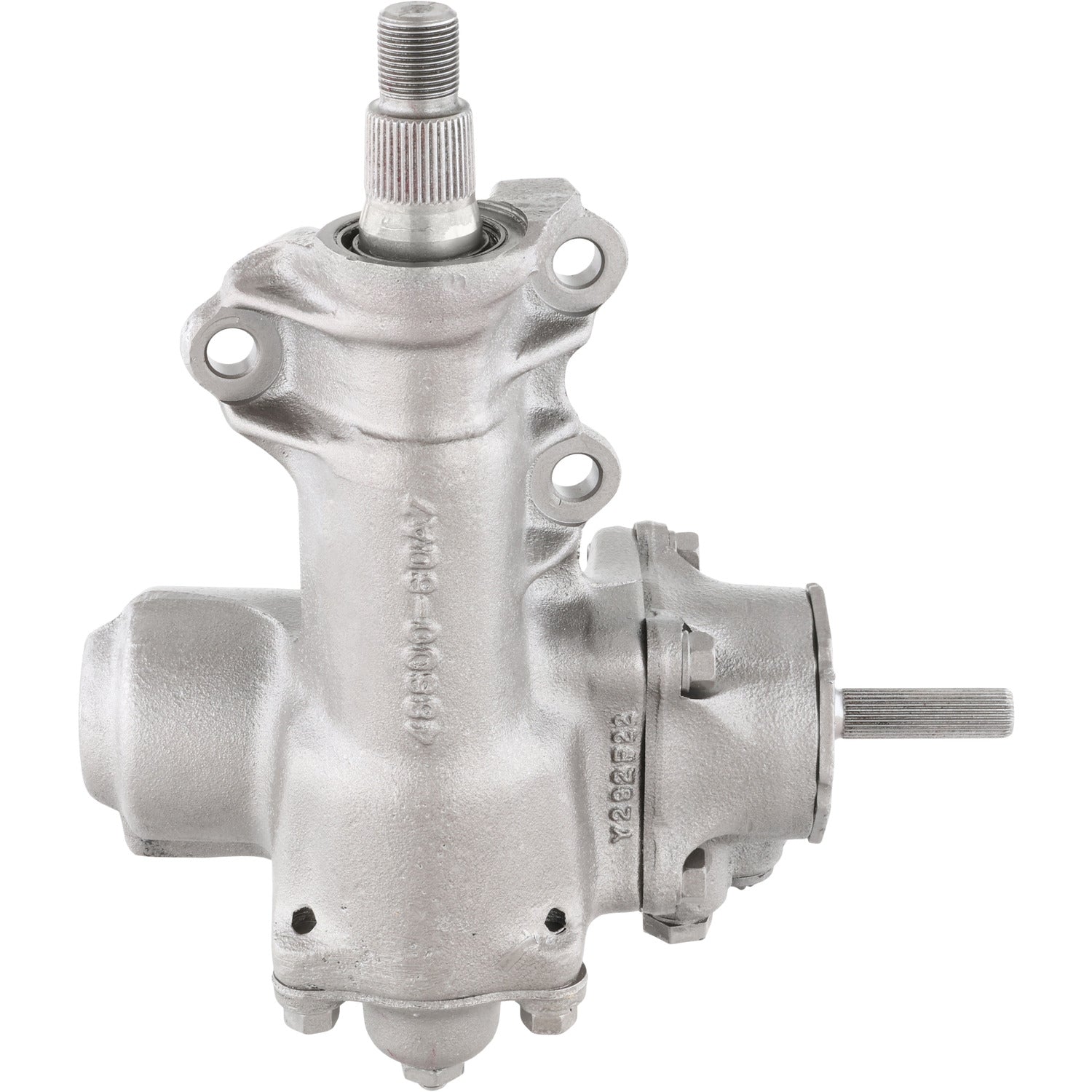

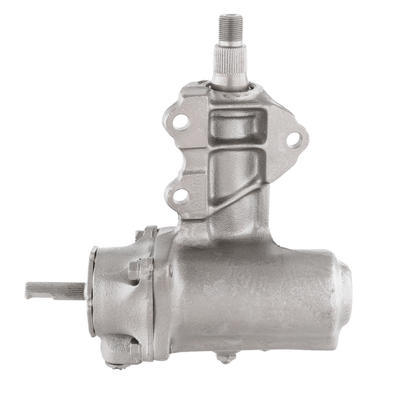

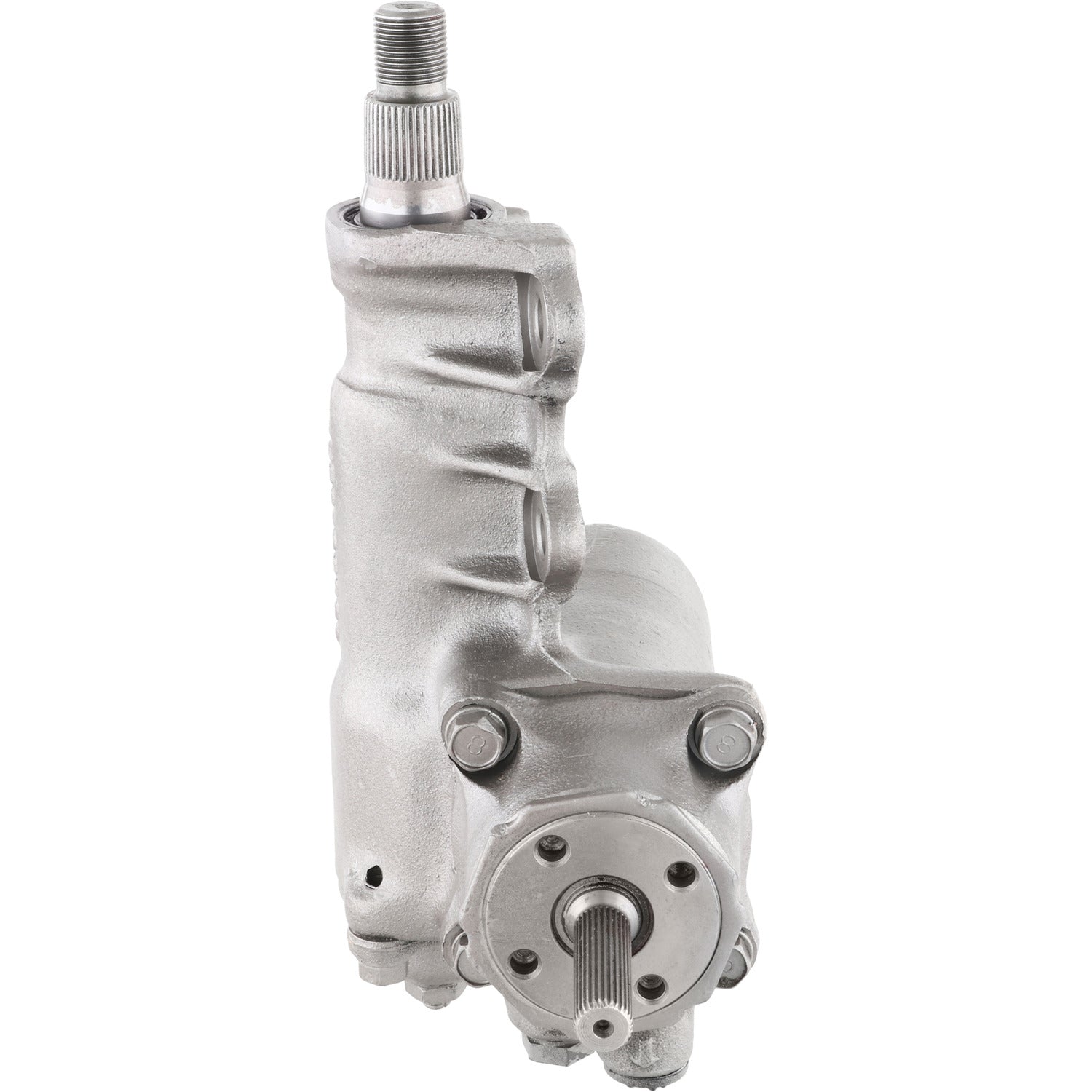

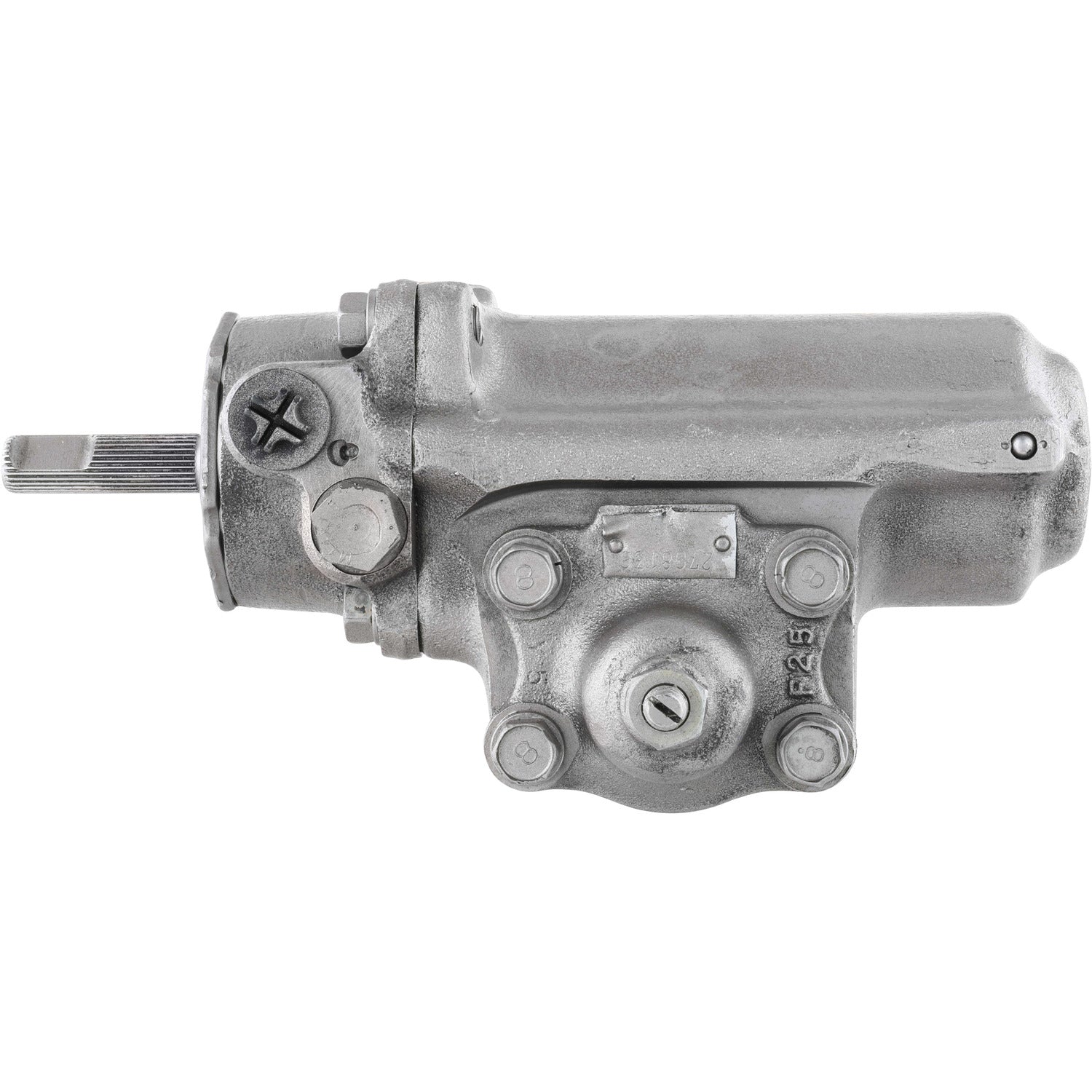

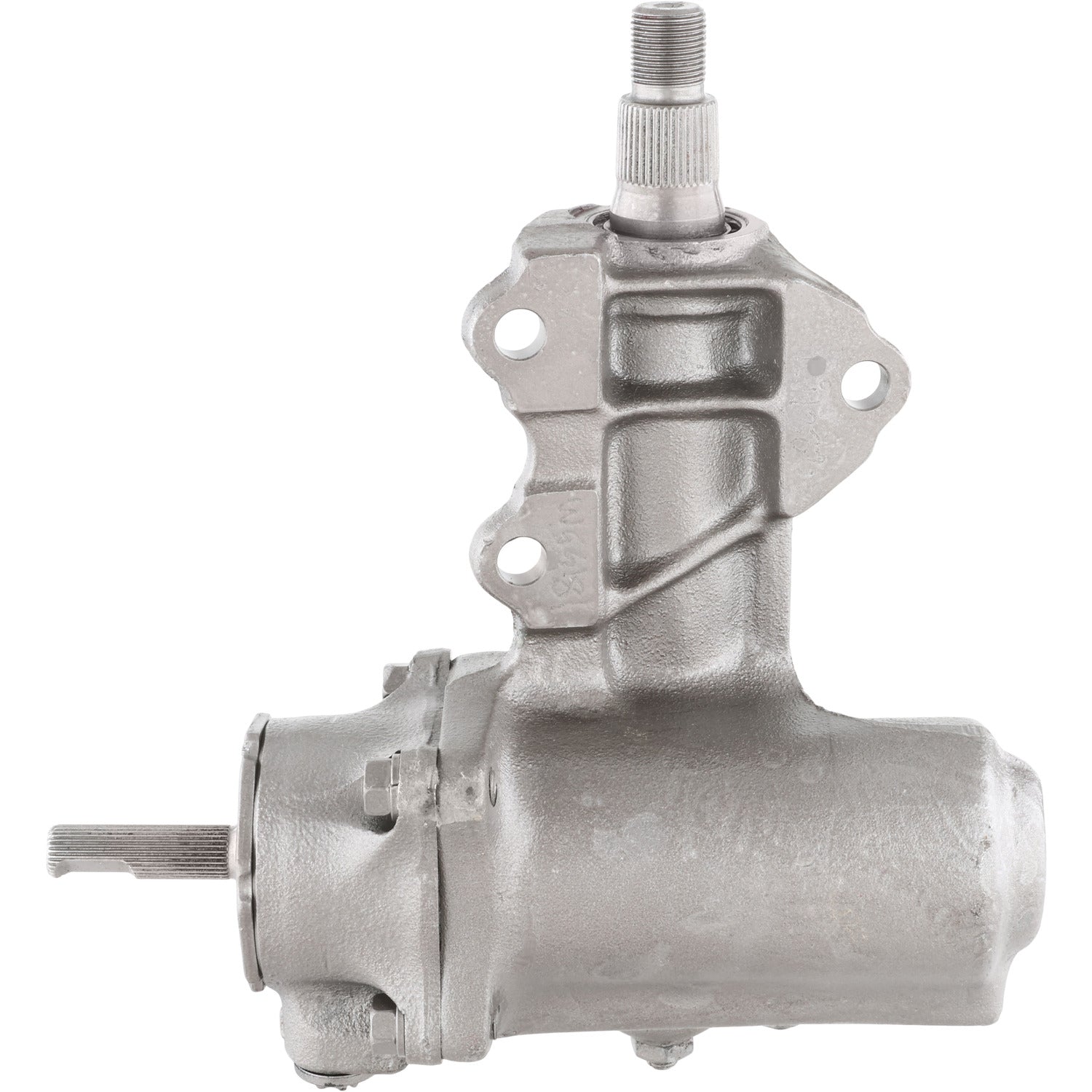

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98155M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98155M


MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type O-Ring & Annealed Washer
Input Shaft Diameter 0.57 IN
Input Shaft Diameter 14.48 MM
Steering Input Shaft Spline Quantity 30
Input Shaft Type Splined, Whistle Notch
Mounting Hole Quantity 3
Output Shaft Diameter 1.19 IN
Output Shaft Diameter 30.1 MM
Pressure Port Thread Size M14 x 1.5
Pump Rotation Standard
Return Port ID Size 0
Return Port Thread Size M16 x 1.5
Total Turns Lock To Lock 4.0 to 4.3

Application Info: Chevrolet Tracker (1990-91, 98); Geo Tracker (1990-97); Suzuki Sidekick (1992-98), X-90 (1996-98)

Interchange: 48600-56B70, 48600-77E500

BBB Cross-Reference: 503-0161

Cardone Cross-Reference: 27-8461
