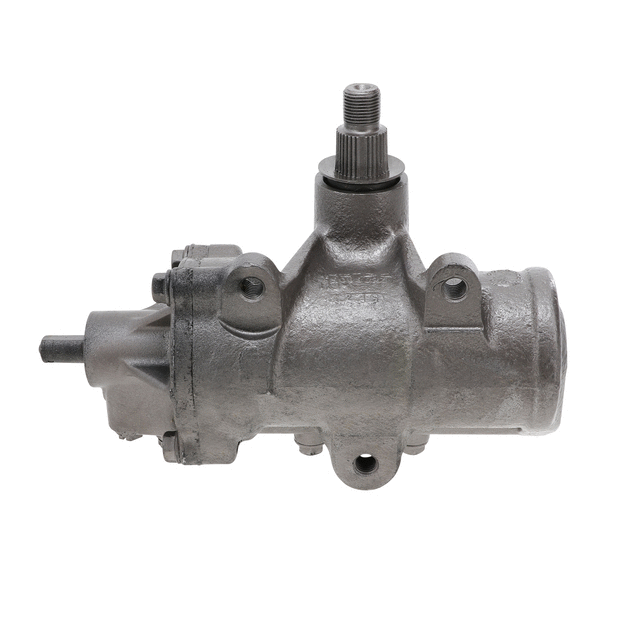

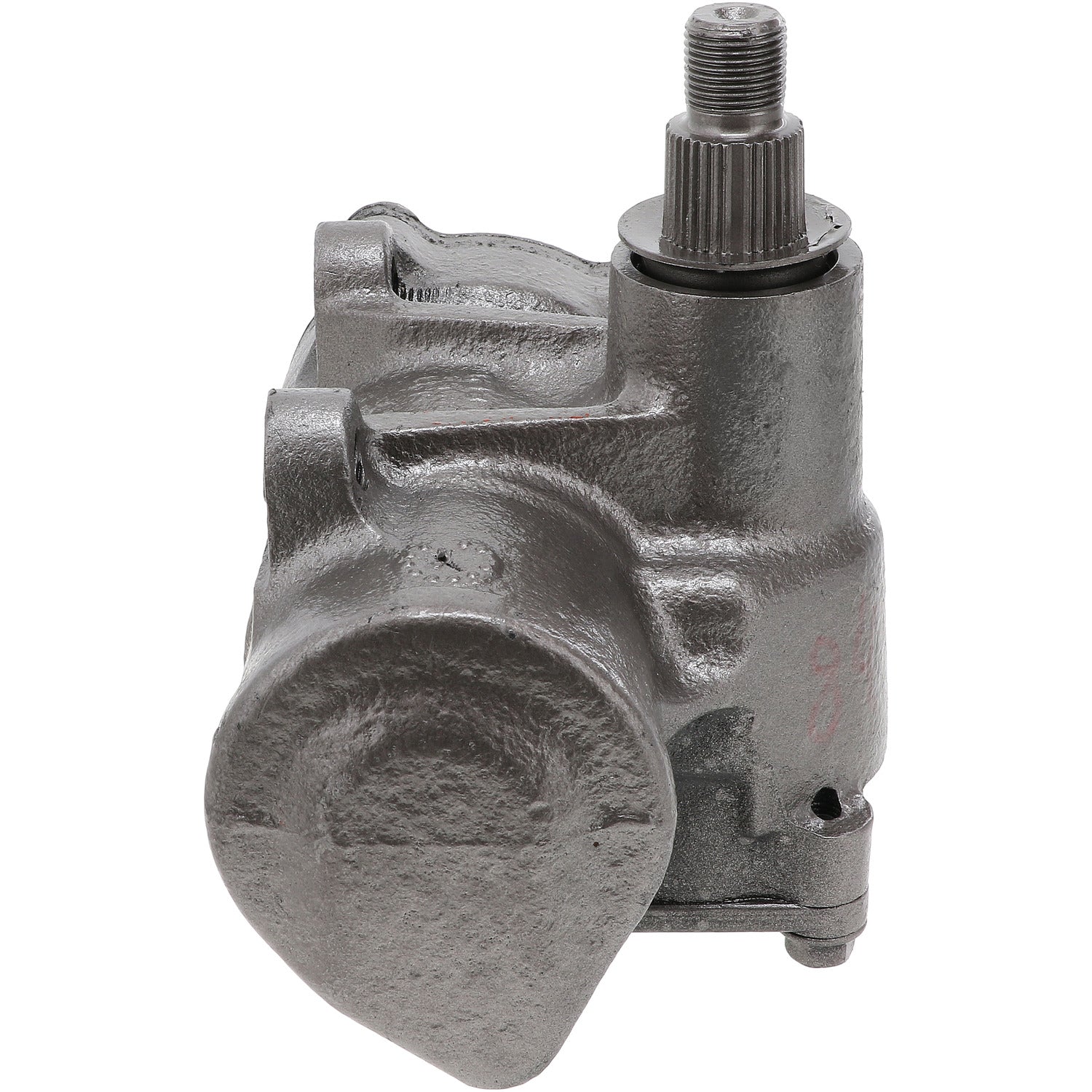

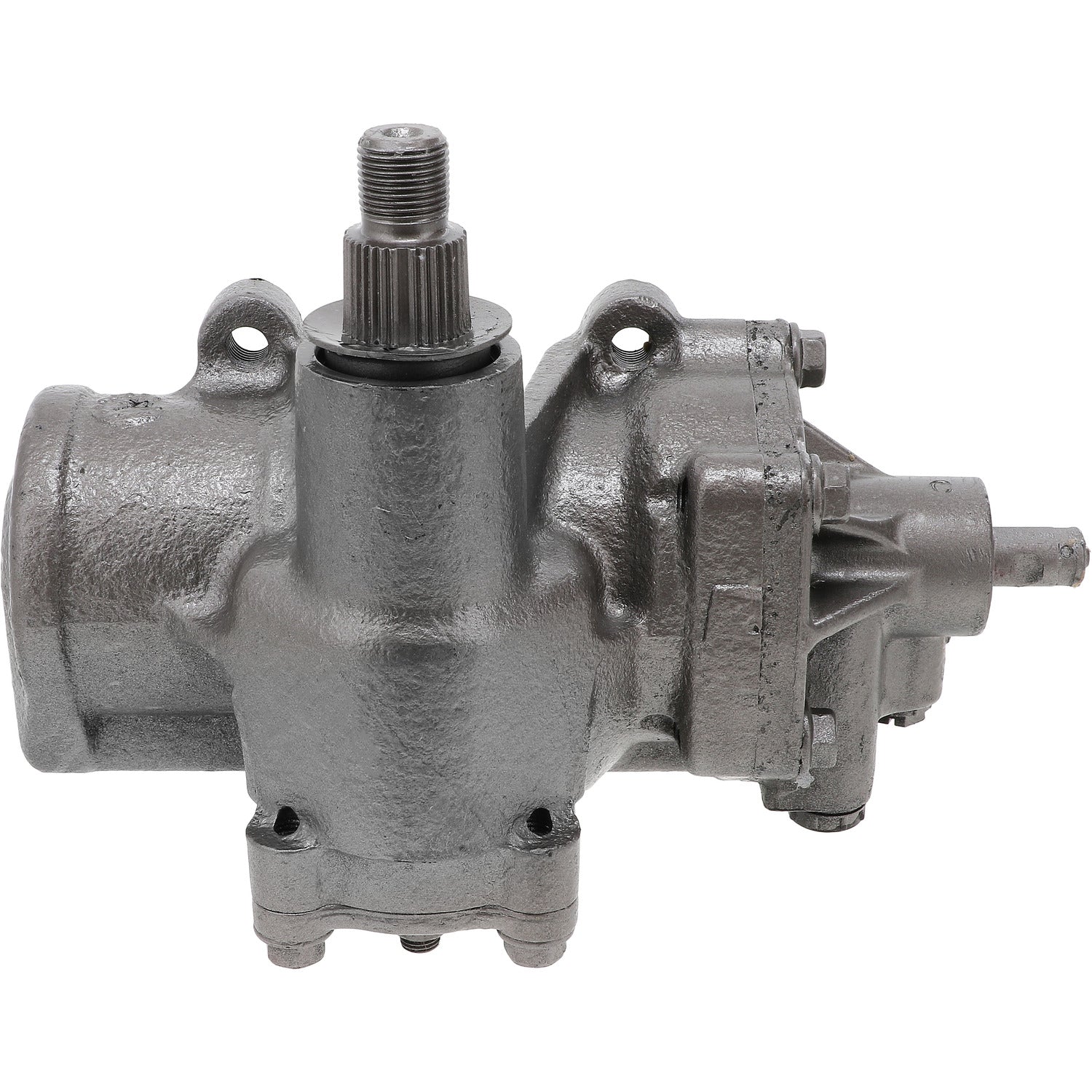

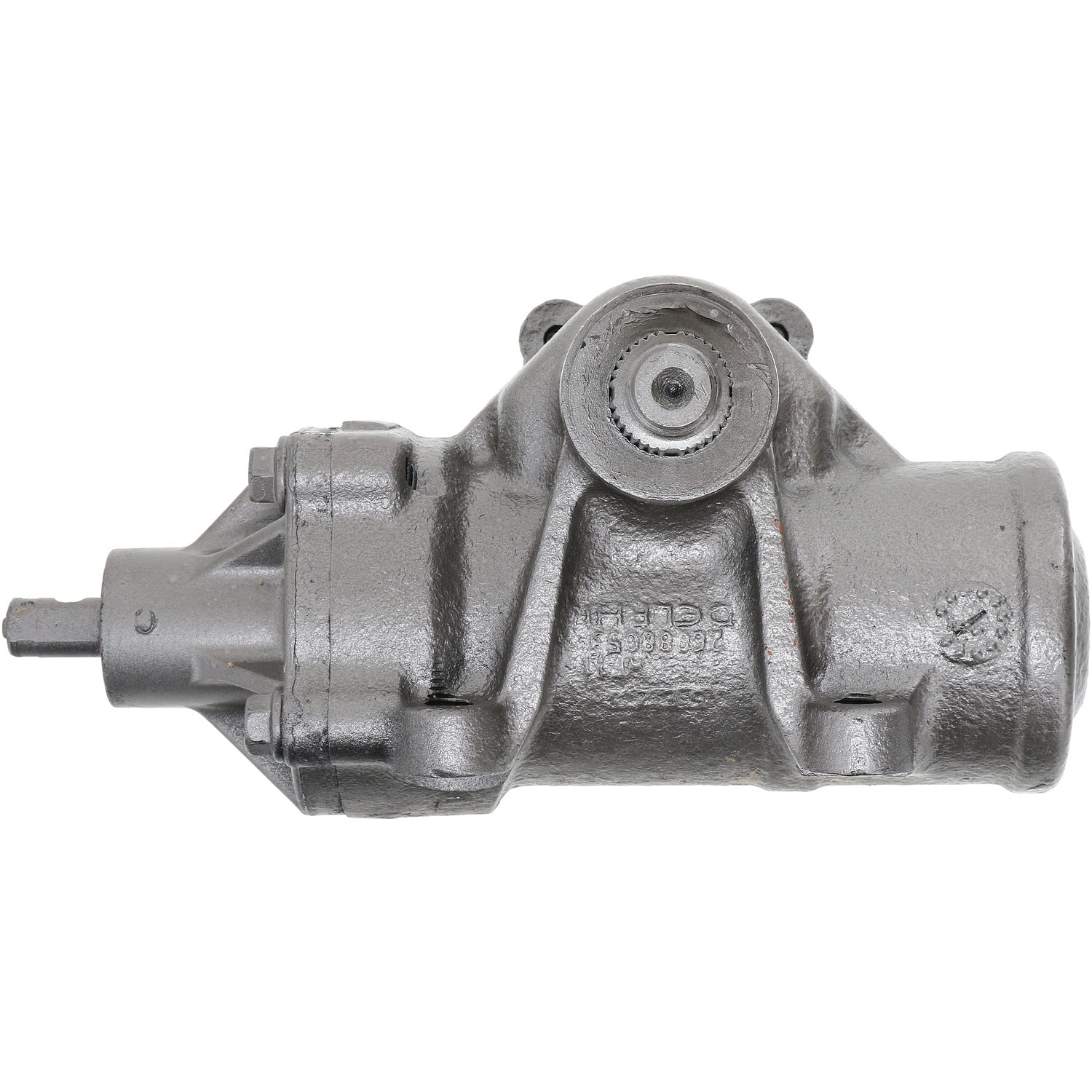

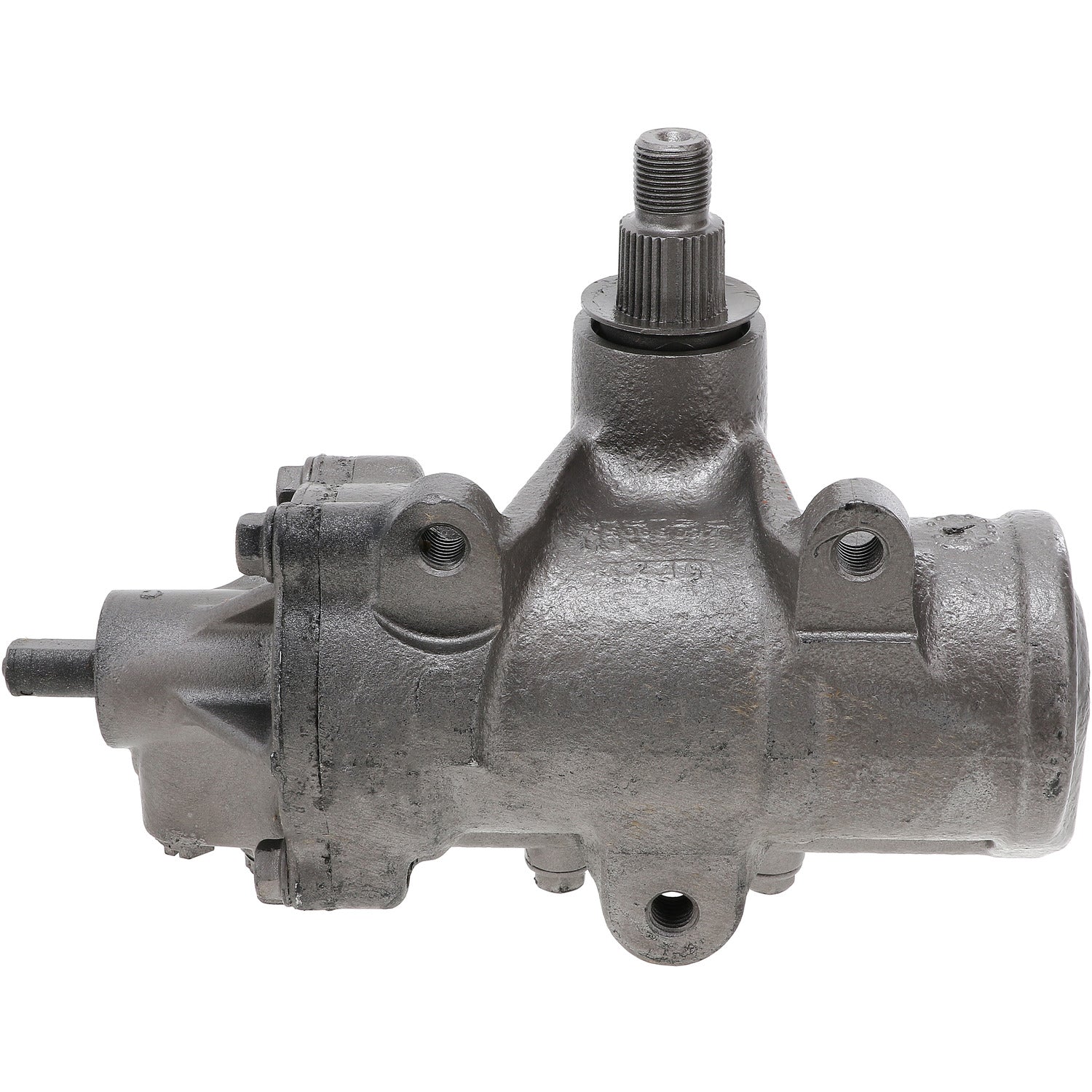

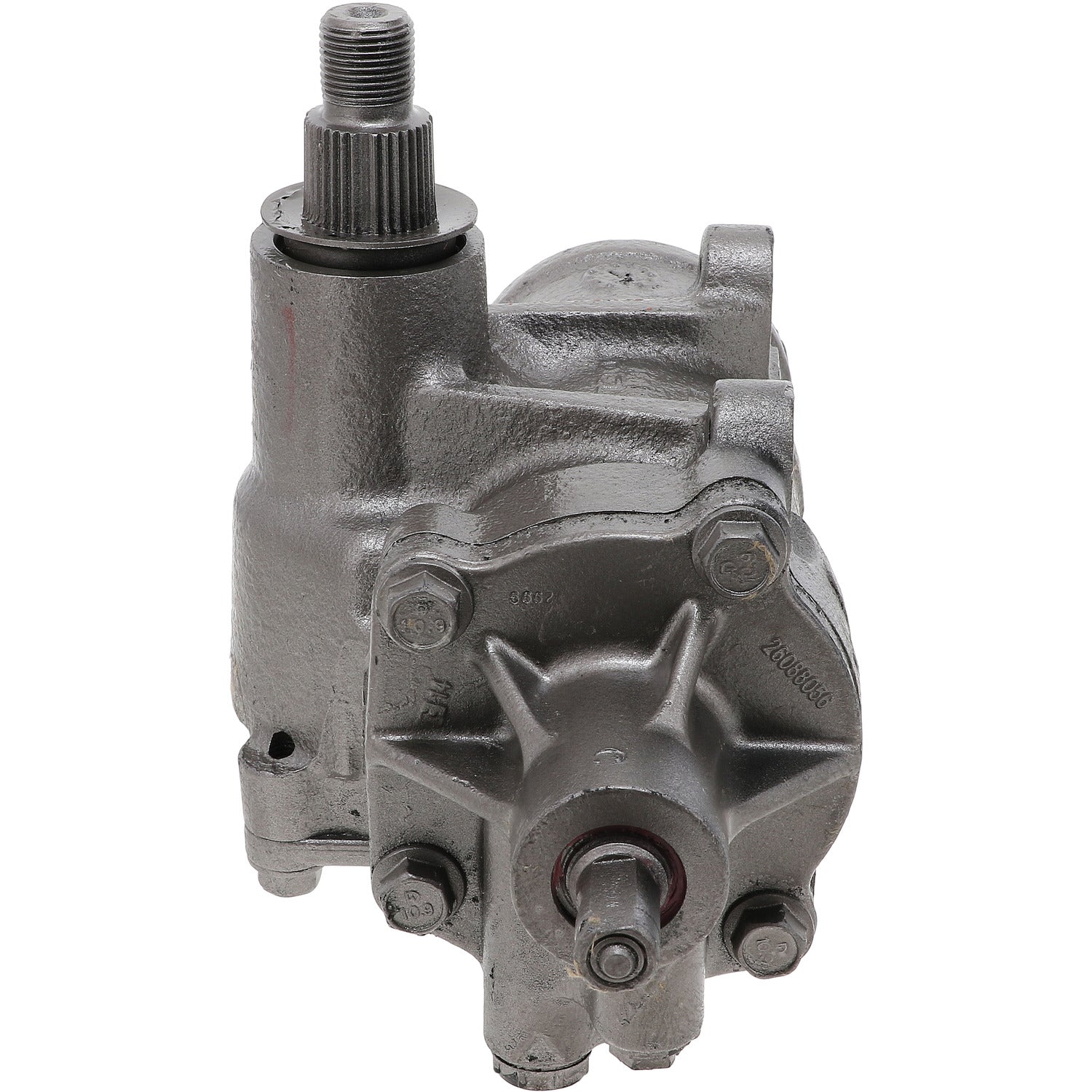

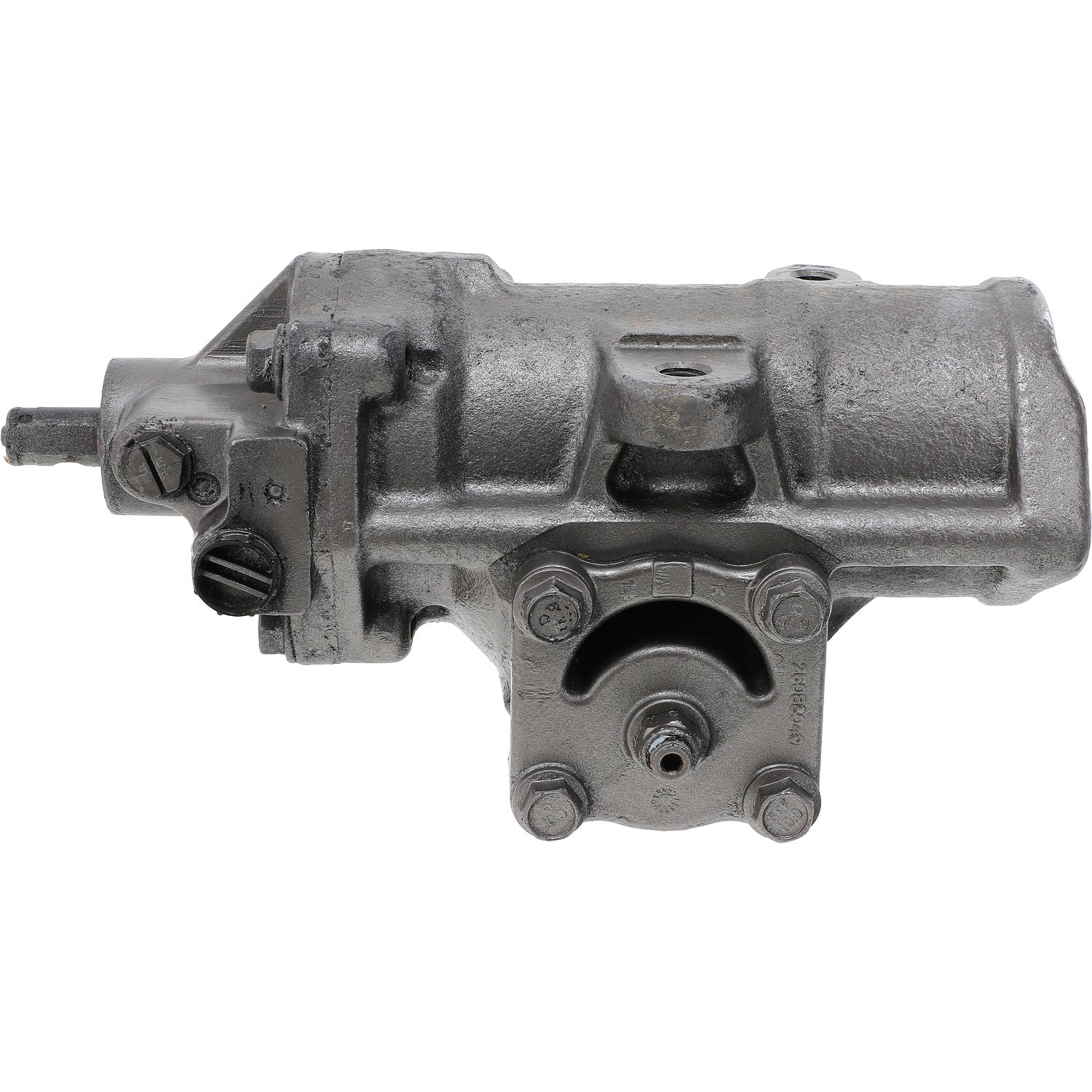

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98151M
Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98151M
SKU:98151M
MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.66 | IN |
| Input Shaft Diameter | 16.76 | MM |
| Input Shaft Type | Double Flat | |
| Mounting Hole Quantity | 3 | |
| Output Shaft Diameter | 1.25 | IN |
| Output Shaft Diameter | 31.75 | MM |
| Pressure Port Thread Size | M18 x 1.5 | |
| Pump Rotation | Standard | |
| Return Port ID Size | 0 | |
| Return Port Thread Size | M16 x 1.5 | |
| Total Turns Lock To Lock | 3.3 |
Application Info: 2003-2006 Cadillac Escalade ESV; 2002-2006 Cadillac Escalade EXT; 2002-2006 Cadillac Escalade (Drive: AWD); 2007 Chevrolet Silverado 1500 Classic (Drive: 4WD); 2002-2006 Chevrolet Avalanche 1500 (Drive: 4WD); 2001-2006 Chevrolet Silverado 1500 (Drive: 4WD); 2001-2006 Chevrolet Suburban 1500 (Drive: 4WD); 2003-2006 Chevrolet Tahoe (Drive: 4WD); 2007 GMC Sierra 1500 Classic (Drive: 4WD, AWD); 2001-2006 GMC Sierra 1500 (Drive: 4WD, AWD); 2003-2006 GMC Yukon (Drive: AWD, 4WD); 2003-2006 GMC Yukon XL 1500 (Drive: AWD, 4WD)
Interchange: 15062833, 15076532, 15173571, 15199900, 26104949, 88965542
BBB Cross-Reference: 503-0159
Cardone Cross-Reference: 27-8413
