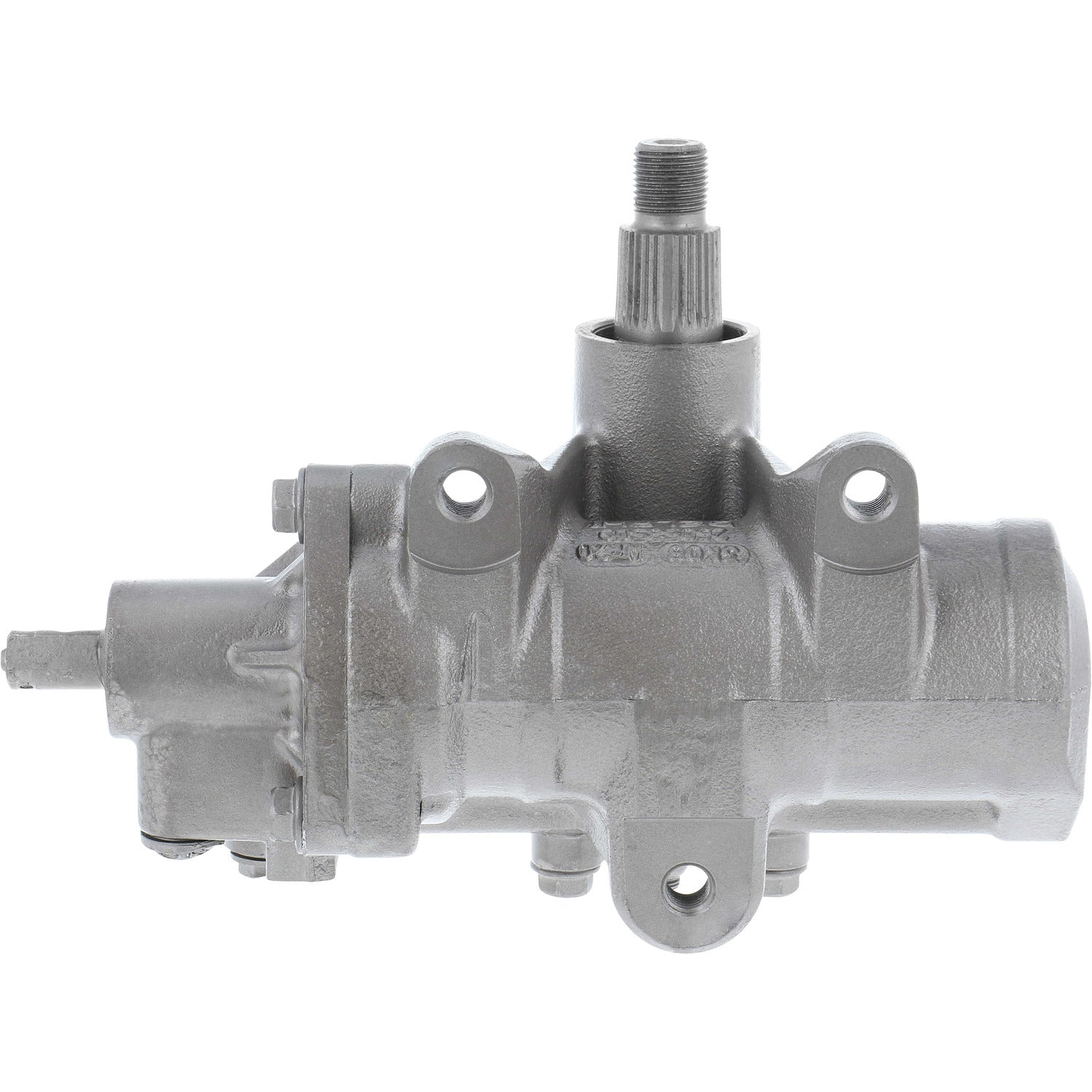

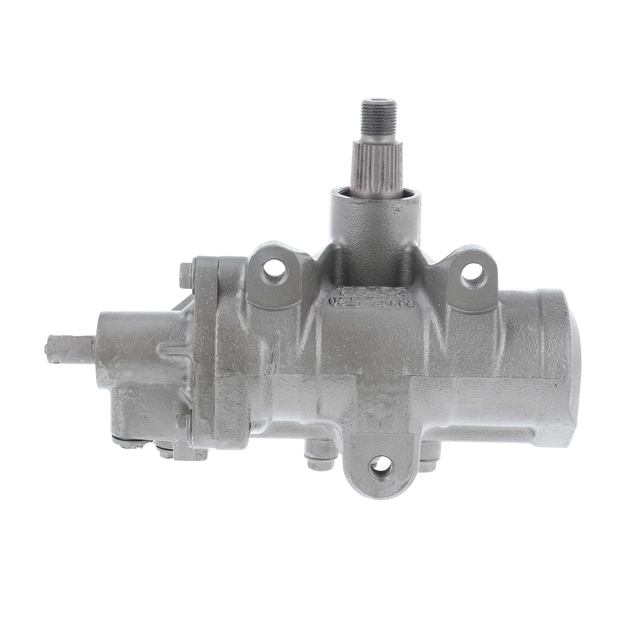

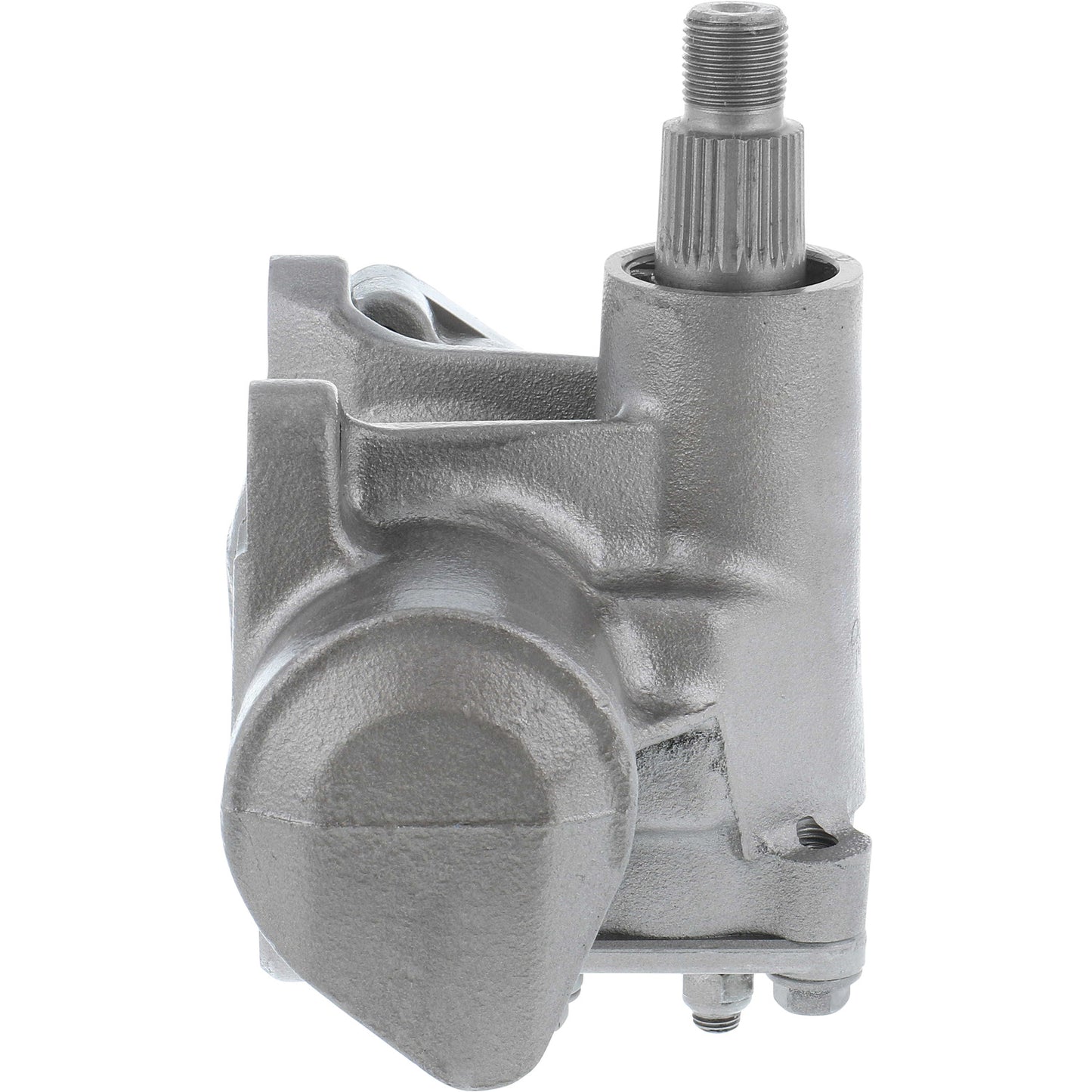

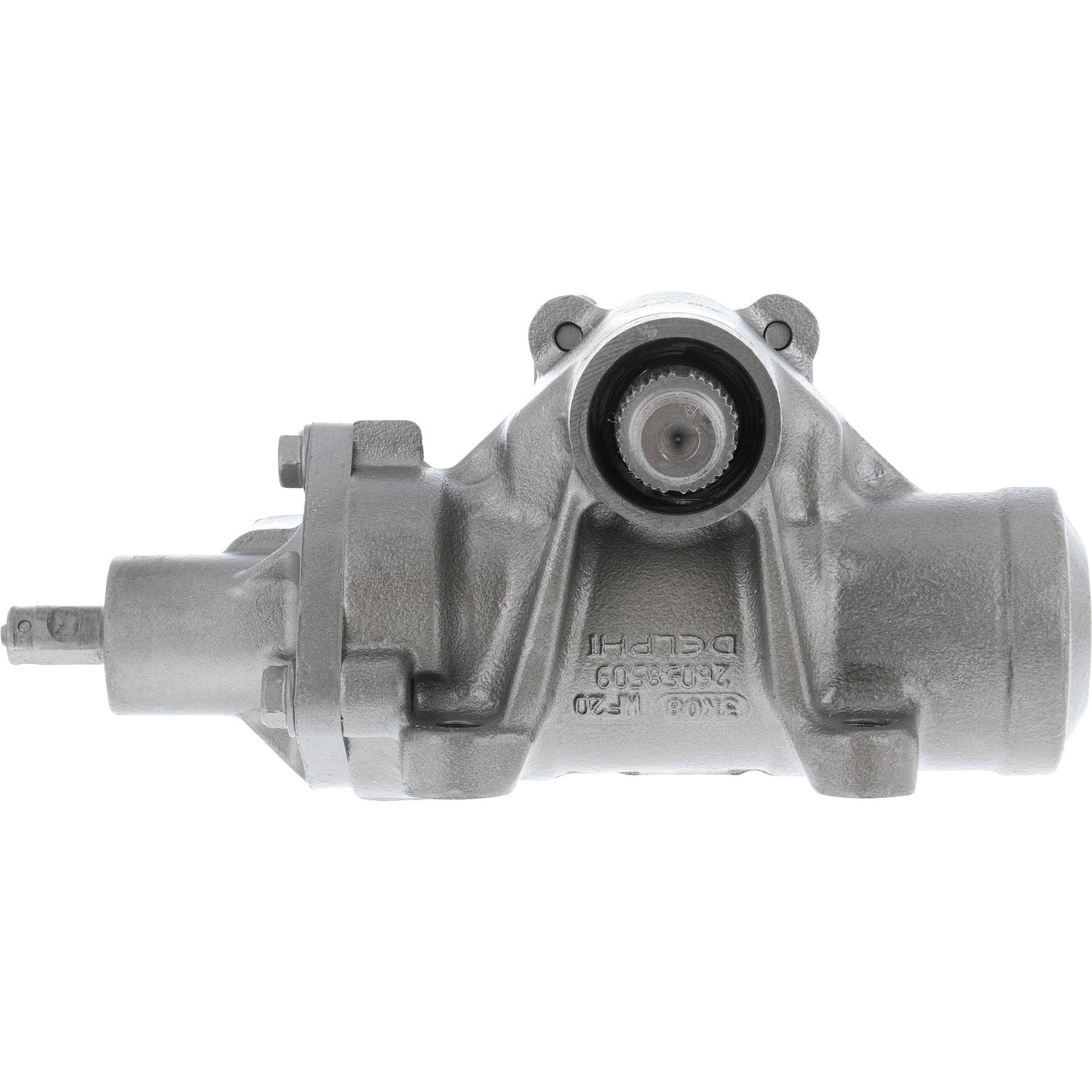

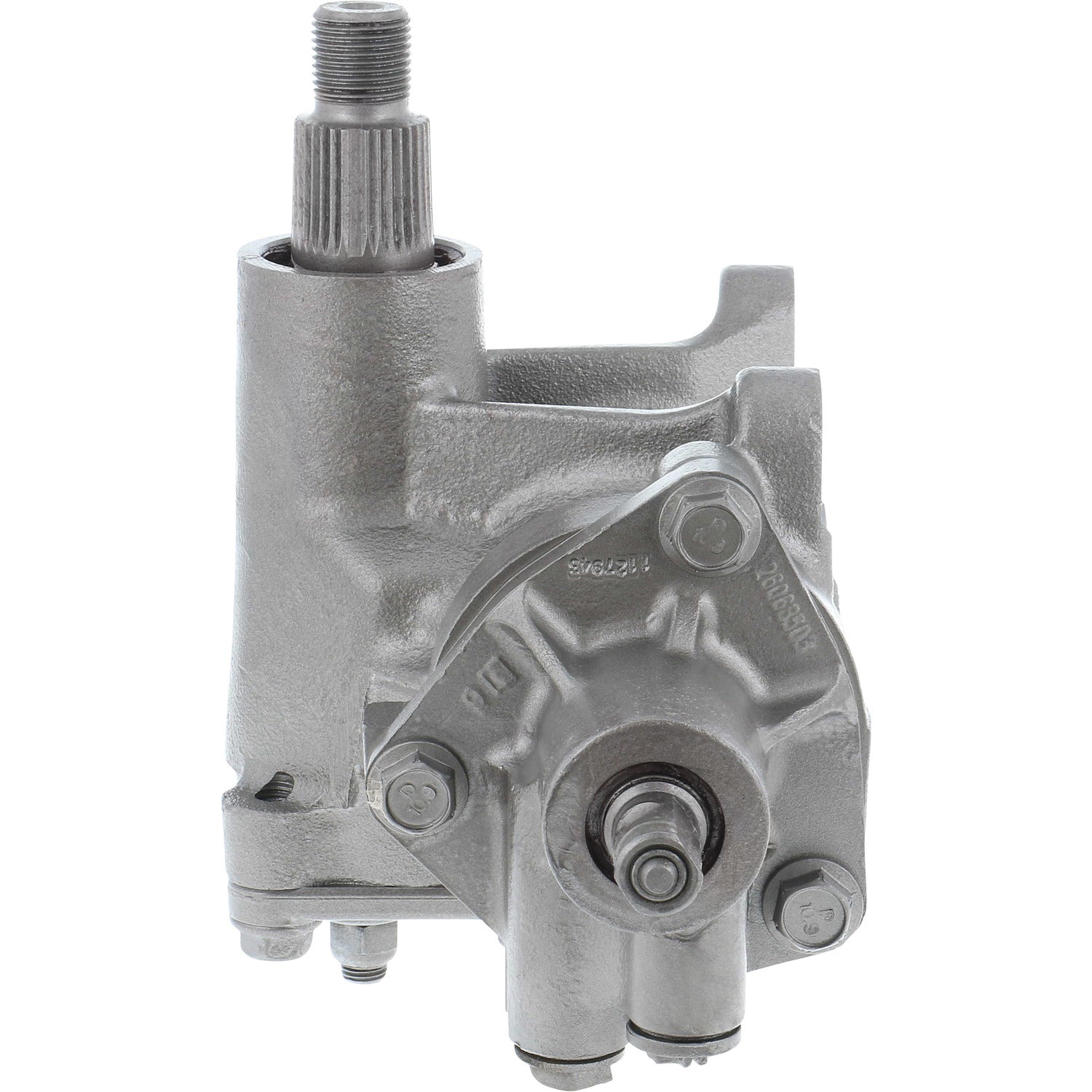

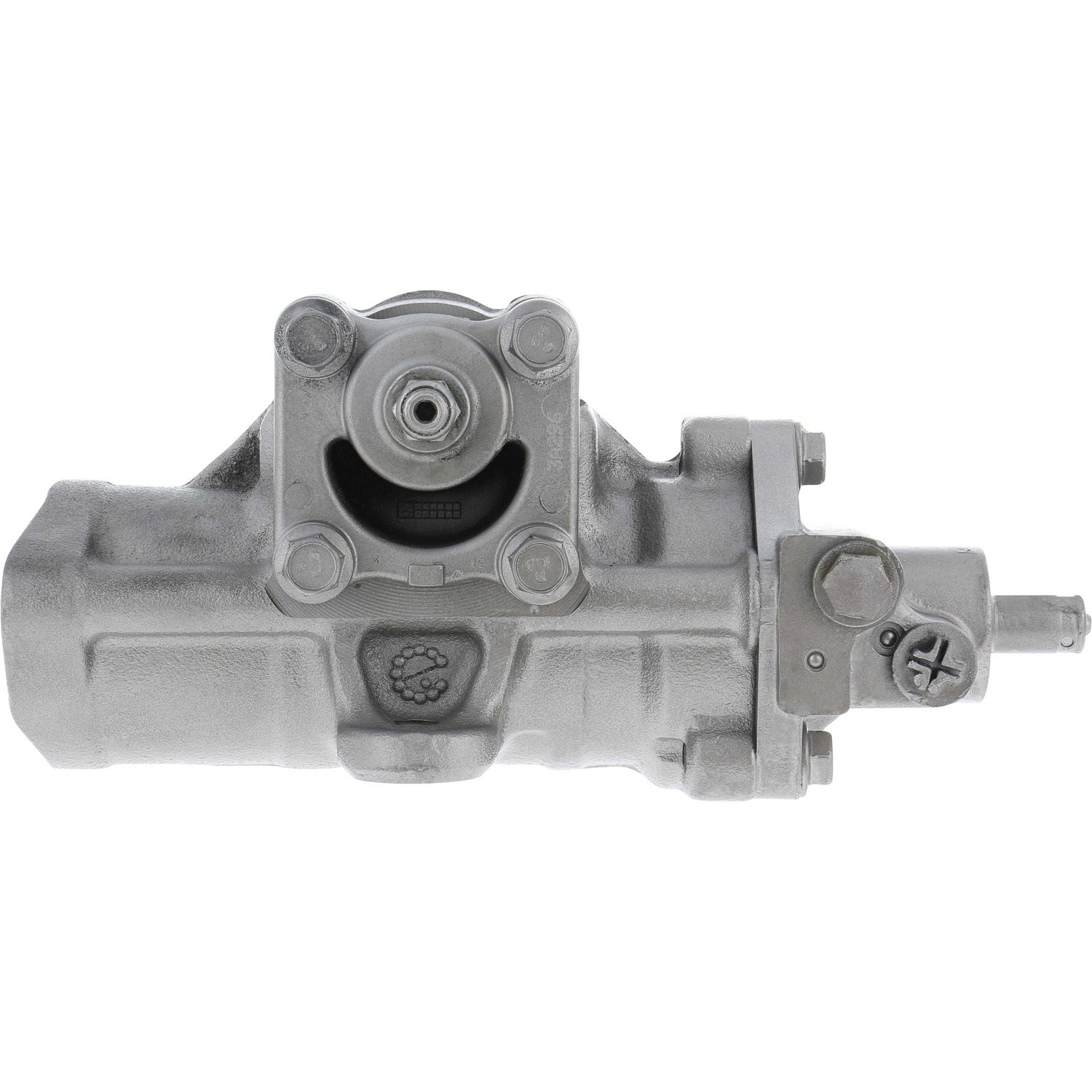

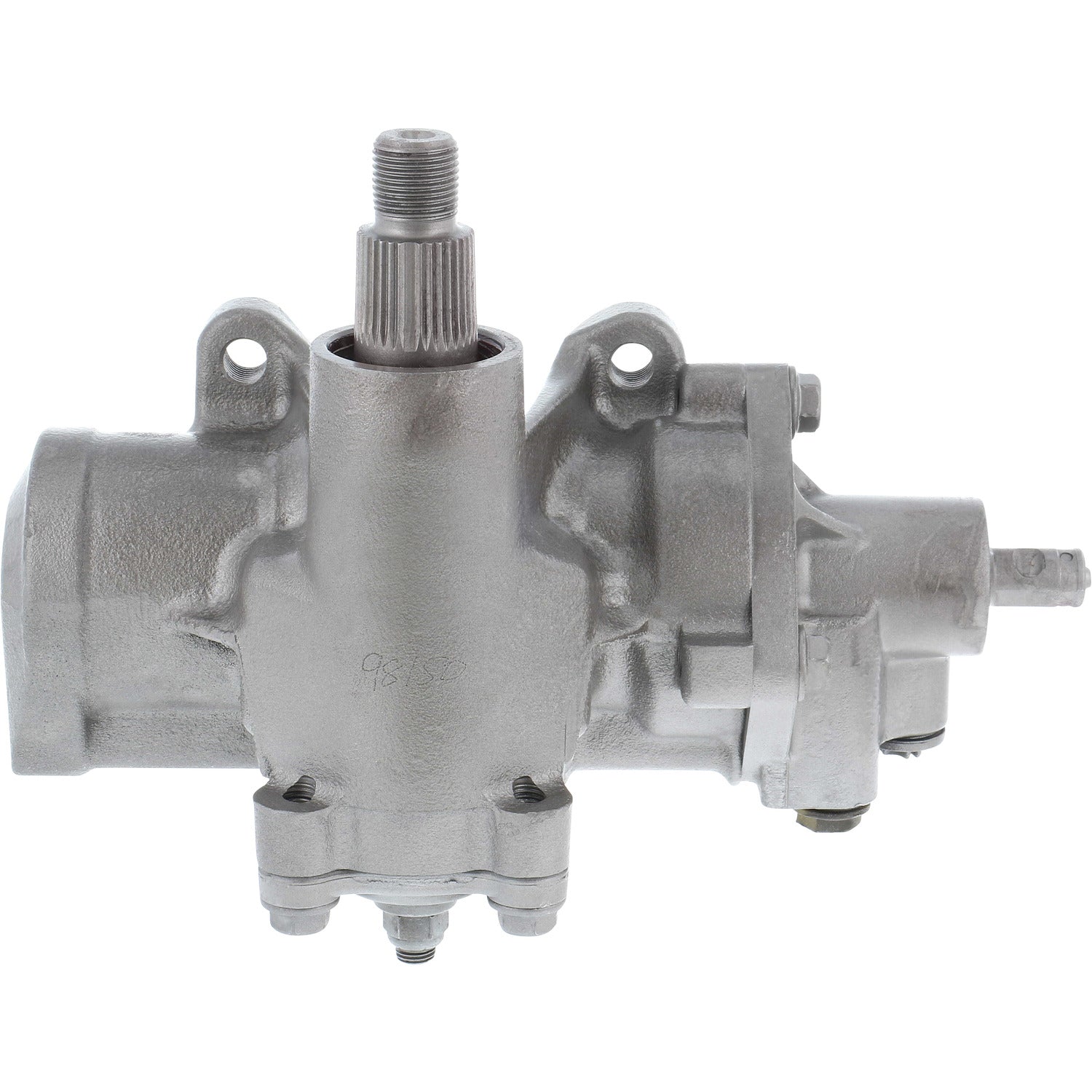

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98150M
Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98150M
SKU:98150M
MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.66 | IN |
| Input Shaft Diameter | 16.76 | MM |
| Input Shaft Type | Double Flat | |
| Mounting Hole Quantity | 3 | |
| Output Shaft Diameter | 1.25 | IN |
| Output Shaft Diameter | 31.75 | MM |
| Pressure Port Thread Size | M18 x 1.5 | |
| Pump Rotation | Standard | |
| Return Port ID Size | 0 | |
| Return Port Thread Size | M16 x 1.5 | |
| Total Turns Lock To Lock | 2.9 to 3.4 |
Application Info: Cadillac Escalade (2002-06); Chevrolet Avalanche 1500 (2002-06), Silverado 1500 (1999-06), Silverado 1500 Classic (2007), Suburban 1500 (2000-06), Tahoe (2000-06); GMC Sierra 1500 (1999-06), Sierra 1500 Classic (2007), Yukon (2000-06), Yukon XL 1500 (2000-06) ***W/RWD***
Interchange: 15067316, 15077365, 15173572, 26070311, 26080929, 26082140, 26110836, 88965789
BBB Cross-Reference: 503-0158
Cardone Cross-Reference: 27-8412
