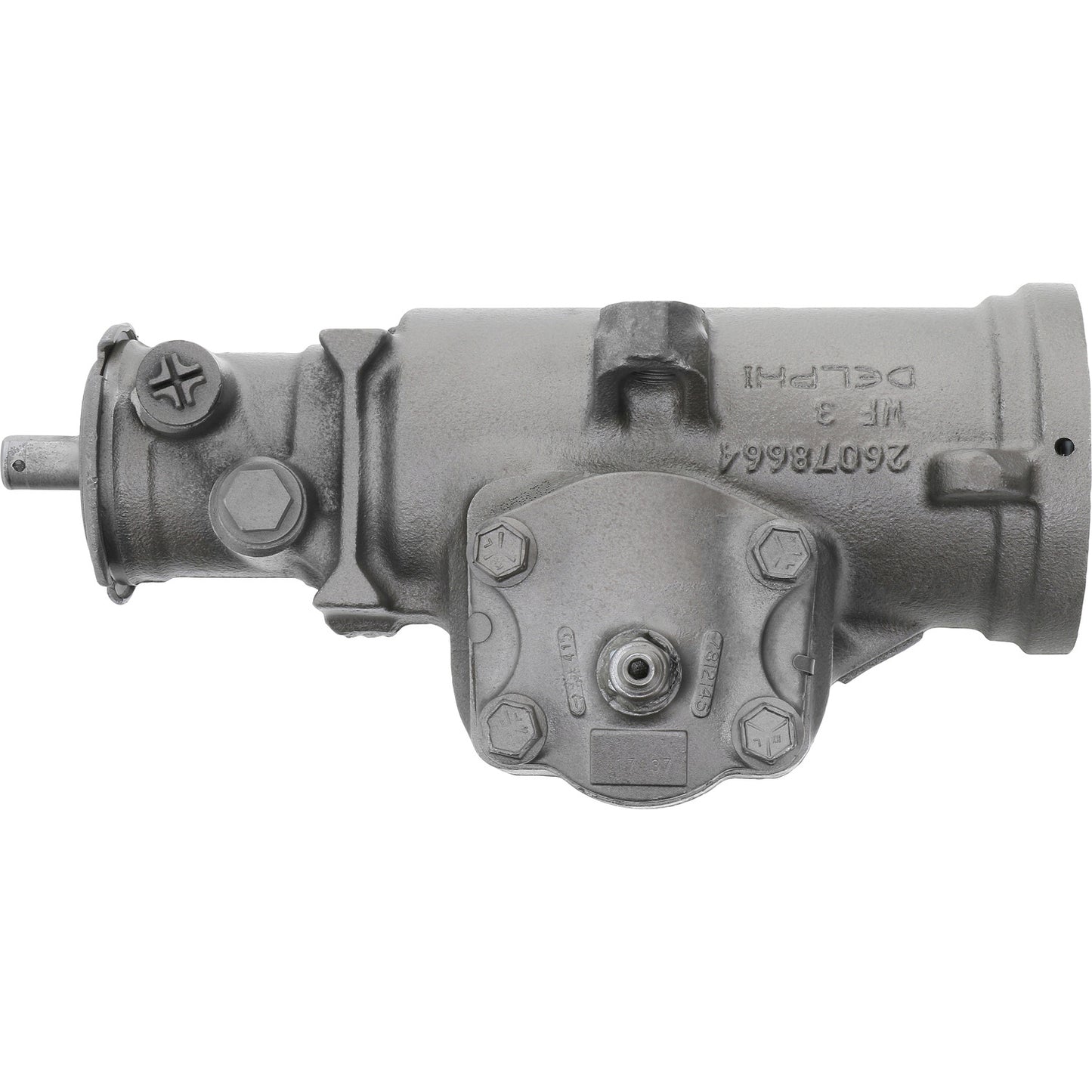

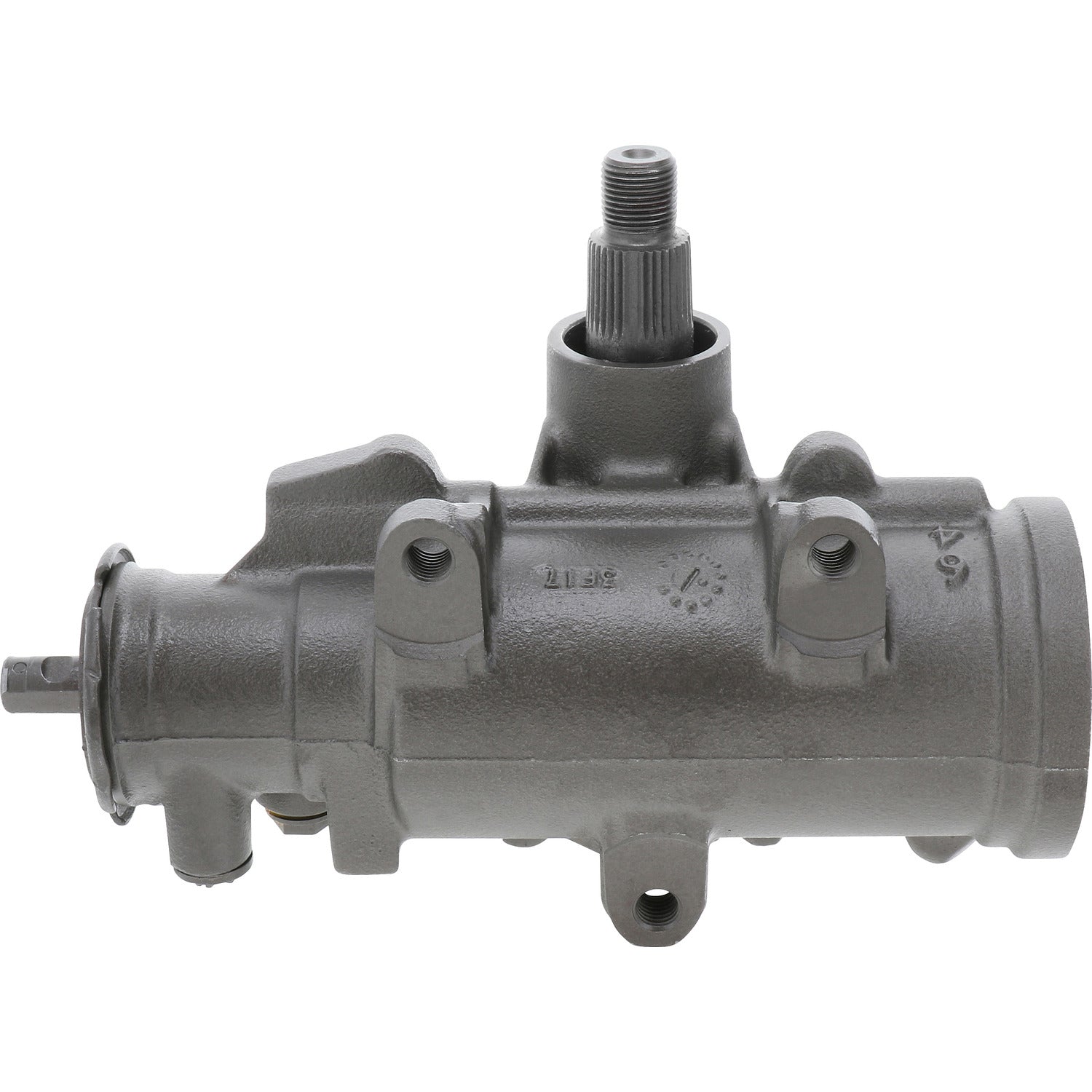

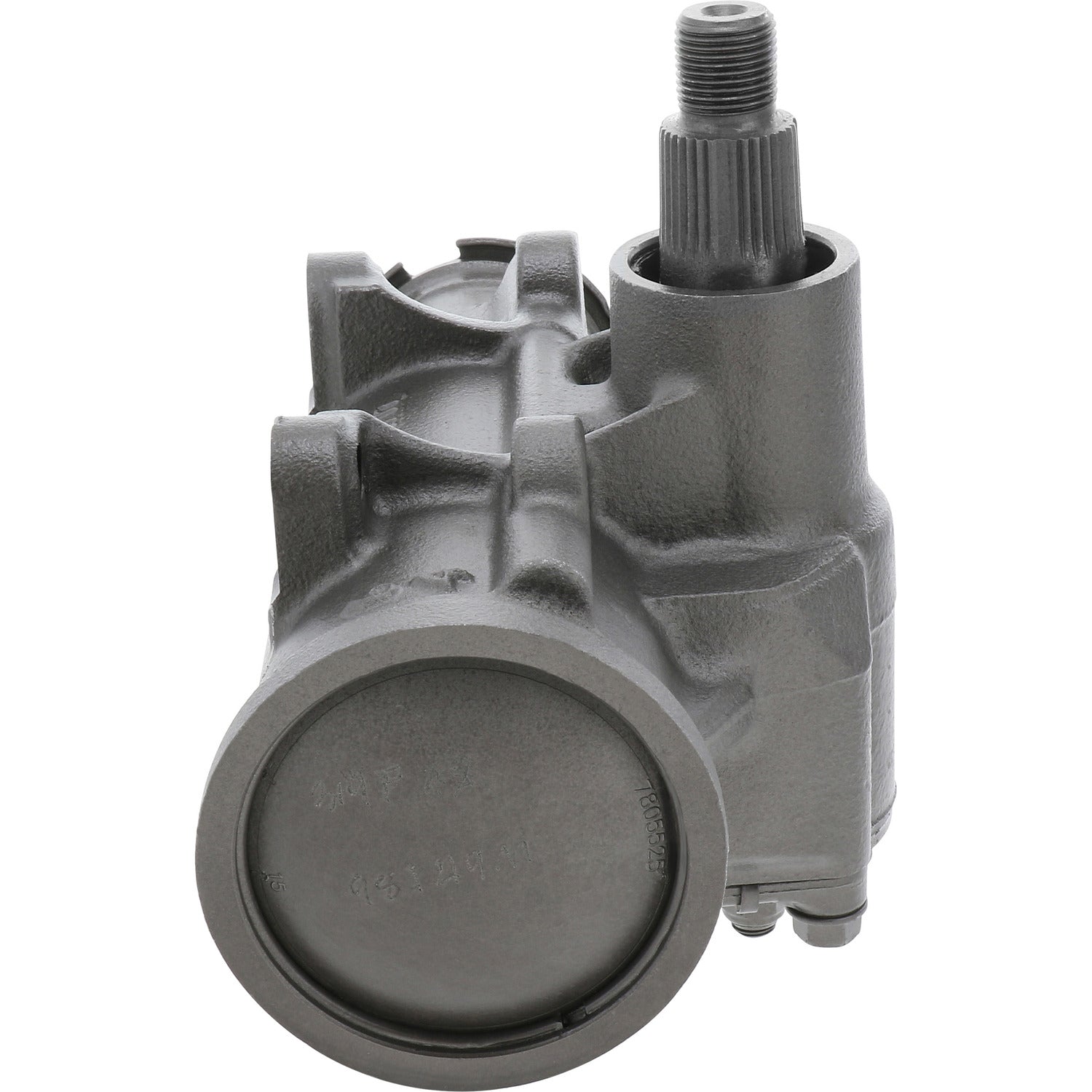

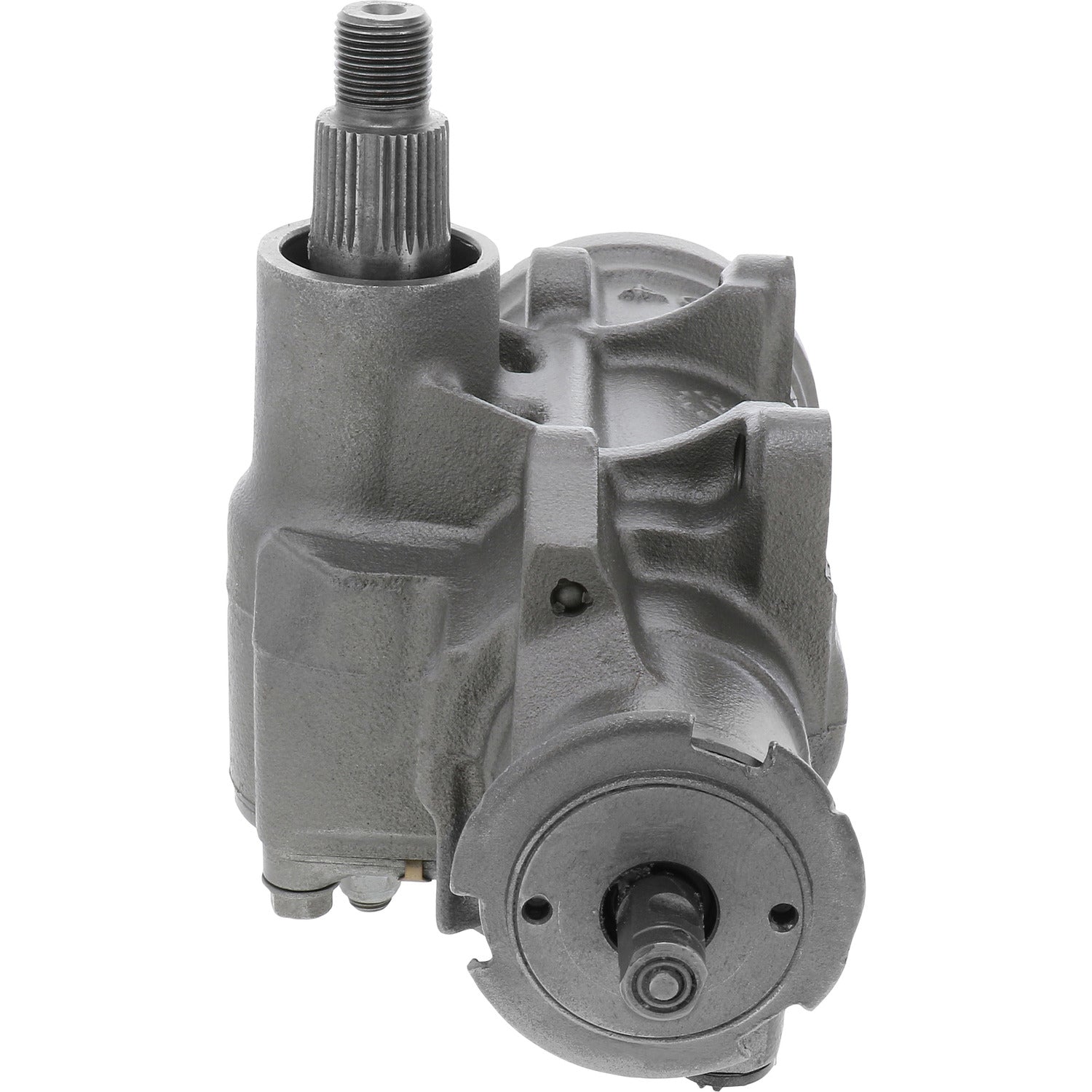

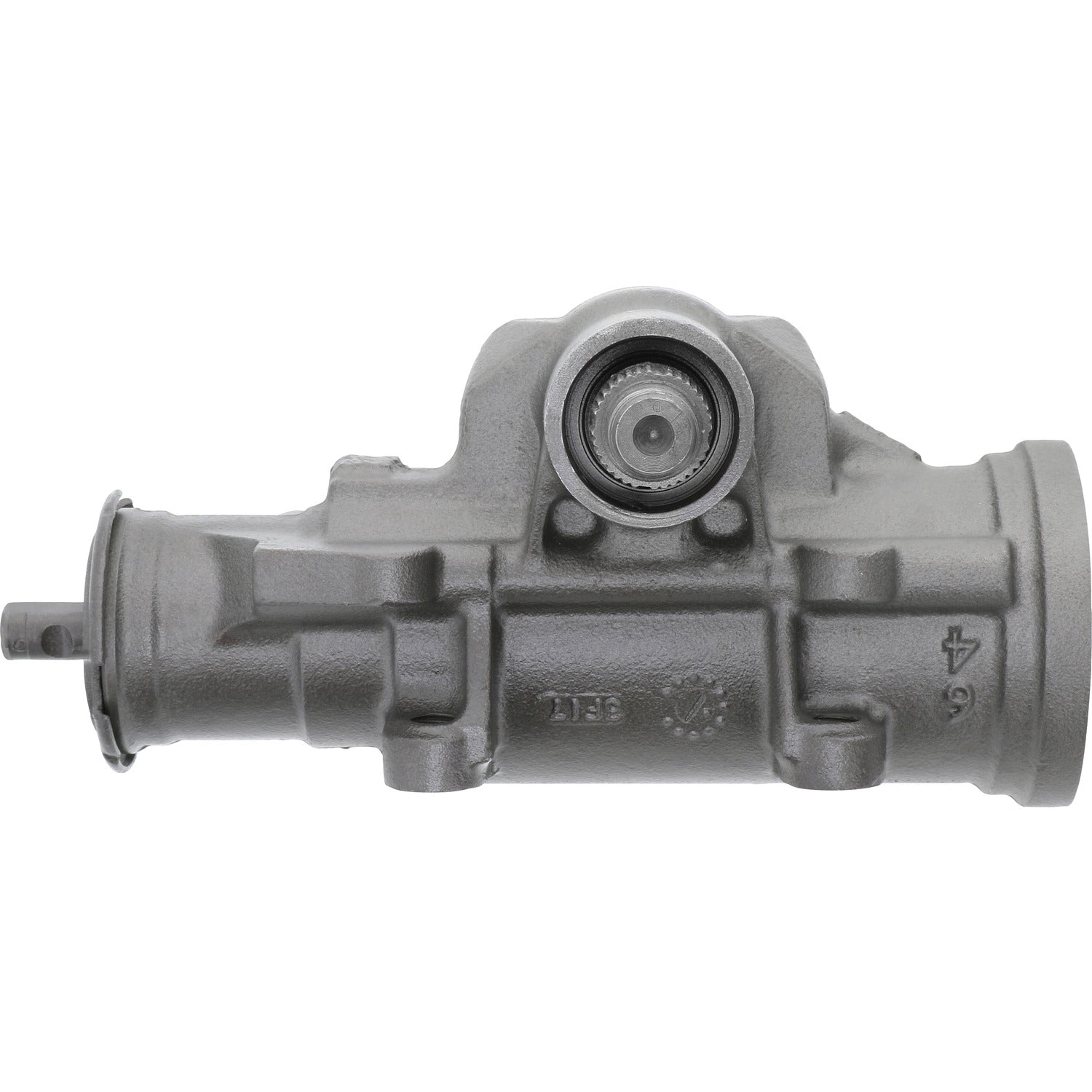

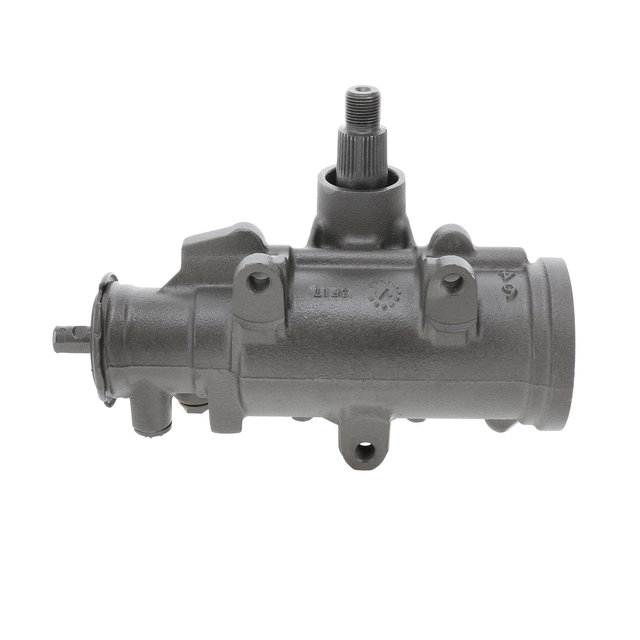

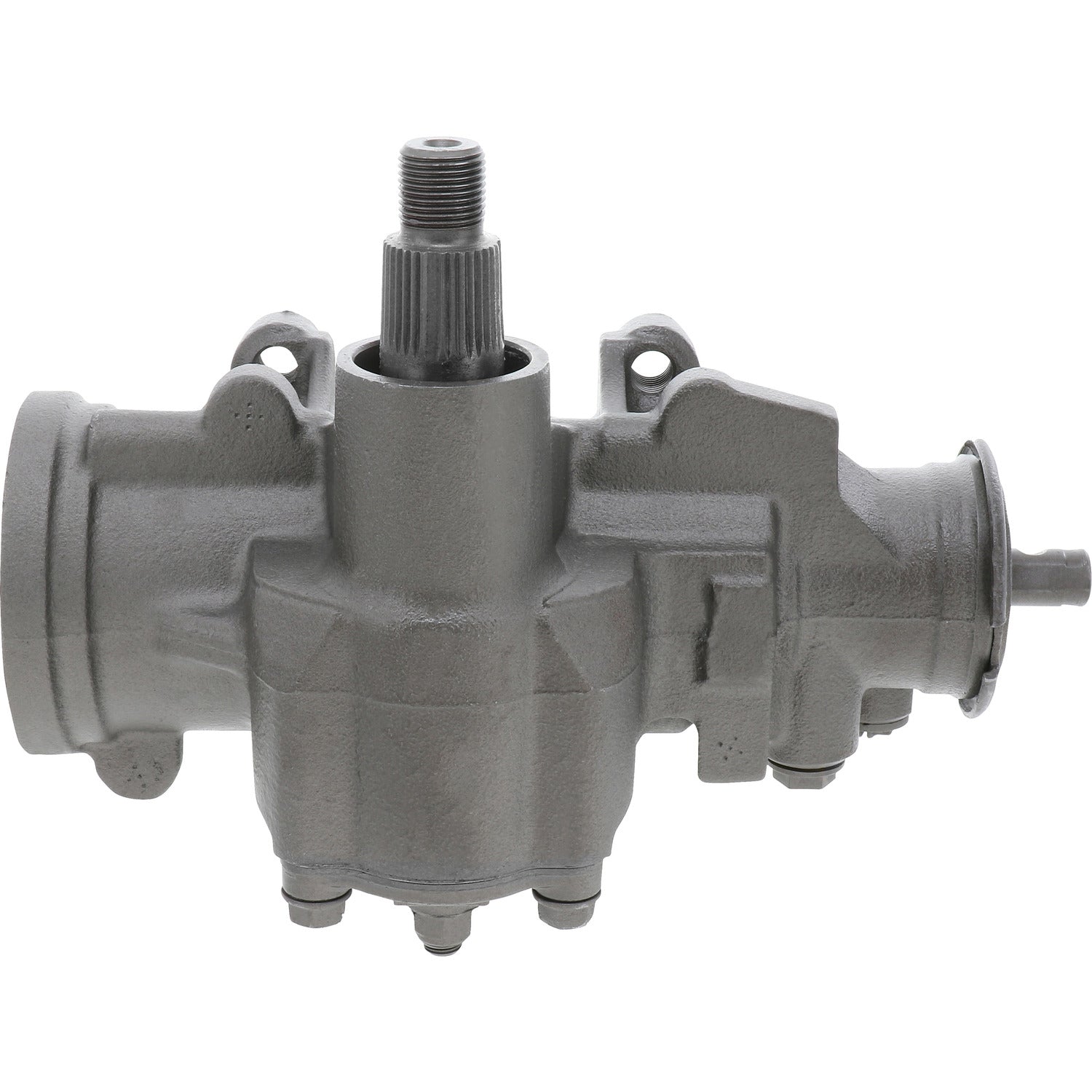

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98149M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98149M

SKU:98149M

MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type O-Ring
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.76 MM
Input Shaft Type Double Flat
Mounting Hole Quantity 3
Output Shaft Diameter 1.25 IN
Output Shaft Diameter 31.75 MM
Pressure Port Thread Size M18 x 1.5
Pump Rotation Standard
Return Port ID Size 0
Return Port Thread Size M16 x 1.5
Total Turns Lock To Lock 3.3

Application Info: Chevrolet Express 2500 (2003-06), Express 3500 (2003-06), Silverado 1500 HD (2001), Silverado 2500 (1999-01), Silverado 2500 HD (2001-06), Silverado 3500 (2001-06), Suburban 2500 (2000-01); GMC Savana 2500 (2003-06), Savana 3500 (2003-06), Sierra 1500 HD (2001), Sierra 2500 (1999-01), Sierra 2500 HD (2001-06), Sierra 3500 (2001-06), Yukon XL 2500 (2000-01) ***W/32 Spline Output Shaft, Express & Savana Vans W/8,500 OR 8,600 lbs. GVW***

Interchange: 26079880

BBB Cross-Reference: 503-0178

Cardone Cross-Reference: 27-7587
