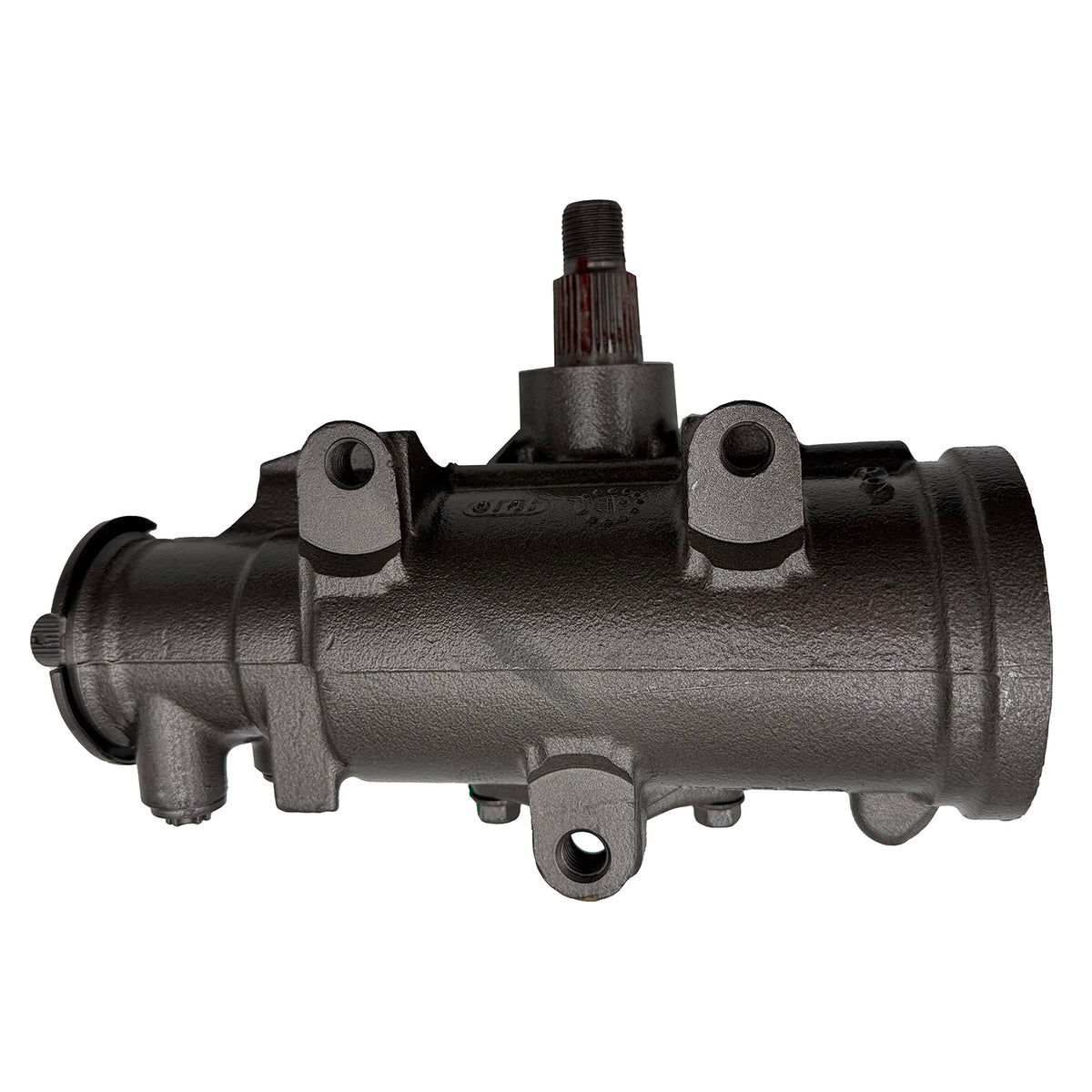

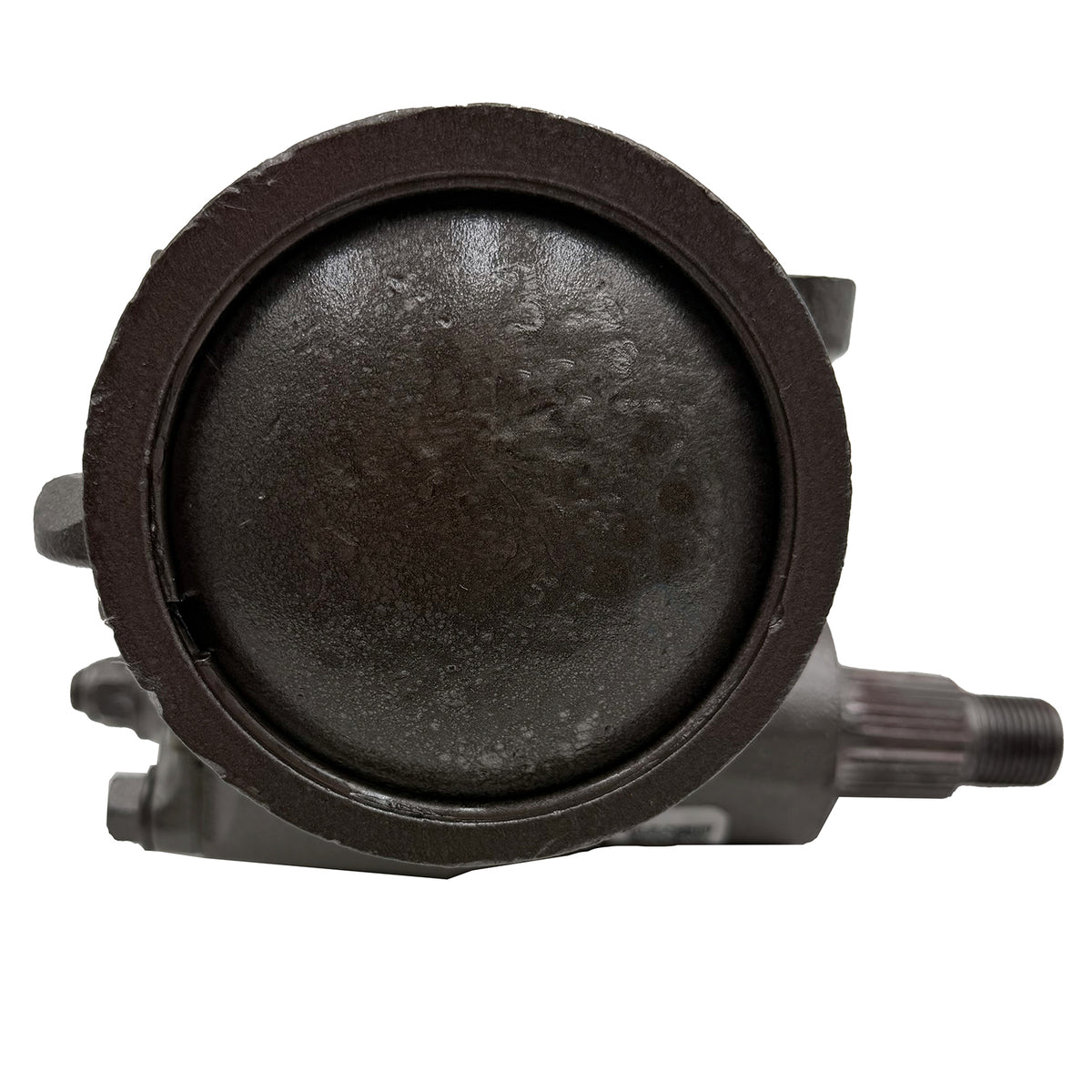

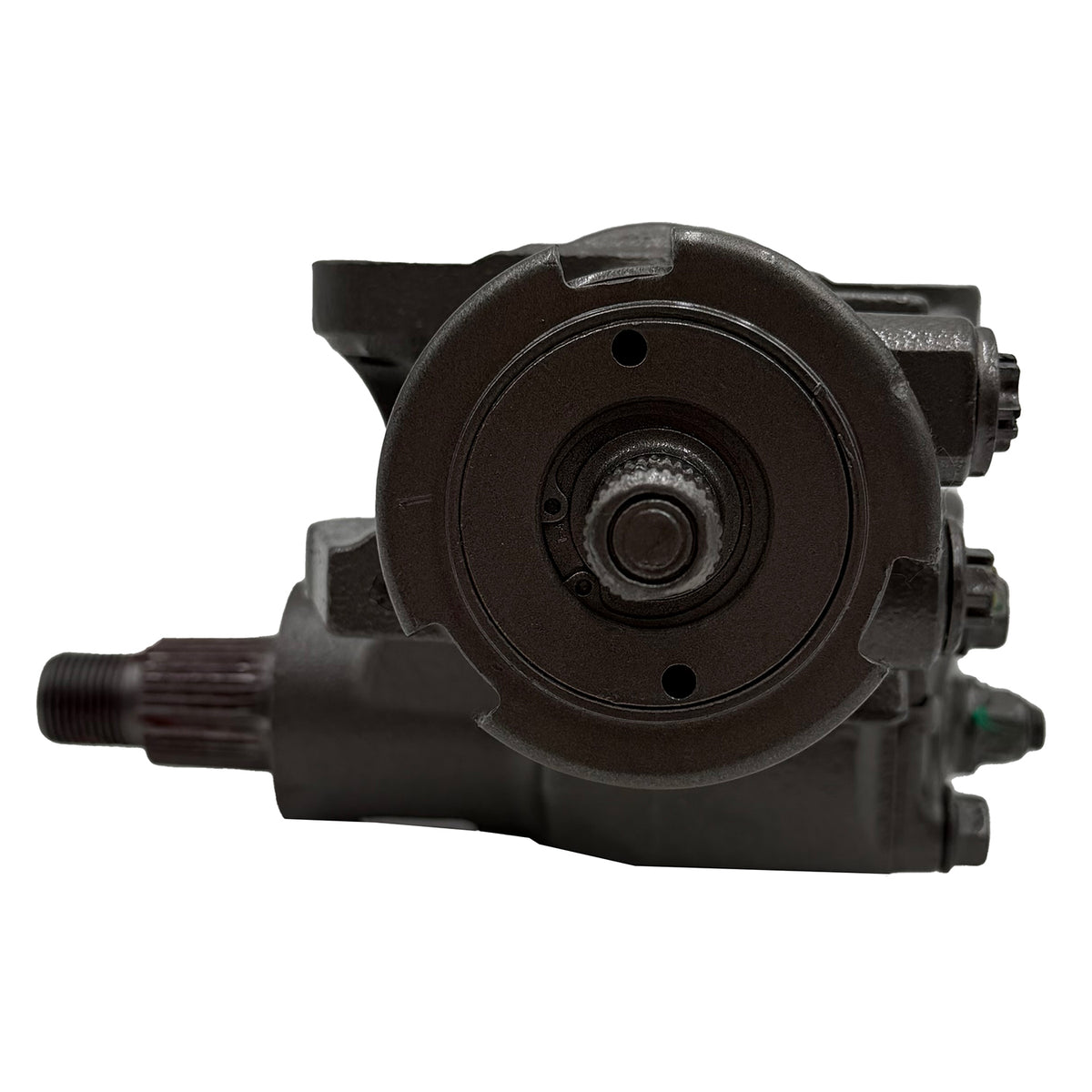

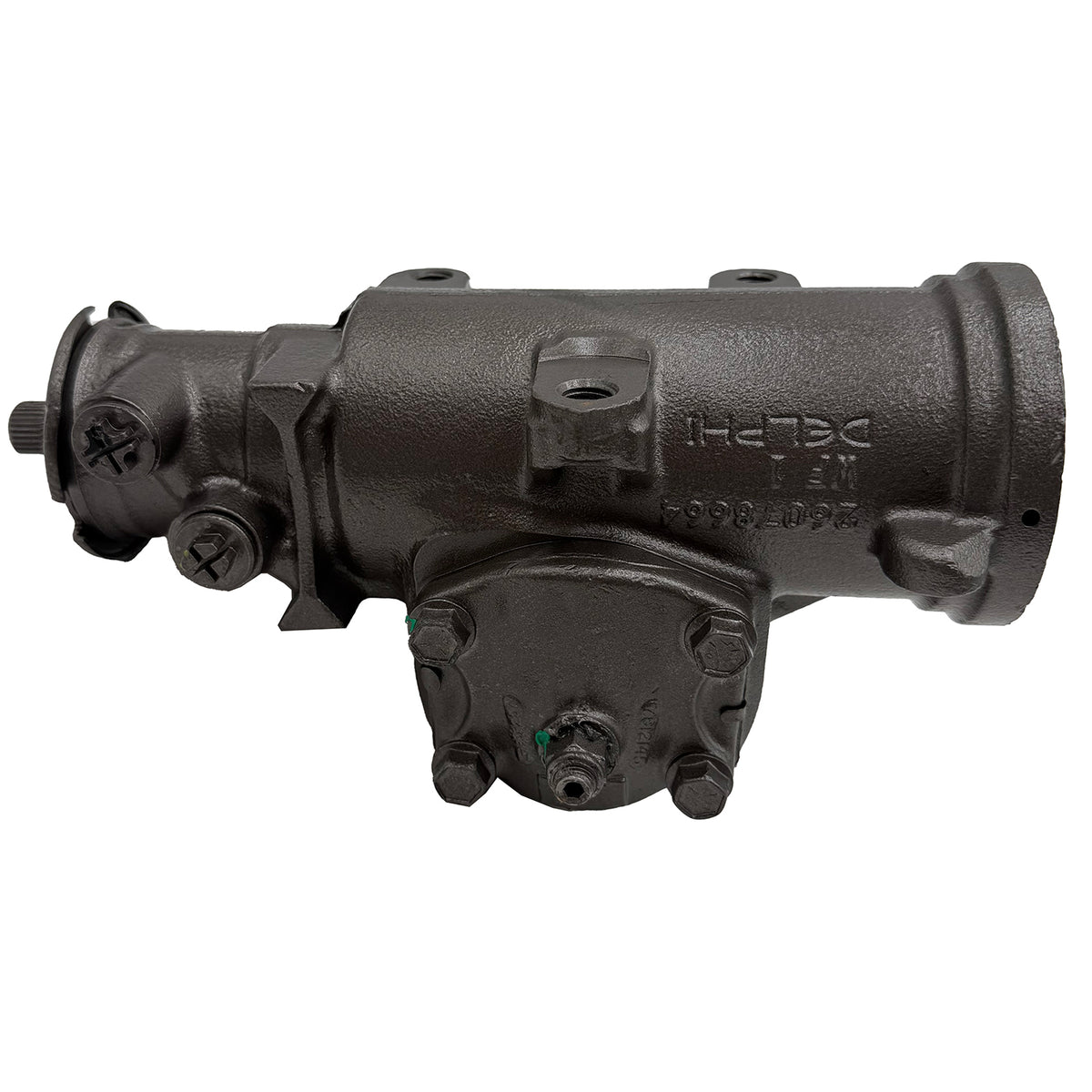

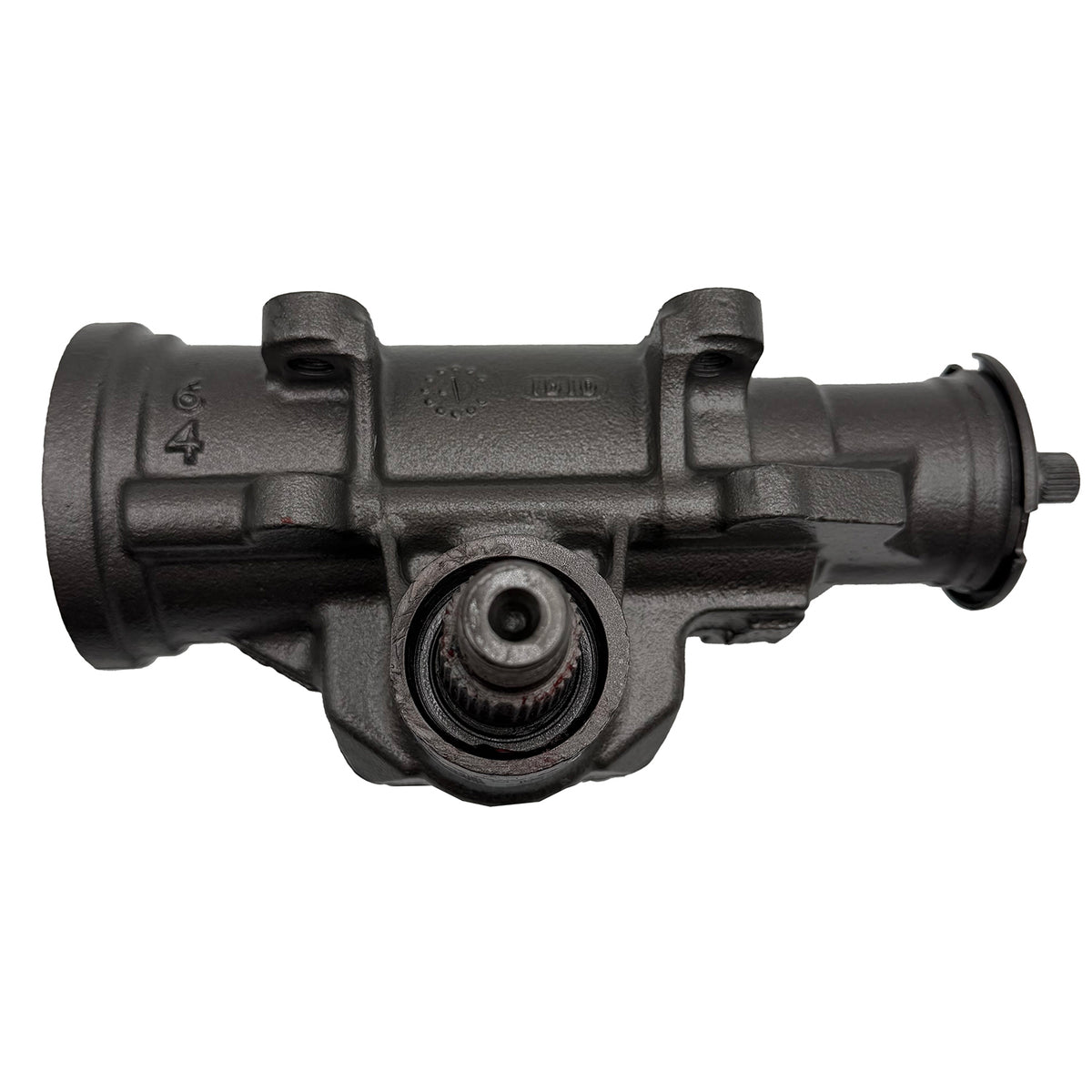

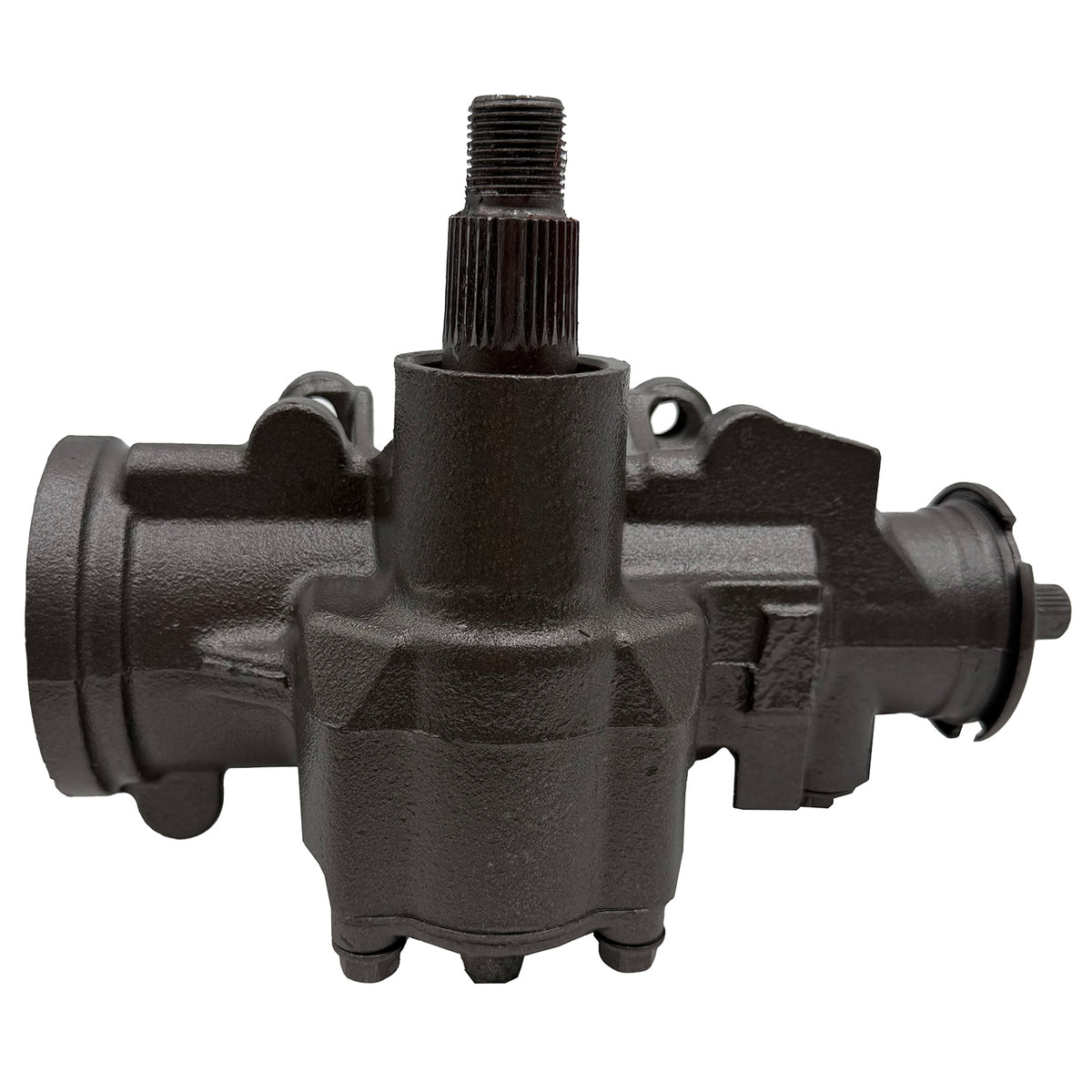

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98148M
Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98148M
SKU:98148M
MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.73 | IN |
| Input Shaft Diameter | 18.42 | MM |
| Steering Input Shaft Spline Quantity | 25 | |
| Input Shaft Type | Splined, Single Flat | |
| Mounting Hole Quantity | 3 | |
| Output Shaft Diameter | 1.25 | IN |
| Output Shaft Diameter | 31.75 | MM |
| Pressure Port Thread Size | M18 x 1.5 | |
| Pump Rotation | Reverse | |
| Return Port ID Size | 0 | |
| Return Port Thread Size | M16 x 1.5 | |
| Total Turns Lock To Lock | 2.6 to 3.3 |
Application Info: Chevrolet Express 2500 (1999-02), Express 3500 (1996-02); Dodge B150 (1994), B1500 (1995-98), B250 (1994), B2500 (1995-98), B350 (1994), B3500 (1995-98); GMC Savana 2500 (1996-02), Savana 3500 (1996-02) ***GM Applications W/7,700 To 8,600 LBS GVW***
Interchange: 15062968, 15087996, 52038005, 52039231
BBB Cross-Reference: 503-0137
Cardone Cross-Reference: 27-7555
