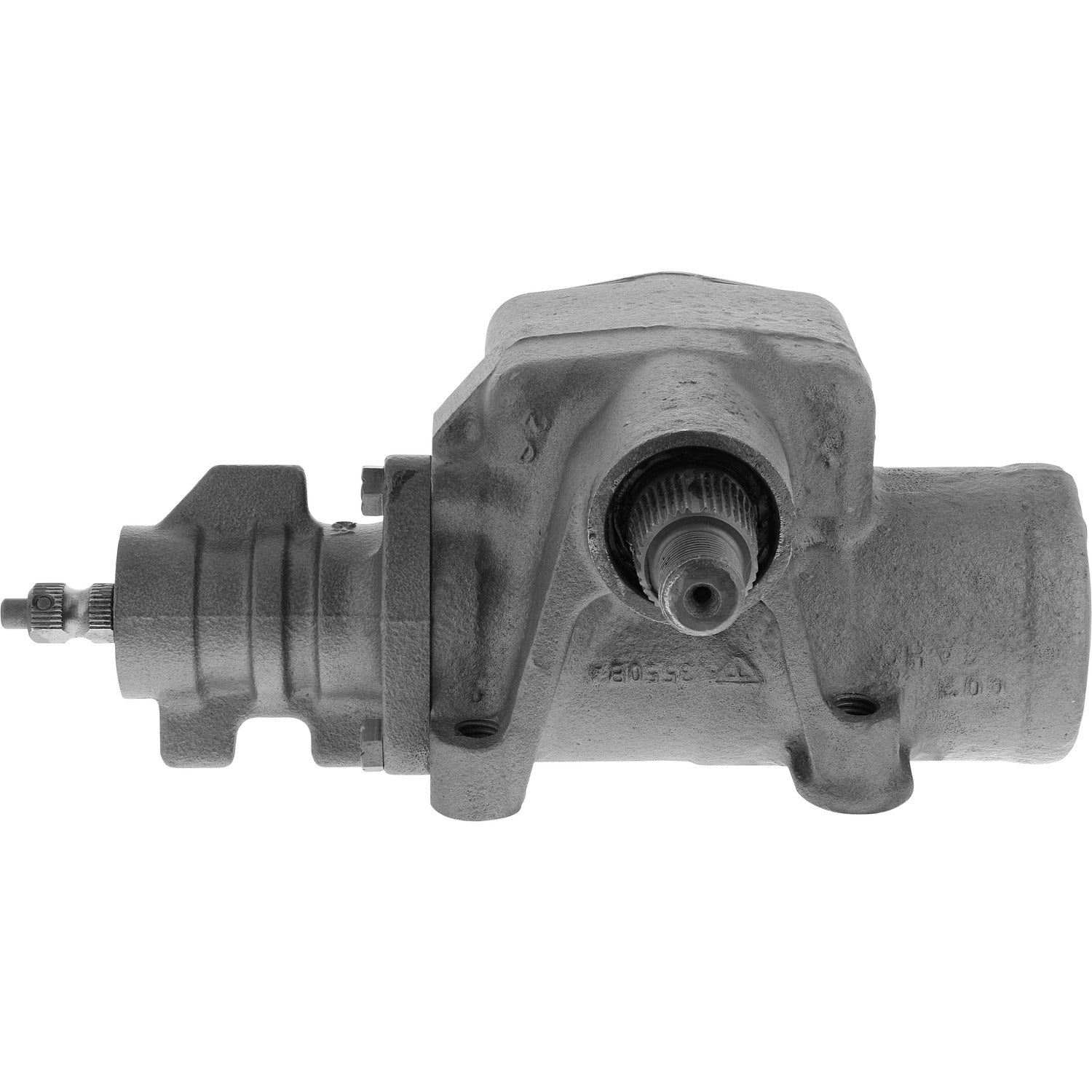

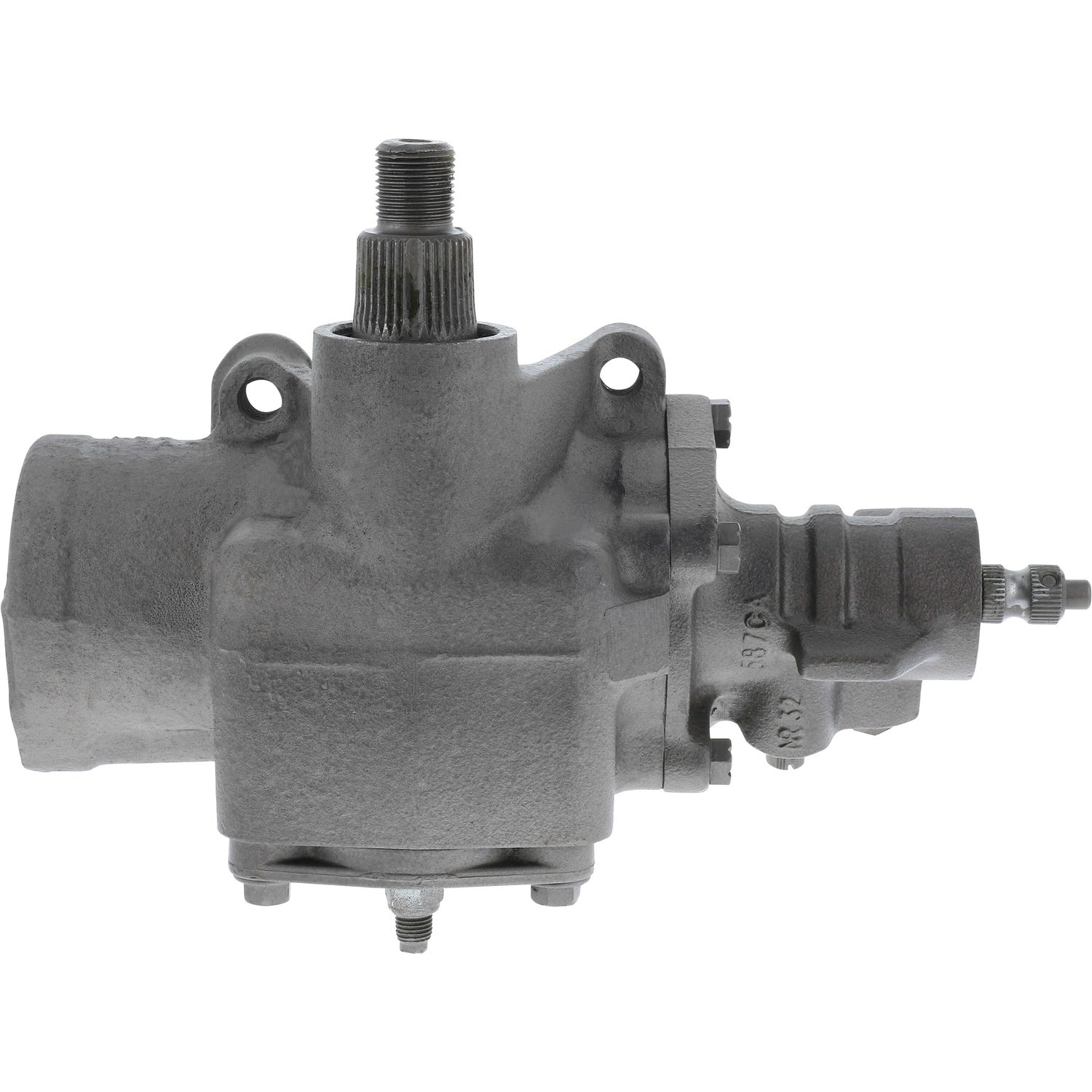

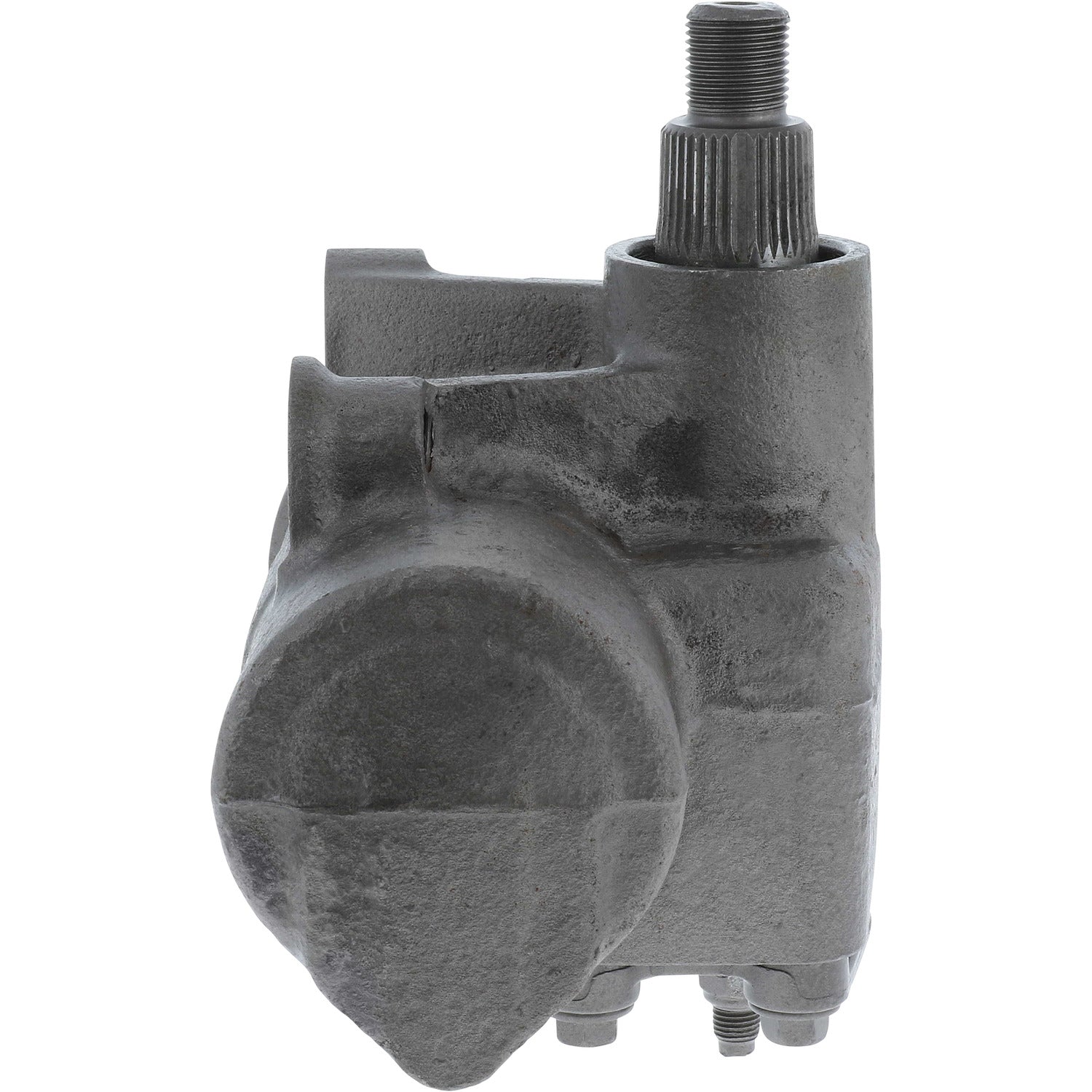

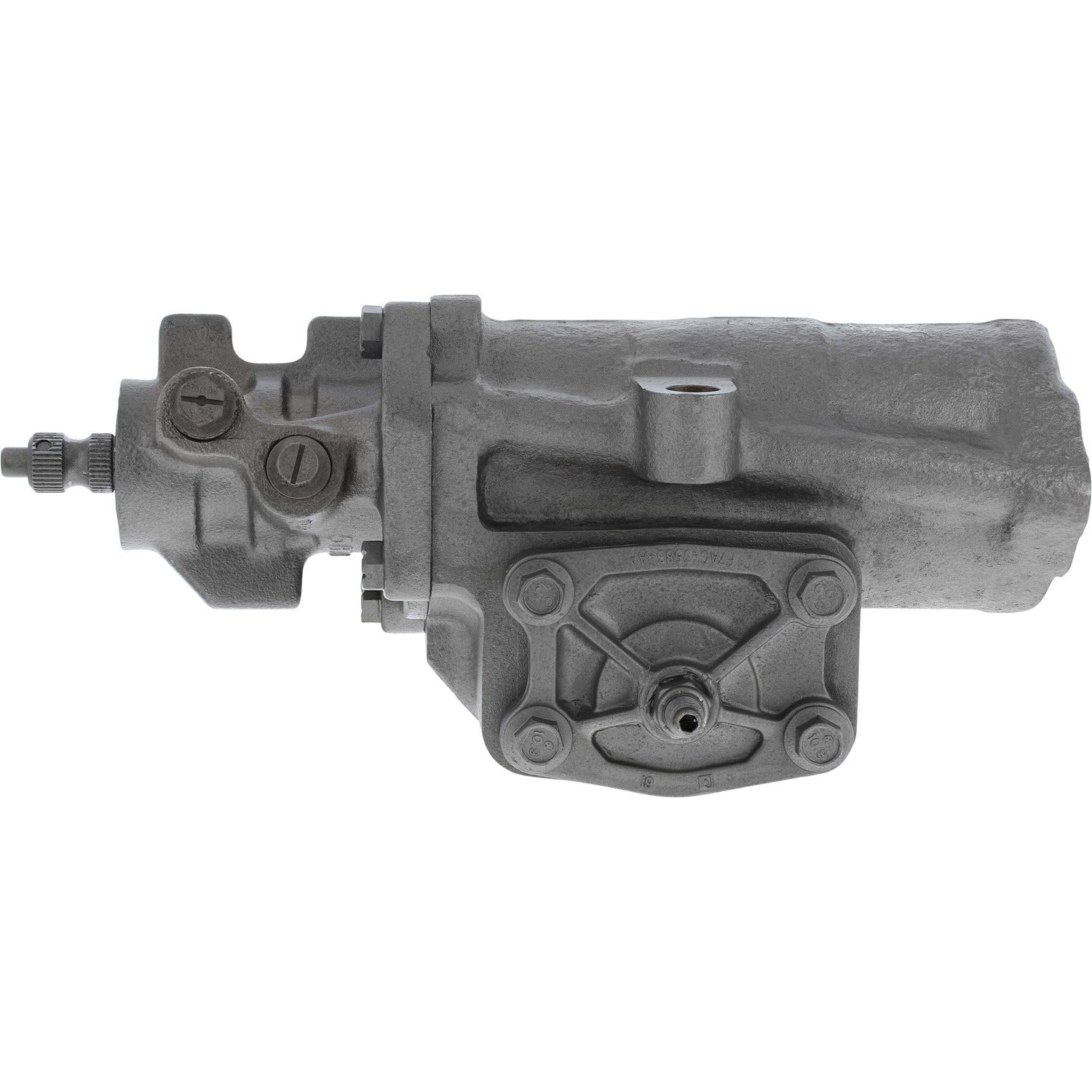

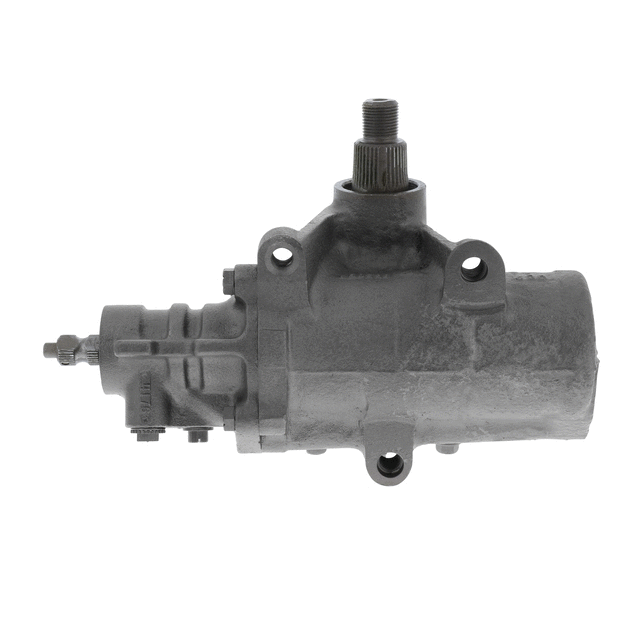

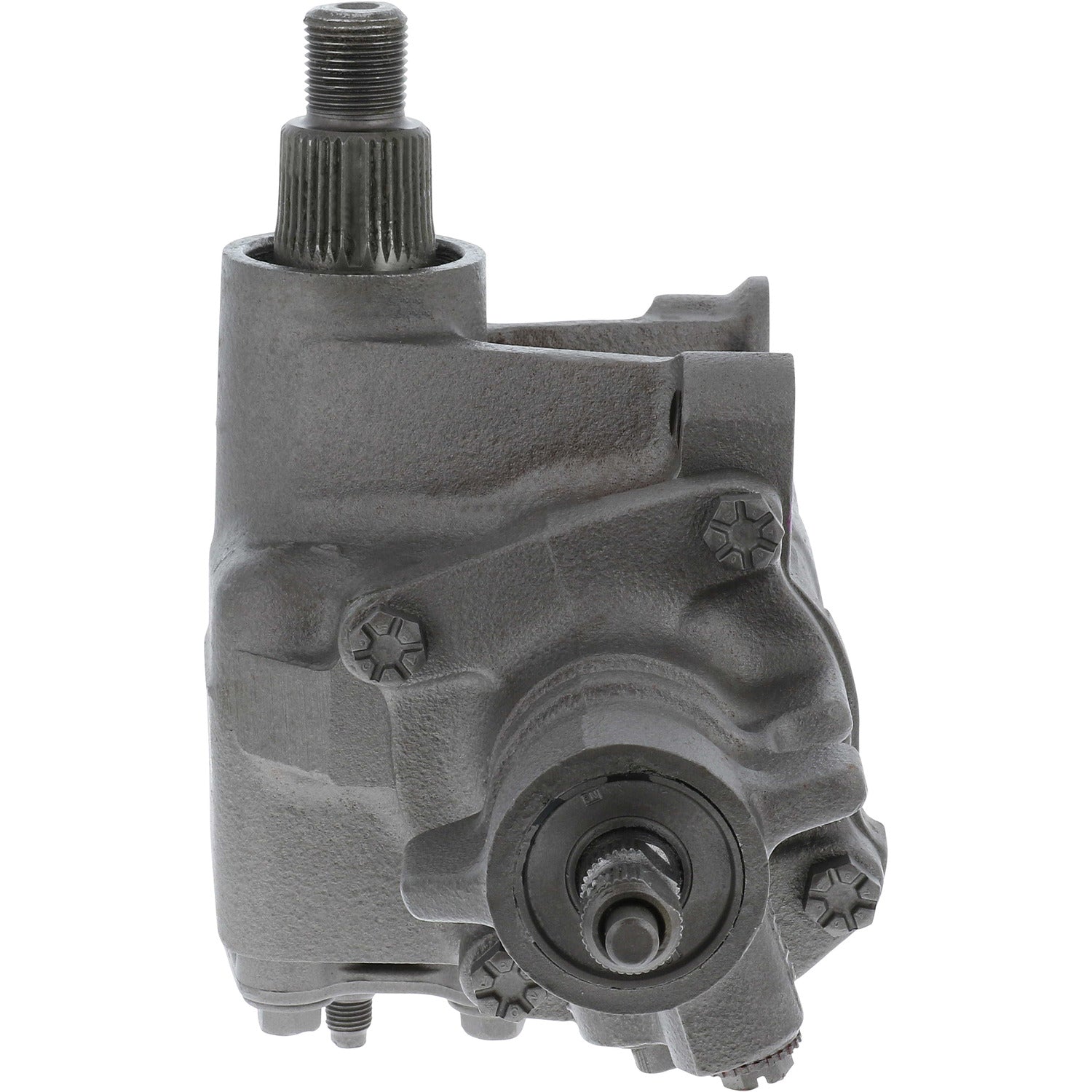

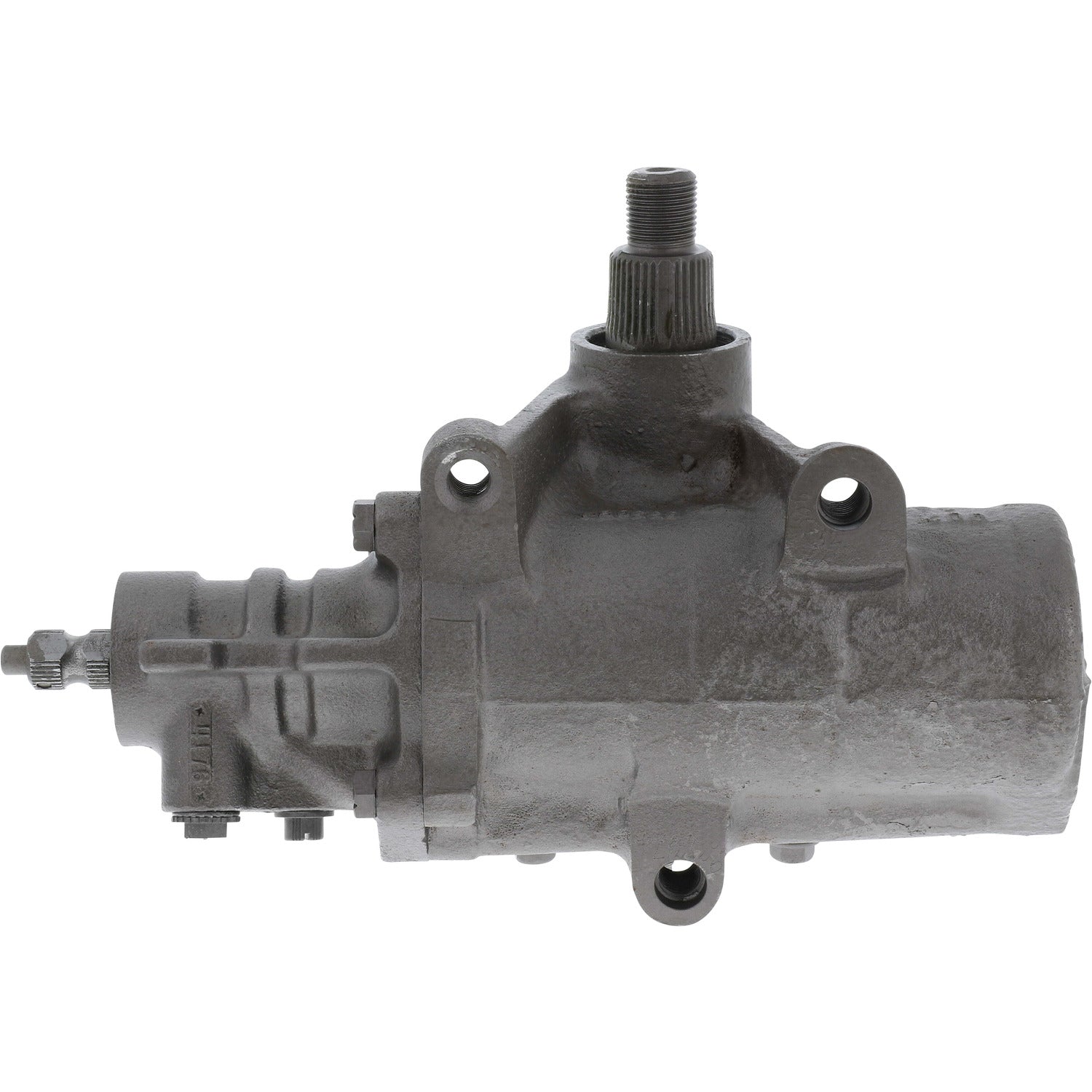

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98147M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98147M

SKU:98147M

MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Steering Input Shaft Spline Quantity 29
Input Shaft Type Splined, Single Flat
Mounting Hole Quantity 3
Output Shaft Diameter 1.38 IN
Output Shaft Diameter 34.93 MM
Pressure Port Thread Size 1/2 x 20
Pump Rotation Reverse
Return Port ID Size 0
Return Port Thread Size 5/8 X 18
Total Turns Lock To Lock 4

Application Info: 2004-2008 Ford E-350 Super Duty (Note: With front axle rating over 4,200 lbs., To 09/30/2007); 2006-2008 Ford E-450 Super Duty (Note: With front axle rating over 4,200 lbs., To 09/30/2007); 2004-2008 Ford E-150 (Note: With front axle rating over 4,200 lbs., To 09/30/2007); 2004-2005 Ford E-150 Club Wagon (Note: With front axle rating over 4,200 lbs., To 09/30/2007); 2004-2008 Ford E-250 (Note: With front axle rating over 4,200 lbs., To 09/30/2007); 2004-2005 Ford E-350 Club Wagon (Note: With front axle rating over 4,200 lbs., To 09/30/2007)

Interchange: 4C2Z3504FA, 5C2Z3504FA, 6C2Z3504AA, 6C2Z3504AARM

BBB Cross-Reference: 501-0128

Cardone Cross-Reference: 27-7620
