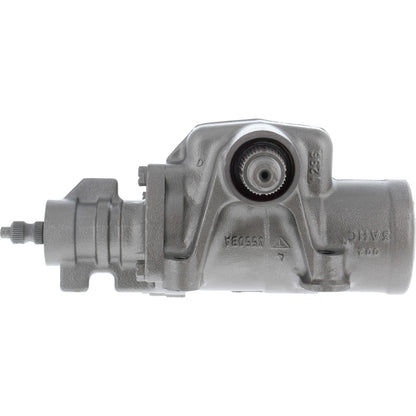

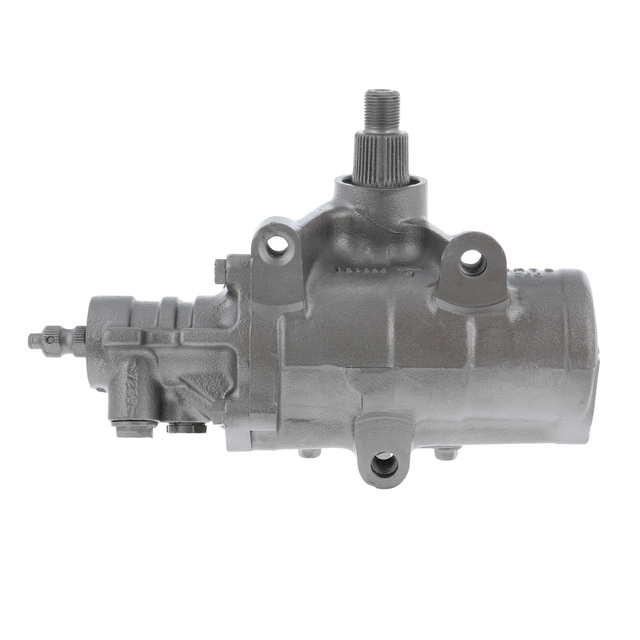

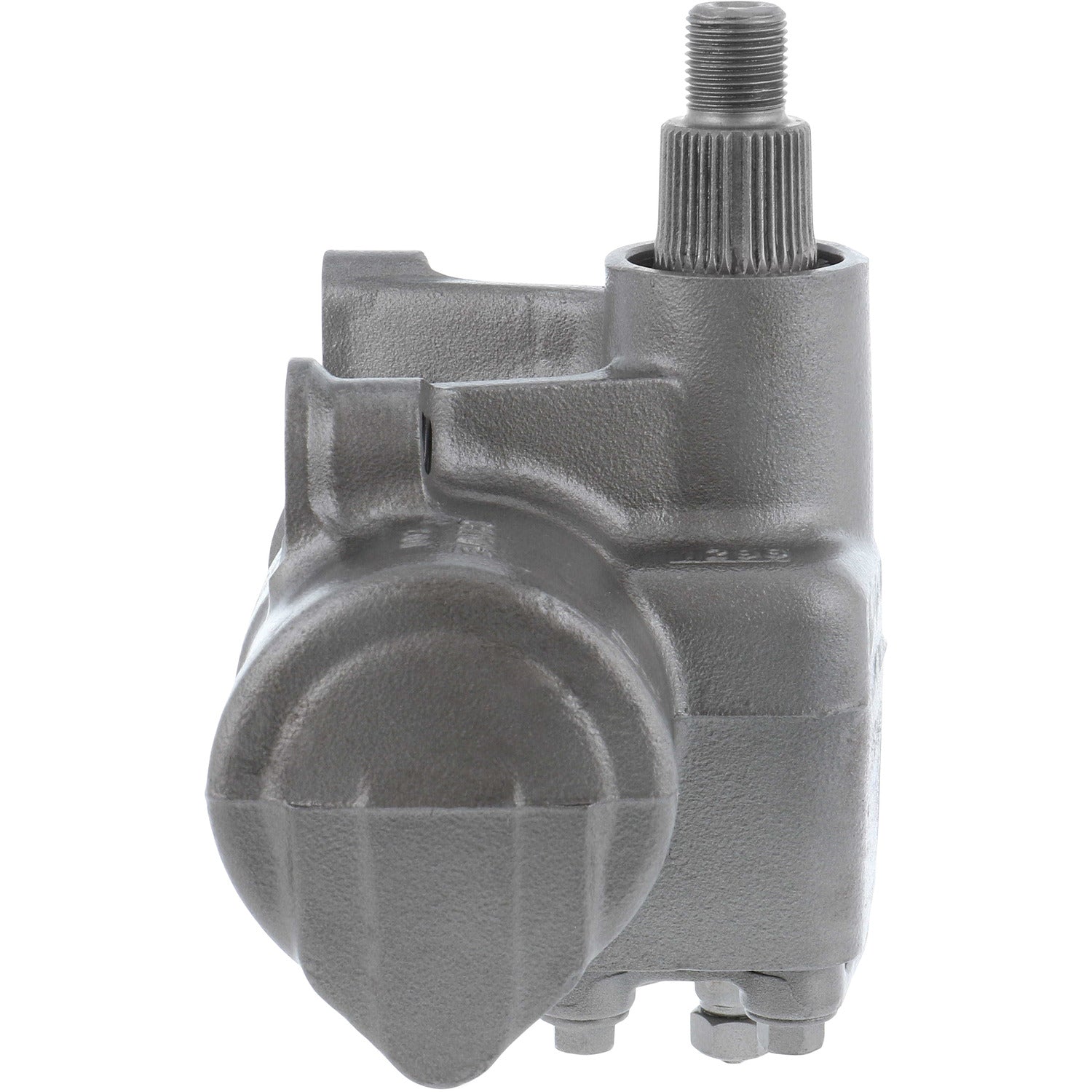

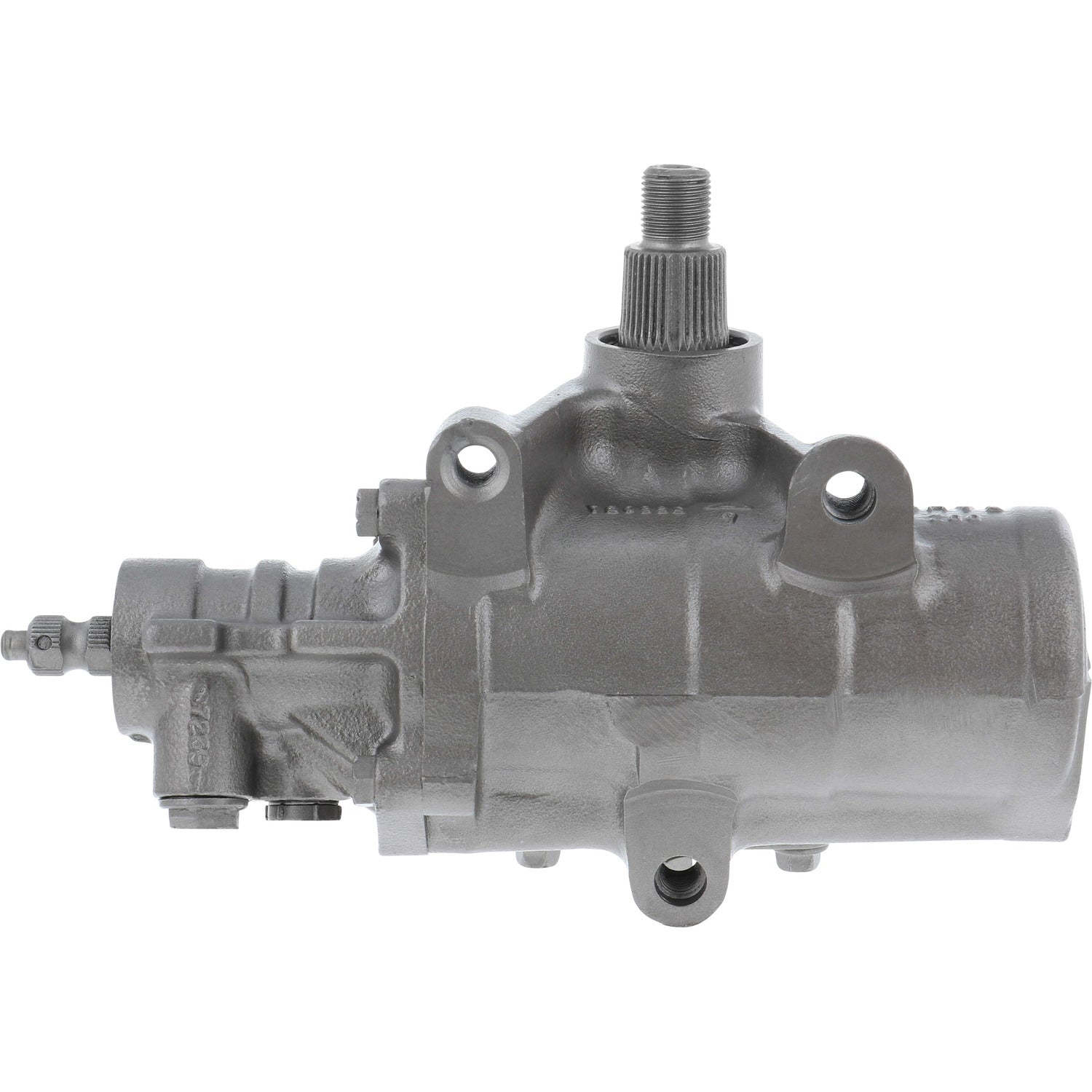

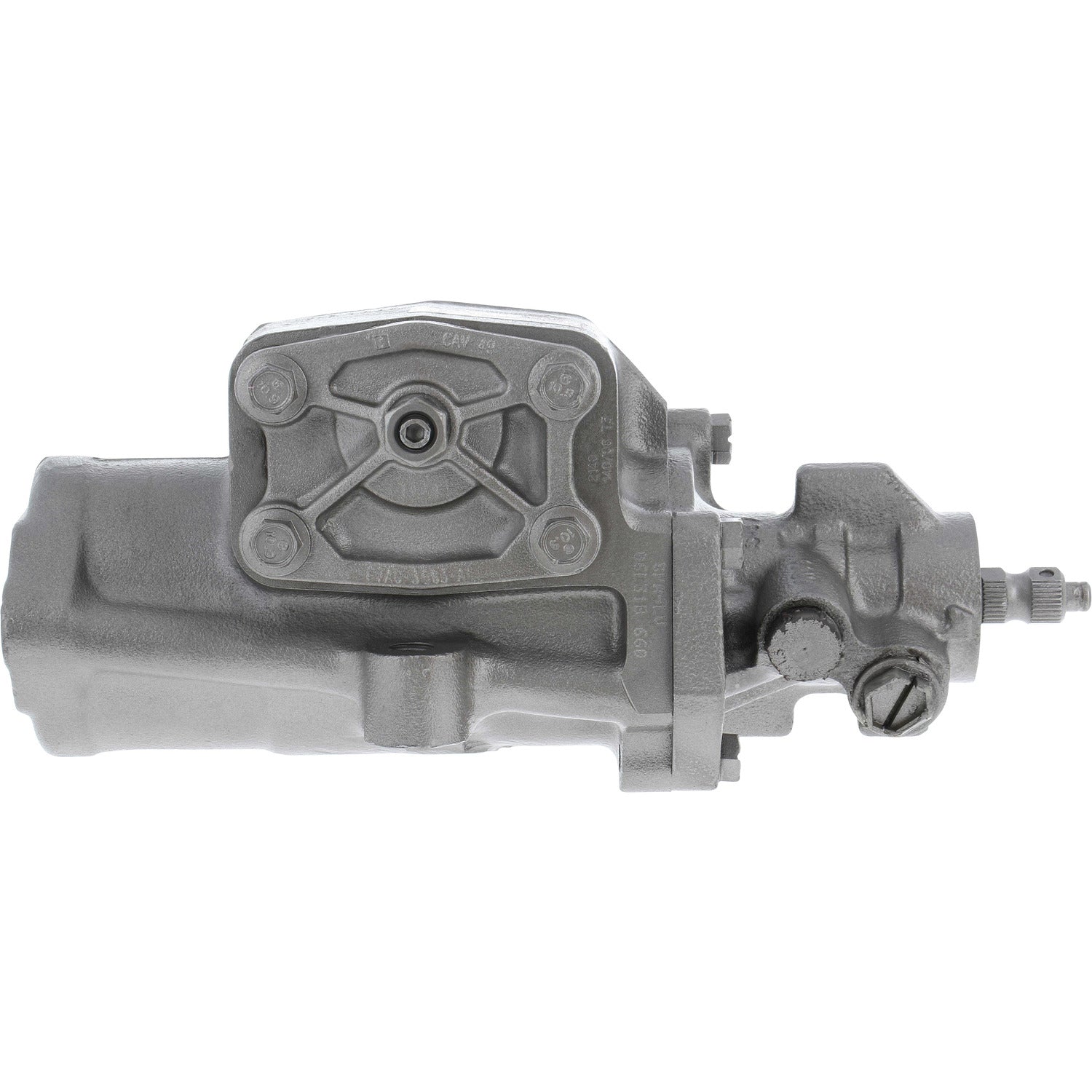

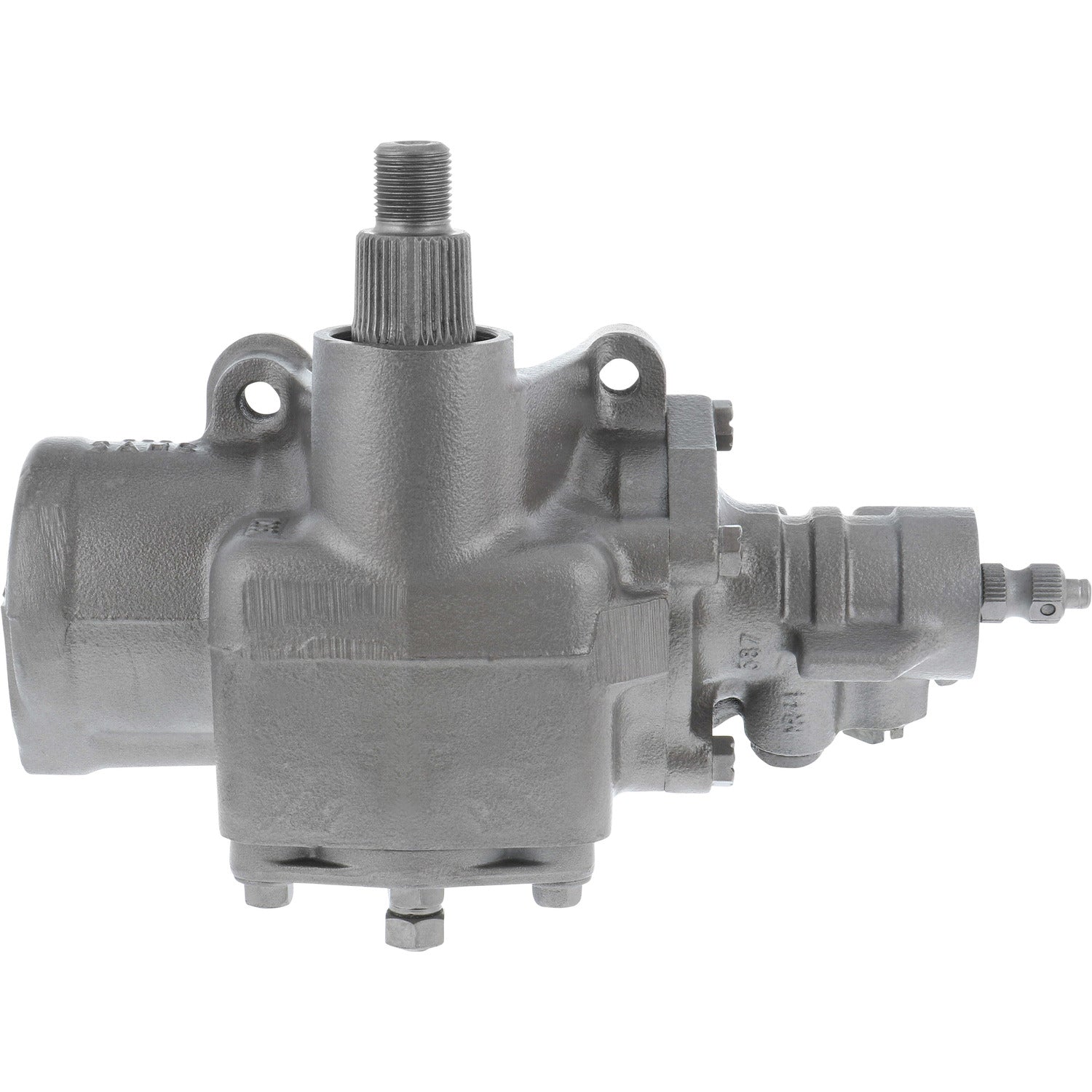

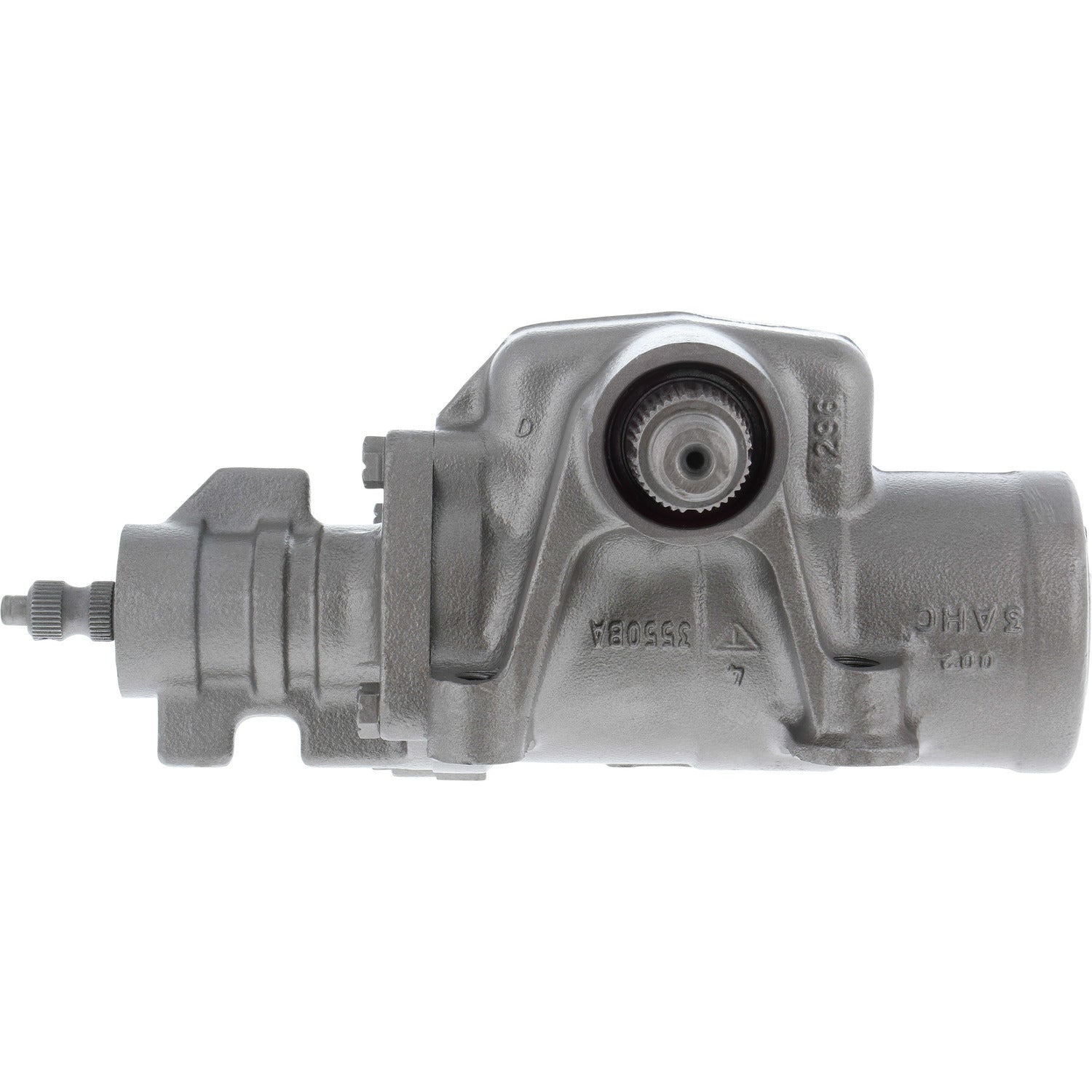

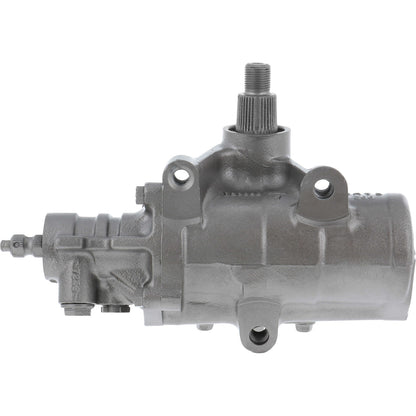

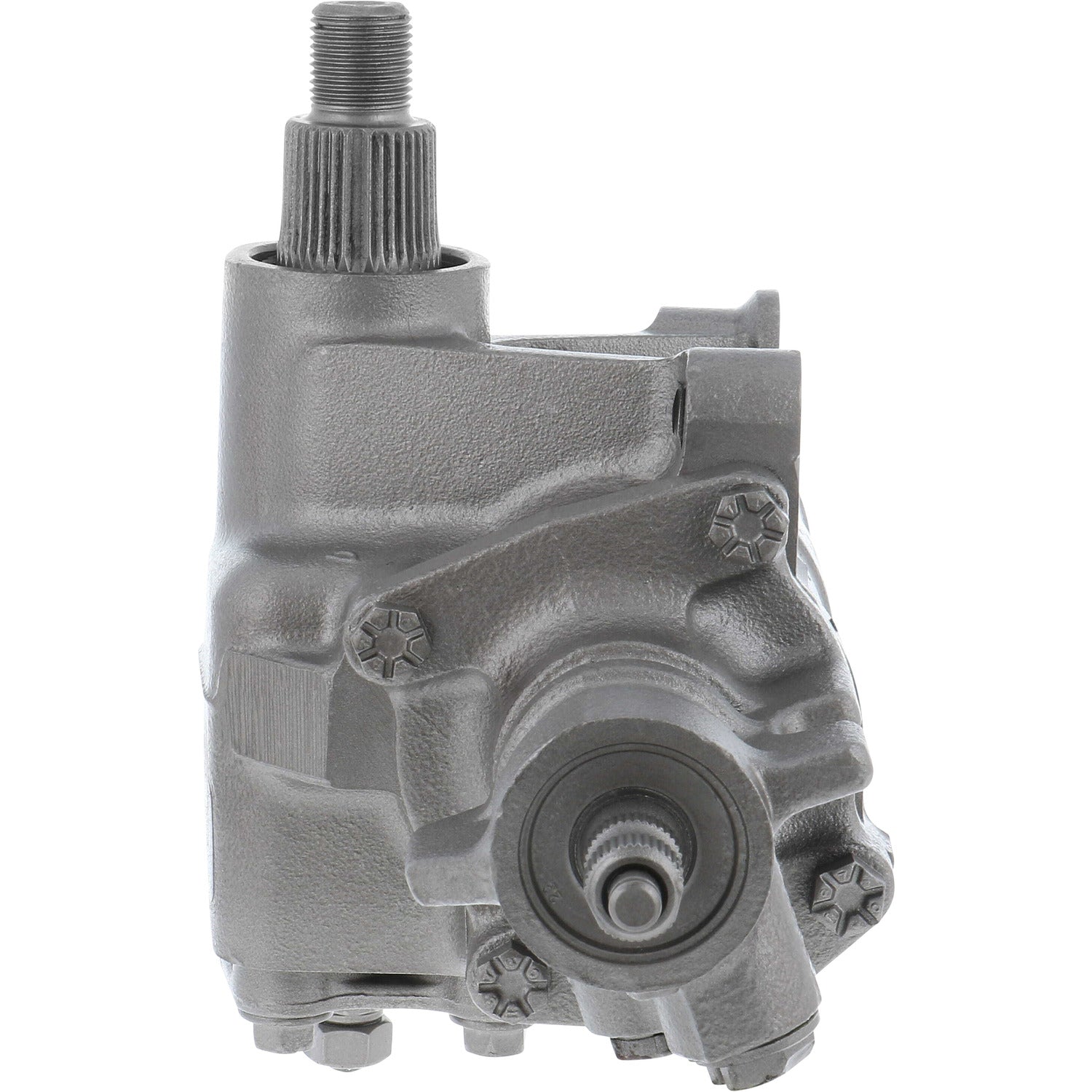

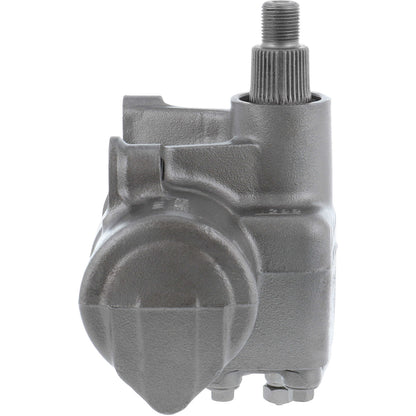

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98146M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98146M


MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Steering Input Shaft Spline Quantity 26
Input Shaft Type Double Flat
Mounting Hole Quantity 3
Output Shaft Diameter 1.31 IN
Output Shaft Diameter 33.32 MM
Pressure Port Thread Size M18 x 1.5
Pump Rotation Standard
Return Port ID Size 0
Return Port Thread Size M20 x 1.5
Total Turns Lock To Lock 3.0 or 3.3

Application Info: Dodge Ram 1500 (2006-08), Ram 2500 (2003-08), Ram 3500 (2003-08)***W/4WD, W/4 Bolt Cover***

Interchange: 52106835AC, 52106835AE, 52106835AF, 52106835AG, 52121986AA, 52121986AC, 52121986AF, 68170214AB

BBB Cross-Reference: 502-0137

Cardone Cross-Reference: 27-7616

Instructions - 1          Instructions - 2
