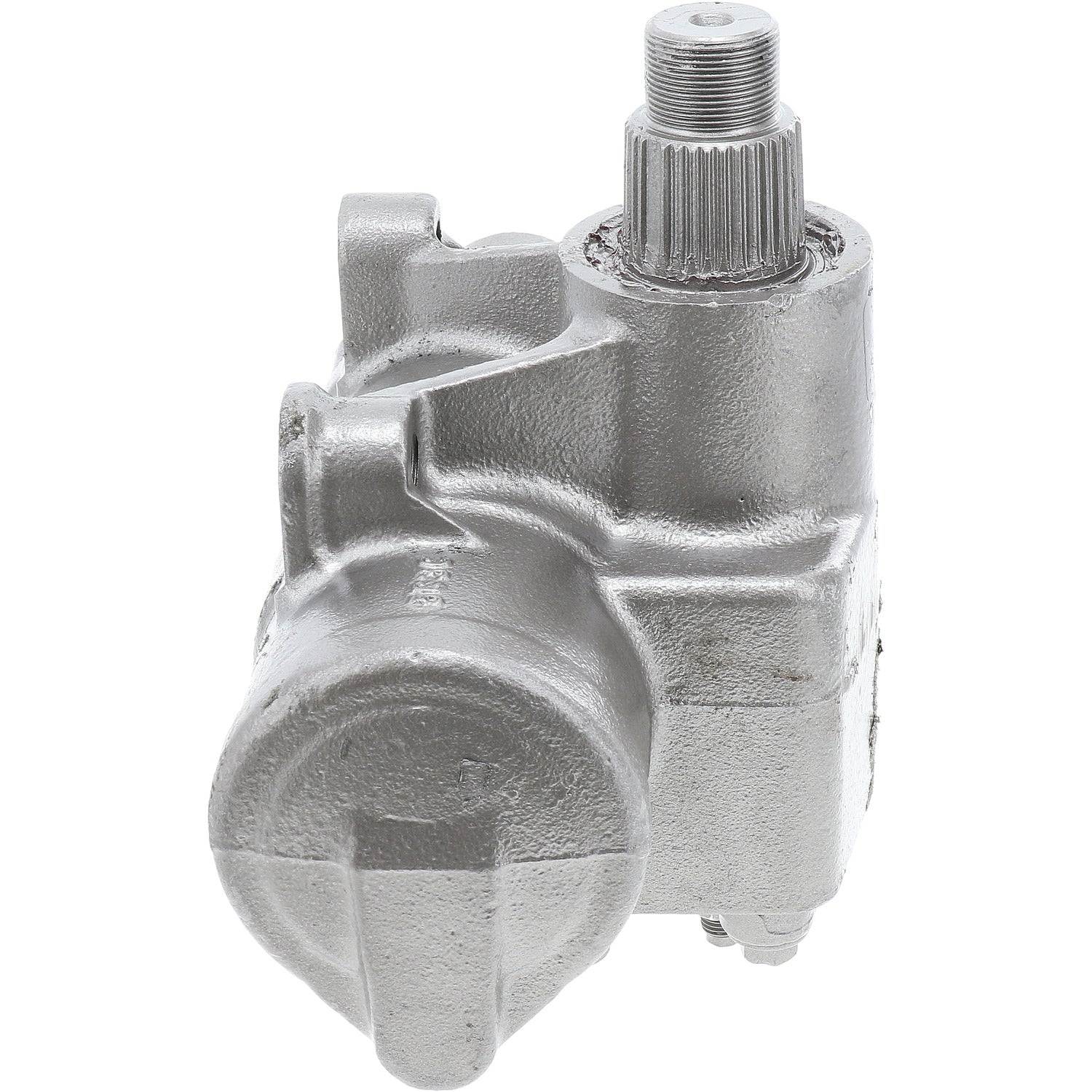

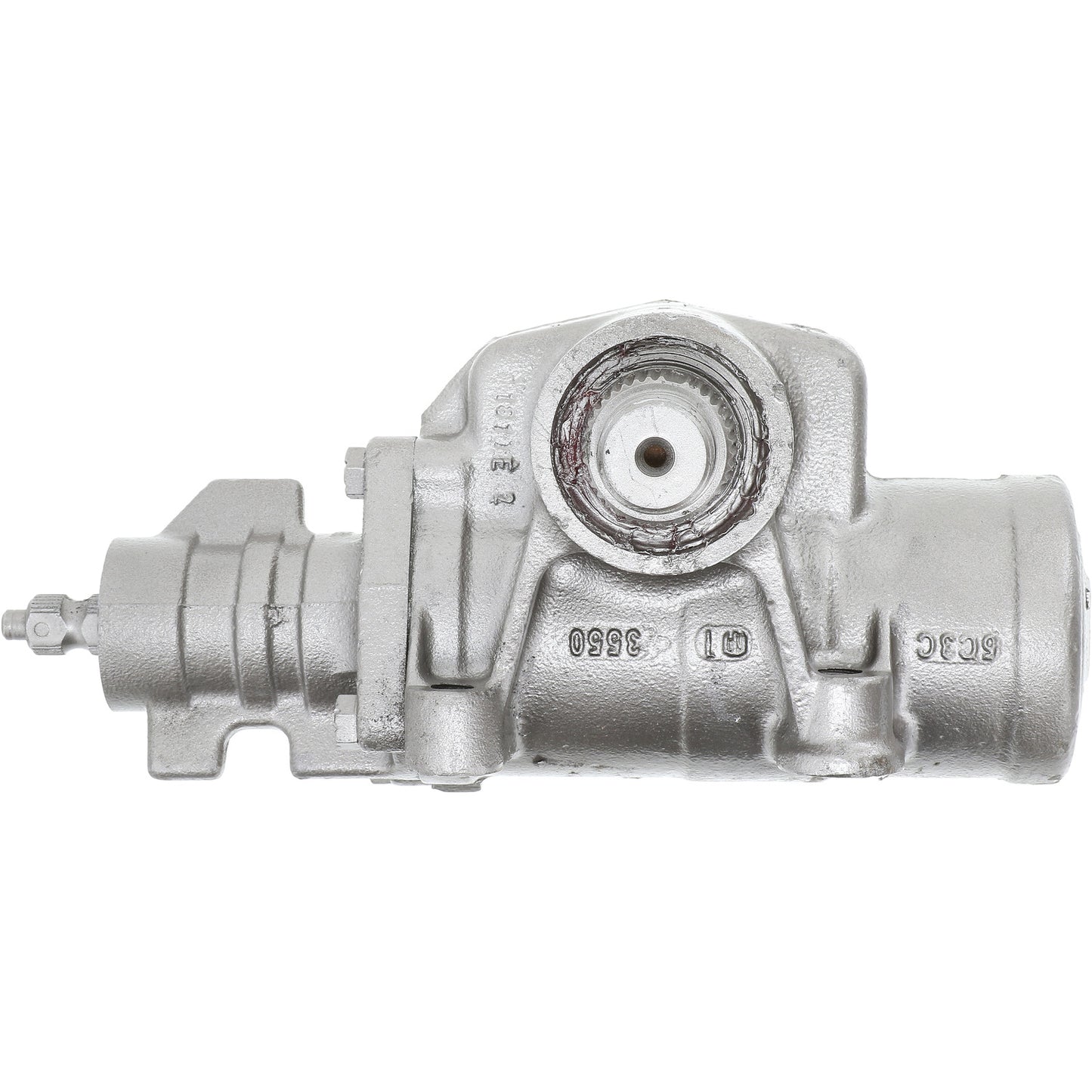

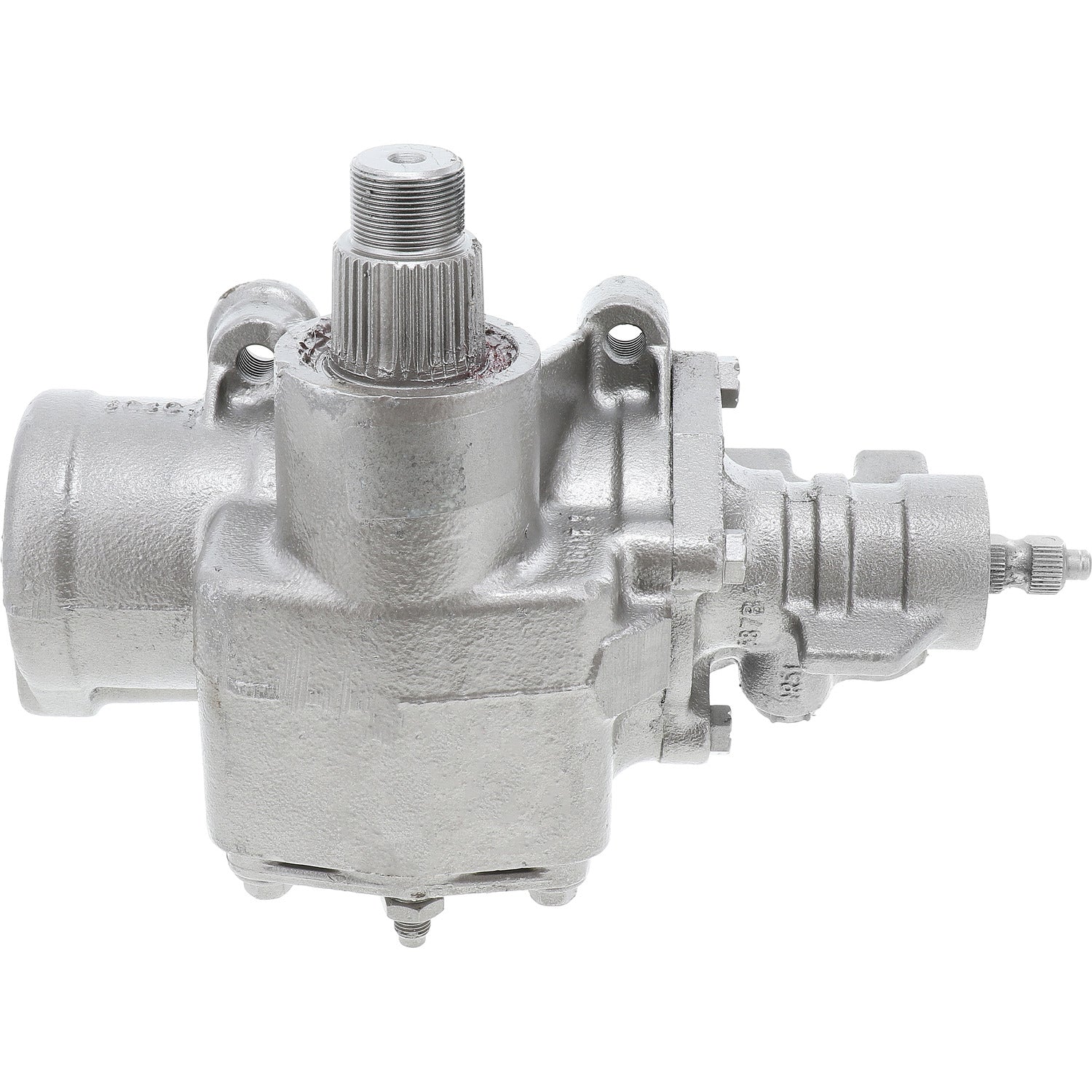

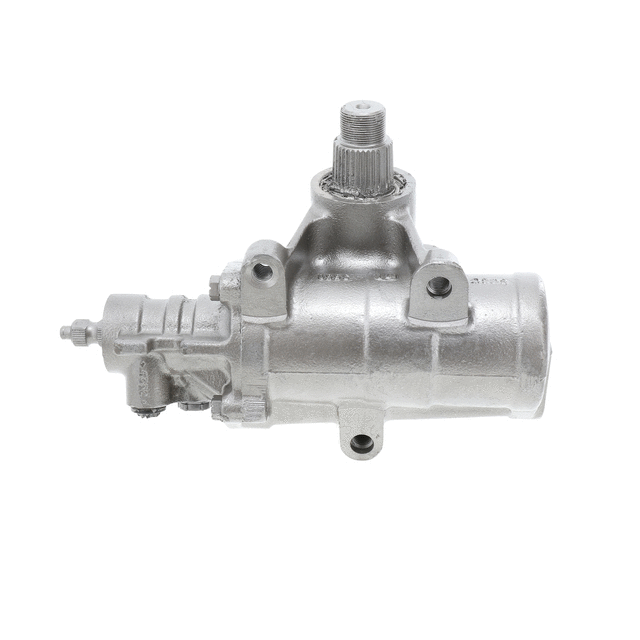

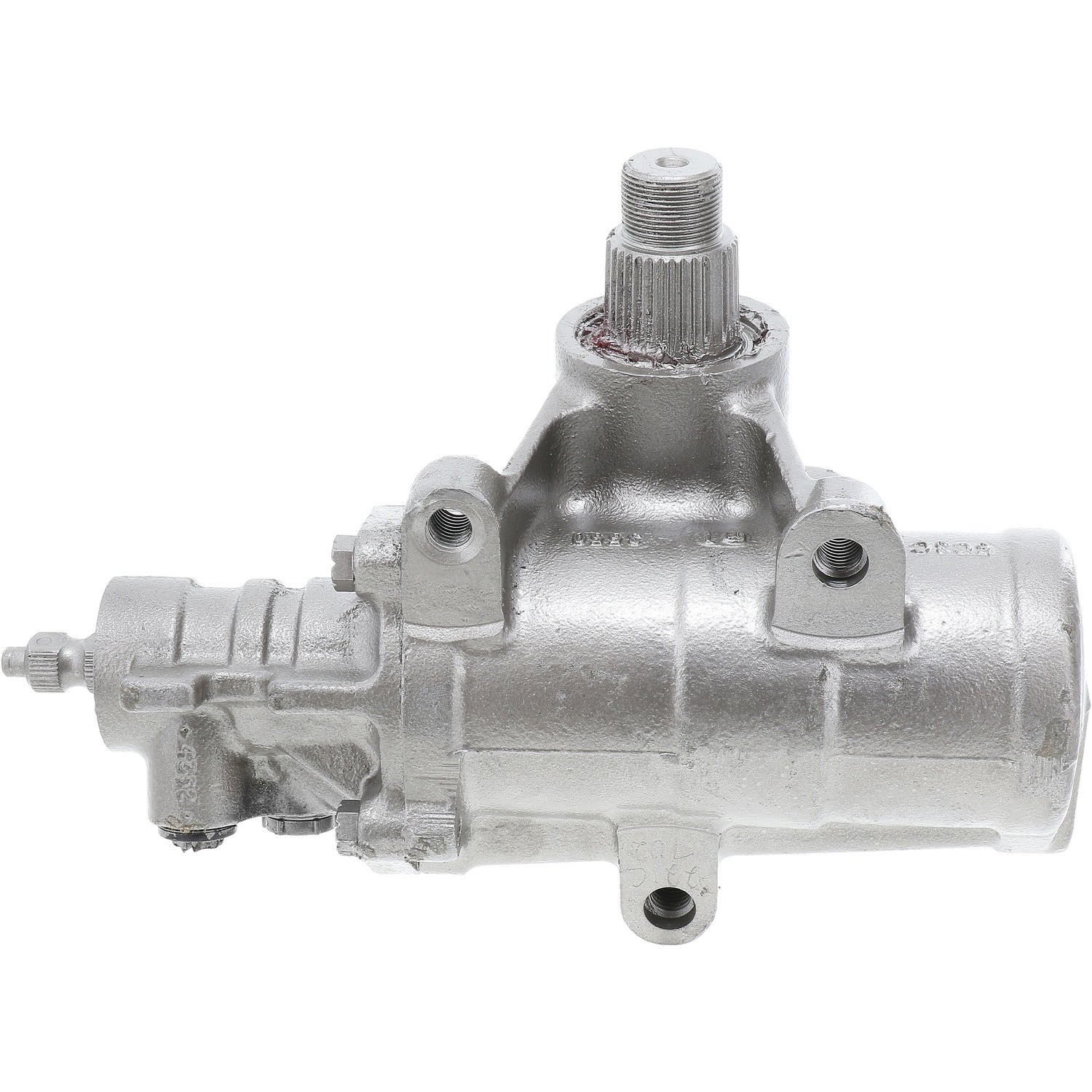

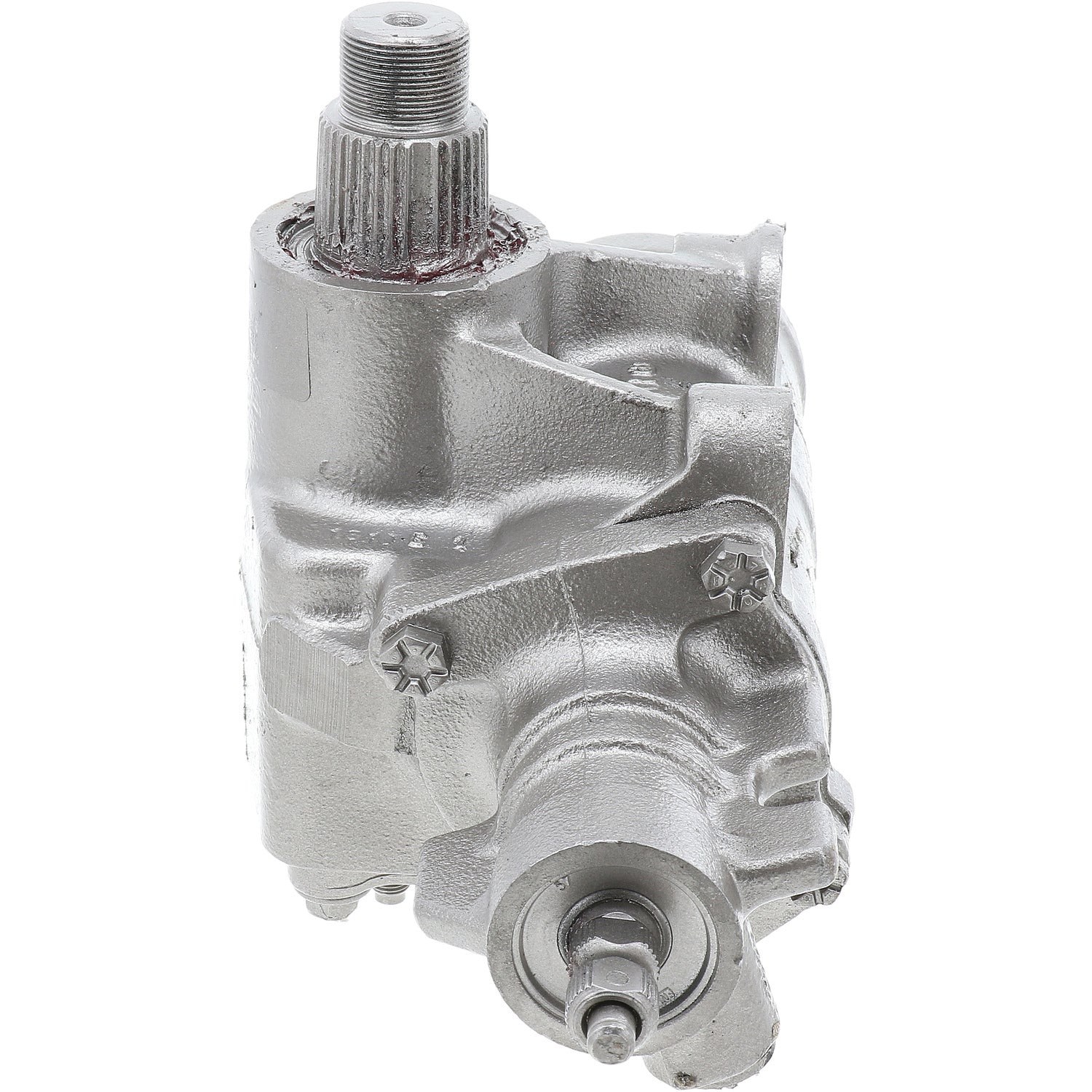

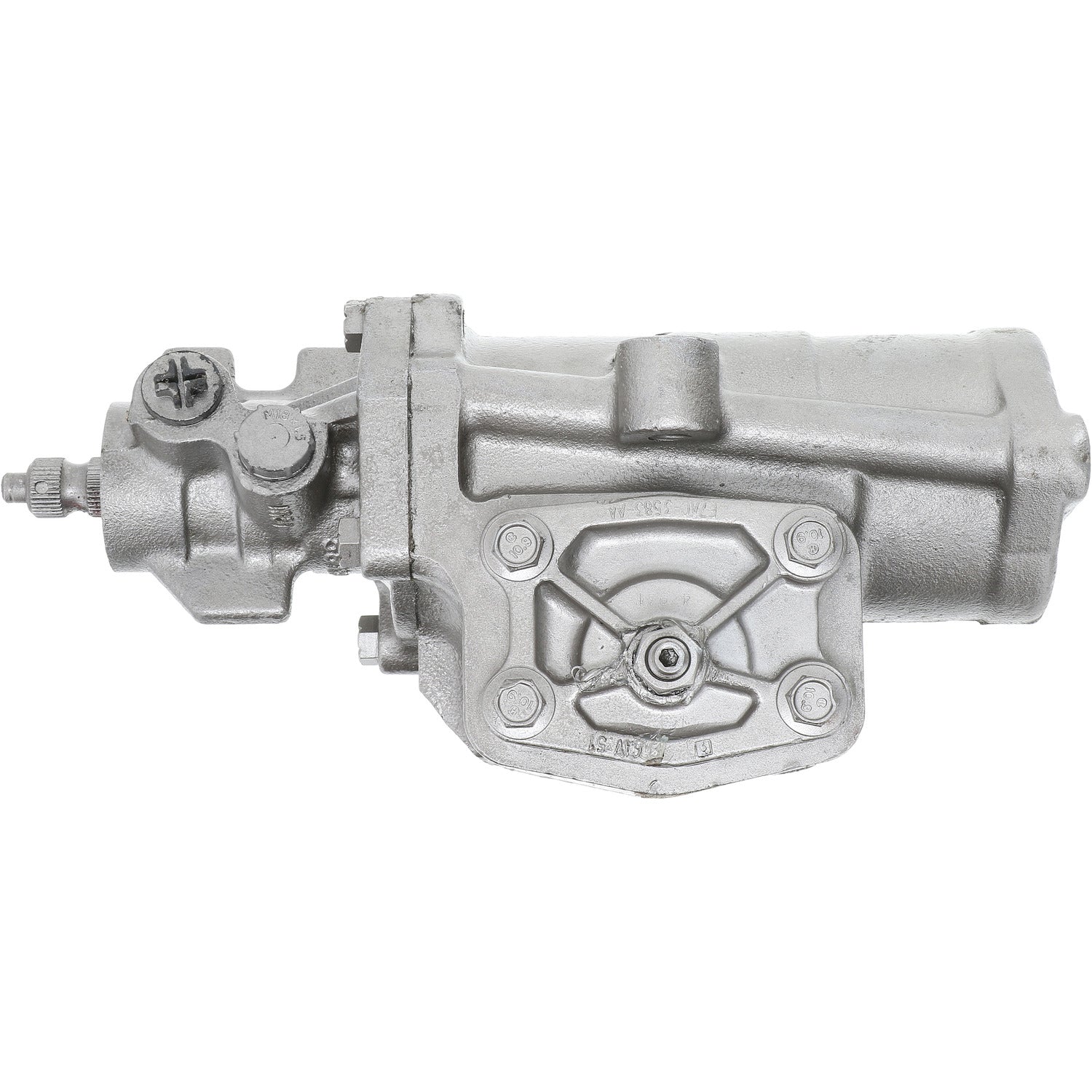

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98145M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98145M


MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Inlet Thread Size M16-1.50
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19 MM
Mounting Hole Quantity 3
Output Shaft Diameter 1.62 IN
Output Shaft Diameter 41 MM
Total Turns Lock To Lock 4

Application Info: Ford F-250 SuperDuty (2005-08), F-350 SuperDuty (2005-08) ***Gas Engine Applications ONLY, To 7/30/2007***

Interchange: Ford - 5C34-2504AB

BBB Cross-Reference: 501-0125 - 501-0132

Cardone Cross-Reference: 27-7621

Instructions - 1               Instructions - 2
