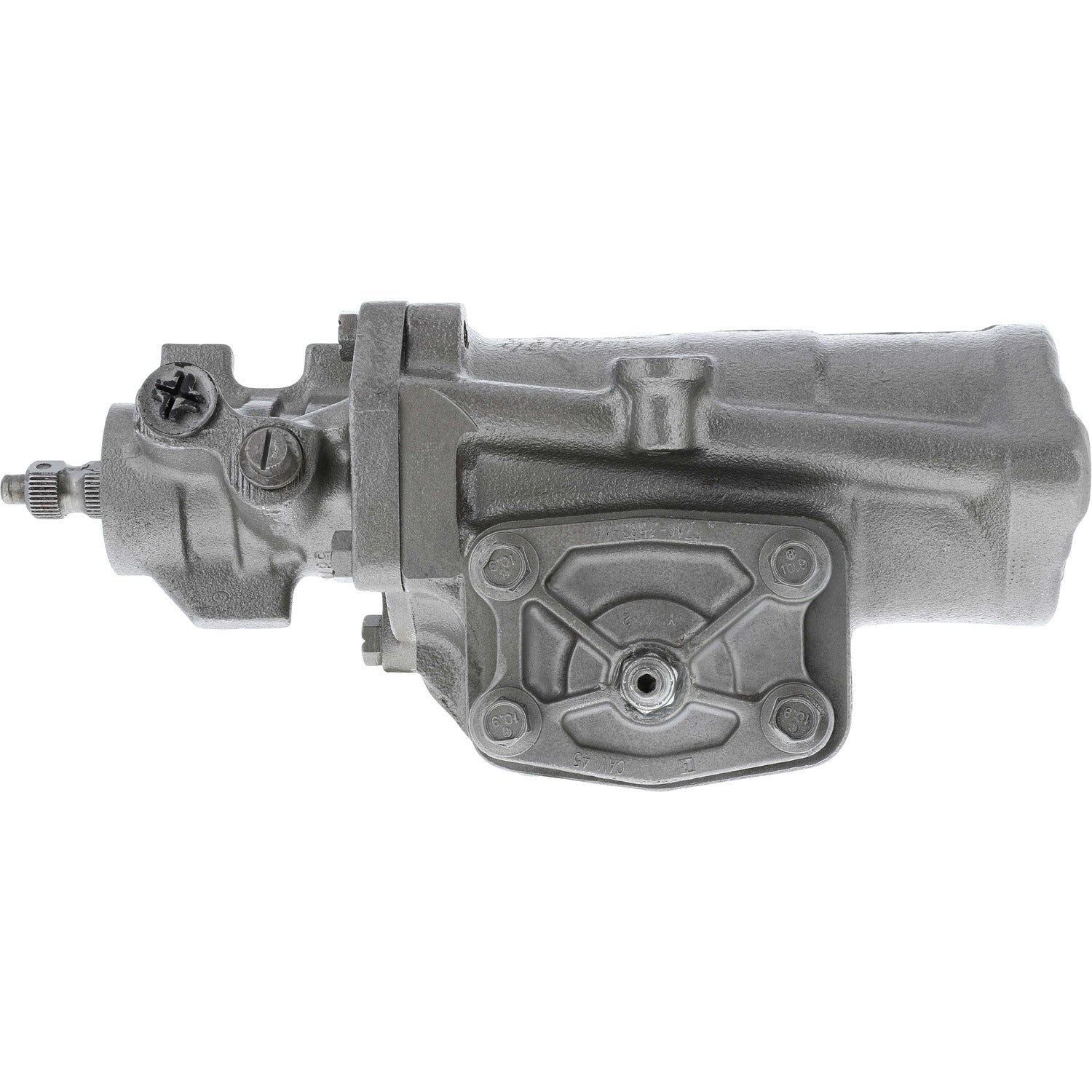

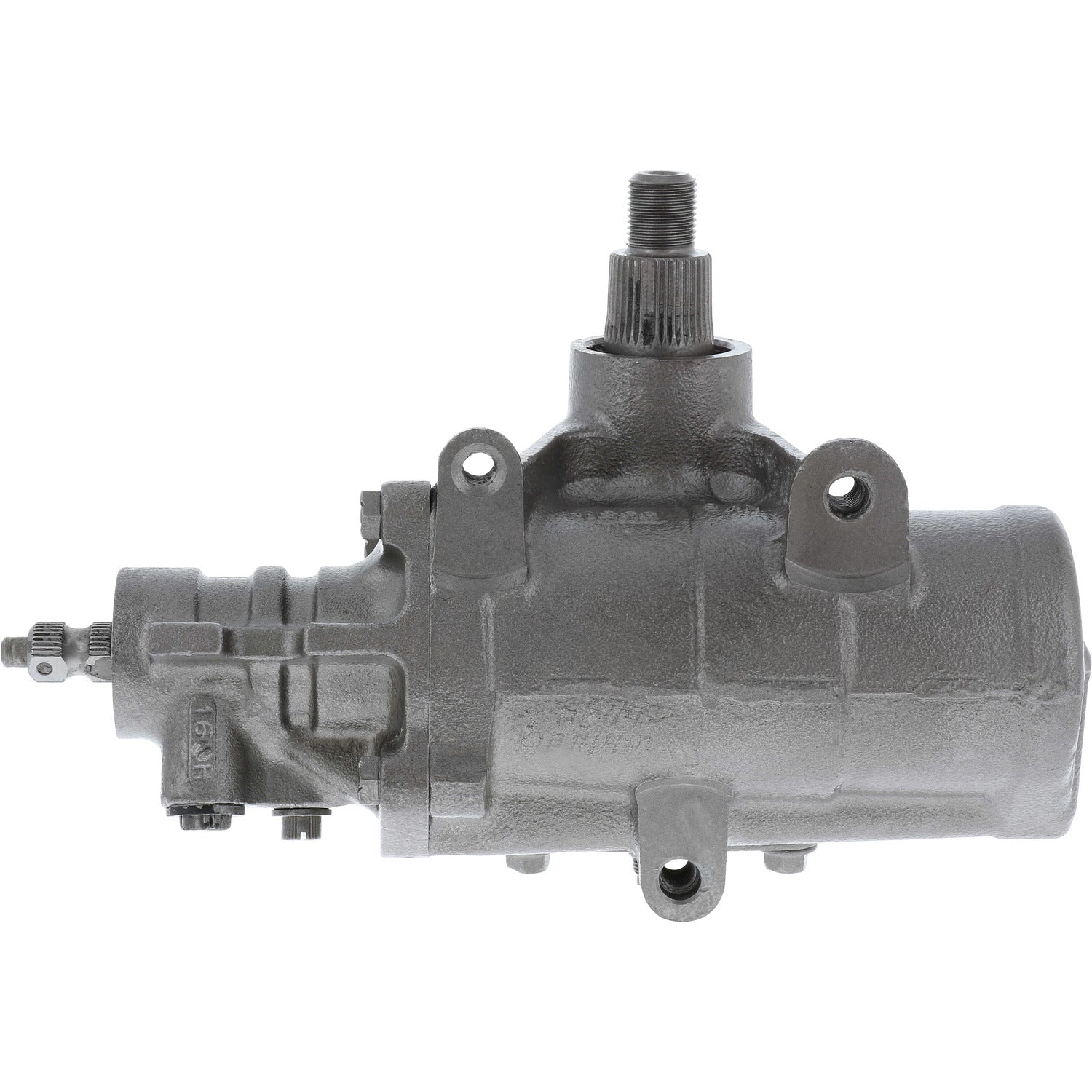

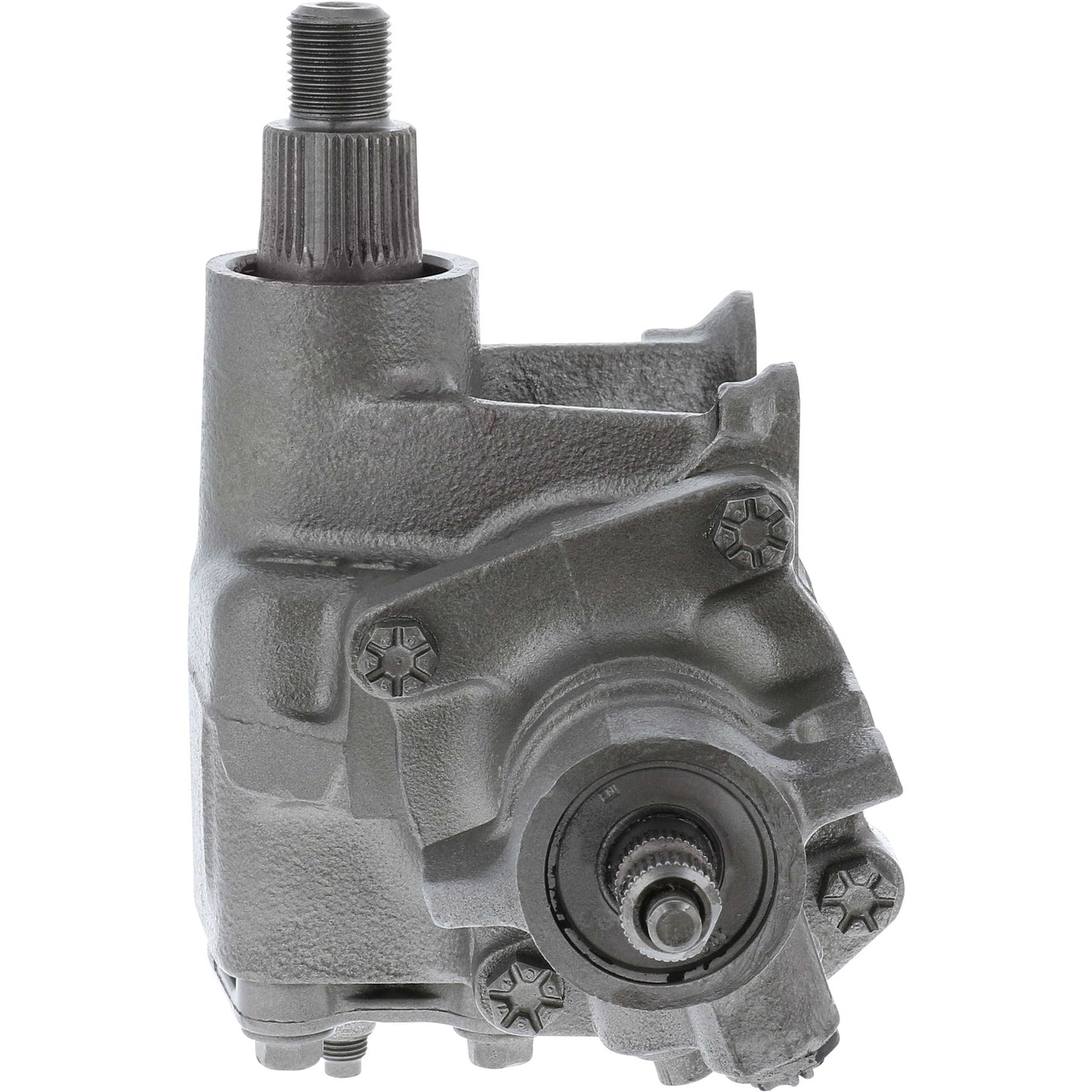

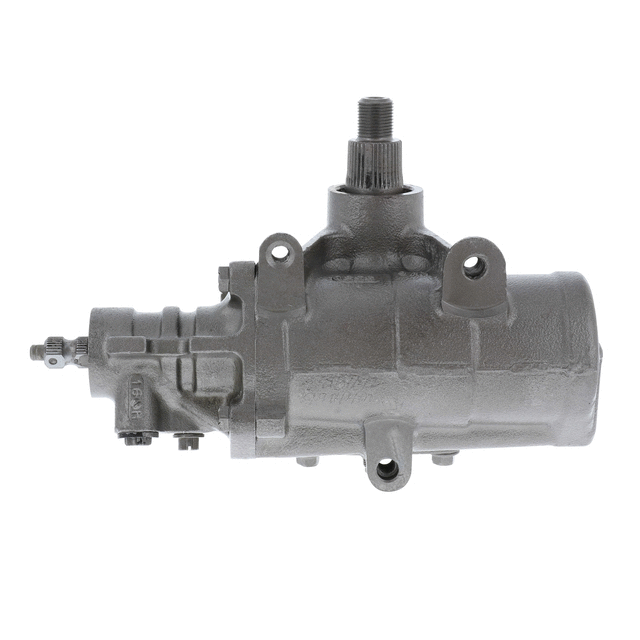

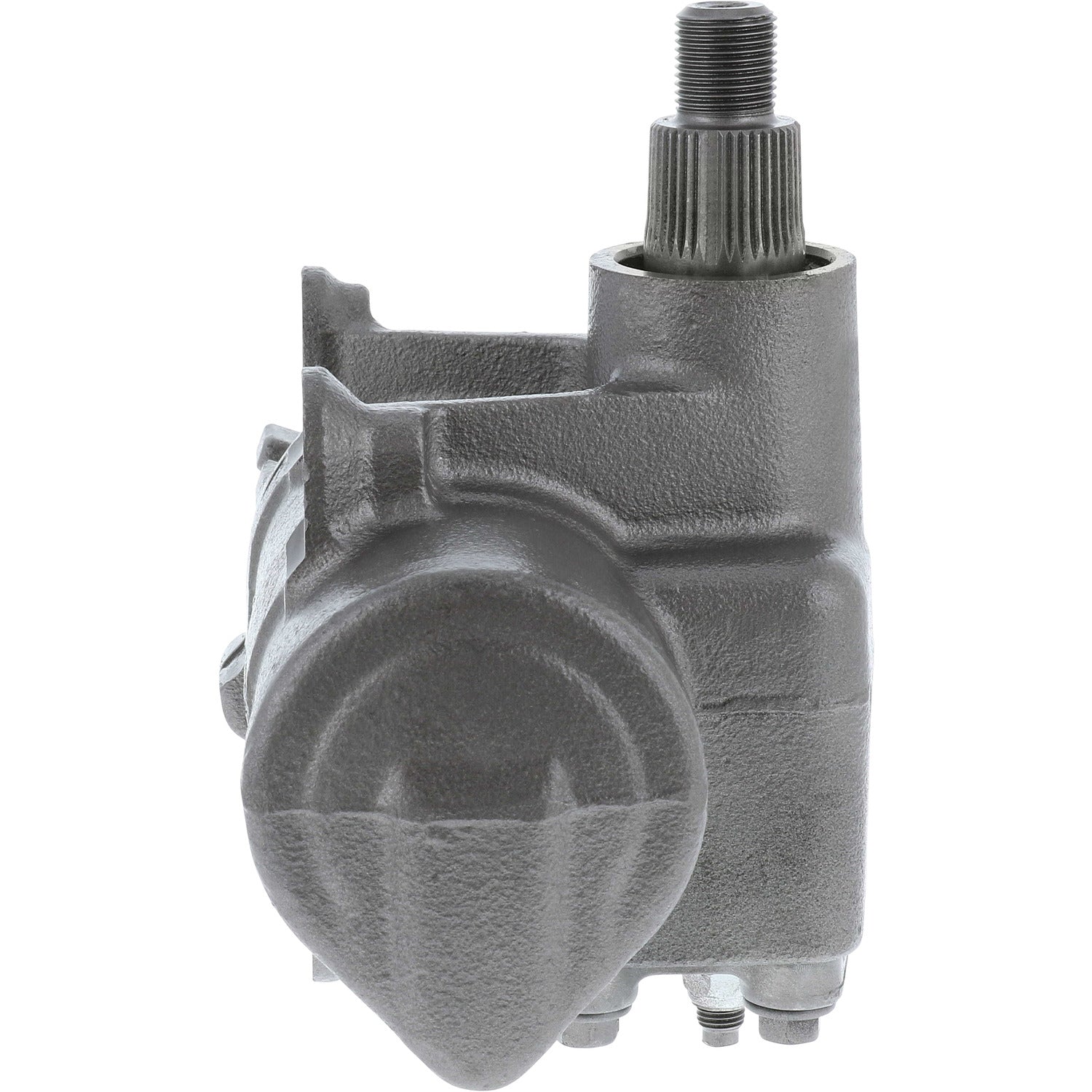

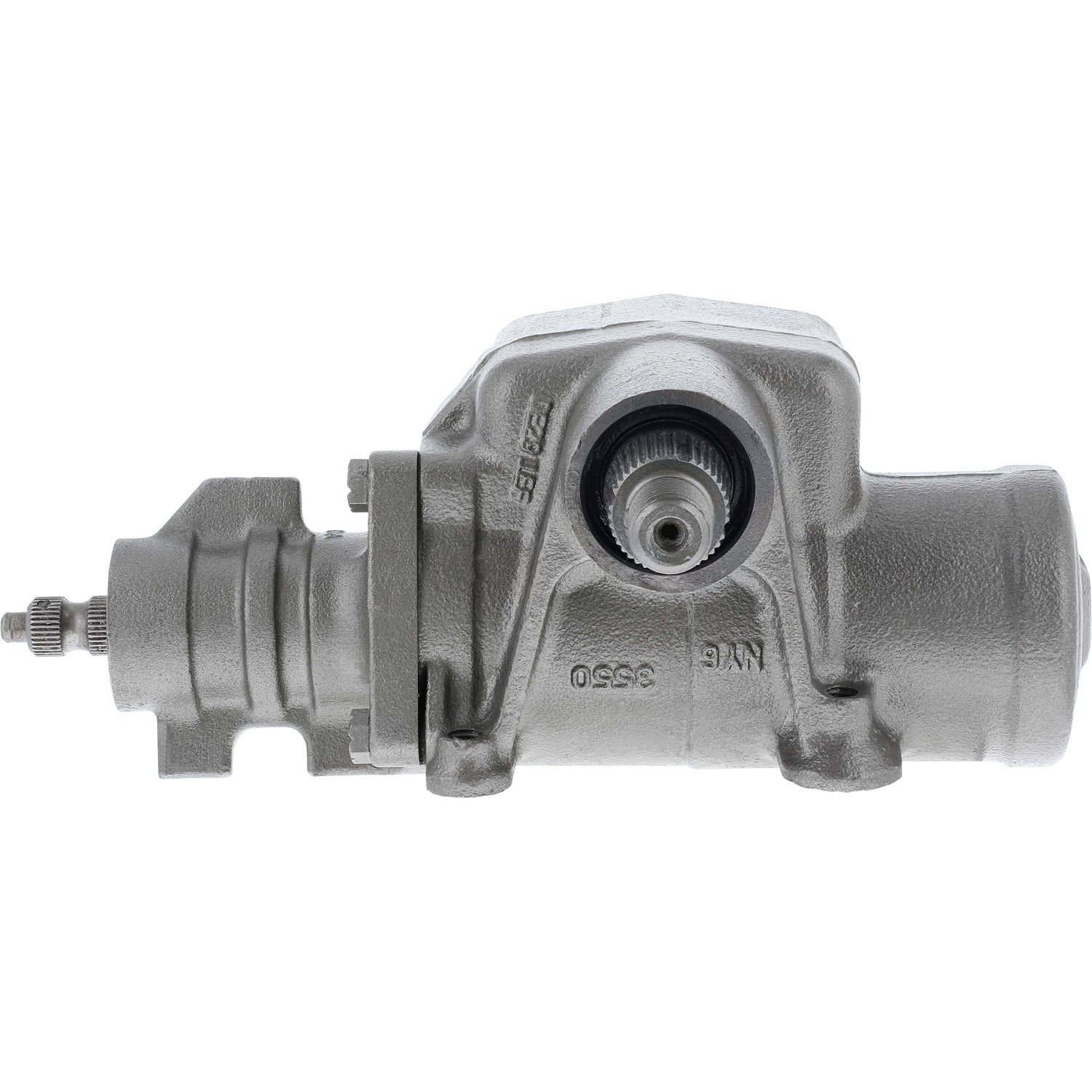

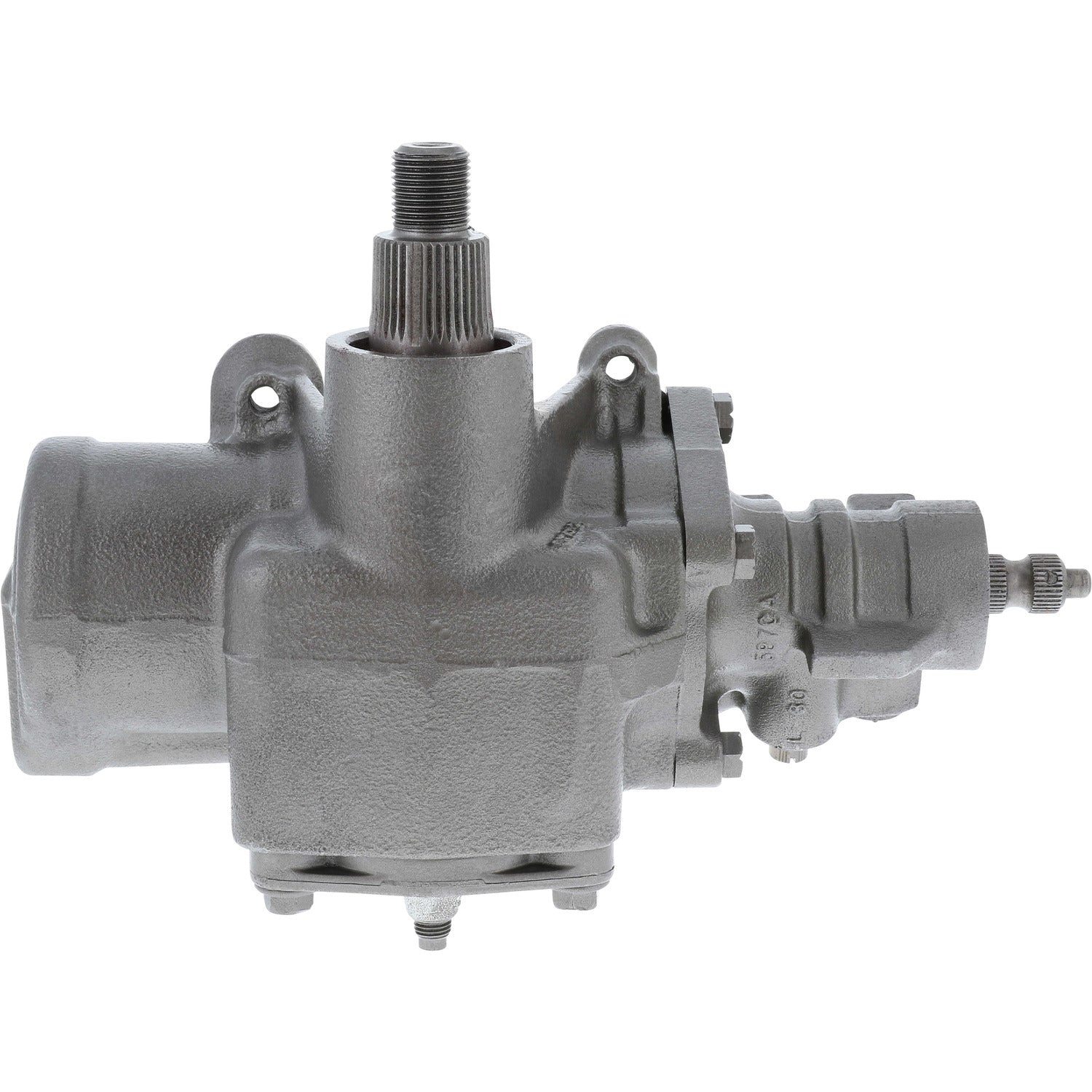

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98144M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98144M


MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Steering Input Shaft Spline Quantity 29
Input Shaft Type Splined, Single Flat
Mounting Hole Quantity 3
Output Shaft Diameter 1.38 IN
Output Shaft Diameter 34.93 MM
Pressure Port Thread Size 1/2 x 20
Pump Rotation Reverse
Return Port ID Size 0
Return Port Thread Size 5/8 X 18
Total Turns Lock To Lock 4

Application Info: Ford Excursion (2000-05), F-250 Super Duty (1999-04), F-350 (1997-07), F-350 Super Duty (1999-04), F-450 Super Duty (1999-04), F-550 Super Duty (1999-04) ***W/36 Spline Output Shaft***

Interchange: 2C3Z3504AARM, F7UZ3504FA, F7UZ3504FARM, F7UZ3504FBRM, YC3Z3504AARM, YC3Z3504ABRM

BBB Cross-Reference: 501-0119

Cardone Cross-Reference: 27-7569
