MAVAL

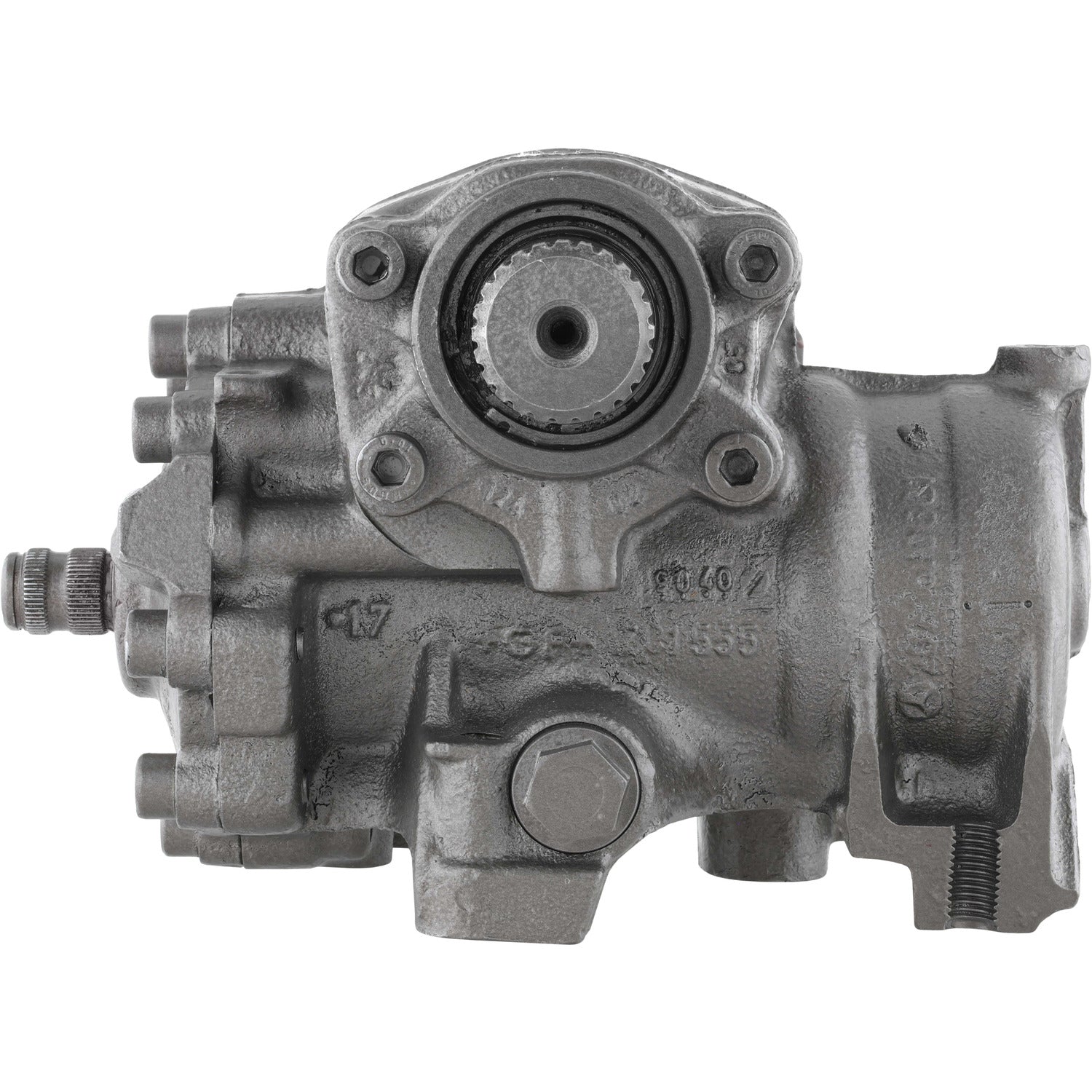

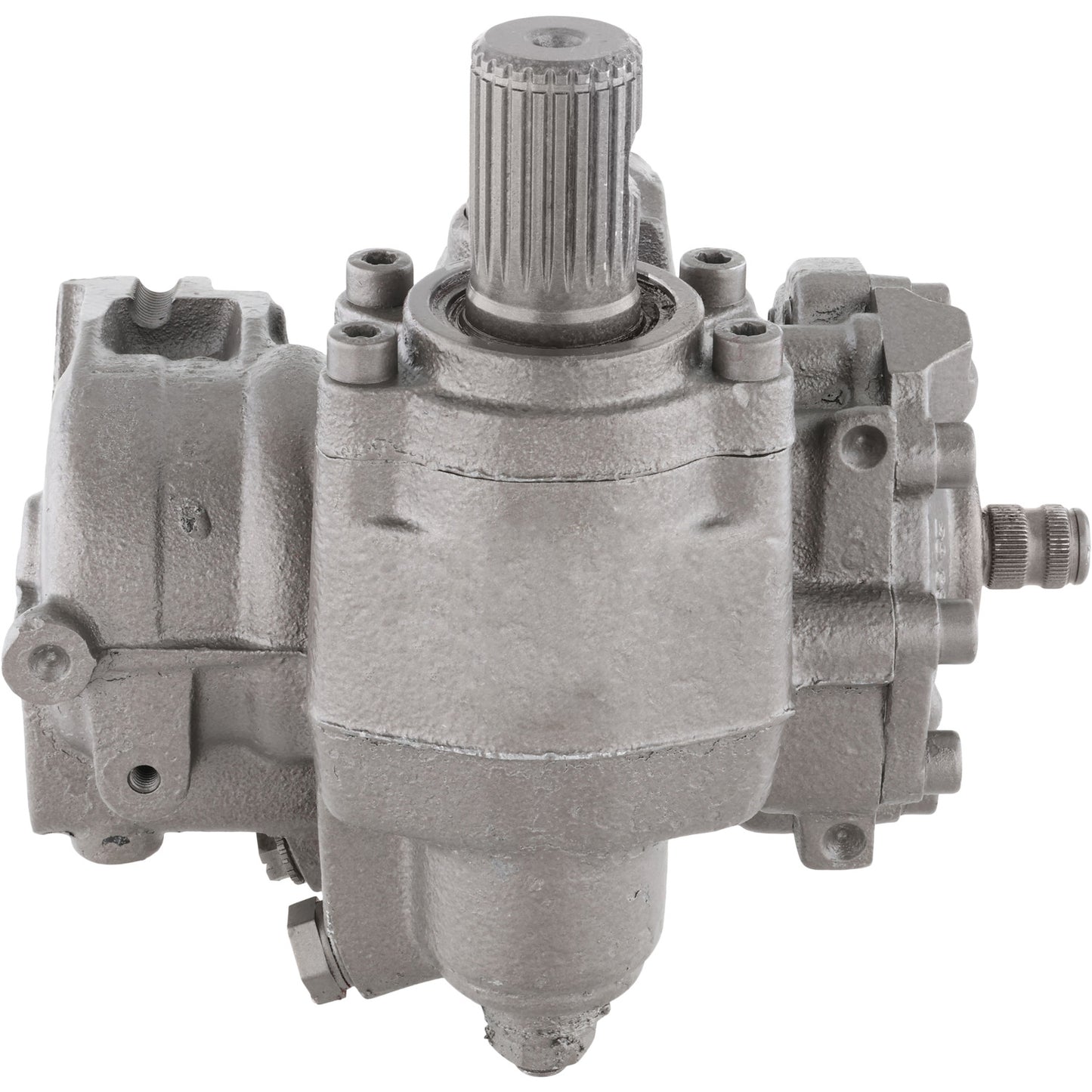

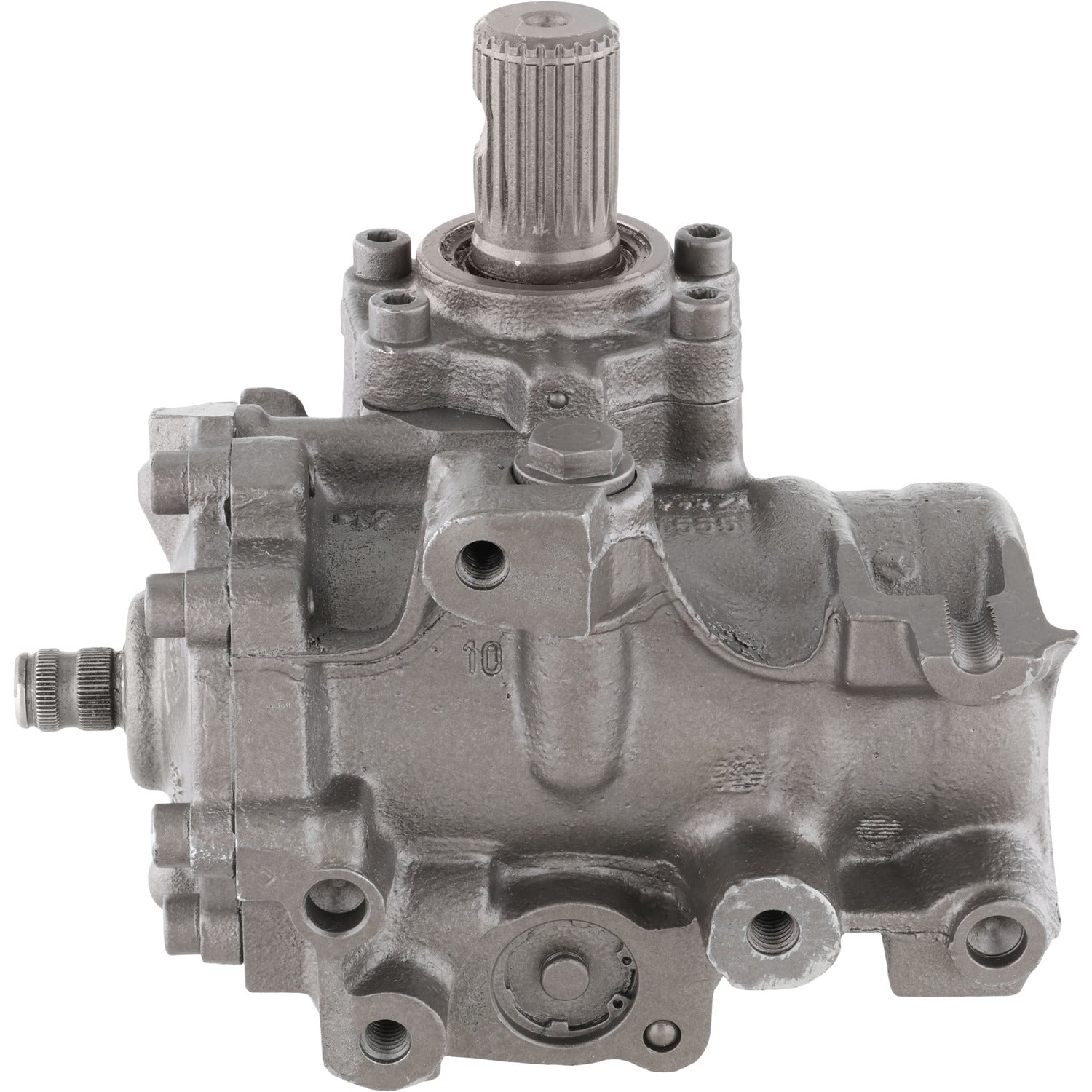

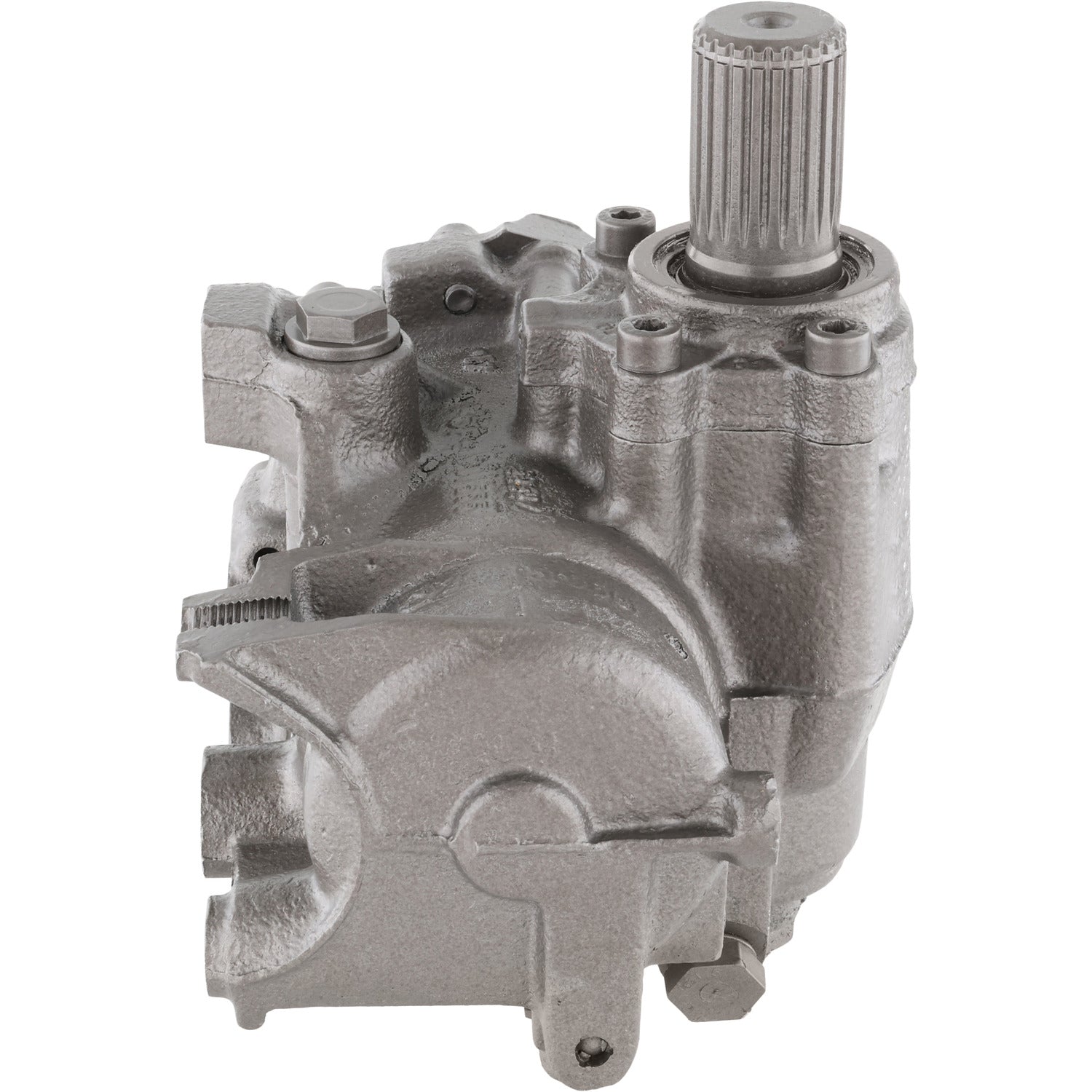

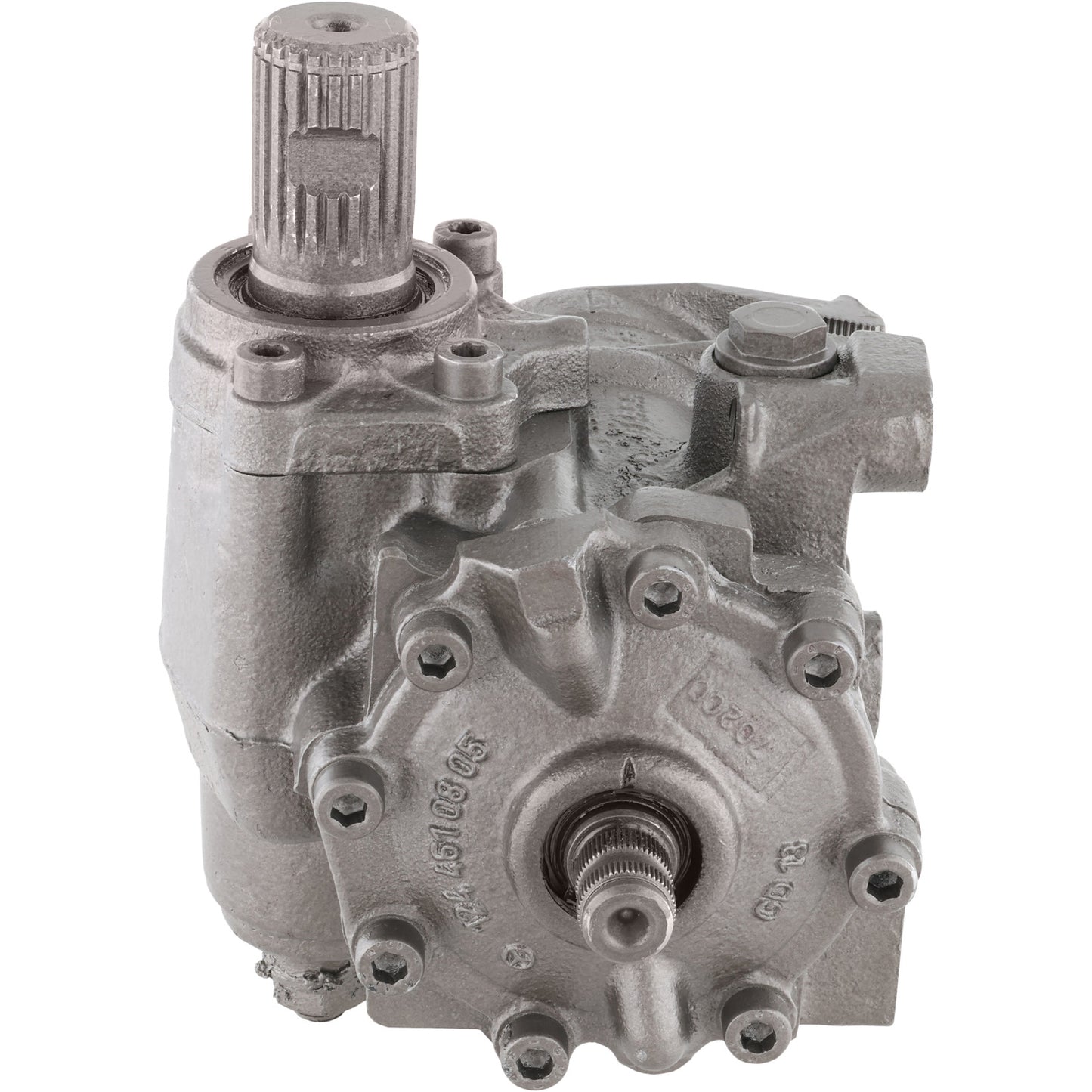

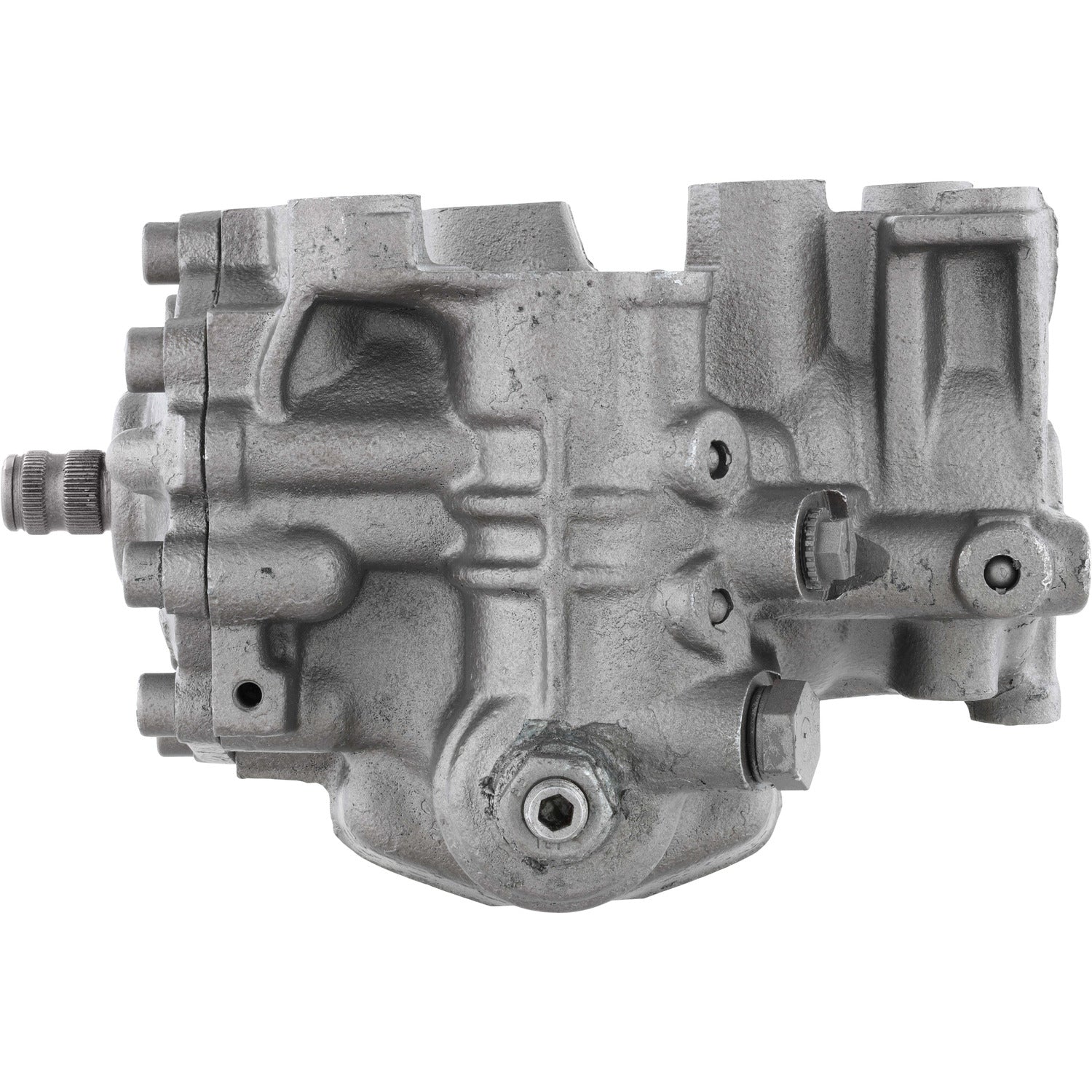

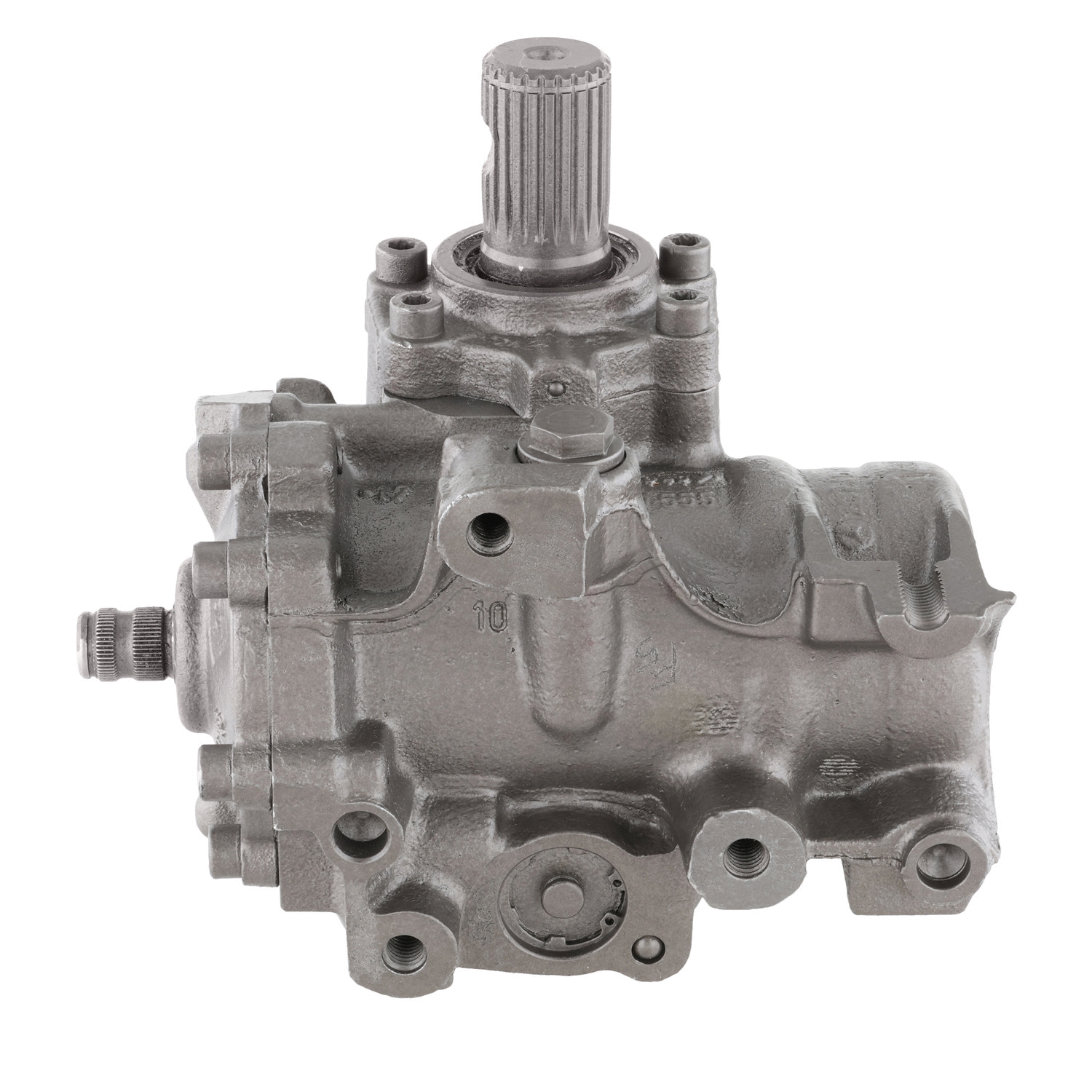

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98136M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98136M

SKU:98136M

MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type Annealed Washer
Input Shaft Diameter 0.7 IN
Input Shaft Diameter 17.65 MM
Steering Input Shaft Spline Quantity 54
Input Shaft Type Splined, Grooved
Mounting Hole Quantity 3
Output Shaft Diameter 1.26 IN
Output Shaft Diameter 32 MM
Pressure Port Thread Size M14 x 1.5
Pump Rotation Standard
Return Port ID Size 0
Return Port Thread Size M12 x 1.5
Total Turns Lock To Lock 3.4

Application Info: Mercedes-Benz C280 (1998-2000), Mercedes-Benz CLK320 (1998-2003), Mercedes-Benz CLK430 (1999-2003)

Interchange: Mercedes-Benz - 202-460-35-00

BBB Cross-Reference: 513-0121

Cardone Cross-Reference: 27-8608
