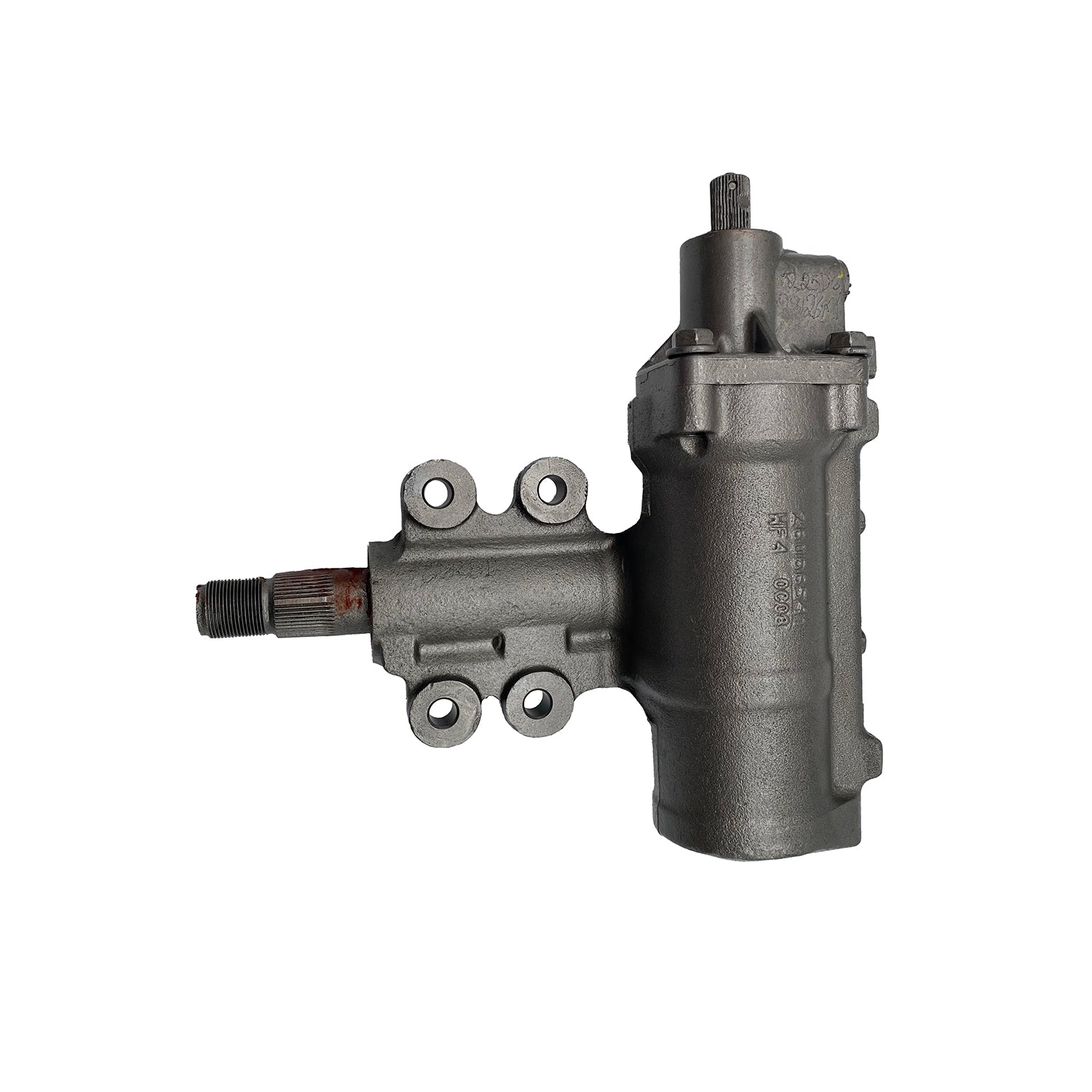

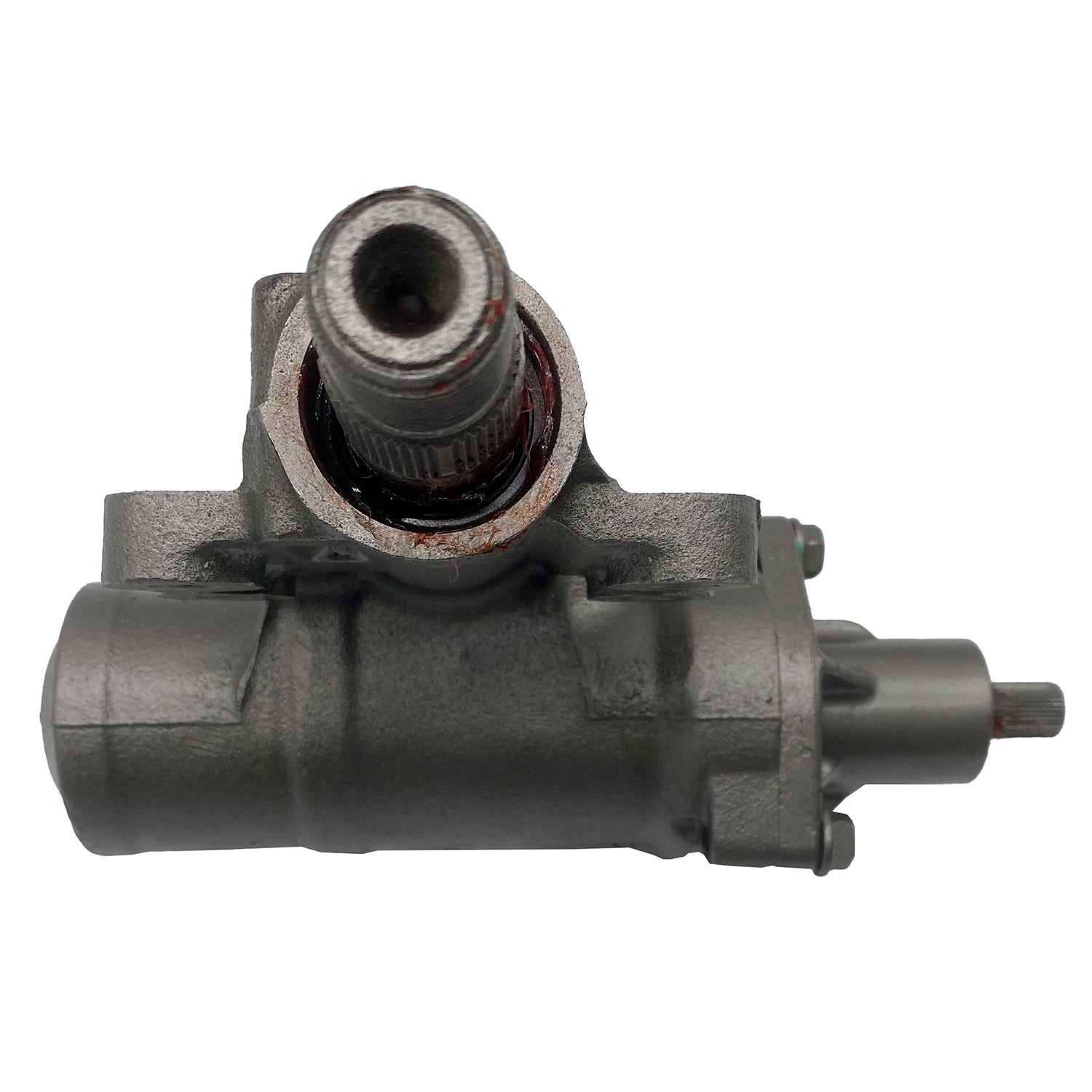

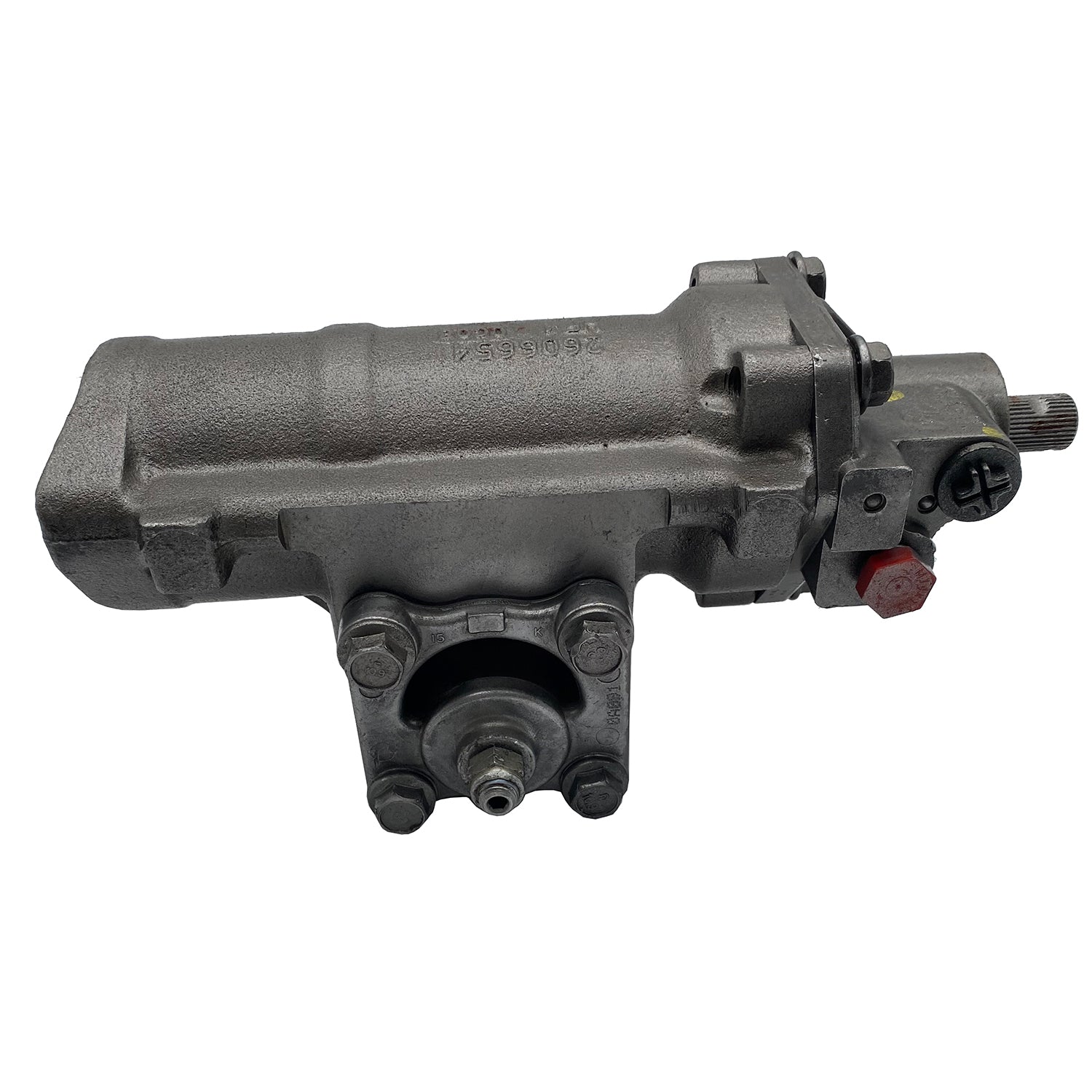

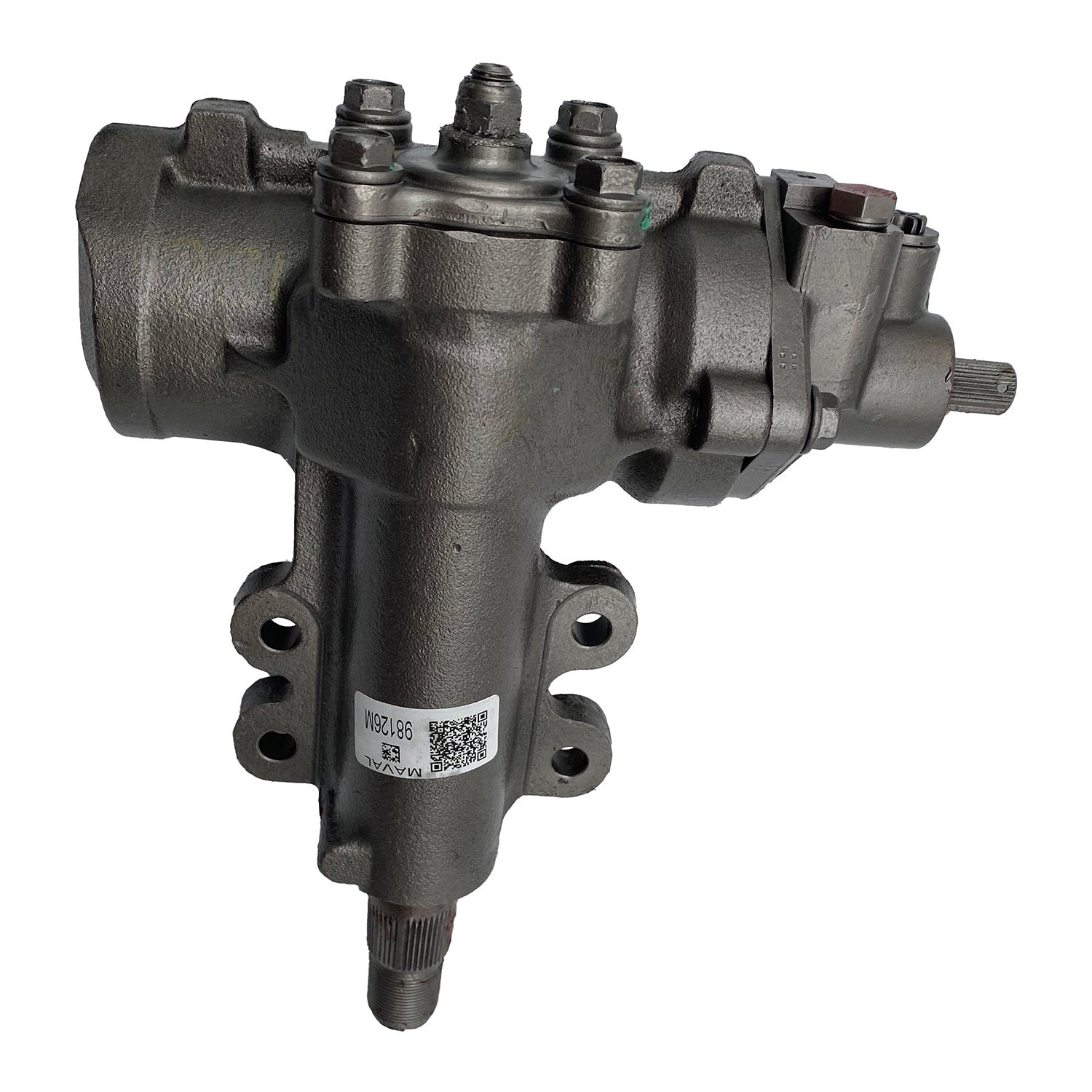

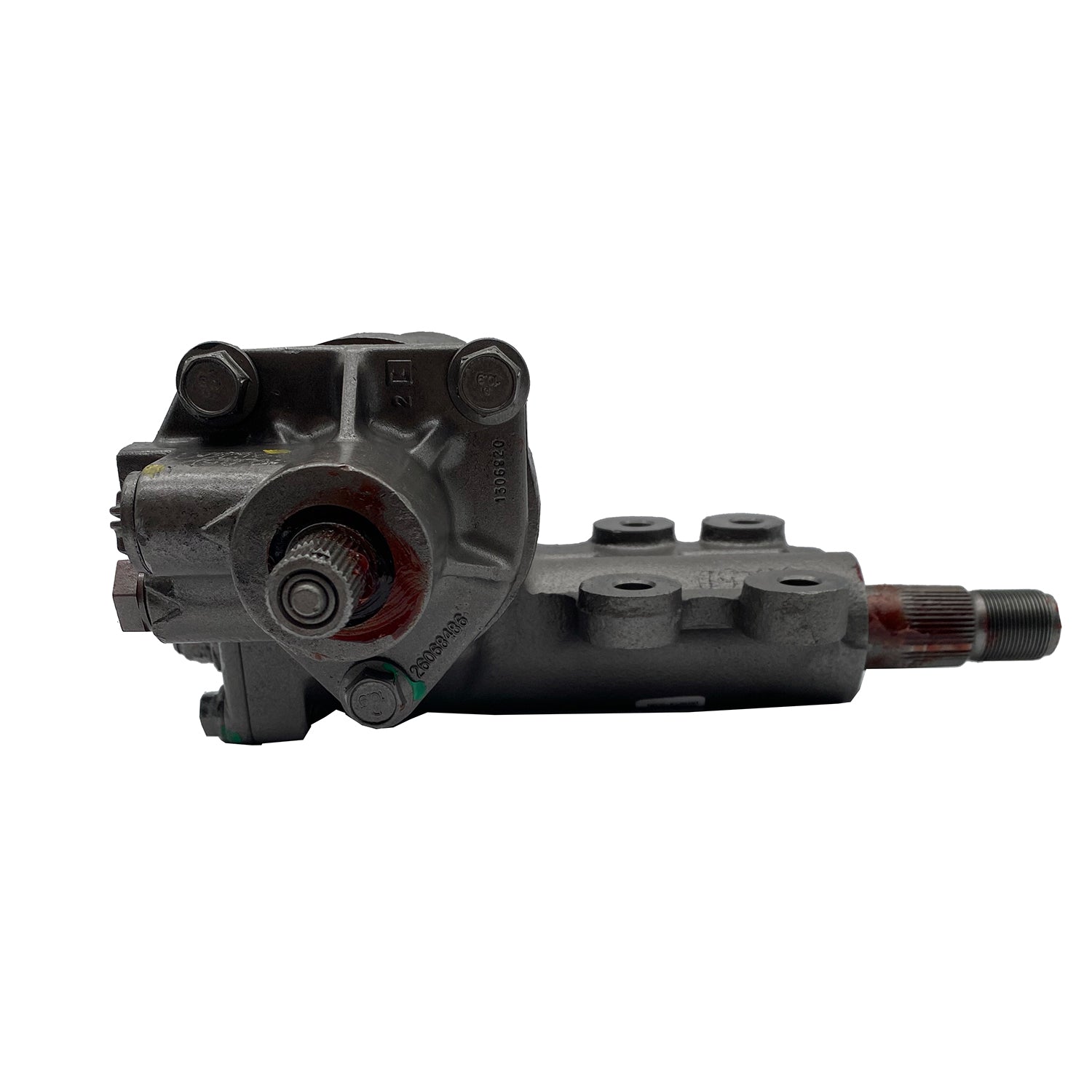

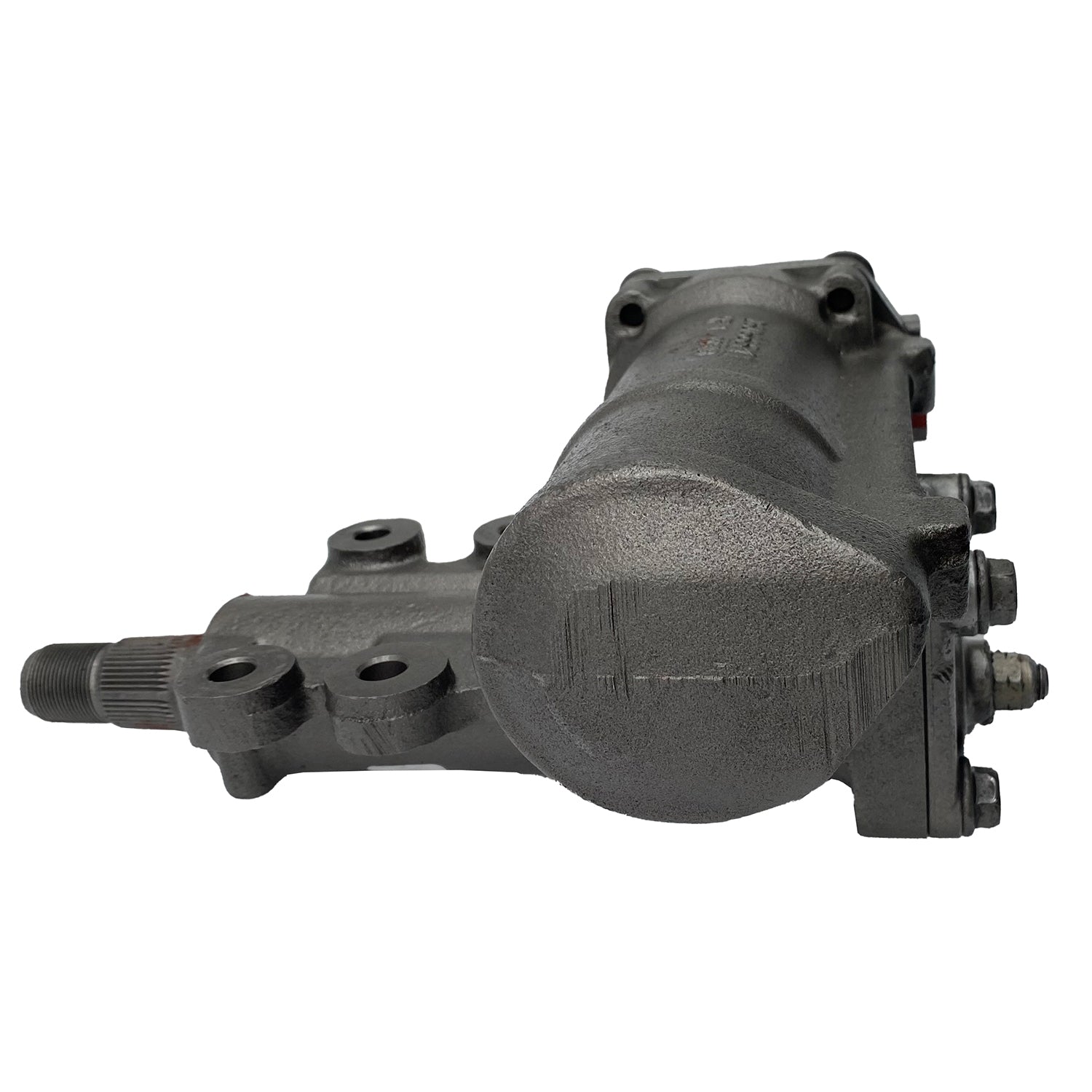

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98126M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98126M

SKU:98126M

MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type Seat
Input Shaft Diameter 0.69 IN
Input Shaft Diameter 17.4 MM
Steering Input Shaft Spline Quantity 34
Input Shaft Type Splined, Whistle Notch
Mounting Hole Quantity 4
Output Shaft Diameter 1.25 IN
Output Shaft Diameter 31.75 MM
Port ID Size 0
Pressure Port Thread Size M14 x 1.5
Return Port ID Size 0
Return Port Thread Size M16 x 1.5
Total Turns Lock To Lock 3.8



Application Info: Nissan Frontier (1999-2004), Nissan Xterra (2000-2004)

Interchange: Nissan - 49200-9Z011

BBB Cross-Reference: 510-0111

Cardone Cross-Reference: 27-8416
