MAVAL

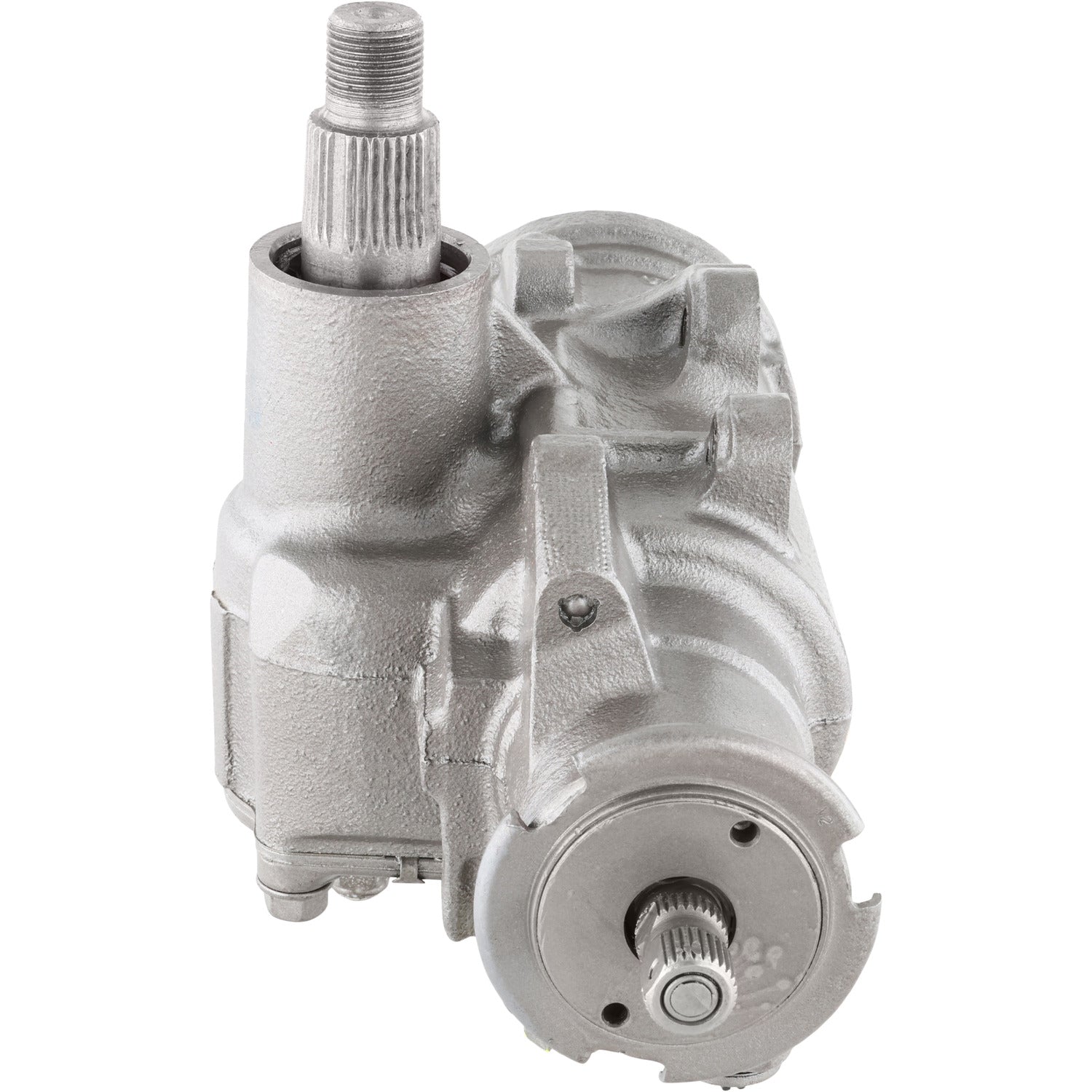

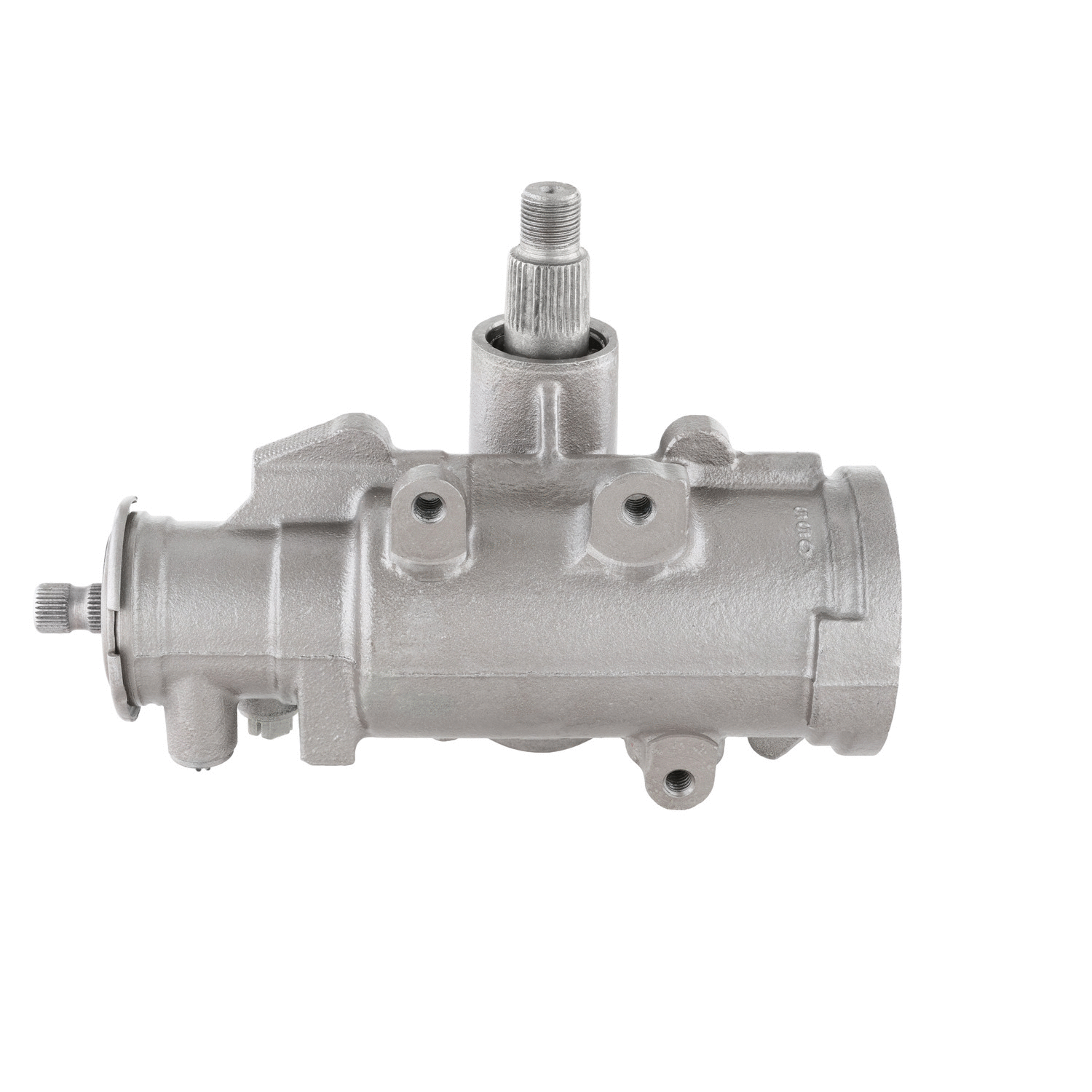

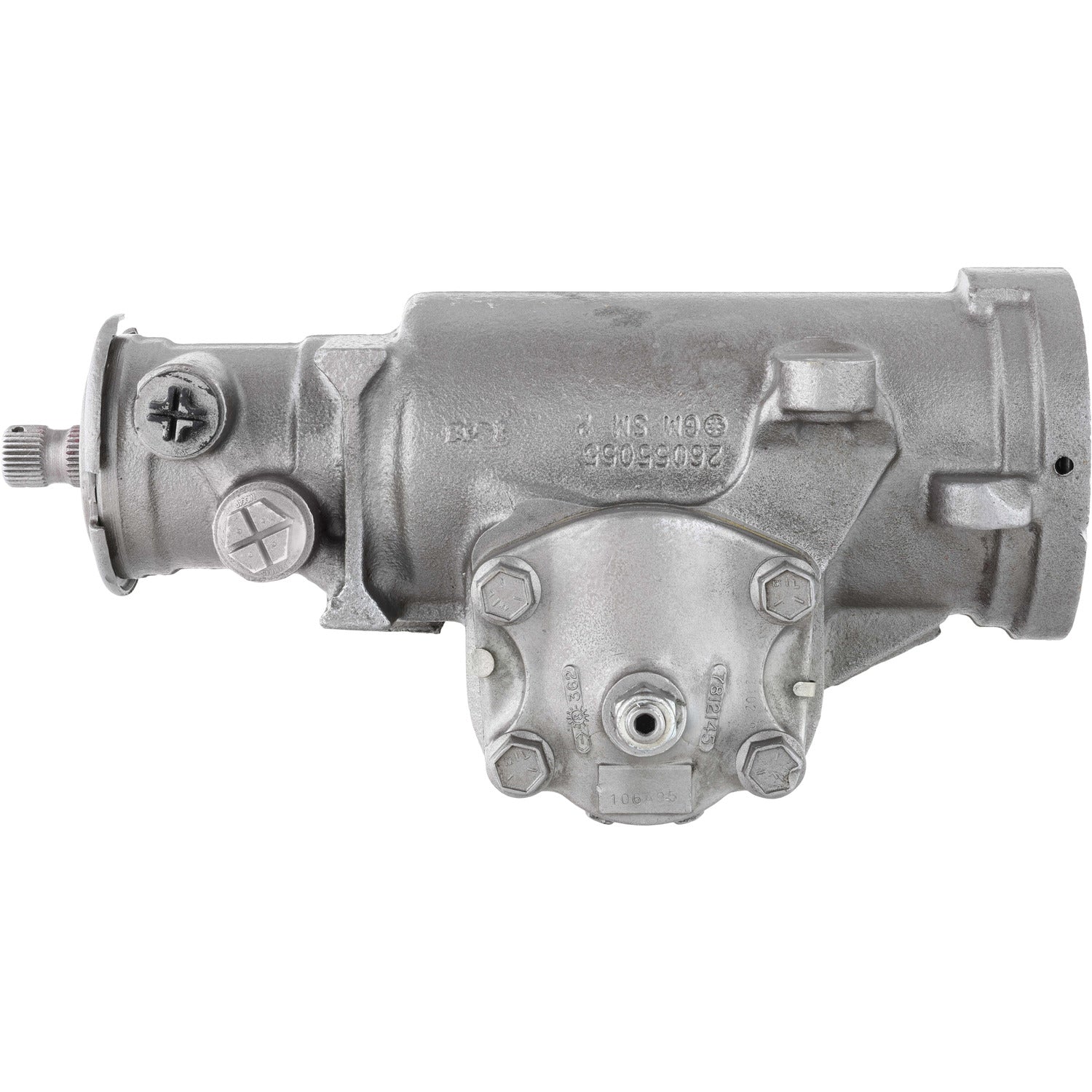

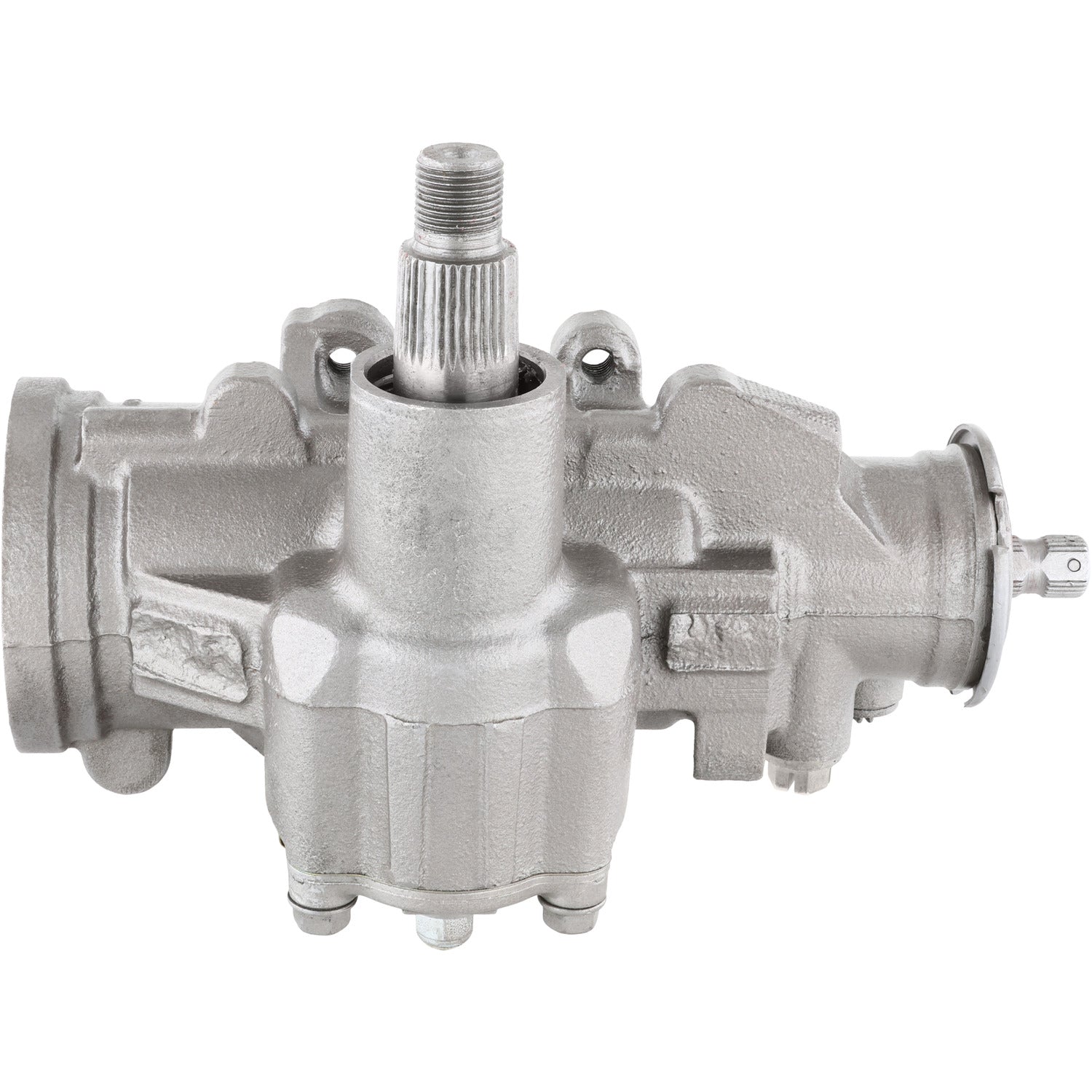

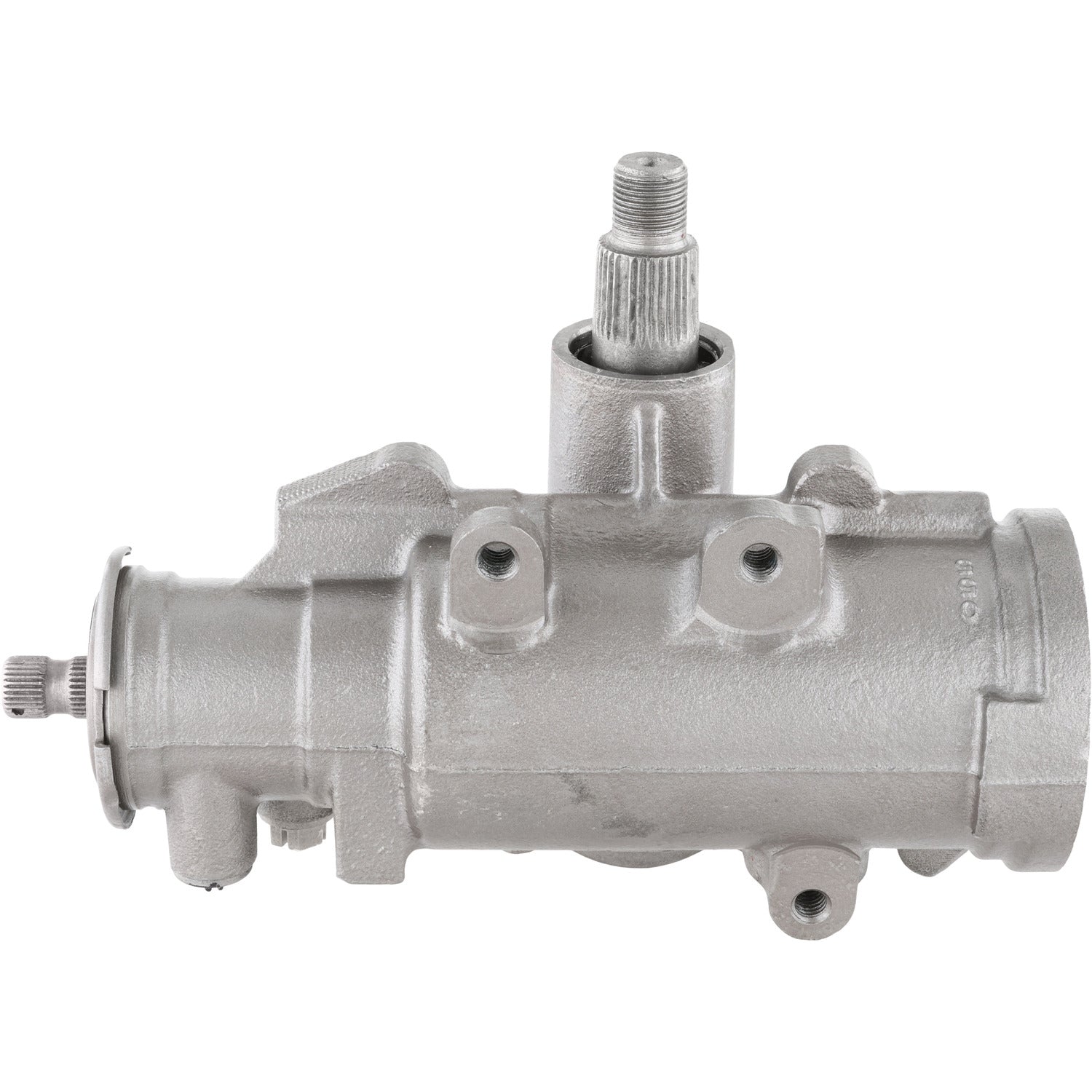

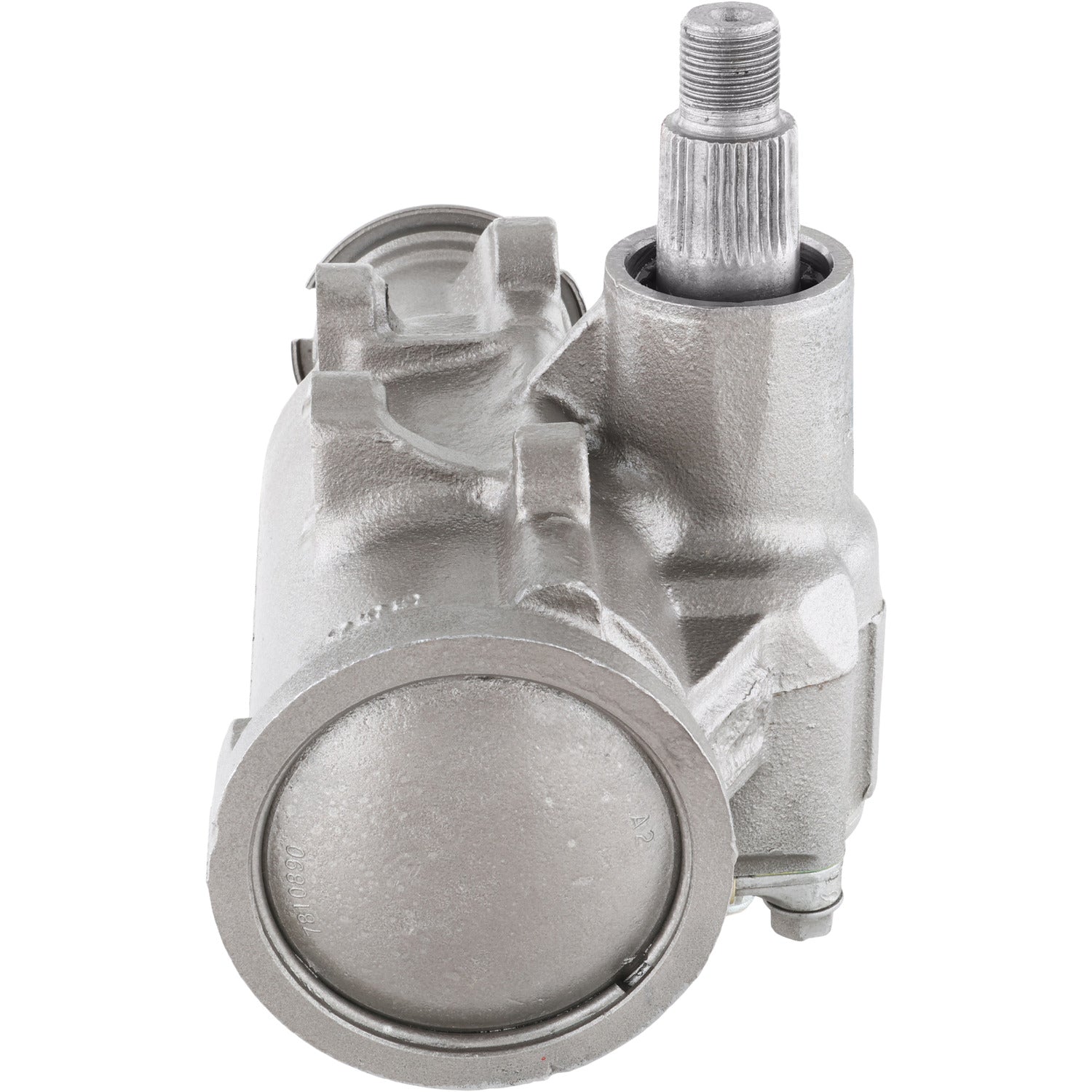

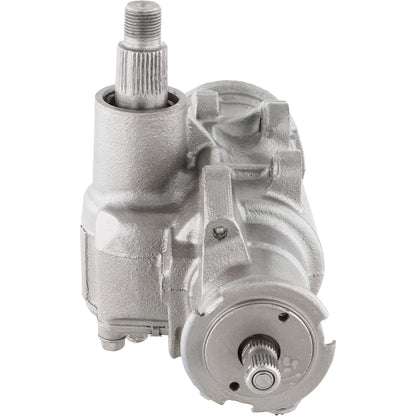

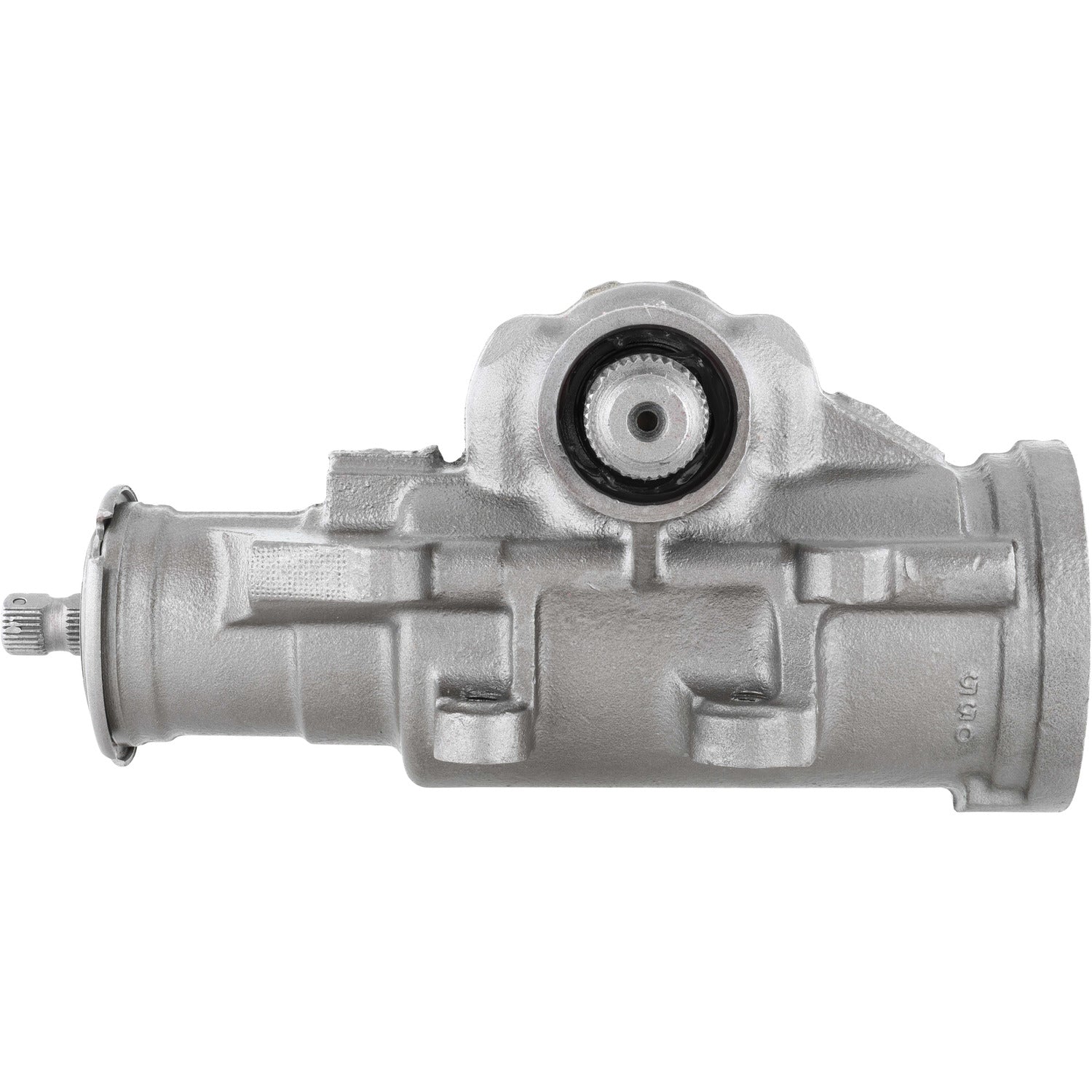

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98120M

SKU:98120M

MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type	O-Ring
Input Shaft Diameter	0.73	IN
Input Shaft Diameter	18.42	MM
Steering Input Shaft Spline Quantity	25
Input Shaft Type	Splined, Single Flat
Number of Mounting Holes	3
Output Shaft Diameter	1.25	IN
Output Shaft Diameter	31.75	MM
Pitman Arm Included	No
Pressure Port Thread Size	M18 x 1.5
Pump Rotation	Standard
Return Port Thread Size	M16 x 1.5
Total Turns Lock To Lock	3
