MAVAL

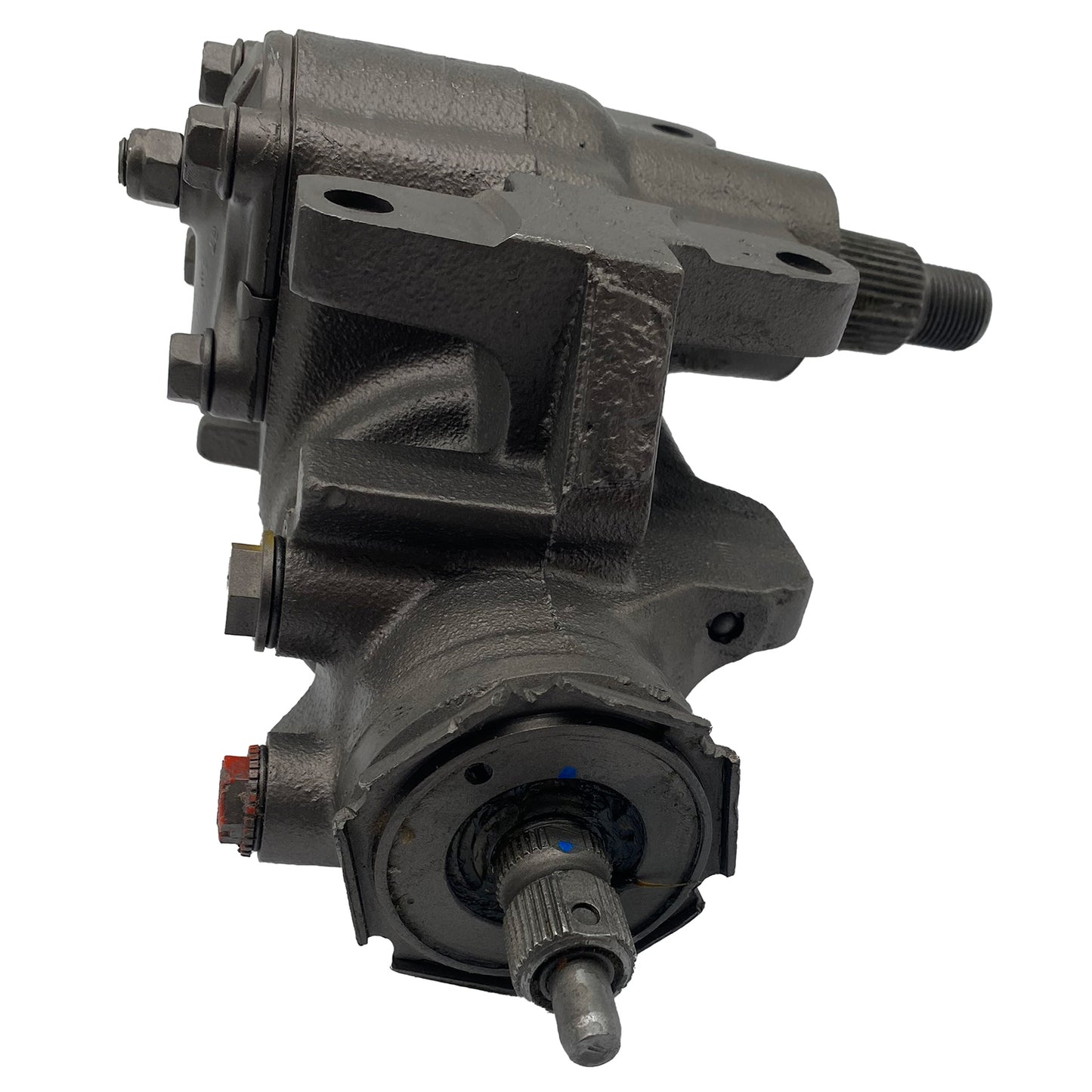

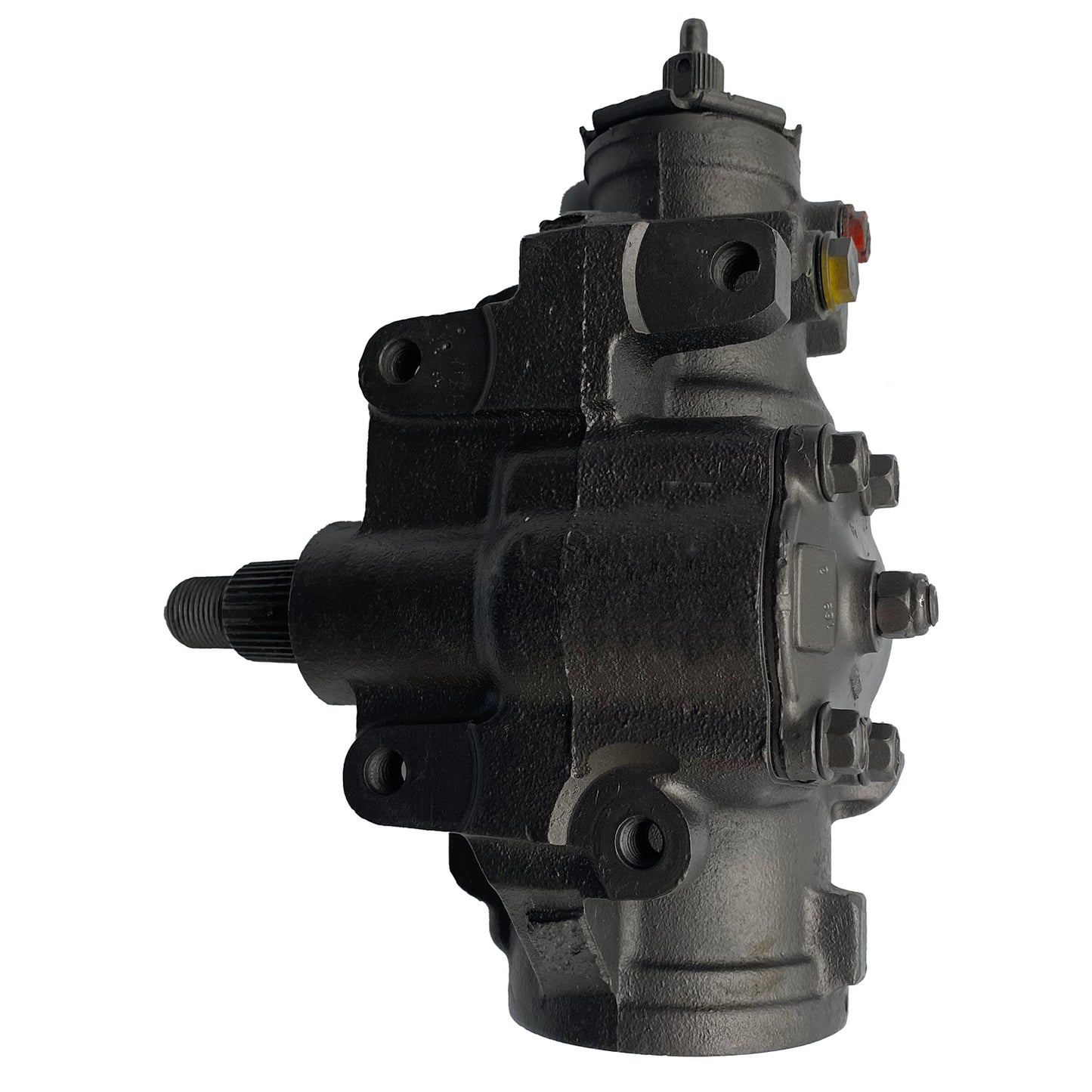

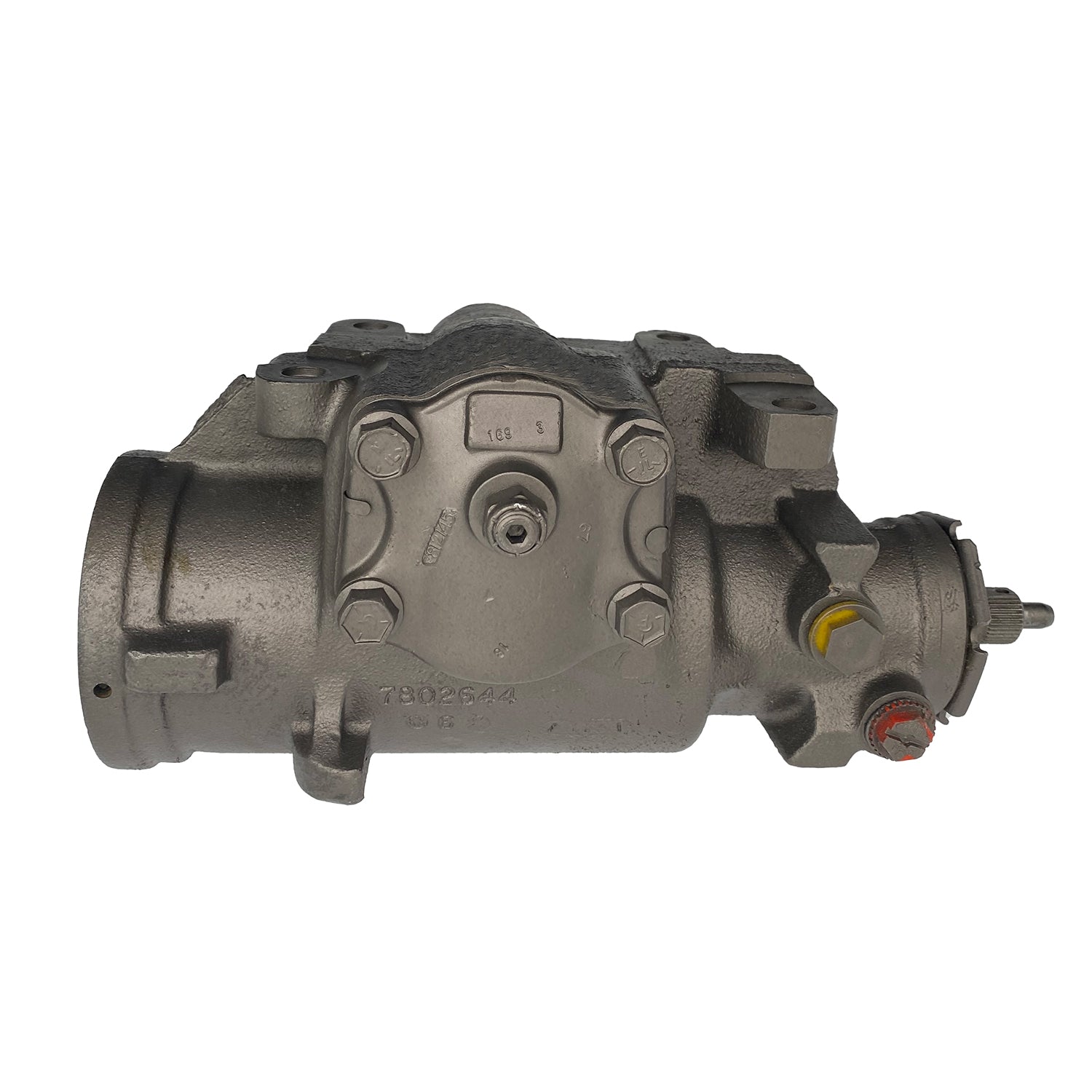

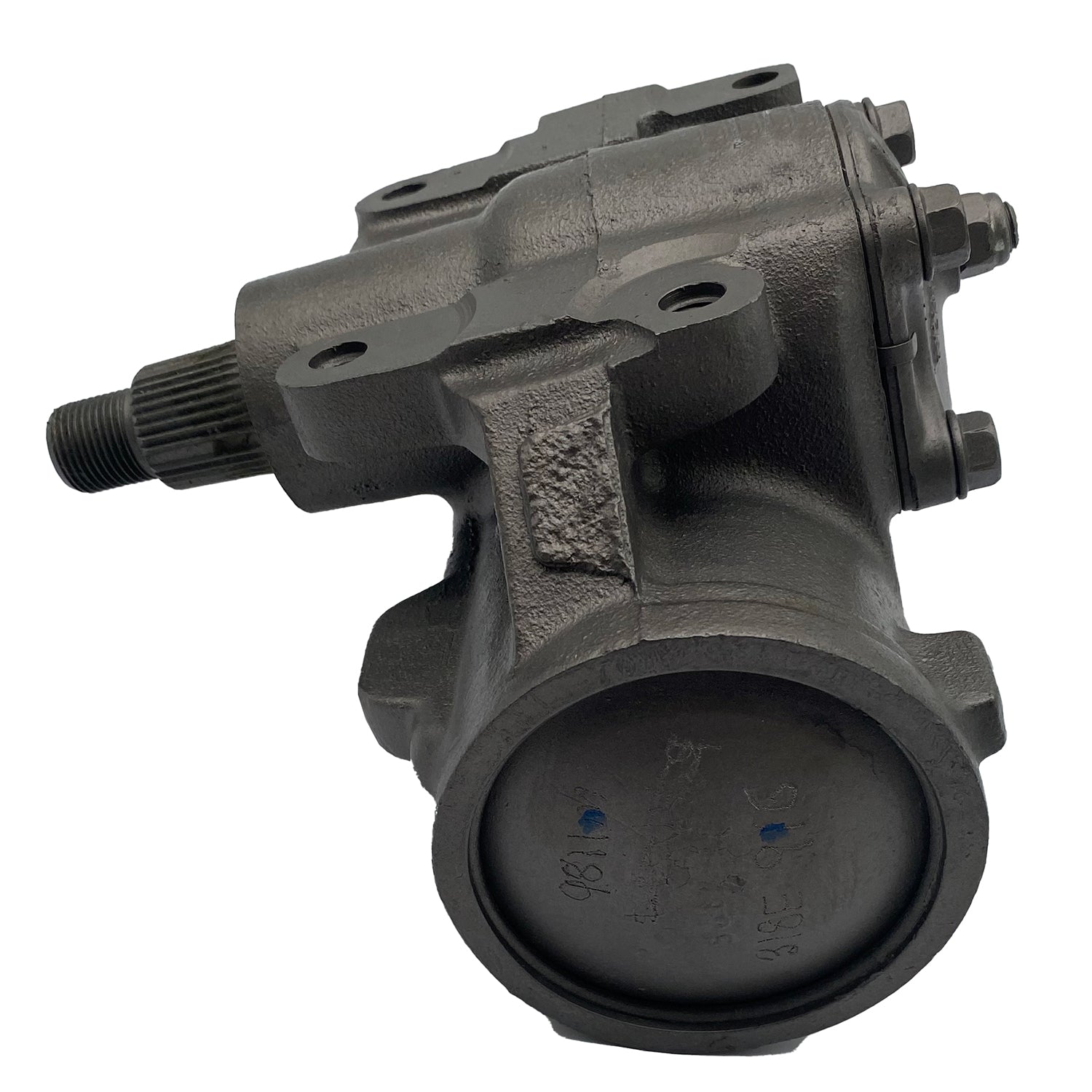

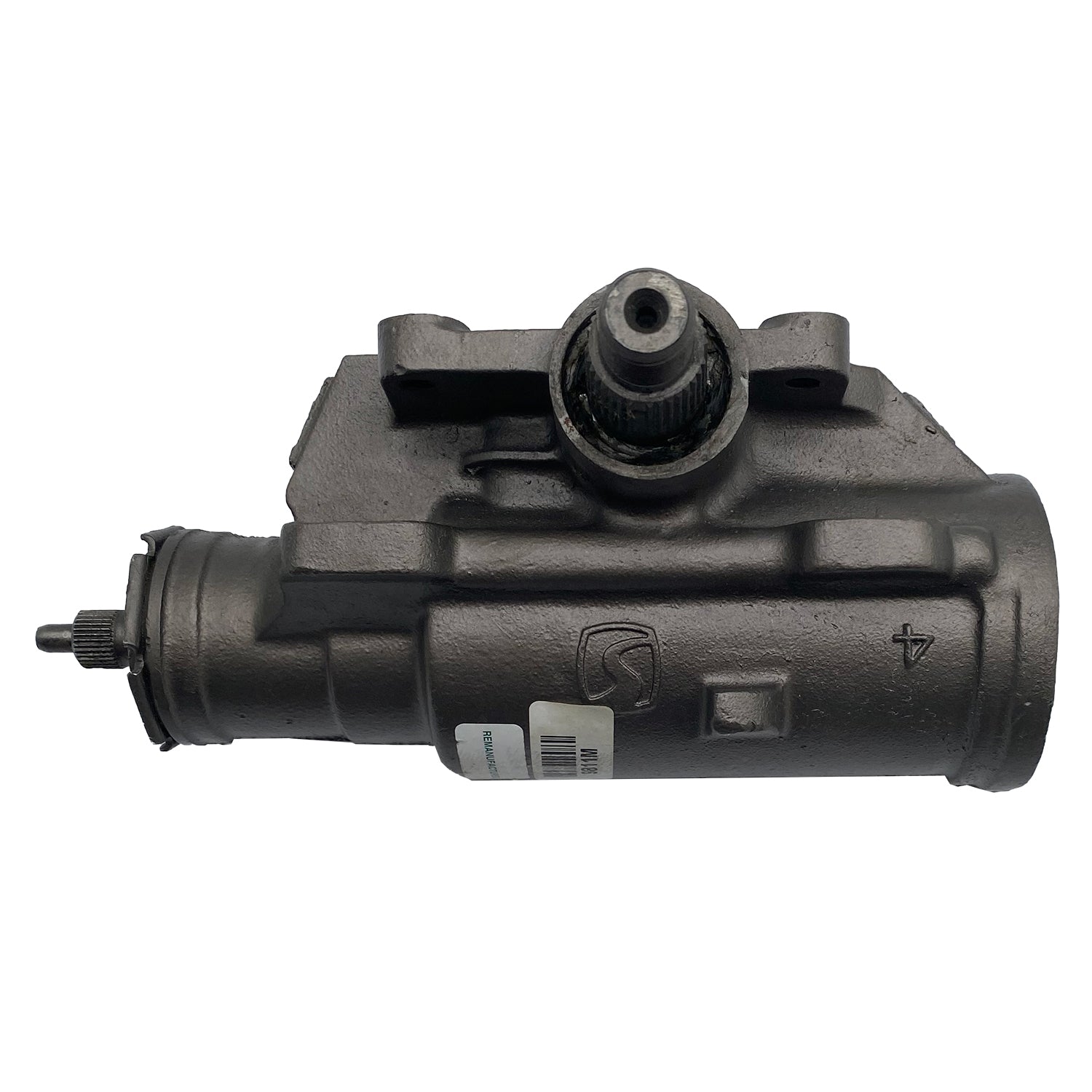

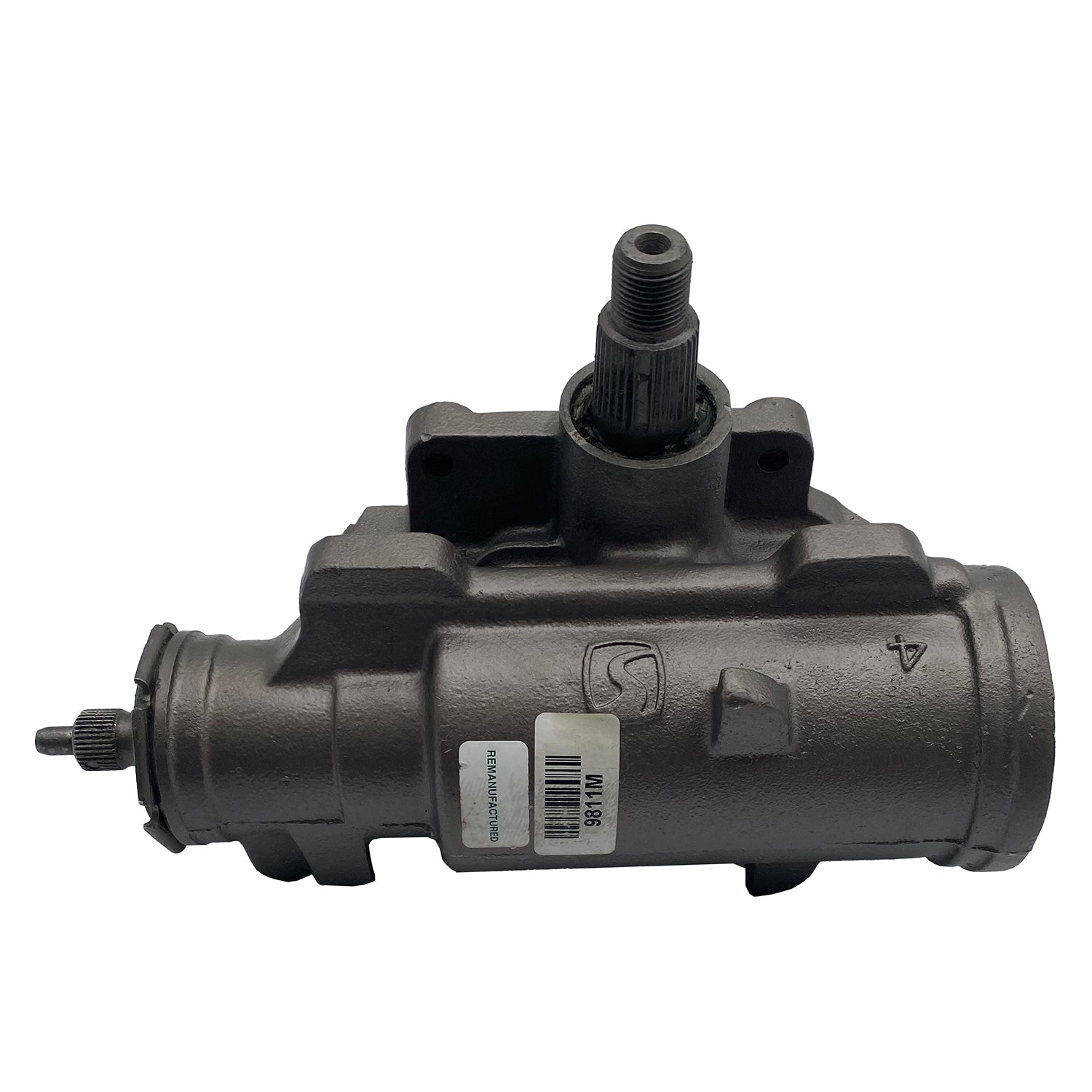

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9811M
Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9811M
SKU:9811M
MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.
| Hose Port Type | Seat | |
| Input Shaft Diameter | 0.8 | IN |
| Input Shaft Diameter | 20.32 | MM |
| Steering Input Shaft Spline Quantity | 31 | |
| Input Shaft Type | Splined, Grooved | |
| Number of Mounting Holes | 4 | |
| Output Shaft Diameter | 1.25 | IN |
| Output Shaft Diameter | 31.75 | MM |
| Pitman Arm Included | No | |
| Pressure Port Thread Size | 11/16 x 18 | |
| Pump Rotation | Standard | |
| Return Port Thread Size | 5/8 X 18 | |
| Total Turns Lock To Lock | 3.3 or 4.0 |
Application Info: GMC Jimmy (1975-1976), Dodge W200 Pickup (1972-1974), Dodge D200 Pickup (1972-1974), GMC C15 (1975-1976), GMC C25 Suburban (1975-1976), GMC C15 Suburban (1975-1976), Chevrolet C20 Suburban (1971-1976), Dodge D200 (1975-1977), Dodge D100 (1975-1977), GMC C35 (1975-1976), Dodge W100 (1975-1977), Dodge D300 (1975-1977), Dodge W150 (1977), Dodge D100 Pickup (1972-1974), Chevrolet C20 (1975-1976), Dodge W300 (1975-1977), Chevrolet C10 Suburban (1971-1976), Dodge W200 (1975-1977), Dodge D300 Pickup (1972-1974), Chevrolet C30 (1975-1976), Dodge W100 Pickup (1972-1974), Dodge Ramcharger (1974-1977), Dodge W300 Pickup (1972-1974), Dodge D150 (1977), GMC C25 (1975-1976), Chevrolet C10 (1975-1976)
Interchange: Chrysler - 07810985
BBB Cross-Reference: 502-0109
Cardone Cross-Reference: 27-7501
