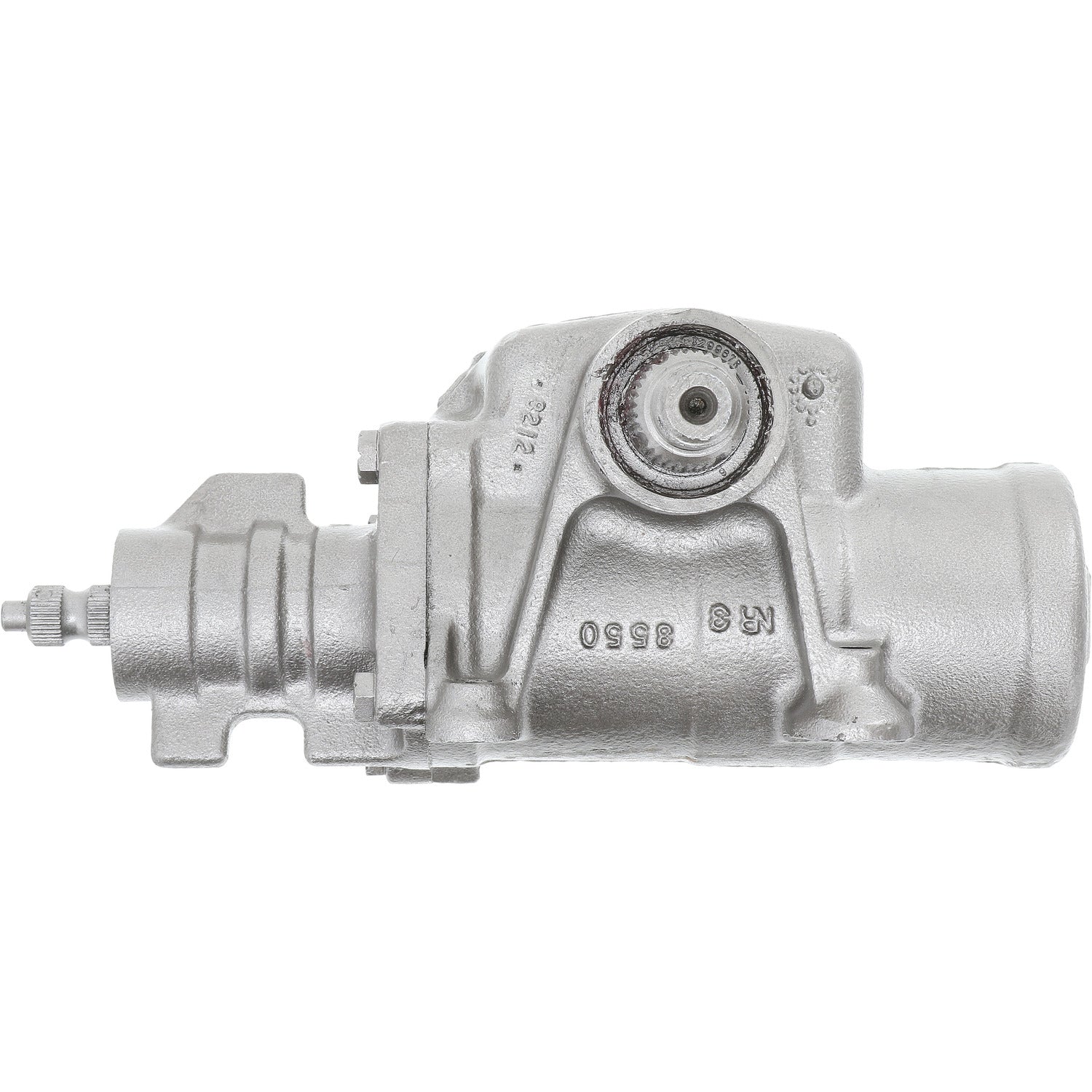

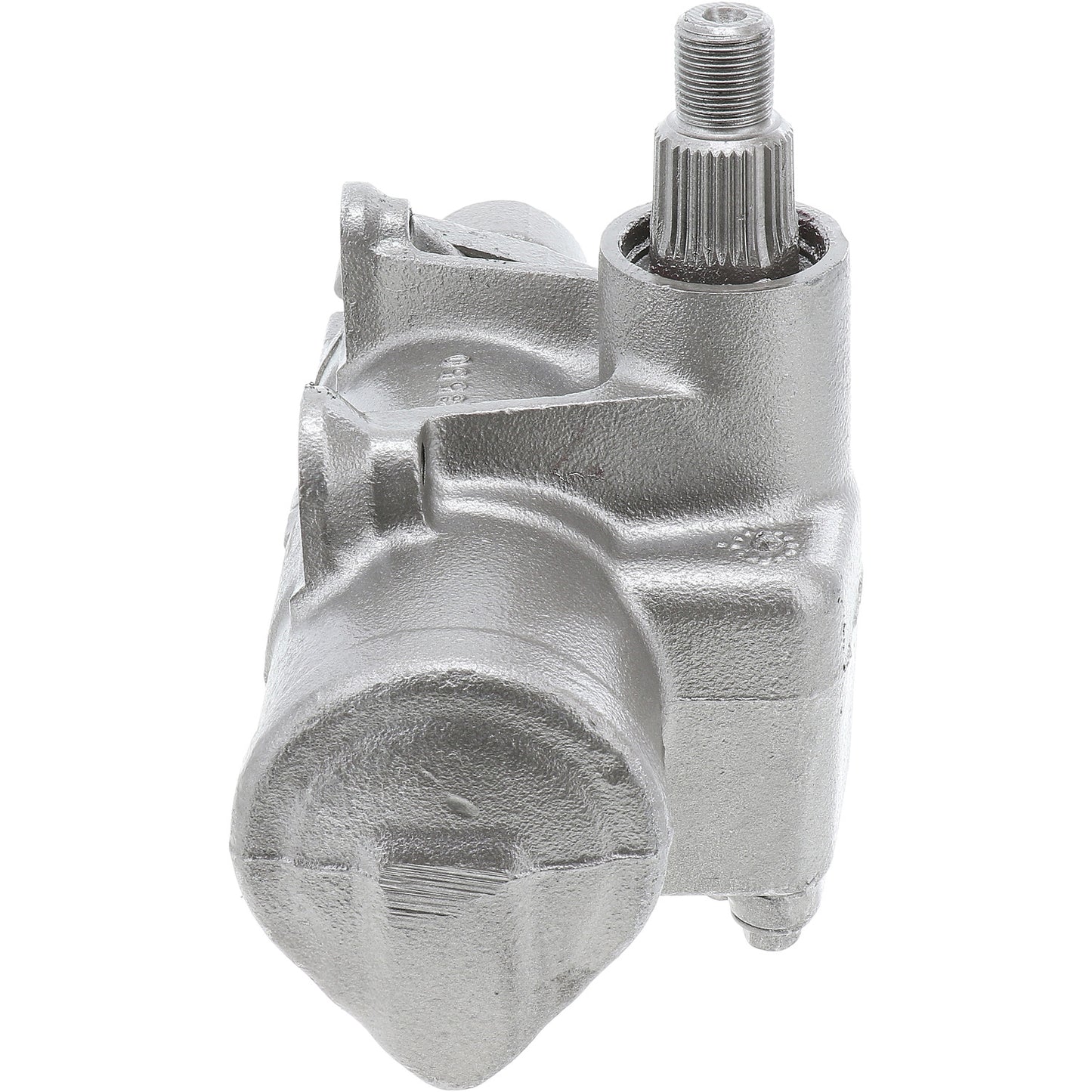

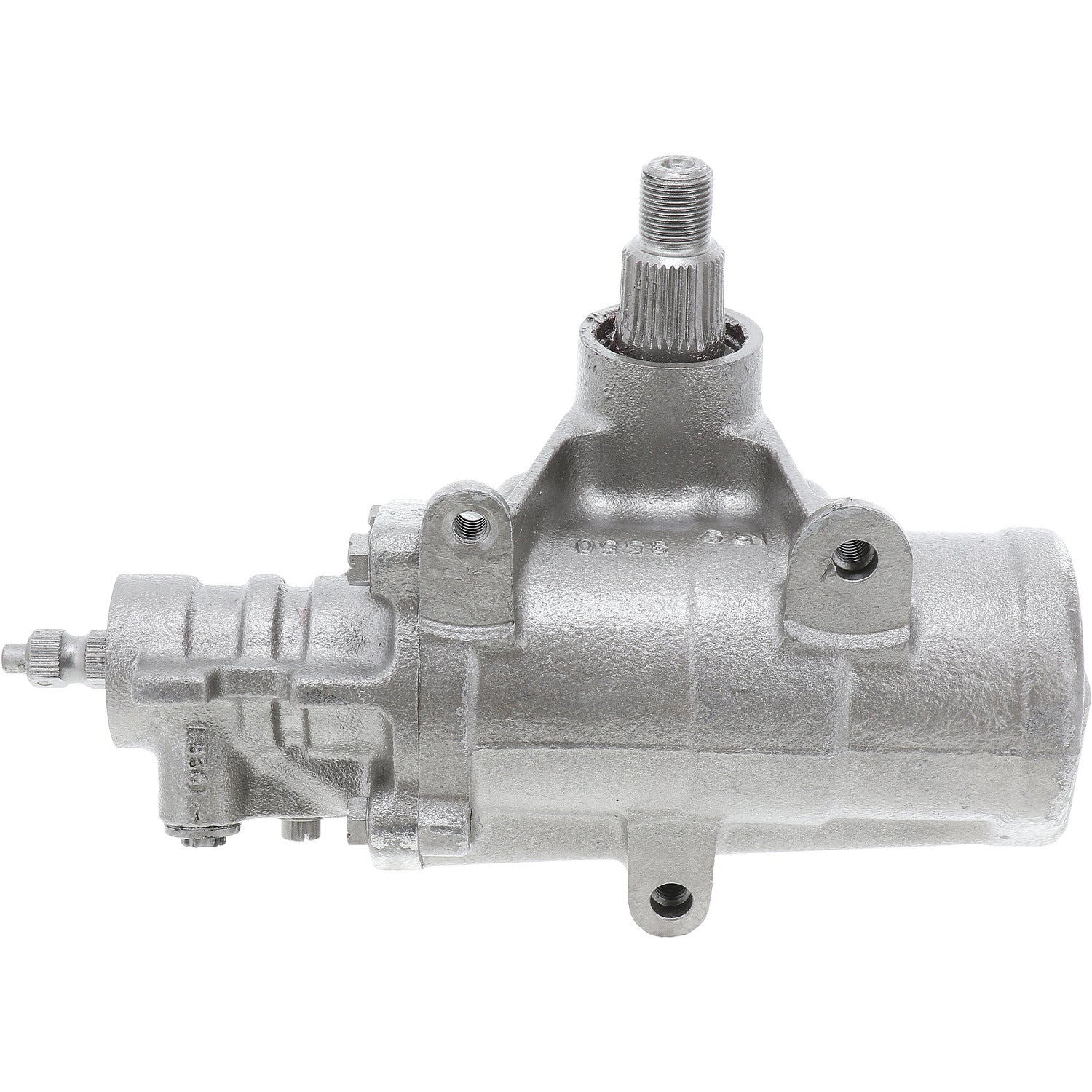

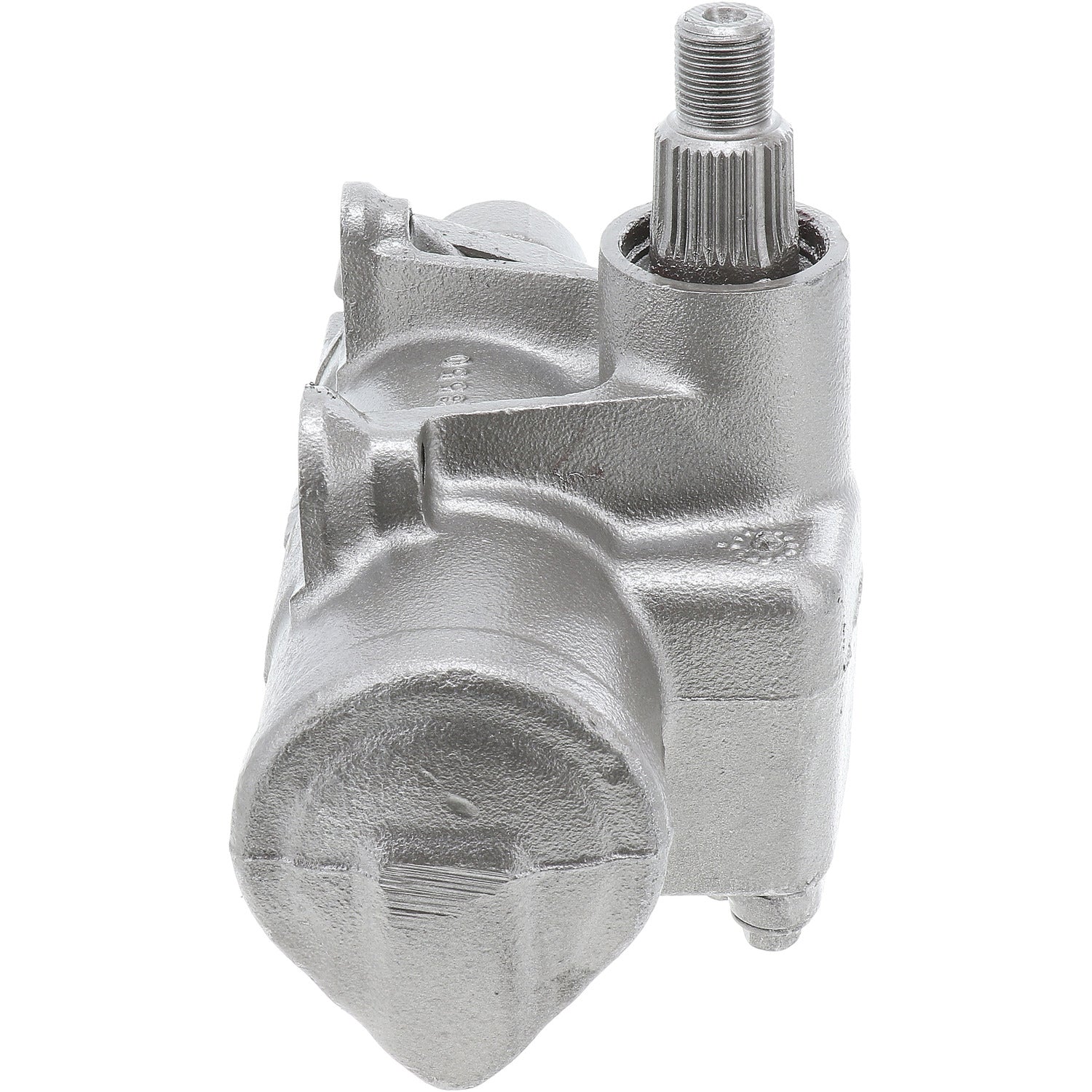

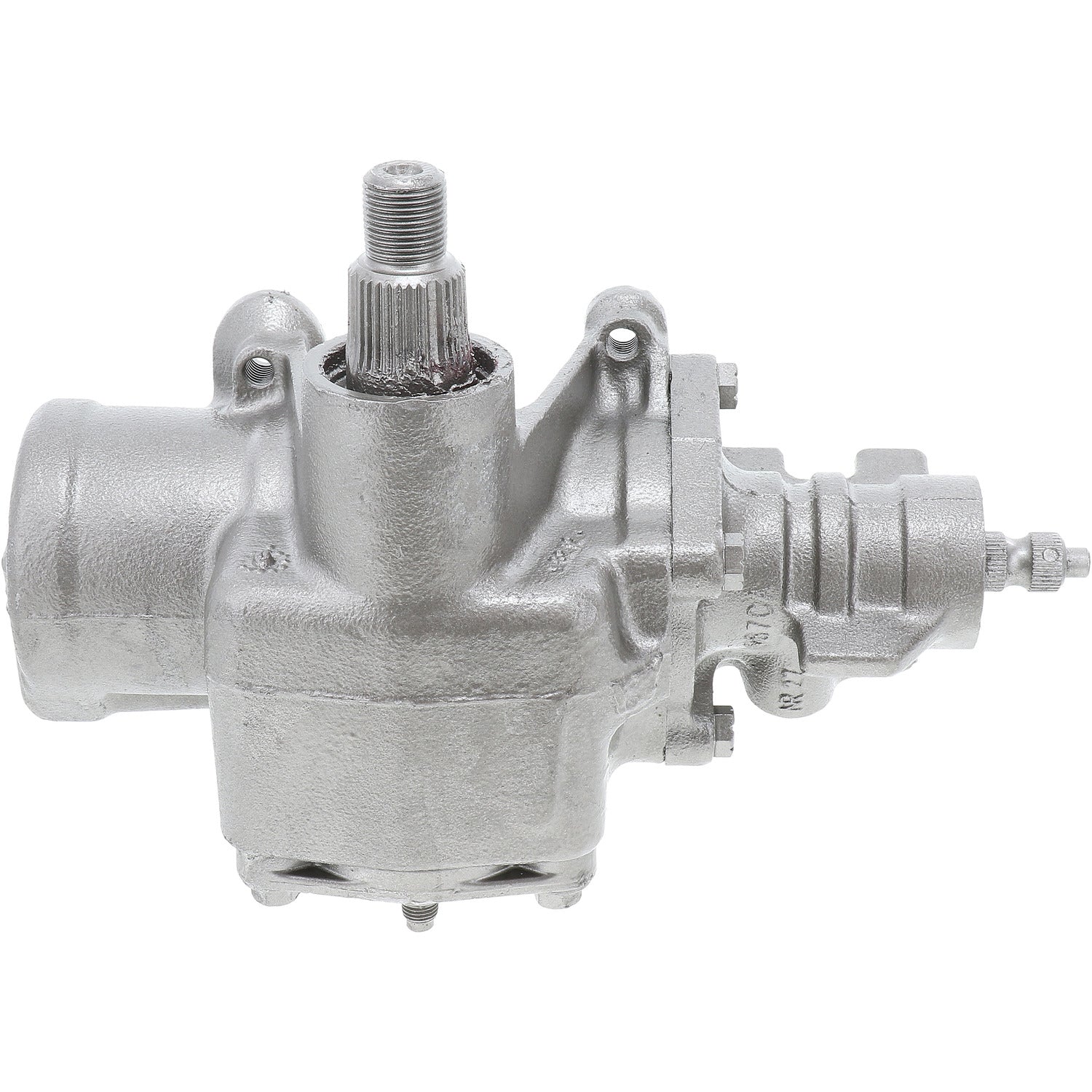

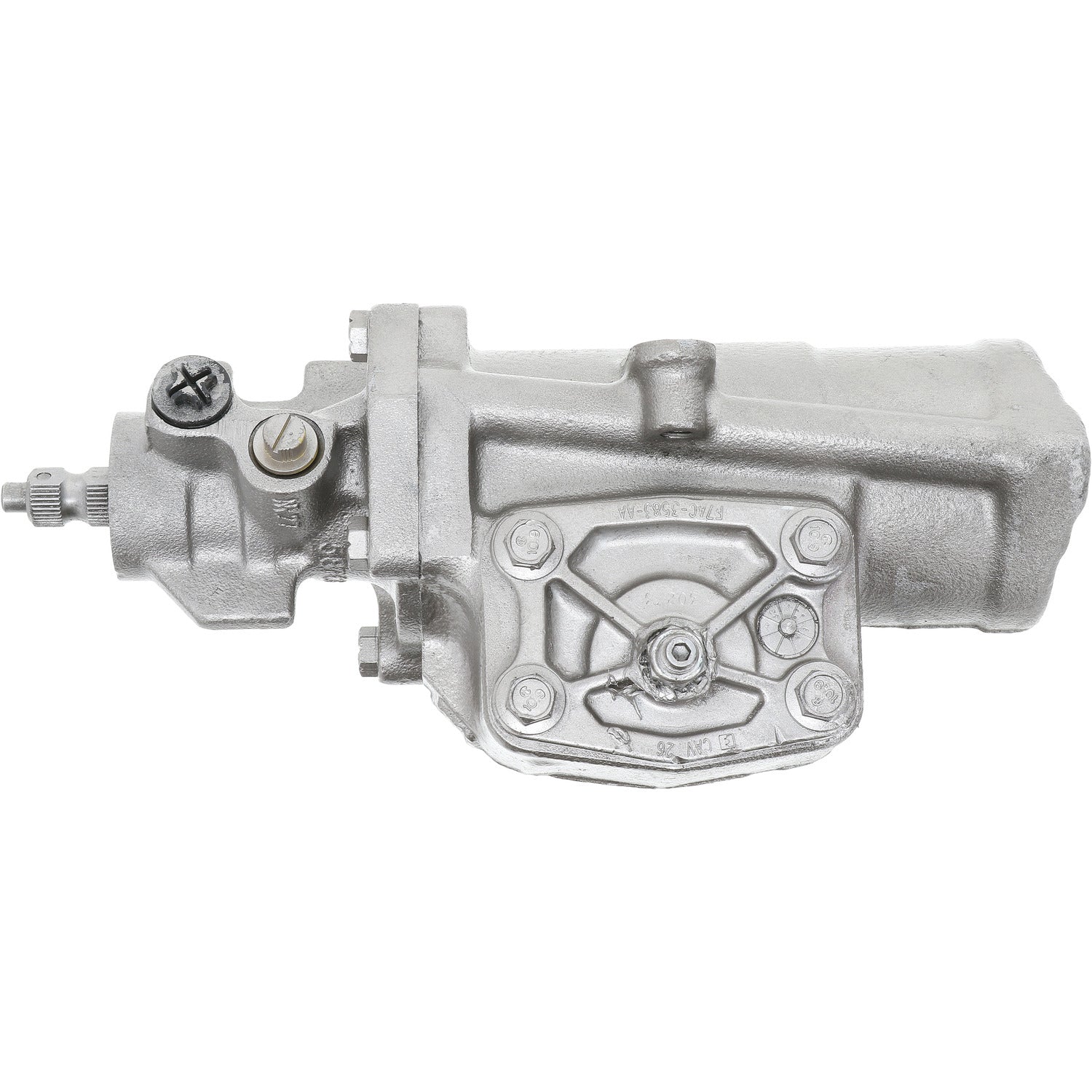

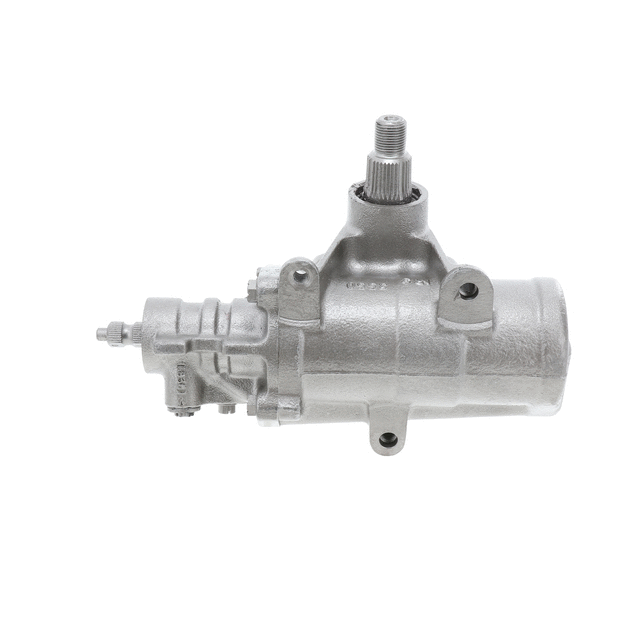

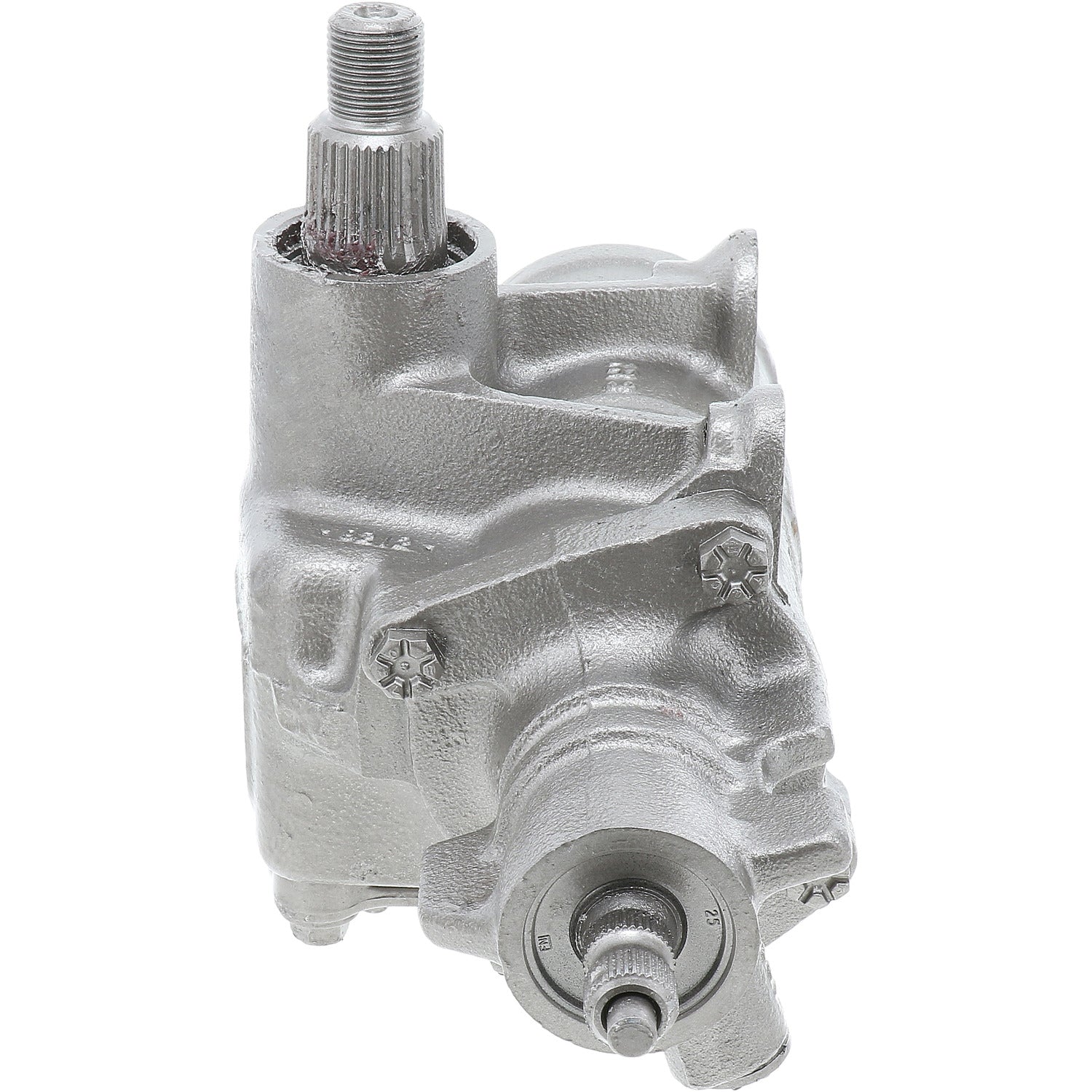

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98116M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98116M


MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Steering Input Shaft Spline Quantity 29
Input Shaft Type Splined, Single Flat
Number of Mounting Holes 3
Output Shaft Diameter 1.31 IN
Output Shaft Diameter 33.32 MM
Pitman Arm Included No
Pressure Port Thread Size 1/2 x 20
Pump Rotation Reverse
Return Port Thread Size 5/8 X 18
Total Turns Lock To Lock 4


Application Info: Ford Excursion (2000-01), F-Super Duty (1997), F-250 (1997-99), F-250 HD (1997), F-250 Super Duty (1999-01), F-350 (1997), F-350 Super Duty (1999-01), F-450 Super Dity (1999-01), F-550 Super Duty (1999-01) ***W/Front Axle Rating up to 4200 LBS.***

Interchange: F7UB3504GBRM, F7UZ3504GA, F7UZ3504GARM, F7UZ3504GBRM

BBB Cross-Reference: 501-0118

Cardone Cross-Reference: 27-7623
