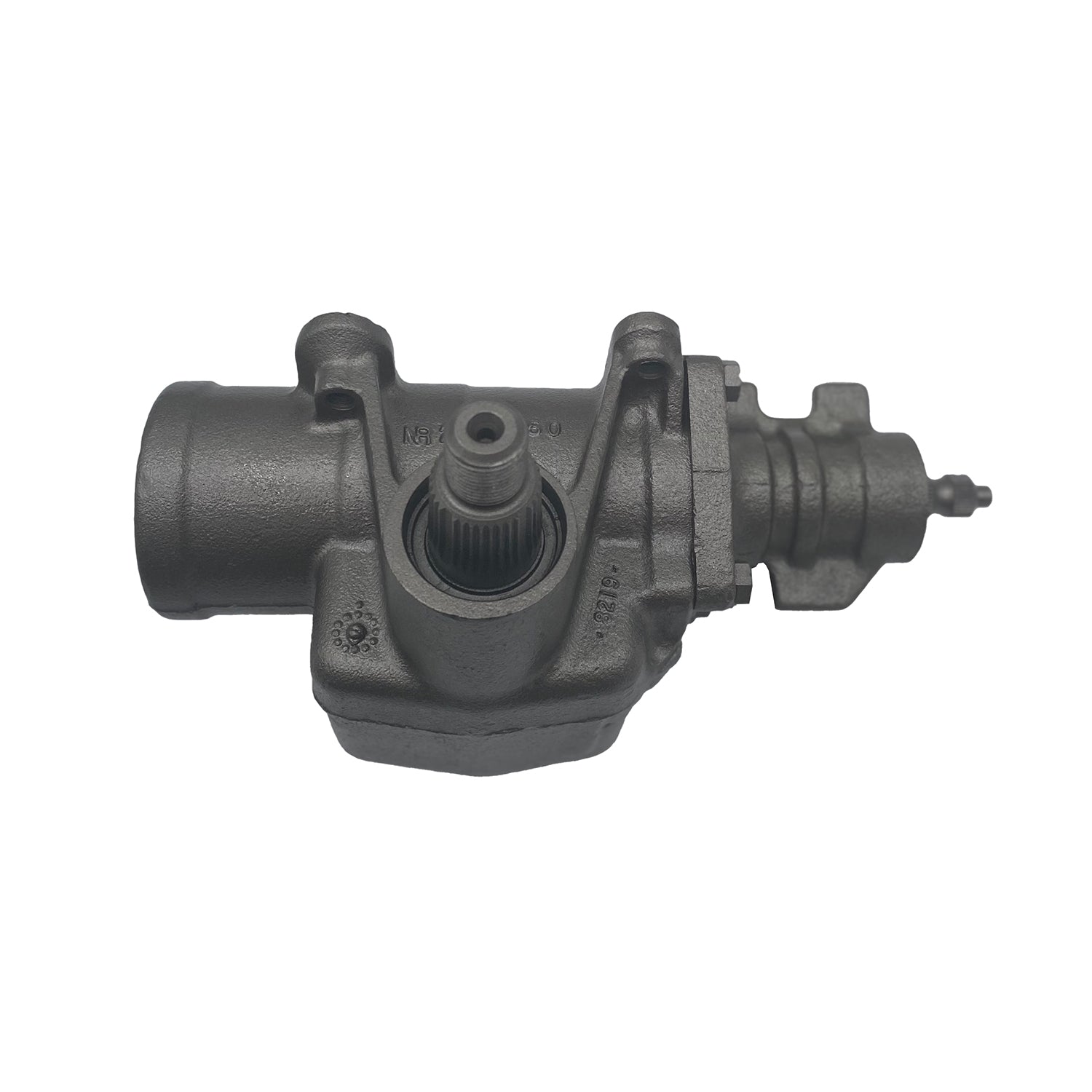

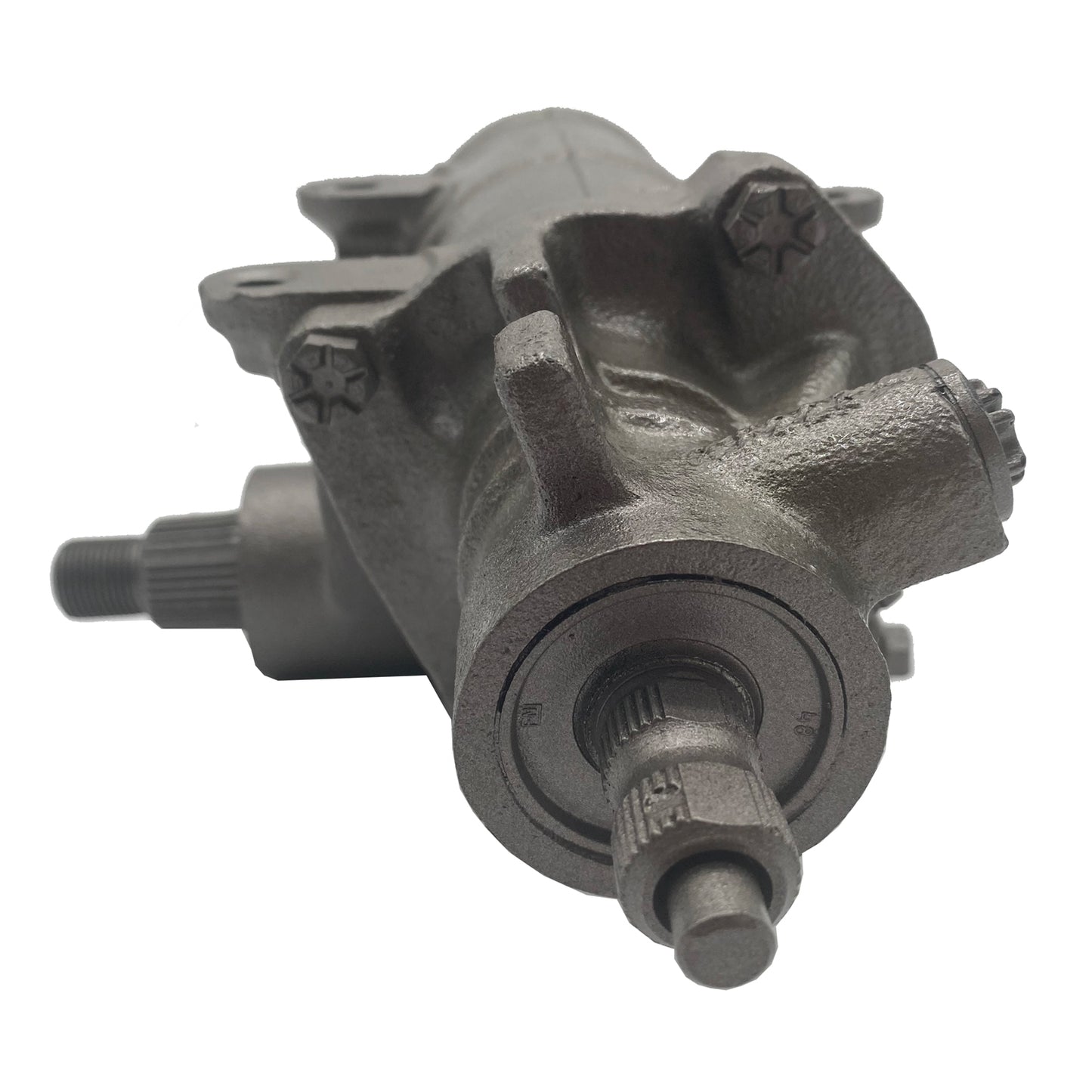

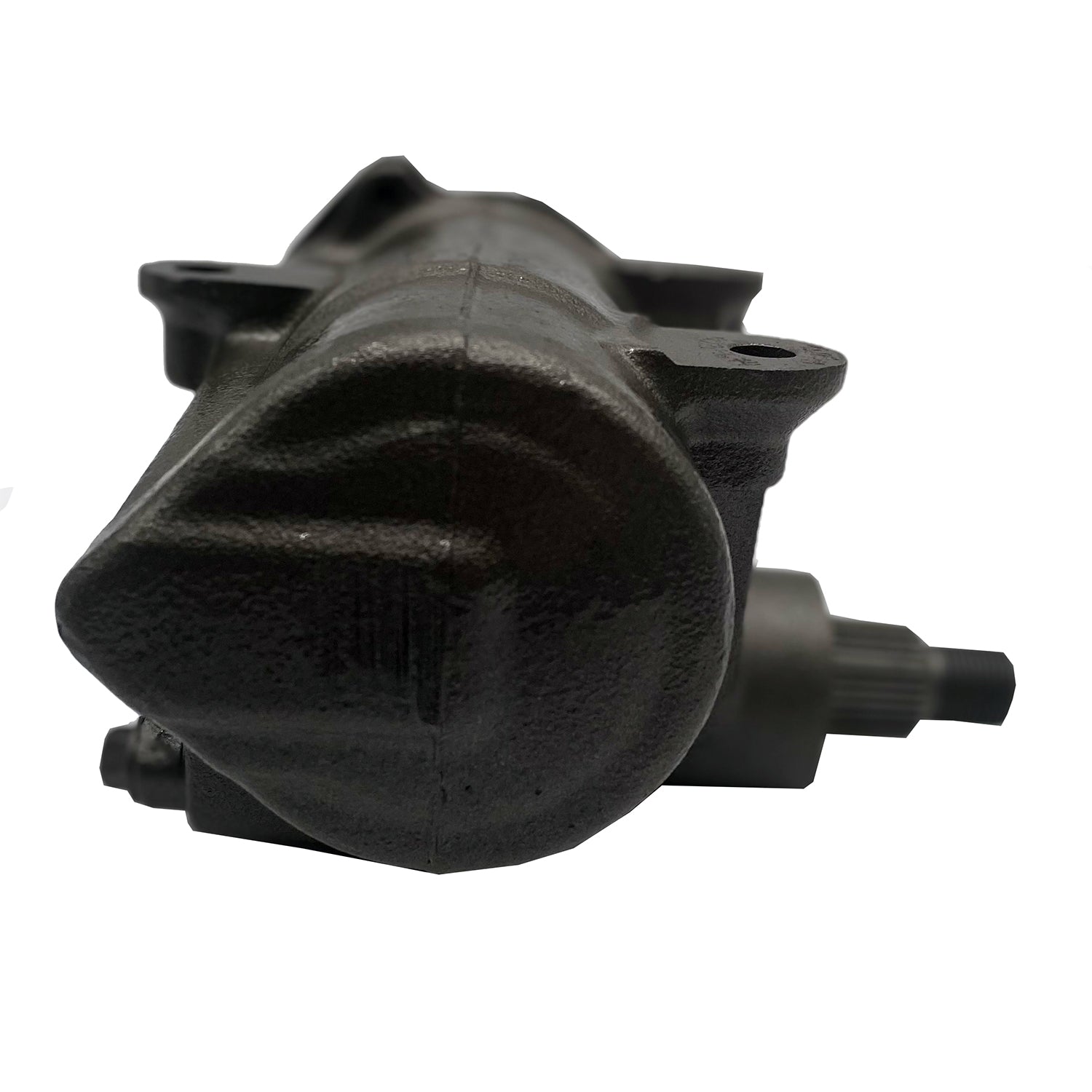

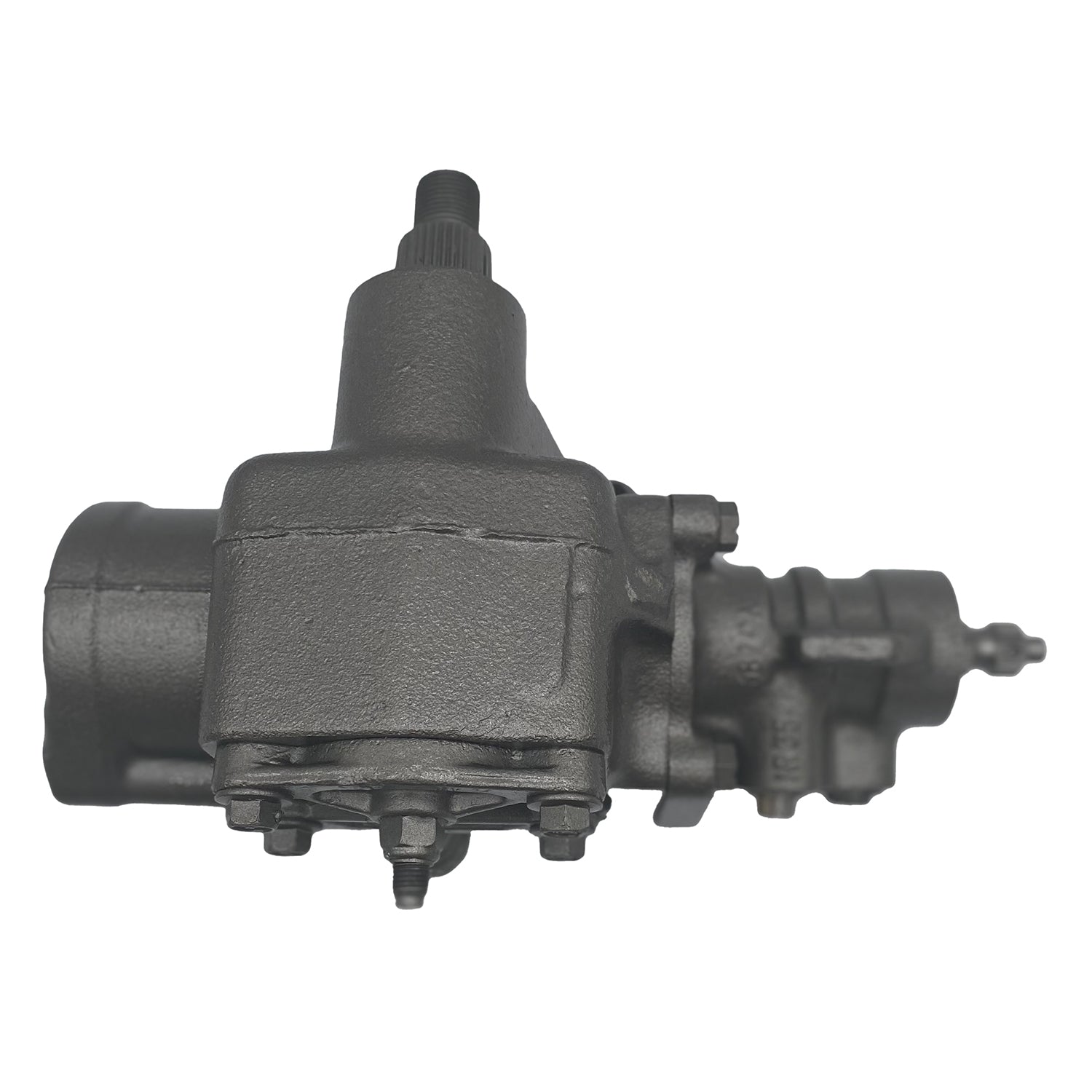

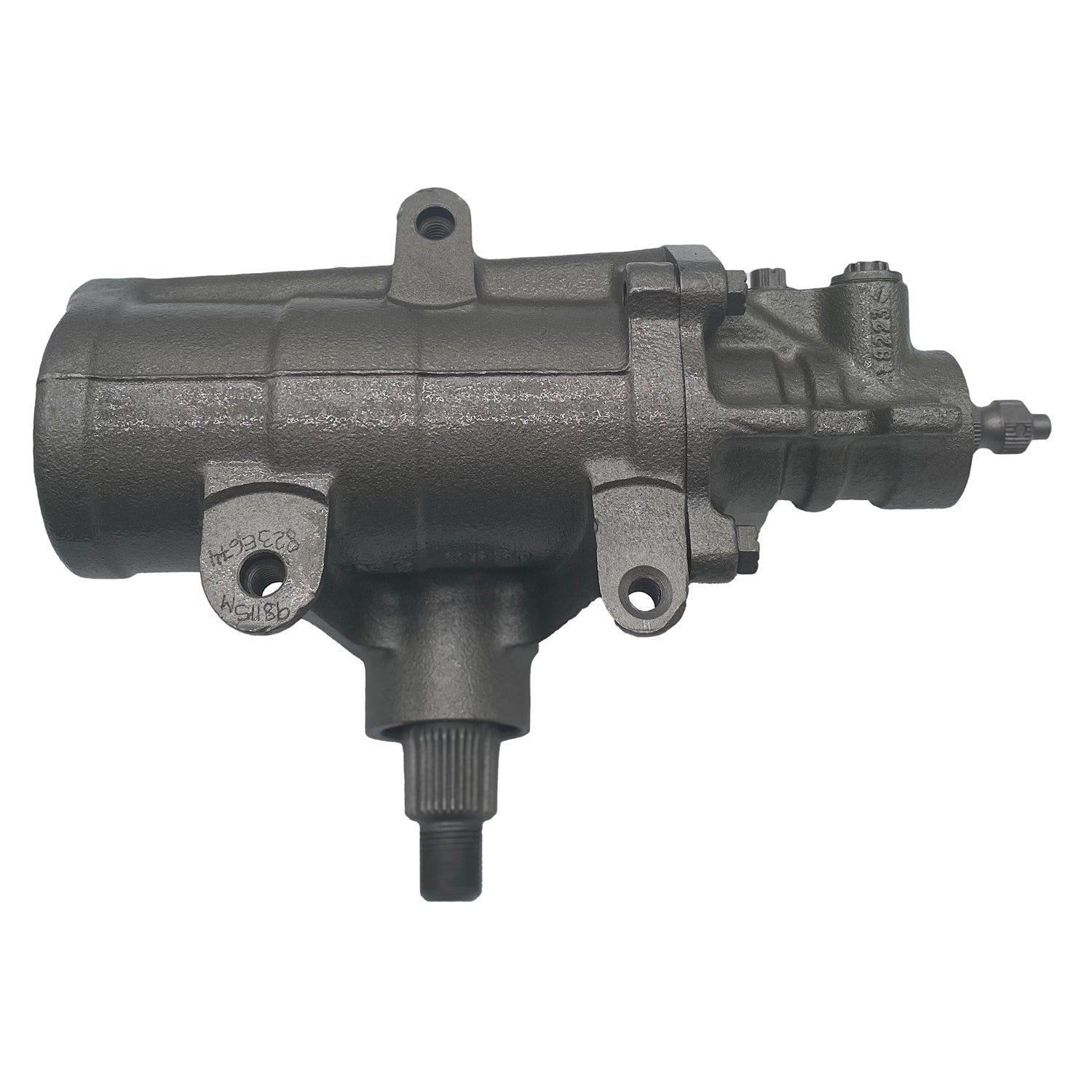

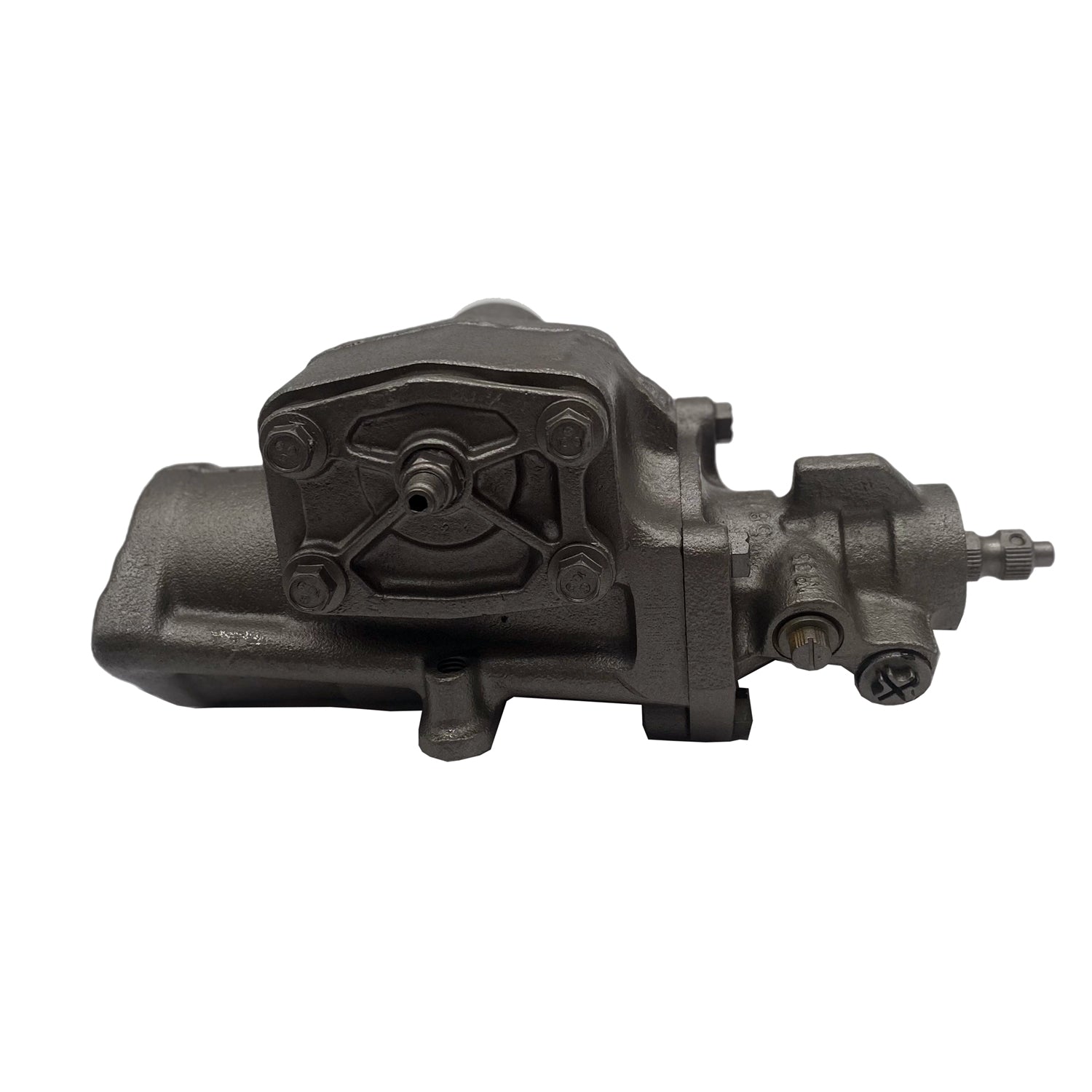

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98115M
Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98115M
SKU:98115M
MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.73 | IN |
| Input Shaft Diameter | 18.42 | MM |
| Steering Input Shaft Spline Quantity | 26 | |
| Input Shaft Type | Double Flat | |
| Number of Mounting Holes | 3 | |
| Output Shaft Diameter | 1.31 | IN |
| Output Shaft Diameter | 33.32 | MM |
| Pitman Arm Included | No | |
| Pressure Port Thread Size | 1/2 x 20 | |
| Pump Rotation | Standard | |
| Return Port Thread Size | 5/8 X 18 | |
| Total Turns Lock To Lock | 3.3 |
Application Info: Ford Expedition (2001-02), F-150 (1997-2002), F-150 Heritage (2004), F-250 (1997-99), Lobo (1999-03) ***W/O EVO Steering***
Interchange: 1L1Z3504AARM, F75Z3504CARM, F75Z3504CBRM
BBB Cross-Reference: 501-0106
Cardone Cross-Reference: 27-6565
