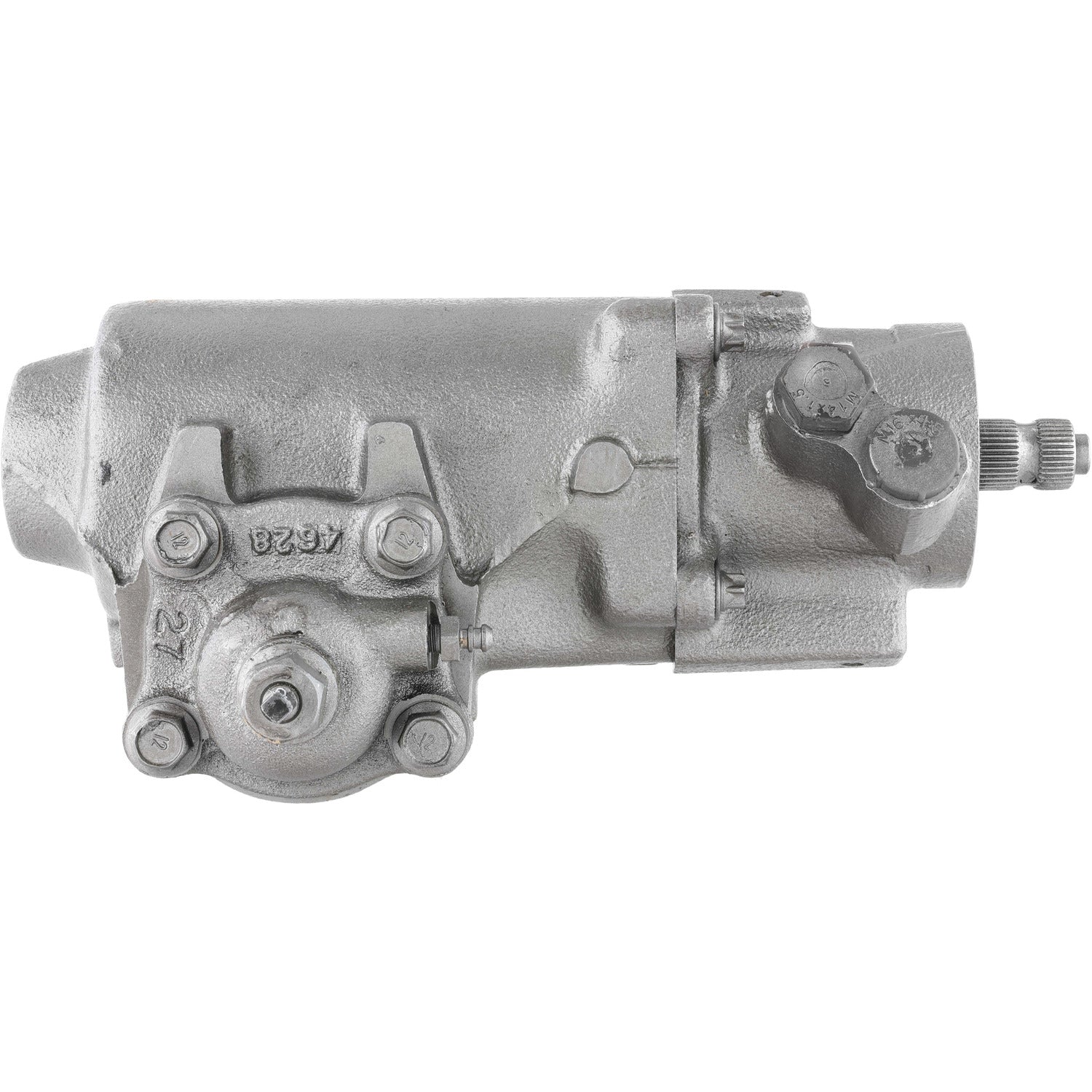

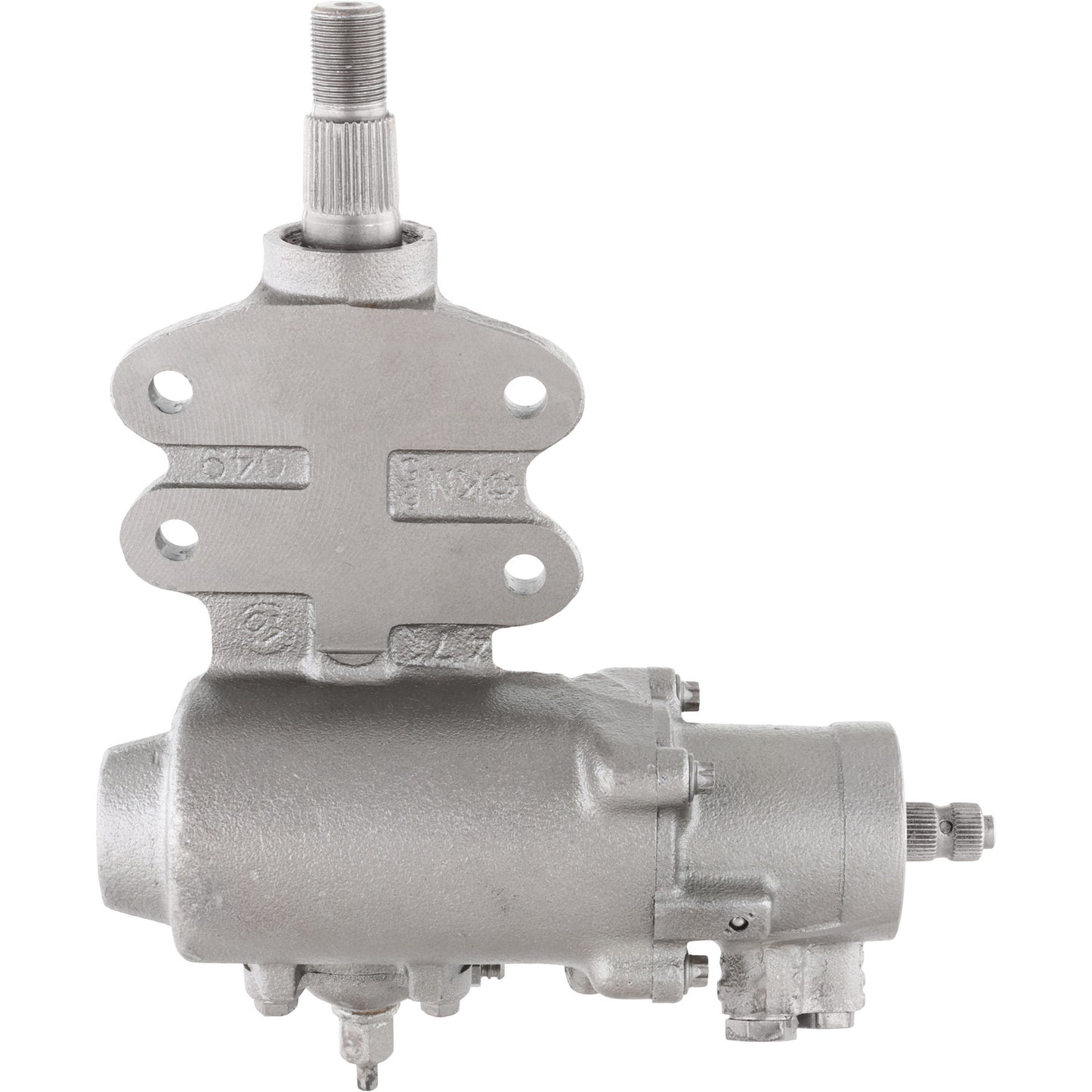

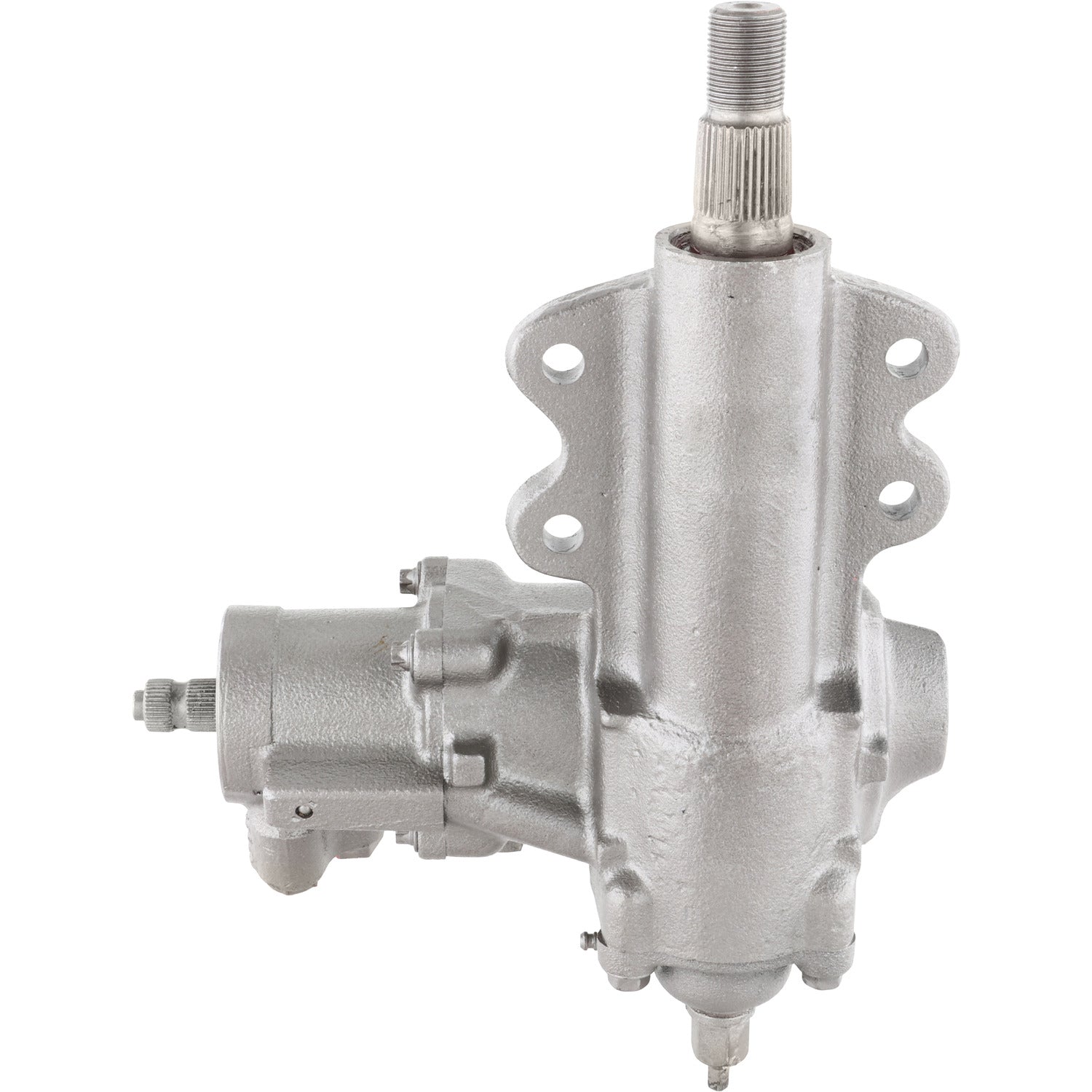

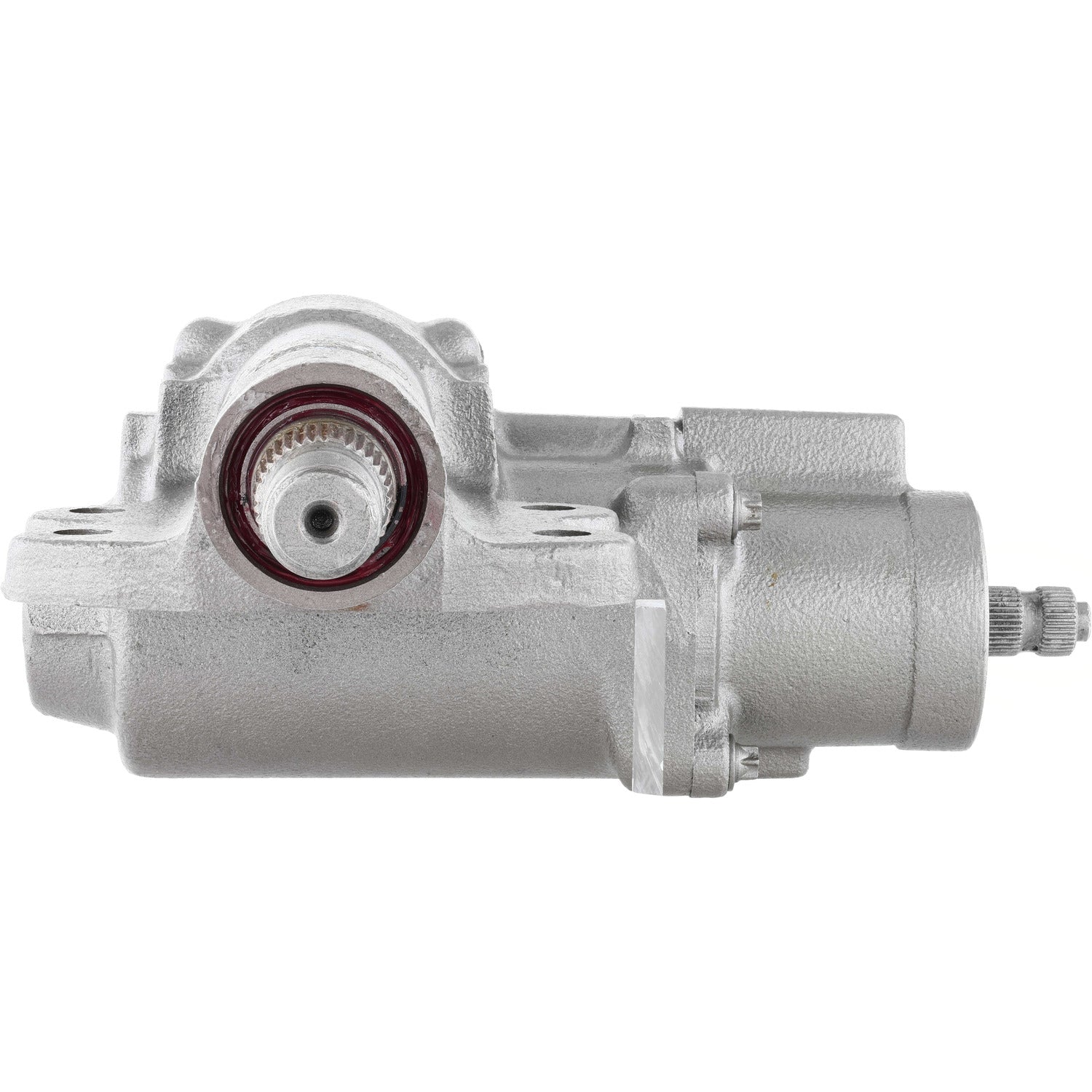

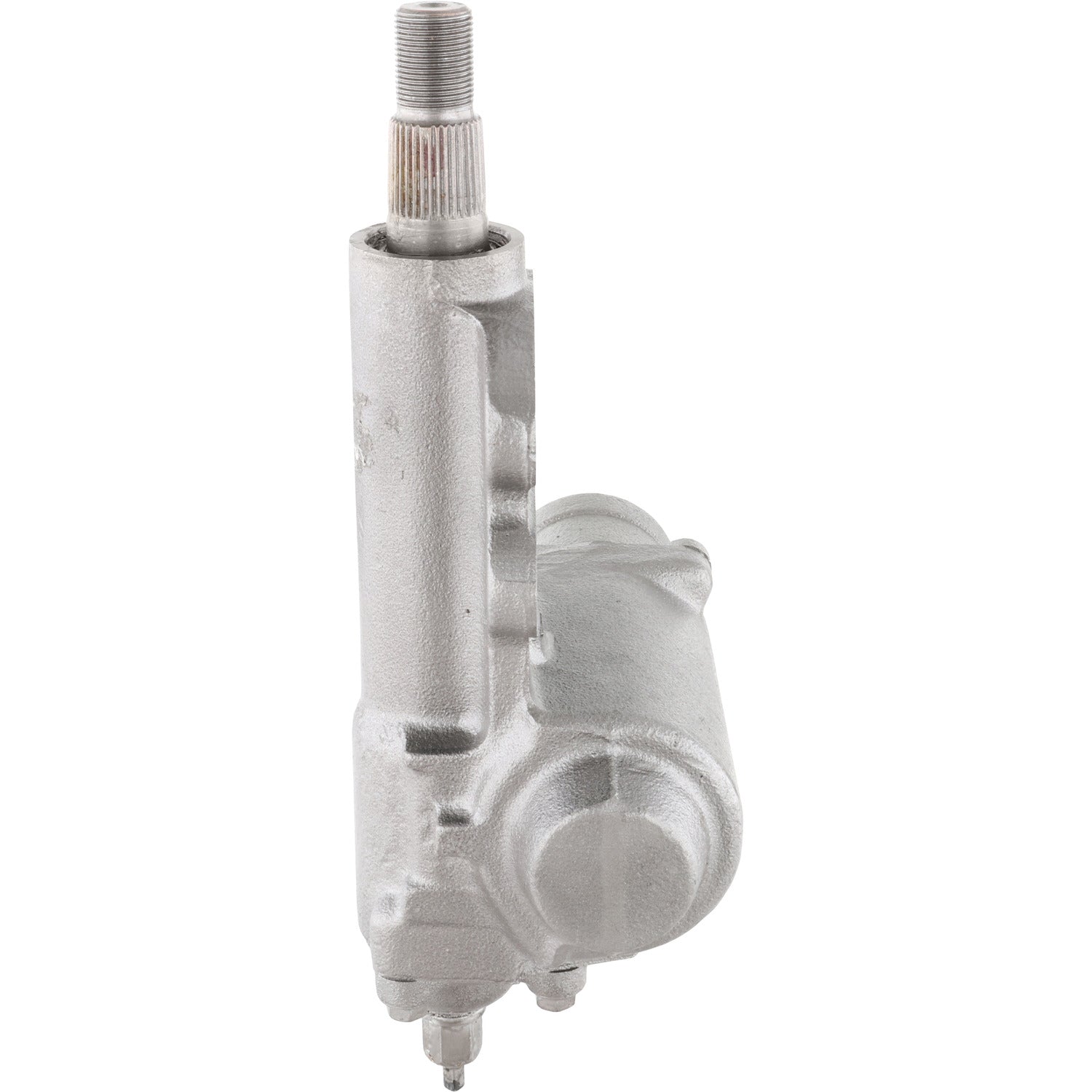

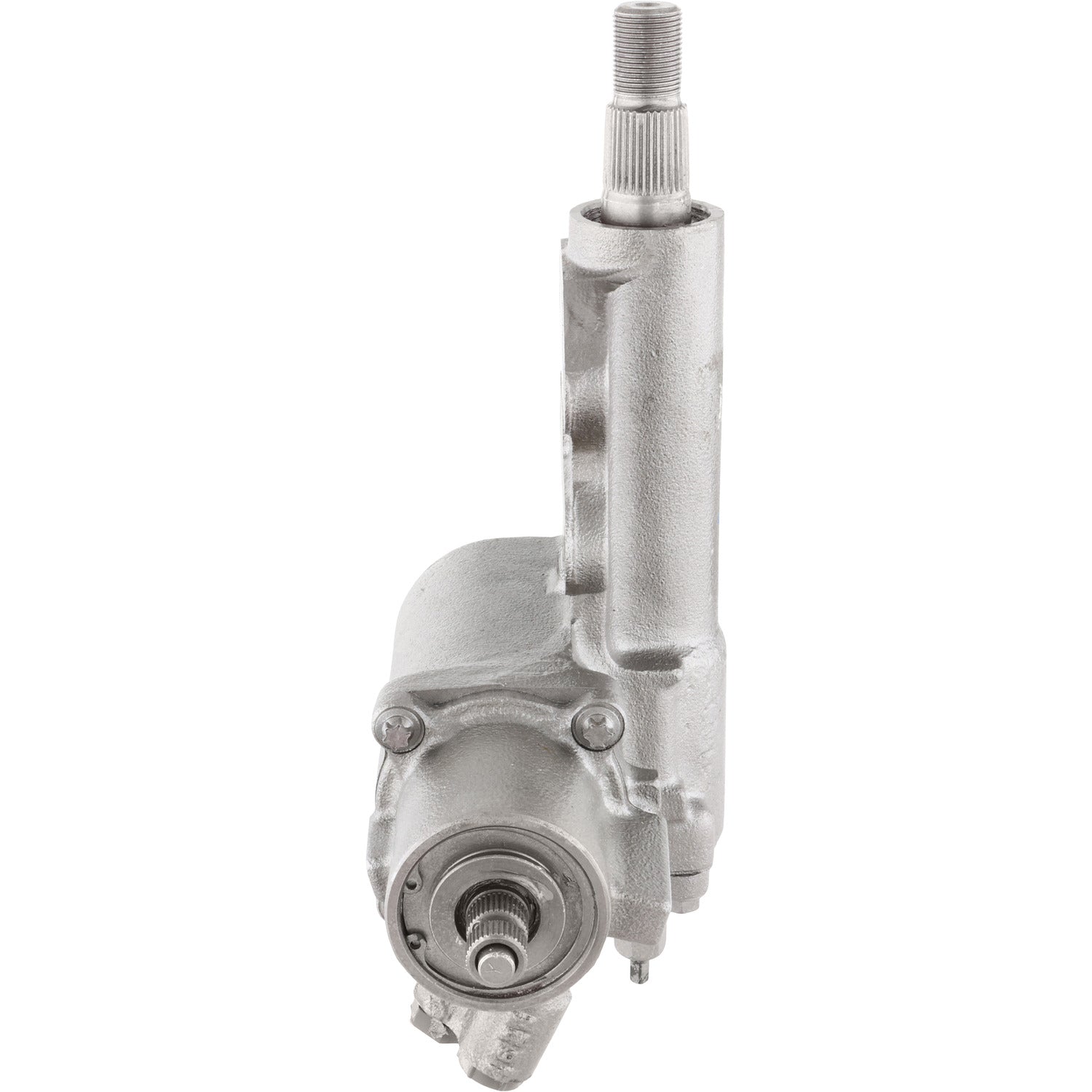

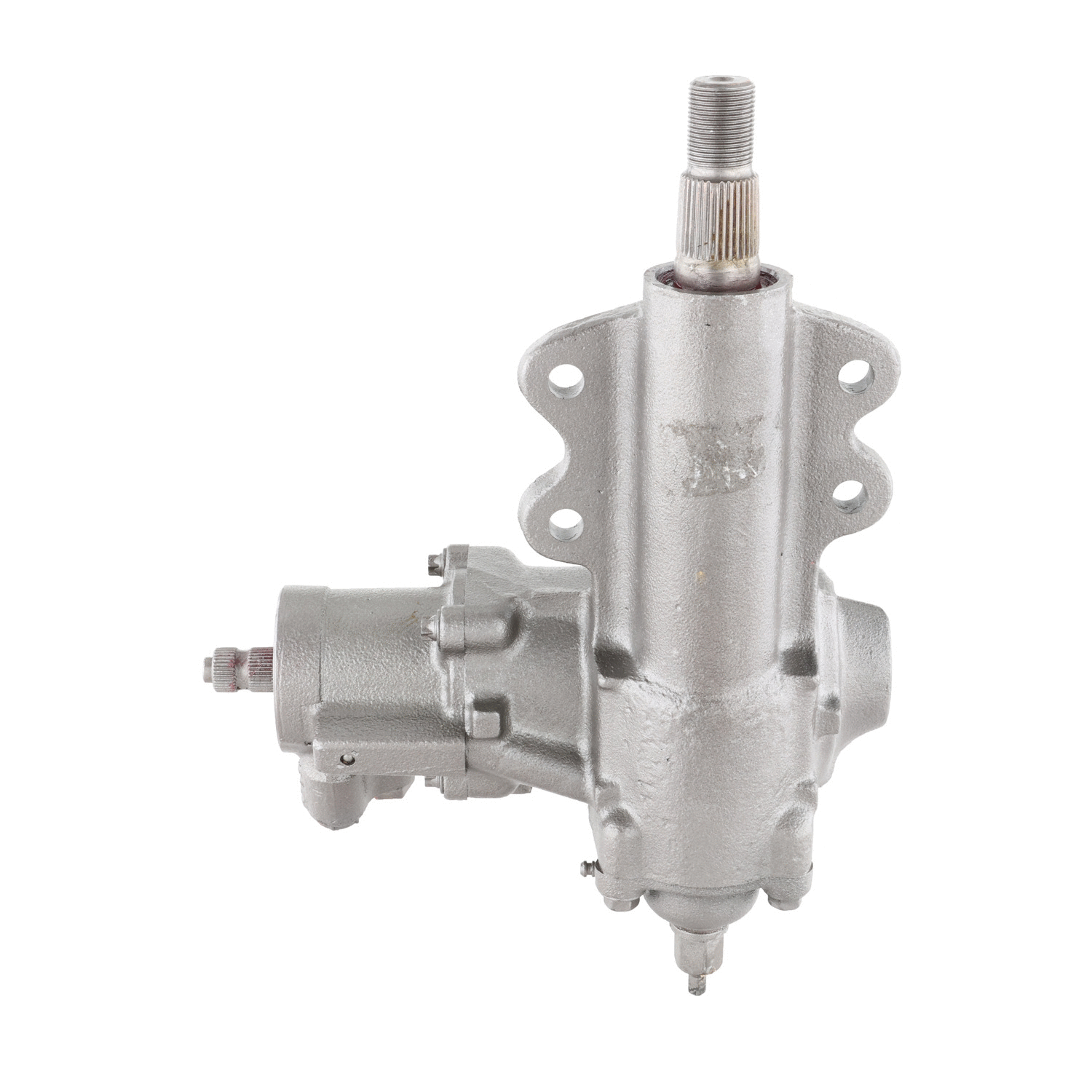

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9808M

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 9808M

SKU:9808M

MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type Seat
Input Shaft Diameter 0.69 IN
Input Shaft Diameter 17.53 MM
Steering Input Shaft Spline Quantity 36
Input Shaft Type Splined, Grooved
Number of Mounting Holes 4
Output Shaft Diameter 1.13 IN
Output Shaft Diameter 28.58 MM
Pitman Arm Included No
Pressure Port Thread Size M14 x 1.5
Pump Rotation Standard
Return Port Thread Size M16 x 1.5
Total Turns Lock To Lock 4



Application Info: Nissan D21 (1986-1992), Nissan Pathfinder (1989-1992), Nissan 720 (1986)

Interchange: Nissan - 49200-11G00

BBB Cross-Reference: 510-0104

Cardone Cross-Reference: 27-8405

Instructions - 1
