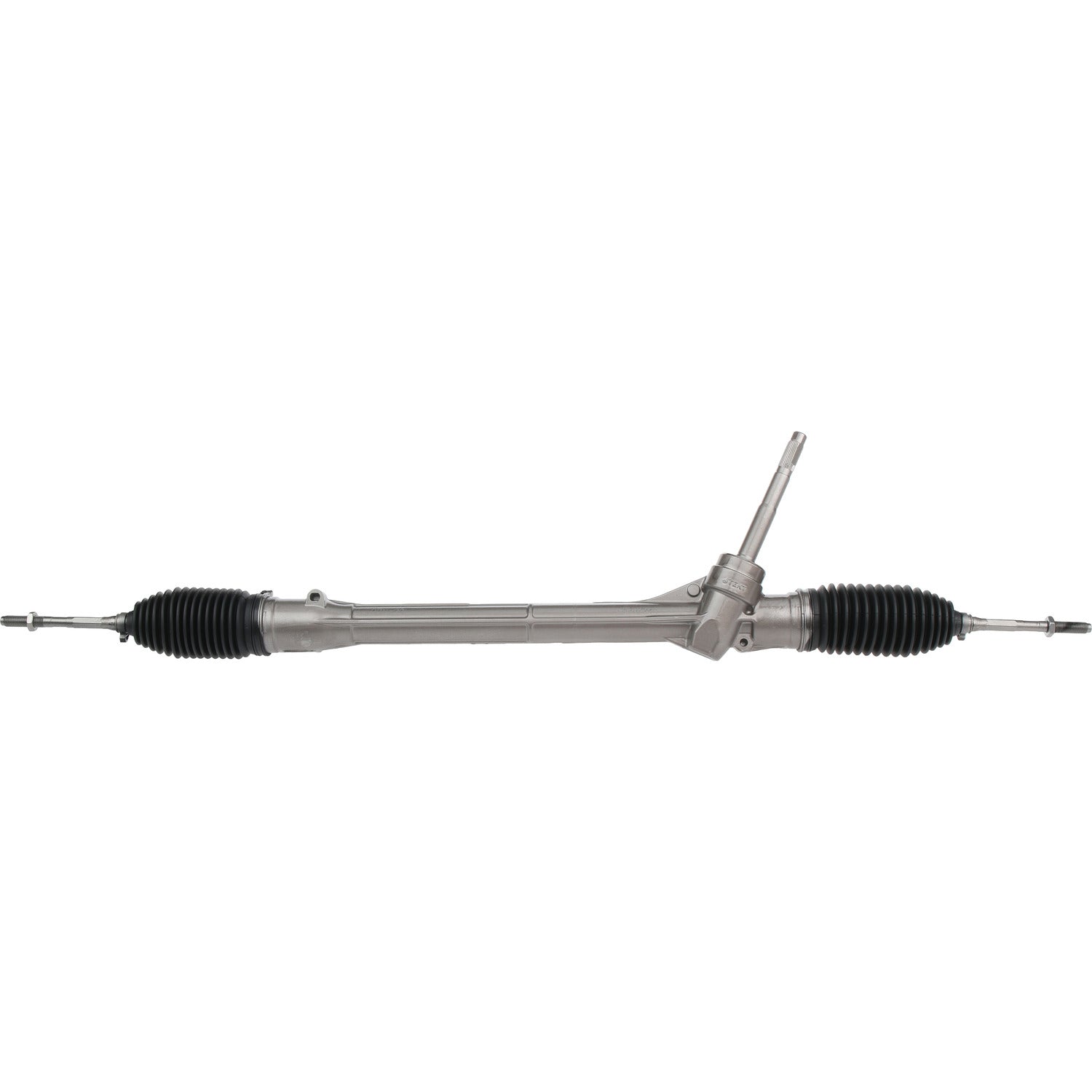

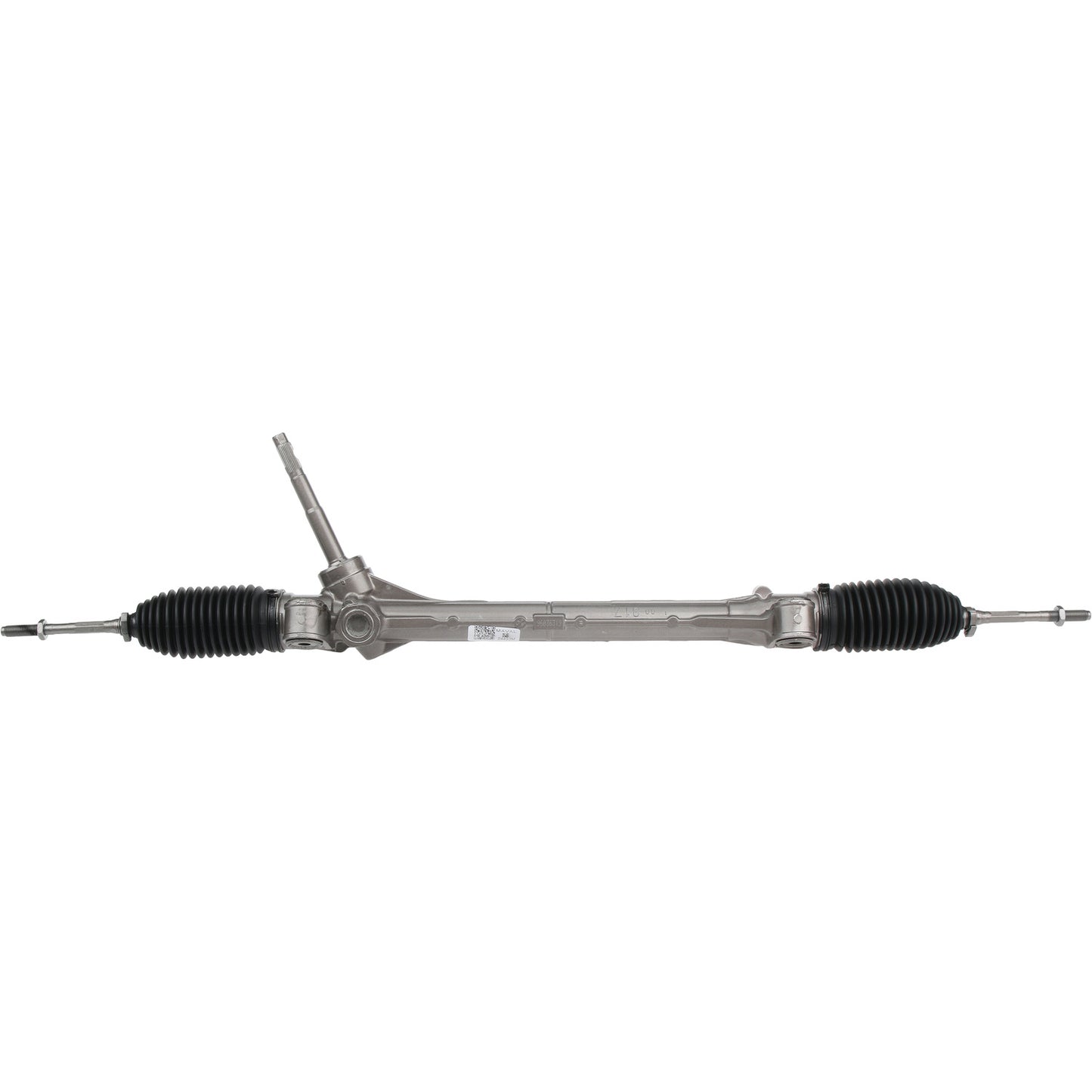

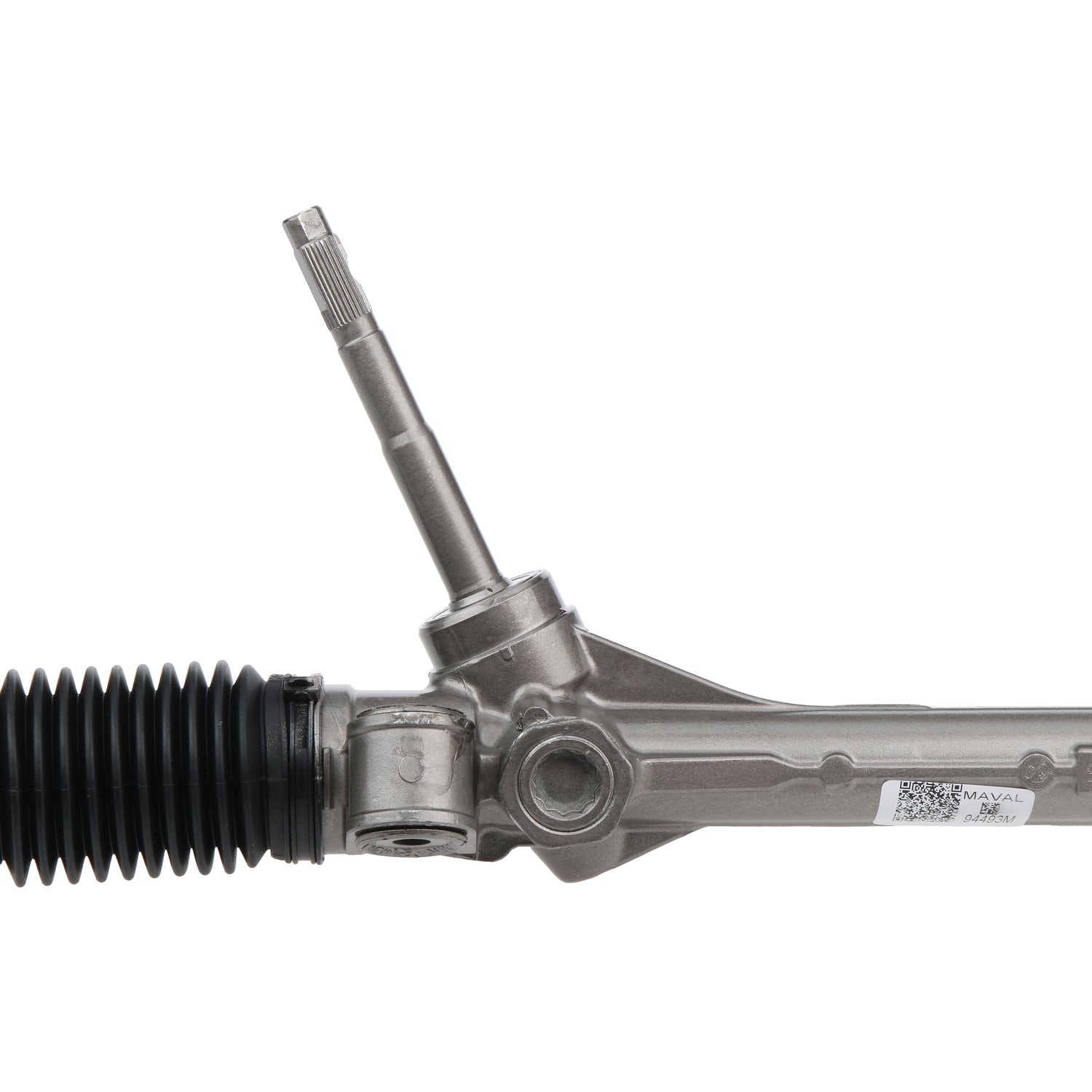

Rack and Pinion Assembly - MAVAL - Remanufactured - 94494M
Rack and Pinion Assembly - MAVAL - Remanufactured - 94494M
SKU:94494M
MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
Application Info: 2020-2022 Nissan Kicks
Interchange: 48001-5EE0B,48001-5EE0A
| Casting Material | Aluminum | |
| Distance Between Mounting Holes Rear | 18.43 | IN |
| Distance Between Mounting Holes Rear | 468.3 | MM |
| Input Shaft Diameter | 0.67 | IN |
| Input Shaft Diameter | 17 | MM |
| Input Shaft Length | 5.56 | IN |
| Input Shaft Length | 141.28 | MM |
| Number of Mounting Holes | 2 | |
| Rack Length | 42.9 | IN |
| Rack Length | 1089.69 | MM |
| Thread Length | 1.73 | IN |
| Thread Length | 44 | MM |
| Inner Tie Rods Included | Yes | |
| Total Turns Lock To Lock | 2.62 |
