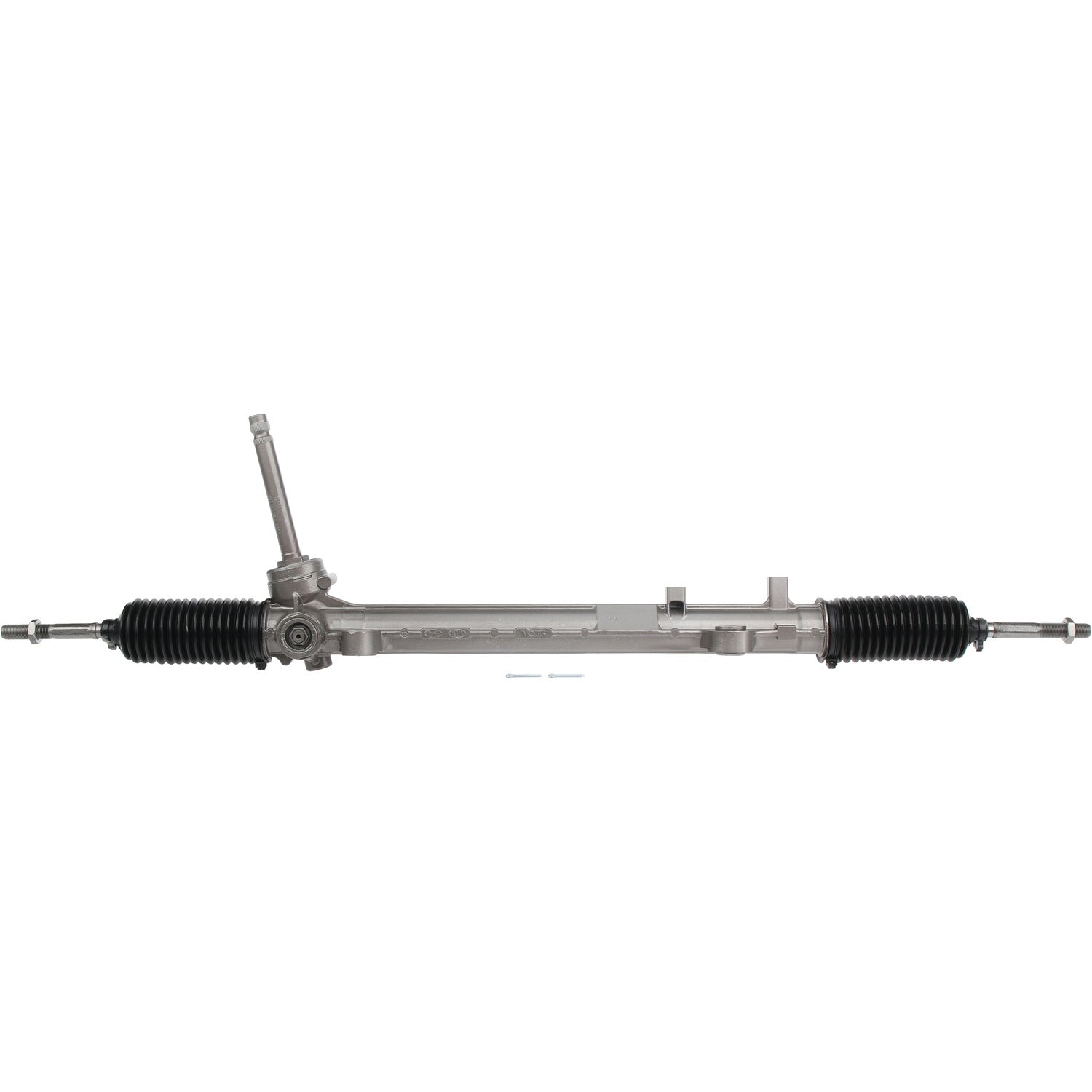

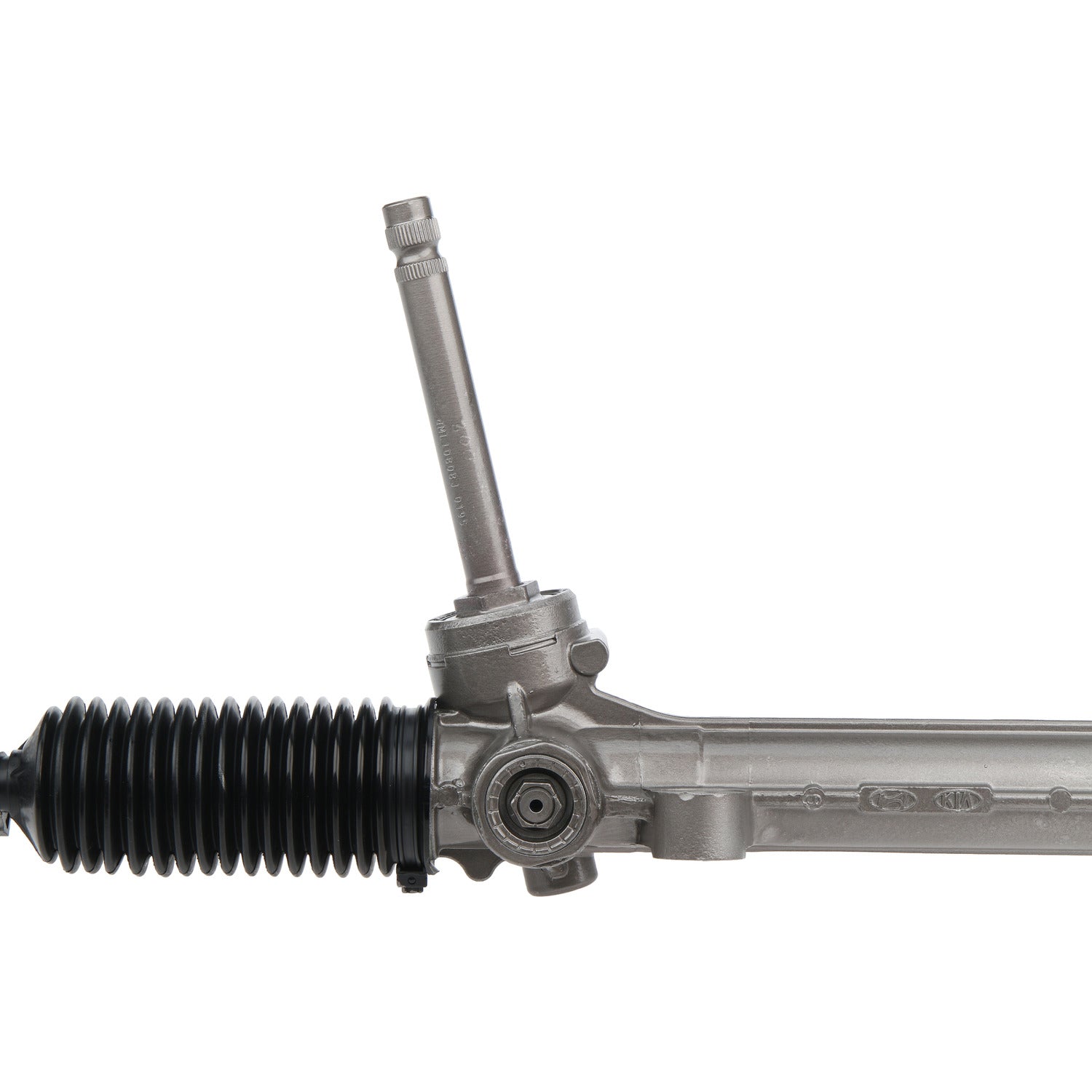

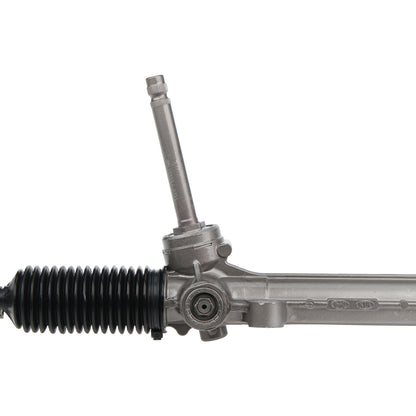

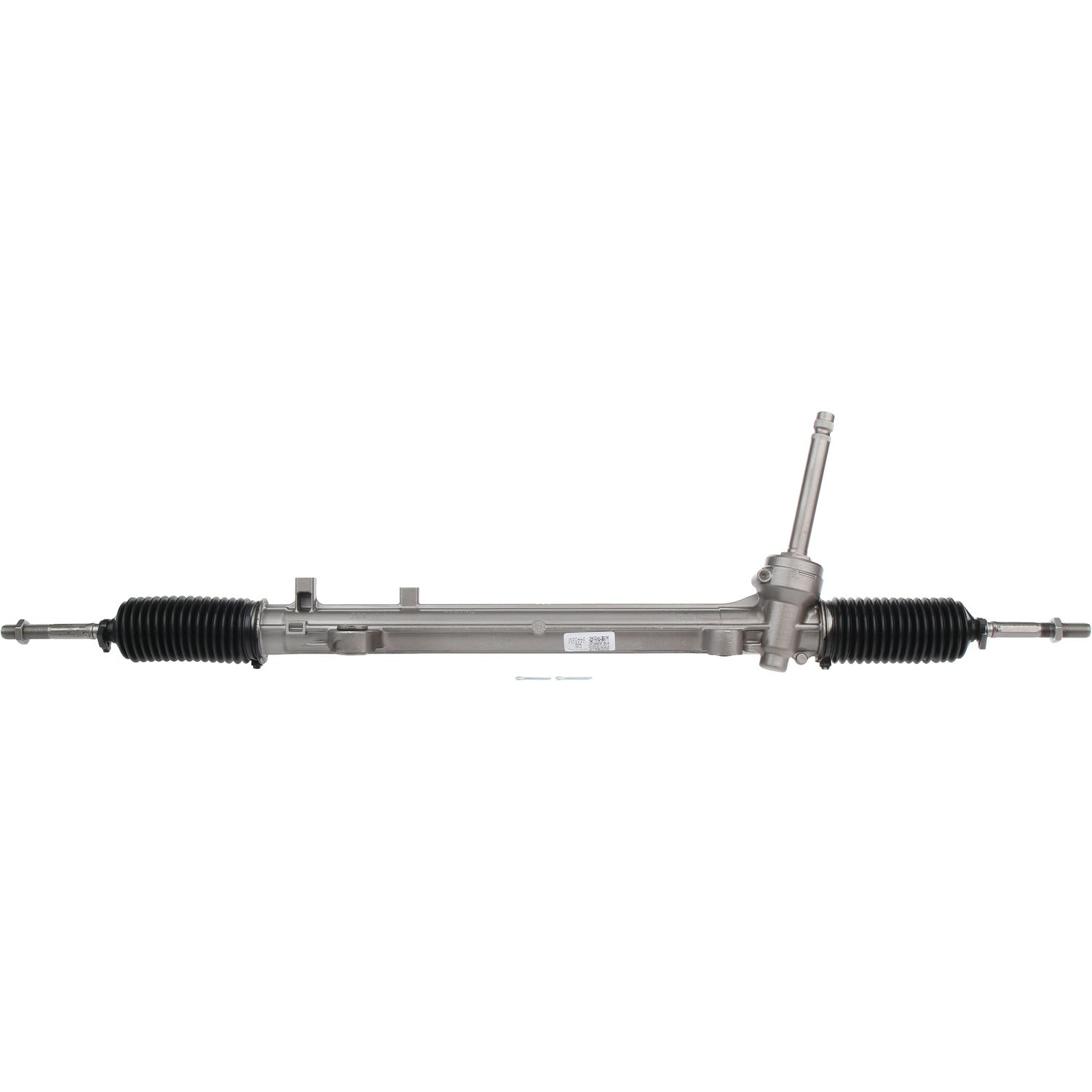

Rack and Pinion Assembly - MAVAL - Remanufactured - 94489M
Rack and Pinion Assembly - MAVAL - Remanufactured - 94489M
SKU:94489M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
Casting Material | Aluminum | |
Distance Between Mounting Holes Front | 14.41 | IN |
Distance Between Mounting Holes Front | 366 | MM |
Distance Between Mounting Holes Rear | 14.41 | IN |
Distance Between Mounting Holes Rear | 366 | MM |
Distance Between Mounting Holes Front to Rear | 3.62 | IN |
Distance Between Mounting Holes Front to Rear | 92 | MM |
Input Shaft Diameter | 0.78 | IN |
Input Shaft Diameter | 20 | MM |
Input Shaft Length | 5.95 | IN |
Input Shaft Length | 151 | MM |
Number of Mounting Holes | 4 | |
Rack Length | 44 | IN |
Rack Length | 1117.6 | MM |
Thread Length | 1.97 | IN |
Thread Length | 50 | MM |
Inner Tie Rods Included | Yes | |
Total Turns Lock To Lock | 2.95 |
Application Info: 2013-2018 Hyundai Santa Fe (Liter: 3.3 )
Interchange: 56500-2W100, 56500-2W150, 56500-2W300
BBB Cross-Reference: 213-0159
Cardone Cross-Reference: 1G-2413
