MAVAL

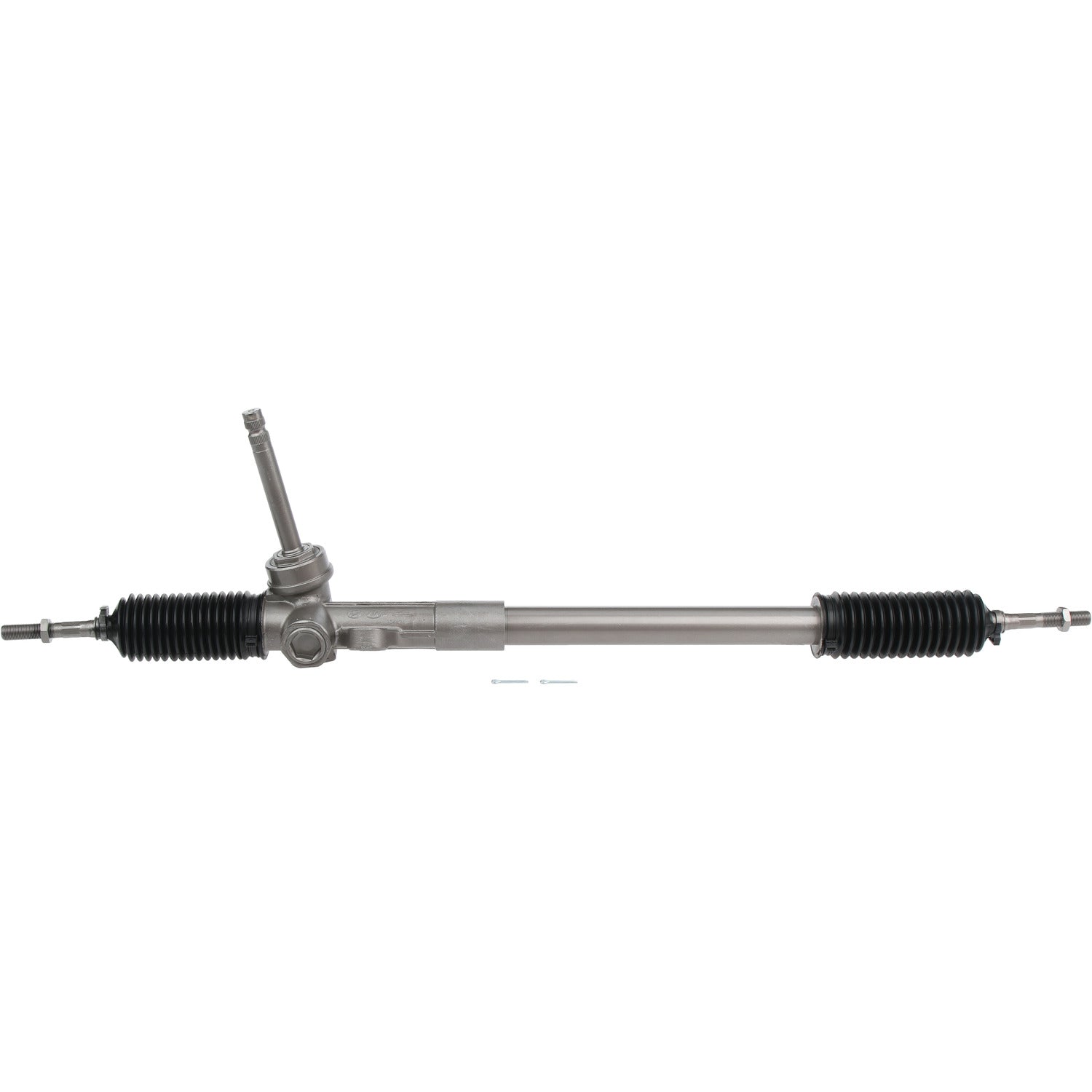

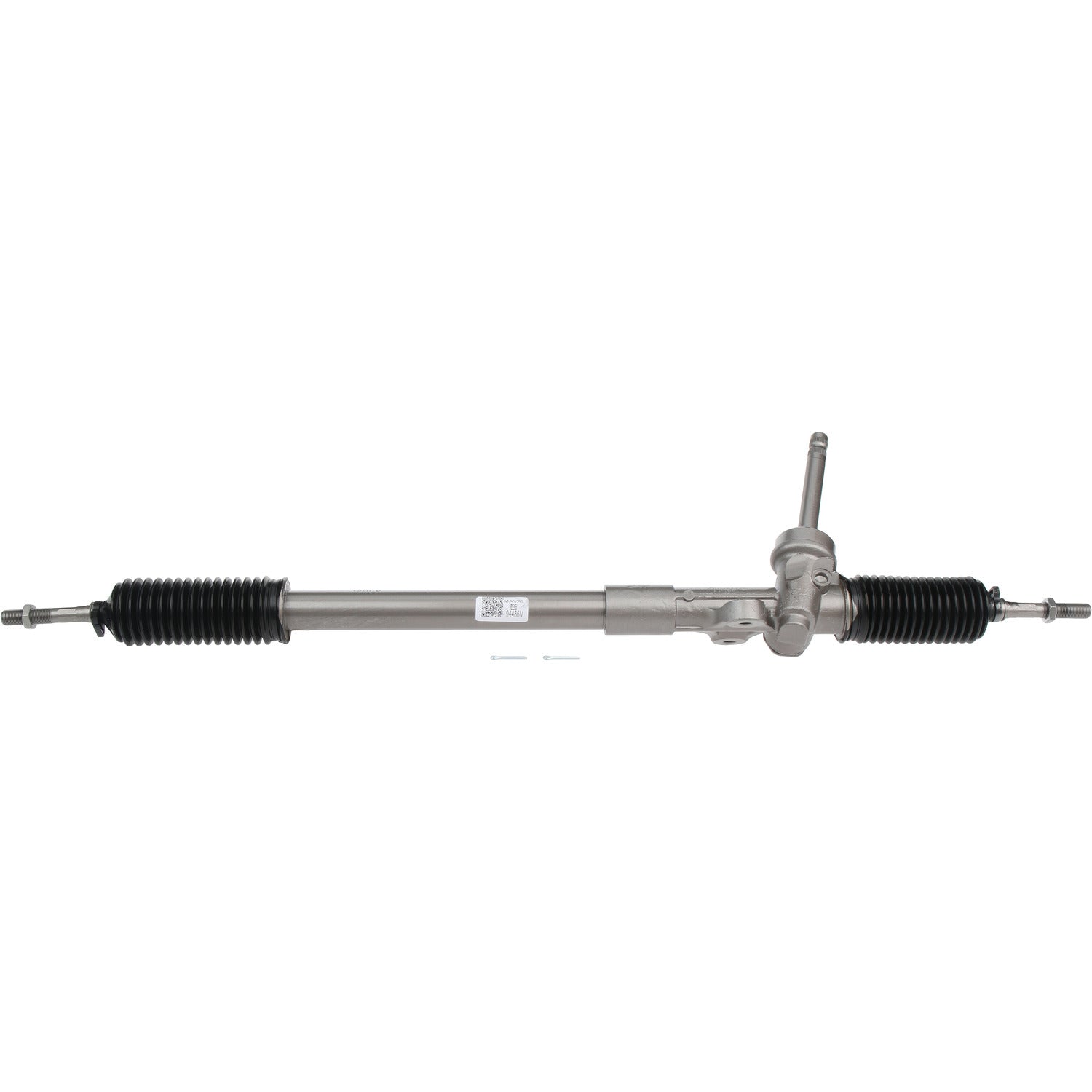

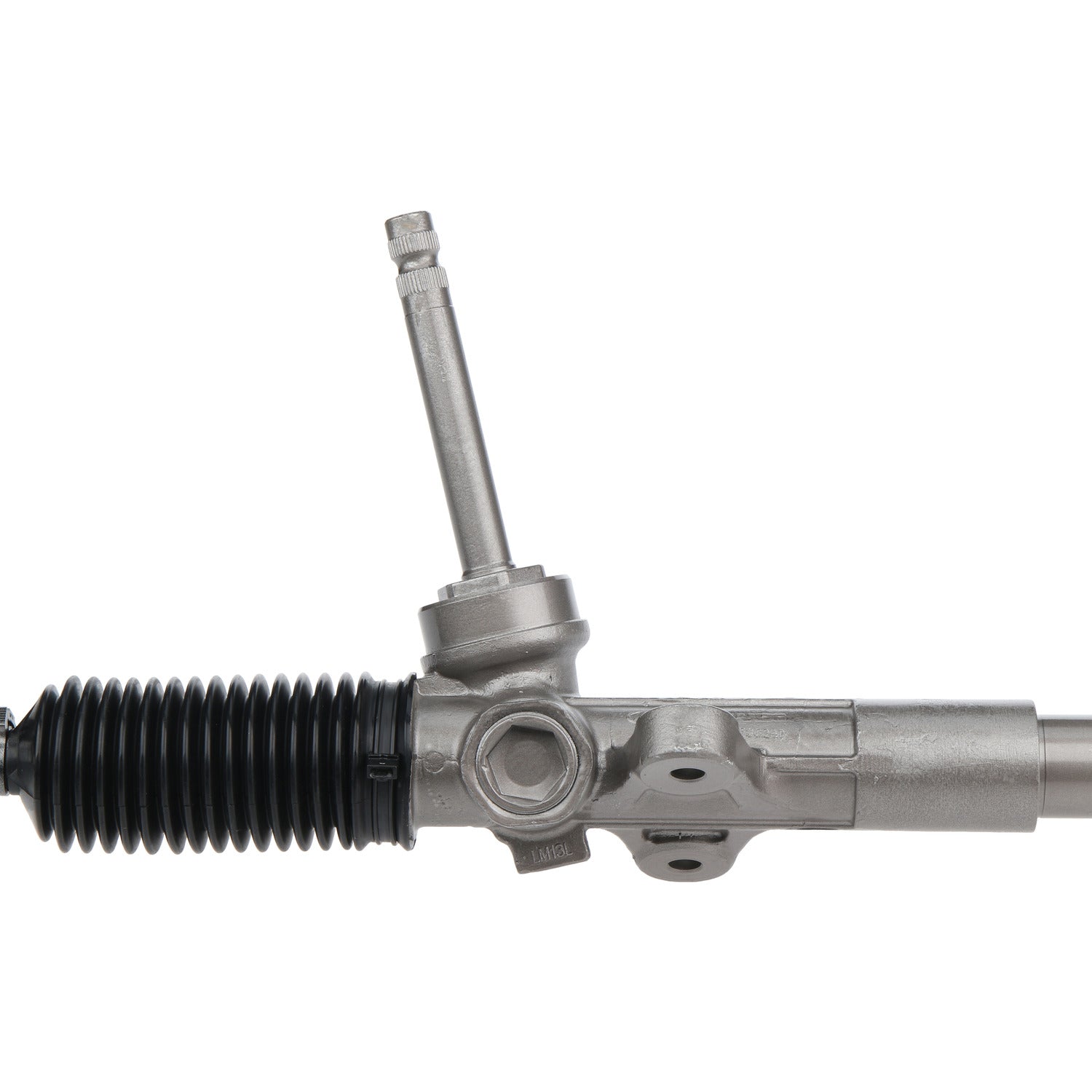

Rack and Pinion Assembly - MAVAL - Remanufactured - 94486M
Rack and Pinion Assembly - MAVAL - Remanufactured - 94486M
SKU:94486M
MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Aluminum, Steel | |
| Distance Between Mounting Holes Front to Rear | 3.62 | IN |
| Distance Between Mounting Holes Front to Rear | 92 | MM |
| Input Shaft Diameter | 0.78 | IN |
| Input Shaft Diameter | 20 | MM |
| Input Shaft Length | 5.67 | IN |
| Input Shaft Length | 144 | MM |
| Number of Mounting Holes | 2 | |
| Rack Length | 42.61 | IN |
| Rack Length | 1082.31 | MM |
| Thread Length | 1.97 | IN |
| Thread Length | 50 | MM |
| Inner Tie Rods Included | Yes | |
| Total Turns Lock To Lock | 2.85 |
Application Info: 2014-2016 Kia Sportage (Note: 8 PINION TEETH, 28 RACK TEETH, 27.948" LONG RACK); 2014-2015 Hyundai Tucson (Note: 8 PINION TEETH, 28 RACK TEETH, 27.948" LONG RACK)
Interchange: 56500-2S010
BBB Cross-Reference: 213-0168
Cardone Cross-Reference: 1G-2415
