Rack and Pinion Assembly - MAVAL - Remanufactured - 93457M
Rack and Pinion Assembly - MAVAL - Remanufactured - 93457M
SKU:93457M

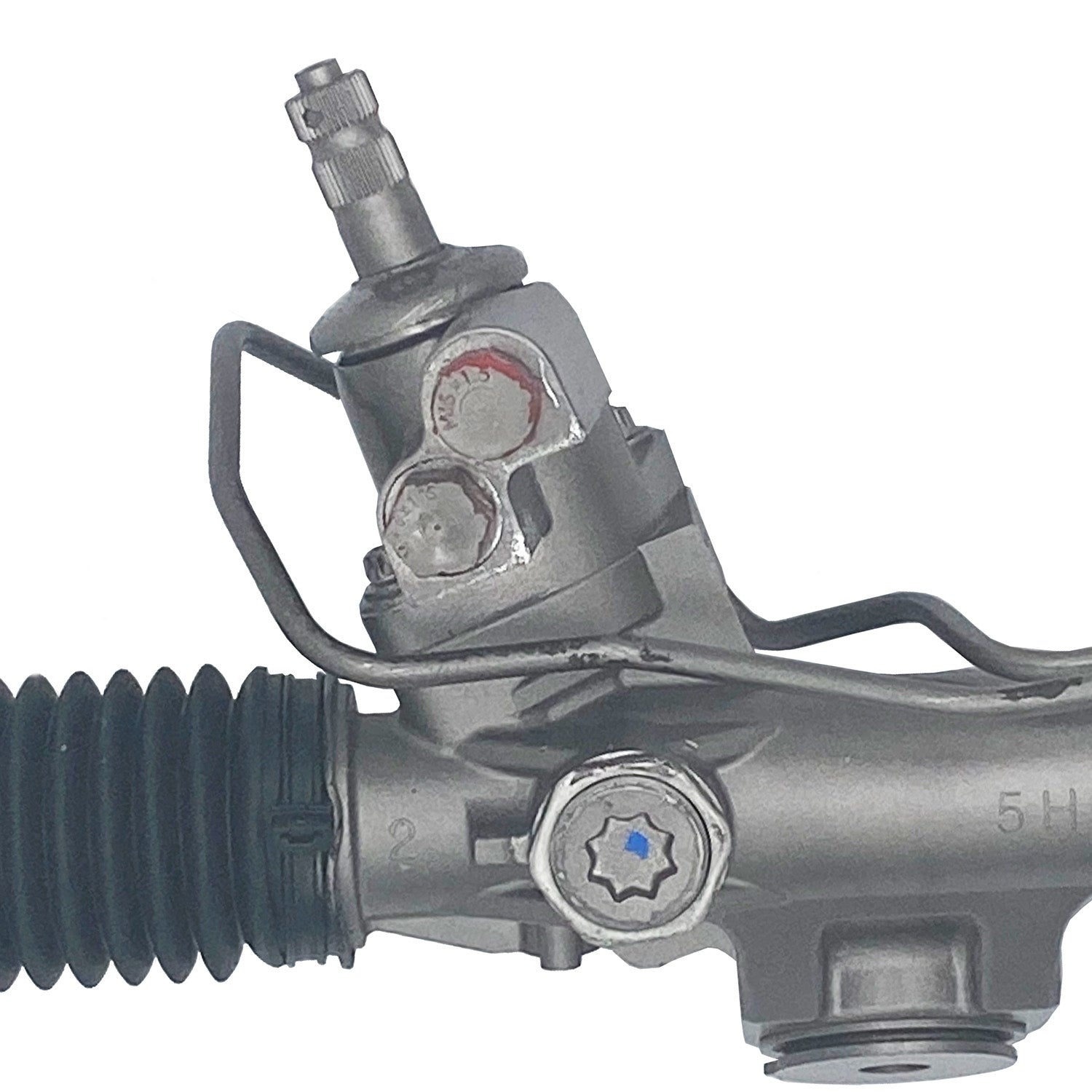

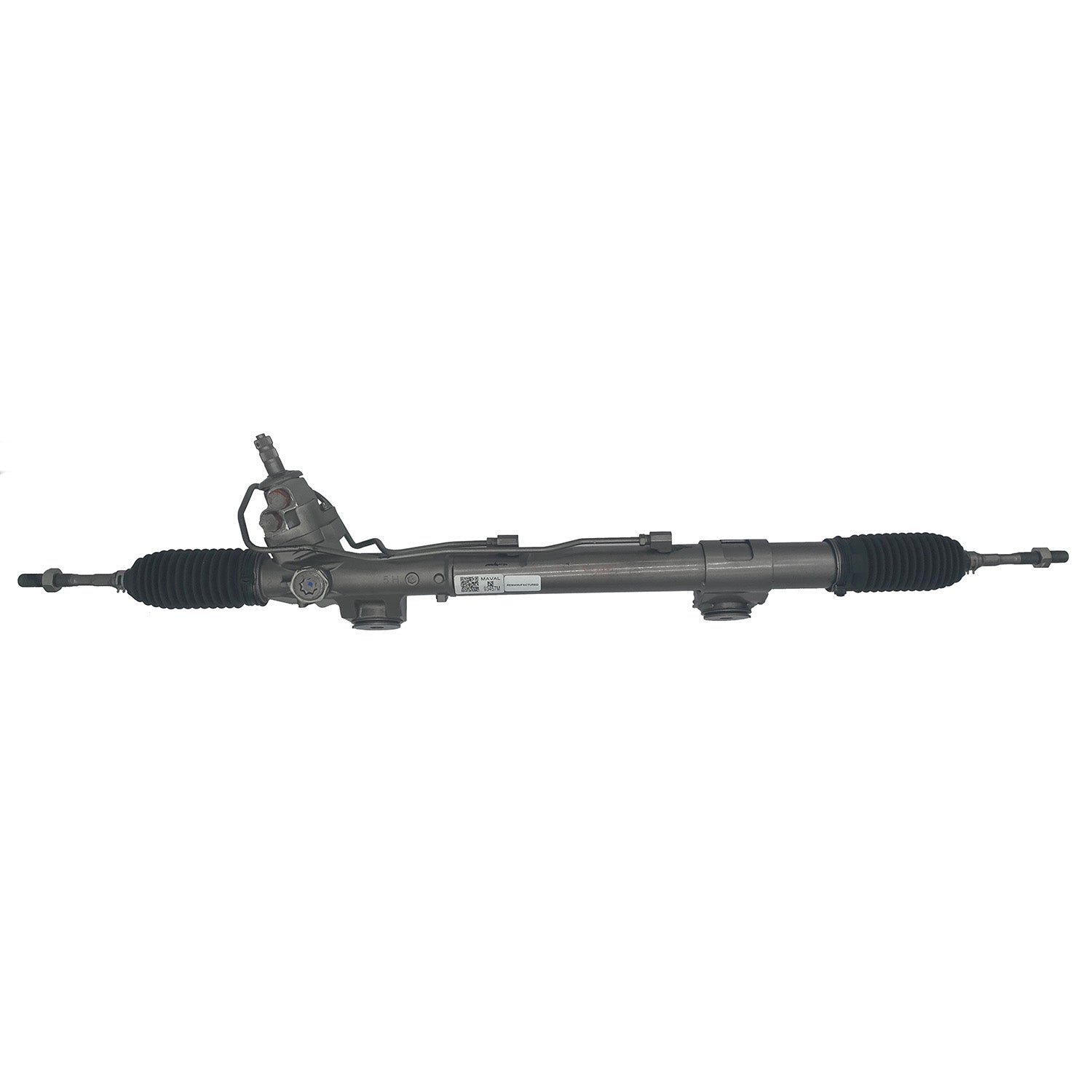

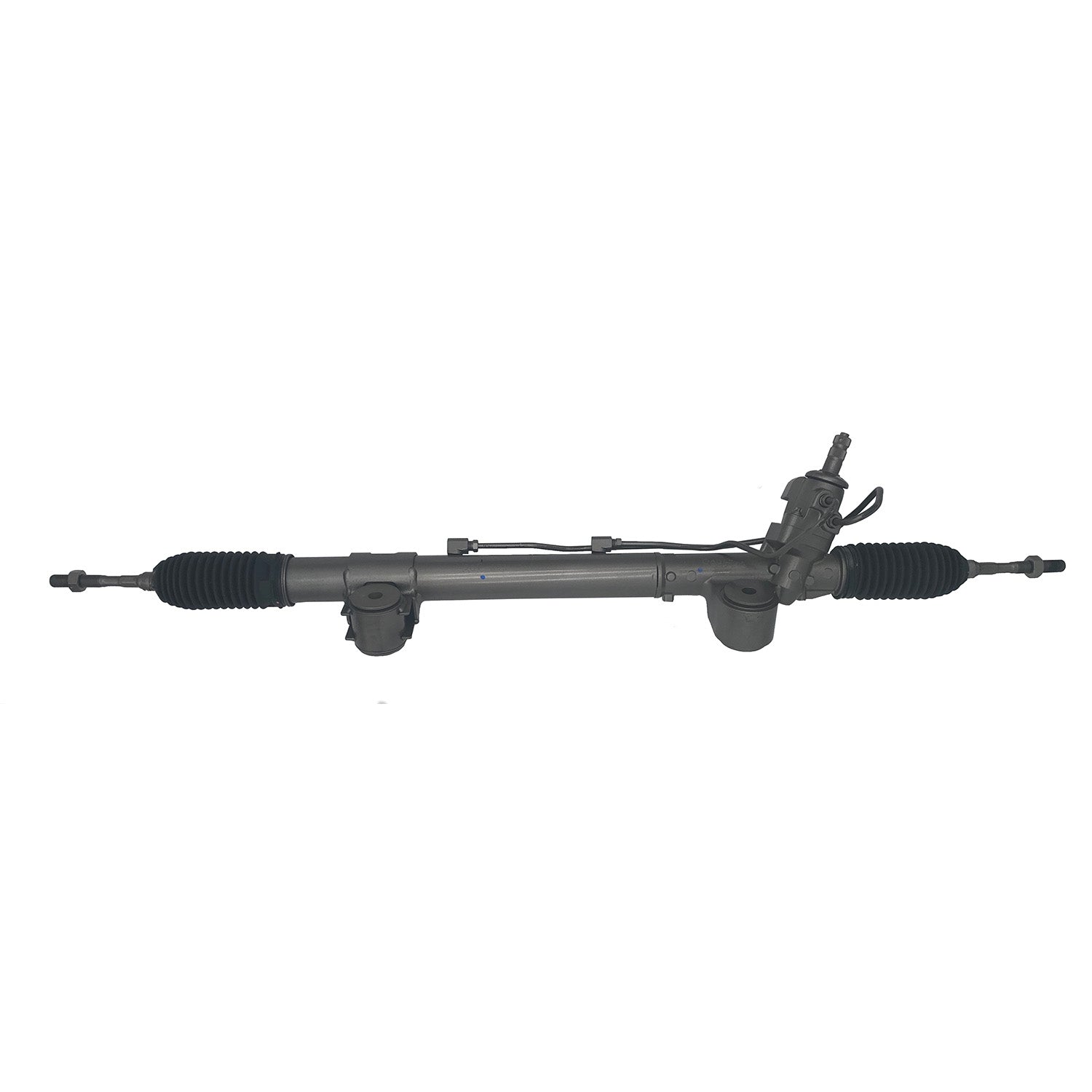

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
Application Info: 2016-2019 INFINITI Q50 (Liter: 2.0 & Cylinder: 4 & Block: L & Drive: AWD, RWD / 2017-2018 INFINITI Q60 (Liter: 2.0 & Cylinder: 4 & Block: L & Drive: AWD, RWD / Note: 15.250" MOUNT HOLE CENTER TO CENTER)
| Casting Material | Aluminum, Steel | |
| Distance Between Mounting Holes Front | 15.25 | IN |
| Distance Between Mounting Holes Front | 387.35 | MM |
| Distance Between Mounting Holes Rear | IN | |
| Distance Between Mounting Holes Rear | MM | |
| Distance Between Mounting Holes Front to Rear | IN | |
| Distance Between Mounting Holes Front to Rear | MM | |
| Hose Port Type | O'Ring | |
| Input Shaft Diameter | 0.69 | IN |
| Input Shaft Diameter | 17.5 | MM |
| Input Shaft Length | 1.98 | IN |
| Input Shaft Length | 50.25 | MM |
| Number of Mounting Holes | 2 | |
| Pressure Port Thread Size | M14 x 1.5 | |
| Rack Length | 43.21 | IN |
| Rack Length | 1097.69 | MM |
| Return Port Thread Size | M16 x 1.5 | |
| Thread Length | 2.05 | IN |
| Thread Length | 52 | MM |
| Inner Tie Rods Included | Yes | |
| Total Turns Lock To Lock | 2.81 |
Interchange: 49001-4GE1A, 49001-4GE2A, 49001-4GE3A,49001-4GE4A
BBB Cross-Reference:
Cardone Cross-Reference:
