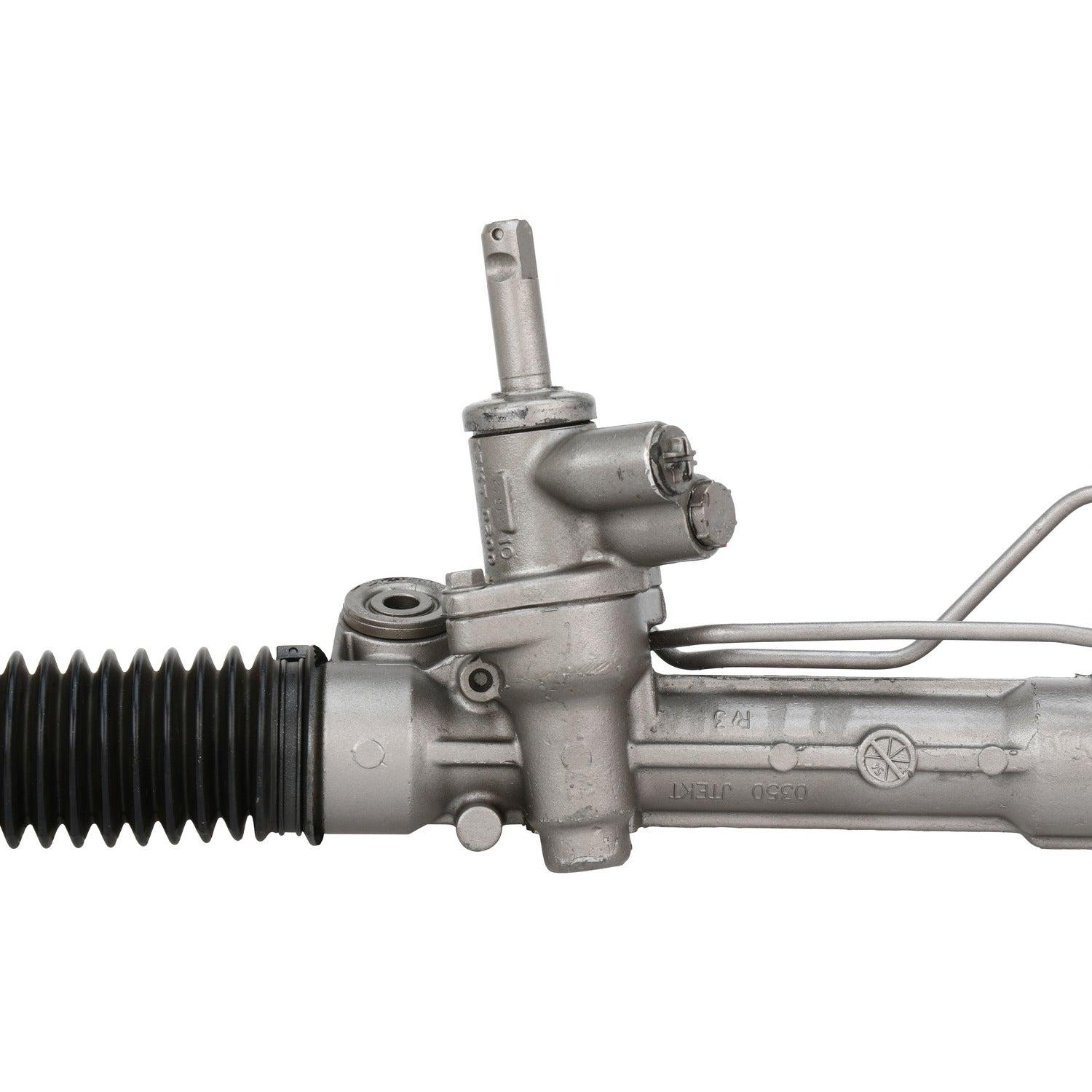

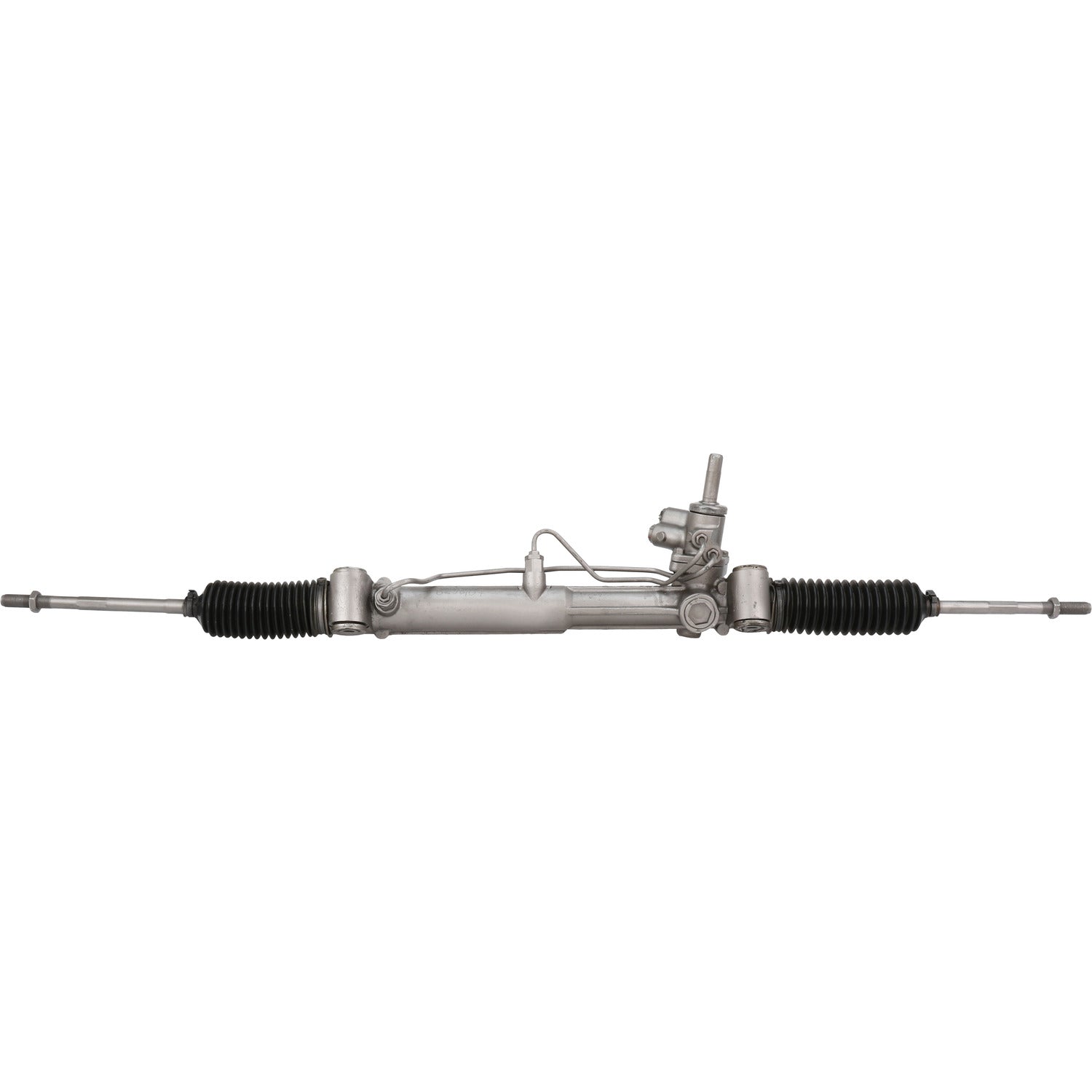

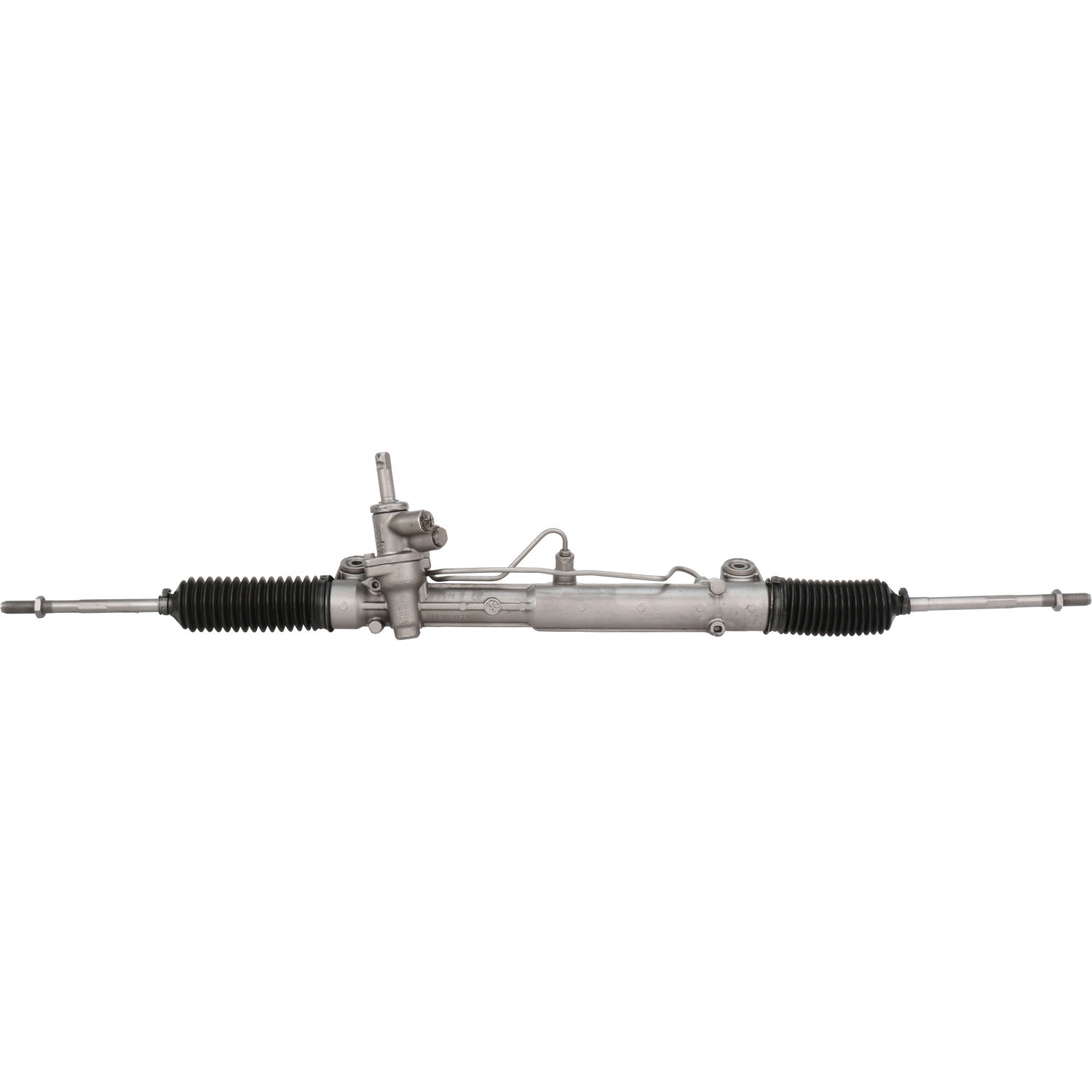

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95526M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95526M


MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 18.06 IN
Distance Between Mounting Holes 458.8 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 18.95 MM
Input Shaft Length 2.44 IN
Input Shaft Length 61.93 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 50.25 IN
Rack Length 1276.35 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.26 IN
Thread Length 57.35 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.63

Application Info: Chrysler 300 (2011-14); Dodge Challenger (2011-14), Charger (2011-14) ***W/RWD***

Interchange: 4584569AA, 4584569AB, 4584569AC, 4584569AD, 4584569AE, 4584569AF, 4584573AA, 4584573AB, 4584573AC, 4584573AD, 4584573AE, 4584573AF

BBB Cross-Reference: 102-0252

Cardone Cross-Reference: 22-3082

Instructions - 1          Instructions - 2
