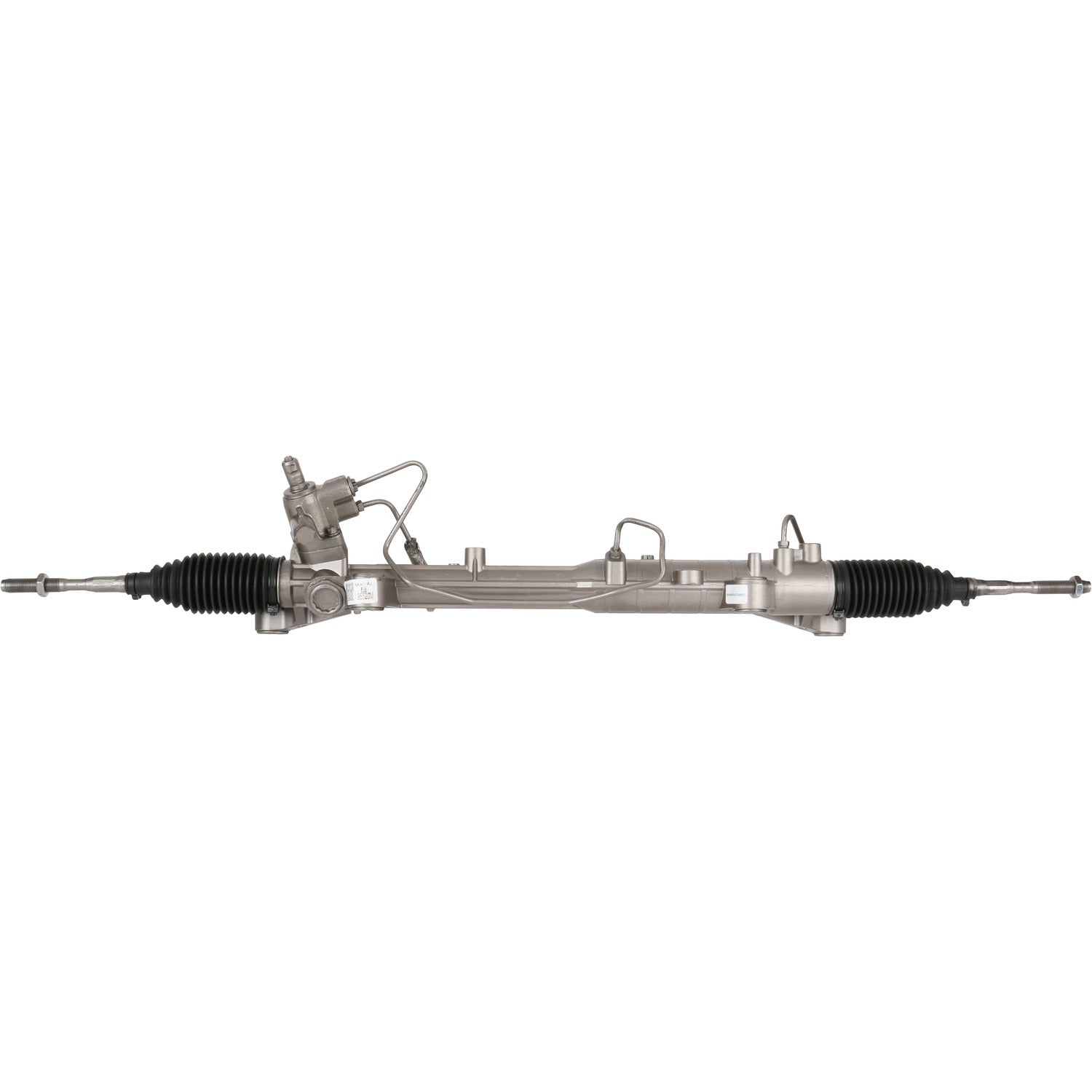

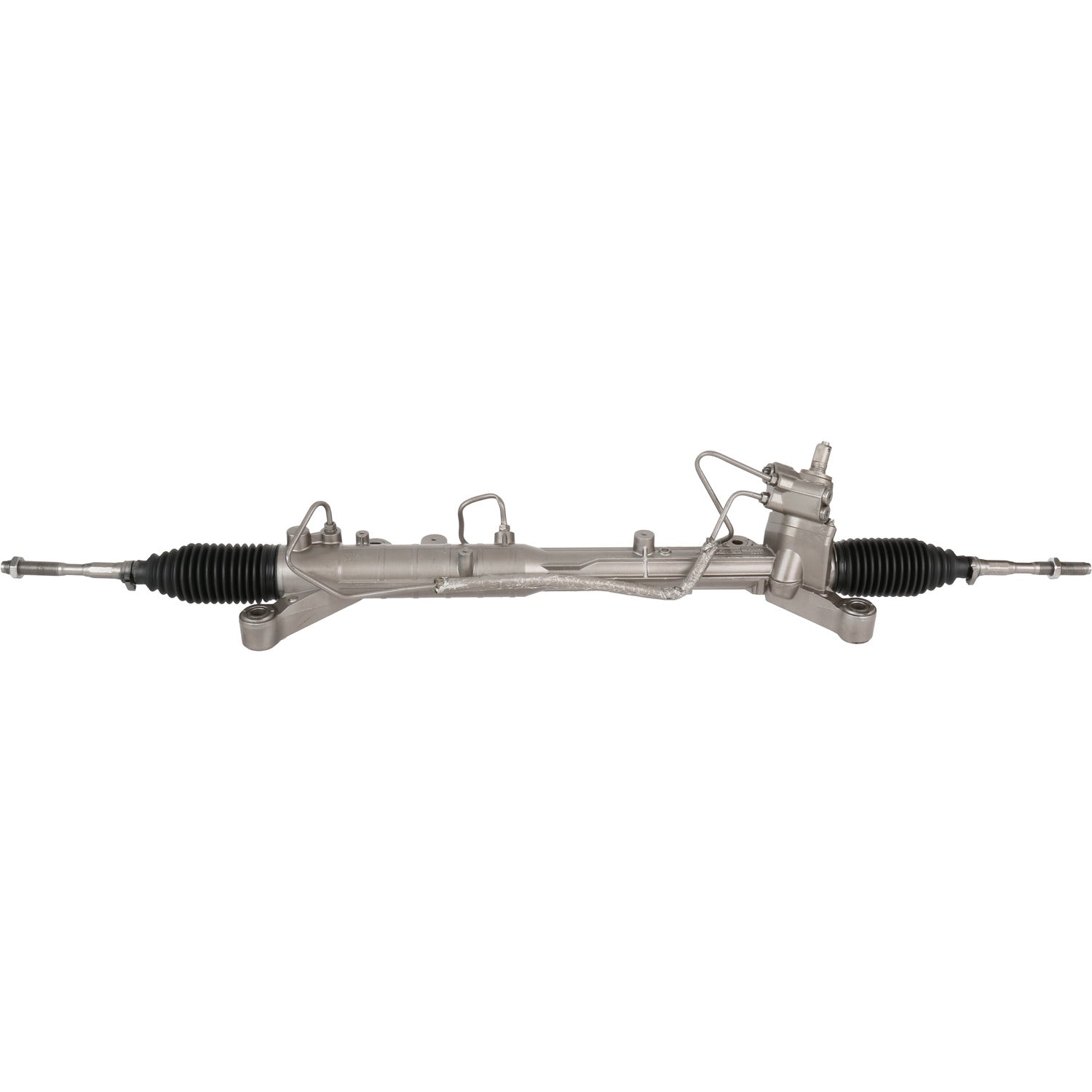

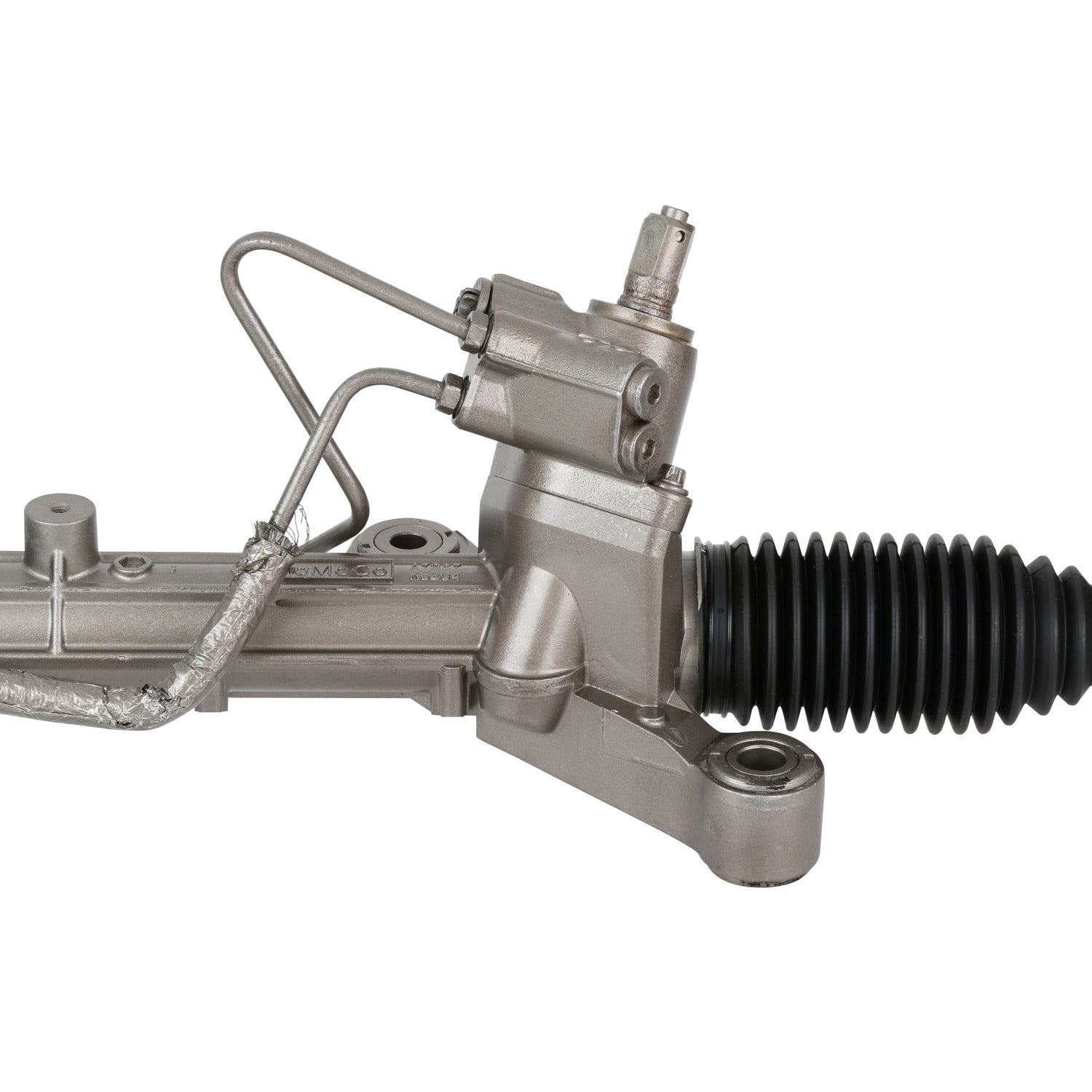

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95520M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95520M

SKU:95520M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 16 IN
Distance Between Mounting Holes 406.4 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 1.25 IN
Input Shaft Length 31.75 MM
Mounting Hole Quantity 4
Pressure Port Thread Size M14 x 1.5
Rack Length 47.13 IN
Rack Length 1196.98 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.37 IN
Thread Length 60.25 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.06

Application Info: Lincoln MKX 2007-2010 - Models w/18 & 20" Tires

Interchange: Ford - 9A1Z3504A

BBB Cross-Reference:

Cardone Cross-Reference: 22-2014

Instructions - 1               Instructions - 2
