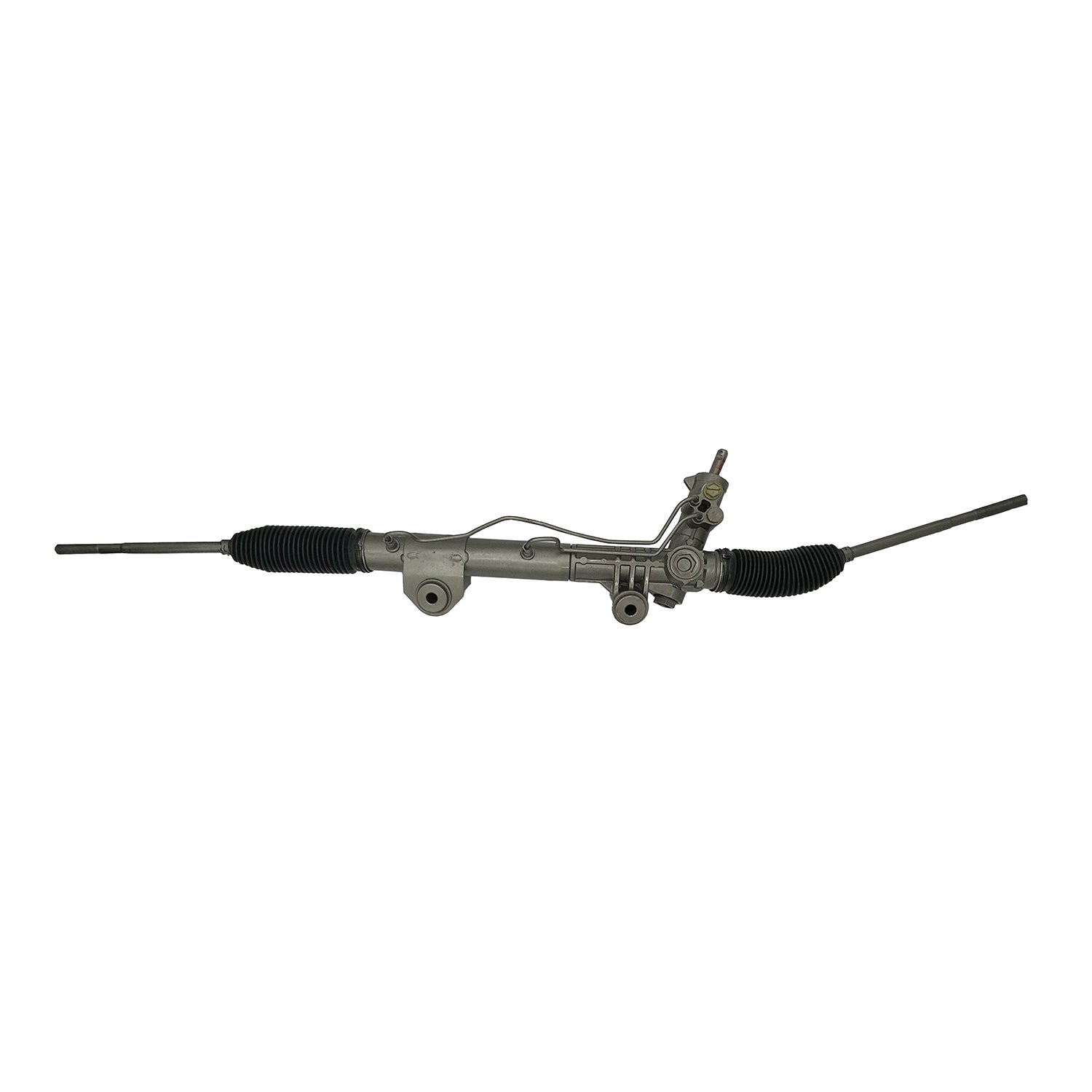

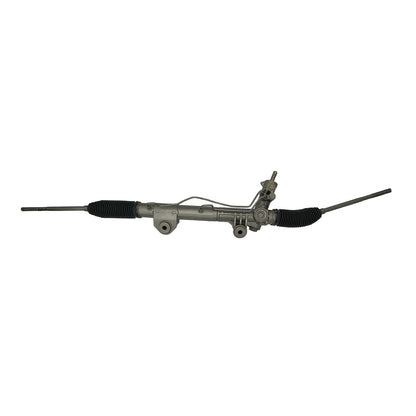

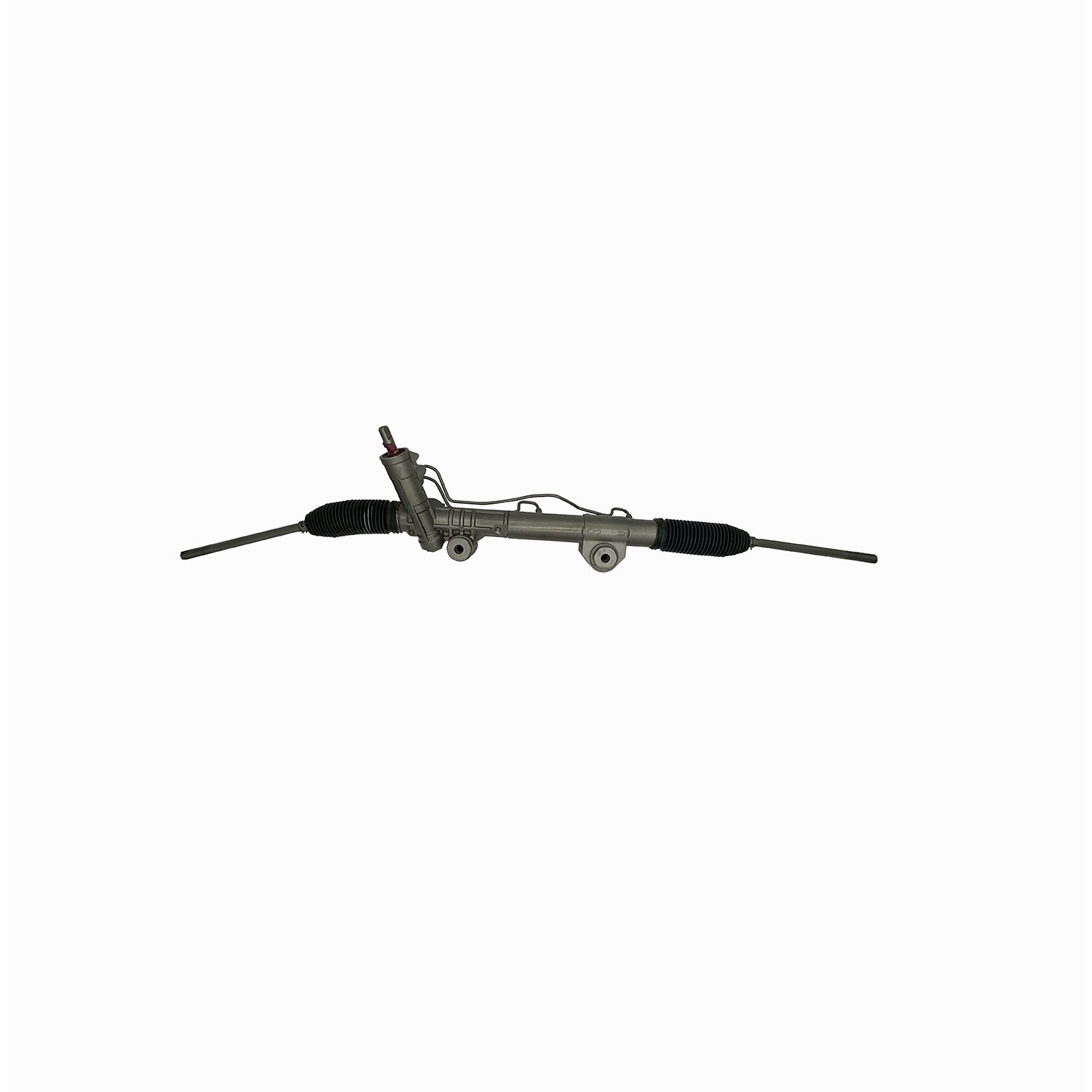

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95516M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95516M

SKU:95516M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 11.5 IN
Distance Between Mounting Holes 292.1 MM
Hose Port Type O-Ring

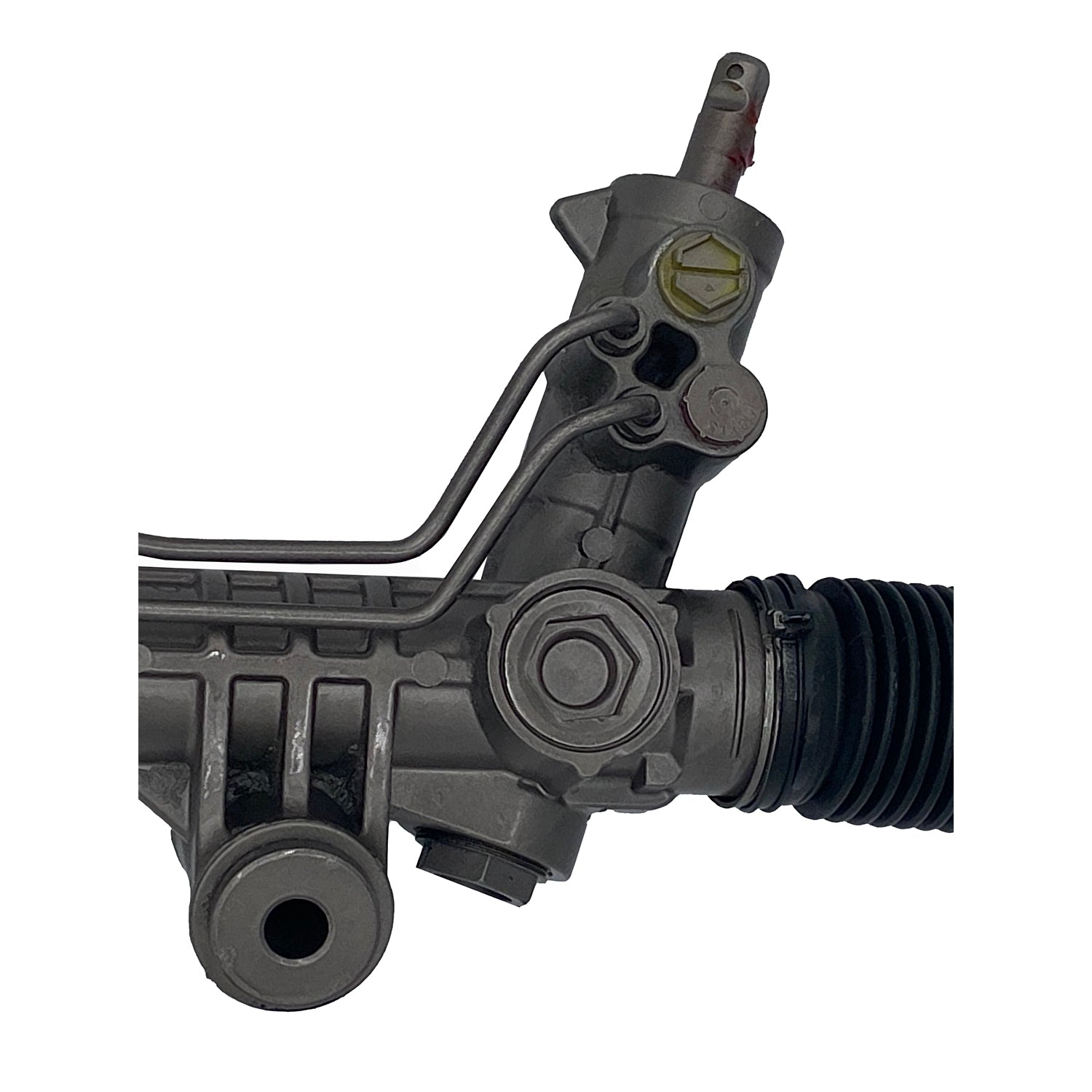

Input Shaft Diameter 0.7 IN
Input Shaft Diameter 17.78 MM
Input Shaft Length 1.88 IN
Input Shaft Length 47.63 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 56.5 IN
Rack Length 1435.1 MM
Return Port Thread Size M20 x 1.5
Thread Length 2.58 IN
Thread Length 65.63 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.16

Application Info: Dodge Ram 1500 (2006-10); Ram 1500 (2011-12) ***W/RWD OR 4WD, W/Crew Cab, Quad Cab OR Standard Cab***

Interchange: 5154491AA, 5154492AA, 55366383AD, 55366383AE, 55366383AF, 55366383AG, 55366383AH, 55366383AI, 55366383AJ, 55366383AK, 55366385AD, 55366385AE, 55366385AF, 55366385AG, 55366385AJ, 55398505AC, 55398505AD, 55398506AC, 55398506AD, 55398506AH

BBB Cross-Reference: 102-0209

Cardone Cross-Reference: 22-382
