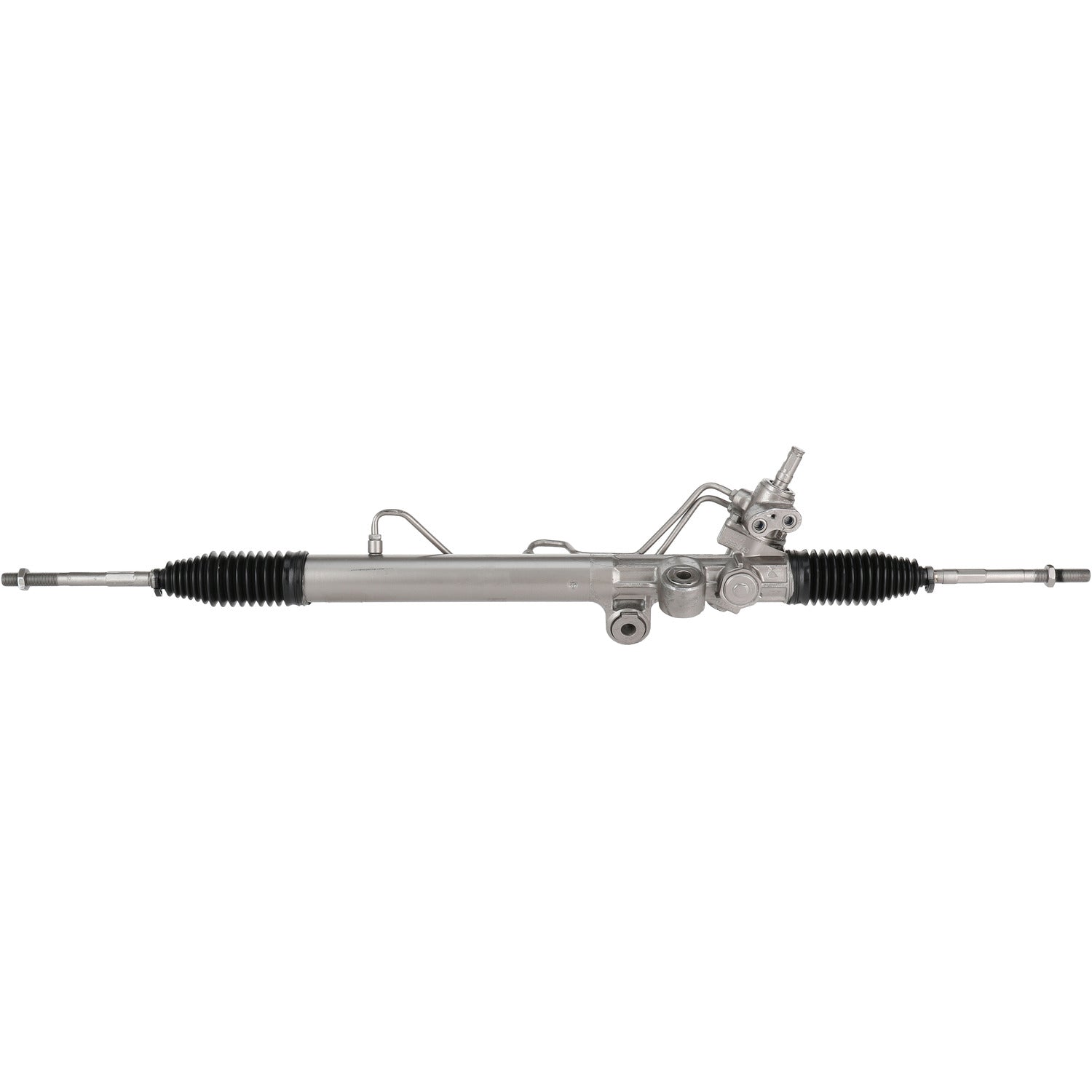

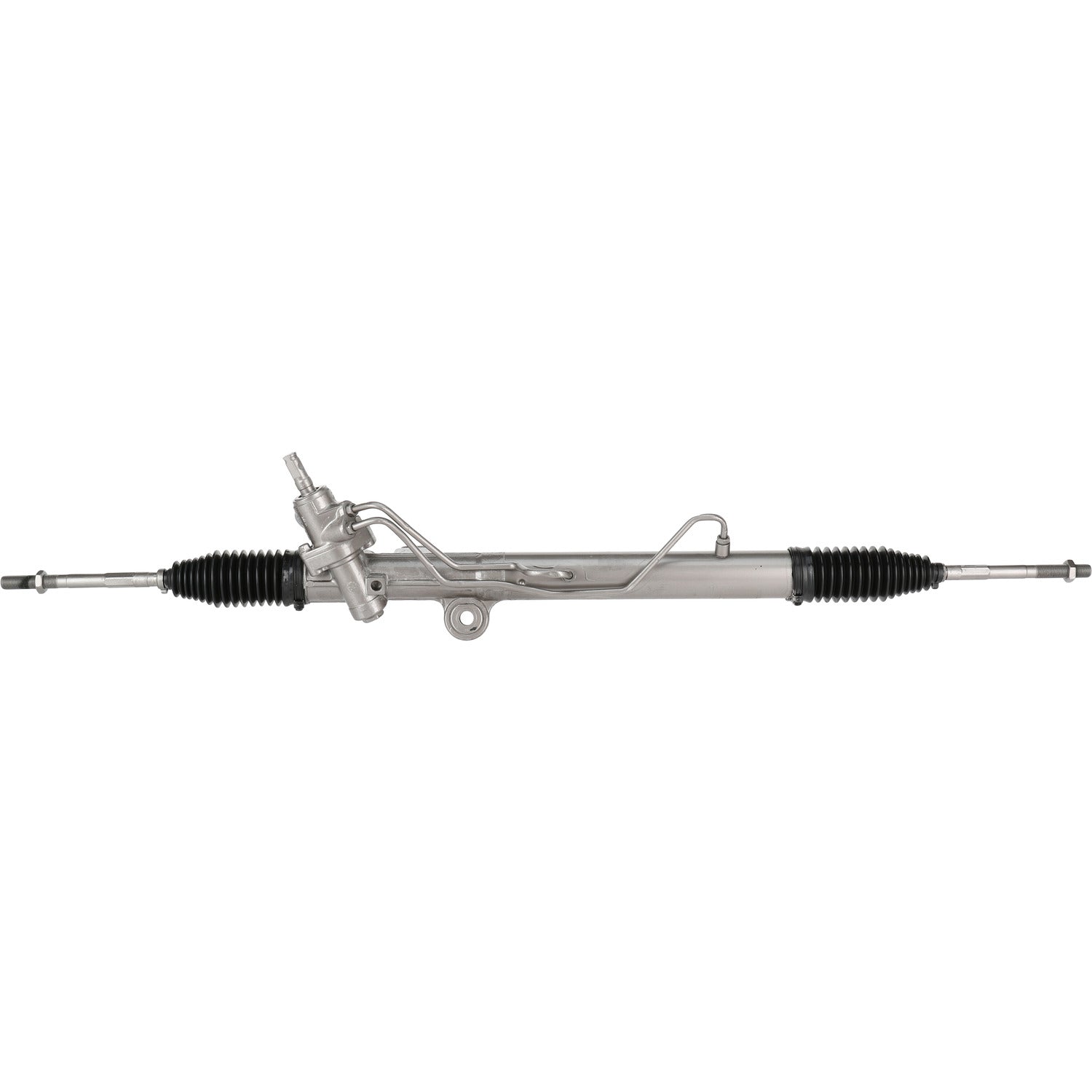

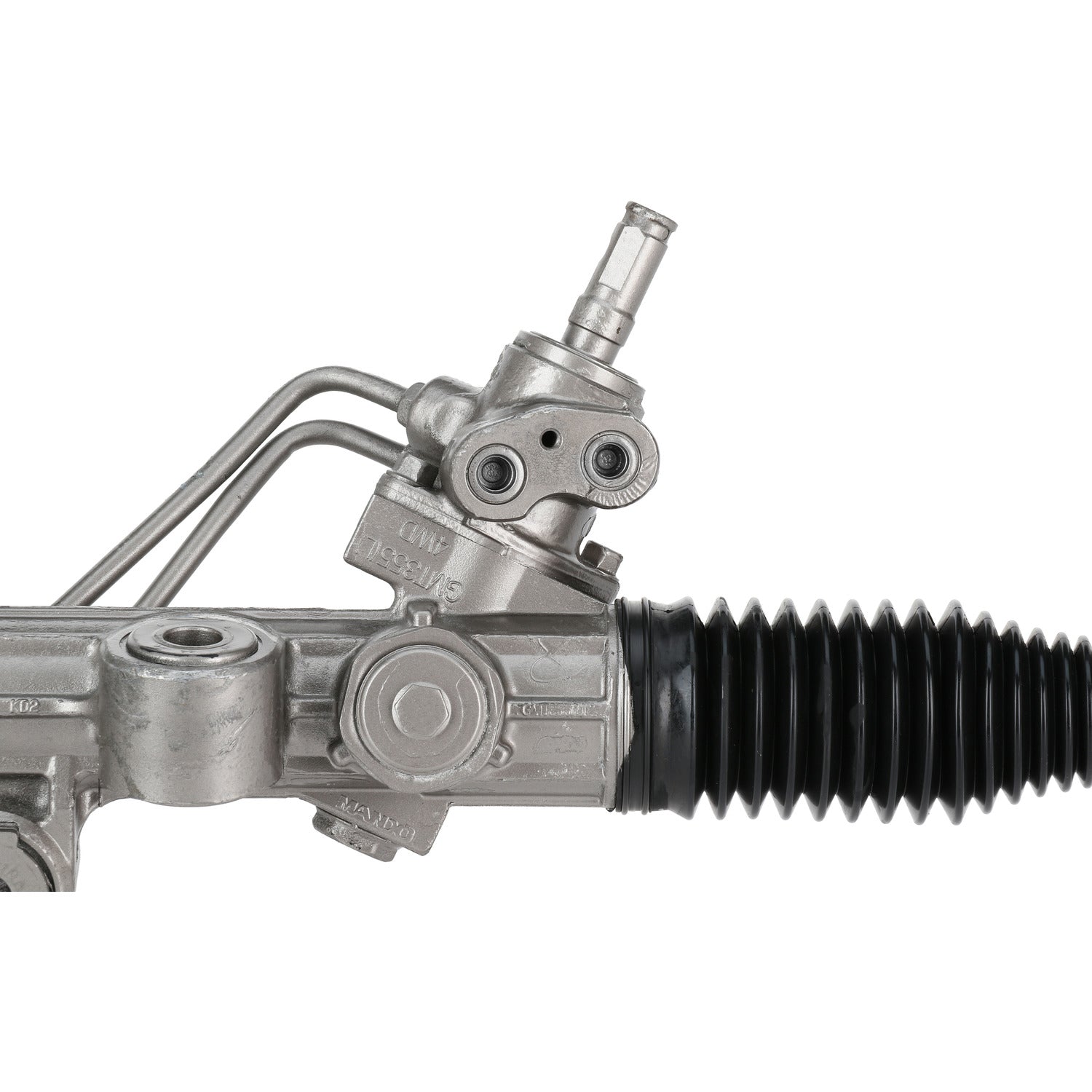

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95514M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95514M

SKU:95514M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 2.25 IN
Distance Between Mounting Holes 57.15 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 18.92 MM
Input Shaft Length 2.38 IN
Input Shaft Length 60.33 MM
Mounting Hole Quantity 2
Rack Length 46.25 IN
Rack Length 1174.75 MM
Return Port ID Size 0.436
Thread Length 2.08 IN
Thread Length 52.73 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3

Application Info: Chevrolet Colorado (2004-06); GMC Canyon (2004-06); Isuzu I-280 (2006) ***RWD W/Chassis Package (Z85), To VIN #68272519***

Interchange: 15120984, 26095460, 8260954600

BBB Cross-Reference: 103-0253

Cardone Cross-Reference: 22-1021
