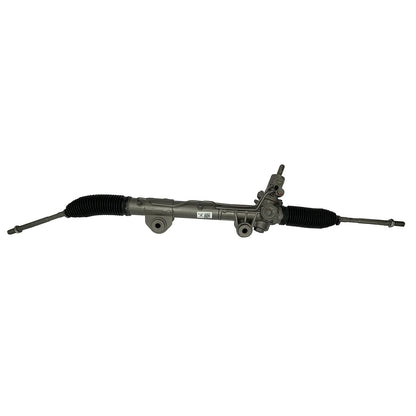

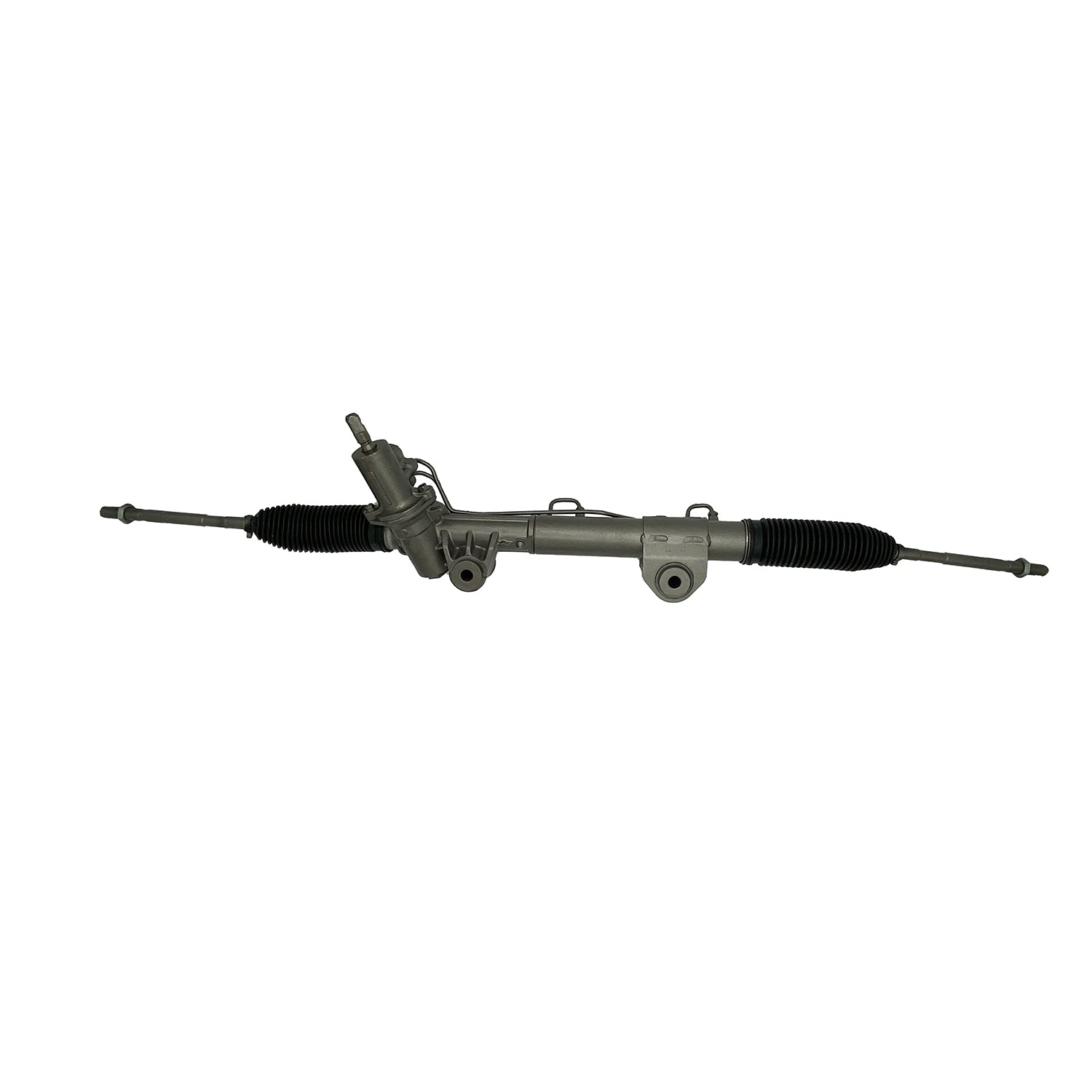

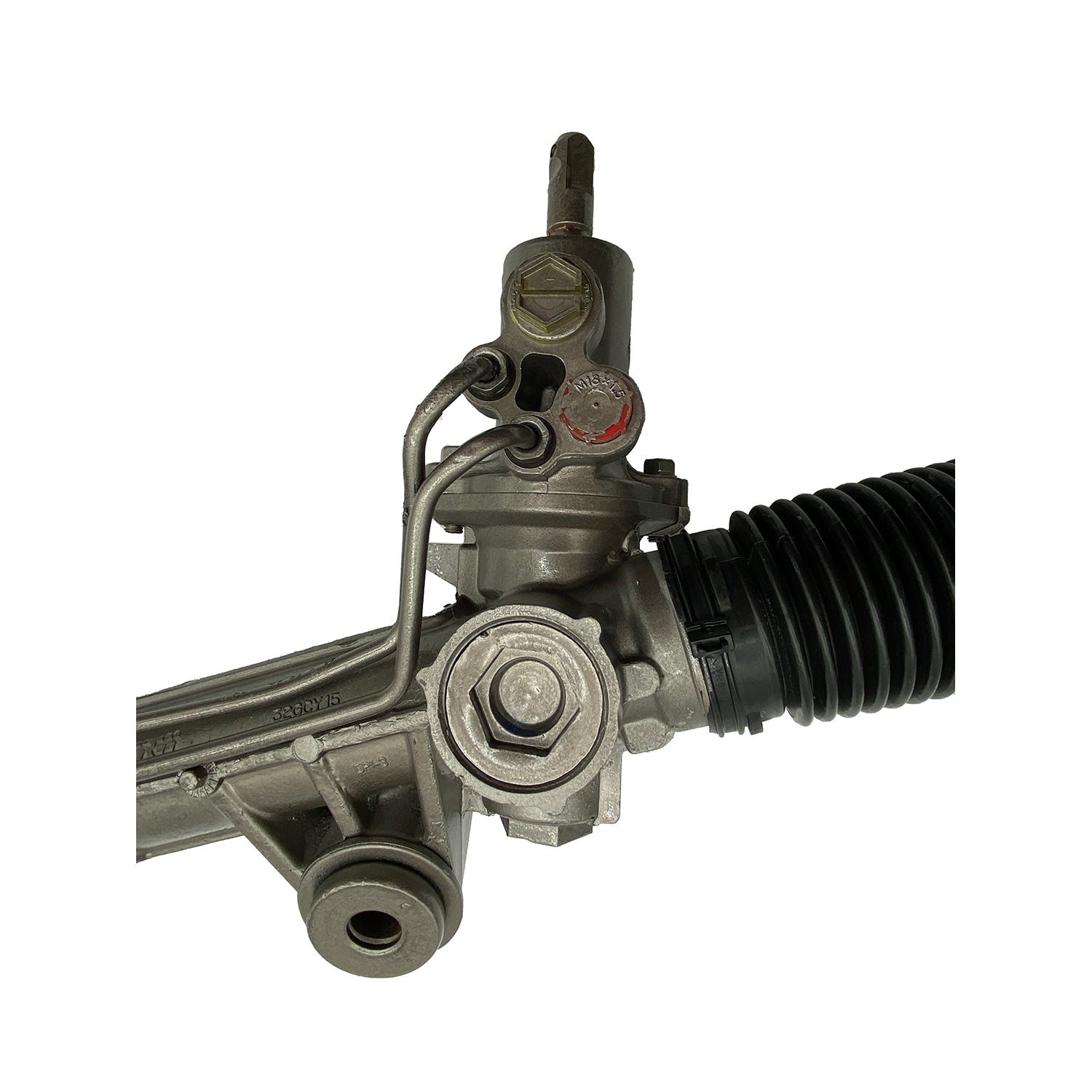

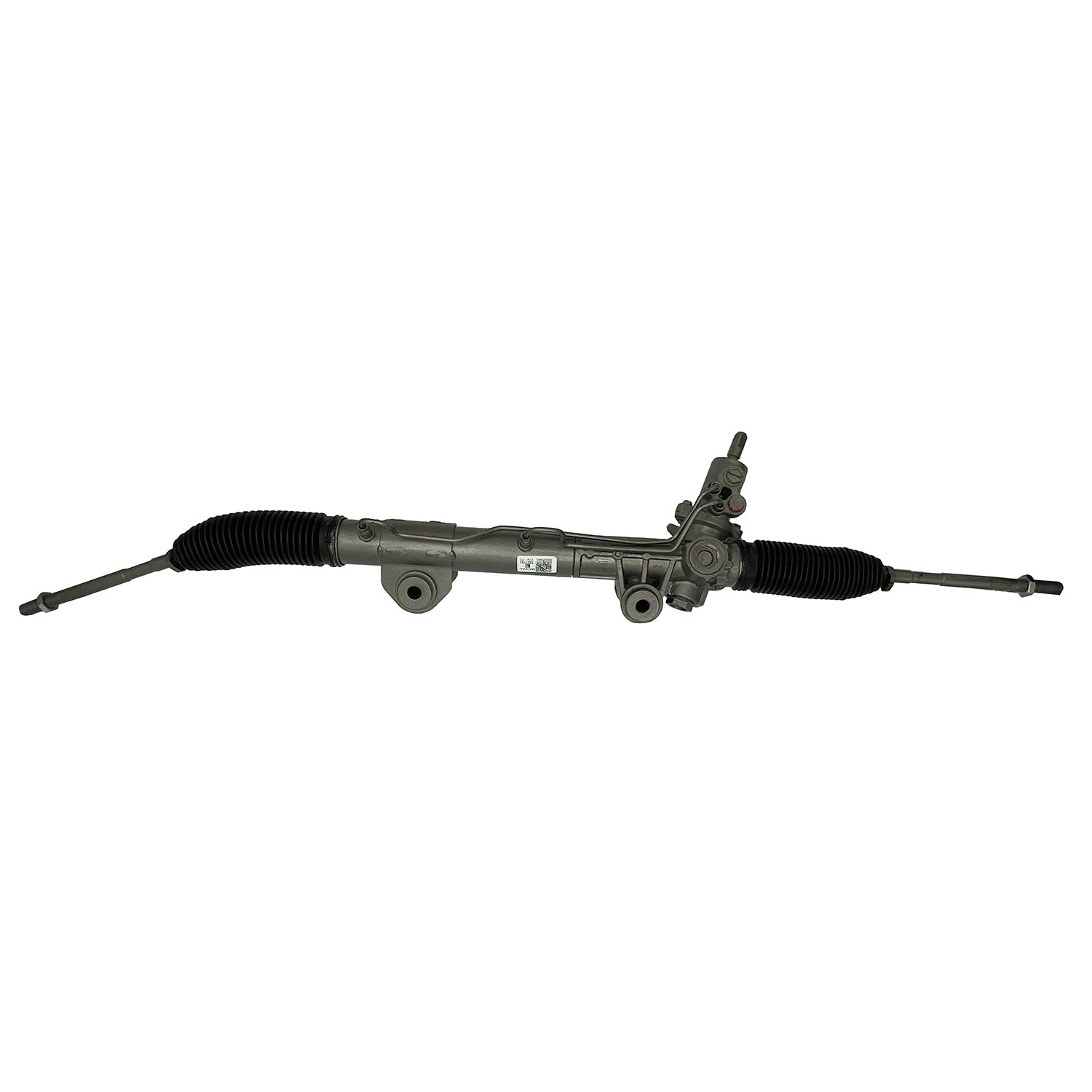

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95511M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95511M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 11.63 IN
Distance Between Mounting Holes 295.28 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19 MM
Input Shaft Length 1.94 IN
Input Shaft Length 49.2 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 54.81 IN
Rack Length 1392.25 MM
Return Port Thread Size M20 x 1.5
Thread Length 2.45 IN
Thread Length 62.23 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.81

Application Info: Dodge Ram 1500 Pickup 2002-05 ***4WD with Standard Cab***

Interchange: 52106521AE

BBB Cross-Reference: 102-0169

Cardone Cross-Reference: 26-2140

Instructions - 1          Instructions - 2
