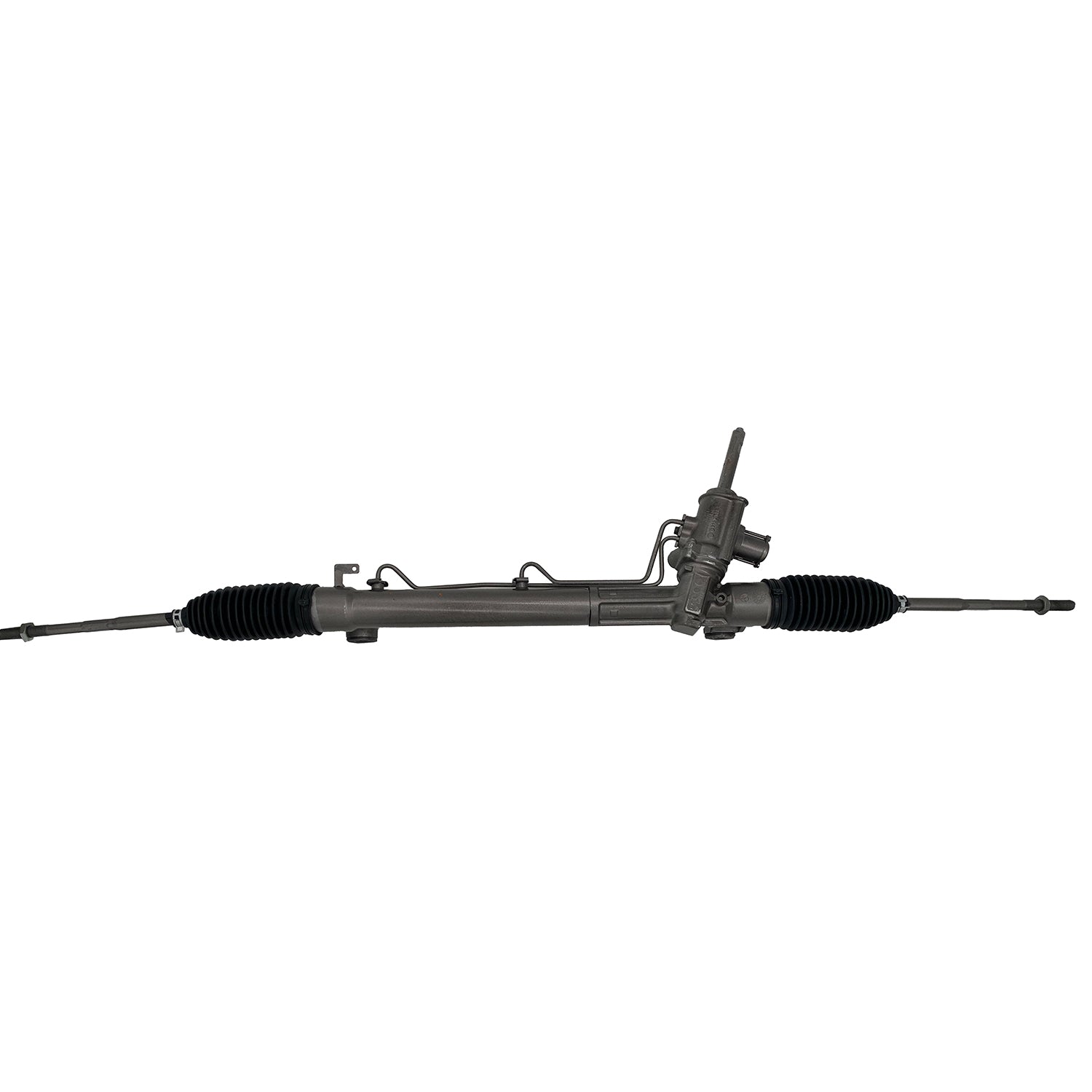

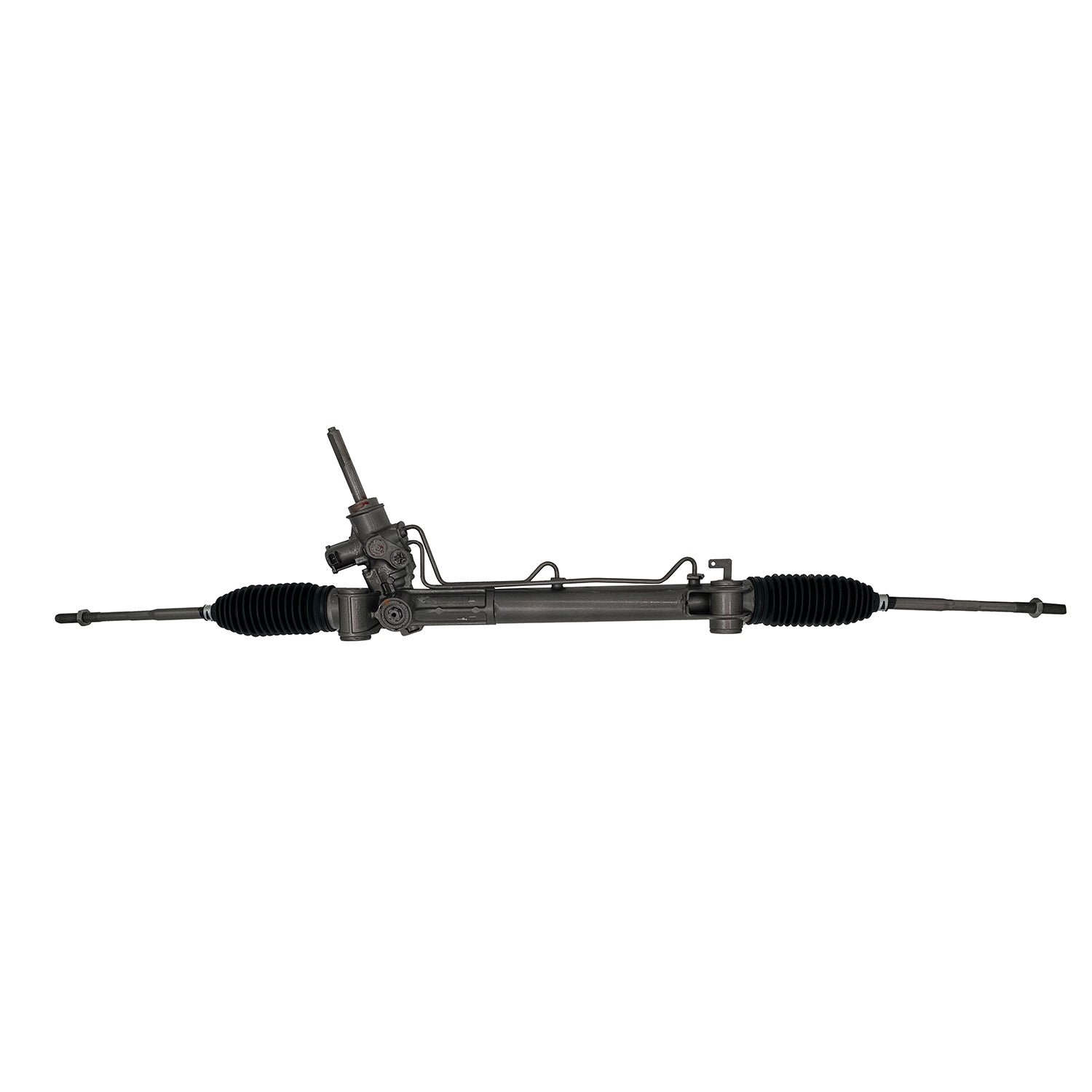

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95506M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95506M

SKU:95506M

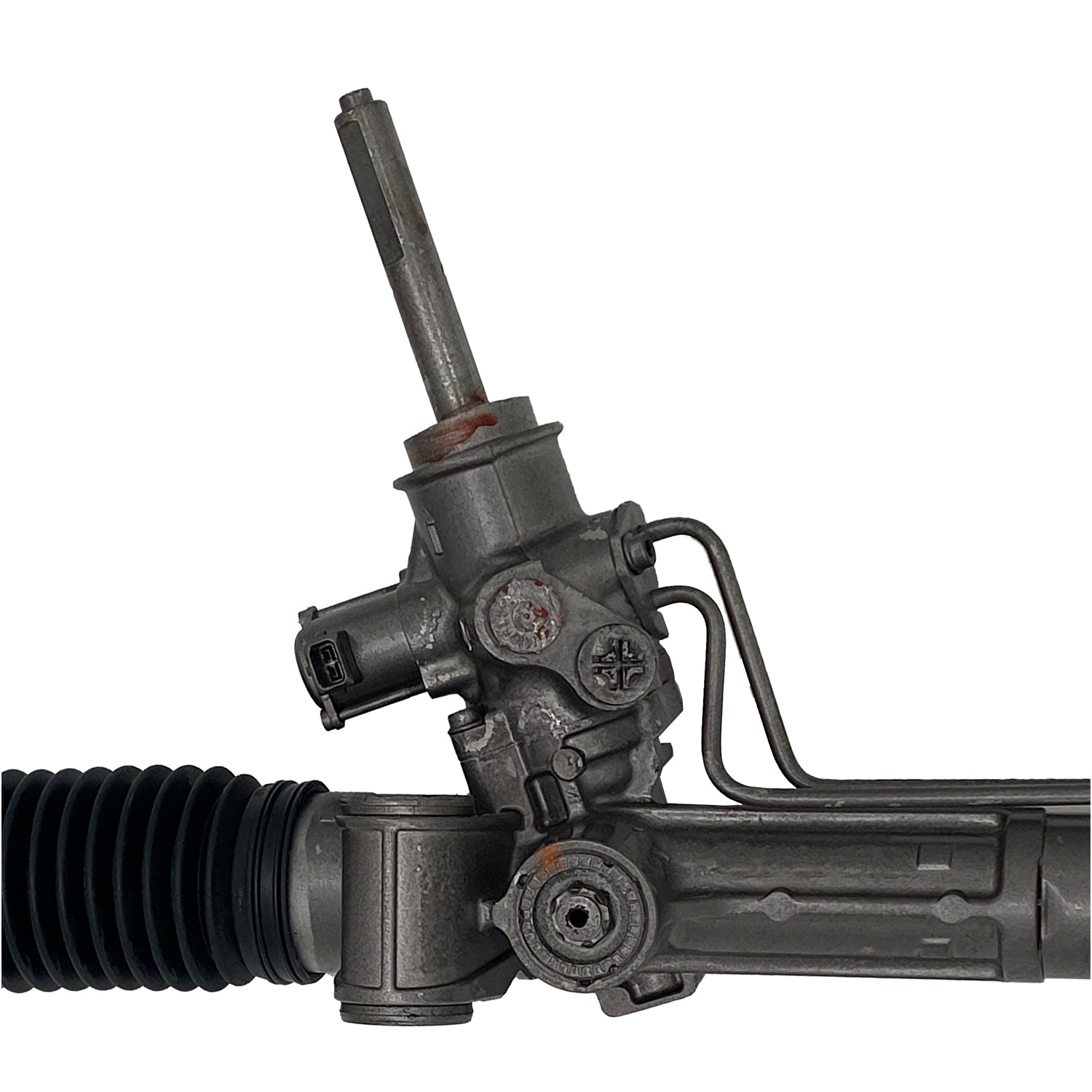

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 18.5 IN
Distance Between Mounting Holes 469.9 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.78 IN
Input Shaft Diameter 19.74 MM
Input Shaft Length 3.87 IN
Input Shaft Length 98.3 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 51.88 IN
Rack Length 1317.63 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.48 IN
Thread Length 62.99 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.75

Application Info: Cadillac SRX (2010-16) ***W/Variable Steering (NV7), W/EVO Component***

Interchange: 15950143, 20870431, 20930260, 22752682, 25817918

BBB Cross-Reference: 103-0290

Cardone Cross-Reference: 22-1122/22-1122E
