MAVAL

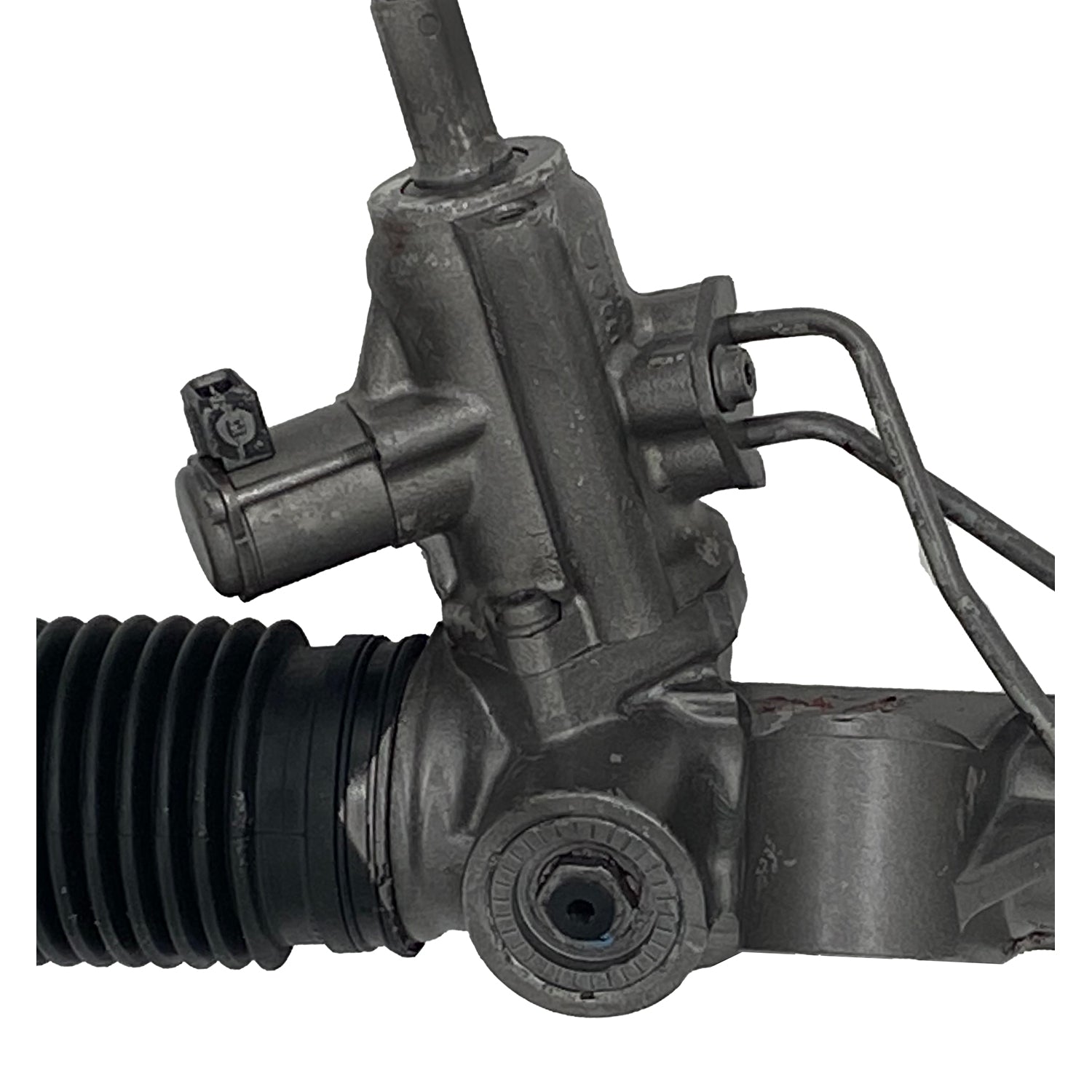

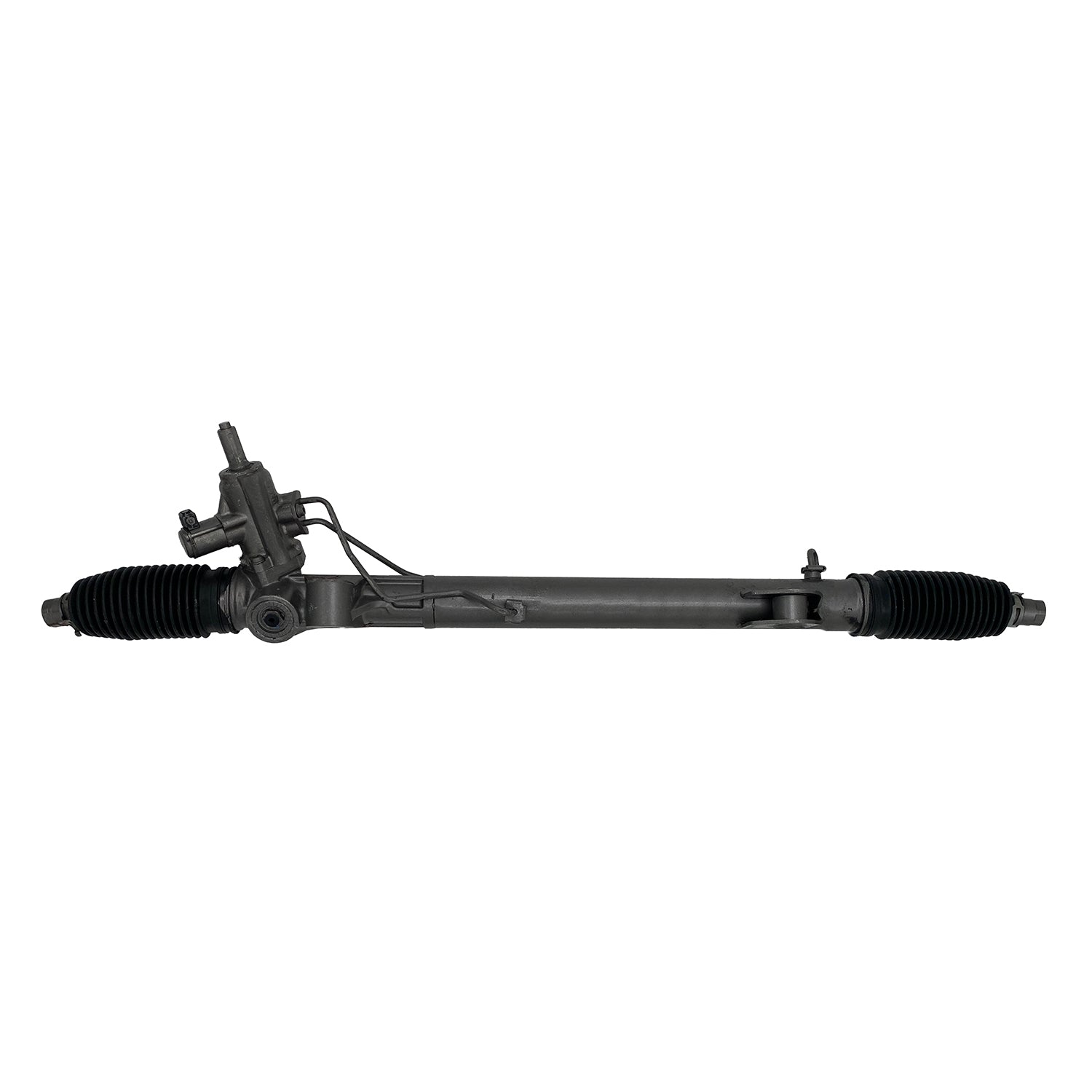

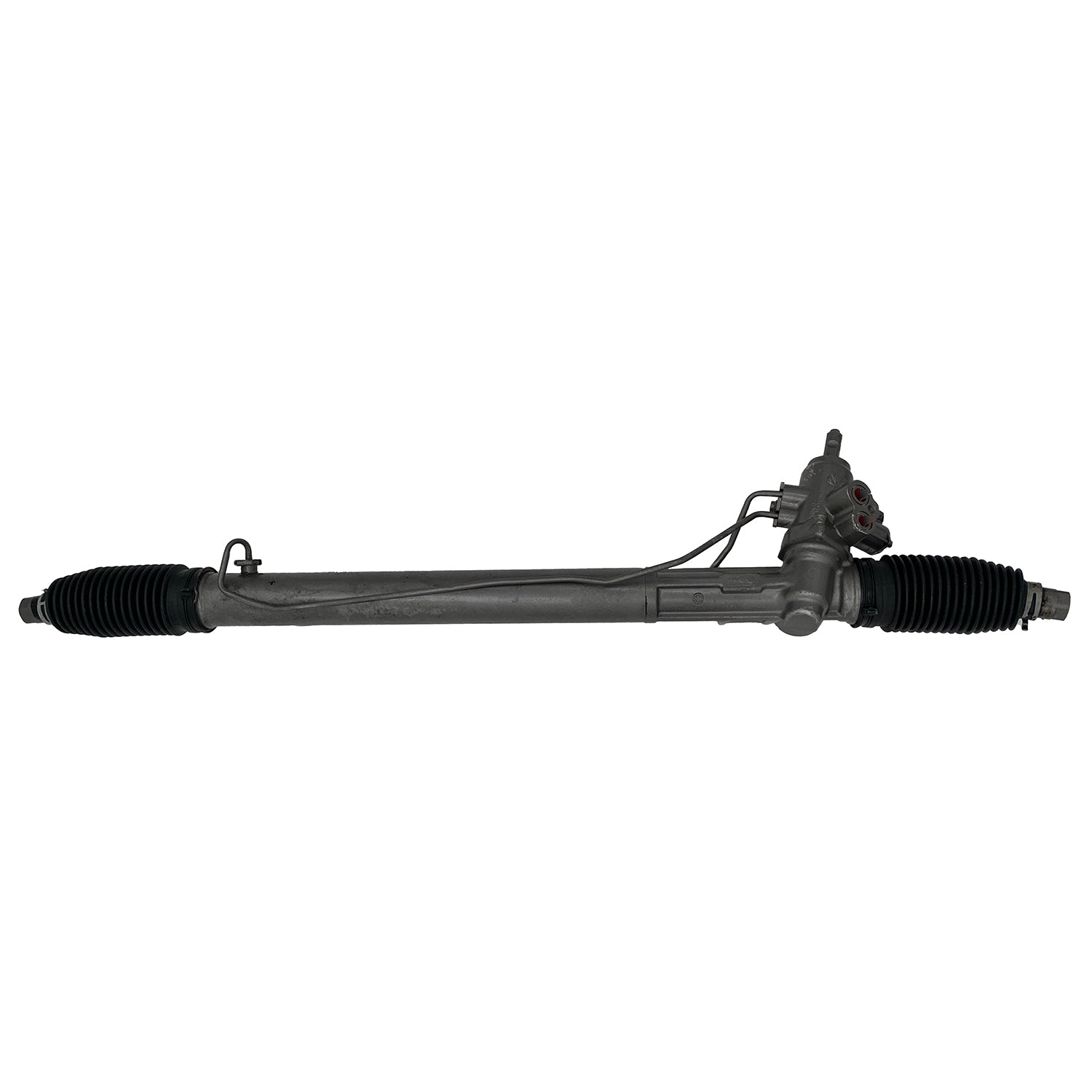

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95498M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95498M

SKU:95498M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 17.13 IN
Distance Between Mounting Holes 434.98 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.79 IN
Input Shaft Diameter 19.94 MM
Input Shaft Length 1.63 IN
Input Shaft Length 41.28 MM
Mounting Hole Quantity 2
Rack Length 38.56 IN
Rack Length 979.5 MM
Return Port ID Size 0.436
Thread Length 2.03 IN
Thread Length 51.59 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.06

Application Info: Cadillac CTS AWD (2008-2013) ***W/3.0L V6 OR 3.6L V6 Engine, W/AWD, W/EVO Component***

Interchange: 20962760, 22777702, 25830764, 25830765, 25930832

BBB Cross-Reference: 103-0228P

Cardone Cross-Reference: 22-1072E
