MAVAL

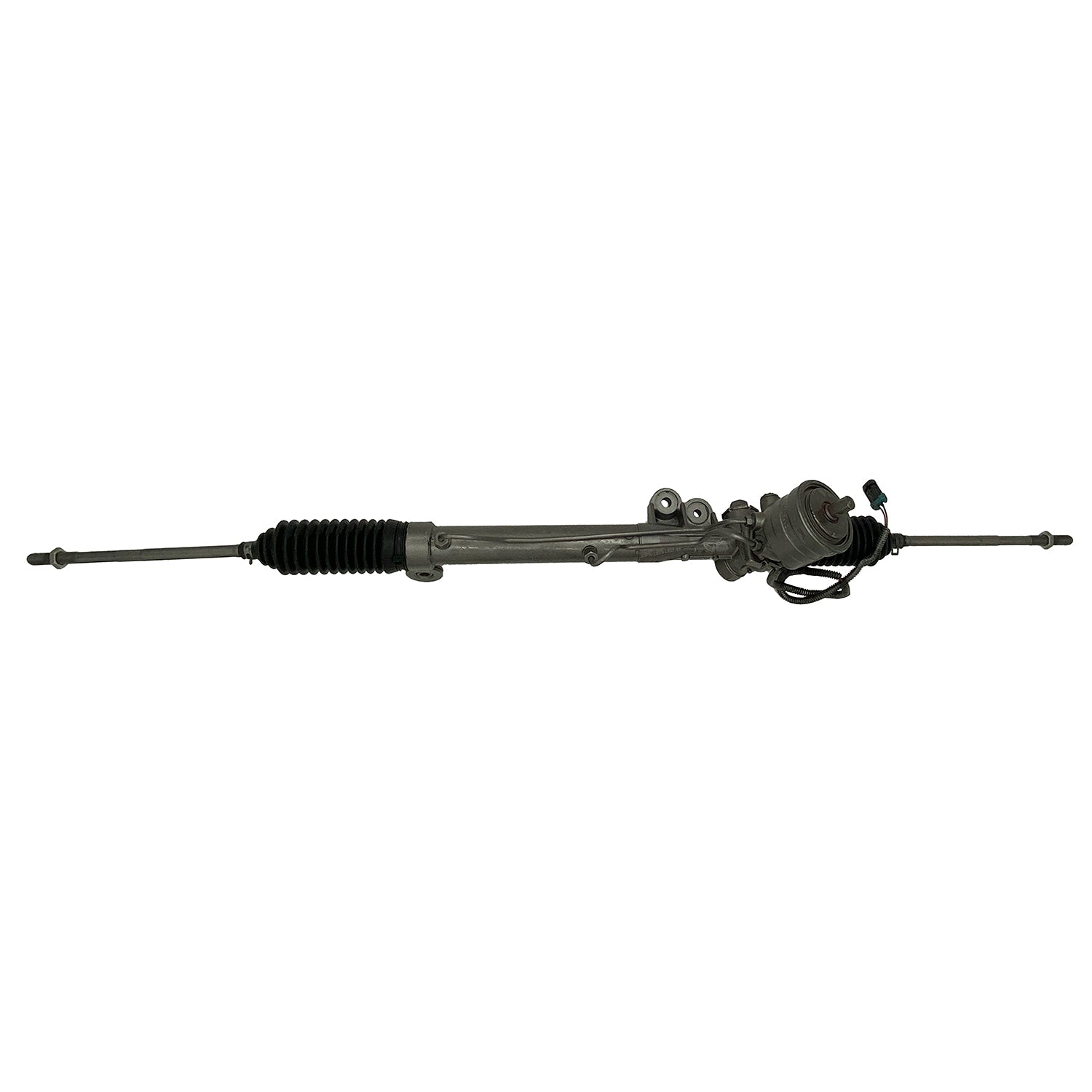

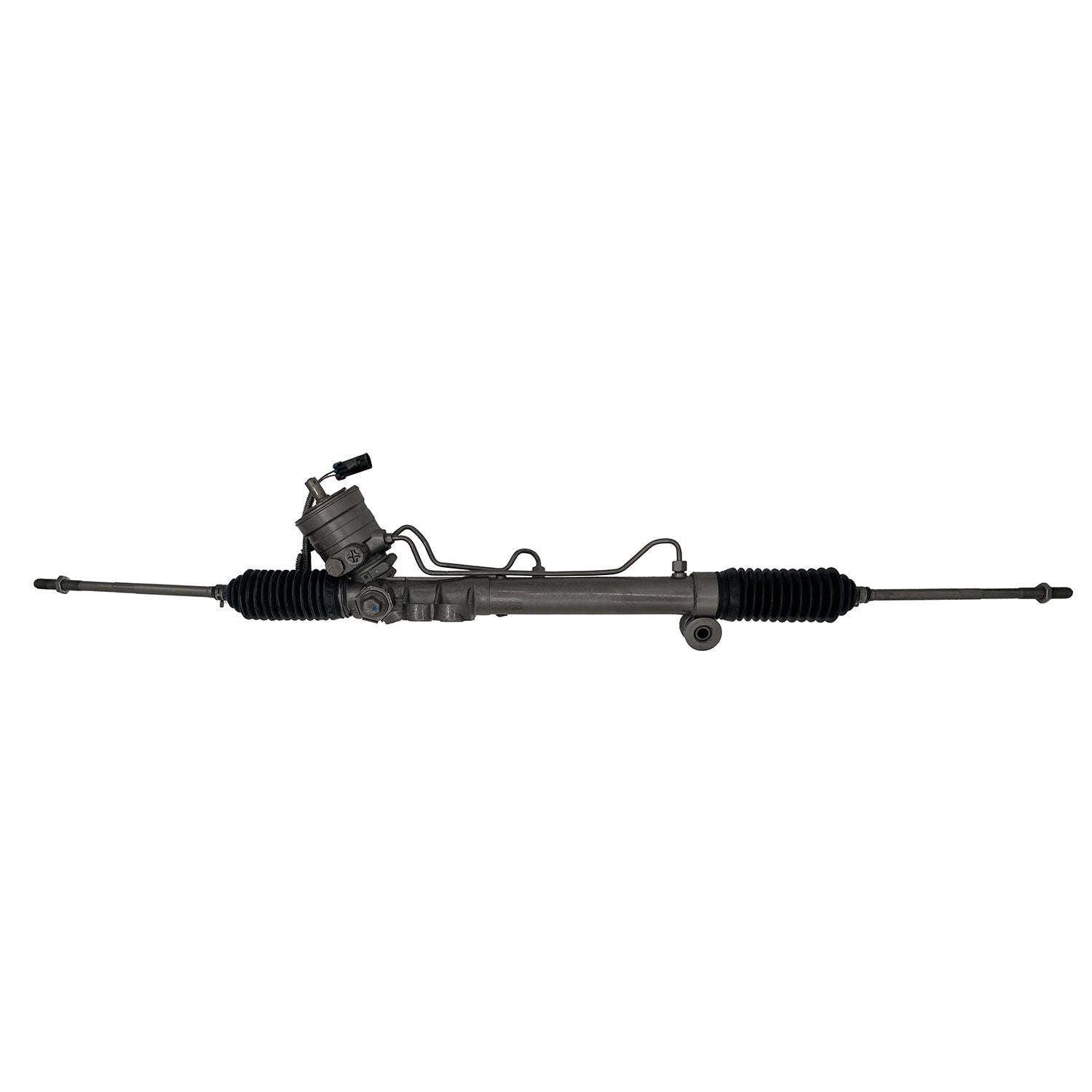

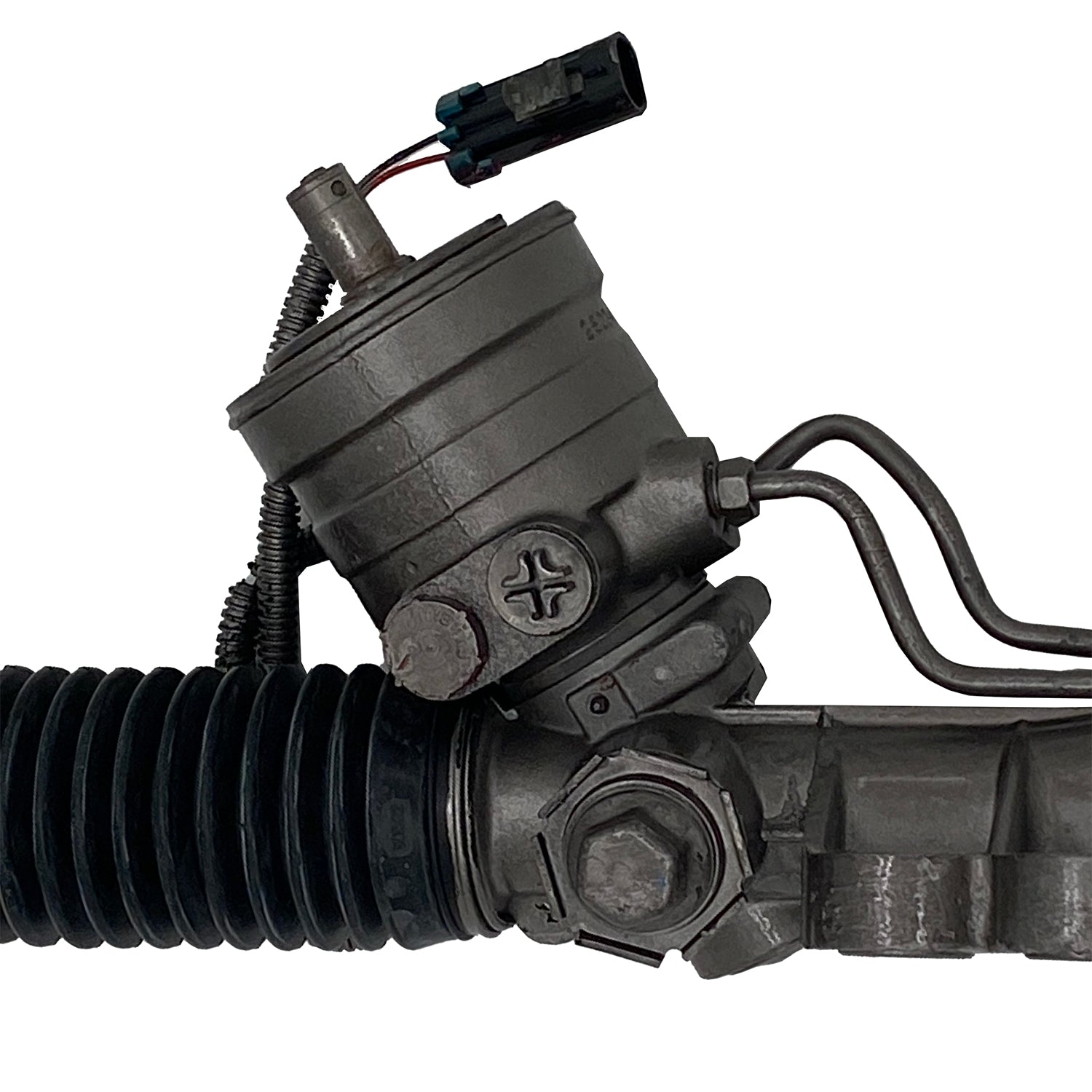

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95497M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95497M

SKU:95497M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 11.75 IN
Distance Between Mounting Holes 298.45 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.71 MM
Input Shaft Length 1.125 IN
Input Shaft Length 28.575 MM
Mounting Hole Quantity 3
Pressure Port Thread Size M18 x 1.5
Rack Length 50.25 IN
Rack Length 1276.35 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.38 IN
Thread Length 60.32 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.06

Application Info: Buick Park Avenue (1997-1998)

Interchange: 26051512

BBB Cross-Reference: 103-0139

Cardone Cross-Reference: 22-156

Instructions - 1          Instructions - 2
