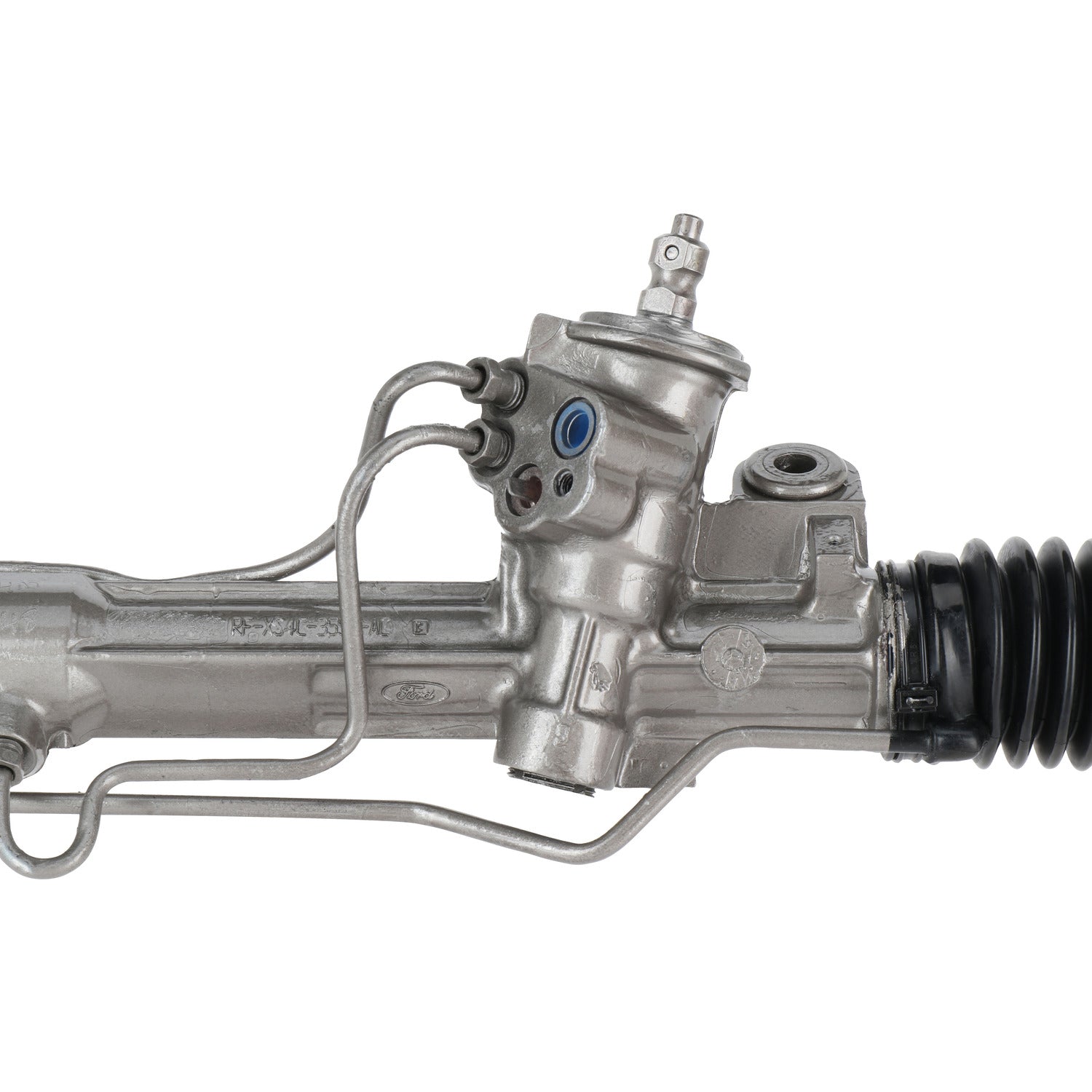

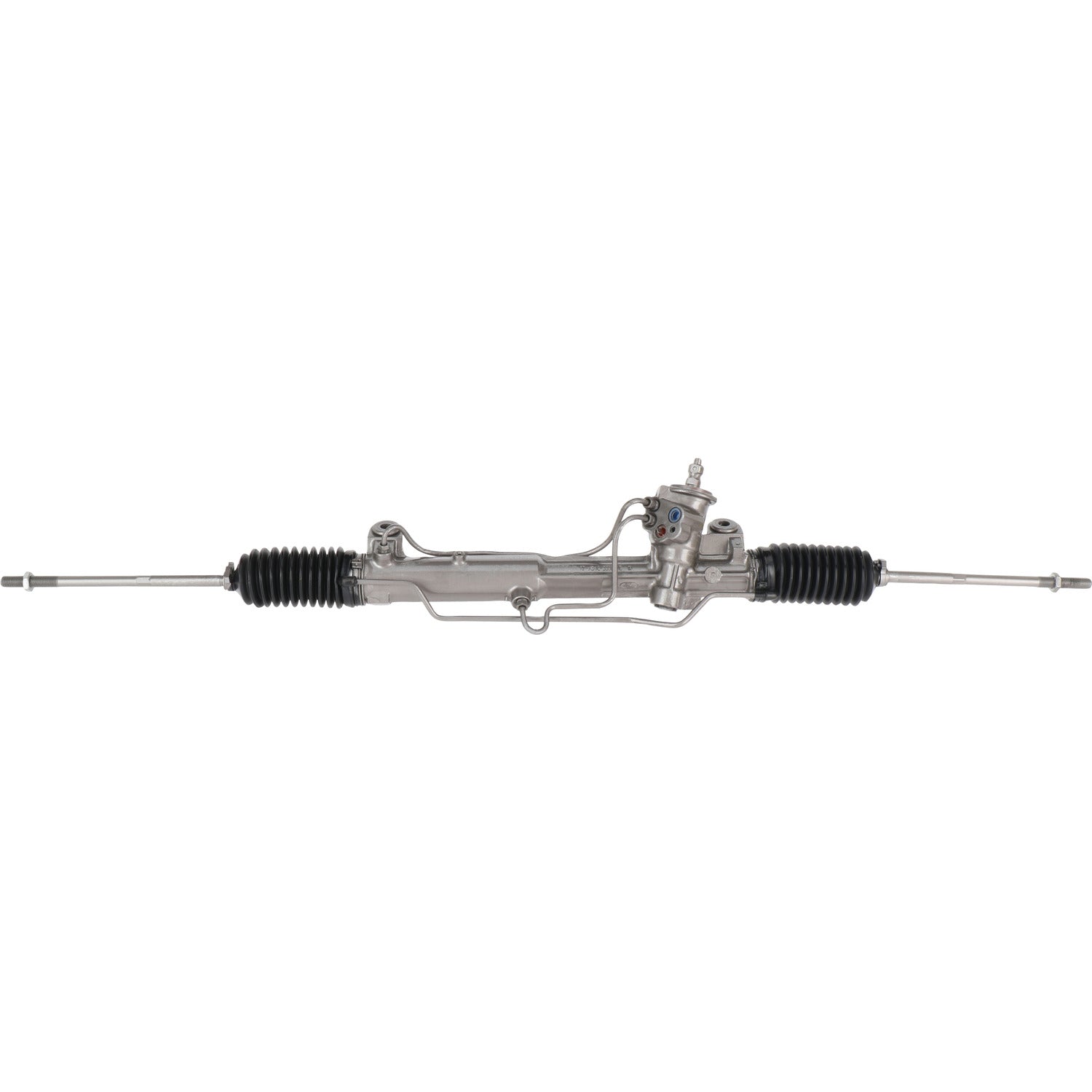

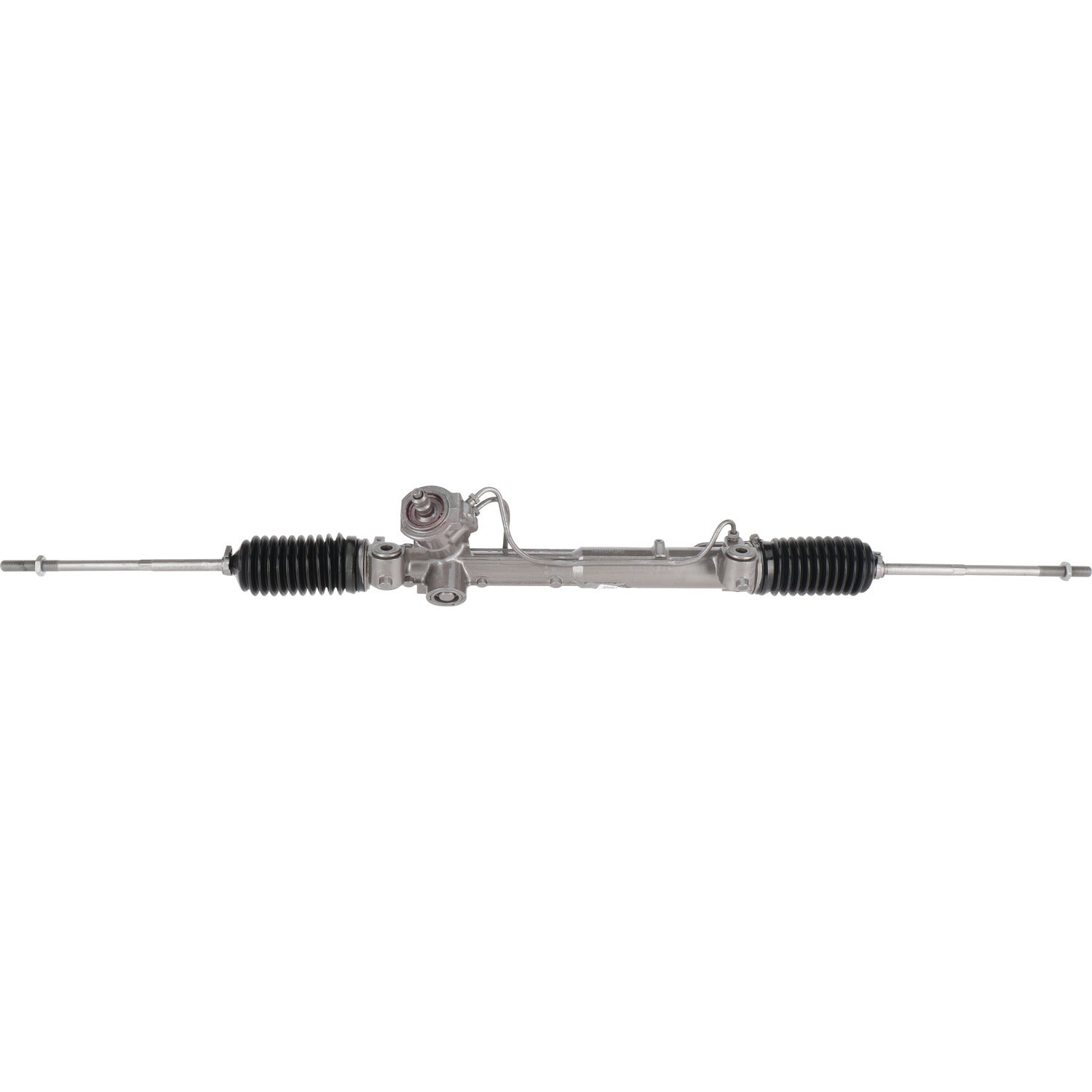

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95494M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95494M

SKU:95494M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 15.63 IN
Distance Between Mounting Holes 396.88 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Input Shaft Length 1.19 IN
Input Shaft Length 30.15 MM
Mounting Hole Quantity 2
Rack Length 50.88 IN
Rack Length 1292.23 MM
Return Port ID Size 0.386
Thread Length 2.75 IN
Thread Length 69.85 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.88

Application Info: Ford Focus (2006-11) ***From 12/05/2005 Build Date***

Interchange: 5S4Z3280AA, 6S4Z3504A, 8S4Z3504A, 9S4Z3280A, 9S4Z3504A

BBB Cross-Reference: 101-0218

Cardone Cross-Reference: 22-2004

Instructions - 1          Instructions - 2
