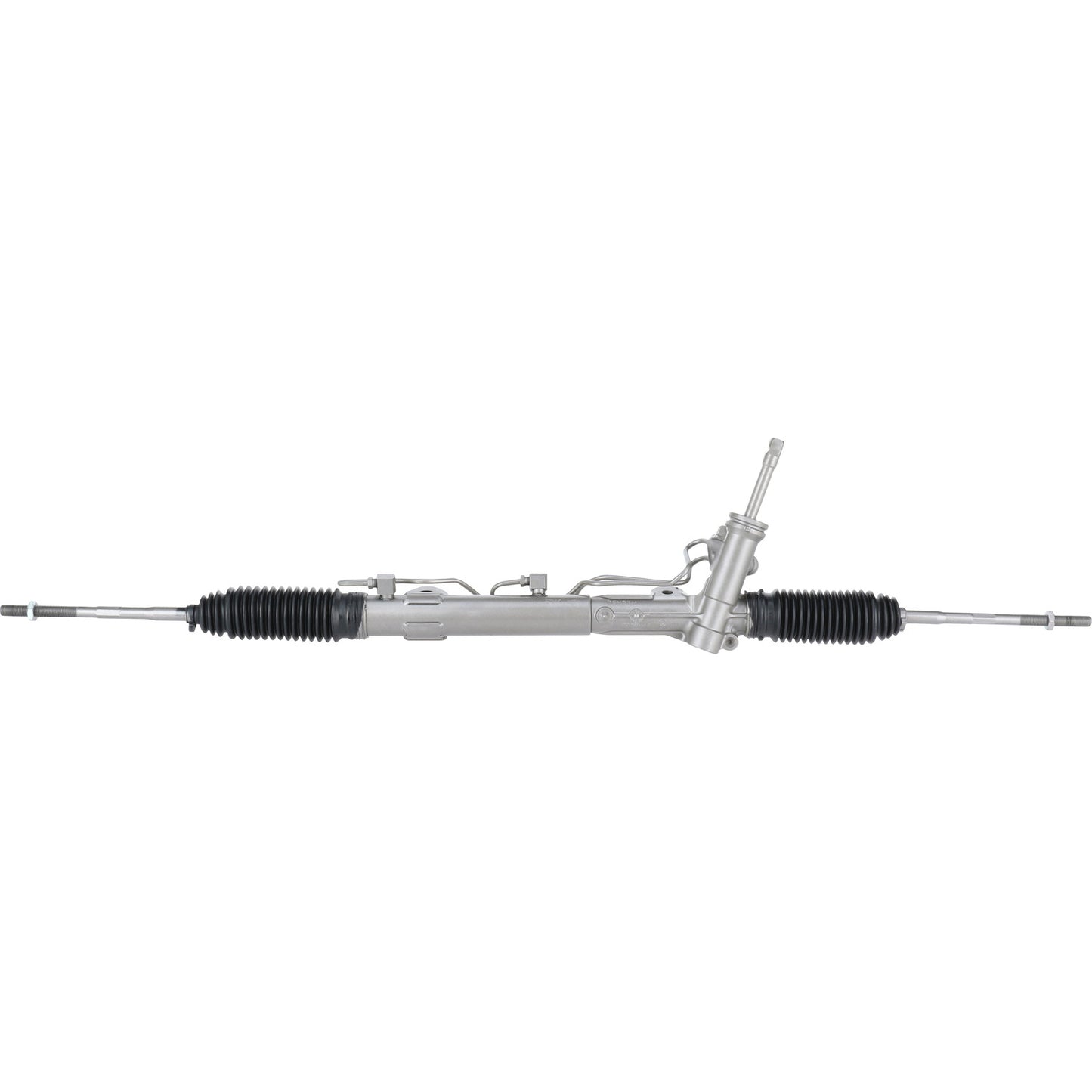

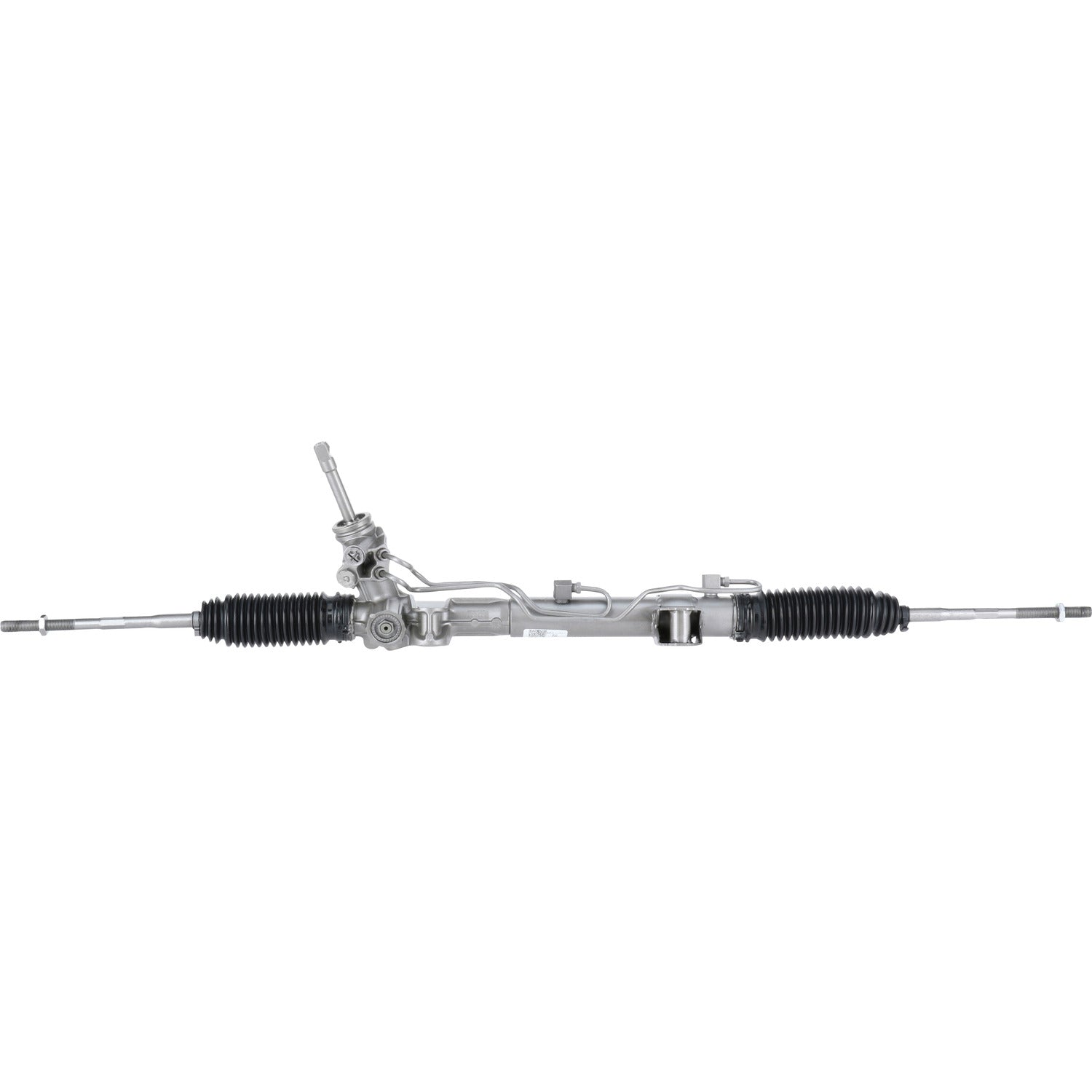

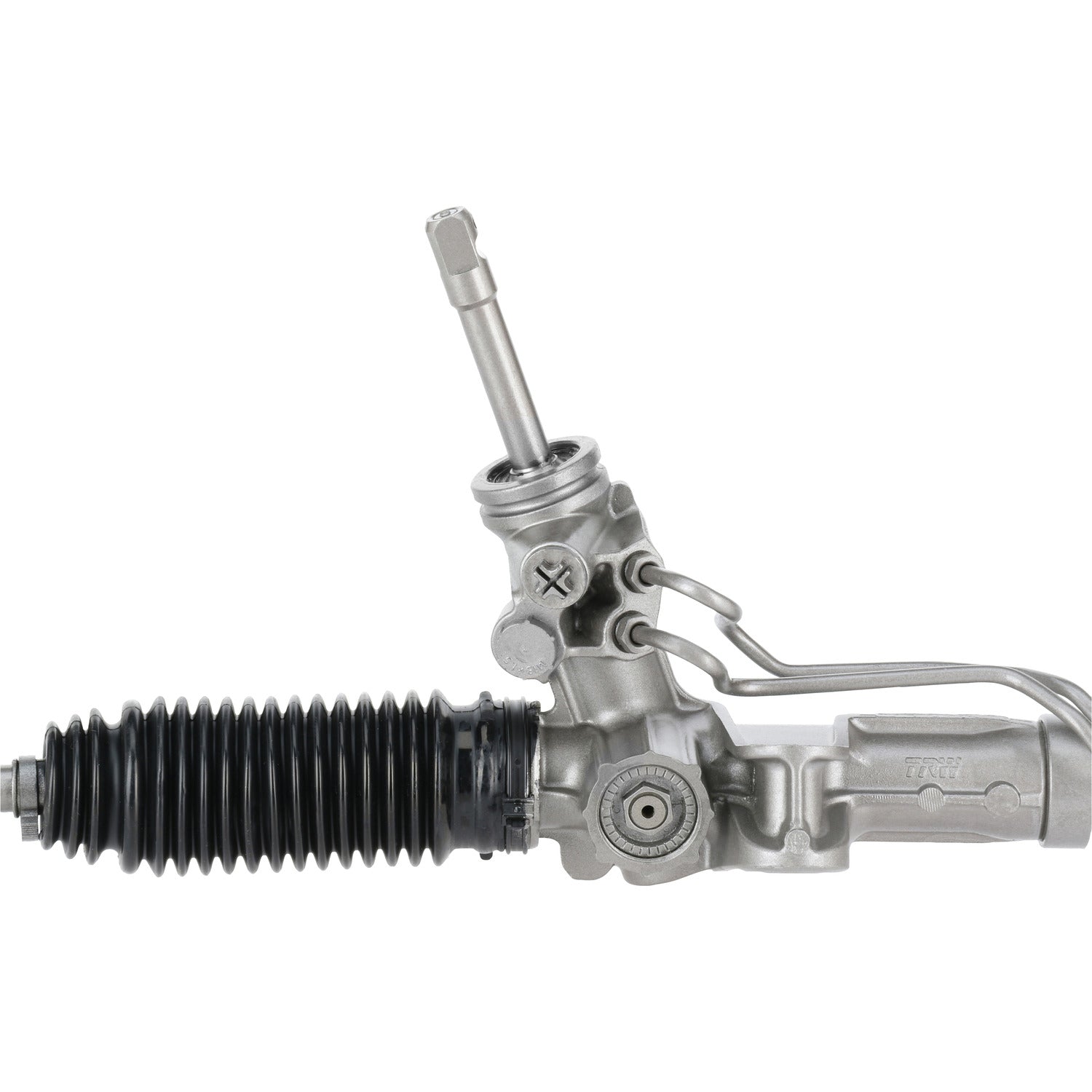

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95493M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95493M


MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 11.25 IN
Distance Between Mounting Holes 285.75 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 18.95 MM
Input Shaft Length 3.75 IN
Input Shaft Length 95.25 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 49.38 IN
Rack Length 1254.13 MM
Return Port Thread Size M16 x 1.5
Thread Length 3.17 IN
Thread Length 80.52 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.94

Application Info: Dodge Journey (2009-2010)

Interchange: Chrysler - 5151018AD

BBB Cross-Reference: 102-0226

Cardone Cross-Reference: 22-3034

Instructions - 1               Instructions - 2
