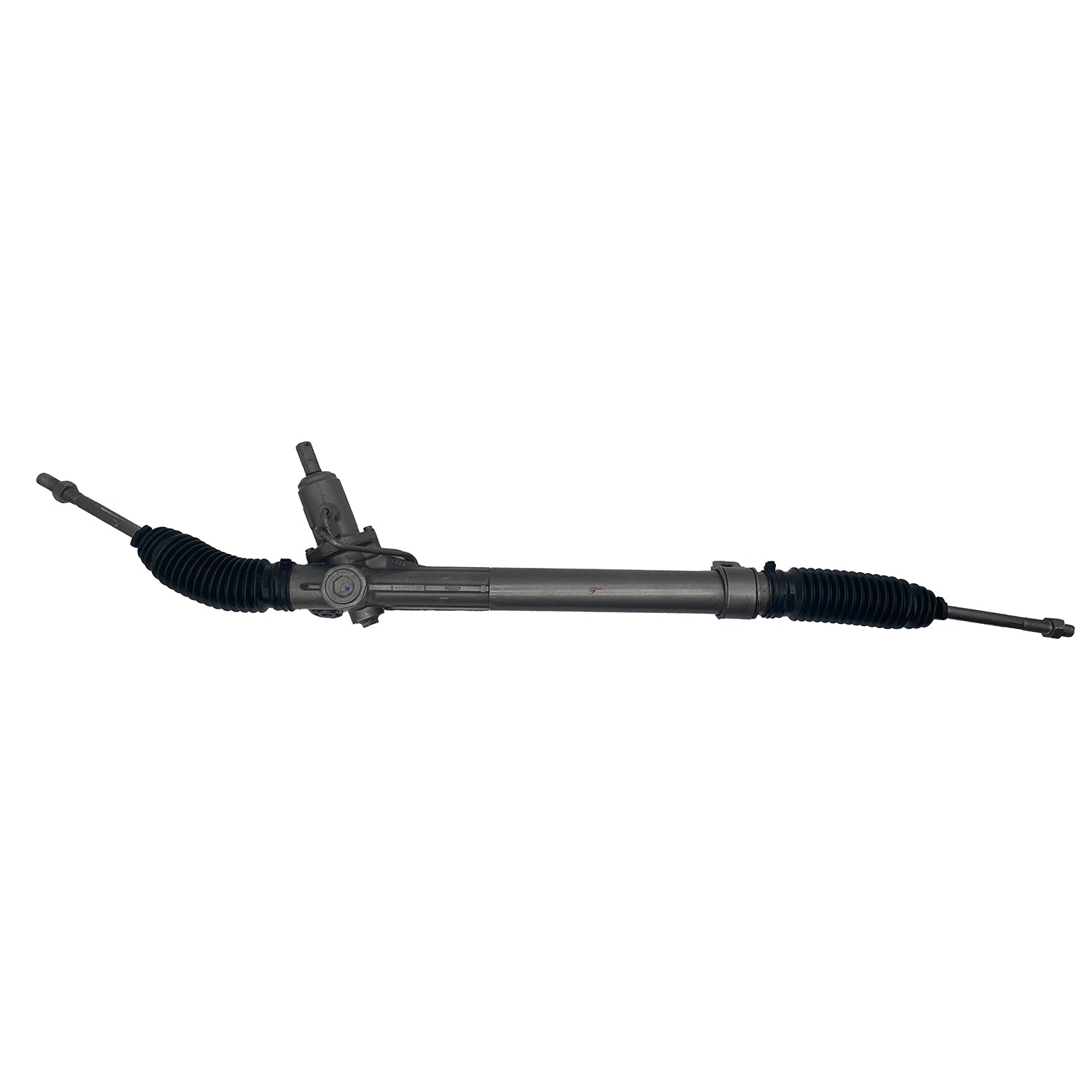

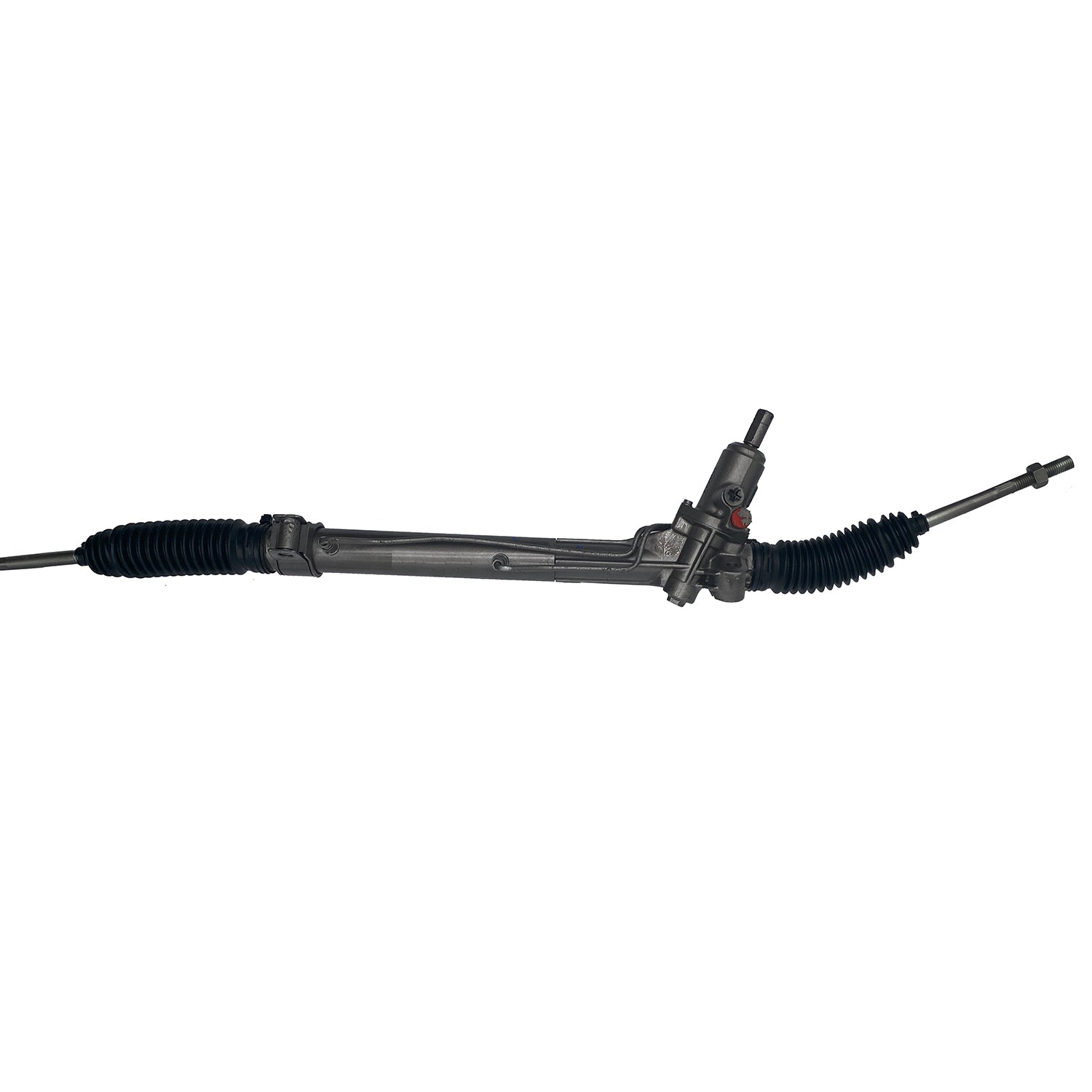

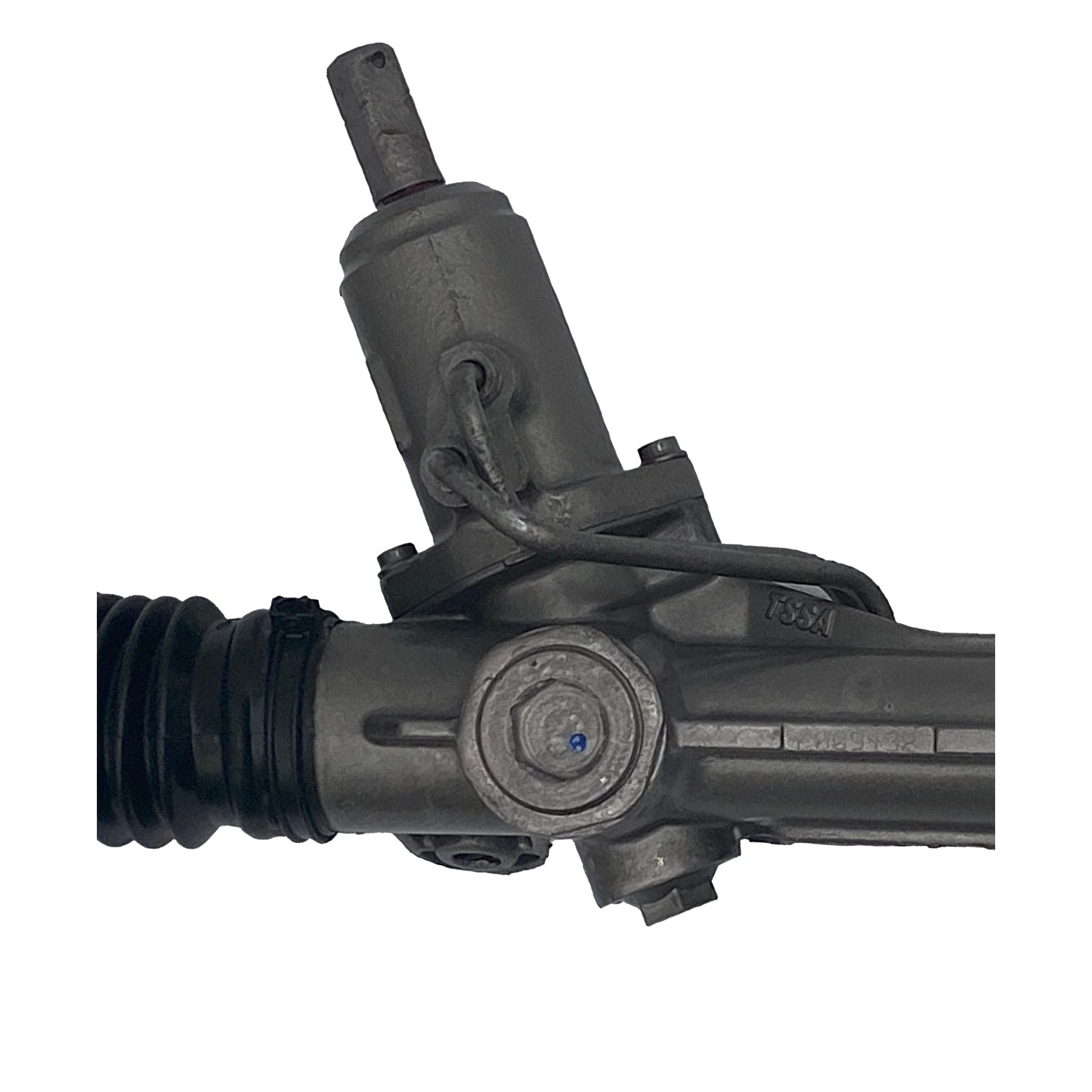

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95488M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95488M

SKU:95488M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 19.13 IN
Distance Between Mounting Holes 485.78 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 18.97 MM
Input Shaft Length 1.63 IN
Input Shaft Length 41.28 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 50.38 IN
Rack Length 1279.53 MM
Return Port Thread Size M18 x 1.5
Thread Length 2.41 IN
Thread Length 61.11 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3

Application Info: Pontiac GTO 2005-2006 - All Models

Interchange: Chrysler - 92161579

BBB Cross-Reference: 103-0233

Cardone Cross-Reference: 26-2042
