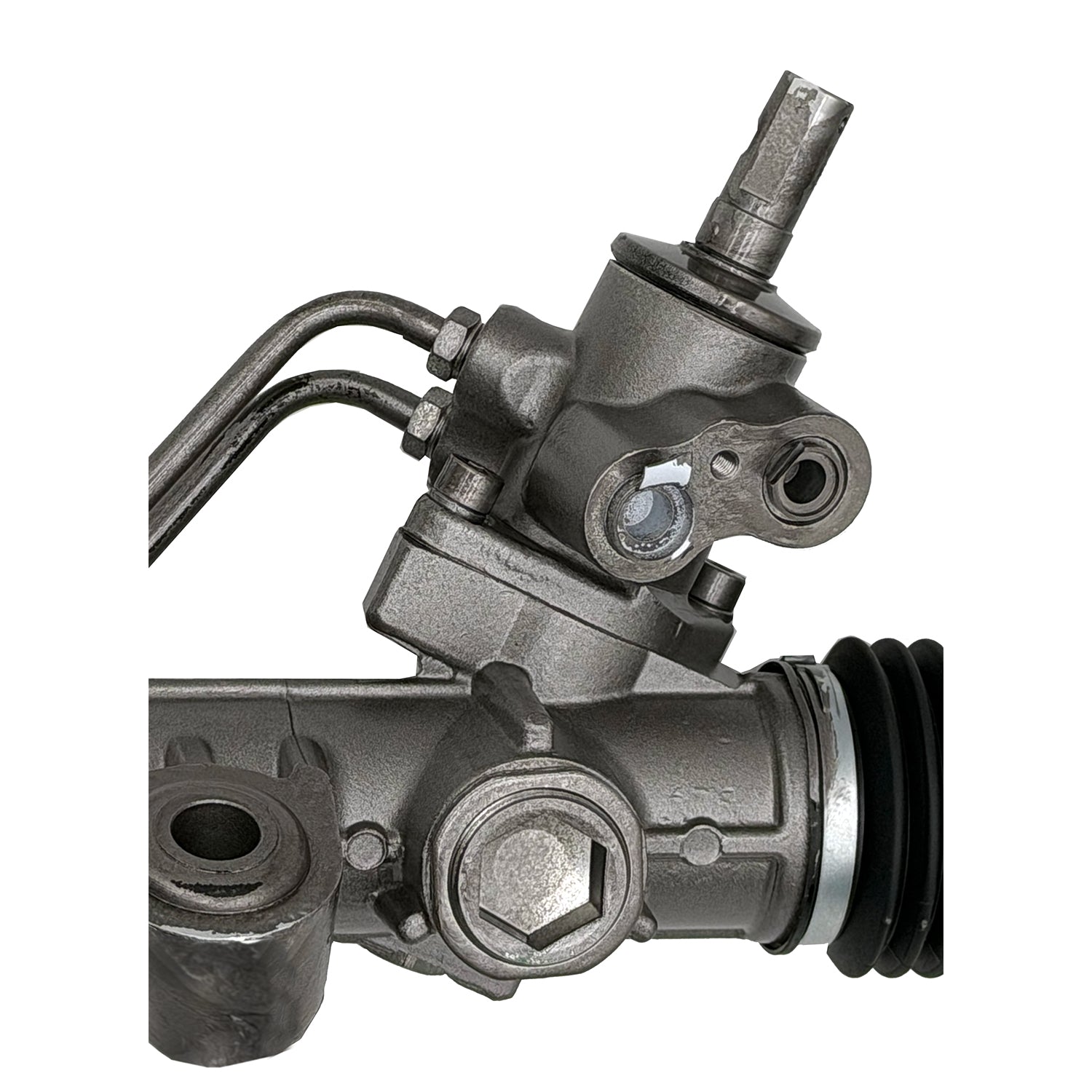

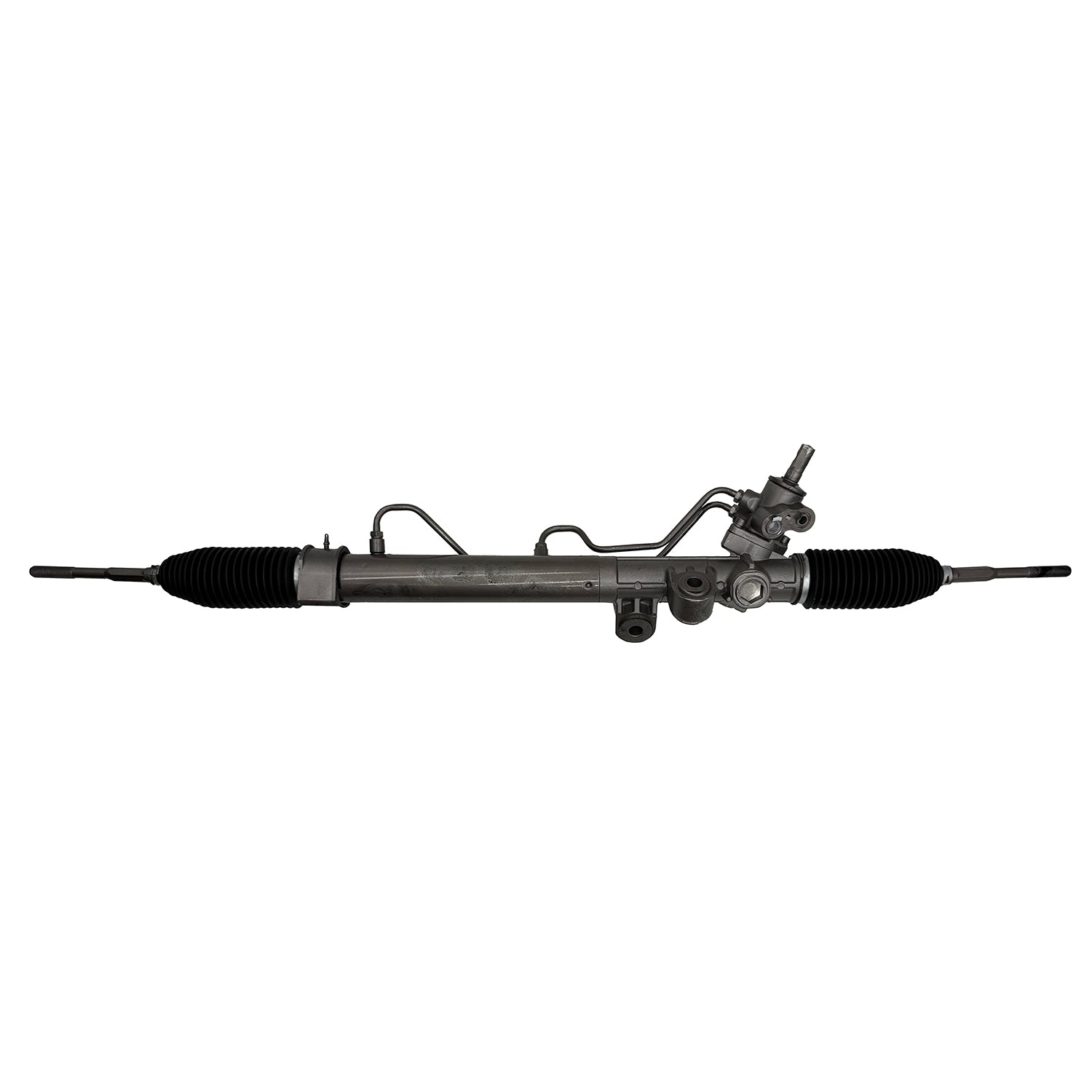

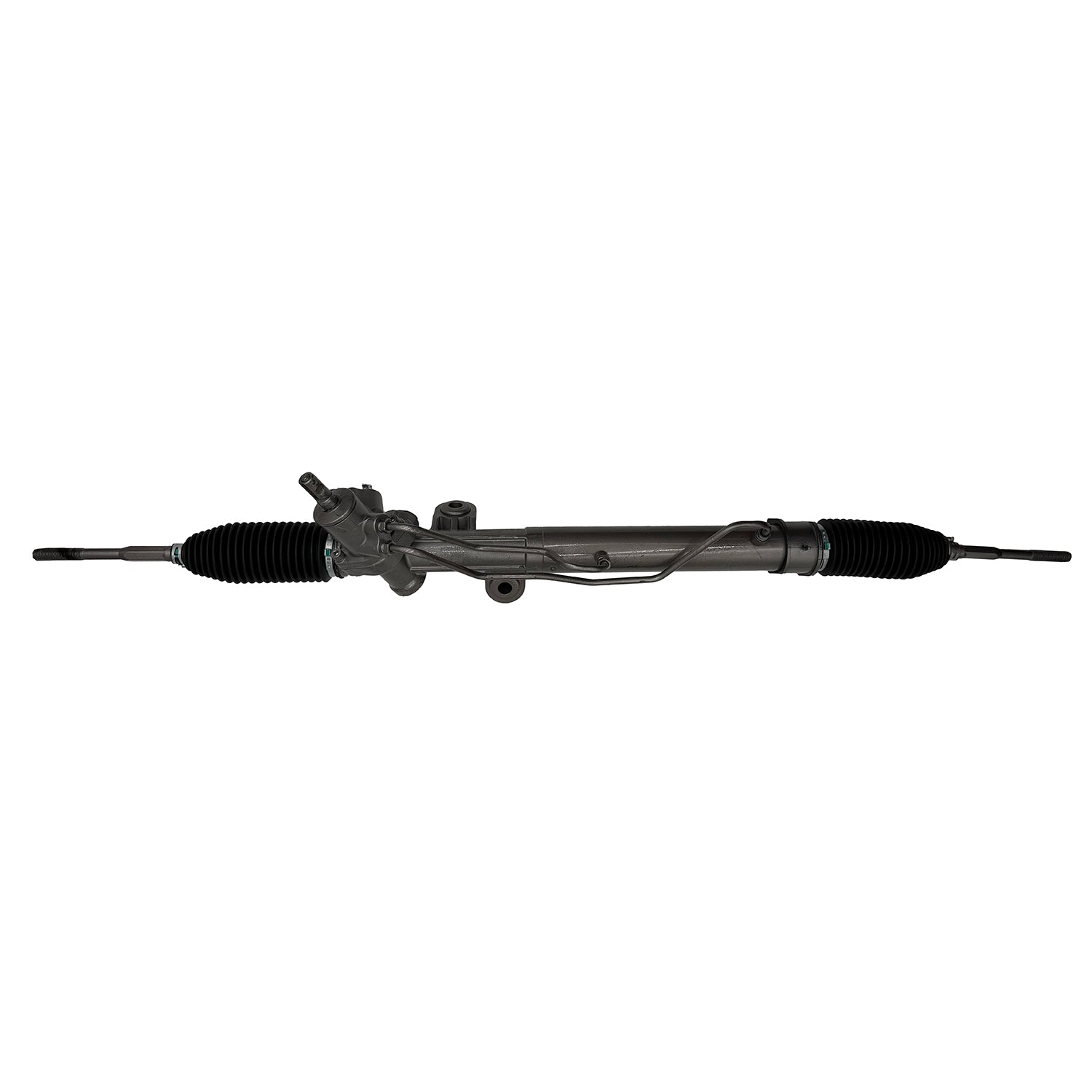

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95486M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95486M

SKU:95486M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 2.88 IN
Distance Between Mounting Holes 73.03 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 1.88 IN
Input Shaft Length 47.63 MM
Mounting Hole Quantity 3
Rack Length 47.63 IN
Rack Length 1209.68 MM
Return Port ID Size 0.436
Thread Length 1.86 IN
Thread Length 47.29 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.25

Application Info: Hummer H3 (2006-08) ***W/14MM Tie Rod***

Interchange: 15234374

BBB Cross-Reference: 103-0273

Cardone Cross-Reference: 22-1117
