MAVAL

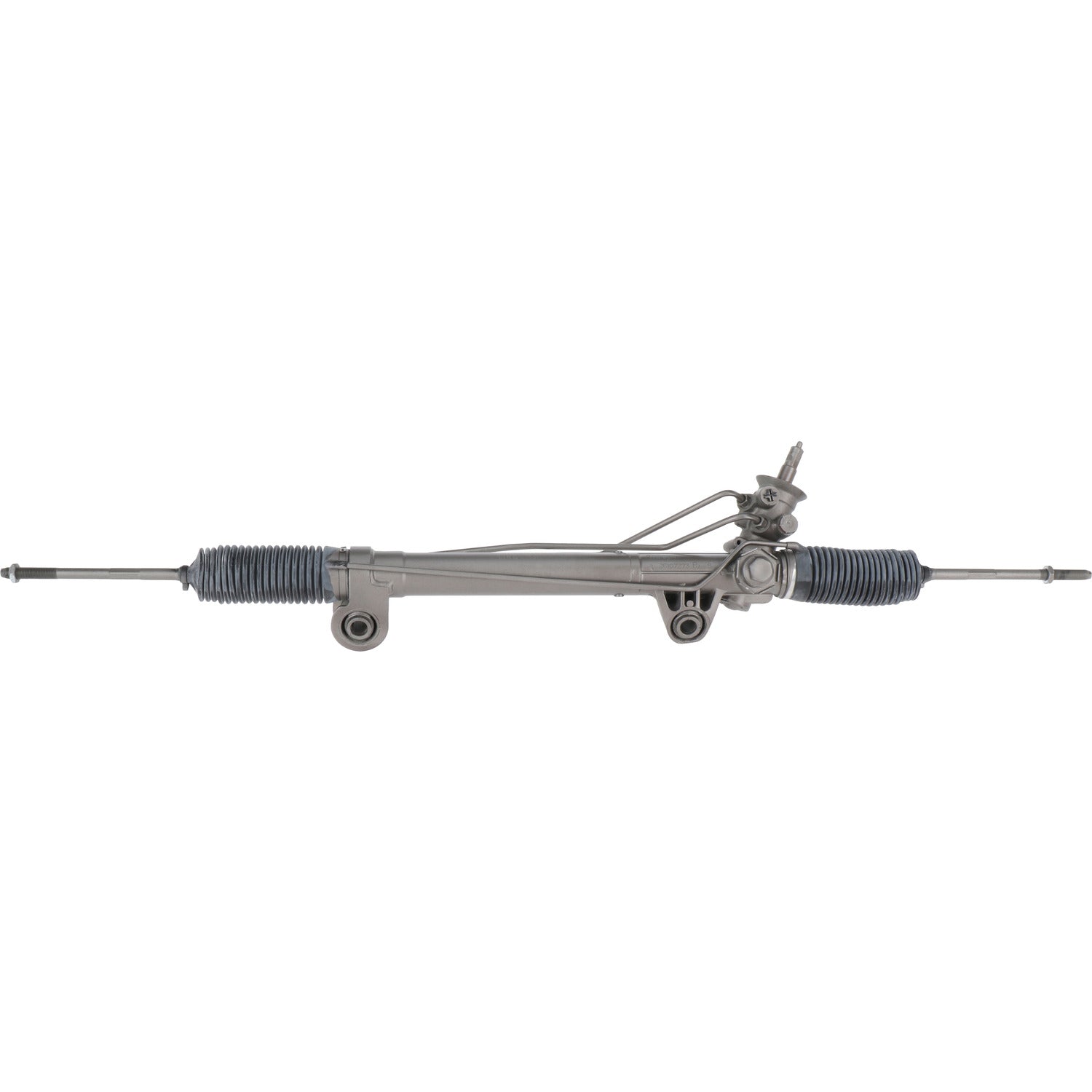

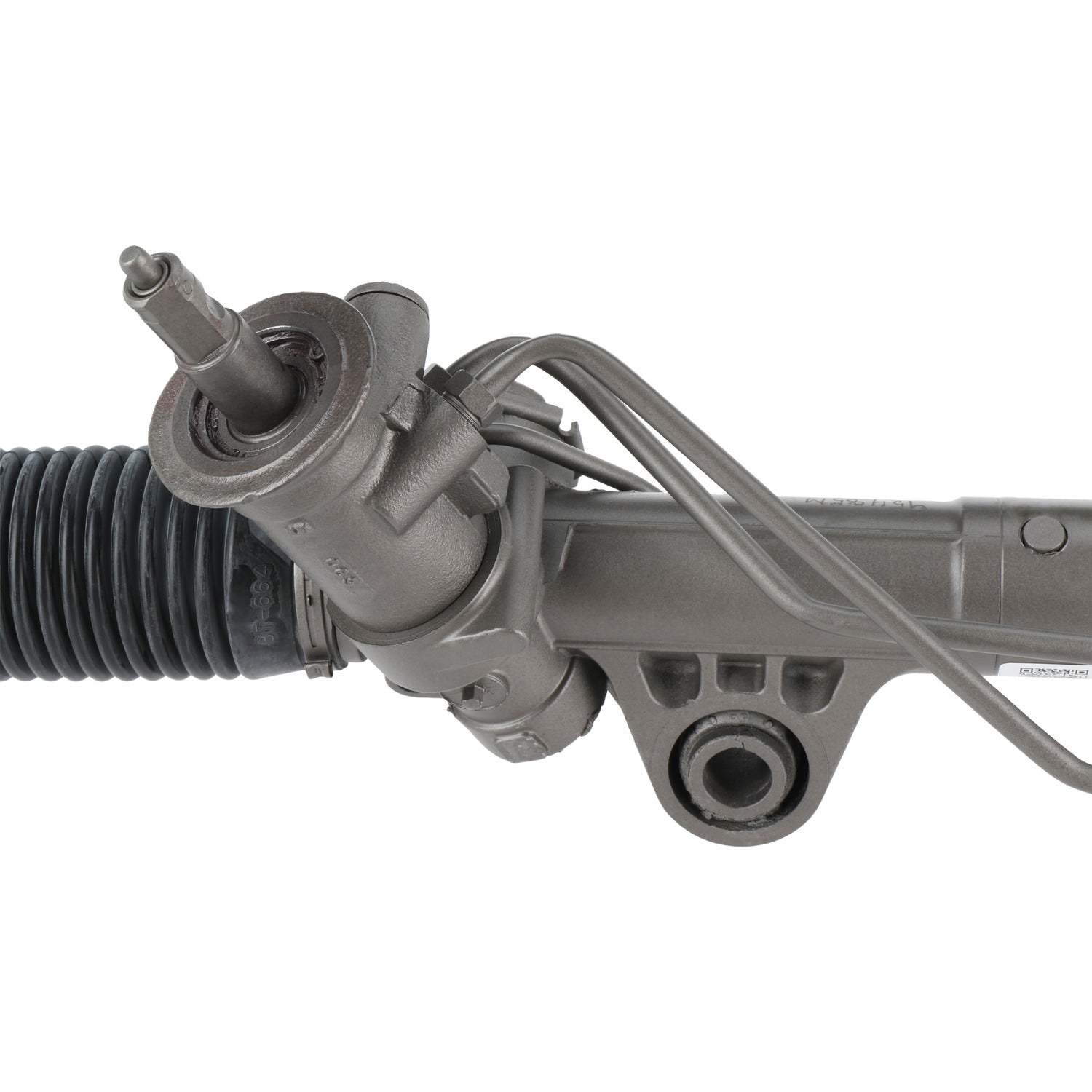

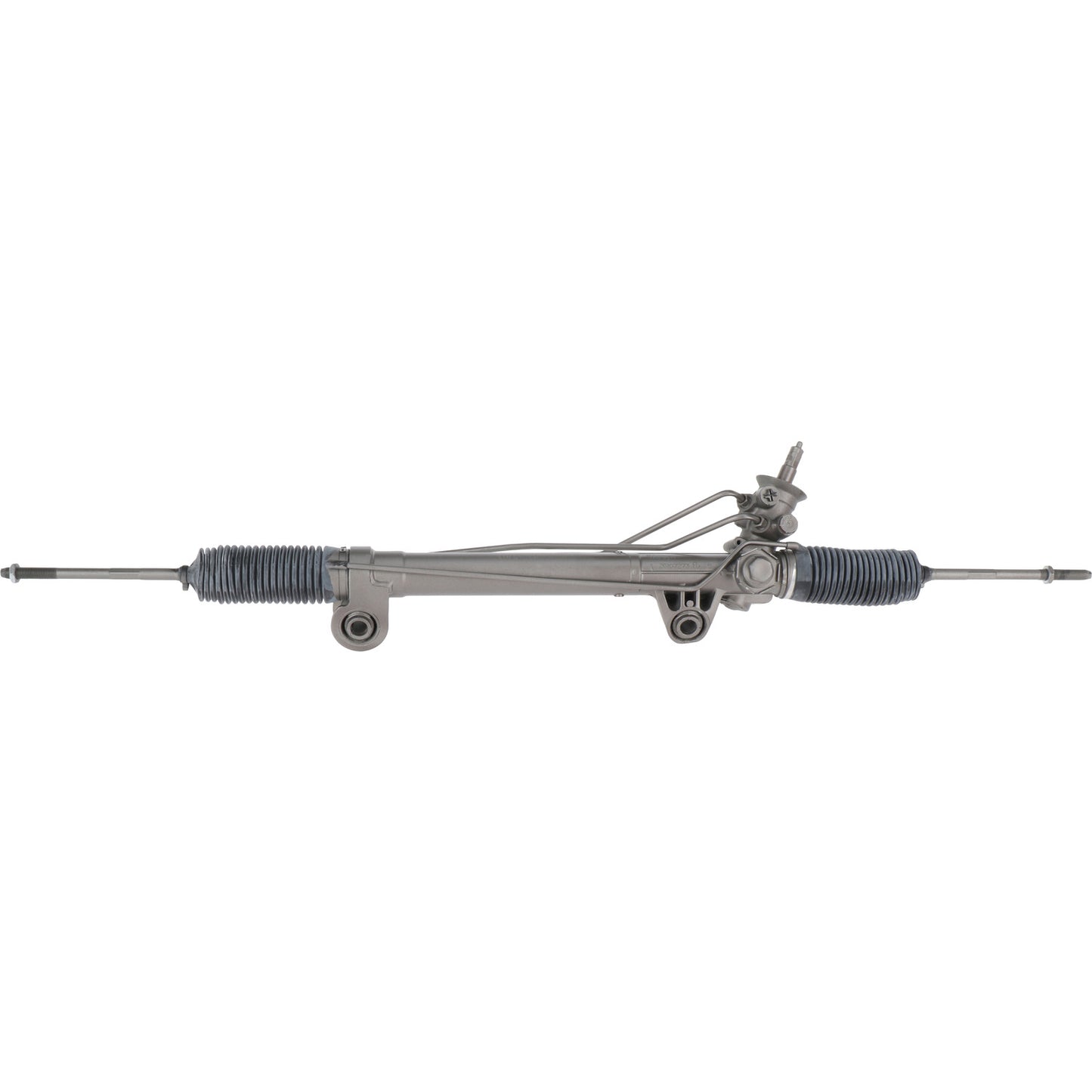

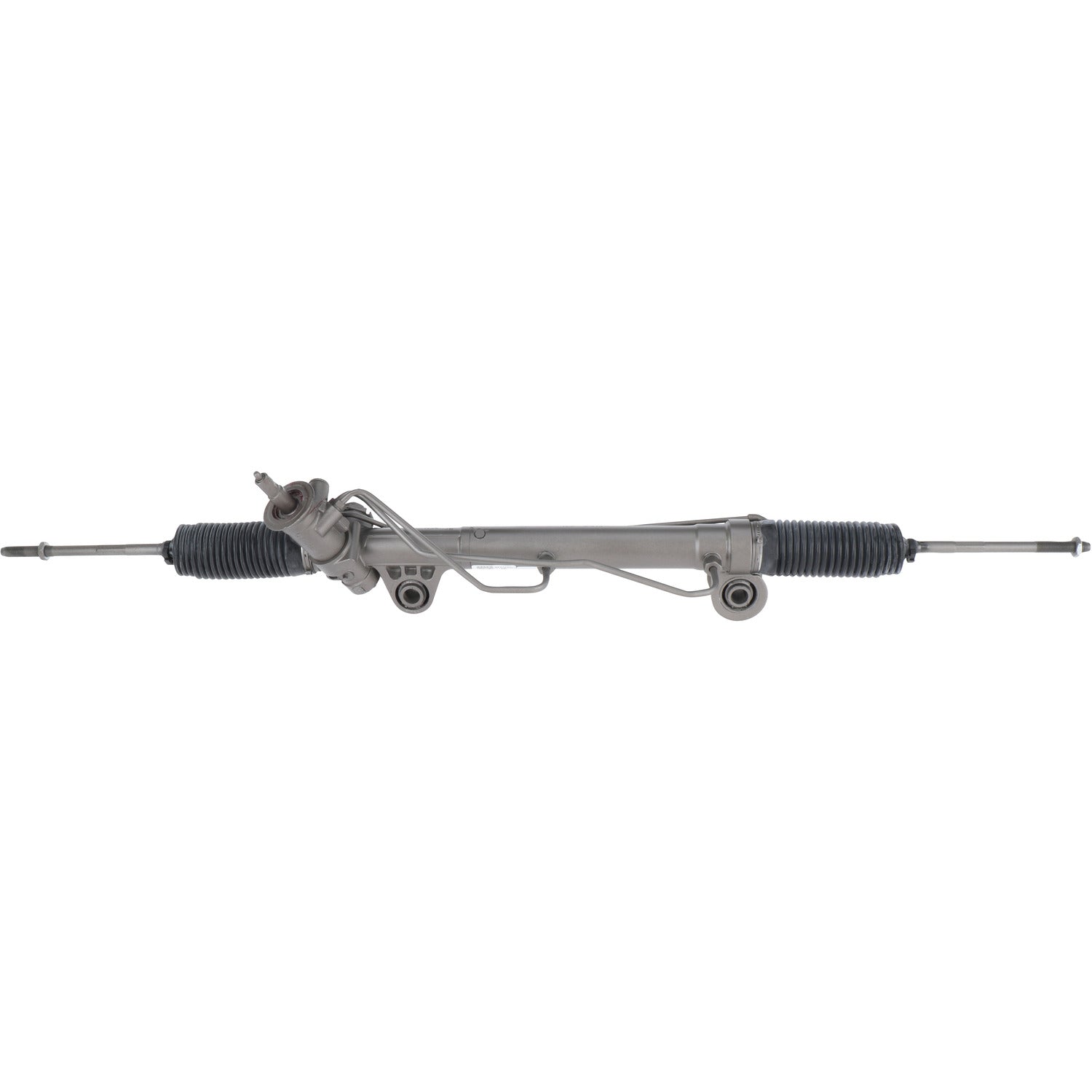

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95485M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95485M

SKU:95485M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 14.93 IN
Distance Between Mounting Holes 379.3 MM
Hose Port Type O-Ring/O-Ring
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.8 MM
Input Shaft Length 43 IN
Input Shaft Length 1092.2 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
New Or Remanufactured Remanufactured
Rack Length 50.55 IN
Rack Length 1284 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.36 IN
Thread Length 60 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.3

Application Info: Chevrolet Silverado 1500 (1999-06), Silverado 1500 Classic (2007); GMC Sierra 1500 (1999-06), Sierra 1500 Classic (2007) ***W/RWD***

Interchange: 19133675, 26079794, 26087761, 26091958, 26101929, 88963415

BBB Cross-Reference: 103-0167

Cardone Cross-Reference: 22-1000
