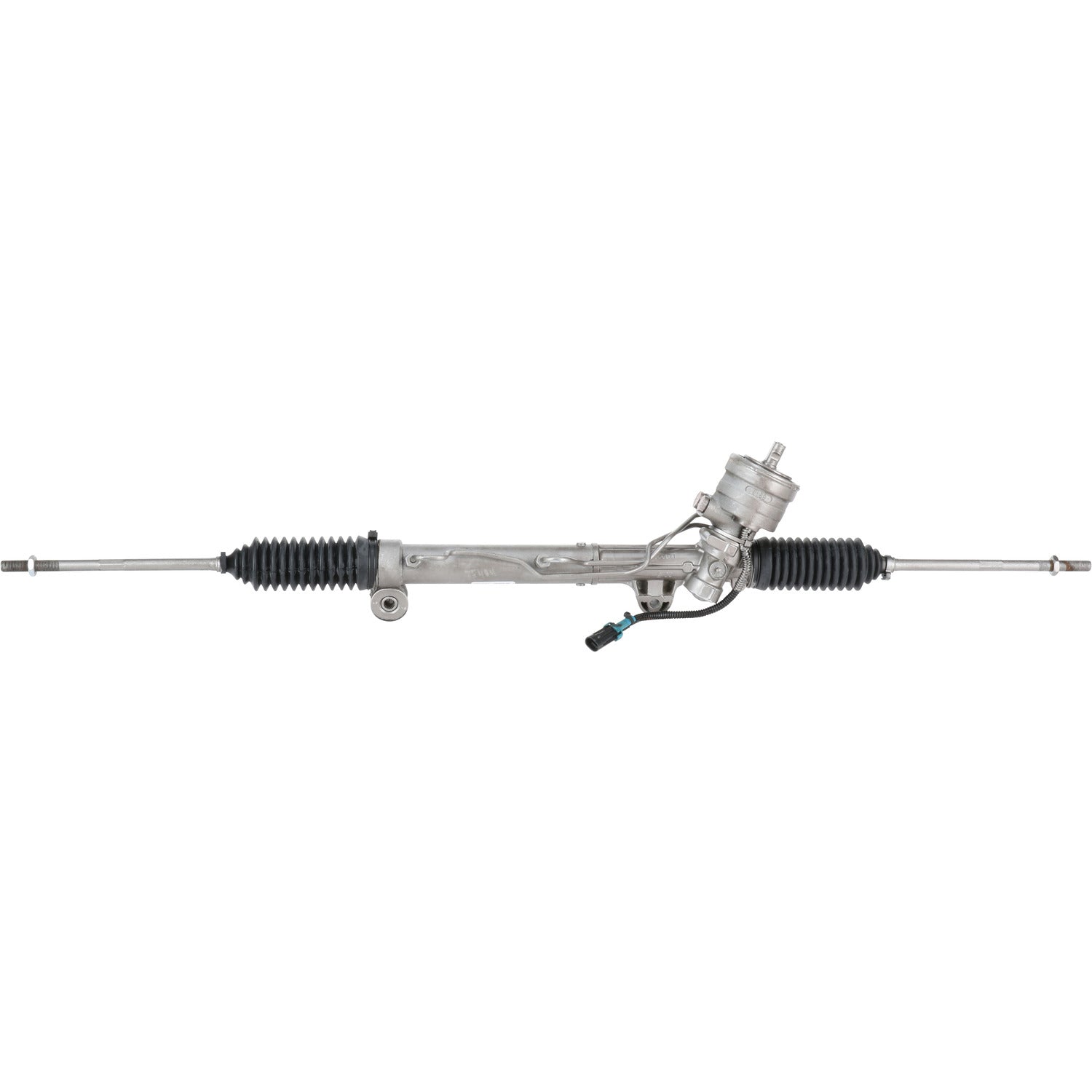

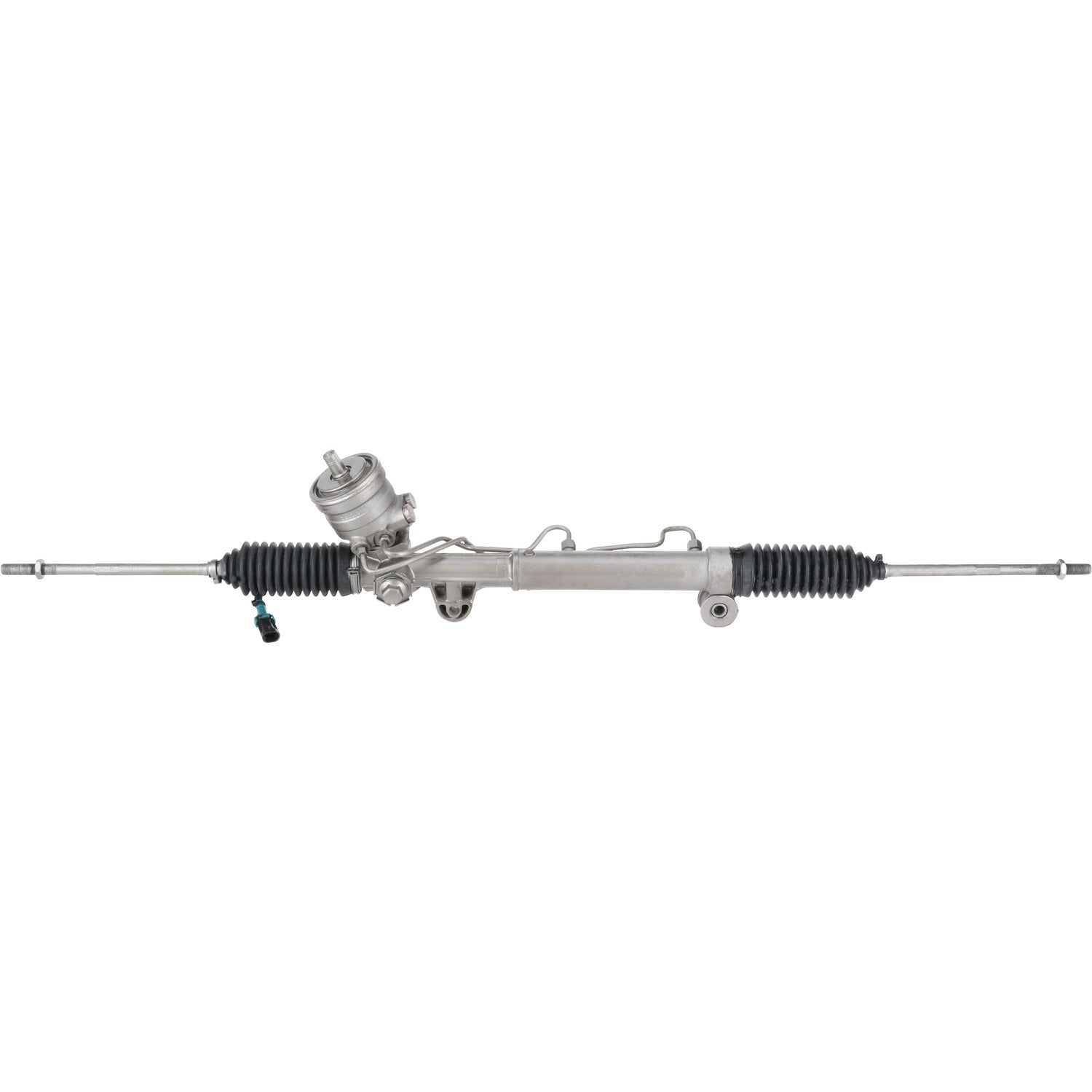

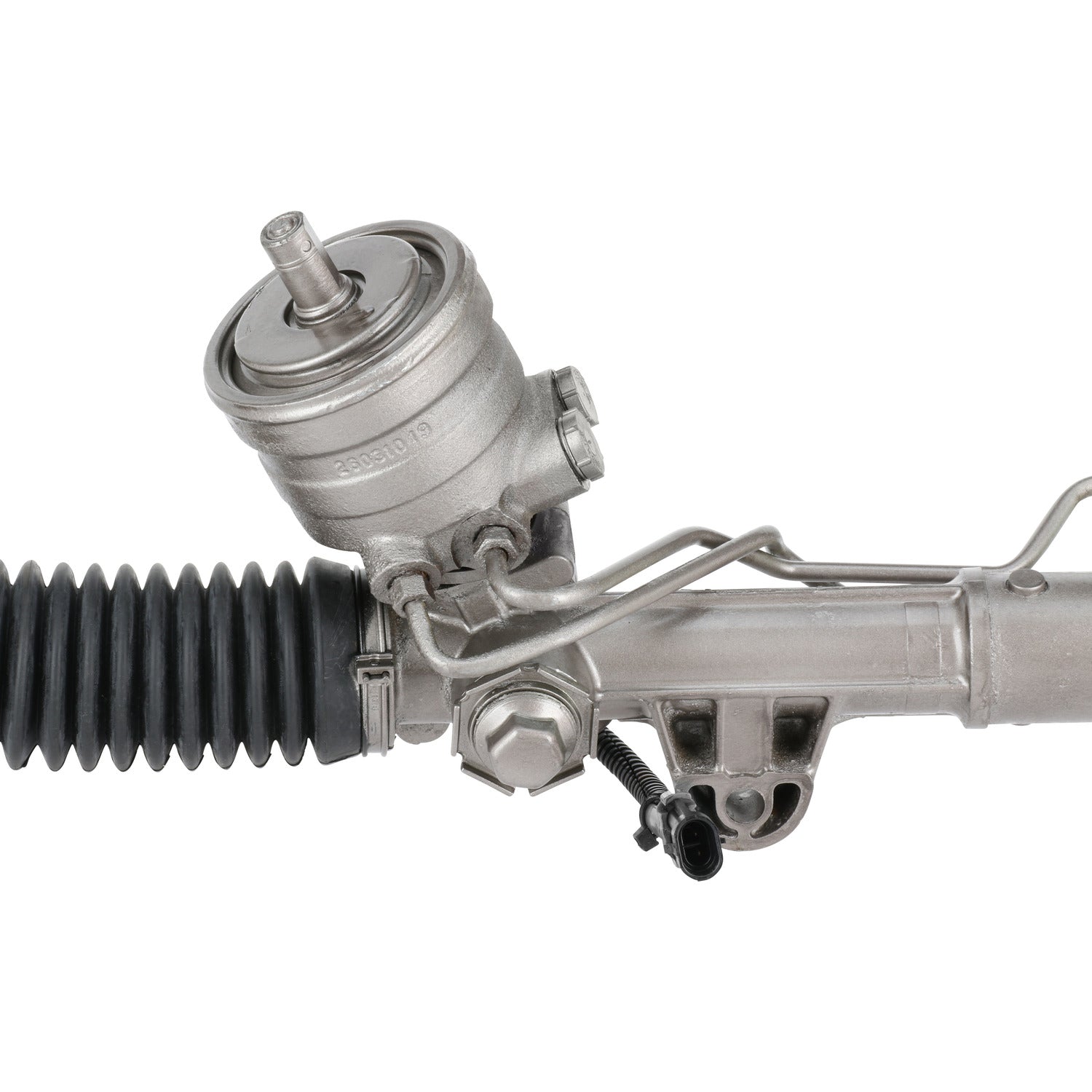

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95484M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95484M

SKU:95484M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 12.13 IN
Distance Between Mounting Holes 307.98 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.71 MM
Input Shaft Length 1.13 IN
Input Shaft Length 28.58 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 49.31 IN
Rack Length 1252.55 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.43 IN
Thread Length 61.82 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3

Application Info: Buick Century (1997-02) ***W/Magnasteer, W/Variable Assist***

Interchange: 26063586, 26079915

BBB Cross-Reference: 103-0156

Cardone Cross-Reference: 22-181
