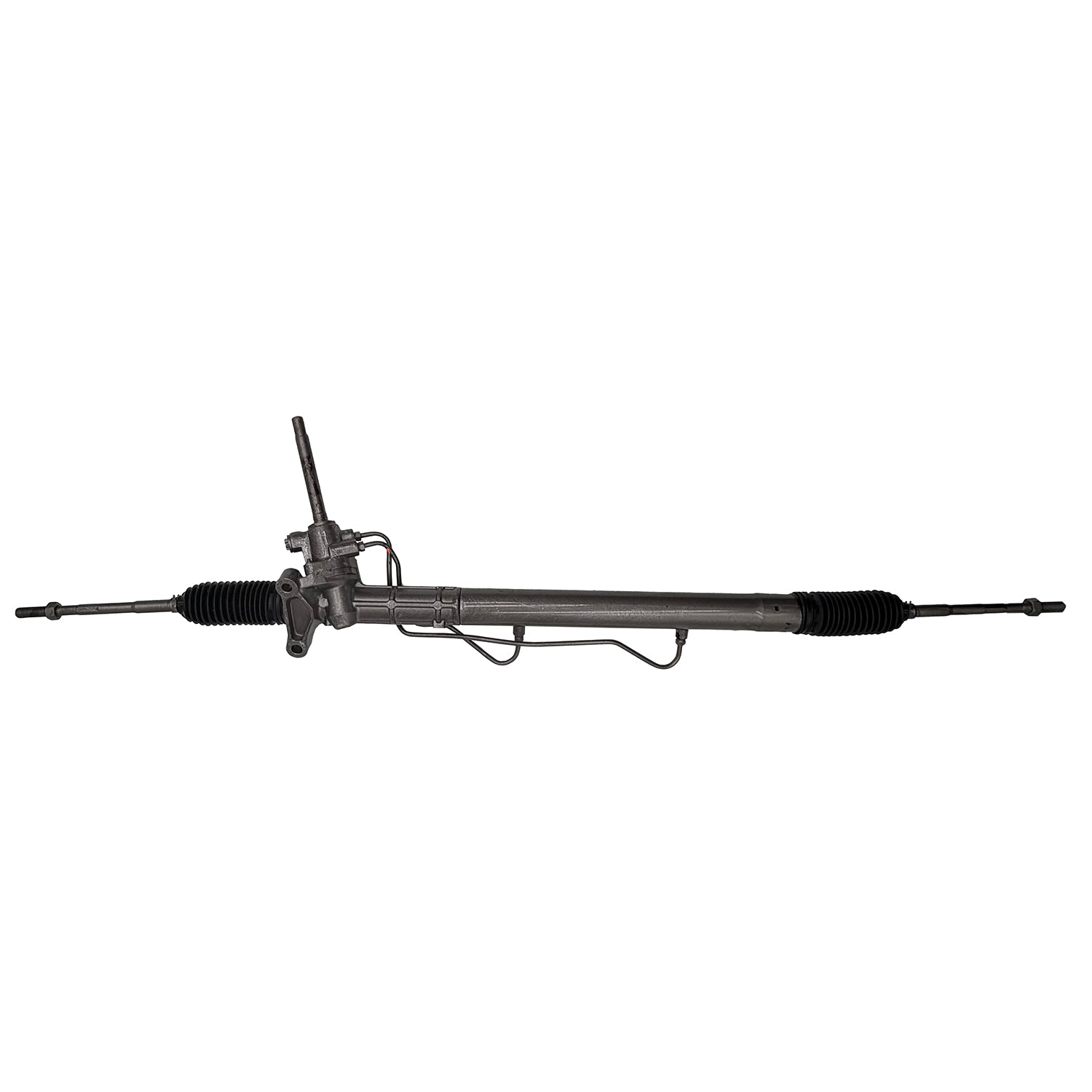

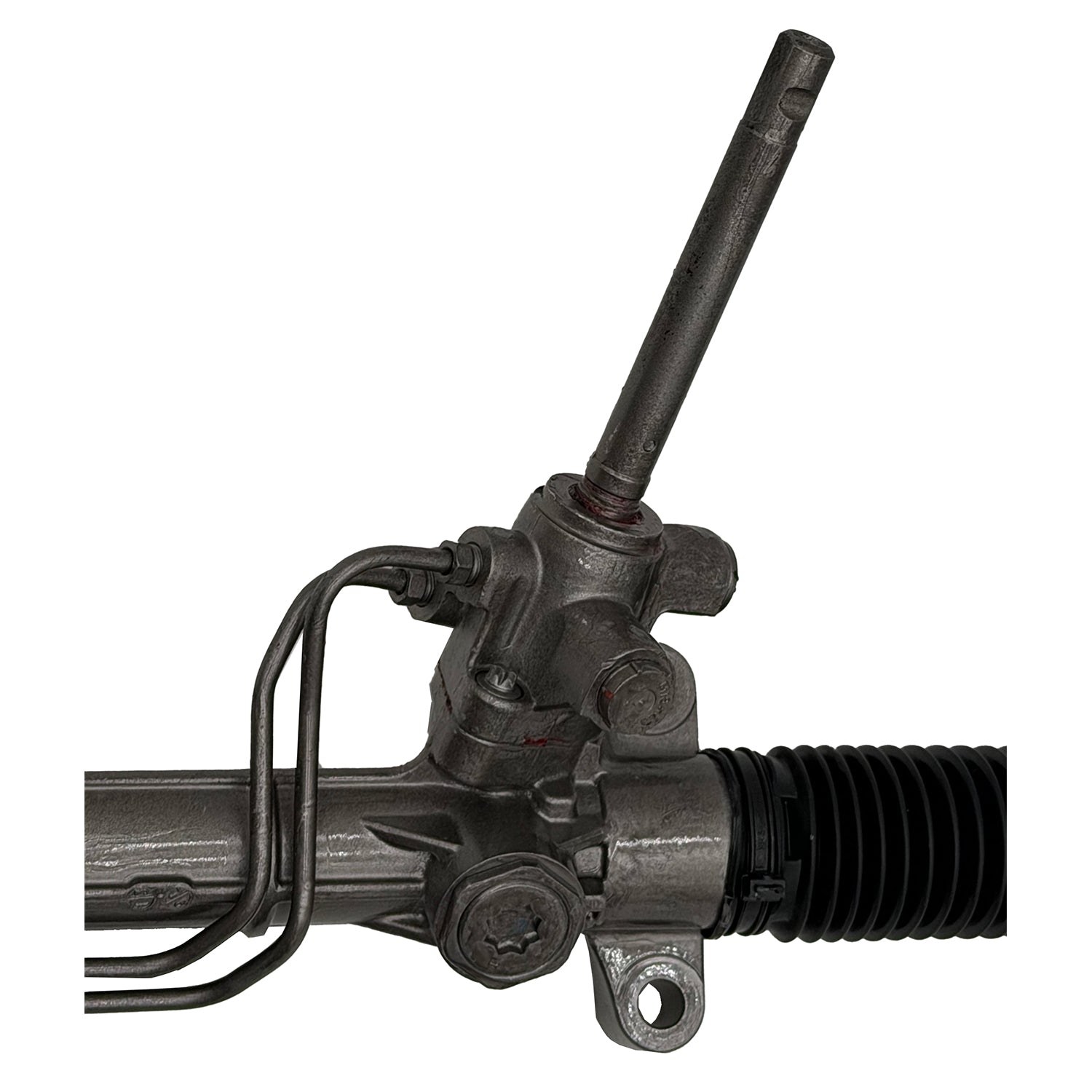

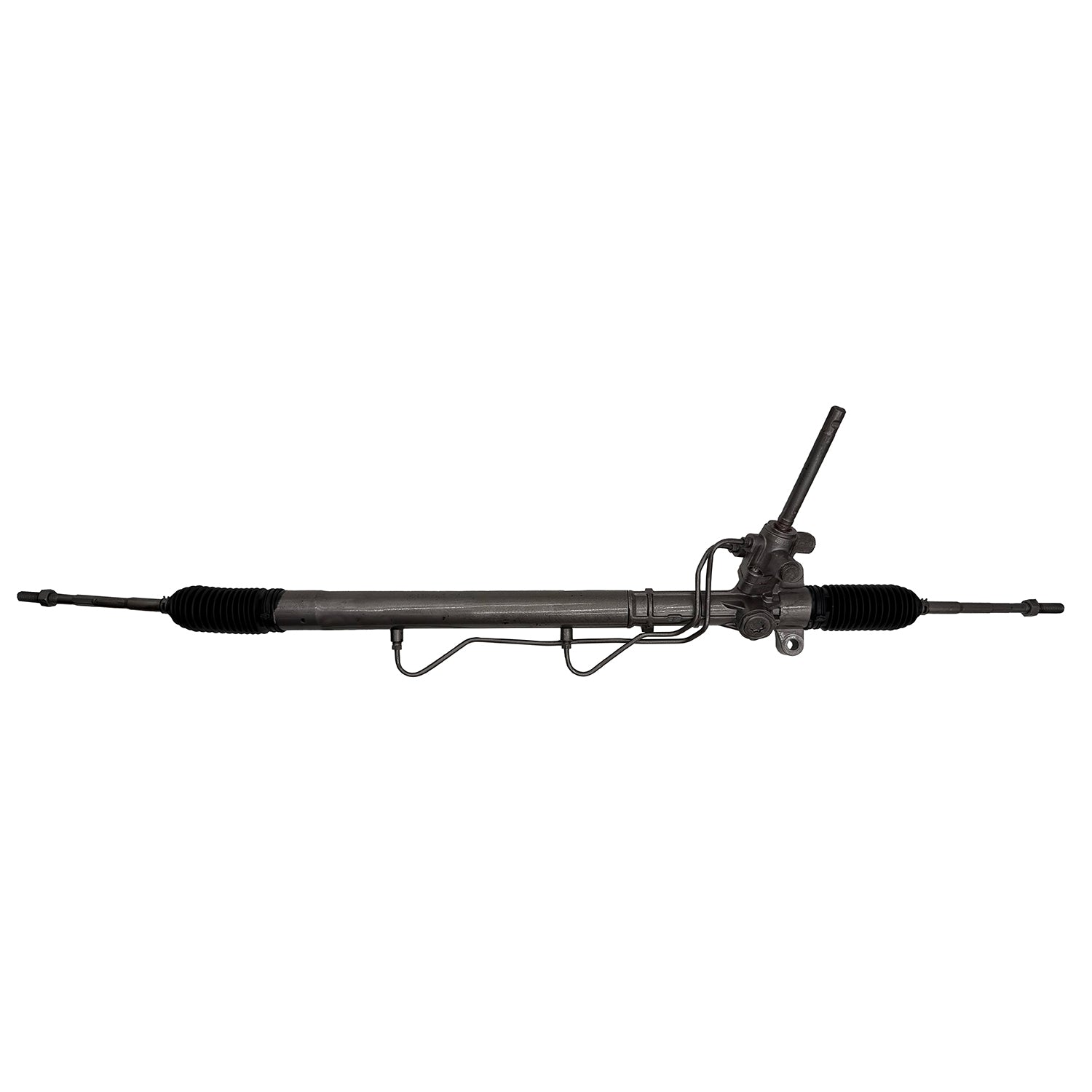

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95483M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95483M

SKU:95483M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.75 IN
Distance Between Mounting Holes 95.25 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 18.95 MM
Input Shaft Length 5.786 IN
Input Shaft Length 146.96 MM
Mounting Hole Quantity 3
Pressure Port Thread Size M18 x 1.5
Rack Length 52.94 IN
Rack Length 1344.63 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.14 IN
Thread Length 54.28 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.63

Application Info: Chevrolet Camaro 2010-2011 - All Models

Interchange: General Motors - 20978657

BBB Cross-Reference: 103-0284

Cardone Cross-Reference: 22-1107
