MAVAL

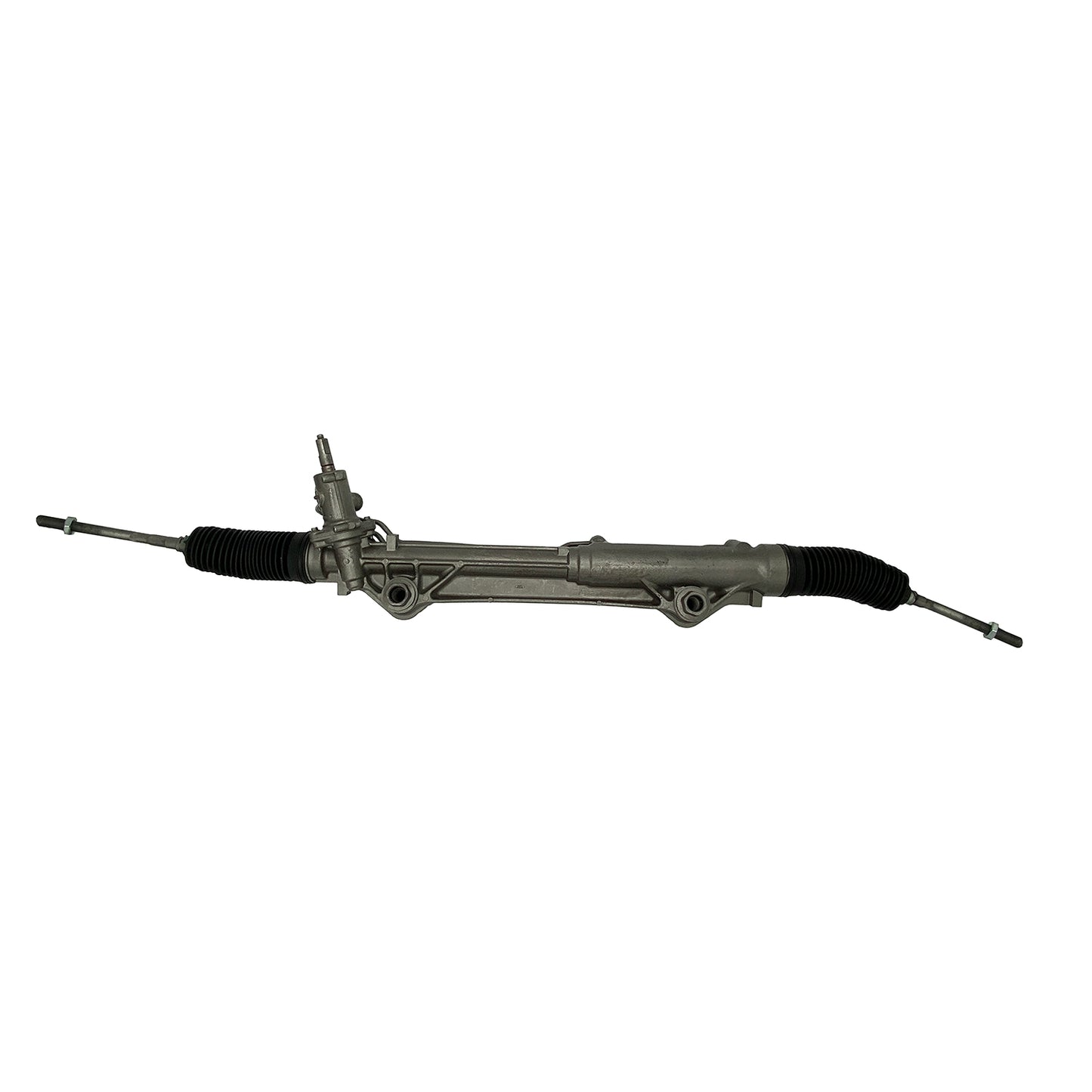

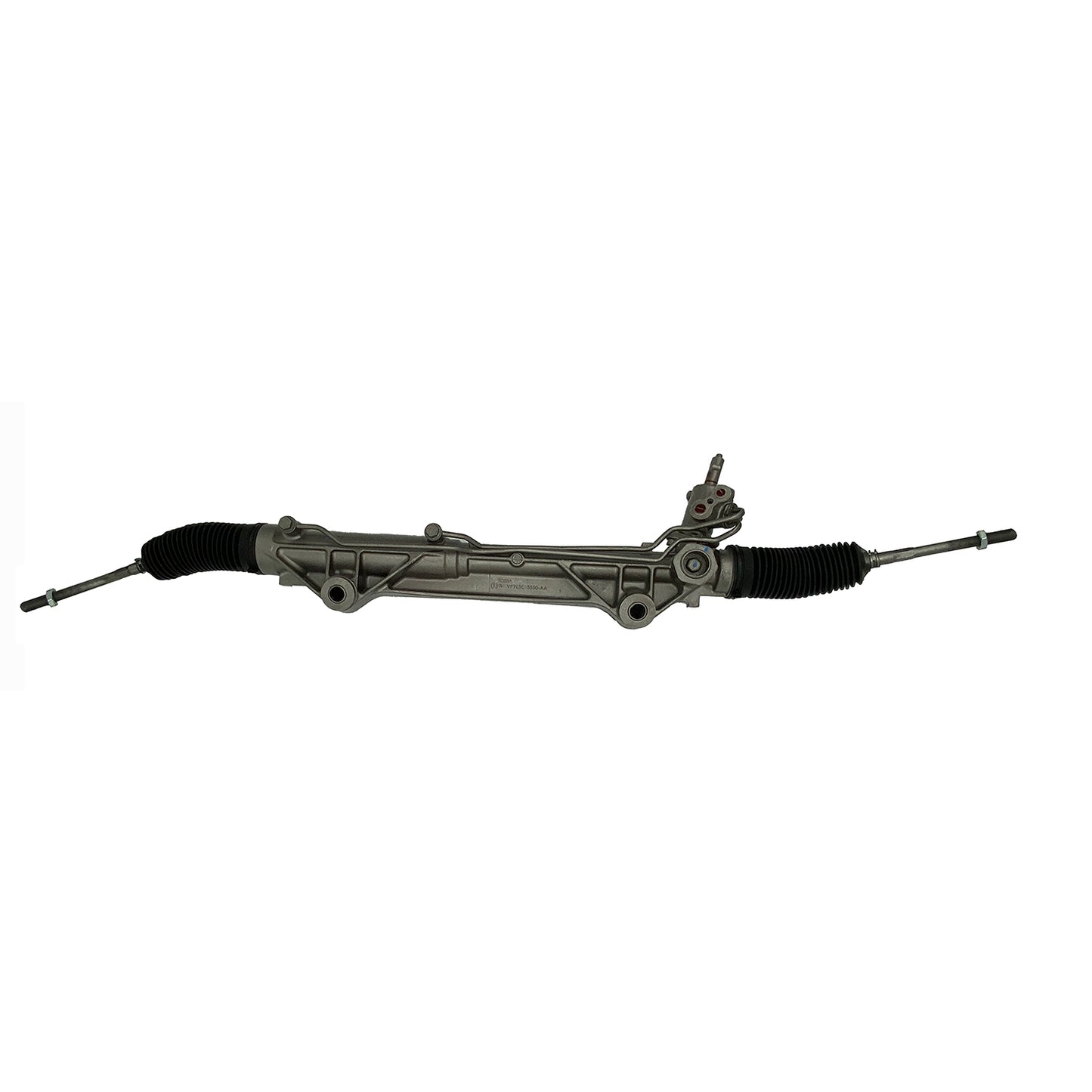

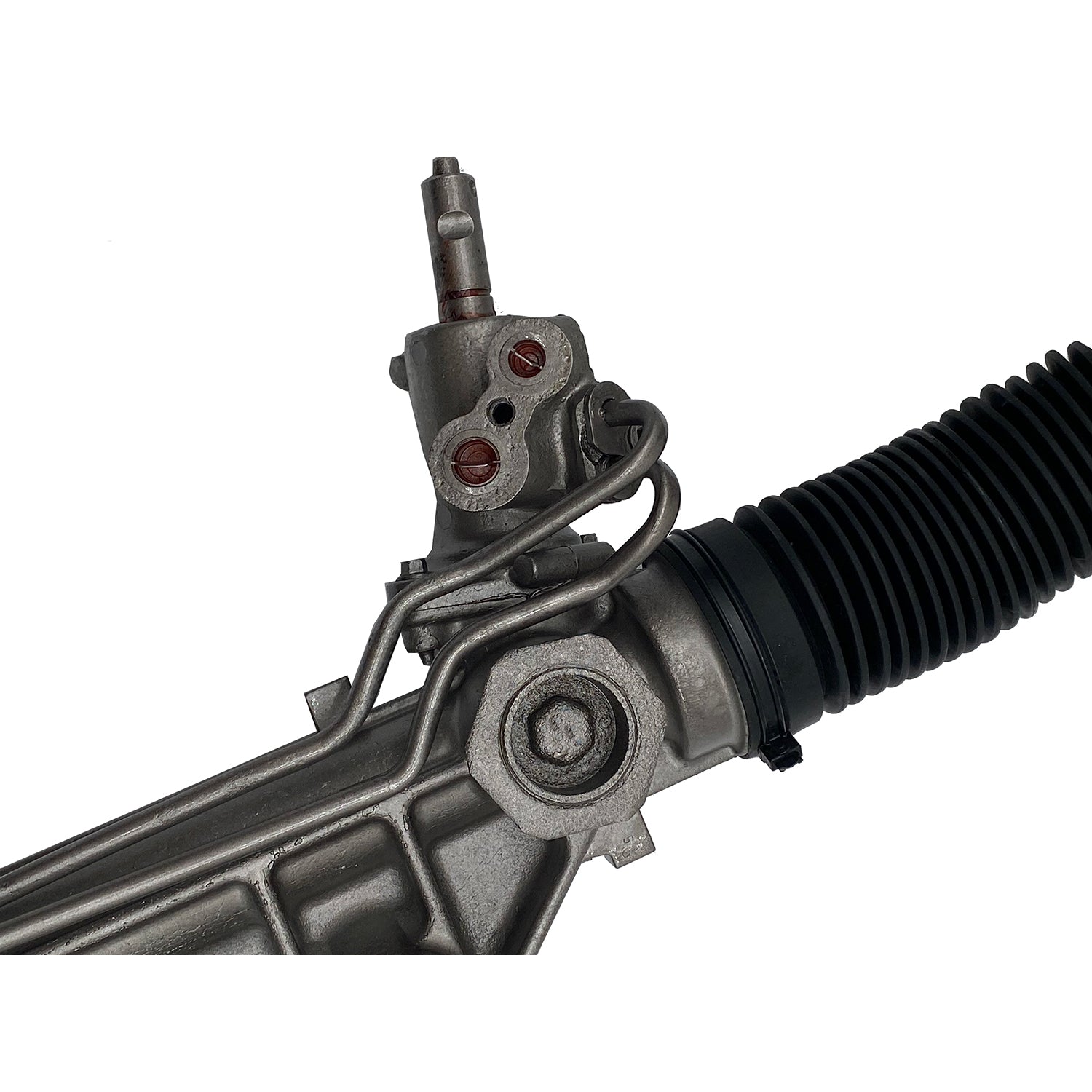

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95482M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95482M

SKU:95482M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 16.88 IN
Distance Between Mounting Holes 428.63 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.52 MM
Input Shaft Length 2.13 IN
Input Shaft Length 53.98 MM
Mounting Hole Quantity 2
Rack Length 55.63 IN
Rack Length 1412.88 MM
Return Port ID Size 0.438
Thread Length 3.02 IN
Thread Length 76.58 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.75

Application Info: Ford F-150 (2010) ***W/Crew Cab Or Super Cab (145", 157" OR 163" Wheelbase)***

Interchange: AL3Z-3504-A, AL3Z-3504-B

BBB Cross-Reference: 101-0236

Cardone Cross-Reference: 22-2039
