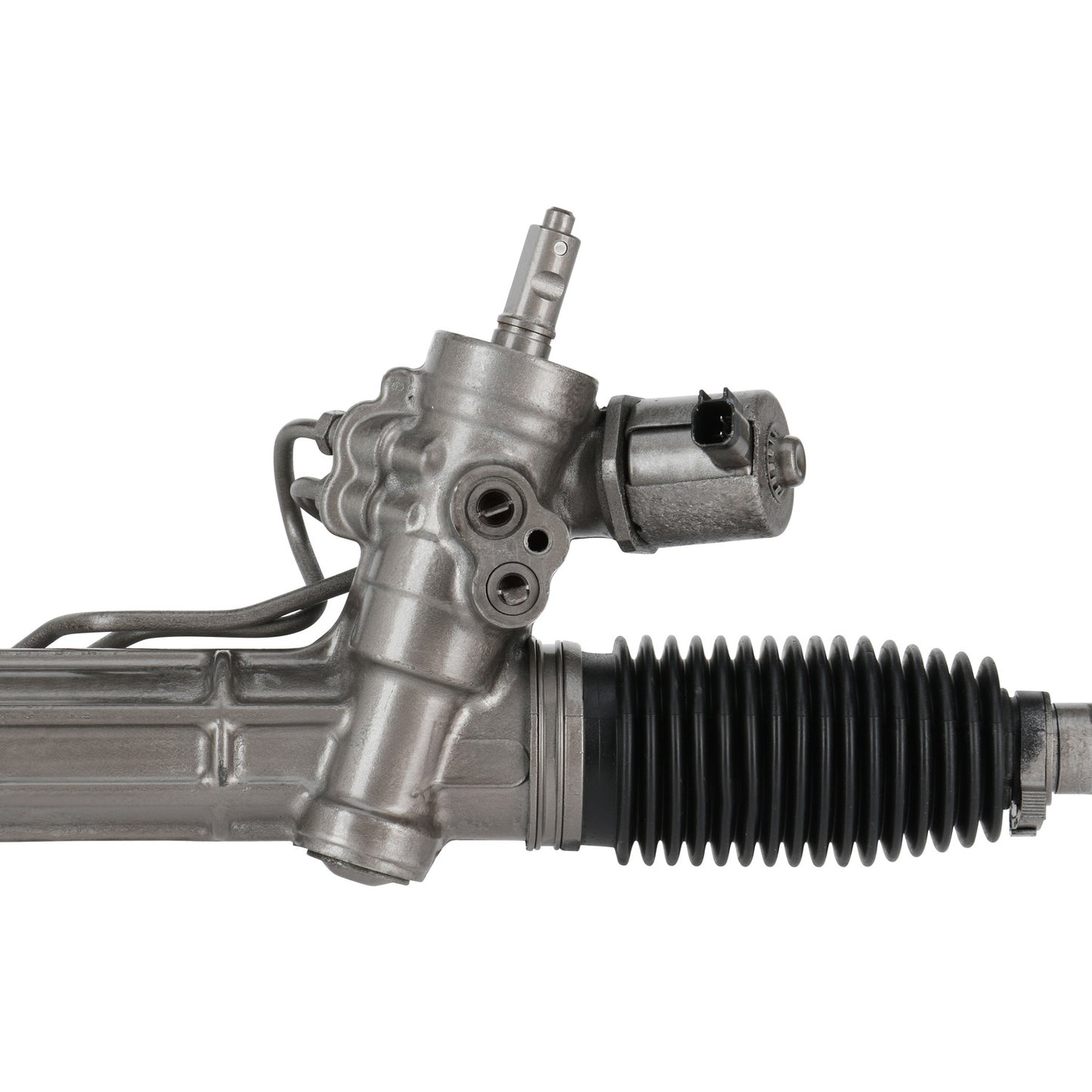

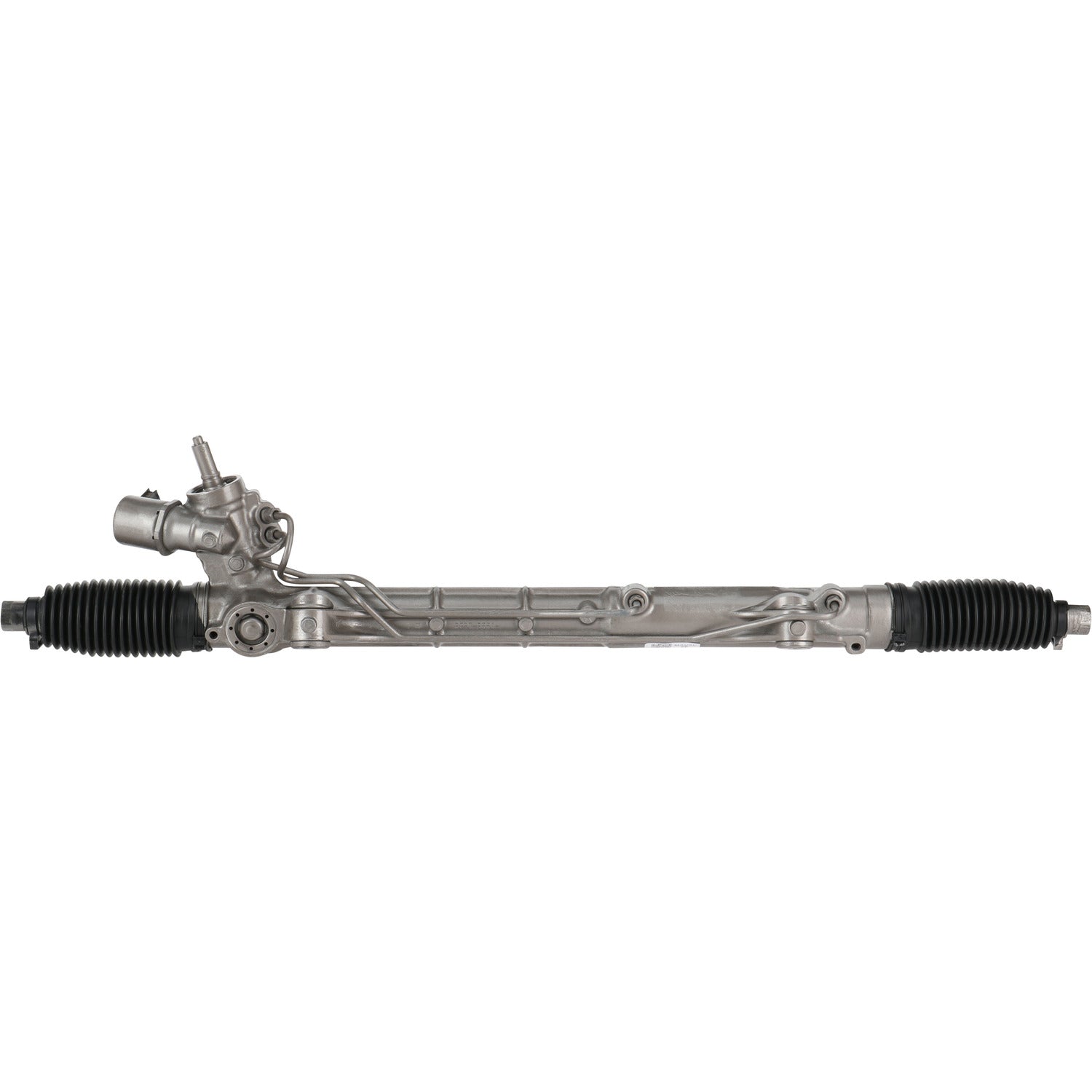

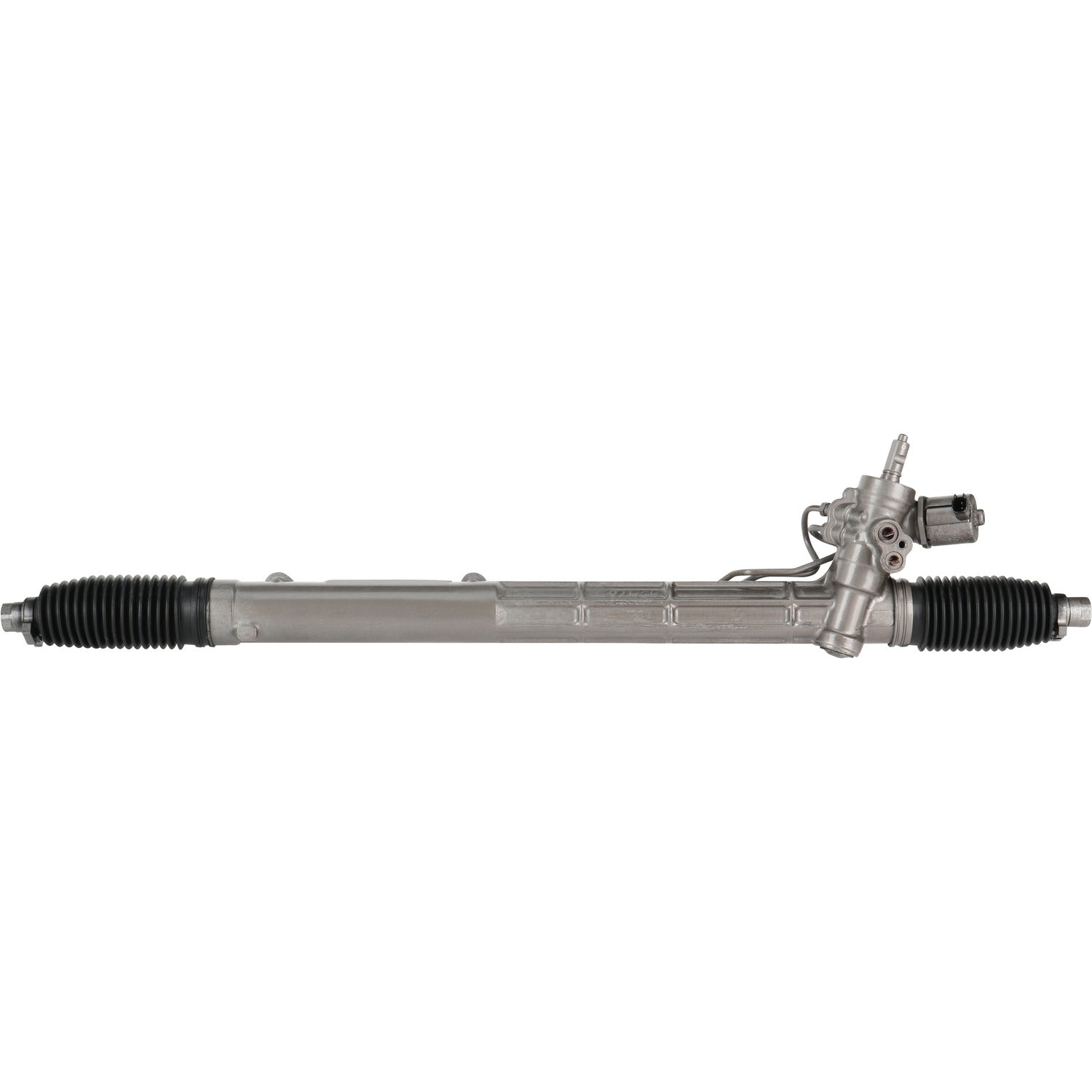

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95478M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95478M

SKU:95478M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 17.06 IN
Distance Between Mounting Holes 433.4 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.91 IN
Input Shaft Diameter 23.16 MM
Input Shaft Length 1.75 IN
Input Shaft Length 44.45 MM
Mounting Hole Quantity 2
Rack Length 38.5 IN
Rack Length 977.9 MM
Return Port ID Size 0.386
Thread Length 2.1 IN
Thread Length 53.26 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.5

Application Info: Cadillac SRX (2004-09)

Interchange: General Motors - 15257558

BBB Cross-Reference: 103-0230

Cardone Cross-Reference: 22-284E

Instructions - 1               Instructions - 2

Instructions - 3               Instructions - 4
