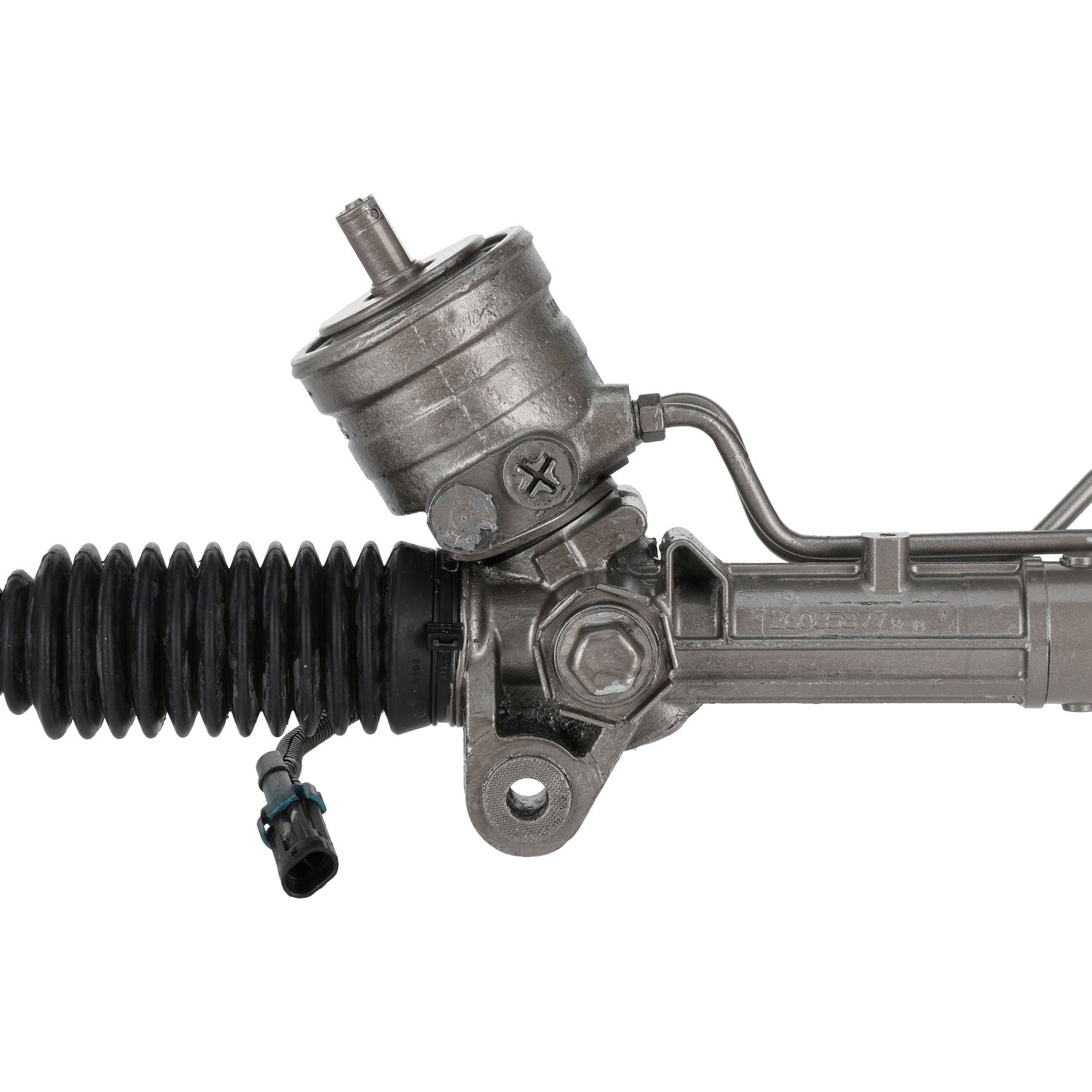

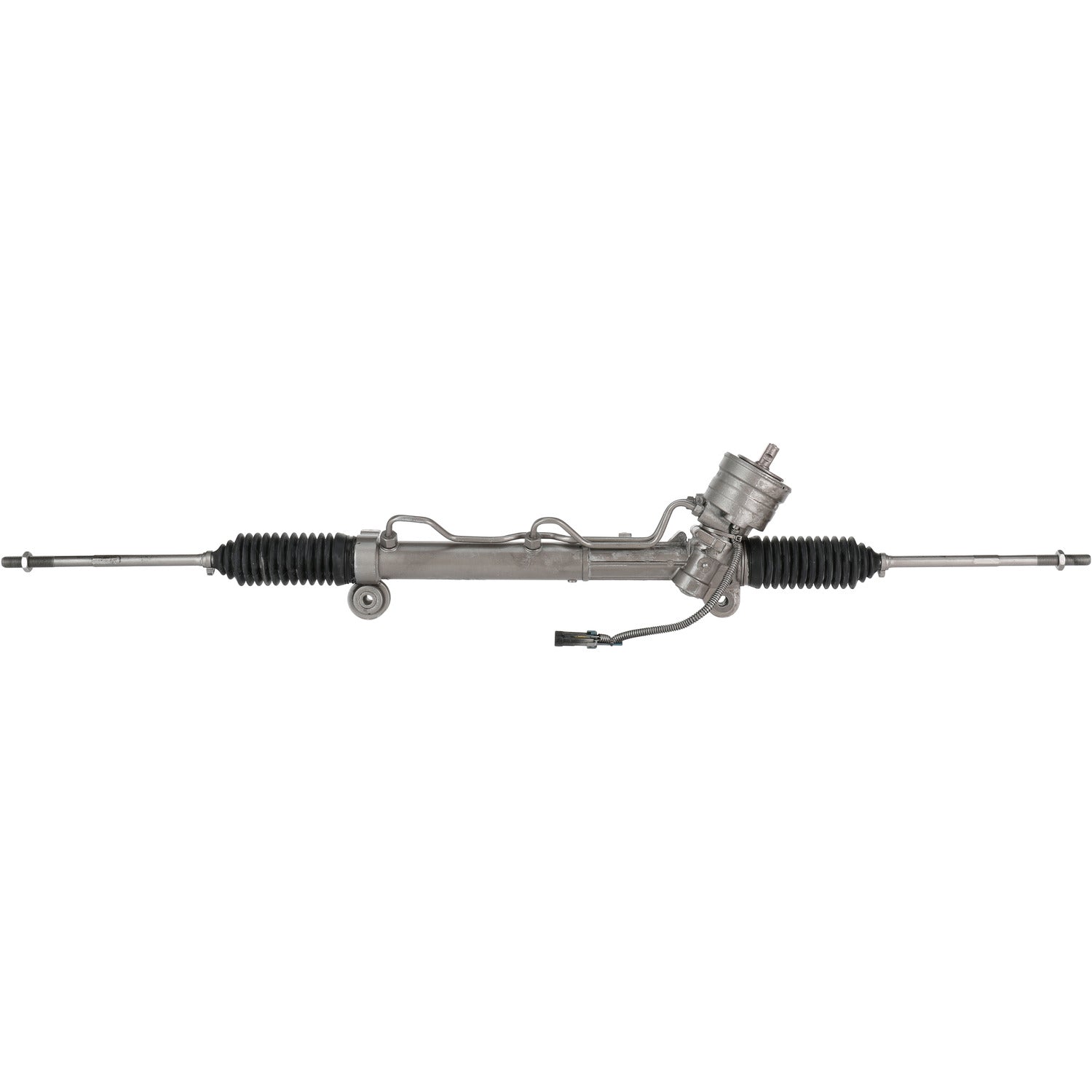

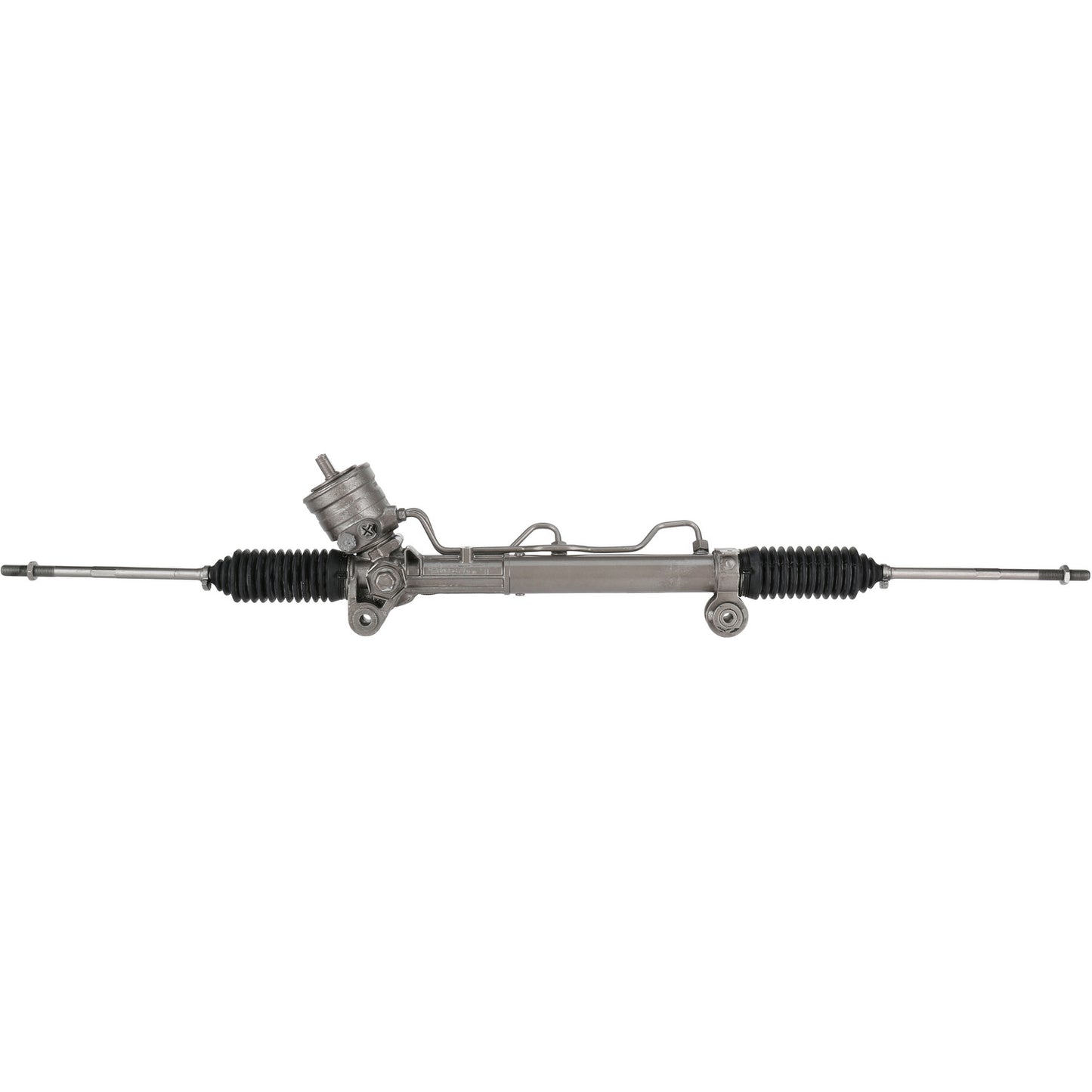

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95472M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95472M


MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 16.75 IN
Distance Between Mounting Holes 425.45 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.66 IN
Input Shaft Diameter 16.76 MM
Input Shaft Length 1.13 IN
Input Shaft Length 28.58 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 50.63 IN
Rack Length 1285.88 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.38 IN
Thread Length 60.33 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.25

Application Info: Buick Lucerne (2006-11); Cadillac DTS (2006-11) ***W/4.6L V8 Engine, W/17" Wheels ***

Interchange: 15221009, 19169238, 19208459

BBB Cross-Reference: 103-0238

Cardone Cross-Reference: 22-1034

Instructions - 1          Instructions - 2
