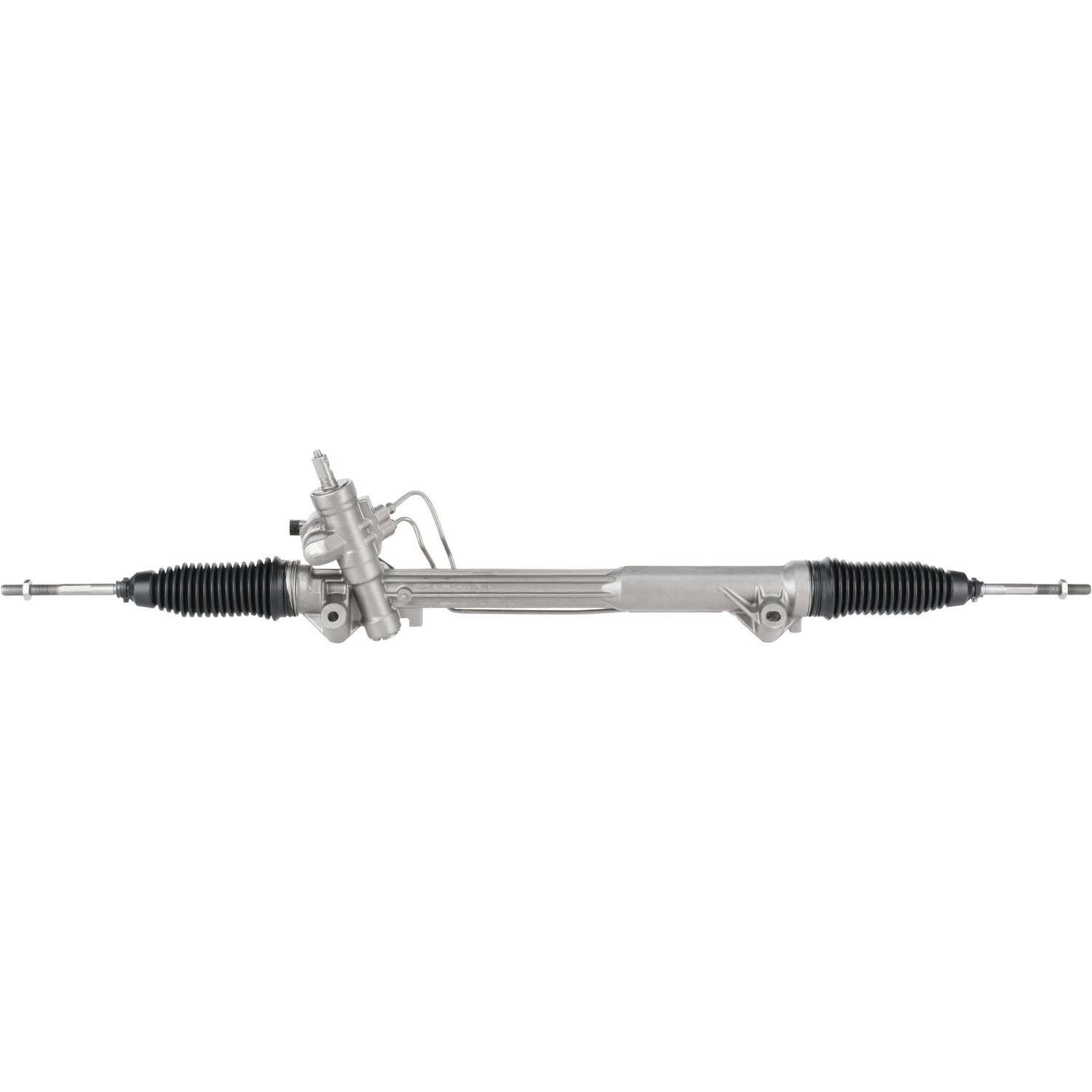

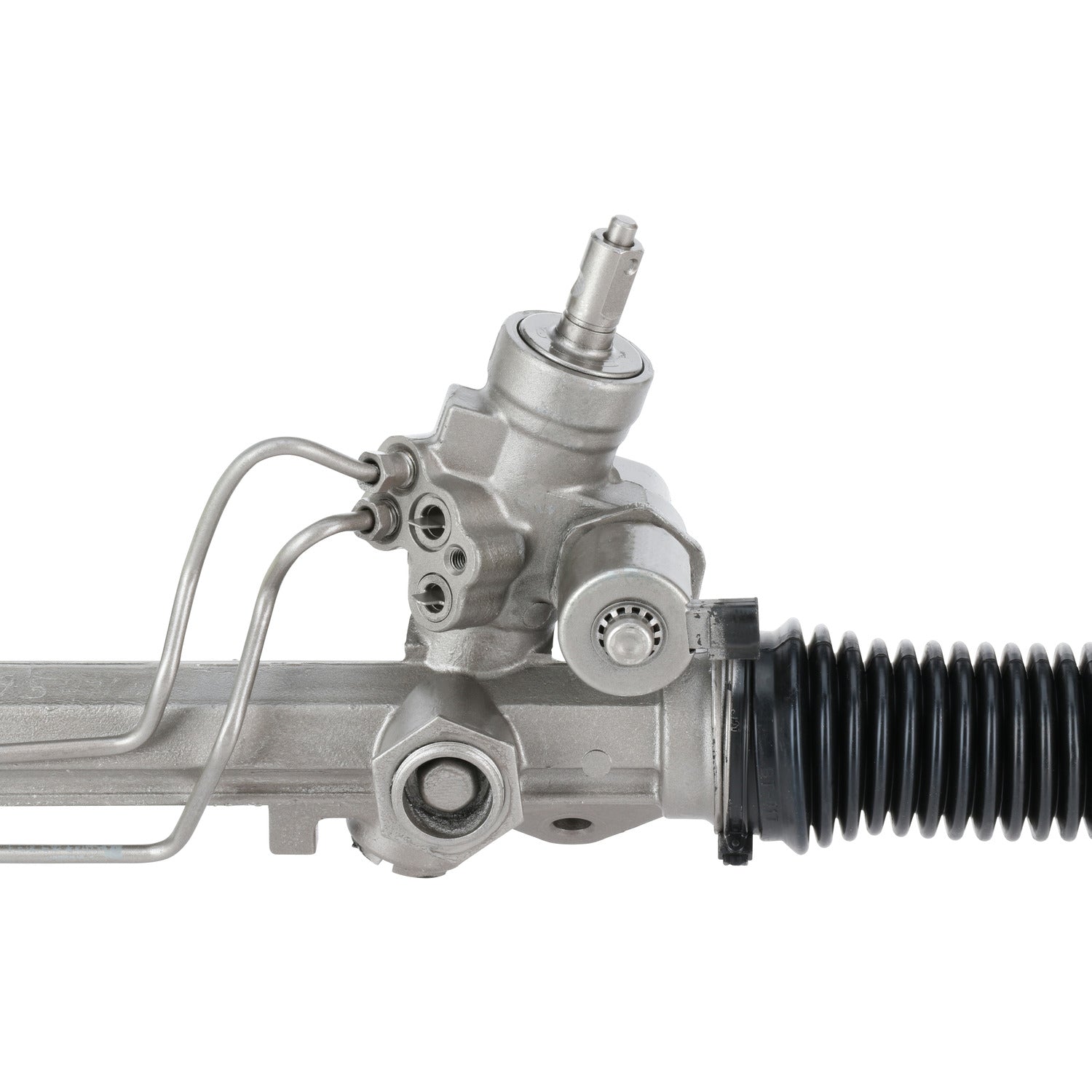

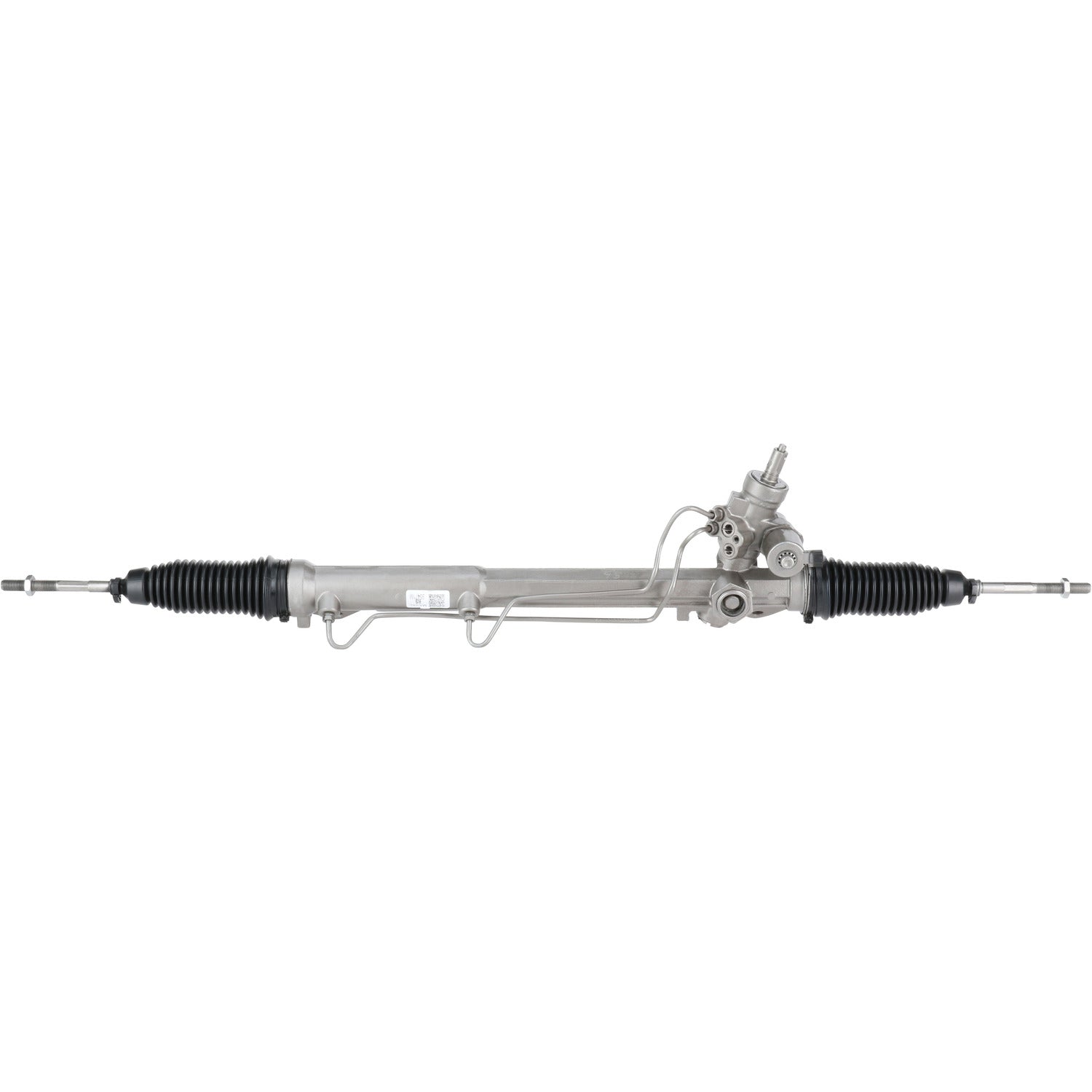

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95471M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95471M

SKU:95471M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 20.13 IN
Distance Between Mounting Holes 511.18 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Input Shaft Length 1.5 IN
Input Shaft Length 38.1 MM
Mounting Hole Quantity 2
Port ID Size 0.24
Rack Length 50.13 IN
Rack Length 1273.18 MM
Return Port ID Size 0.24
Thread Length 2.5 IN
Thread Length 63.5 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3

Application Info: Lincoln Town Car (2003-07) ***W/O Limo Package, W/EVO Component***

Interchange: 3W1Z3280BA, 3W1Z3504EARM, 5W1Z3504A, 6W1Z3504A, 7W1Z3504A

BBB Cross-Reference: 101-0190P

Cardone Cross-Reference: 22-278E
