MAVAL

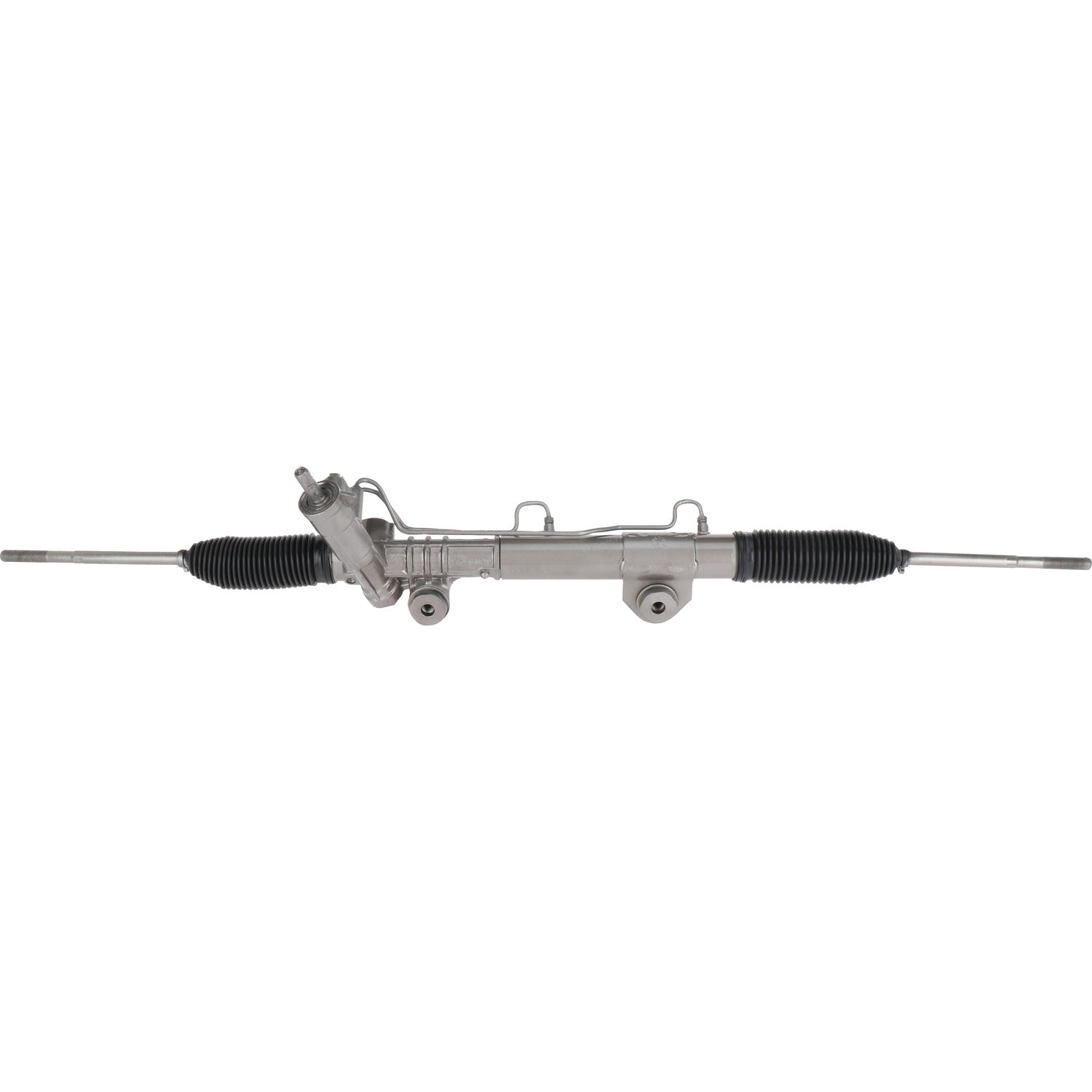

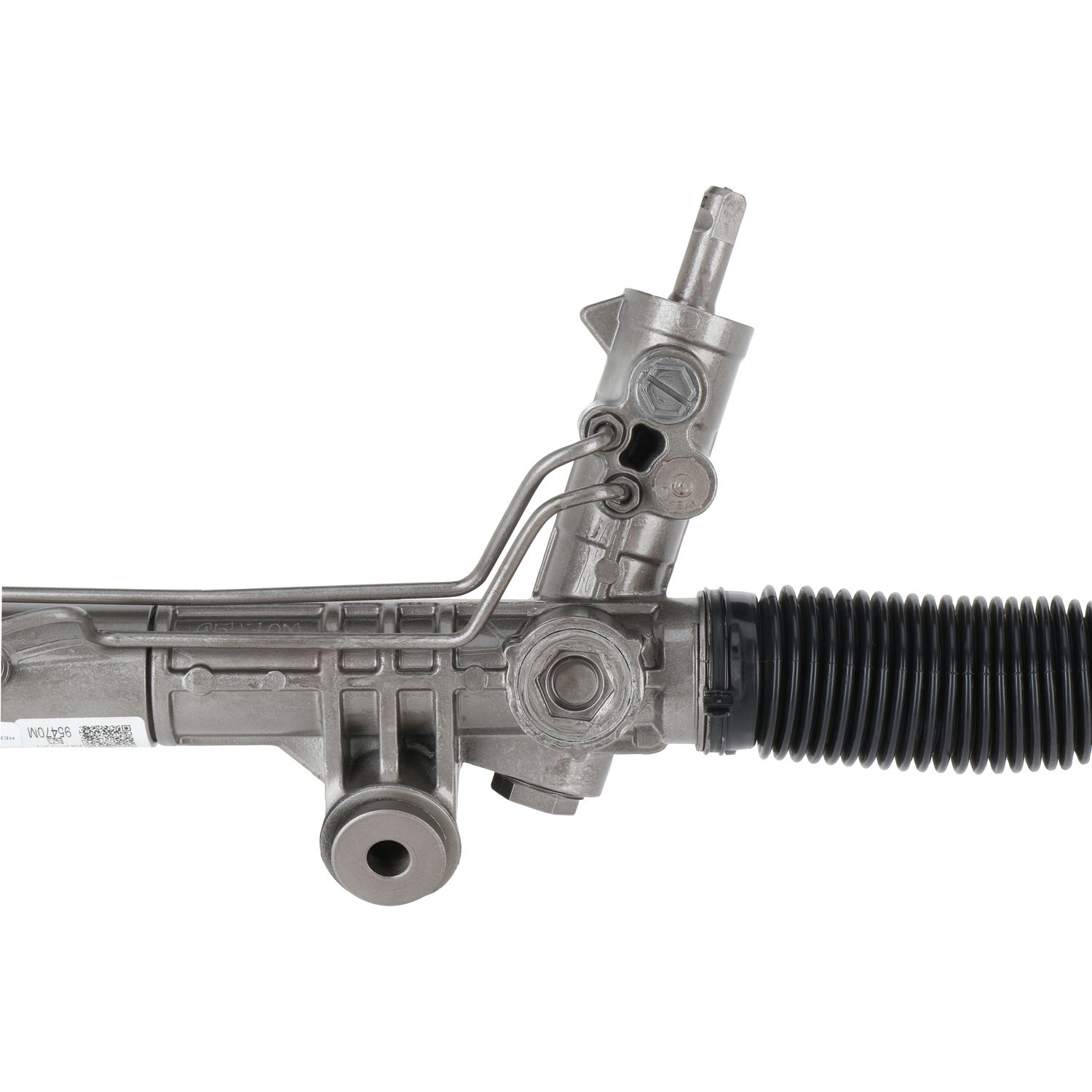

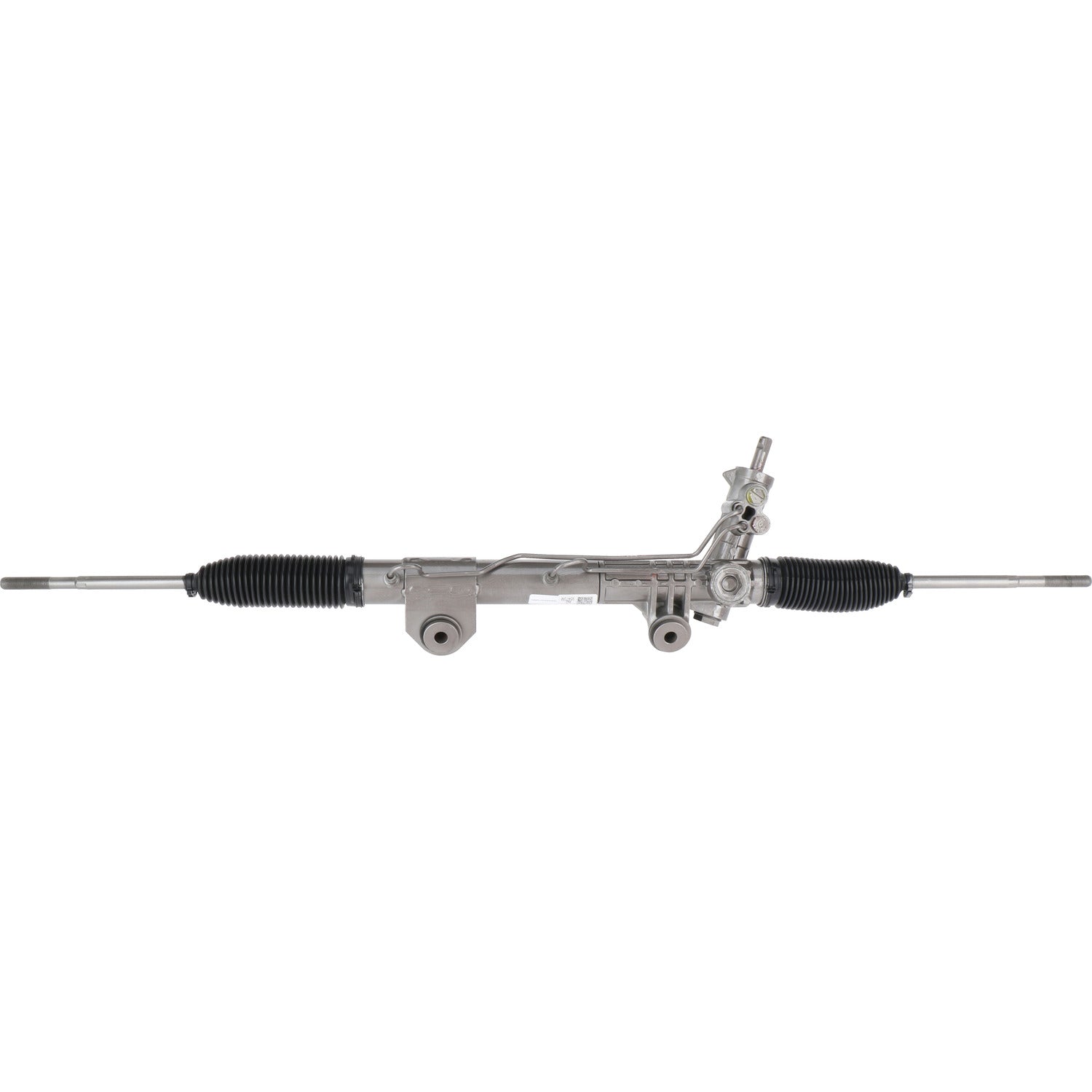

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95470M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95470M

SKU:95470M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 11.57 IN
Distance Between Mounting Holes 294 MM
Hose Port Type O-Ring/O-Ring
Input Shaft Diameter 0.71 IN
Input Shaft Diameter 18 MM
Input Shaft Length 1.89 IN
Input Shaft Length 48 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 56.65 IN
Rack Length 1439 MM
Return Port Thread Size M20 x 1.5
Thread Length 2.56 IN
Thread Length 65 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.33



Application Info: Dodge Ram 1500 (2006-10); Ram 1500 (2011-12)

Interchange: 55366385AD, 55366385AE, 55366385AF, 55398506AC, 55398506AD, 55398506AE, 55398506AF, 55398506AG, 55398506AH

BBB Cross-Reference: 102-0209

Cardone Cross-Reference: 22-382

Instructions - 1          Instructions - 2
