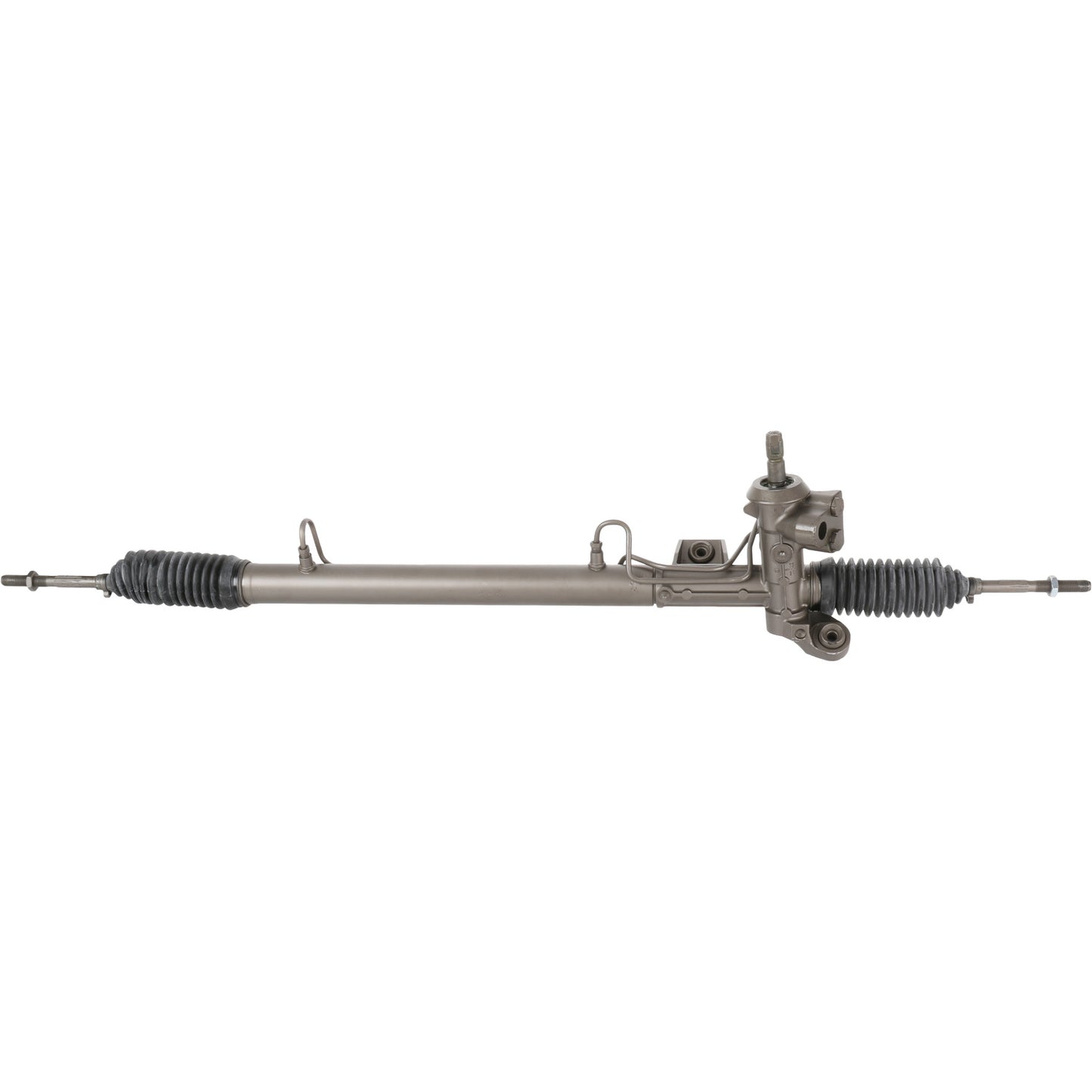

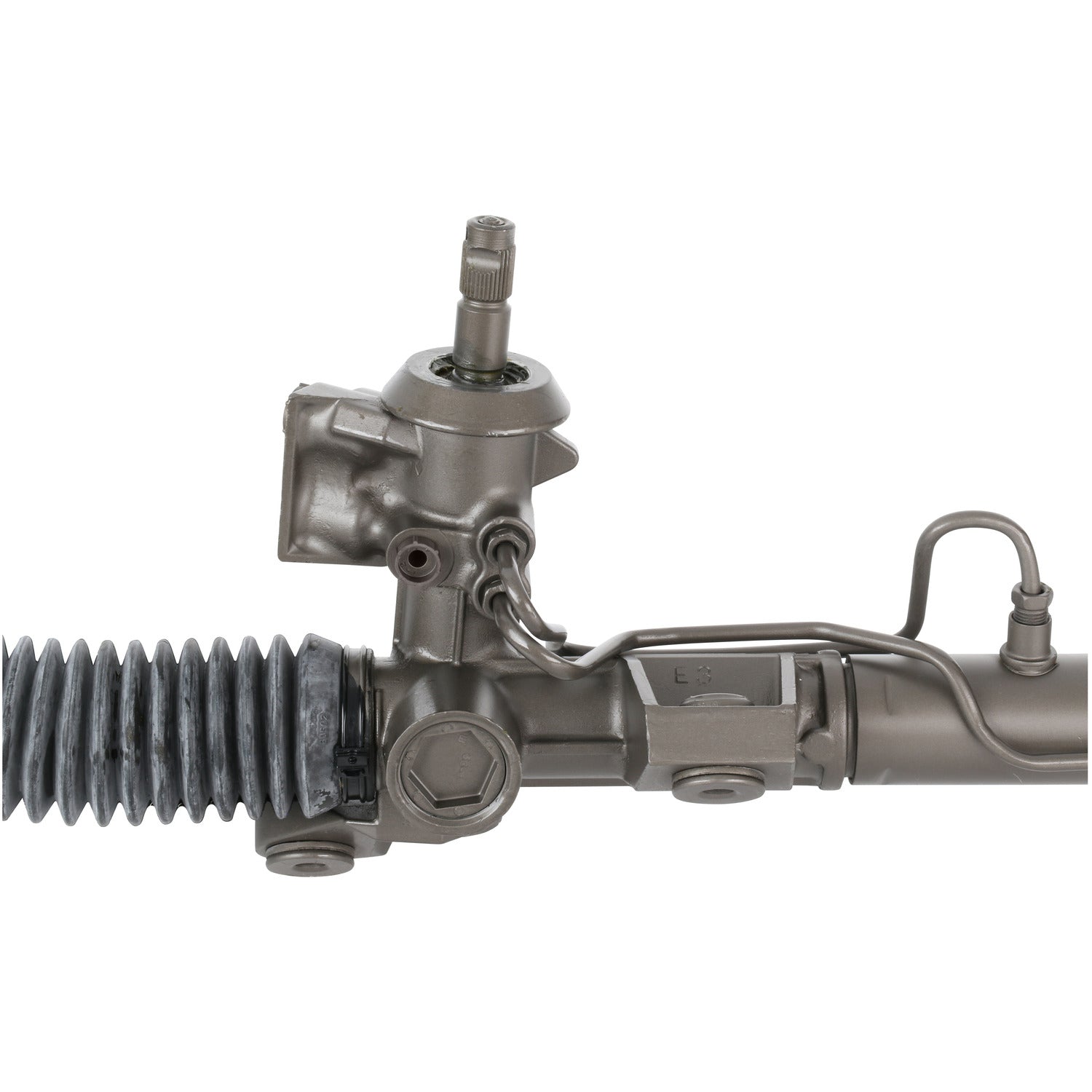

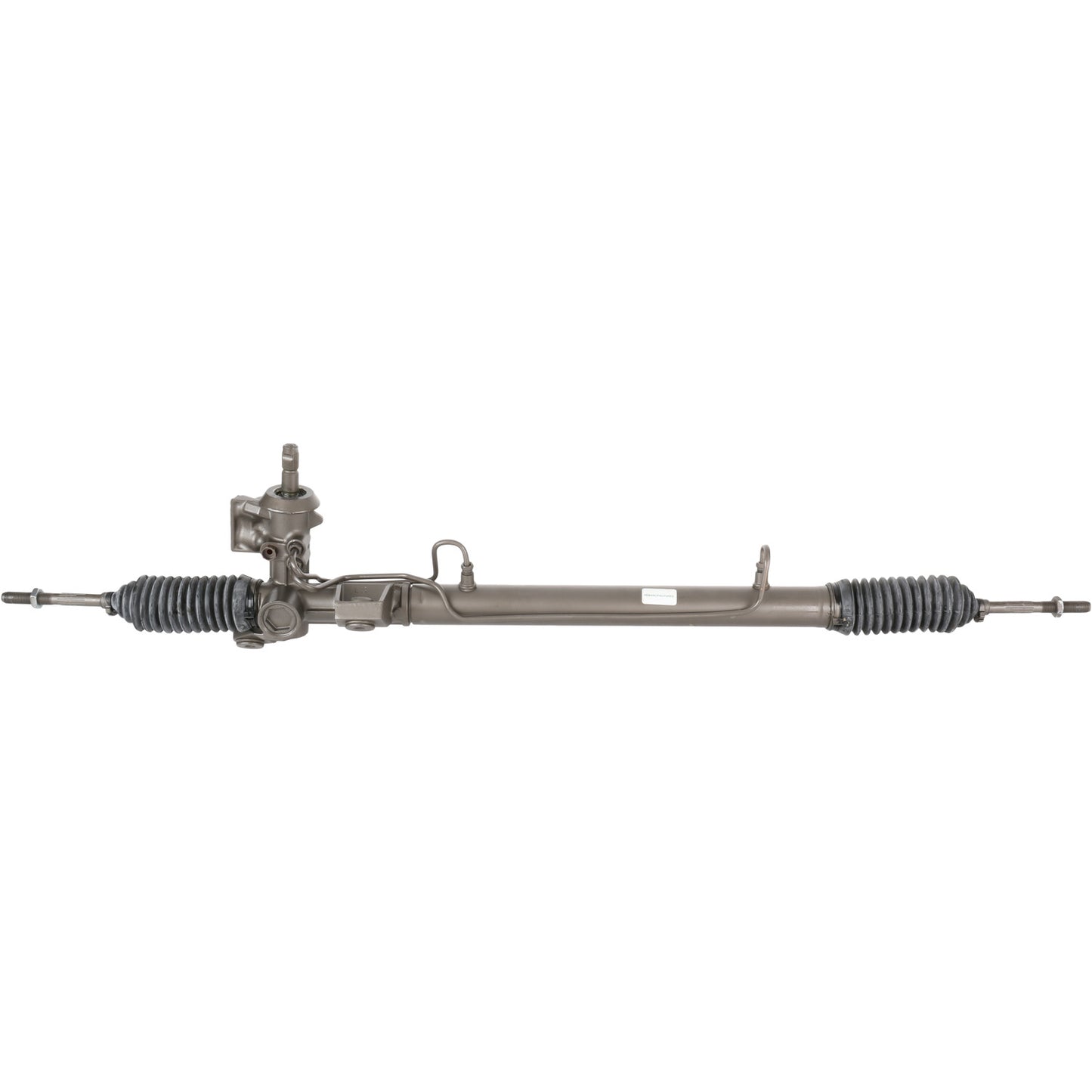

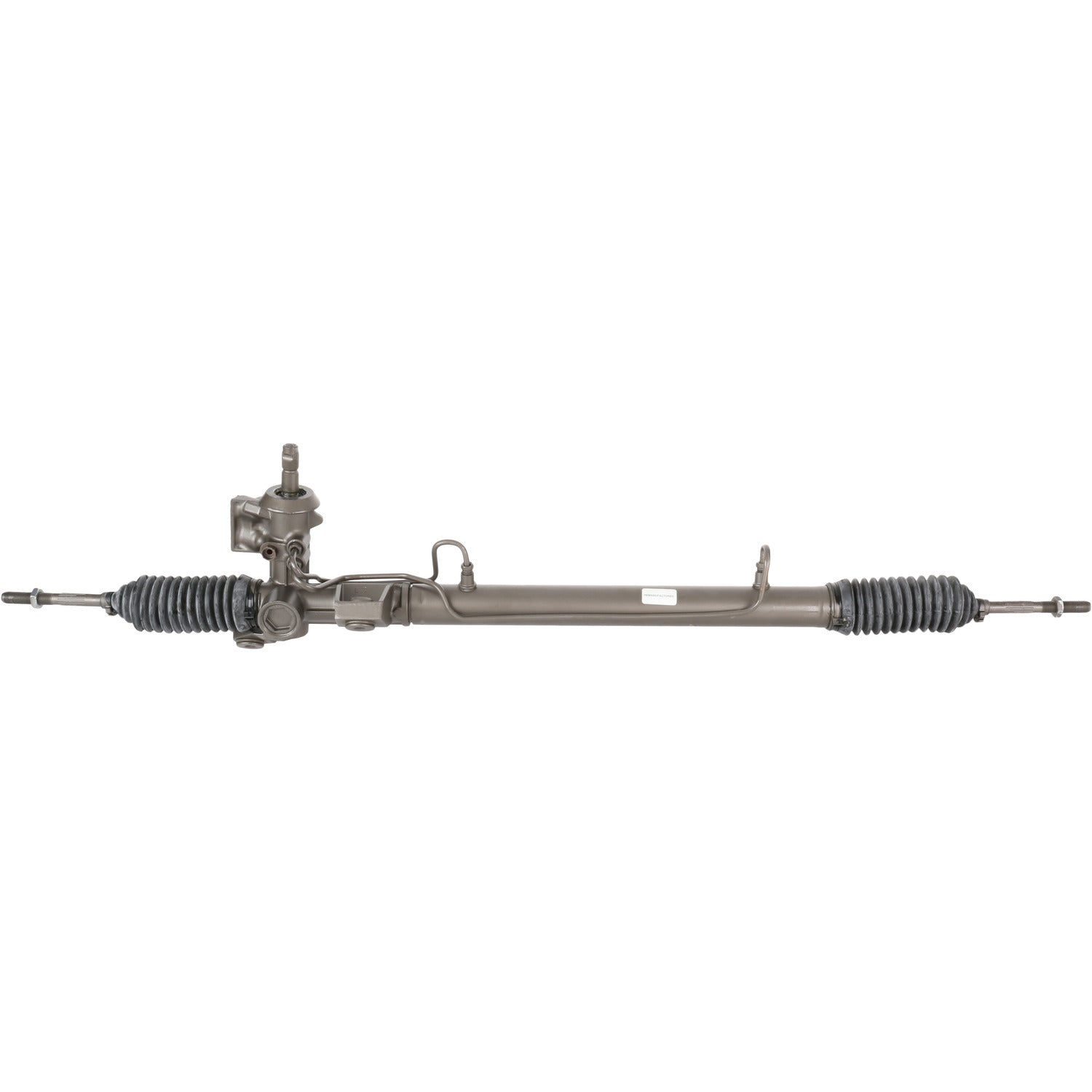

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95469M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 95469M
SKU:95469M
MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Steel; Aluminum | |
| Distance Between Mounting Holes | 6.75 | IN |
| Distance Between Mounting Holes | 171.45 | MM |
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.75 | IN |
| Input Shaft Diameter | 19.05 | MM |
| Input Shaft Length | 2.13 | IN |
| Input Shaft Length | 53.98 | MM |
| Mounting Hole Quantity | 2 | |
| Pressure Port Thread Size | M18 x 1.5 | |
| Rack Length | 48 | IN |
| Rack Length | 1219.2 | MM |
| Return Port Thread Size | M16 x 1.5 | |
| Thread Length | 2.25 | IN |
| Thread Length | 57.15 | MM |
| Inner Tie Rods Included | Yes | |
| Total Turns Lock To Lock | 3.13 |
Application Info: Dodge Stratus 2001-2003 - Sedan w/Firm Feel St
Interchange: Chrysler - 4764995AE
BBB Cross-Reference: 102-0177
Cardone Cross-Reference: 22-352
